THE SHOWER LAB VIEW 19F User manual

04/2021 V 1.0
VIEW 19F Illustration - View 19F
SB1 Stay Bar

04/2021 V 1.0
VIEW 19F
IMPORTANT
•This shower screen / enclosure must be installed by suitably qualified individuals. We
recommend a minimum of two people for safe assembly of certain sections of this screen.
•Ensure all appropriate safety equipment, especially protective footwear, safety glasses
and gloves are used.
•When drilling holes in ceramic tiles, use masking tape to prevent the drill from slipping:
DO NOT use hammer action as this will crack the tiles. Use a high quality drill bit to ensure
a clean, precise hole.
Tighten hinges and brackets to the recommended 15.6N.
•
•
Please leave these instructions with the customer following installation.
PRIOR TO INSTALLATION
•Before disposing of the packaging and prior to commencing assembly, please check all
the components to ensure that they have been supplied correctly and are undamaged.
Subsequent claims for missing or damaged pieces will not be accepted once the
packaging has been disposed of and installation commenced.
•In the event of any queries please contact your supplier quoting the relevant model
information.
•The Tray / Tiled floor on which this screen is to be installed must be level on all sides.
•It may be necessary to use alternate fixings to those supplied, depending on the properties
of the walls to be fixed to.
•Use the protective corners supplied at all times until the glass is moved to its final position.
•Ensure that the glass is installed correctly, taking care to avoid installing the glass upside
down. On certain panels an easy clean coating is applied to one side only, this is clearly
marked with a sticker on the non-coated side. The coated surface is to be fitted inwards
towards the inside (wet side) of the screen.
•Ensure that all surfaces to be sealed are clean and dry prior to applying the silicone
sealant. Use a high grade fungal resistant sealant.
•Allow a minimum of 24 hours after application of the silicone sealant prior to using the
screen.
TOOLS & MATERIALS REQUIRED
Junior Hacksaw
Straight Edge (Steel
Rule)
Fine Tooth File
Set or Roofing
Square
Masking Tape
Modelling Knife
Spirit Level
Pencil
Silicone Gun
Power Drill
Ø6mm Masonry Drill Bit
2x Suction Glass Lifters
High Quality Silicone Sealant
Tape Measure
Pozi-drive
Screwdrivers, PZ1&2
Safety Glasses and
Gloves
CARE AND MAINTENANCE
(please ensure that these instructions are left with the installed unit)
•We recommend routine cleaning of your screen / enclosure with hot water using a soft
cloth, then drying with a dry soft cloth or chamois leather.
Ritec Aftercare for Shower Glass is recomended for best results.
•All glass has been treated with EASY CLEAN glass finish and care must be taken to avoid
any abrasive cleaning products that may damage the special surface protection.
•DO NOT use acidic based de-scaler products or products containing bleaches or solvents.
Digital Torque Wrench

04/2021 V 1.0
VIEW 19F
Glass Panel
x1
Nylon Block
x1

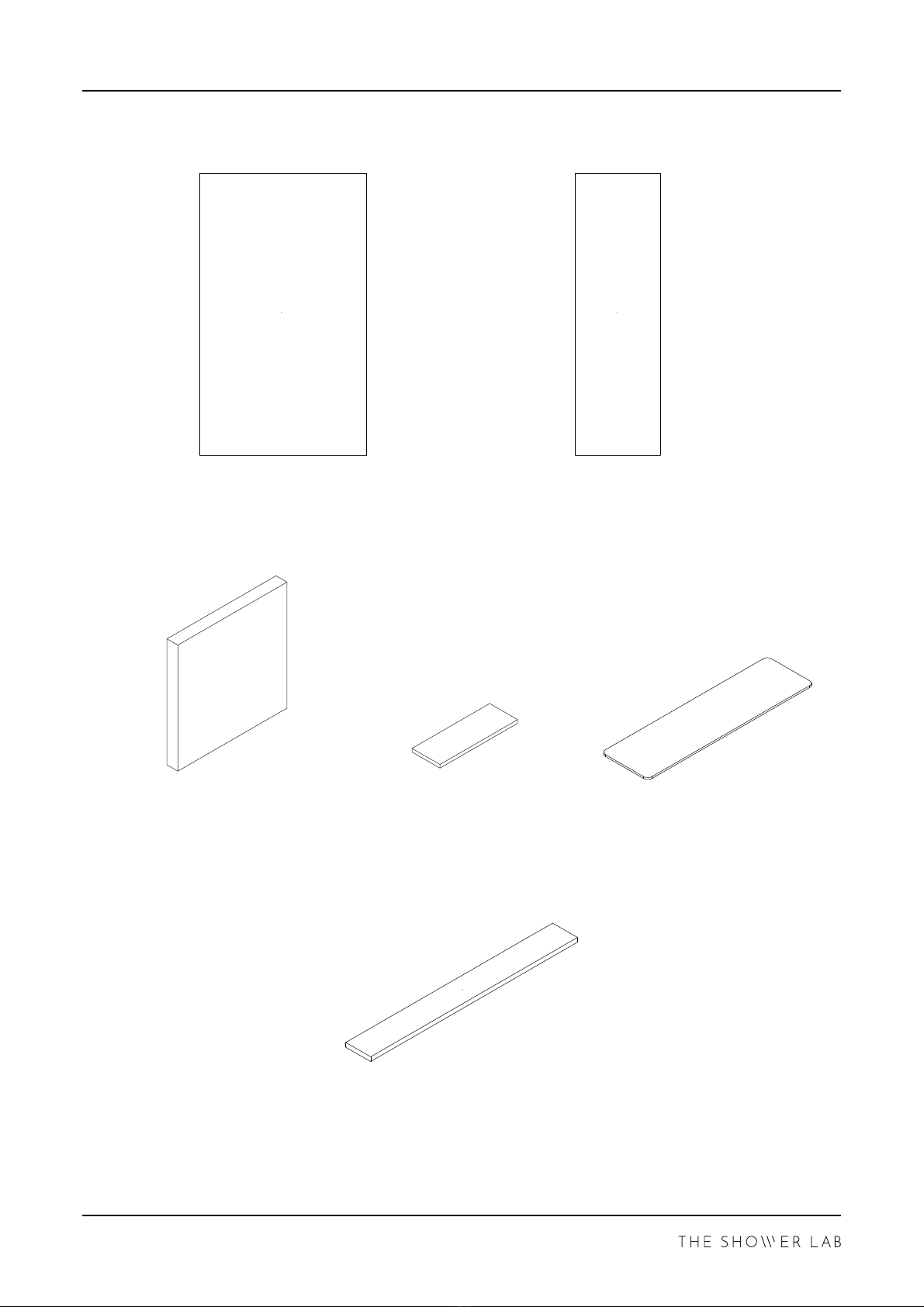

Supplied Parts
Return Panel
x1
Spacers Packers
Glass to Glass Adhesive Gasket
x1

04/2021 V 1.0
VIEW 19F
Underframe Wedge Gasket
x2
Underframe
x2
Underframe Gasket
x2
Wall Prole
x1
Wall Prole Soft Seal
x1
Wall Prole Rigid Seal
x1
Supplied Parts
Underframe End Cap
x1
Wall Prole End Cap
x1
Underframe 90°Connector
x1

04/2021 V 1.0
VIEW 19F
These instructions are for the View 19F. An SB1 Stay Bar is used for this illustration.
The following instructions are valid for both the 20mm and 30mm proles. The 30mm prole is
used in the following instructions.

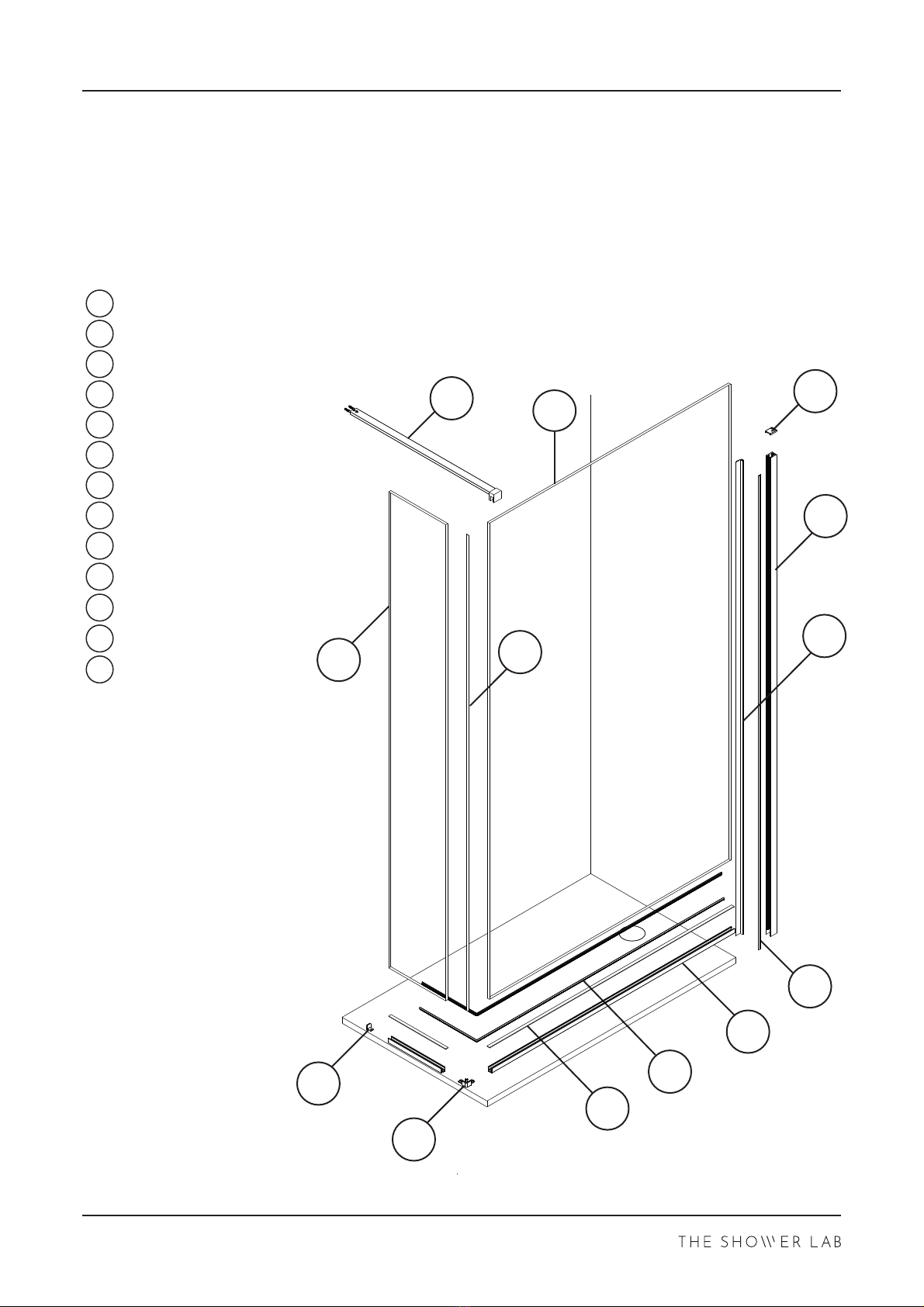

Please use the below diagram to reference the list of parts.
A
B
I
C
H
D
F
E
G
Inline Panel
Return Panel
Wall Prole
Wall Prole Rigid Seal
Wall Prole Soft Seal
Underframe
Underframe Connector
Underframe Wedge Gasket
JUnderframe Gasket
Wall Prole End Cap
KUnderframe End Cap
LGlass Adhesive Tape
MStaybar (SB1 Shown)
A
B
D
C
G
I
J
H
E
K
M
LF

04/2021 V 1.0
VIEW 19F
01/14

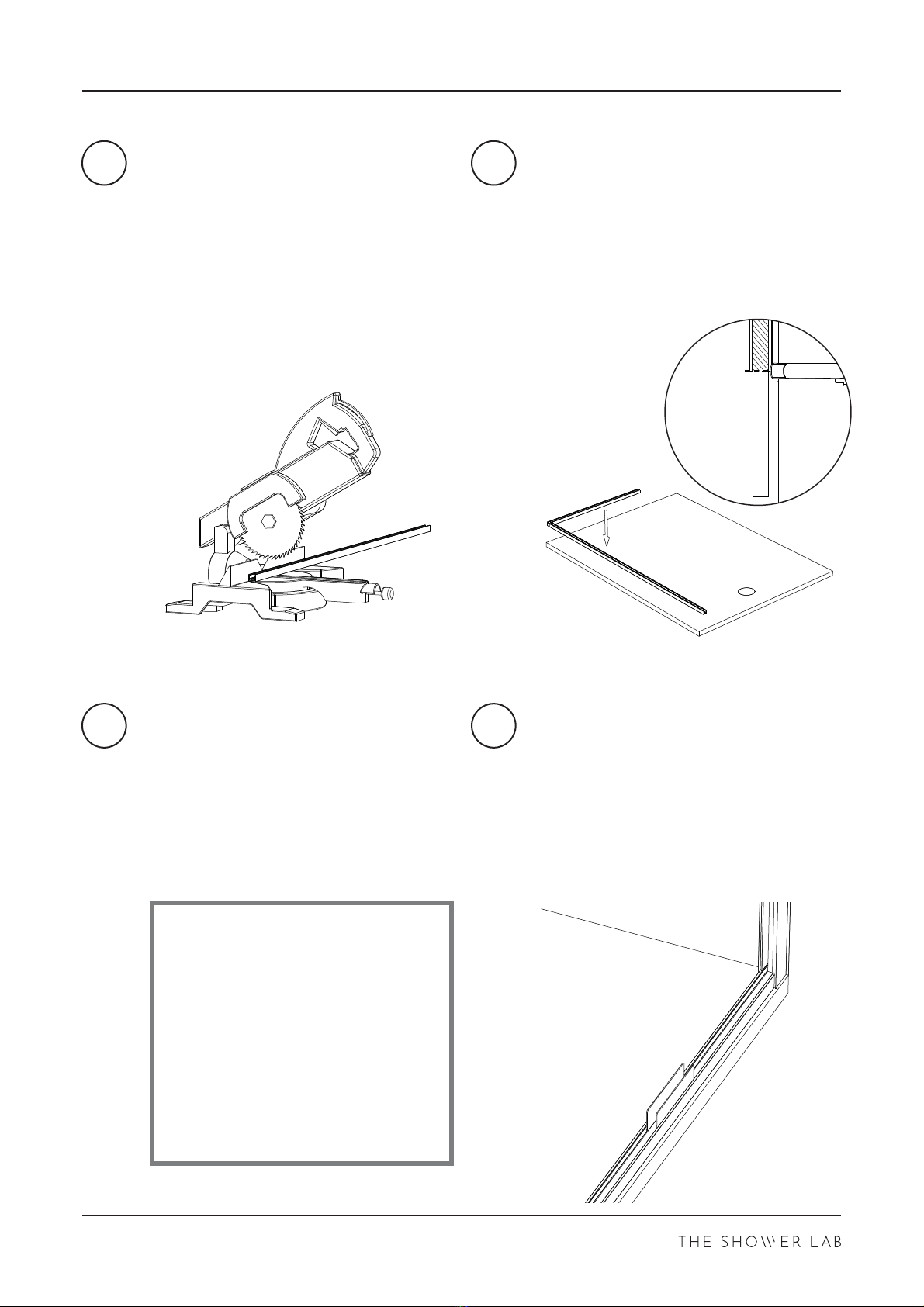

Posion the Underframe parallel to
tray edge. If using a raised shower tray,
leave a minimum 3mm gap from the
edge of the tray (5mm is
recommended).
Use tape to mark this dimension.
Repeat for the Return Underframe
Profile.
Measure the distance from the tape
edge to the ling and take note of this
distance.
F =
Check the dimensions are within the
allowed adjustments by referencing the
aached adjustment sheet.
Subtract 22mm from the Front
Underframe dimension. This is the
profile width. Mark this measurement
on the Front Underframe.
Cut squarely using a chop saw.
Use a fine toothed file to remove any
burrs, be careful not to damage the
surface finish.
3mm minimum
Shower Tray
x - 22mm
F
01 02
03 04

04/2021 V 1.0
VIEW 19F
02/14
Connect the Underframe Profiles
together using the Underframe 90°
Connector and supplied screws.
Temporarily fix the Underframe into
the correct posion using double sided
tape. Push firmly into posion and
ensure that the Underframe is firmly
against the wall where the channel will
be fixed to.
DO NOT use the exisng tape. This tape
is for final posioning of Underframe.
Place the Underframe Gaskets where
the glass will sit into the Underframe
and bu up against the wall.
Place the Wall Profile over the
Underframe and up against the wall.
05 06
07 08

04/2021 V 1.0
VIEW 19F
03/14

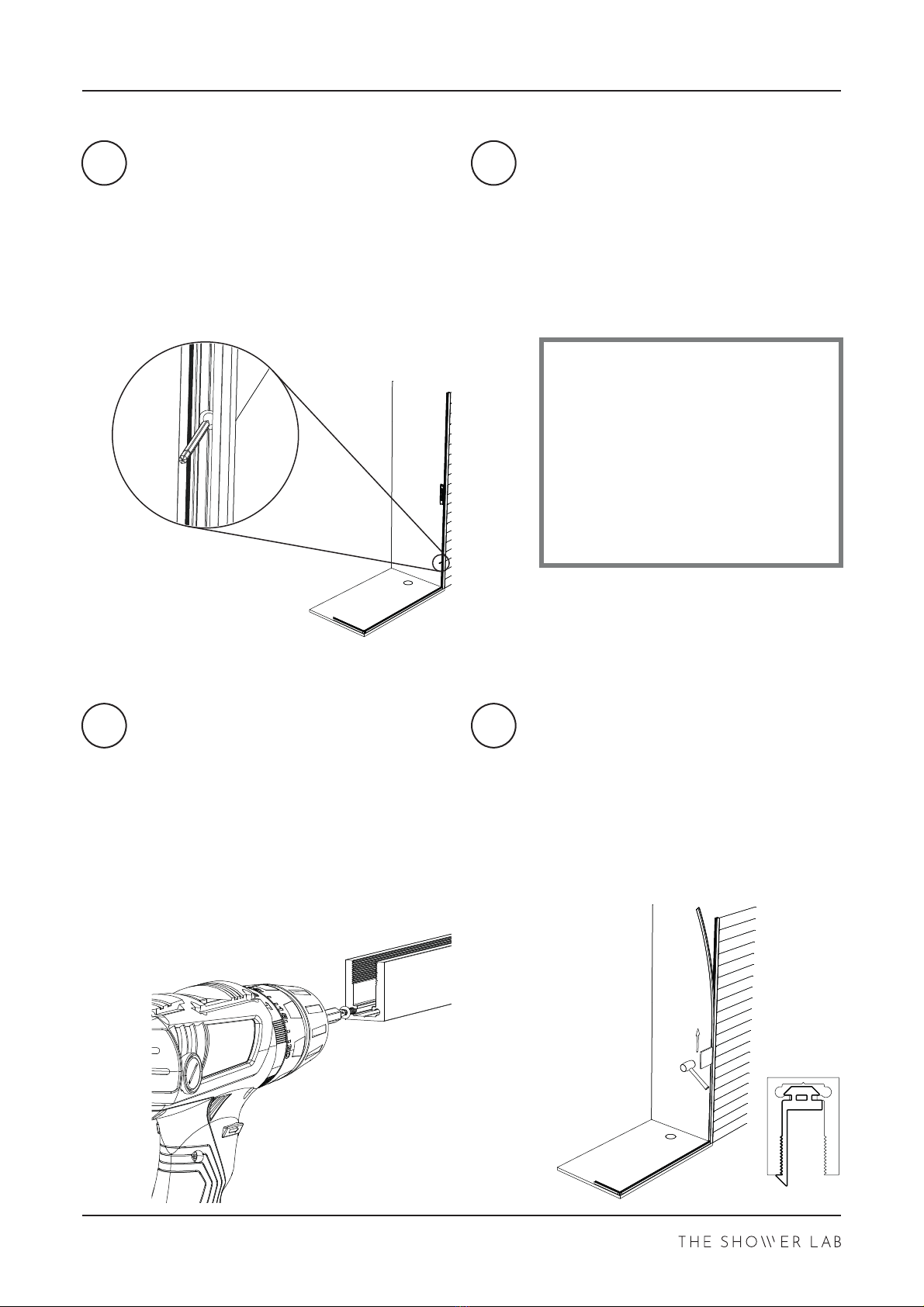

Ensure the Wall Profile is vercal by
using a spirit level. Mark the posions
of the pre-drilled holes.
Remove the Wall Profile and drill holes
with a 6mm high quality drill bit for a
clean and precise hole.
Fully insert the wall plugs.
Pre drill the screws in to the Wall
Profile to create the thread to ease
later steps.
Remove screws aer drilling.
Fix the Wall Profile in place.
Take the Wall Profile So Seal and push
the seal into place on the Wall Profile
to cover the screws.
Ensure the fin is on the inside (wet
side).
Use the Nylon Block to help.
Wet Side
Professional Tip
If drilling ceramic tiles, place
masking tape on the tiles before
marking and drill through the
tape to prevent the drill bit from
skidding.
DO NOT use Hammer Action as
this will break the tiles.
09 10
11 12

04/2021 V 1.0
VIEW 19F
4mm
6mm min
Wall ProleGlass Panel
04/14

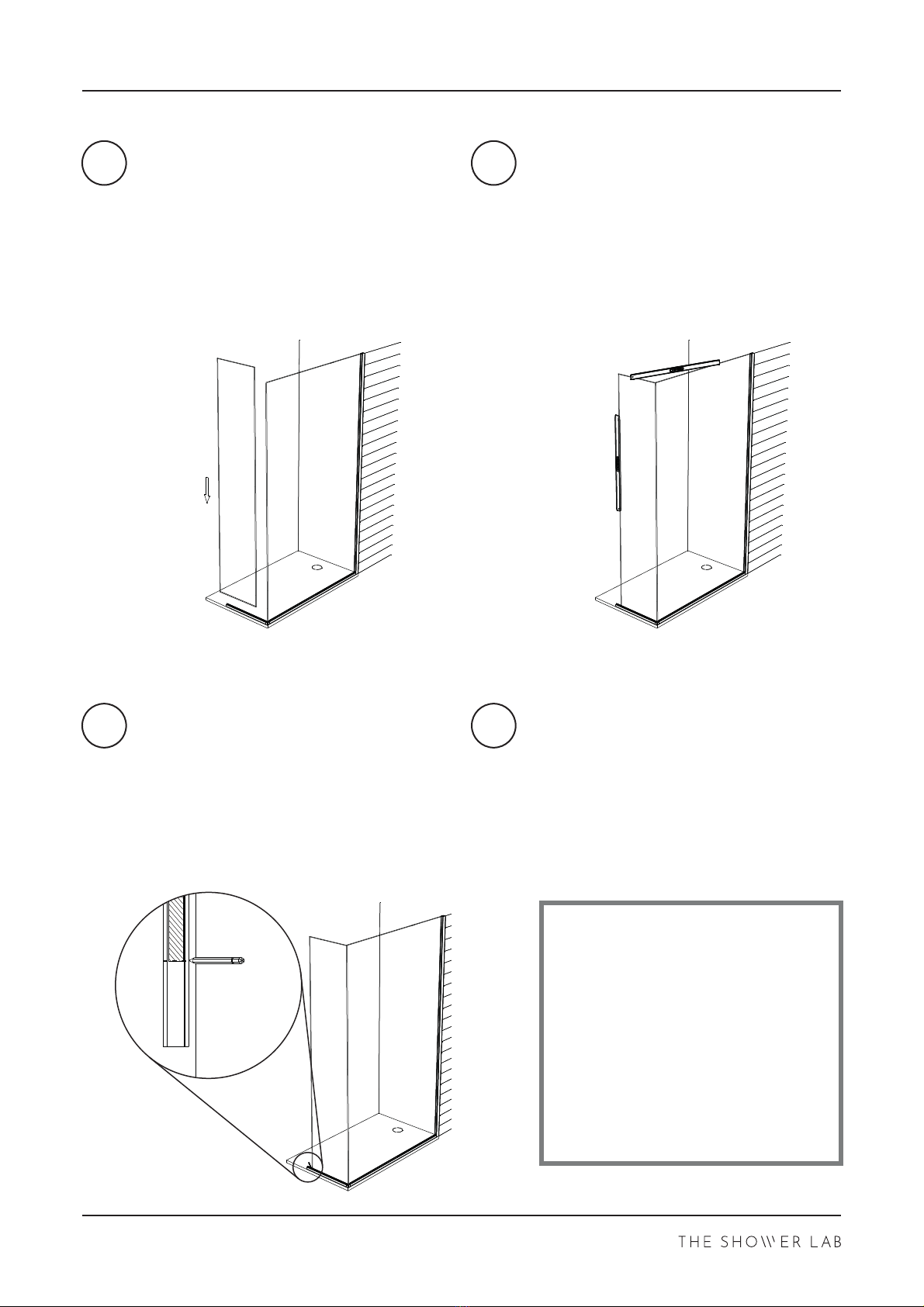

Using purpose built "Glass Liers",
posion and sit the Inline Glass Panel
on to the Underframe Gasket and push
against the Wall Profile.
Note the orientaon and posion of
the Panel, this can be determined by
any holes or aached labels.
Remove and replace the Panel adding
or subtracng spacers as necessary to
level the Panel (to a maximum height
of 5mm inside the Underframe).
Check the Panel is level using a Spirit
Level.
Align the Inline Panel so there is a 4mm
gap between the Panel and the front
face of the Return Underframe.
Ensure there is adequate glass in the
Wall Profile. (6mm is recommended)
13 14
15 16

04/2021 V 1.0
VIEW 19F
Glass Return Panel
Glass Inline Panel
Glass to Glass Adhesive Tape
05/14
If the Wall Profile is flush with the Glass
Panel, move on to step 18.
If the Wall Profile is not flush with the
top of the Glass Panel, mark the Wall
Profile. Using a straight edge, mark
where the wall channel needs to be
trimmed.
To protect the channel finish, it is
recommended to mark on masking
tape.
Clean the edges of the Glass Inline
Panel and Return Panel where the
Glass to Glass Adhesive Tape will be
applied.
Before Installing the Glass to Glass
Adhesive Tape, ensure that the Tape is
orientated and posioned correctly on
the Glass Return Panel as shown below.
Posion the Glass to Glass Adhesive
tape on the correct edge of the Return
Panel. Using a cloth or towel, apply the
Tape to the Panel.
Peel back the protecve adhesive strip
while firmly applying the Tape.
Cut excess Tape using a blade.
17 18
19 20

04/2021 V 1.0
VIEW 19F
WARNING
The glass is heavy and may
damage the oor or underframe if
handled incorrectly. It is advisable
to use a suitable non-slip
protective mat or piece of carpet.
Never rest the glass across the
underframe as this may cause
damage.
06/14
Using purpose built "Glass Liers",
posion and sit the Glass Return Panel
on to the Underframe Gasket and push
against the Inline Panel.
Note the orientaon and posion of
the Panel, this can be determined by
any holes or aached labels.
Remove and replace the Panel adding
or subtracng spacers as necessary to
level the Panel (to a maximum height
of 5mm inside the Underframe).
Check the Panel is level using a Spirit
Level. If the difference between the
two Panels is greater than 5mm, it may
be necessary to lower the Return
Panel.
Mark/scribe the Underframe at the top
face of the Glass Panel.
DO NOT trim the Profile at this stage.
Carefully li the Glass Panel out and
put to one side. Remove the Inline
Panel, Wall Profile So Seal, Wall
Profile, Underframe Gasket, and
Underframe Profile and set to one side.
21 22
23 24

04/2021 V 1.0
VIEW 19F
WARNING
The glass is heavy and may
damage the oor or underframe if
handled incorrectly. It is advisable
to use a suitable non-slip
protective mat or piece of carpet.
Never rest the glass across the
underframe as this may cause
damage.
07/14

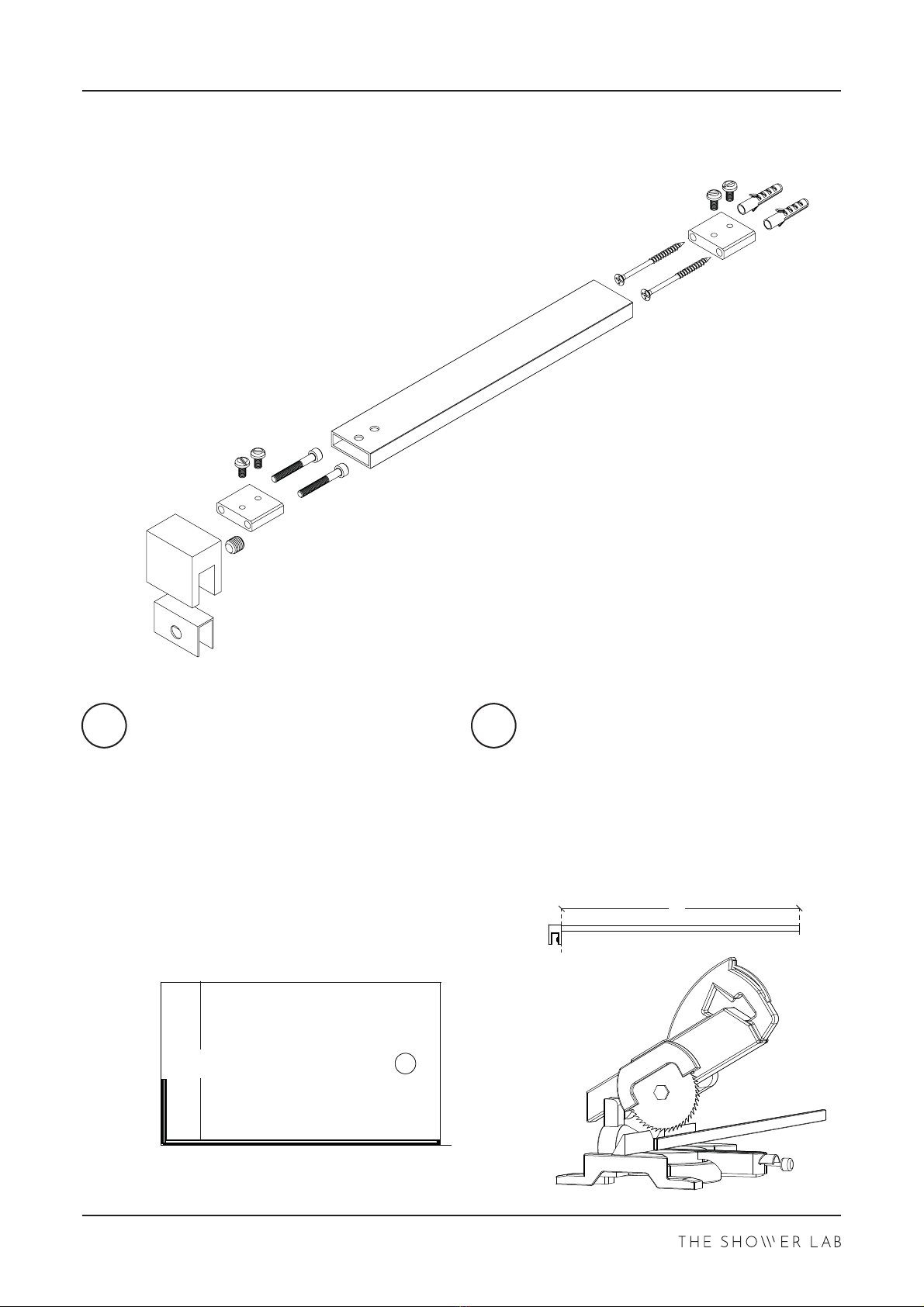

Trim the Underframe profile using a
chop saw.
If necessary, trim the Wall Profile on
the opposite side of the archway and
repeat step 11 to pre drill the Wall
Profile.
Use a fine file to remove any burrs. Be
careful not to damage the channel
finish.
Remove all tape from the underside of
the Underframe. Carefully place the
Underframe back into posion. Ensure
that the trimmed end is bued up
against the wall.
Place the Underframe Gasket back into
the Underframe. Trim excess Gasket.
Carefully reinstall the vercal Wall
Profile, Wall Profile So Seal and Inline
Glass Panel.
To centre the Inline Panel, add 1mm
Packers on both sides of the Inline
Panel in the Underframe.
25 26
27 28

04/2021 V 1.0
VIEW 19F
Flush
Rigid Seal
Glass Panel
08/14

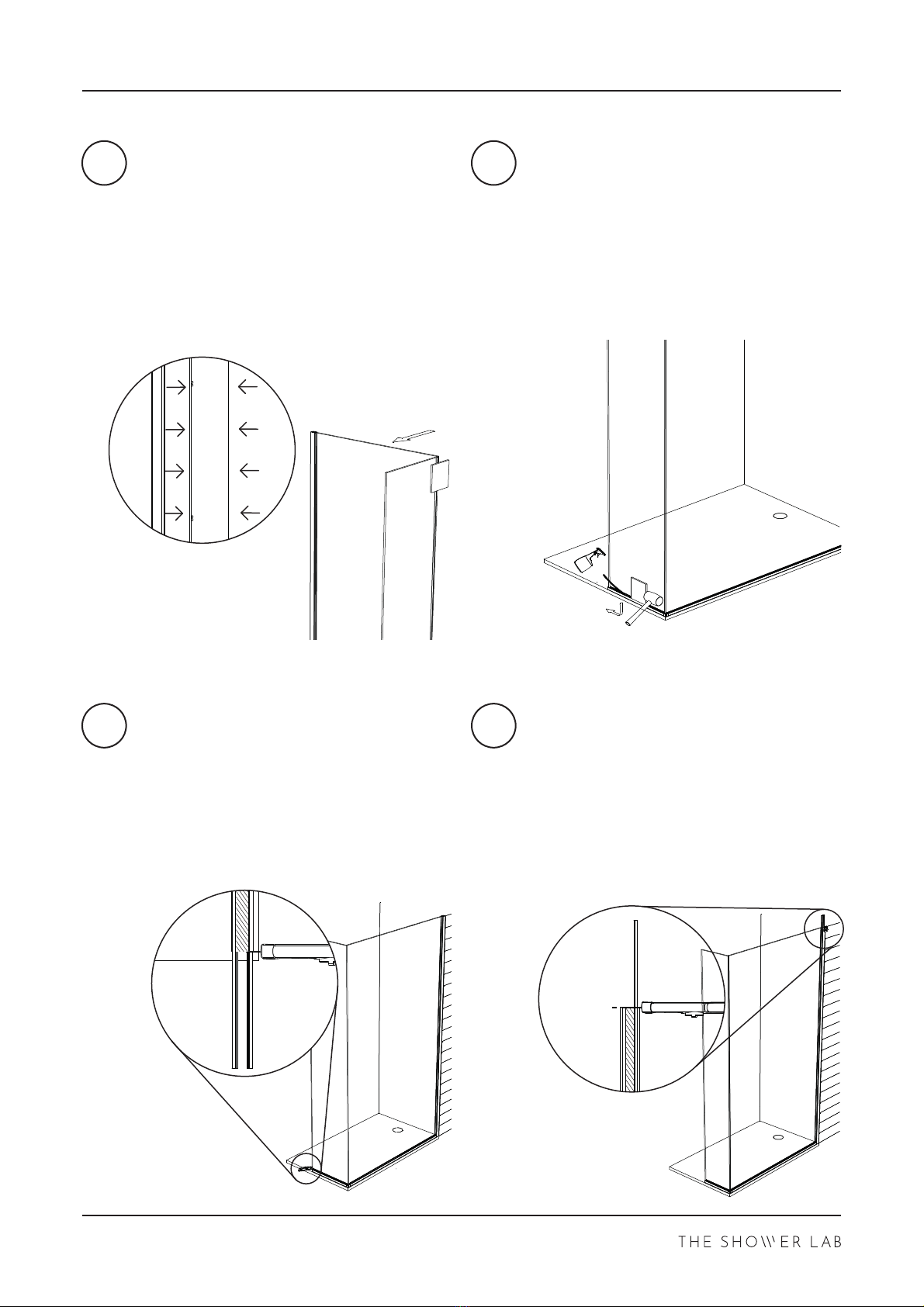

Apply the Rigid Seal to the dry side of
the Wall Profile starng from the
archway of the Wall Profile up to the
top.
Gently tap the Wall Profile Rigid Seal
into place using a rubber mallet with
the Nylon Block to protect the Glass
and the Wall Profile.
Repeat step 21 and 22 to reinstall and
level the Glass Return Panel.
Pull Return Panel away from the Inline
Panel. Add 1mm Packers to both sides
of Return Panel in the Underframe.
Remove the protecve adhesive strip
from the Tape. Gently push the top of
Inline Panel away from Return Panel.
From the boom, push the Return
Panel towards the Inline Panel.
29 30
31 32

04/2021 V 1.0
VIEW 19F
09/14

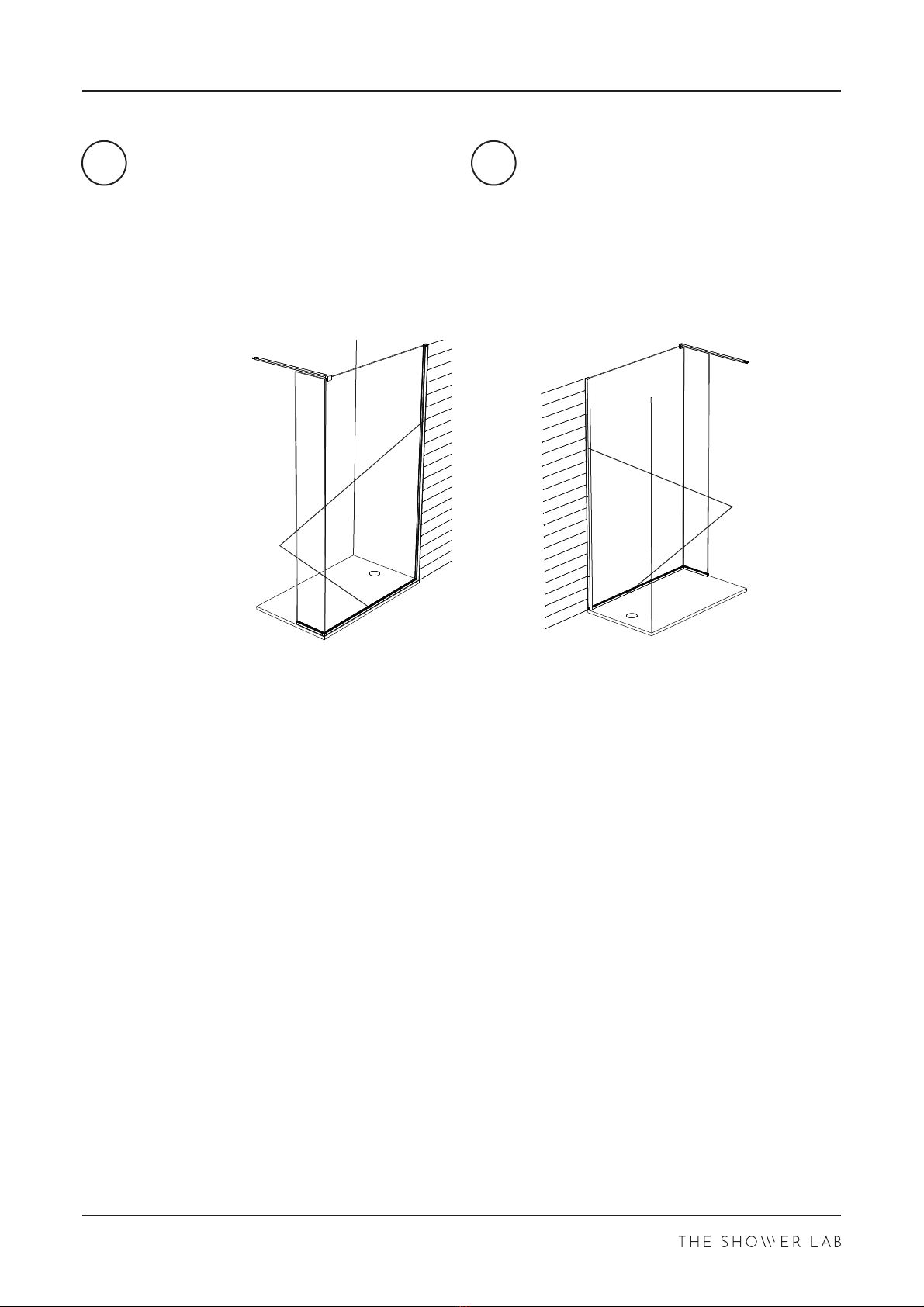

Start to pull the Inline Panel back when
approaching the top.
Use the Nylon Block to ensure that the
Return Panel is level with the edge of
the Inline Panel.
Ensure the two panels are firmly fixed
together and remove Inline Packers.
Remove Packers and feed the Wedge
Gasket into the archway gap and trace
along the Glass on both sides.
Spray water on Glass Panel and use
Nylon Block to help feed Gasket.
Trim both Underframe Gasket Seals as
close to the edge as possible using a
blade.
Trim both of the Wall Profile seals at
the top face of the Wall Profile using a
blade.
33 34
35 36

X
X - 6.5mm
04/2021 V 1.0
VIEW 19F
10/14
Measure the distance from the inside
face (wet side) of the panel to the wall
opposite. Ensure this measurement is
truly horizontal.
Subtract 6.5mm to get your final
dimension.
Mark the final dimension on the Stay
Bar Tube, wrapped with some masking
tape. Carefully use a chop saw and fine
file to cut and finish the edge.
STAY BAR CONFIGURATION A - SB1
A1 A2

04/2021 V 1.0
VIEW 19F
11/14
With masking tape applied, place the
supplied Stay Bar Jig firmly at the
trimmed end of the Stay Bar and mark
the 2 holes with a pen.
Drill holes using a 5mm drill bit.
Assemble the Glass Clamp to the Stay
Bar as shown.
Secure the Glass Clamp over the panel
making sure the glass is fully inserted
into the groove.
Ensure the Stay Bar is square and level.
Mark the end locaon on the wall.
Remove the Stay Bar.
STAY BAR CONFIGURATION A - SB1
Drill 1 side only
A3 A4
A5 A6

04/2021 V 1.0
VIEW 19F
Fix Glass Clamp over the Glass and
aach the Stay Bar to the Wall
Connector with screws provided.
12/14
Posion the Stay Bar Connector central
to the marking. Mark the holes for
drilling. Use masking tape on the les
to help.
Using a 5mm high quality drill bit for a
clean and precise hole, drill the marked
areas, fully insert the wall plugs and fix
the Connector to the wall.
Professional Tip
If drilling ceramic tiles, place
masking tape on the tiles before
marking and drill through the
tape to prevent the drill bit from
skidding.
DO NOT use Hammer Action as
this will break the tiles.
STAY BAR CONFIGURATION A - SB1
A7 A8
A9

04/2021 V 1.0
VIEW 19F
Silicone
13/14
Apply the Wall Profile End Cap to the
top of the Wall Profile and fix in place
using self tapping screws.
Install the Underframe End Cap.
Underframe
Wall Channel
Silicone
Apply silicone sealant along the wall
and floor all around the outside of the
Underframe and Wall Profiles.
Apply silicone sealant along the inside
of the Enclosure where the Inline Panel
meets the Return Panel.
37 38
39 40

04/2021 V 1.0
VIEW 19F
14/14
Check silicone has been applied to all
the below inside areas.
Check silicone has been applied to all
the below outside areas.
Let the silicone sealant cure for 24
hours.
Silicone
Silicone
41 42
