Canon Jaguar E-Type User manual

View of complete model (Side view)
Parts list (Pattern) : Seventeen A4 sheets (No.1 ~ No.17)
No. of Parts: 268
*Bulid the model by carefully reading the Assembly Instructions,
in the parts sheet page order.
view of the engine view of the cockpit
Glue tab notation key
Glue to the rear of
the other part
Apply glue here
Each glue tab has a symbol and
number printed on it. marks
surfaces to put glue on; they should
then be glued to the corresponding .
Attach here
Make a Mountain fold
Mountain fold
Guide rod
How to make the cylinders
This craft involves making cylinders
with diameters of 3 to 7mm, so it may
be helpful to have some rods of sizes
about 0.5mm thinner handy.
Assembly Instructions
Wrap around and
glue to the topof the cylinder.
Glue, scissors and other tools
may be dangerous to young children
so be sure to keep them out of the
reach of young children.
*This model was designed for Papercraft and may differ from the original in some respects.
"Jaguar E-type" is one of the most well-known models produced by British sports car maker Jaguar, founded in
1922. This model was highly regarded at the Geneva International Motor Show in March 1961 for its low-set,
streamlined appearance and state-of-the-art mechanics. Series 1, which first went on the market in 1961, sported
an inline six-cylinder, 3.8 liter DOHC engine. In 1964, this was upgraded to a 4.2 liter. Various minor changes up until
1971 resulted in the twin-six engine of the Series 3. This model, known in the US as the XK-E, enjoyed high levels
of popularity.
Although the E-type disappeared from the market in 1975, its curved lines continued to influence designers, and
it remained well-loved by car enthusiasts around the world.
This Papercraft JAGUAR E-type is about one thirteen the size of the real car.
Make a Valley fold
Valley fold
Cut along the line
Scissors line
Completed parts
become a cylinder
Layer wrapping (roll)
Wrap around and glue to the
cylinder,to use as a glue tab
Cut along the red solid line
Cut in Line
Trace along the folds with
aruler and a used pen (no ink)
to get a sharper, easier fold.
JAGUAR E-TYPE : Assembly Instructions 1 Canon ® is a registered trademark of Canon Inc. M.Kajiwara

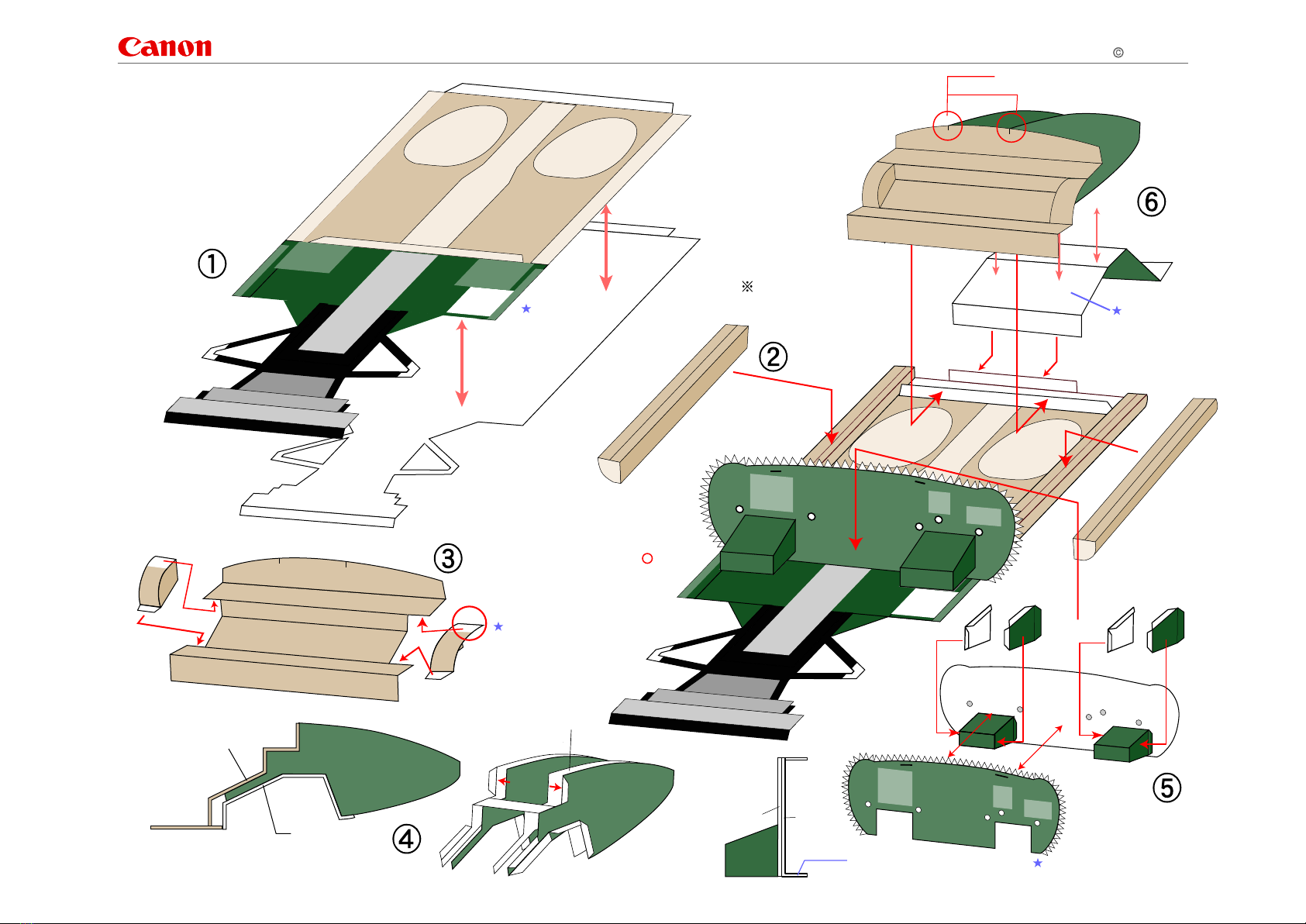

2-A
3-A
Apply glue to
the underside
Apply glue to
the underside
Apply glue to
the underside
Apply glue to side 2-A
and attach together
*Removable spray adhesive is
best when gluing large surfaces.
Attach 7-A to the center
of 3-B / 3-C.
2-C
2-B
3-B
2-D
2-H
3-C
2-A
3-A
3-B
3-C
7-A
*Check that the circled part of
2-B / 2-C is parallel to 3-B, and
attach.
Apply glue to
the underside
Attach 3-B and 7-A here.
7-B
4-A / 4-B 
side view
7-C
7-A
4-A
4-B
4-B
4-C
4-C
4-D
4-D
4-D
3-B
7-A
Glue spot
JAGUAR E-TYPE : Assembly Instructions 2 Canon ® is a registered trademark of Canon Inc. M.Kajiwara
4-A
4-A

4-K
4-J Make a mountain fold
on 5-C, and glue it together.
4-M
4-M
4-O
4-N
Make a mountain fold,
and glue it.
underside
3-H
2-I
4-L
When attaching 4-L, align it
with the marked area on 4-A
as shown in the diagram.
When attaching
4-L,be careful
that it does not
protrude out
from 4-A.
4-L
4-L
4-A
4-A
4-F
4-H
4-H
4-G
2-G
5-H
4-I
2-I
2-I
2-I
4-M
4-M
Apply glue to
the underside
Apply glue to
the underside
Apply glue to
the underside
Glue on the rear of 4-L.
Apply glue to
the underside
Apply glue to
the underside
underside
JAGUAR E-TYPE : Assembly Instructions 3 Canon ® is a registered trademark of Canon Inc. M.Kajiwara

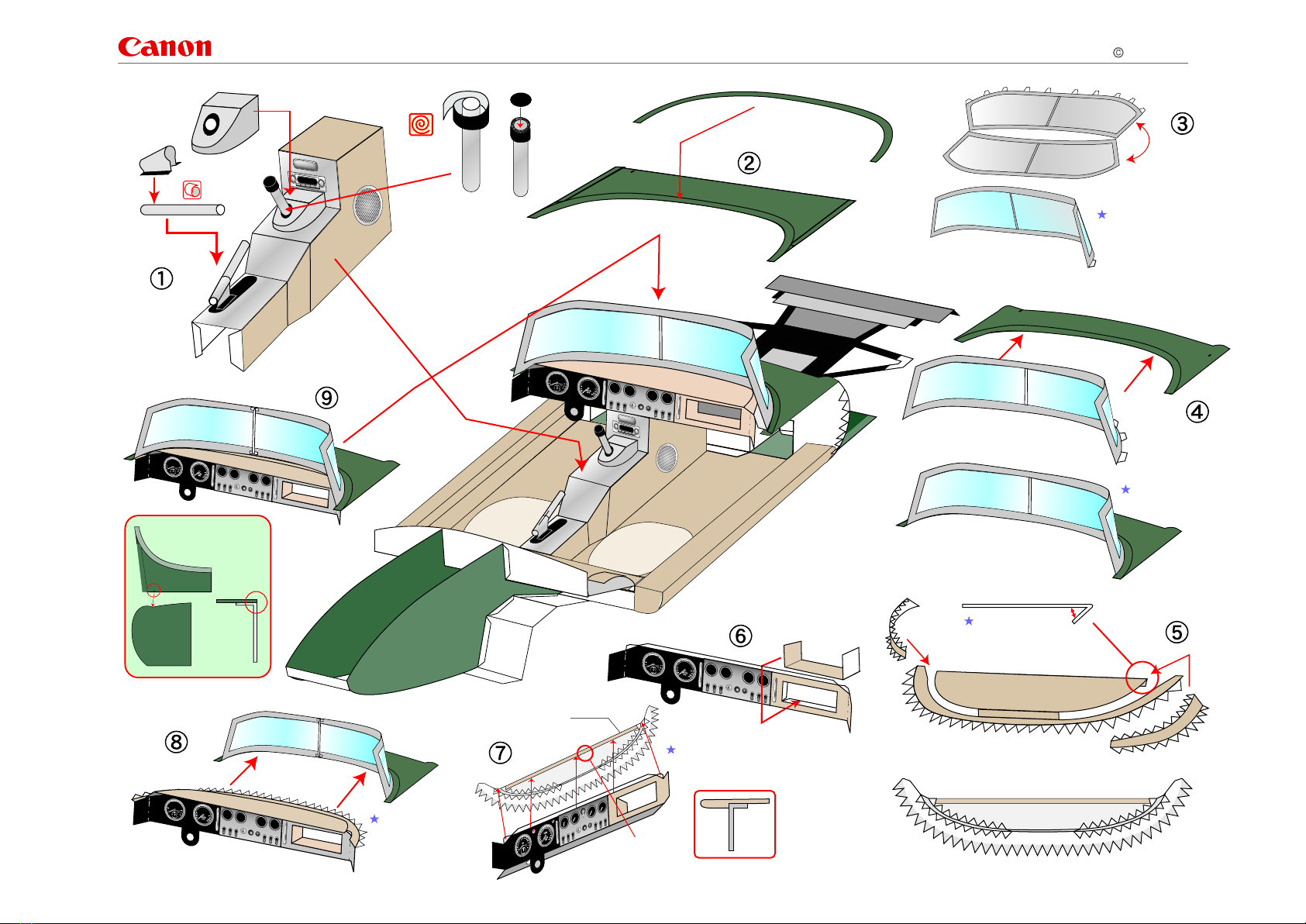

6-D
If using overhead projector film for the windscreen
4-P
4-Q
4-Q
4-P
5-A
5-A
3-C
OHP
Overhead projector film template
OHP
4-S
4-S
5-N
5-M
5-N 4-M
Make a mountain fold,
and glue it together.
Make a mountain fold,
and glue it together.
Parts 5-M / 5-N should
be attached 5mm below
the tip of 4-S.
Under
Overhead projector film template
6-J
6-E
6-C
Make a mountain fold,
and glue it together
Make a mountain fold,
and glue it together
6-D
6-C
6-F
2-E
2-E
Using a marker pen,
trace around the template
you have cut out, and cut
along the line with scissors.
Bend into shape.
Cut in line.
Attach this part
to 4-L.
Take 4-L through the
slot in 6-D / 6-C and
glue it to the outside.
Do not apply glue to
this part of 2-I.
6-D / 6-F are assembled
in the same way.
Align 6-I / 6-J with the apex
of the triangle depicted here
on 6-E / 6-F, and glue
perpendicular to the base.
6-I
2-D
6-F
6-D The base
The base
There will be a small
gap along this line.
4-L
6-C
6-D
6-F
Apply glue to
the underside
Apply glue to
the underside
JAGUAR E-TYPE : Assembly Instructions 4 Canon ® is a registered trademark of Canon Inc. M.Kajiwara

5-K/5-L
5-K/5-L
6-A/6-B
6-A/6-B
6-A/6-B
6-K/6-L
5-F/5-G 5-F/5-G
5-I/5-J
5-D/5-E
5-D/5-E
5-K/5-L
How to assemble the seats
Beginning from either the left or right side,
proceed to attach 6-K/6-L to 6-A/6-B.
Insert 7-H through 3-D.
*Glue along the curved line,
beginning at the center front
and progressing backwards.
Line up 5-D / 5-E with
the curved shape of 5-K/5-L,
and glue them together.
3-D
3-D
7-D
7-E
7-E
8-E
8-G
8-H
7-H
7-H
3-E
3-G
7-D/7-E can be used on the right
or the left. Attach them to 7-H so
that the part you have cut out
faces outwards.
After attaching 8-G/8-H,
attach 8-E to the specified
part on the body.
Apply glue to this area on the left and right.
3-D does not need to be glued.
Gluing 7-D/7-E will keep it in place.
Attach to the body
Attach to the body
7-D
JAGUAR E-TYPE : Assembly Instructions 5 Canon ® is a registered trademark of Canon Inc. M.Kajiwara

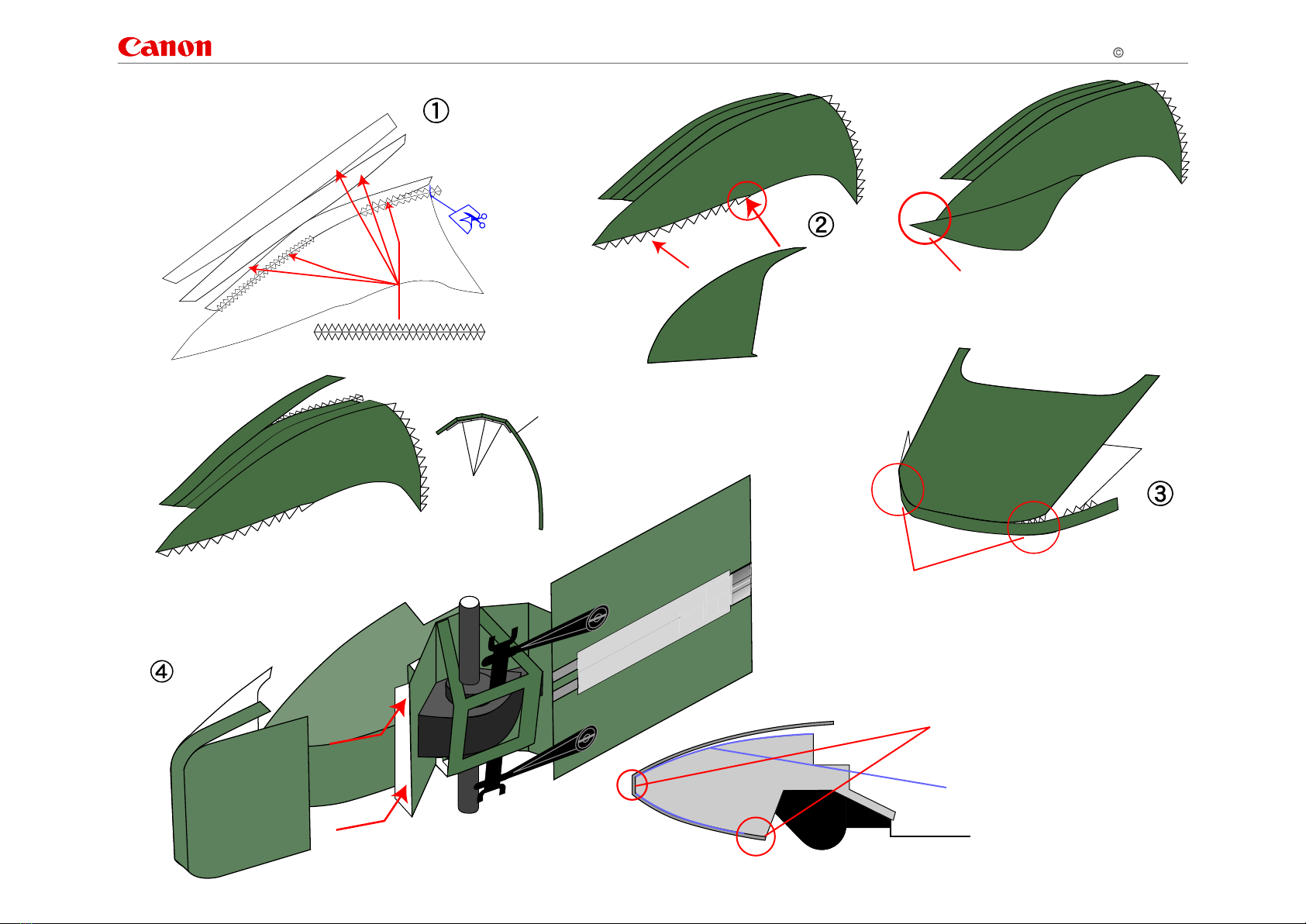

8-F
7-A
Attach 8-F to the
glue tabs on 3-C.
Align 8-L / 8-K very carefully
with the area circled, and attach.
8-L/8-K will protrude as shown in the circled area.
This we be attached to 8-F in a later step.
Glue the upper and lower glue tabs of
8-F to the center panel.
Attach 8-F to the glue tabs on 3-C/7-A.
The area along the blue line does not need
to be glued down. 7-A's purpose is to make
the rear body stronger.
It is best if 8-F is slightly separated from 7-A.
7-LGlue spot
The reverse side
7-LGlue spot
8-F
7-F/7-G
7-L/7-K
7-F/7-G
7-F/7-G
7-F/7-G
Attach 7-F / 7-G by gluing
the 7-L glue tabs to the underside.
Stick the 7-L glue tabs along
the edges of 7-F / 7-G.
Cut away any protruding
glue tabs.
*Attach the glue tabs so that
they overlap each other.
JAGUAR E-TYPE : Assembly Instructions 6 Canon ® is a registered trademark of Canon Inc. M.Kajiwara

JAGUAR E-TYPE : Assembly Instructions 7 Canon ® is a registered trademark of Canon Inc. M.Kajiwara
7-I
7-I
8-F
Attach to the glue tab
used for 7-I.
8-A/8-B
8-A
Attach 8-A / 8-B to 6-G / 6-H / 8-F.
8-B
6-G/6-H
8-C/8-D
Attach the 7-F / 7-G
you assembled in Seat-6
of Assembly Instructions
to the body.
Attach 7-F/7-G, keeping the
third panel(count from the inside)
of 7-F/7-G in linewith the bonnet.
Tightly wrap 7-F /7-G around8-F.
Adjust theposition of 8-F sothat
itscurved linesare 2.5mm from
the trunk lines oneither side, and
glueto8-F.
Insert the gluetabsinside
the mountain-folded paper
andattach.
To attach 7-F / 7-G to 8F,
put glue on the back of the part of
7-F / 7-G that overlaps onto 8-F.
Hold 7-F / 7-G up to
the curveof 8-F, and cut
away any protruding parts.
8-L/ 8-K should beattached to
the bumper on 8-F, keeping in
line with the outside edges of
the glue tabguidelines.
7-I should be attached
so that the upper and
lower partsare in line
with the center panel
of 8-F.
Attach 8-P.
Apply glue to
the underside
Apply glue to
the underside
Apply glue to
the underside
The trunk lines
Align 8-L/8-K with the curve of
8-F, and glue it from underneath.

JAGUAR E-TYPE : Assembly Instructions 8 Canon ® is a registered trademark of Canon Inc. M.Kajiwara

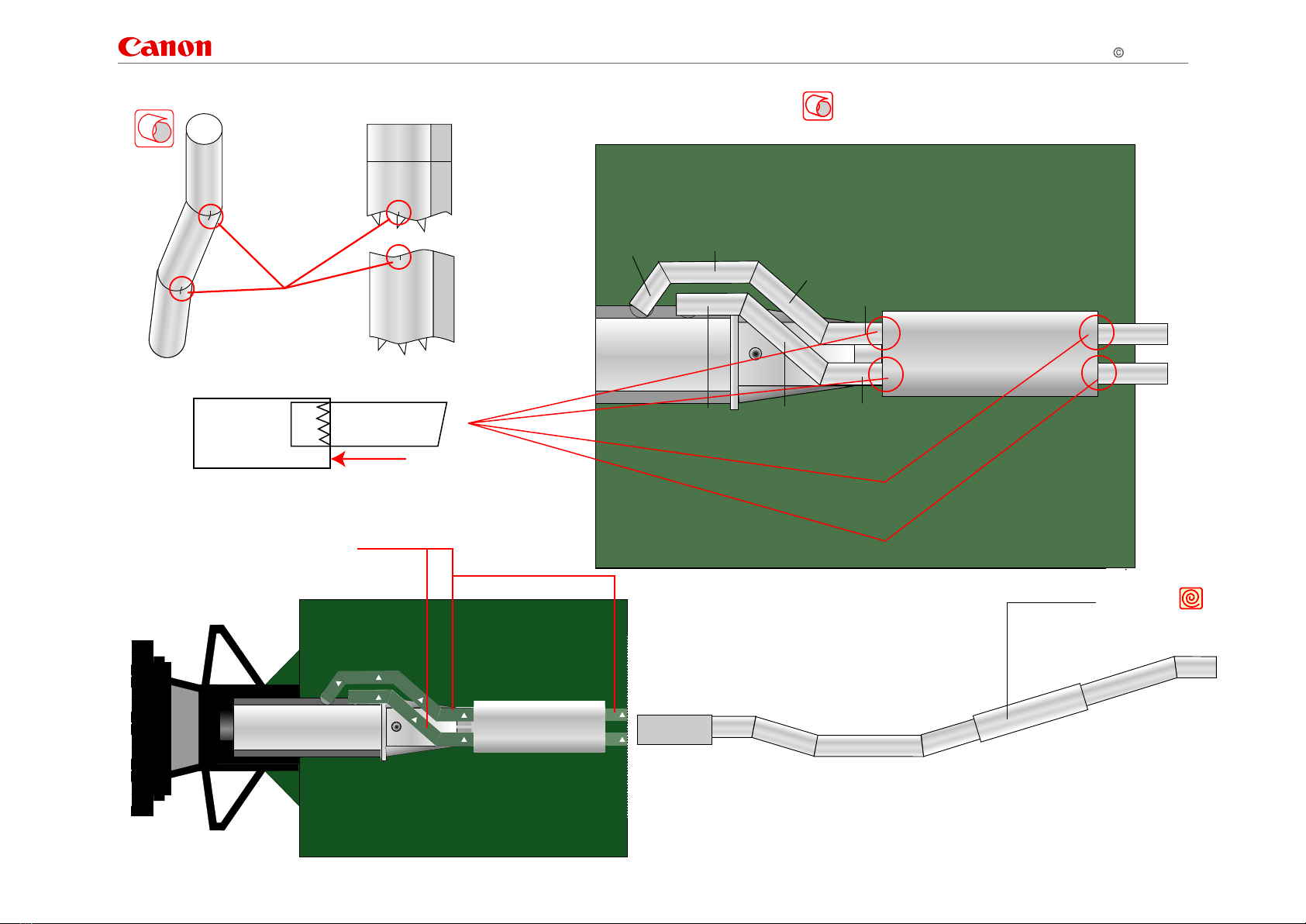

9-P
9-Z
9-S
9-R 10-A
9-E
9-L-1
9-K-1
9-K
6- N6- M
9-L
4-A
9-B
9-H
9-J
10-K
10-L
9-I
9-X 9-X-1
9-D
9-G
9-F
2-I 3-F
9-O
9-V
6-P
6-0
6-P
6-P
6-P
6-P
6-P
6-P
6-O
6-O
6-C/D
Side view
4-E
8-O
Glue 8-O/8-N at the same position
as the decoration on the 8-F side.
Attach 8-A/8-B here.
Insert the 4-E steering axle
in from the 4-A side. Insert into the hole in 4-A,
and feed through the hole in 2-I.
Attach 3-F to the trip of 4-E.
8-N
9-A
9-A
9-C
Guide for inserting the bonnet
Guide for inserting the bonnet
Apply glue to
the underside

JAGUAR E-TYPE : Assembly Instructions 9 Canon ® is a registered trademark of Canon Inc. M.Kajiwara
9-N
9-N
9-N
10-D
10-D
10-E
10-E
10-F
10-F
10-H
9-T
9-U
9-Z-2
9-W
9-Z-1
8-M
10-B
10-B
10-C
10-C 10- L
8-I 8-J
9-Y
10-G
10-G
10-M
10-M
Wrap and glue 10-H
around the white area of
10-D/10-E.
Attach to the specified
area on 9-B.
Cross-sectional diagram
of 8-I/8-JMake mountain
and valley folds and apply
glue to the reverse side.
Attach to the center
of 10-B / 10-M.
See Assembly
Instructions 10.
Attach 8-M / 8-I / 8-J,
to 9-Z-1 / 9-Z-2, aligning
the glue tabs with the black line.
Glue on this part.
Glue spot
Side of engine.
9-E
Attach 9-N here.
Insert each pipe into 10-M and attach them
in line with the pattern on the upper surface.

JAGUAR E-TYPE : Assembly Instructions 10 Canon ® is a registered trademark of Canon Inc. M.Kajiwara
Overhead view of the engine (actual size)
Glue
10- N
10-Q 10-R
9-M-1
Attach 9-M-1 / 9-M-2 / 9-Q here.
Face it so that the end to be glued down
is at the bottom.
Make a mountain fold on
10-I / 10-J, and glue it together.
9-M-2
See the diagram below for 9-M-2
Attach to a location of your choosing.
11-A/12-A
11-A
12-A
11-G/12-G
11-G/12-G
11-E/12-E
11-F/12-F
11-D/12-D
11-D/12-D
11-B/11-C
12-B/12-C
11-B/11-C
12-B/12-C
9-Q
8-J
9-Q
9-Q
Use 2 pieces per a tire.
The front tires are assembled
in the same way as the rear tires.
Attach in line with the
solid lines on 11-D / 12-D.
Insert the protruding part of
10-N into 10-Q/R, and attach.
Apply an ample amount of glue
to the 2-A / 10-B side.
Apply glue to
the underside
Apply glue to
the underside
Cross-sectional diagram of tire
9-N Attach to 10-C.
Cut away any
protruding pieces. Attach to a location of
your choosing.
10-F
10-T
10-D
10-T
10-T
10-M

JAGUAR E-TYPE : Assembly Instructions 11 Canon ® is a registered trademark of Canon Inc. M.Kajiwara
Attach front tires here (actual size)
Hold your model up to the diagram below and check
the positioning of the tires before attaching.
10-I
10-T
Attach the rear tires
11-B
11-B
11-I/11-H
11-I
Glue spot
11-C
12-H/12-I
12-H/12-I
10-S/10-T
10-I/10-J
10-D/E
10-F/G
10-M
2-A
11-C
Cut out this section on the tire side,
and make mountain folds to the glue tabs.
11-H
11-H
Under tray
Upper side
Lower side
10-S/10-T
Attach 10-I/10-J from underneath
10-D/Eand 10-F/G.
Attach 10-S/T from the top.
Attach the front tyres by inserting
them between 10-I/10-J and 2-A.
Attach the tires
by sliding them onto 7-H.
*It will go on more easily
if you slide the tire on at an angle.

JAGUAR E-TYPE : Assembly Instructions 12 Canon ® is a registered trademark of Canon Inc. M.Kajiwara
13-G 13-H
13-A
13-A
13-B
13-C
13-B
Cut away any
protruding pieces.
Cut away any
protruding pieces.
13-C
13-A
Attach 13-B / 13-C to the glue tabs
on thereverse side of 7-L / 13-I,
in the same way as in step 1
of the Assembly Instructions 6.
Attach 13-B / 13-C glue tabs
along the edges.
After attaching to 13-E,
cut away the area labeled "cut out".
Bend the parts
of 14-X / Z into
shape before
attaching them.
13-F
13-E
13-E
13-D
14-X/Z
14-X
14-Z
14-F
14-F / 14-E are a guide to
strengthen the bonnet.
Take care not to bend it after attaching.
14-E
13-D
14-D
14-C
14-H
After gluing the four
parts together,
leave them to dry for
at least one hour.
Carefully align with the slot on 13-A
and glue down.
Mountain fold glue tabs
Mountain fold glue tabs
7-L/13-I
Glue tab
the reverse side
Mountain fold glue tabs.
*Attach the glue tabs so that
they overlap each other.
Apply glue to
the underside
Apply glue to
the underside

JAGUAR E-TYPE : Assembly Instructions 13
13-B
13-F
13-D
13-D
14-B 14-D
14-C
14-Y
14-Y
13-A
13-B
13-C
First, glue only the
area of 13-F indicated
by the blue line.
Align the center lines
printed on each part
when attaching.
Before attaching 14-I/14-J,
insert them into the body
and confirm the position
they should be attached.
Once you have decided where,
use the glue tabs to attach them.
Attachment of 13-D
should begin from
the joint between
13-B and 14-D.
Glue to the underside
of the area indicated
with blue lines.
Push out the unglued parts of
13-F from underneath,
align them with the curve on
13-C and 13-B and attach.
If the area indicated by blue lines
on 13-C / 13-B protrudes further
than 13-F, cut off the excess keeping
in line with the curve.
Once you have attached 13-F,
cut out the lights, leaving
the glue tabs in place.
Confirm the position
before attaching.
Attach the light here.
Insert the light
to the point
shown.
Attach with the glued
join facing downwards.
If 14-D / C covers
the triangular parts
to be cut out of 14-B,
cut the overlap away
in line with the triangle,
after gluing.
14-K/14-L
14-J(Right)
14-I/14-J
Canon ® is a registered trademark of Canon Inc. M.Kajiwara

JAGUAR E-TYPE : Assembly Instructions 14 Canon ® is a registered trademark of Canon Inc. M.Kajiwara
15-R
15-S
15-A
15-A
15-B
15-B
15-S
14-U
14-S
*Attach to a location of the bumper your choosing.
Apply glue to this part of the bumper.
Fold inwards and attach
to the underside. Attach 14-N/14-M here.
Align with the lines
on the inside.
After attaching the panel
to 15-A, attach it to the position
indicated in the diagram.
Align the panel with the fold lines
on the body side, and attach.
Glue two layers
on top of each other.
Glue two layers
on top of each other.
Glue together.
Apply glue to
the underside
Apply glue to
the underside
14-S/14-U
14-Q/14-R
14-P/14-O 14-T
14-A
14-A
14-P
14-O
14-M
14-N

JAGUAR E-TYPE : Assembly Instructions 15 Canon ® is a registered trademark of Canon Inc. M.Kajiwara
15-A
10-P
10-O
15-C
15-A
15-B
Glue tabs for attaching
the muffler.
Attach to the specified area on 3-A.
Attach to the specified area on 3-A.
Attach to steering axle 4-E.

JAGUAR E-TYPE : Assembly Instructions 16 Canon ® is a registered trademark of Canon Inc. M.Kajiwara
15-D
15-E
15-F
15-G
15-H15-I
3-A
10-P
10-P
10-P
10-O
15-J
15-L
15-L
15-L
15-D 15-H
15-L
15-K 15-M
15-N
15-Q/15-P
15-O
Assembling the Muffler
Side view diagram of rear side
Where to Attach the Muffler
(template to scale)
Align the marks
on the black lines
together when attaching
each of the parts.
3-A
10-P
10-O
Insert 15-D / 15-H / 15-L
into the 10-P side and attach.
Attach the completed muffler
to the position indicated on 3-A.
Hold parts against this template when attaching.
15-F
15-D15-L
15-L
15-E
15-I
15-H
15-G
15-J
Adjust the angle
bycomparing it to
theactual-size diagram.

JAGUAR E-TYPE : Assembly Instructions 17 Canon ® is a registered trademark of Canon Inc. M.Kajiwara
With the bonnet closed, insert the guide of
14-E into the slot in 4-A on the body side.
Insert the front side into the slot in 13-D.
With the bonnet open,
insert the guide of 10-N into the
slot in 14-B on the bonnet side.
Parts where the muffler body is attached.
Part to be cut out of 4-A.
10-N
14-B
13-D
14-E
