Theben RAMSES 797 B User manual

 Bedienungsanleitung 4
Uhrenthermostat
 Mode d’emploi 15
Thermostats à horloge
 Operating Instructions 29
Clock thermostat
 Gebruiksaanwijzing 41
Klocktermostaat
 Istruzioni per l’uso 55
Cronotermostato
 Brugsanvising 67
Urtermostat
Käyttöohjeet 79
Kellotermostaatissa
 Istrucciones de uso 91
Cronotermostato
RAMSES 797 B
Ref. Nr. 797 9 130
Ref. Nr. 797 9 165
310 597 08
RAM 811 top
RAM 798 RAM 722
RAM 797
RAM 701 RAM 741
FIN
t

Dear customer,
congratulations on a well made choice. With
the microprocessorcontrolled time thermostat
RAM 797 B you have chosen a high-quality
device which conveniently provides optimal
control of the room temperature.
Overview:
– 2 point pulse duration controller
– battery operated
–low battery-power warning
– can be programmed before mounting
– room temperature display
– choice of 16 different temperature settings
with optional combination of days
– choice of automatic summer/winter chan-
geover (s/w)
– connection for remote control telephone
switch
– basic program setting after RESET
– constant temperature standard
– summer program
– freezing protection
– party mode
– change-over contact
– 99 holidays, programmable 99 days in
advance
– choice of pump protection mode
– wall alignment to adjust to the surrounding
area
1.0 Introduction GB
29

12 + 11 battery case
22 + 11 temperature profile display
32 + 11 current hour display
42 + 11 telephone contact closed display
52 + 11 weekday display (1 = Monday,
2 = Tuesday, ...)
62 + 11 minutes display
72 + 11 holiday program display
8 + 11 change battery display
9 + 11 manual change display
9 + 10 summer program display
10 + 11 freezing protection display
11 + 11 switching mode display
12 + 11 set time
13 + 11 save button / inquiry
14 + 11 set the control tolerance frame
15 + 11 change button +/–
16 + 11 delete all (RESET)
17 + 11 manual mode
18 + 11 setting the control period
19 + 11 wall alignment
20 + 11 display temperature
21 + 11 insulating tape
22 + 11 brief operating instructions
Type of controller: RS type 2 B
according to
EN 60730-1:1991
Operating battery operated
voltage: 2 x alkal. cells type
LR 6(AA)
Battery life: approx. 1 year depending
on switching cycles
Time needed to
change battery: max. 10 min.
Contact load: max. 6 (1) A 250 V~
min. 1 mA 5 V
Contact: change-over contact,
floating
Contact-voltage proof:8 mm
Contact material: AgSnO2gilded
Accuracy: ± 1 sec./day at 20° C
Time base: quartz
Control accuracy: ± 0.2 K
Temperature display: 0.1° C
Temperature range: 0° C... + 50° C
Range of temperature
setting: + 5° C bis + 30° C
in 0.2 degree intervals
Control cycle: 5 ... 30 min.
Control toler. frame: ± 0.2 K .. ± 5 K
Memory capacity: 16 optional combinations of
weekdays an temperatures
Protection class: II as per EN 60335-1
Type of enclosure: IP 20 as per EN 60529-1
Subject to technical changes.
1.1 Description 1.2 Technical data RAM 797 B
30

1.3 Measurements
2.0 Mounting
RAM 797 B should only be installed in dry
rooms!
We recommend mounting the device in the
living-room on an interior wall where the air can
circulate.
Mounting should be made approx. 1.5 m from
the floor.
Press in pins on the lower side of the device
(fig. 2). Remove the base of the control device.
Fix the base carefully to the wall (fig. 3).
Make sure that the contact surface of the base
and the battery case do not get clogged!
Fig. 2
Fig. 3
31

To ensure longevity and proper functioning of the
device, only new alkaline cells of the same
type, namely LR 6 (AA) should be used.
Depending on control and switching frequency,
operating time of time controlled thermostat
RAM 797 B with new batteries amounts to
approx. 12 months. When changing batteries all
data will remain in the memory for approx. 10
min.
Initial installation:
Remove insulating tape from the battery case
(fig. 1/no. 21). Press button for approx 1
sec.
Changing batteries:
1. Open the front lid of the device
2. Observe polarity; insert batteries into the
battery case
3. Close front lid
Device is now functional
Automatic battery control:
1. – If the display shows a blinking
symbol, the alkaline cells need to be
changed within the next 3 – 4 weeks.
2. – If the whole display is blinking, then the time
controlled thermostat switches ON constantly.
Heating is no longer controlled by the
time controlled thermostat!
Turning the blinking display off:
1. Press any button
2. After new batteries are inserted the blinking
stops automatically with the next switching or
on the following day.
Res.
2.2 Inserting/changing the battery
Installation and mounting of electrical devices
should only be carried out by a professional elec-
trician. National regulations must be adhered to!
2.1 Electrical connection
Control of a motor
mixing valve
Control per thermal oil
firing relay
Control per circulation
pump or storage/hot-air
heating
Control per gas
or mixing valve
32

Summer/winter changeover is already program-
med until the year 2039. Choice of 3 different
switching groups (see table below) when restar-
ting (RESET) or during automatic mode.
3.0 Initial service
For setting purposes, open the cover lied of the
device.
3.1 Using the automatic summer/winter
changeover
Due to non-use in the summer months, circulati-
on pumps may become stuck. An included pump
protection program activates the circulation
pump daily at 12.00 for the duration of 1 minute.
The pump protection program is activated by
interrupting the blue wire connection within the
device. Changing the pump protection program is
not possible.
If no settings are made, the device will regulate a
constant temperature of 21° C.
The basic program and the basic regulation set-
tings will not be deleted from the memory.
Warning:
All data stored will be deleted after RESET!
If the device is in the inquiry or programming
mode and no button is pressed, the display will
automatically return to the automatic mode and
adjust to the correct switching mode after
approx. 40 sec.
2.3 Pump protection
2.4 Delete all (RESET)
2.5 Automatic return-to-reference
33
no
dat1
dat2
no automatic
switching group as of 96
switching group for GB
end fo March
end of March
–
end of Oct.
4th Sun in Oct.
–
7 months
S/W Beginning End Durat.
–
7 months
Res.
+
-
Prog
Prog
Prog
+
-
+
-
+
-
chose summer/winter
changeover mode
1 sek.
set weekday
set month
set year

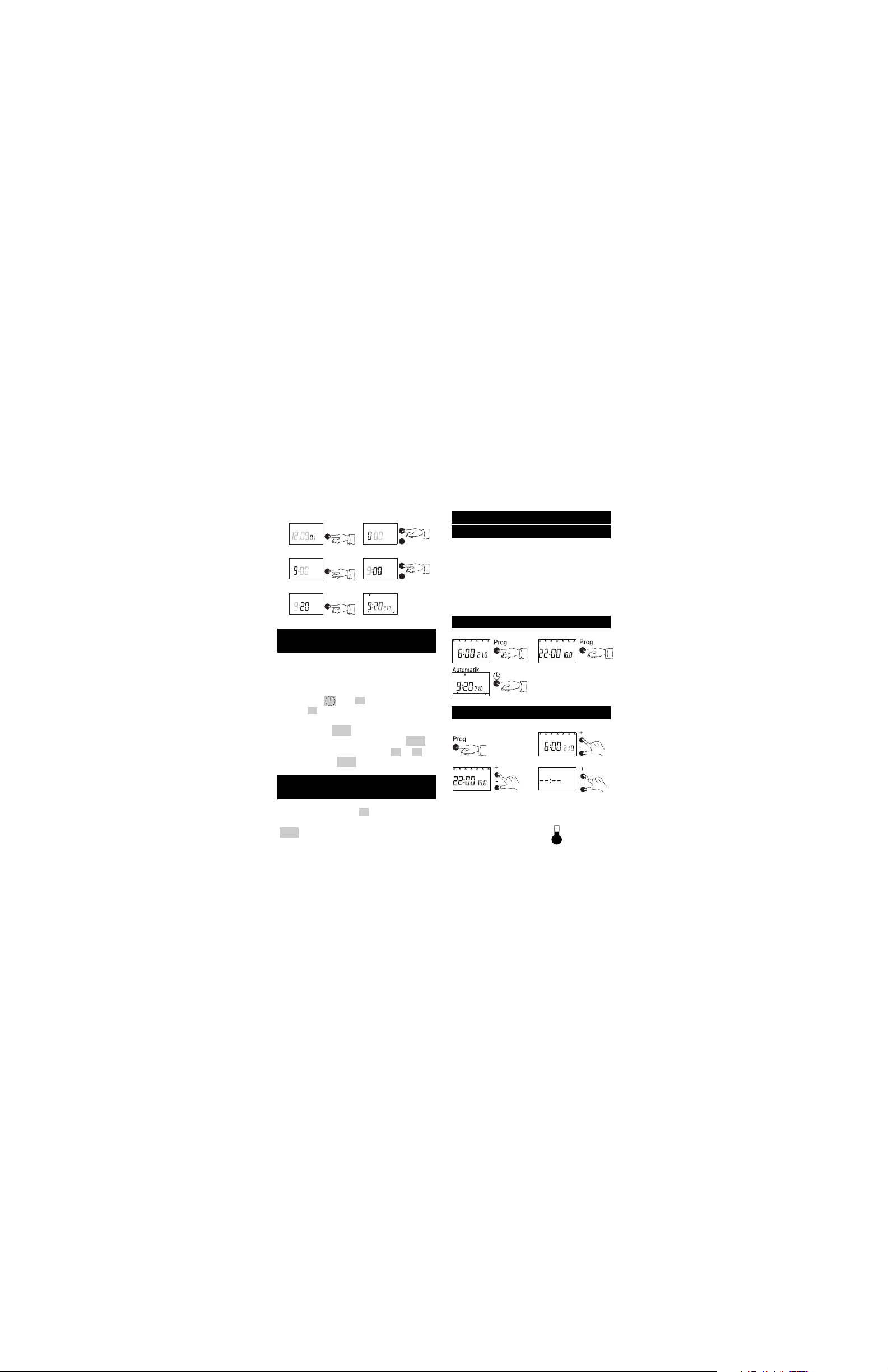

4.0 Programming
4.1 Basic program
Time controlled thermostat RAM 797 B features
a basic program that permanently remains in the
memory. This basic program heats the living room
as of 6.00 o’clock to 21° C and as of 22.00 the
night program lowers the temperature to 16° C.
After the basic program is deleted and no new
program is entered, the temperature will be con-
stantly regulated at + 6° C.
The display shows the symbol .
4.3 Deleting the basic program
If you did not chose the summer/winter changeo-
ver during initial setup, you can add this at a later
date.
Setting:
Pres buttons and simultaneously. With
button chose the desired summer/winter
changeover switching group (see 3.0). Save by
pressing button .
Confirm the displayed date with button . If
needed, change date with buttons or .
Save with button .
3.2 Setting the summer/winter change-
over during automatic mode
+
+
Prog
Prog
+ –
Prog
3.3 Setting without automatic summer /
winter changeover
After RESET with button choose no changing
mode (display „no“), then save with button
.To set the time see instructions above
under programming point* 3.1.
Prog
–
34

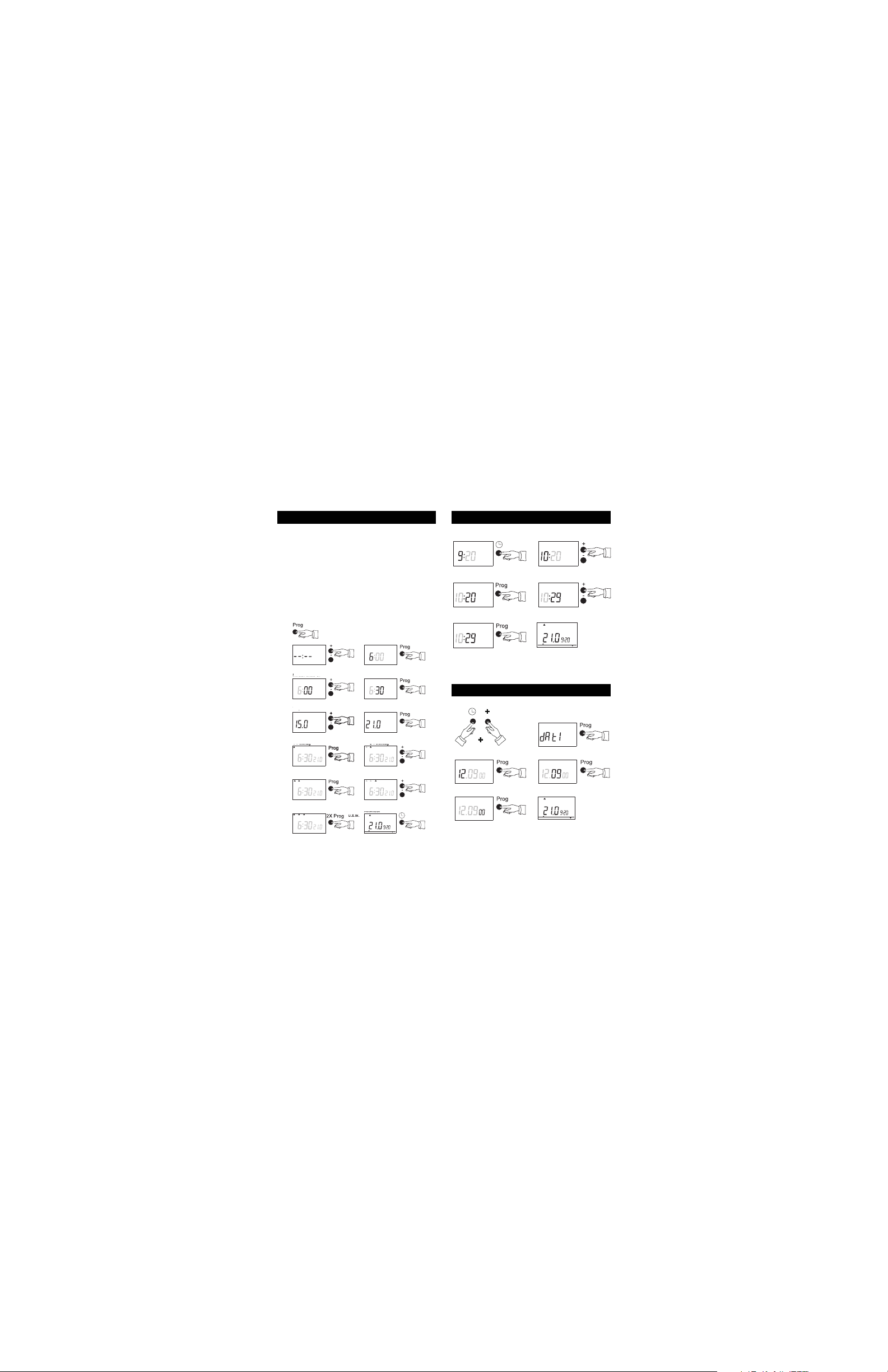

4.2 Display Basic programm
Prog +
-
Prog +
-
Prog
set hour
set minutes
f.ex. 2001

4.5 Changing the displayed time
4.6 Display current date
The time controlled thermostat allows 16 diffe-
rent temperatures with optional combination of
days for the individual creation of your heating
program.
Example: desired temperature 21° C on Tue and
Wed beginning at 6.30
Numbers 1, 2, ... 7 on top of the display corre-
spond to the weekdays. 1 stands for Monday, 2
for Tuesday, etc.
Other settings can be made accordingly.
4.4 Setting the device
set hours
set minutes
* set day
35
set hours
set minutes
set temperature
1 = Monday 2 = Tuesday
3 = Wednesday
automatic
Automatic

4.8 Party mode
4.9 Constant target temperature + 21° C
In the automatic mode you can set a certain con-
stant temperature by pressing buttons and
simultaneously. If the basic setting is not
changed, a constant 21° C will be regulated
independently from the automatic mode.
A change in temperature between 16 and 30° C
can be achieved using buttons or . After
approx. 5 sec. the change is automatically saved
in the program.
The constant target temperature is displayed with
symbol . By pressing button you can
cancel the constant temperature setting. (Symbol
vanishes).
+
+–
4.7 Changing the date
36
Operating Mode:
A one-time certain temperature change can be
set for an individually programmed duration
between 10 min. and 23 hours 50 min. A program
review occurs after completion of the party mode.
Thereafter the device operates according to the
programmed time and temperature standards.
Setting:
in automatic mode press the and buttons
simulatneously. Set the desired duration of the
party mode with or . Approx. 4 sec. after
release of the or button the device
automatically takes on the set time (display:
symbol r+ ).
Set the desired temperature change with the
or button. This entry will also be taken on
after 4 sec. The party mode can be interrupted at
any point in time by pressing the button.
–
+
–
+
–+
–+
Prog
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
Prog
Prog
Prog
Automatik
f.ex. 2001

5.0 Remote control by telephone + 21° C
RAM 797 B features a telephone contact.
Terminals 11 + 12 in the base of the device can
be connected to the floating relay contact of a
remote control telephone switch. By signal trans-
mission via telephone you can set the device
directly to „comfort temperature“ mode.
The display shows the symbol .
A constant 21° C will be regulated.
The signal can be cancelled with a new telepho-
ne impulse or manually, depending on the device,
directly on the remote control telephone switch.
Symbol vanishes.
Time controlled thermostat RAM 797 B is equip-
ped with a holiday program. This mode can be set
for the duration of max. 99 days and max. 99
days in advance. During this program the tempe-
rature is set at a constant 16° C. The display
shows the following symbol h.
Example:
Beginning in 2 days at midnight a holiday pro-
gram for the duration of 10 days will start.
4.11 Holiday program h+ 16° C
If the holiday program is to be cancelled, the dis-
play of the holiday program must be reset to
00 00 as described above.
37
Beginning of
holiday program
Lenght of holiday program
You can set a certain constant temperature in the
automatic mode while pressing buttons and
simultaneously. If the basic setting is not
changed, a constant 6° C will be regulated
independently from the automatic mode. A chan-
ge in temperature between 5 and 15° C can be
achieved using buttons or .
After approx. 5 sec. the change is automatically
saved in the program. The summer mode is indi-
cated with the symbols + . The sum-
mer program is canceled with button .
(Symbols + vanish).
4.10 Summer program + 6° C
–
+–

The regulating period (see fig. 6) can be set bet-
ween 5 and 30 min. Setting precision is 1 min.
Setting: Open the cover. With a pointed item
shortly press button .
The basic setting of 10 min. can be changed using
buttons or . Press button in order
to save and return to the automatic mode.
The setting range (see fig. 6) of the pulse durati-
on controller is ± 0.2 ... ± 5 K in 0.1 K intervals.
Setting:
Open the cover. With a pointed item shortly press
button . The basic setting of ± 1 K can be
changed with buttons or .
Press button in order to save and return to
the automatic mode.
6.2 Setting the control tolerance frame
+ –
+–
Prog
Prog
6.0 Information for the expert
6.1 Setting the regulating period
sec.
°C
38
Safety warning: The connecting line to
the remote control telephone switch should
be made through the designated opening
in the base of the device. Installation and
mounting of electrical devices should only
be carried out by a professional electrician.
National regulations must be
adhered to!
Fig. 5
5.1 Connection of the remote control
telephone switch
Warning: The remote control telephone switch
has priority, therefore, a defective remote control
telephone switch can cause malfunctioning!
Reference list for remote control telephone swit-
ches will be provided upon request.

Setting:
Open de cover. With a pointed item shortly press
button . The basic setting of 0° C can be
changed with buttons or . The device cal-
culates the difference and considers it in control
and display. Press button in order to save
and return to the automatic mode
Fig. 6
6.5 Control chart of a pulse duration
controller
6.6 Setting recommendation
Fig. 7
1 K (Kelvin) temperature difference corresponds
to 1° C.
6.4 Control precision
offset
+–
Prog
Due to the mounting location, e. g. on an outside
wall, near a fireplace etc., the temperature of the
time controlled thermostat may vary.
The difference of the temperature displayed and
the room temperature can be adjusted in 0.2
degree intervals.
6.3 Wall alignment +/– 3° C
Control precision of the device is ± 0.2 K.
6.7 The basic regulation settings will
not be deleted even after RESET
a) Basic program:
Mon – Sun regulating 21° C as of 6.00 h.
Mon – Sun regulating 16° C as of 22.00 h
b) Basic governor settings:
Regulating period 10 min. (chapter 6.1)
Control tolerance frame +/- 1 K (chapter 6.2)
Wall alignment 0.0° C (chapter 6.3)
Permanent temperature standard 21° C
(chapter 4.9)
Summer program temperature 6° C
(chapter 4.10)
c) Permanent regulating data:
Remote control telephone switch activation of
governor 21° C (chapter 5.0)
Holiday program 16° C (chapter 4.11)
Freezing protection 6° C (chapter 4.3)
39

1.0 Clock does not function, no change in
display, setting impossible.
Start newly with RESET (see 2.4)
1.1 No function at all
Insulating tape was not removed from
the battery case Alkaline cells were not
changed (see 2.2).
1.2 Battery sign is blinking after only a
few days of use
Contact surface in battery case is clog-
ged; usage of wrong or bad alkaline cells
(see 2.2)
1.3 Clock functions, device does not
switch
Permanent temperature, summer pro-
gram, or holiday program activated
(see 4.9 / 4.10 / 4.11)
1.4 Clock functions, deviating temperatu-
re and control
Wrong wall alignment (see 6.3)
1.5 Wrong summer / winter changeover
Check current date and choice of summer
/winter changeover switching group
(see 3.2 / 4.6)
7.0 Troubleshooting
1.6 Clock functions, setting possible,
constantly 21° C
Cancel switch-on command at the remo-
te control telephone switch (see 5.0)
1.7 Clock functions, setting possible,
constantly 6° C
No heating mode programmed, summer
program is active (see 4.4 / 4.10)
1.8 Desired temperature is not reached
Heating facility capability is too low; con-
trol tolerance frame too large (see 6.2)
1.9 Variation of temperature
Heating facility capability is too high;
control tolerance frame too low (see 6.2).
2.0 No regulation despite correct display
of time and temperature
– Contacts in the upper part of the device
/base are dirty. Clean carefully with a
cloth and alcohol.
– Wrong relay state. With button + set
the temperature to 30° C and after that
set with button + the temperature to
5° C. The relay switch must be audible.
If necessary repeat.
40

Theben AG
Hohenbergstr. 32
72401 Haigerloch
Tel. [phone]
Fax [phone]
Service
Tel. [phone]
Fax [phone]
[email protected]
Adresses, telephone numbers etc. at
www.theben.de
