Thermablaster WDFT250-VF-IR Quick start guide

25,000 BTU Infrared Wall Heater
Model: WDFT250-VF-IR
Dual Fuel
Installed in room greater than 800 square feet (25’ X 32’).
Note to installer: Ensure that you are referencing the product manual for full details on each of
the installation steps, warnings and considerations. This list is to be used to confirm the steps as
you move through the installation. Please leave this sheet with the user.
*Do not attempt any modifications, repairs or replacements on this unit without first discussing
with Thermablaster Technical Support. Doing so will void the product’s warranty. Professional
Installation is required by all local and National codes
Unit is not to be used as a central heating system
Company:
Installer:
Contact Info:
Date:
Installed by:
Unit successfully tested through a full cycle, turning off as target
temperature is reached, then back on automatically.
Bracket mounted in the wall and secured.
Adequate ventilation fresh-air flow is appropriate for heater location.
D battery installed located in bottom of unit, behind removable black panel.
o 18” minimum from bottom of heater to top surface of floor.
o 8” minimum from sides of heater.
o 36” minimum clearance from top surface of heater and
up.
Clearances
Connected to gas supply using a 5/8th inch UNF inlet connection to
a minimum ½ inch gas pipe.
Using Propane Gas
Nominal Input Pressure (W.C.)
6 “
11 “
Required Measured
Manifold Pressure (W.C)
Using Natural Gas
Nominal Input Pressure (W.C.)
5.2 “
7 “
Required Measured
Manifold Pressure (W.C)
Manifold Pressure and Nominal Inlet Pressure for appropriate gas type.
INSTALLATION CHECKLIST:
SHARE THIS CHECKLIST WITH YOUR
PROFESSIONAL INSTALLER
Problems or Questions? We’re here to help!
Call Thermablaster at 1-877-670-8428 or visit us at
www.thermablaster.com or email [e-mail]
FOR YOUR SAFETY THIS UNIT IS DESIGNED TO
SHUT DOWN IN AN UNDERSIZED ROOM
DO NOT RETURN
TO THE STORE

25,000 BTU Infrared Wall Heater
Model: WDFT250-VF-IR
Dual Fuel
Activating your warranty only takes a moment and ensures that we
are able to offer the best service possible to you. Visit us at
www.thermablaster.com or you can use the mail in form at the back
of the product manual.
REGISTER TODAY!
Adjustable temperature settings determine the length of time that
the heater will operate at maximum BTU to achieve desired temperature.
All 5 ceramic plaques will operate simultaneously, regardless of Control
Knob setting.
During first seasonal use, gas smell is expected to be more noticeable than in
standard operation.
Operation Notes:
To stop the heater, shut off the safety valve on the gas inlet line. Next, turn
the heater's Control Knob to the OFF position.
Shutdown Process:
5. The heater will now operate normally. You should adjust the Control
Knob to your desired heat setting. Room temperature will vary based
on individual room size and installation.
4. Once the pilot flame is stable, turn the Control Knob counterclockwise
from the Pilot setting to the desired number setting. This should be
done slowly in one motion, without stopping between positions. Knob
will only turn if you have a stable pilot light.
3. Release both buttons. Should the pilot go out, repeat steps 2 and 3.
2. With the Control Knob set to Pilot, push down on both the Igniter
Button and the Control Knob simultaneously until ignition can be
heard. Continue to hold down both buttons for at least 15 seconds,
until the pilot is touching the thermocouple and is noticeably heated.
1. During the first seasonal operation, set the Control Knob to Pilot, then
hold down on the Control Knob for 3-5 minutes. This allows the air in
the manifests to clear completely. During normal operation, you will
only need to hold the Control Knob down on Pilot for about 5 seconds.
Ignition Process:

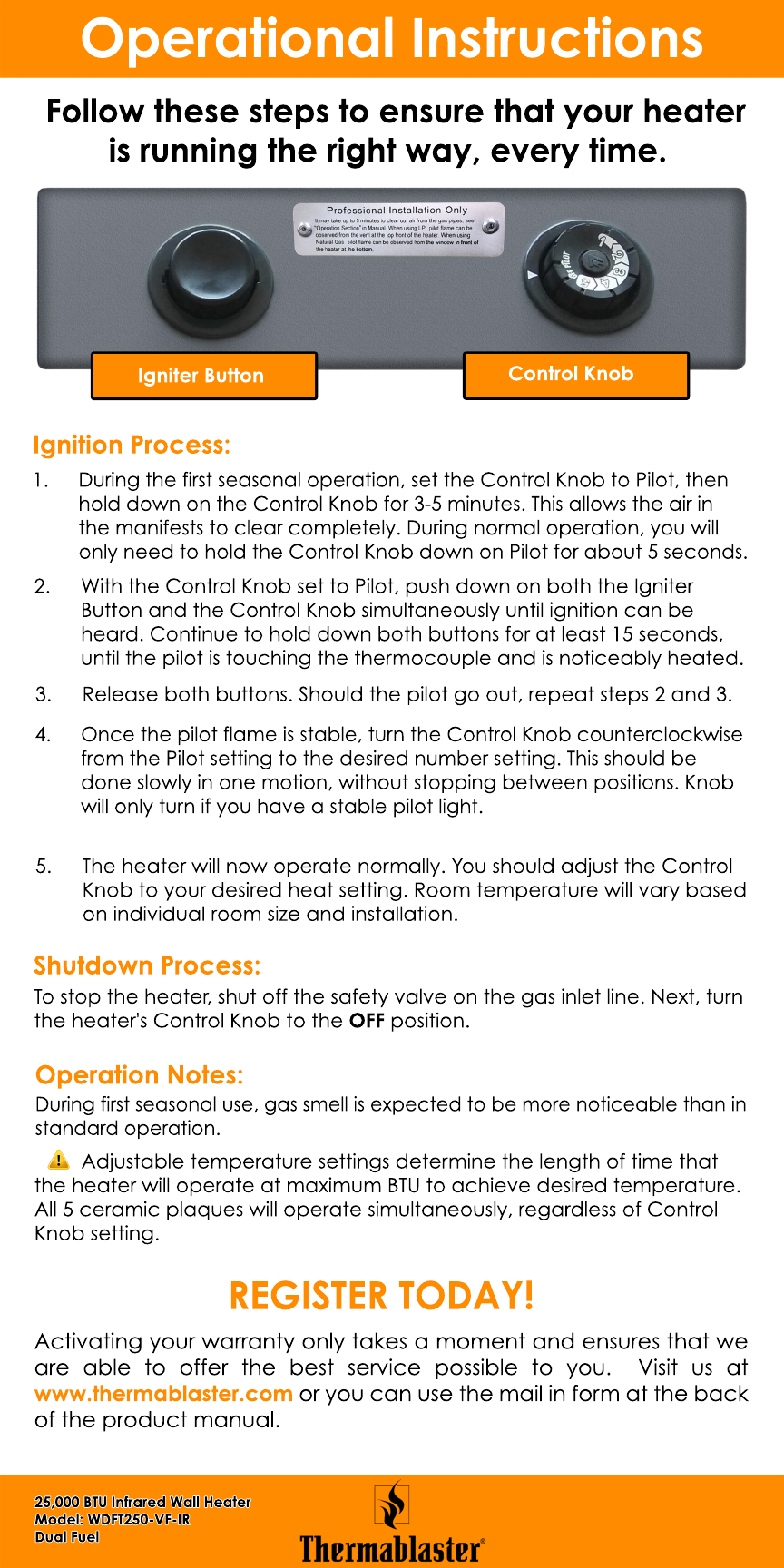

Follow these steps to ensure that your heater
is running the right way, every time.
Operational Instructions
Igniter Button
Control Knob
