Thermaltake Riing Trio 20 User manual

Parts List
Fan Controller Bridge Cable Power Cable Short Screw Long Screw Velcro
Controller Cable
Ax 1 Bx 1 Cx 1 Dx Ex Fx Gx Hx 1
Installation Guide
1
3
2B
C
C
Install the fans properly onto the radiator.
1 1 4 4
Set the DIP switch on the back side of the
controller to assign the number of the controller
NO.1
ON
1 2 3 4
NO.3
ON
1 2 3 4
NO.2
ON
1 2 3 4
NO.4
ON
1 2 3 4
NO.9
ON
1 2 3 4
NO.11
ON
1 2 3 4
NO.10
ON
1 2 3 4
NO.12
ON
1 2 3 4
NO.5
ON
1 2 3 4
NO.7
ON
1 2 3 4
NO.6
ON
1 2 3 4
NO.8
ON
1 2 3 4
NO.13
ON
1 2 3 4
NO.15
ON
1 2 3 4
NO.14
ON
1 2 3 4
NO.16
ON
1 2 3 4
4
Connect the controller cable onto the mainboard
(USB 2.0 9 pin) and controller.
A
A
B
123 45
ON
1 2 3 4
65
If you want to connect two or more controllers,
you can use the bridge cable to connect the controllers.
Connect the power cable to the 4pin Molex
connecter and controller.
EED D
Riing Trio 20
Case Fa n TT Pr em iu m Editi on
Patented
16.8 Million Color
CAUTION
1. It is recommended to connect up to 1 controller and 2 Riing Trio 20 fans on one peripheral cable (Molex) only.
2. DO NOT connect Riing Trio 20 fans to other TT RGB PLUS controllers.
Install LED Connector to desired port number.
Select corresponding port number within
TT RGB PLUS Software for Fan control.
CAUTION: Making sure to connect both
connectors before using the product.
210 mm
297 mm
刀模線
10 5G是X X 雙銅 單色 無無
其他特殊處理效果表面處理
2
厚度(g/m )
折數 材質雙面印刷 印刷色彩單面印刷
規格樣式
單張 CHECK DESIGN
藍色線條為尺寸標示，請勿印刷上去！
產品料號
CL-F083-PL20SW-A Riing Trio 20 RGB Case Fan TT Premium Edition 說明書 19/04/1 1 A
產品名稱 印刷項目 發稿日期 版本
Peipei
(19/04/11)
Ronsen
(19/04/11)

© 2019 Thermaltake Technology Co., Ltd. All Rights Reserved.
www.thermaltake.com

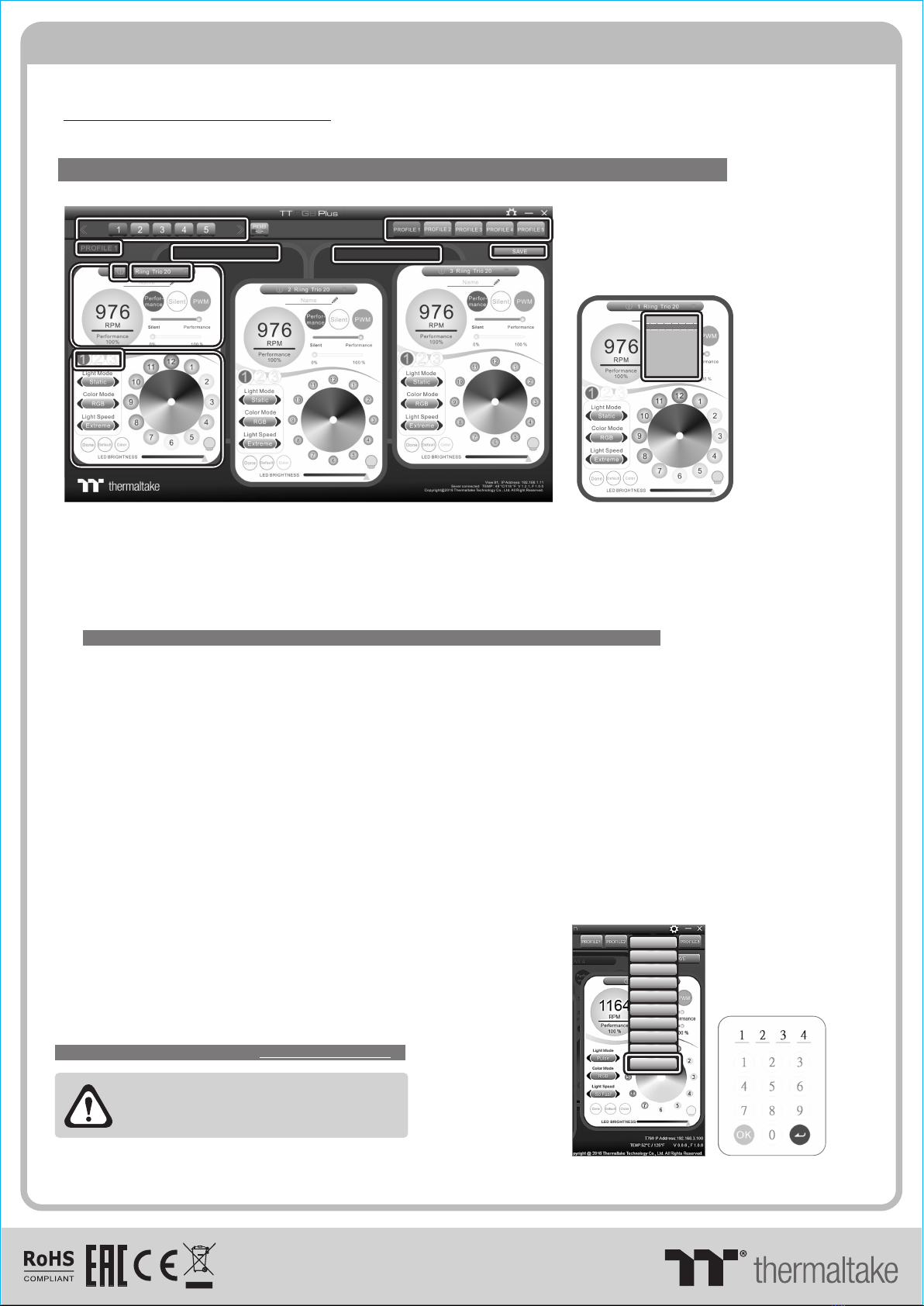

TT RGB Plus Software control interface
Please download software from Thermaltake Official website.
www.thermaltake.com/home.aspx
and search " TT RGB Plus " on the official website.
OS compatibility: Windows 7 / 8 / 8.1 / 10
1. Software User Interface
A. TT RGB Plus software Profile Setting
A-1 Set up a profile: Choose a Profile and set up the LED Lighting Mode,
then click the SAVE icon(A-3) to store your settings to the software.
A-2 Save a profile to controller: Select a profile and a controller,
then click the Save icon to assign the profile to the controller.
B. Follow the Installation Guide step 3, you can set up the number of the controller
C. LED Lighting Mode
C-1 LED Selection: set up the LEDs lighting, color, and speed.
Light Mode: Choose a lighting mode
Color Mode: Choose the LEDs color
Light Speed: Set up the speed of the LEDs light
LED Spot & Color Palette: Choose the color of each of the individual LEDs by clicking the color palette
Done: Save your setting
Default: Reset the LED setting back to the default
Brightness: Drag the mouse to adjust LED light brightness.
LED On/Off: Click the LED Light icon to turn on or off the LED light
RGB Color Code: Enter the Decimal Code of Red, Green, and Blue to set the LEDs color
C-2 Performance Mode: 500~1000RPM(Duty cycle0%~100%)
Silent Mode: 300~700RPM(Duty cycle0%~50%)
PWM Mode: The PWM function can be turned off and set the fan speed manually
C-3 LED On/Off: User can switch off the LED control function in the software if the fan is not plug into the controller.
C-4 Product Selection: click the product name to choice another you want.
C-5 Fan LED Ring Selection: Choose different fan ring to setting the lighting modes.
D-1 & D-2. Product Selection: click the control panel to rotate it to the front
Full Lighted / Wave / Pulse / Ripple / Microphone / Sound effect / RGB Spectrum / Flow/etc..
2. Mobile APP Connection Password
To connect the TT RGB Plus APP, please connect the PC to your
wireless first, and click the Password setting under the software
setting menu, set up your connection password. The TT RGB Plus APP
will ask for your password every time when starting the APP.
For more information please visit www.thermaltake.com
A-1A-1
A-2A-2 A-3A-3
BB
D-1D-1 D-2D-2
C-1C-1
C-2C-2
C-3C-3 C-4C-4 C-4C-4
When you open the software, choose the "Riing Trio 20" in the drop-down list(C-4) first.
正體中文
English
English
正體中文
簡體中文
簡體中文
Deutsch
Deutsch
Français
Français
日本語
日本語
ไทย
ไทย
Auto Update On
Auto Update On
Password On
Password On
Password:8888
Password:8888
software interface may vary with feature update,
please download the latest user manual from our
www.thermaltake.com
C-5C-5
Riing Plus
RL360 Plus
PR22-D5 Pl us
W4 Plus
VGA Plus
Lumi Plus
Pure Plus
W6
Riing Trio 20
