Thermaltake N0006US User manual

TRADEMARKS
All brand and product names are trademarks or registered trademarks of their
respective companies.
NOTE
The information in this manual is subject to change without notice.

Safety Information
Only qualified persons are authorized to carry out maintenance on this device.
zRead this User Manual carefully and follow the correct procedure when
setting up the device.
zDo not open a disk drive or attempt to disassemble or modify it. Never insert
any metallic object into the drive to avoid any risk of electrical shock, fire,
short-circuiting or dangerous emissions. The disk drives contain no
user-serviceable parts. If it appears to be malfunctioning, have it inspected
by a qualified technical support representative.
zNever expose your device to rain, or use it near water, or in damp or wet
conditions. Never place objects containing liquids on your device, as they
may spill into its openings. Doing so increases the risk of electrical shock,
short-circuiting, fire or personal injury.
zMake sure that the computer and your storage device are electrically
grounded. If the devices are not grounded, there is an increased risk of
electrical shock. Power requirements 100~240 Vac, 1.5 A.
zDo not expose the device beyond 35 oC degree. Doing so may damage the
device or disfigure its casing. Avoid placing your device near a source of
heat or exposing it to sunlight (even through a window). Inversely, placing
your device in an environment that is too cold may damage the unit.
zAlways unplug the device from the electrical outlet if there is a risk of
lightning or if it will be unused for an extended period of time. Otherwise,
there is an increased risk of electrical shock, short-circuiting or fire.
zUse only the power supply shipped with the device.
zDo not use the device near other electrical appliances such as televisions,
radios or speakers. Doing so may cause interference which will adversely
affect the operation of the other products.
zDo not place the device near sources of magnetic interference, such as
computer displays, televisions or speakers. Magnetic interference can affect
the operation and stability of your device.
zDo not place heavy objects on top of the device or use excessive force on it.
i

zProtect your device from excessive exposure to dust during use or storage.
Dust can build up inside the device, increasing the risk of damage or
malfunction.
zNever use benzene, paint thinners, detergent or other chemical products to
clean the outside of the device. Such products will disfigure and discolor the
casing. Instead, use a soft dry cloth to wipe the device.
zReplace defective hard drives immediately.
zTurn off the system and unplug the device from the electrical outlet before
removing the device cover.

Table of Contents
Safety Information ................................................................................ i
Table of Contents................................................................................ iii
Chapter 1 Introduction .................................................................. 1
1.1 Unpacking............................................................................................2
1.2 Specifications.......................................................................................3
1.3 System View........................................................................................4
Front Components..........................................................................4
Rear Components..........................................................................5
Chapter 2 Setting Up ..................................................................... 7
Step 1. Install the Hard Disks......................................................................7
Step 2. Install the Backup Master.............................................................11
Step 3. Connect to Power.........................................................................16
Step 4. Connect to the Computer.............................................................17
Step 5. Configure the Backup Master.......................................................18
Step 6. Configure HDD Mode of Your Storage System............................18
Chapter 3 Configuring theBackupMaster.................................... 19
3.1 Backup Now.......................................................................................21
3.2 Basic Setup........................................................................................24
3.3 Schedule Setup .................................................................................25
3.4 Advanced Setup ................................................................................27
Locating Backup Files..................................................................30
3.5 Restore ..............................................................................................32
Chapter 4 Configuring the HDD Mode............................................. 39
4.1 Setting the HDD Mode.......................................................................41
4.2 Disk Information Indicators on Various HDD Modes.........................43
iii

Chapter 1 Introduction
Your Muse R-Duo RAID is a high-performance, extremely flexible RAID
(Redundant Array of Independent/Inexpensive Disks) subsystem that is ideally
suited for integration with databases, imaging systems and email and Web
servers.
RAID technology is one of the best means to protect your data, while providing
greater data integrity and availability than standard hard disk storage. With the
ability to provide single error detection and redundant information to recover
the original if a disk fails, a RAID system is an ideal means to safeguard
valuable data while also stream-lining performance.
1

1.1 Unpacking
After unpacking the shipping carton, you should find these standard items:
Muse R-Duo RAID Drive Rail × 2
Power Adapter Power Cord
eSATA Cable USB Cable
Set of Screws Utility Disc
Quick Start Guide
2

1.2 Specifications
NOTE: Specifications are subject to change without notice.
Processor
Silicon Image 4723 + Sunplus SPIF216A
Architecture
•Universal Serial Bus Specification, Rev. 2.0
high speed (480 Mbps) and full speed
transfer rate (12 Mbps)
•Serial ATA II: extension to Serial ATA 1.0a,
Rev. 1.2 transfer rate (3 Gb/s)
External Socket Interface
•High speed USB 2.0 Type-B
•eSATA / eSATAII
Internal Hard Disk Drive Interface
Two SATA (Serial ATA)
Hard Disk Drive Bay/Type
Up to two 3.5-inch SATA
Storage Capacity
750 GB for each SATA hard disk drive
Applied System
•Microsoft Windows 2000/XP/2003
•Mac
Disk Configuration
RAID 0 (FAST) / RAID 1 (SAFE), LINEAR
(LNR), BIG (BIG)
Power Supply
DC output 12 V / 5 A
Dimension (W×H×D)
76×136×259 mm
Environment
•Operating temperature:
–5 0C (23 0F) to 35 0C (95 0F)
•Operating relative humidity:
0 % to 85 % non-condensing
•Non-operating temperature:
–20 0C (–4 0F) to 60 0C (140 0F)
•Non-operating relative humidity:
0 % to 90 % non-condensing
•Storage temperature:
–30 0C (–22 0F) to 60 0C (140 0F)
•Storage relative humidity:
0 % to 95 % non-condensing
Certification
•CE
•FCC
•UL
•CUL
•BSMI
3

1.3 System View
Front Components
Ref Component Description
nHard Disk Drive
Compartment Inside are two hard disk drive slots.
Disk Information
Indicator Shows the current hard disk drive status.
NOTE: Refer to the later section for various LED indicator
displays under different HDD modes.
Access Blinks red to indicate hard disk drive read/write function.
o
Status Glows blue to indicate hard disk drive is workable.
4

Rear Components
Ref Component Description
nReset Button Sets to a different HDD mode. Use this in combination
with the power switch.
oHDD Mode DIP
Switch Select the HDD mode.
pUSB Port Connects to your computer using the USB cable.
qeSATA/eSATAII
Port Connects to your computer using the eSATA cable.
rPower Switch Turns the power on and off.
sPower Connector Connects the power cord.
tVentilation
Opening Maintain proper operating temperature. Do not cover or
block the openings.
5

Chapter 2 Setting Up
Step 1. Install the Hard Disks
1. Rotate the two rubber feet outward and place your device on a flat and
stable surface.
2. Pull off the front cover from the device.
CAUTION: Be gentle when pulling off the front cover. Pulling it vigorously could damage
the cover hinges and device.
7

3. Fasten two screws on "0" position to secure the drive rail on the hard disk
drive placed upside down.
4. Slide the hard disk drive all the way into the device.
NOTE: Install the first hard disk drive on the left compartment, the second hard disk drive
on the right compartment.
8

5. To install the second hard disk drive, fasten two screws on "1" position to
secure the drive rail on the hard disk drive.
6. Slide the hard disk drive all the way into the device.
7. Replace the front cover on the device.
CAUTION: Be gentle when replacing the front cover to avoid damaging the cover hinges
and device.
9

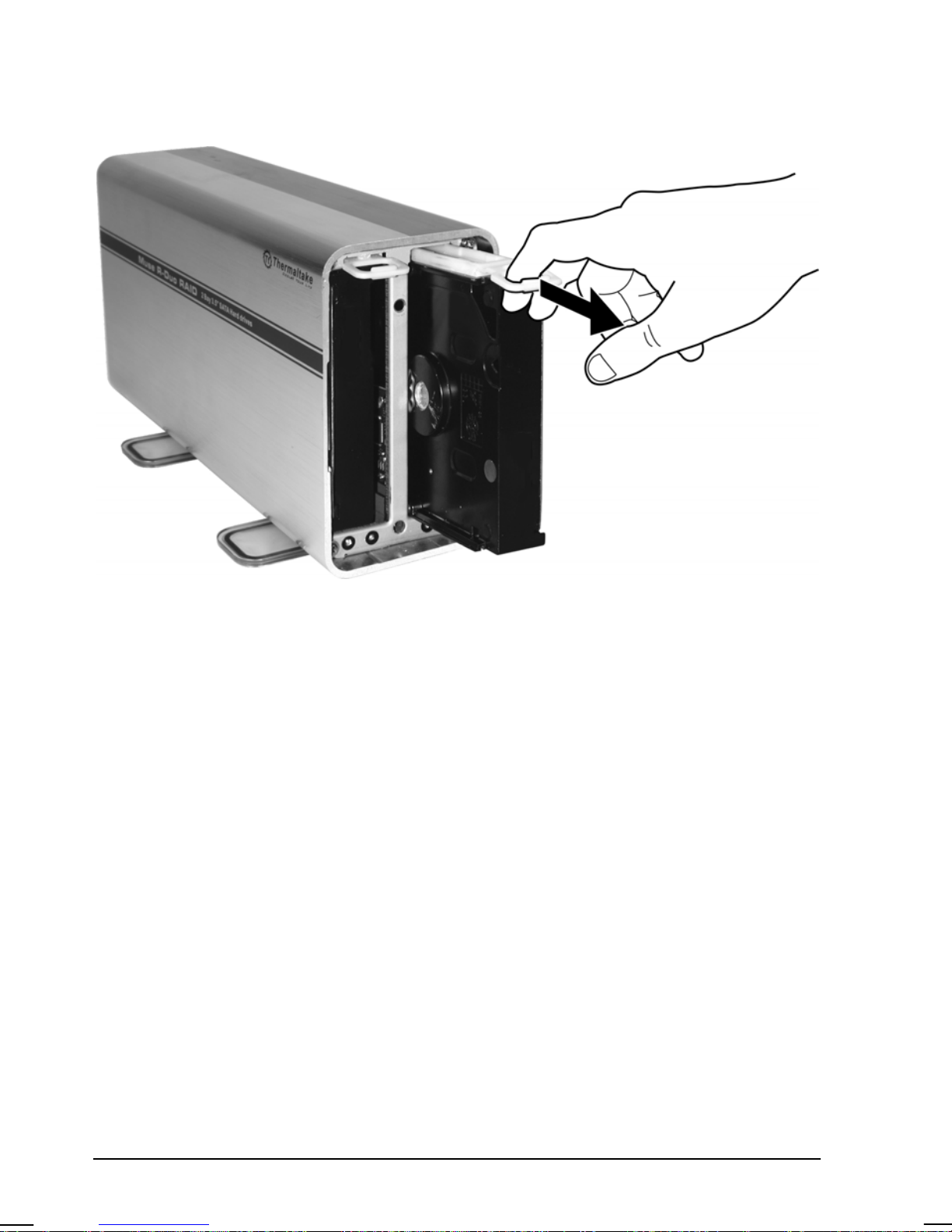

In the event that you would need to replace a hard disk drive, pull on the plastic
handle to slide the disk off the compartment.
10

Step 2. Install the Backup Master
NOTE: Do not connect the device to your computer until after you have finished installing
the Backup Master.
1. Make sure that your computer is turned on.
2. Insert the included Utility disc into your optical drive and the following
screen appears.
Click “Backup Master user manual”, could browse the Backup Master
software user manual, click the “Muse R-Duo RAID User Manual”, could
browse the product user manual
11

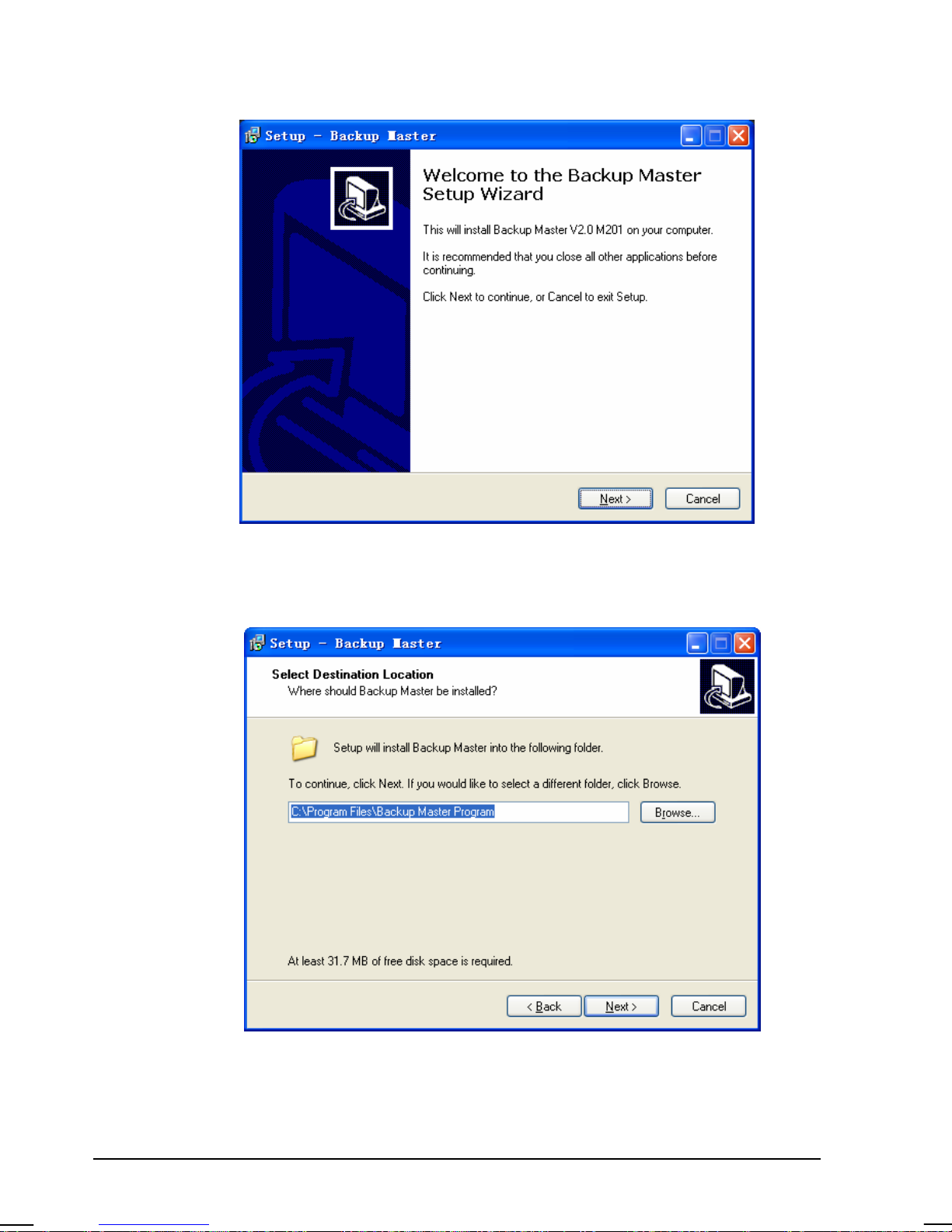

3. Click on Install Backup Master and the following screen appears.
4. Click on Next to continue, and the following screen appears. If you want to
select a different folder, click on Browse and select your desired folder.
12

5. To continue, click on Next and the following screen appears. If you want to
select a different Start menu folder, click on Browse instead and select your
desired folder.
6. To continue, click on Next and the following screen appears. Click on Create
a desktop icon if wish to do so.
13

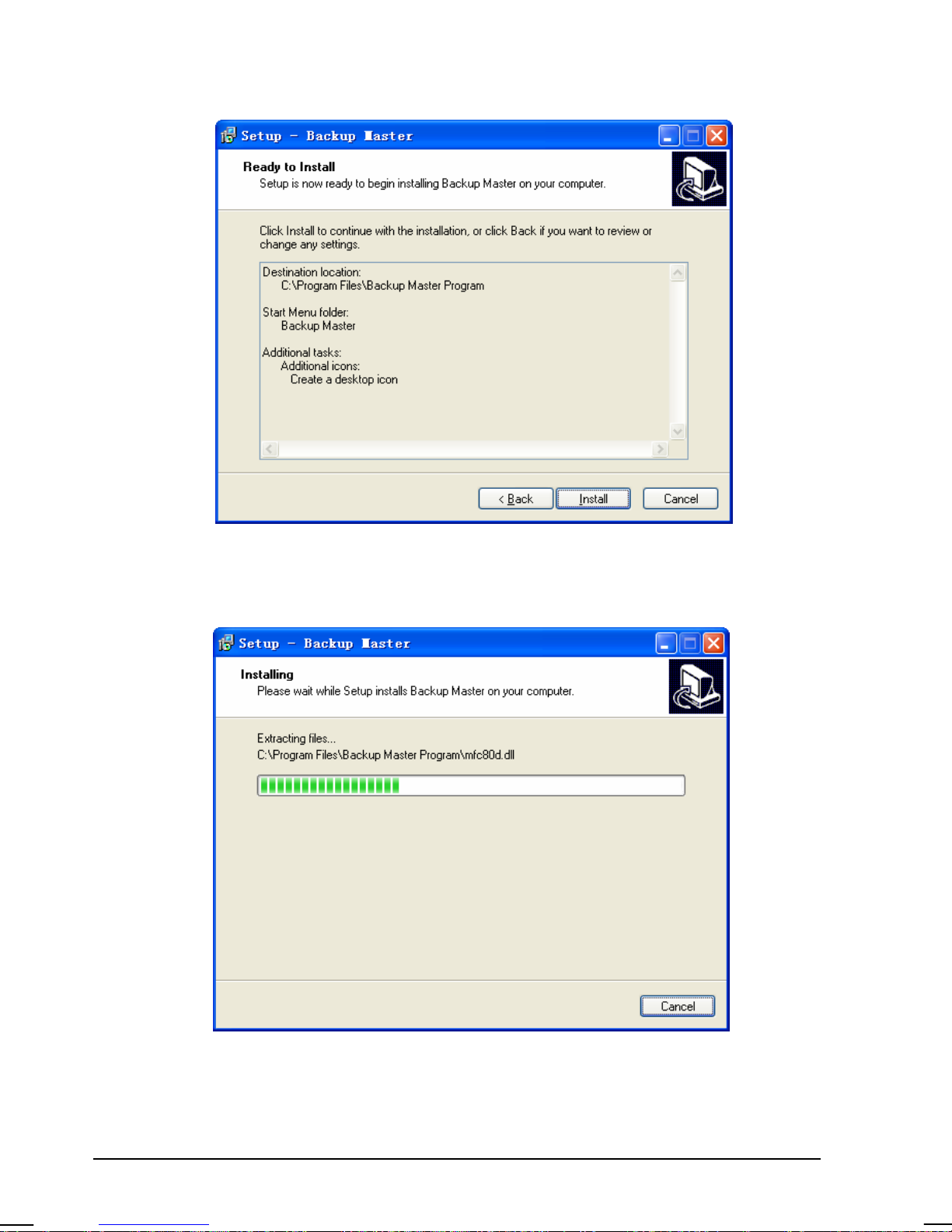

7. Click on Next to continue and the Ready to Install screen appears.
8. Click on Install to continue and the following screen appears, showing the
progress of installation.
14

9. When the next screen appears, click on Finish to exit the Backup Master
installation.
The External RAID Storage Detector icon would appear on your Windows
system tray to signify that the Backup Master was successfully installed.
15

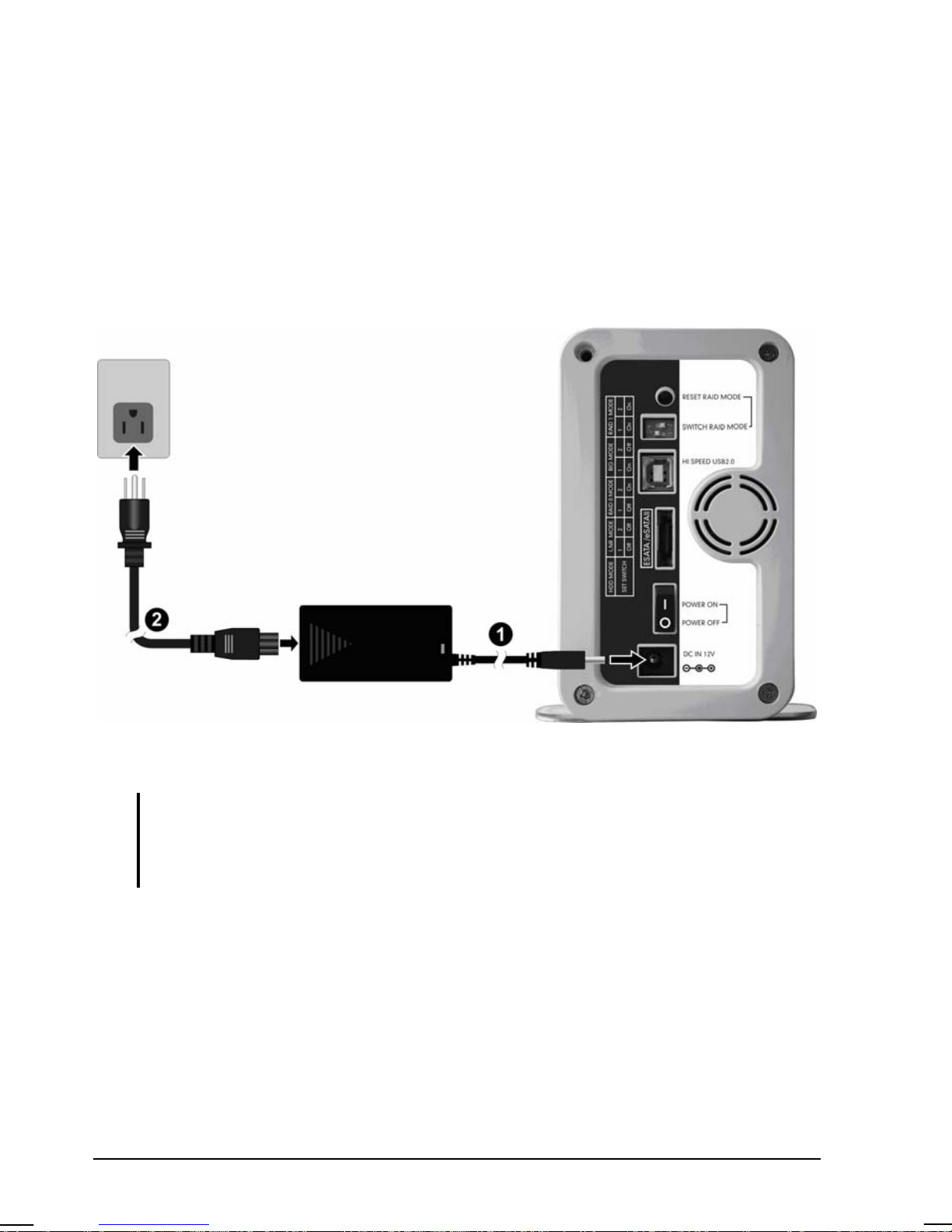

Step 3. Connect to Power
1. Make sure that the device is turned off.
2. Plug the DC cord of the AC adapter to the power connector on the rear of
the device (n).
3. Plug the female end of the AC power cord to the AC adapter and the male
end to an electrical outlet (o).
4. To turn on your storage system, press the Power switch.
CAUTION:
zWhenyoudisconnecttheACadapter,disconnectfromtheelectricaloutletfirstandthen
from the device. A reverse procedure may damage the AC adapter or the device.
zWhen unplugging the connector, always hold the plug head. Never pull on the cord.
16
