Thermogroup 5259 User manual

5259 Touch Screen
Thermostat Installation
PLEASE ENSURE YOU HAVE FULLY
READ AND UNDERSTOOD THIS
GUIDE BEFORE INSTALLATION!
!
YOUR STEP-BY-STEP GUIDE TO THE
PERFECT INSTALLATION
Watch the video online
WWW.THERMOGROUPUK.COM
STOCK NO 5267STOCK NO 5275STOCK NO 5259
5259IG

5259IG
WWW. WWW. WWW. WWW. WWW. WWW.
If you have any questions or queries regarding this product, or any other products or services
Call our technical helpline for free on 0800 019 5899
2
Thank you for your purchase...
WWW.
Browse our full product range, watch videos,
download product literature and get a quote,
all on the Thermogroup UK website.
WWW.THERMOGROUPUK.COM
CONTACT US ONLINE
WWW.
0800 019 5899
CONTACT US BY PHONE
WWW.
CONTACT US BY MAIL
Thermogroup UK, Bridge House,
Hop Pocket Lane, Paddock Wood,
Kent. TN12 6DQ.
Got a question or query? Call our UK support
line free from your land line.
Open 07:30 – 16:30 Mon - Fri
Need to find us or want to write a letter to say
hello? Feel free to contact us at Bridge House.
Thank you for choosing our 5259 Touch Screen Thermostat. Our
commitment to simple, honest, on-time quality service ensures that we
are here to help throughout every stage of your project from concept to
installation and, most importantly, after sales support.
This document will provide a step-by-step guide to a perfect installation,
details on your warranty and how to get Technical Support should you
need it.
To ensure a safe, hassle free installation to be proud of please take the
time to read this guide in full before reaching for your tools. We’ve taken
the time to highlight any potential pitfalls and common errors so you
can avoid them and get the job done!
This product is covered by a 3 year warranty, subject to terms and
conditions. Be sure to keep your receipt as proof of purchase, as this
will be required to validate your 3 year warranty.
If you have any questions about your thermostat call our Technical
Support team on the freephone number below. We will do our best to
find a solution for you and will always give that little bit extra…
Thanks again for choosing Thermogroup UK products.
Duncan Woodford
Customer Services
Thermogroup UK supplied thermostats are covered by a full 3 year
warranty from date of purchase. Thermostats found to be defective in
material or workmanship will be replaced or repaired at Thermogroup UK
discretion within 3 years of purchase date. Signs of abuse, misuse or
alterations will void this warranty.
Thermogroup UK shall not be liable for any other expense, loss or
damage; whether direct, indirect, incidental, consequential or exemplary
arising in connection with the installation or use of or the inability to use
Thermogroup UK underfloor heating systems.
No dealer, agent, employee or other representative of Thermogroup UK
is authorised to extend or enlarge this warranty.
Warranty, Terms & ConditionsA message from customer care
Watch the video online
WWW.THERMOGROUPUK.COM

5259IG
WWW. WWW. WWW. WWW. WWW. WWW.
If you would like to know more about our products or services,
you can view our complete range online, WWW.THERMOGROUPUK.COM 3
Contents
Step 3: Remove the face plate 4
Step 4: Release the black steel wall plate 4
Step 7: Wire up the thermostat 5
Step 10: Clip the thermostat to the black steel wall plate 5
Step 5: Remove the black steel wall plate 5
Step 8: Detailed wiring schematic 5
Step 11: Replace the faceplate 5
Step 6: Fix the black steel wall plate to the back box 5
Step 9: Slide the thermostat into the back box 5
Step 12: Power up the thermostat 5
Function 1: Set the time & date 6
Function 2: Manual mode 7
Before you start: Advanced settings - Sensor mode, Frost protection & Program options 6
Function 3: Heating schedule 7
DO DO NOT
Ignore IP32 regulations.
Install this thermostat in a wet zone.
Turn on until all adhesives are fully cured.
Step 1: Conduit installation 4
Step 2: Get an even temperature reading 4
Stage 1: How to install your thermostat
Stage 2: Programming your thermostat
4-5
6-7
5259 is IP32 rated so is suitable for safe installation in bathrooms.
All electrical circuits in bathrooms must be protected by a 30mA RCD. The instructions we supply include as much information as possible to
ensure that all installations comply with current electrical regulations. Please call our freephone customer care line if in any doubt on 0800 019
5899.
ALL WIRING MUST CONFORM TO IEE 17TH EDITION AND
PARTP REGULATIONS
IP32
! IMPORTANT SAFETY REGULATIONS !
Install a conduit before thermostat installation.
Ensure substrate is secure before inserting a groove for the conduit.
Ensure Underfloor heating is protected by an adequate RCD.

5259IG
WWW. WWW. WWW. WWW. WWW. WWW.
If you have any questions or queries regarding this product, or any other products or services
Call our technical helpline for free on 0800 019 5899
4
Stage 1: How to install your thermostat
Cavity wall: Position your conduit into your
back box and feed it down through the wall
cavity. Then feed your sensor probe cable
down to the end of the conduit.
Concrete wall: Chase a channel out of your
wall and floor, then lay the conduit in place.
You will need to plaster over the top. Now feed
the sensor probe to conduit.
The conduit and sensor should be positioned
centrally between two runs of heating cable to
allow for an accurate temperature reading.
Step 1: Conduit Installation Step 2: Getting an even temperature Step 3: Removing the face plate
UP
Earth
UP
Earth
Earth
1276 54 3
UP
Earth
UP
Earth
Carefully remove the white face plate. Now
release the black steel wall plate simply push
the steel wire clip in the direction shown and
the black steel wall plate will be released.
Pull the black steel wall plate away from the
thermostat.
Align the holes on the steel plate with the
ones on the backbox in your wall. Fix in place
with the supplied screws, taking care to
ensure the mount is level.
Step 4: Release the black steel plate Step 5: Remove the black steel plate Step 6: Fix the black steel wall plate
to the back box
!!
Leave the yellow cap on your conduit and
ensure sensor probe is pushed to the end.
When mounted on the wall a flat head
screw driver can be used to remove the
facelplate.
PRO TIP
PRO TIP
UP
Earth
MAKE SURE CONDUIT AND SENSOR ARE POSITIONED
CENTRALLY BETWEEN 2 RUNS OF HEATING CABLE
ENSURE THAT THE WIRING OF YOU R THERMOSTAT IS EXACTLY
THE SAME AS STEP 8
! IMPORTANT SAFETY PRECAUTIONS !
Step 4: Checklist
INSTALL CONDUIT IN CORRECT POSITION
INSTALL SENSOR CABLE
INSTALL STEEL WALL PLATE ENSURING ITS LEVEL AND SECURE
ENSURE CIRCUIT IS PROTECTED BY AN ADEQUATE RCD
4
1
5
2
6
3
!
!
!

5259IG
WWW. WWW. WWW. WWW. WWW. WWW.
If you would like to know more about our products or services,
you can view our complete range online, WWW.THERMOGROUPUK.COM 5
Stage 1: How to install your thermostat
UP
Earth
UP
Earth
Earth
1276 54 3
UP
Earth
Earth
1276 54 3
Pull the wires through from your heating
system and expose if required. Loosen the
tension screws to allow the wires to be
inserted and fixed.
Position the cables as shown above and
tighten the tension screws one by one.
Slide the thermostat into position. Ensure the
metal brackets on the black steel wall plate
slide easily back into position.
Step 7: Wiring the Thermostat Step 8: Detailed wiring schematic Step 9: Slide the thermostat into the
back box
!
1
Sensor probe
1
2
Heating cable cold tail
2
3
Power supply
3
1
5
4
32
67
°C
UP
Earth
UP
Earth
Gently push the steel wire clip down locking
the thermostat in place.
Clip the face plate into position. To remove the
face plate whilst attached to the wall, gently
use a flat headed screw driver in the notch on
the underside.
Tap the ‘power’ button on the touch screen
and begin to program the thermostat.
Step 10: Clipping the thermostat to
the black steel wall plate
Step 11: Replacing the face plate Step 12: Turn on the thermostat
Use a cable stripper to ensure a good
amount of cable is exposed.
Different coloured fascias are available,
install at this point if you have one.
Ensure circuit is protected by an adequate
RCD unit (5266)
Snubber - If your underfloor heating
system is over 16A you will need to install
a contactor snubber. See the Advanced
Electrical Guide online.
PRO TIP
PRO TIP
PRO TIP PRO TIP
UP
Earth
MAX LOAD 16A
ALL ELECTRICAL WORK MUST COMPLY WITH IEE 17TH EDITION
PART P REGULATIONS
! IMPORTANT SAFETY PRECAUTIONS !
Step 4: Checklist
INSTALL THERMOSTAT AND FACE PLATE
WIRE THERMOSTAT CORRECTLY TO AN RCD
THERMOSTAT POWERS UP
KEEP SENSOR AND THERMOSTAT AWAY FROM HOT OR COLD
EXTERNAL INFLUENCES SUCH AS PIPES
7
10 11 12
8 9
UP
Earth
!
!
!

5259IG
WWW. WWW. WWW. WWW. WWW. WWW.
If you have any questions or queries regarding this product, or any other products or services
Call our technical helpline for free on 0800 019 5899
6

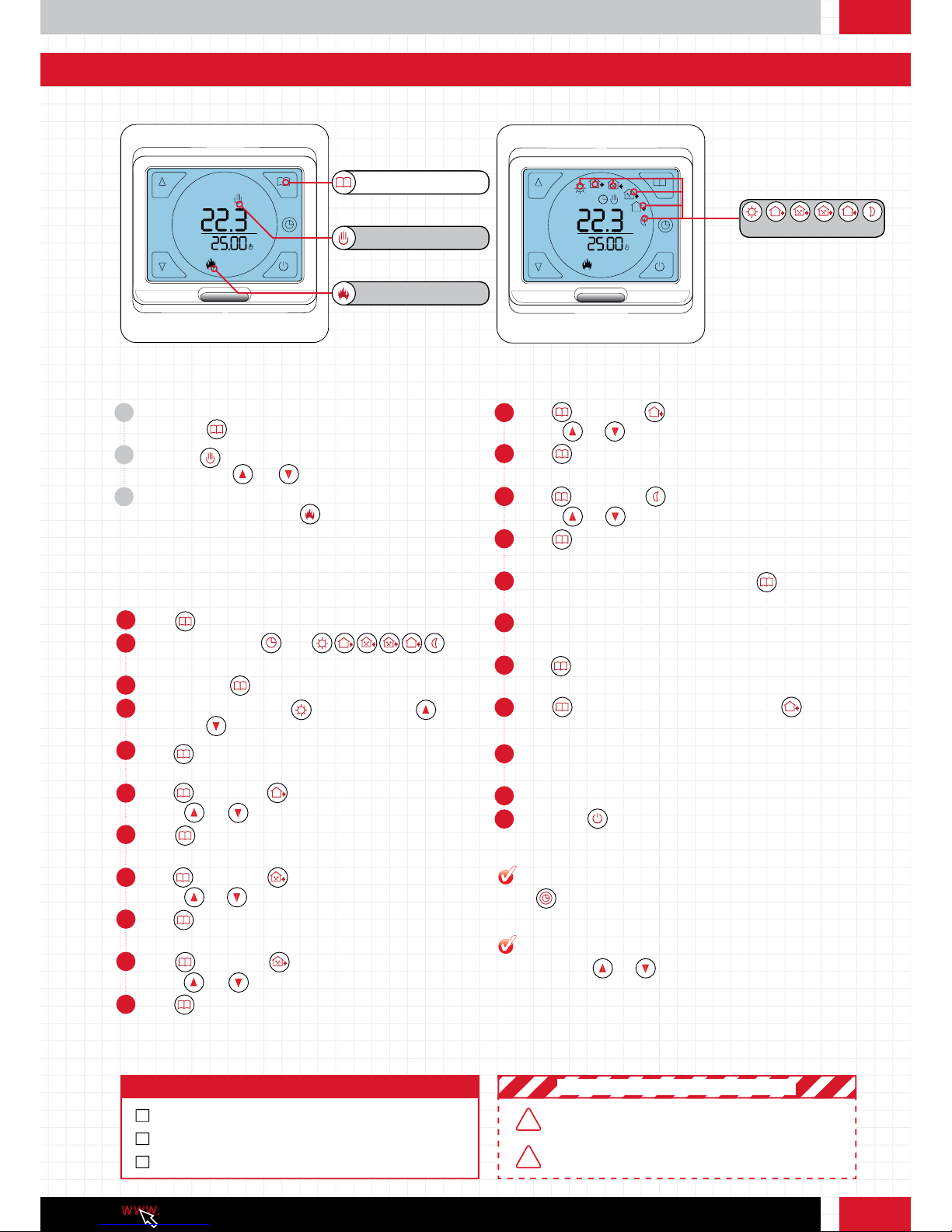

Stage 2: Programming your thermostat
Button key:Icon key:
Period 1
Period 3
Manual control mode
Period 2
Heating on
Program mode indicator
Period 5
Period 4
Period 6
Up button
Power button
Down button
Menu button
Clock button
1Tap the button to switch unit on.
2The backlight will fade after around 10 seconds.
3Tap the button to switch it back on at any point.
4Press and hold the button for around 7 seconds or until
the minutes begin to flash.
5Use the and arrows to select the correct minute.
6Tap the button to switch to hour and use and to
select the correct hour.
7Tap the button again to edit the day.
8Use the and arrows to select the correct day number:
1 = Mon 7 = Sun.
Function 1: Set the time & date
1
5
4
3
2
6
7
°C
°C
°C
°C
Power button
Clock button/Backlight
Menu button
Down button
Up button
1To access advanced settings switch the unit off by tapping
the button.
2Then press and hold both the and button.
3Tap the button to switch to Sensor mode (2SEN) and
set to OUT
6Tap the button to set your program
days.
7Tap and to set the program
days.
8Program options include:
9Switch off to save your settings using
the button.
• Seven days same
• Five days & weekend
• Six days same & 1 separate day
• Program off
4Tap the button until you see Frost
protection mode (5LrP - pictured
left).
5Set this to “On” using the and
arrows.
Before you start
5259 has some advanced settings which must be configured before
programming. These include Sensor Setup, Frost Protection &
Heating Schedule Options.
1
5
4
3
2
6
7
°C
Heating Schedule options
Frost Protection
Sensor mode
Your heating schedule can be configured to suit most lifestyles. The options
are Mon – Fri (1-5) the same with Sat – Sun (6-7) separate. Mon – Sat
(1-6) the same with Sun (7) separate and All Days (1-7) the same. You can
also switch off the heating schedule if you require. 1-5 days settings have 3
comfort periods. 6-7 day settings has 1 comfort period.
When set to ON, the built in frost protection feature will ensure the
temperature of your substrate never dips below 10oc. This protects against
frozen substrates and ensures economical heat up times.
The 5259 has three sensor settings. Air Sensor (IN), Floor Sensor (OUT)
and Air Sensor with Floor Limit (All). We recommend Floor Sensor (OUT)
for the most accurate control. The thermostat sensor is defaulted to “IN” so
should be changed before use.
Air Sensor (IN) Floor Sensor (OUT) Air Sensor with Floor
Limit (All)
°C
°C
°C
°C
°C°C
°C°C
°C
1
5
4
3
2
6
7
°C
The 5259 will go to a maximum of 270C. We recommend a maximum
of 250C for efficiency. (High temperatures may damage your floor finish)
PRO TIP
MAKE SURE ADVANCED SETTINGS ARE FINALISED BEFORE
THERMOSTAT SETUP
BE SURE TO SELECT THE RIGHT MODE FOR THE RIGHT
INSTALLATION. THE WRONG SETTING COULD COST
YOU MONEY
! IMPORTANT SAFETY PRECAUTIONS !
Step 4: Checklist
IS THE CONDUIT AND SENSOR PROBE IN POSITION
EXPLORE ALL SETTINGS AND FEATURES
SELECT PREFERRED ADVANCED SETTING
!
!

5259IG
WWW. WWW. WWW. WWW. WWW. WWW.
If you would like to know more about our products or services,
you can view our complete range online, WWW.THERMOGROUPUK.COM 7
Stage 2: Programming your thermostat
12 Tap to advance to (period 5) and select the desired time
using and .
13 Tap to save your start time and set the Comfort Temperature
to between 200C and 270C.
14 Tap to advance to (period 6) and select the desired time
using and .
15 Tap to save your start time and set the Eco Temperature
between 180C and 200C.
16 Now you have a set schedule for 5 days. Tap to set your
weekend heating.
17 Select a later start time if you like a lie in. This time will apply to
both days.
18 Tap to save your start time and set the Comfort Temperature
between 200C and 270C.
19 Tap to save your temperature and advance to
(Period 2).
20 Set the desired start time and set the Eco Temperature between
180C and 200C.
21 You should now have a complete 7 day heating schedule!
22 Simply tap (Power) to activate your schedule and you’re
done.
1Tap button to switch the unit into Schedule mode.
2You will see both the and
(Period 1- 6) symbols displayed.
3 Press and hold for 7 seconds to edit your schedule.
4 Firstly, set the start time for (period 1) using the up
and down buttons.
5 Tap to save your start time and set the Comfort Temperature
to between 200C and 270C.
6 Tap to advance to (period 2) and select the desired time
using and .
7 Tap to save your start time and set the Eco Temperature
between 180C and 200C.
8 Tap to advance to (period 3) and select the desired time
using and .
9 Tap to save your start time and set the Comfort Temperature
to between 200C and 270C.
10 Tap to advance to (period 4) and select the desired time
using and .
11 Tap to save your start time and set the Eco Temperature
between 180C and 200C.
1You can switch between Manual mode and your custom Schedule
by tapping .
2When in (Manual control mode), set a target temperature
manually using and .
3When the target temperature is set above the ambient
temperature, you will see the (Heating on) symbol below the
target temperature. You may also hear a ‘click’.
Function 2: Manual Mode
Function 3: Heating schedule
Function 3: Heating schedule continued
1
5
4
3
2
6
7
°C
°C
°C
°C
1
5
4
3
2
6
7
°C
°C
°C
°C
Manual control mode
Heating on
Periods 1 - 6
Menu button
Tap the icon to switch on the backlight
Press and hold the and to lock the screen, press and hold again
to unlock.
PRO TIP
PRO TIP
BE SURE TO PRESS THE MENU/ POWER BUTTON TO SAVE
YOUR SETTINGS. SETTINGS MAY BE LOST OTHERWISE
!
!SETUP YOUR HEATING SCHEDULE TO FIT WITH YOUR
LIFESTYLE, THIS WILL GIVE YOU THE BEST RESULTS
! IMPORTANT SAFETY PRECAUTIONS !
Step 4: Checklist
ASSIGN HEATING SCHEDULE
RECOGNISE MINIMUM AND MAXIMUM TEMPERATURE
EXPLORE ALL ICONS AND BUTTONS

WWW.
Browse our full product range, watch videos,
download product literature and get a quote,
all on the Thermogroup UK website.
WWW.THERMOGROUPUK.COM
CONTACT US ONLINE
WWW.
0800 019 5899
CONTACT US BY PHONE
WWW.
CONTACT US BY MAIL
Thermogroup UK, Bridge House,
Hop Pocket Lane, Paddock Wood,
Kent. TN12 6DQ.
Got a question or query? Call our UK support
line free from your land line.
Open 07:30 – 16:30 Mon - Fri
Need to find us or want to write a letter to say
hello? Feel free to contact us at Bridge House.
5259IG_A4_120512.PDF
Thermogroup UK
Bridge House
Hop Pocket Lane
Paddock Wood
Kent
TN12 6DQ
E&OE © Thermogroup UK 2012
0800 019 5899
[email protected]
www.thermogroupuk.com
Terminal Sizes Voltage Protective
Housing Size Temperature
Gradient
Power
Consuption
Ambient
Temperature Setting Range Max Load
0.32 – 2.1mm2230V IP32 (H) 90mm x (W) 86mm x
(D) 43mm/ 13mm to wall
0.5 - 10OC
adjustable 2W 0.5 ~ 50OC5 – 90OC16A / 3600W
Technical Specification
5259IG
