Thermopatch Thermo-Seal Y151 Series User manual

Y151 Thermo-Seal
Operator’s Manual
47117-0DQ
Rev0912

2
As manufacturer the company
Thermopatch bv
Draaibrugweg 14-16
1332 AD ALMERE - NETHERLANDS
confirms the machine for temporary marking
Thermo-Seal Y-151
meets the requirements as stated in the EC directives for machine safety and
health rules and shows conformity to the following criteria and provisions: Low
Voltage Directive (73/23/EEC)/EN60950, EMC Directive (89/336/EEC)/ EN55022
& EN50082-1 - 89/392/ewg and 89/368/ewg
and in particular the following requirements:
EN 55022:2006 EN
55014-1:2006 EN
61000-3-2:2006 EN
61000-3-3:1995
+A1:2001, A2 :2005
EN 55014-2 :1997
+A1 :2001 EN61000-
4-2 :1995 +A1 :1998,
A2 :2001 EN 61000-
4-4 :2004 EN 61000-
4-5 :1996 EN 61000-
4-6 :1996 +A1 :2001
EN 61000-4-11 :2004
The undersigned declares that the described product meets the essential
requirements of the EMC Directive 2004/108/ EC, based on a non-recurrent
examination.
KEMA Quality BV Certificate nr. 2113668.0551-QUA/
EMC
THERMOPATCH B.V.
J. Bausch
Director
EC - STATEMENT OF CONFORMITY

3
© 2011, Thermopatch, Syracuse, New York. No part of this publication may be
reproduced by any means without the prior written permission of Thermopatch,
Syracuse, New York. Thermopatch, Thermo-Seal, Alligator, Beaver, Cheetah,
Deco-Print, Penguin, TruFlex and the Thermopatch logo are ® trademarks of
Thermopatch, Syracuse, New York.
Copyright

4
Welcome to the growing group of Thermopatch customers. The product you have
purchased has been carefully designed and manufactured to ensure that you will
gain the maximum benefit.
All Thermopatch products are specifically designed to ensure ease of use with
particular attention to safety requirements.
Should you discover any fault or damage upon receipt of this product, contact
your local Thermopatch representative immediately.
Preface

5
Contents
1. Introduction 6
1.1 What Did You Receive 7
1.2 Thermopatch Customer Service
8
1.3 View of the Y151 Thermo-Seal Machine 9
1.4 Specifications of the Y151 Thermo-Seal 10
1.5 Safety 11
1.6 Conditions of Warranty 11
2. Installation 12
2.1 Transport Instructions 12
2.2 Installing the Machine 12
2.3 Electrical Requirements 12
2.4 Pneumatic Requirements 12
2.5 Label Tape Storage Rack Installation 13
3.
How to Operate the Y151 Thermo-Seal 14
3.1 Ink Cartridge Installation 14
3.2 Inserting Label Marking Tape 15
3.3 Machine Operation 16
4. Customizing the Y151 Thermo-
Seal (Option Menus)
18
5. Temporary Marking 20
5.1 Sealing Label Tags & Organization 20
5.2 Interrupting the Sealing Cycle 22
6. Trouble Shooting 23
7.
Maintenance 26
7.1
Heater Shield
26
7.2 26
7.5 Tape Guide
26
7.4 27
Label Tape Drive “O”- Ring 27
7.6 28
8. Drawings & Parts Listings 29
Weekly Cleaning Schedule
7.3 Bi-Yearly Cleaning Schedule
Daily Cleaning Schedule

6
The Y151 Thermo-Seal is a machine for the temporary marking of garments
and other textile items.
In one cycle, labels for temporary marking are printed, cut and sealed onto the
garment or textile item. After washing or chemical cleaning, the labels can be
removed from the garment or textile item without leaving any label residue.
Temporary marking of a garment or textile item is achieved without the use of
chemical solvents or other harmful materials. By means of an Ink Ribbon
Cartridge, a code (maximum of twelve characters) is printed upon the
Thermo-Seal label tape (.25” or 6.3mm in width).
Most garments or textile items can be marked directly. For garments of very
sensitive fabric, there is an alternative method of fixing the temporary label to
the garment. An extra-long label tape or “flag” can be printed and attached to
the garment through the button hole of the garment. Thermo-Seal temporary
marking label tapes are available in ten different colors.
The Y151 Thermo-Seal machine operates electrically and pneumatically,
through use of compressed air. The code to be printed on the label tape is
entered through the machine keyboard. Raising the Press Arm engages the
pneumatic system to automatically cut and seal the label tape onto the garment
or textile item.
Time, temperature and other optional settings can be entered through the
machine keyboard. The time and temperature, as well as other information, can
be viewed from the Keyboard LCD Panel.
The new heater unit design, as well as electronics, ensures the consumer of
lower energy consumption and a safer work environment.
1. Introduction

7
1.1 What Did You Receive?
The Y151 Thermo-Seal machine has been packed in a cardboard shipment
container with laminated foam protection cradles on each end. Various
components of the Y151 Thermo-Seal machine can be found packaged within.
The Y151 Thermo-Seal comes complete with the following components:
Y151 Thermo-Seal machine with keyboard
Ink Ribbon Cartridge RC2410-15
Line Power Cord 115 volt 20080-70 or 230 volt 41969
Label Tape Cassette Storage Rack 47068
Label Tape Cassette, quantity of 6 47083
A roll of white Thermo-Seal Label Tape TS4635-01
Air Filter Pressure Regulator 47094
Main air line hose DH-6795
Rubber Sealing Platen DH-3187
Button head socket hex screws, 2 21061-26-N
Hex L-Key, 4mm 24085-14
Ez-Off Cleaner Thermopatch DH-6873 or SPADH-6873
If one of these components is missing, please contact your Thermopatch Sales
Representative.
Thermo-Seal Label Marking Tapes
TS4635-01 White
TS4635-02 Tan
TS4635-03 Blue
TS4635-05 Gray
TS4635-06 Lavender
TS4635-07 Yellow
TS4635-08 Green
TS4635-09 Red
TS4635-11 Orange
TS4635-13 Pink
TS4635-14 Gold

8
1.2 Thermopatch Customer Service
Thermopatch Corporation’s U.S. and International network of Sales
Representatives, as well as its internal Customer Service Department, offer their
assistance in the development of effective heat-seal mending, marking and
identification programs.
Thermopatch markets a complete line of heat-seal and marking machines, as
well as a complete line of materials and supplies.
Label Print Machines – Manual, automatic and computer controlled.
Marking Machines – High speed permanent imprinting of decorative or
informative marks on most woven fabrics.
Heat-Seal Machines – Manual, semi-automatic and completely automatic, with
high inter-platen pressure to assure excellent adhesion of label tapes and
mending materials.
Label Tapes – Specially woven 100% cotton and blends with adhesives to
match specific processing requirements.
The Deco-Print line of products has been specifically designed to offer
alternative solutions to sewn-in labeling and other methods of decorative
trimming. An assortment of heat-sealable applications are available including
hot paper transfers, screen printed transfers, direct printing, application
equipment and supplies and digital printed transfers.
When ordering machine parts, please include the model and serial numbers of
your equipment.
United States :
Thermopatch Corporation
P.O. Box 8007
Syracuse, New York 13217-8007
Telephone: [phone]
Fax: [phone]
Toll Free: 800-252-6555
(in the US only)
Canada :Thermopatch (Canada)
Incorporated
25 Groff Place, Unit No. 5
Kitchener, Ontario N2E 2L6
Telephone: [phone]
Fax: [phone]
Toll Free: 800-265-6416
(in Canada only)
Australia :
Thermo
p
atch
(
Australia
)
Pt
y
. Ltd.
477 Warrigal Road, Unit No. 9
Moorabbin, Victoria 3189
Telephone:
011-61-3-9532-5722
Fax:
011-61-3-9532-5652
Netherlands :Thermopatch BV
P.O. Box 50052
1305 AB Almere
Netherlands
Telephone: [phone]
Fax: [phone]
Germany :Thermopatch Deutschland
Grunteweg 33
26127 Oldenburg
Deutschland
Telephone: [phone]
Fax: [phone]
E-mail:
[e-mail]
France :Thermo
p
atch France
7 Rue Chappe-Z.I. Des Garennes
B.P. 1011
Les Mureaux Cedex 78131
France
Telephone: [phone]
Fax: [phone]
Internet Address :http://www.thermopatch.com
E-mail Address :[e-mail]

9

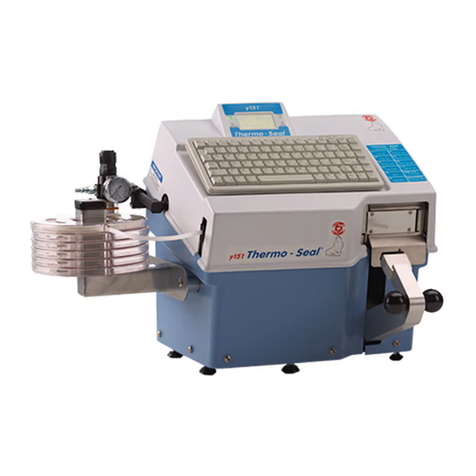

1.3 The Y151 Thermo-Seal

10
1.4 Specifications of the Y151 Thermo-Seal
Specifications – 230 Volts
Power consumption
575 watts
Power supply 230 volts
Temperature 176°C
Machine height 389 mm
Machine width 556.5 mm
Machine depth (connections included) 432.5 mm
Net weight 18.5 kg
Platen Pad dimensions 14.3 x 34.7 mm
Heater Unit dimensions 35 x 80 mm
Fuses 3.15 amps
[5 X 20mm]
Specifications – 115 Volts
Power consumption 575 watts
Power supply 115 volts
Temperature 349°F
Machine height 15.3”
Machine width 21.9”
Machine depth (connections included) 17.1”
Net wei
g
ht 40.7 LB
Platen Pad dimensions 0.56” x 1.37”
Heater Unit dimensions 1.38” x 3.15”
Fuses 6.3 amps
[5 X 20mm]

11
1.5 Safety Tips
The Y151 Thermo-Seal machine has been designed with optimum safety for the
machine operator in mind. However, we provide you with some instructions by
which you should operate this machine.
Always turn off and unplug the machine when doing maintenance or cleaning
the machine.
Ensure that there is sufficient space around the machine. Cables and
connections must not get jammed. Although the heat radiation of the Heater Unit
is low, there should be enough space for cooling down.
Do not come in direct contact with the Heating Unit, as contact will cause burns.
1.6 Conditions for Warranty
Thermopatch Corporation, Syracuse, New York (“Seller”) warrants this product to be free from
defects in material and workmanship under normal use and service. Any part which proves to be
defective in material or workmanship within one year of the date of original purchase for use, will
be repaired or replaced, at Seller’s option, free of service or labor charges, with a new or
functionally operative part. Seller’s liability under the Warranty shall be limited to repairing or
replacing at its own factory or through an authorized service distributor or dealer, material which is
determined by Seller to have been defective in manufacture and upon which a claim has been
made by the original purchaser or user to Seller (or an authorized distributor or dealer) within the
warranty period. Claims under this Warranty will be honored only upon written approval by an
authorized officer of Seller. Approved return of parts or products will be on a prepaid transportation
charges basis only. Claims under this Warranty will be honored only upon Seller’s determination
that the claim is covered by this Warranty, and Seller shall incur no obligation under this Warranty
prior to such determination. This Warranty does not apply: (1) To any machinery or equipment
which has been altered or repaired, except by Seller or its authorized representatives, or (2) to any
machinery or equipment which has been subject to misuse, negligence, or accident, including,
without limitation, use and operation of such machinery or equipment while parts are loose,
broken, out of order, or damaged by the elements. Parts replaced under this Warranty are
warranted only through the remainder of the original Warranty. Any and all claims for warranty
service must include such information as Seller designates, and shall include specifically the serial
number of each unit (if appropriate).
The foregoing shall constitute the sole and exclusive remedy of any using purchaser and the sole
and exclusive liability of Seller in connection with this product. THIS WARRANTY IS IN LIEU OF ALL
OTHER WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, INCLUDING BUT NOT LIMITED TO, ANY
WARRANTY OF MERCHANTABILITY OR FITNESS AND ALL OTHER OBLIGATIONS OR LIABILITIES OF
SELLER, INCLUDING ANY TORT LIABILITY, FOR NEGLIGENT DESIGN OR MANUFACTURE OF THIS
PRODUCT, OR OTHERWISE. It is expressly agreed that Buyer shall not be entitled to recover any
incidental or consequential damages, as those terms are defined in the Uniform Commercial Code,
and that Buyer shall have no right of rejection or of revocation of acceptance of any part or all of
the goods covered hereby.

12
2.1 Transport Instructions
Upon receipt, your Y151 Thermo-Seal machine is packed in a cardboard
shipment container with laminated foam protection cradles for protection of your
machine during shipment. Retain original packaging in case the machine
should need to be serviced at a later time. Please let the machine cool down
before packing the machine in the shipment container.
2.2 Installing the Machine
Take the Y151 Thermo-Seal out of the shipment container and put the machine
on a worktable near a grounded socket. Ensure that there is sufficient free space
around the machine.
2.3 Electrical Requirements
The Y151 Thermo-Seal should be connected to the electricity grid (230V or
115V alternating current). Use the Line Power Cord provided with the machine.
Electrical Specifications: 115 volts (50/60 HZ) Single Phase; 230 volts (50 HZ)
Single Phase. All 230v machines use two 250v – 3.15 amp fuses. All 115v
machines use two 250v – 6.3 amp fuses.
The picture to the left shows the Y151
Thermo-Seal set for 230v operation.
2.4 Pneumatic Requirements
The Y151 Thermo-Seal machine also requires a clean dry air supply to
operate the Press Arm Sealing Cylinder and the Dynamic Knife Cylinder. The line
pressure coming into the Y151 Thermo-Seal Air Filter Pressure Regulator should
be a minimum of 70 P.S.I. or 5 Bars. This is not the final pressure setting for
the Air Filter Pressure Regulator on the Y151 Thermo-Seal machine.
To confirm that the machine air pressure is correct, check the gauge located on
the front of the filter. The gauge should register 60 P.S.I. (Imperial
measurement) or 4 Bars (metric measurement).
2. Installation

13
1. Connect a clean dry air supply to the Air Filter Pressure Regulator.
2. Connect the Air Filter Pressure Regulator by screwing the component onto the
threaded elbow, positioning the gauge so it can be read.
3. Connect the Air Hose by pushing receptacle firmly onto Air Inlet Fitting. Make
sure air line is connected securely and the air gauge is working.
4. To adjust air pressure setting, pull up the knob on top of the Air Filter Pressure
Regulator to unlock the adjustment knob.
5. Slowly turn the knob clockwise to increase air pressure or counter-clockwise to
decrease air pressure until the gauge registers 60 P.S.I. or 4 bars.
6. Push down on the knob to lock the current setting in place.
CAUTION! The maximum machine operating pressure is 100 P.S.I. or 7 Bars. The
Y151 Thermo-Seal machine comes pre-set at 60 P.S.I. or 4 Bars.
2.5 Label Tape Storage Rack Installation
The Y151 Thermo-Seal machine comes complete with a Label Tape Storage
Rack and six Label Tape Cassettes. The rack can hold a maximum capacity of
eight Label Tape Cassettes.
Attachment of the Label Tape Storage Rack requires the use of a 4mm L-Hex Key
provided. The Label Tape Storage Rack is attached to the Y151 Thermo-Seal
machine chassis with the two M6 x 1.0 x 40mm long screws provided. Insert the
screws through the clearance holes in the Label Tape Storage Rack engaging the
threaded inserts in the machine chassis. Use the 4mm L-Hex Key to tighten the
screws.
Slide the Label Cassettes (6) over the
square center post of the Label Tape
Storage Rack. Correct position of the
Label Tape Cassettes is with the hinge
portion of the cassette towards the
back and the slotted opening towards
the front.

14
3.1 Ink Cartridge Installation
The Y151 Thermo-Seal machine comes complete with an Ink Ribbon Cartridge,
Thermopatch supply part RC2410-15. The Ink Ribbon Cartridge is required to
print the desired code onto the temporary label tape.
3. How to Operate the Thermo-Seal
To Install the Ink Ribbon
Cartridge:
1. Open the hinged Machine Top
Cover all the way back until it
comes to rest.
2. Remove Ink Ribbon Cartridge
from the box and the sealed plastic
bag.
3. Clasp the tabs on each side of
the Cartridge and guide the Ink
Ribbon between the Ink Ribbon
Mask and the Printer Head. When
properly installed, the cartridge will
snap in place.
4. Turn the Ink Ribbon Advance
Knob clockwise to advance the Ink
Ribbon and remove any folds that
may have occurred during insertion
of the Ink Ribbon Cartridge.

15
3.2 Inserting the Label Marking Tape
Should you encounter a splice in the roll (marked by silver tape), remove
section using scissors and re-insert the label marking tape into machine.
1. Switch the Power Entry Module Switch
“ON.”
2. Place the Label Marking Tape into a
Label Tape Cassette and place the Cassette
onto the Label Tape Cassette Storage Rack.
3. Pull out approximately 12” or 30cm of
tape from the Label Tape Cassette.
4. Insert the Label Marking Tape into the
Tape Feed Guide entrance, making sure the
adhesive (shiny) side faces the front of the
machine.
5. Push the Label Marking Tape into the
Tape Feed Guide until it can go no further.
6. Depress and hold down the “LOAD TAPE”
F1 key and the tape will begin to advance,
becoming present in front of the Heater
Unit. Once the Label Marking Tape is
positioned in front of the Heater Unit,
raising the machine Press Arm will
complete the “Load Tape” sequence. This
action will cut the Label Marking Tape and
“Ready” the machine.

16
3.3 Machine Operation
Before printing and sealing with your Y151 Thermo-Seal machine, make sure
you have completed all instructions for installation (see Section 2 Installation).
In review, the following should be completed:
Threaded the Air Filter Pressure Regulator onto the machine.
Mounted the Label Tape Cassette Storage Rack to the left side of the machine.
Securely attached the Main Air Line Hose to the Air Filter Pressure Regulator.
Installed the Line Power Cord, and switched the Power Entry Module to “ON”
position.
Installed the Ink Ribbon Cartridge.
Loaded the Label Marking Tape into the Tape Feed Guide.
The green “POWER ON” LED is illuminated on the LCD Panel.
The green “HEAT ON” LED is pulsing or flashing on the LCD Panel.
Before you begin printing and sealing, it is necessary for you to understand the
features, messages and icons present on the LCD panel of the Y151
Thermo-Seal machine.

17
AB
CD
E
F
G
H
I
The picture of the LCD to the right illustrates the Y151 in “Ready” mode.
A: Illuminated green LED indicates the power is “ON.”
B: Illuminated green LED indicates the heat is “ON” and rising to operating temperature.
Flashing LED indicates the machine has reached operating temperature.
C: Illuminated red LED indicates label is ready to be sealed.
D: Illuminated red LED indicates the machine is sealing.
E: Machine Operating Temperature icon: Temperature in either Celsius or Fahrenheit. The
picture to the right shows the machine is operating at the factory setting 176° C or 349° F.
F: Sealing Time- The nominal sealing time is 2.7 seconds. An optional 4.8 second sealing time is
available for thick, damp or dirty objects.
G: Operation mode: Label Quantity, Single Label or Continuous.
J
K
H: Total Production Counter- Number of labels sealed since the machine was installed. The
continuous counter cannot be reset.
I: Bundle Quantity- Number of labels to be sealed per bundle. Counter will count downward
from the number placed into the Bundle Quantity queue by the machine operator.
J: Text Entry Line- 5-12 alpha-numeric characters can be entered to be printed on labels.
K: Daily Production Counter- Number of labels sealed in the time in which the machine has been
operating. Resets after machine is switched off.
L: Label Length- NL stands for Normal Length. Extra Length “EL” is available to the machine
operator as well.
L

18
The Y151 Thermo-Seal machine software has a number of factory default
settings, such as: Sealing Temperature, the Display Language, the Label
Marking Tape Length, and the Password to the Special Settings Mode.
The Y151 Thermo-Seal software can be customized to your personal
requirements. These changes to the factory settings in the machine software can
be accessed through the Special Settings Mode in the Keyboard Options F8
menu.
The Y151 Thermo-Seal factory settings are sufficient for normal daily processing
of garments and textile items. However, short cut Thermo-Seal Function Keys
are provided to allow for changes to the standard software settings while
processing. The Thermo-Seal Function Keys allow for the exceptions that are
encountered without having to continually change factory software settings.
4. Customizing the Y151 Thermo-Seal
SHORT CUT FUNCTION KEYS
KEY DISPLAY DESCRIPTION
F1 Cut Tape Load Label Tape
F2 Load Tape Unload Label Tape
F3 2.7 Toggle between Normal
4.8 and Heavy seal time
F4 NL Toggle between Normal
EL length and Extended length
F5 Display Totals Toggle Display Totals
On/Off
F6 Double Strike Print Label text darker
F7 Reset Day Counter Reset the Daily Counter
Sure Y/N
1 = Settings Menu Options #1
F8 2 = Special Mode Menu Options #2
3 = End Exit and return to display
F9 Repeat last Label Reprint prvious label text
F10 Insert Display last character in
On/Off text line
Numlock
Current operating Toggles between operating
temperature temperature & main display
Back- No Display Ends bundle or series
space shown display ready for new entry

19
MENU OPTION 1 - SETTINGS
MENU DISPLAY DESCRIPTION ADJUSTMENT DEFAULT
1 - Temperature Temperature Change Temperature Up/Down Arrow Key 1°F or 1°C 176°C
Right/Left Arrow Key adjust 10°F or 10°C 349°F
1. Normal Time Change Normal Seal Time Up/Down Arrow Key 0.1 second 2.7 Sec.
2 - Seal Time 2. Ext. Time Extended Seal Time (Heavy) Right/Left Arrow Key adjust 1.0 second 4.8 Sec.
3. Sec. S. Time Second Seal Time Up/Down Arrow Key On/Off ON
(Long Label Tag) Right/Left Arrow Key On/Off
3 - Label Length 1. Normal Label Normal Up/Down Arrow Key 1 unit 10
2. Ext. Label Extended Label Right/Left Arrow Key adjust 10 units 100
4 - Characters Characters Change number of Up/Down Arrow Key 1 character 6
Number Characters in use Right/Left Arrow Key adjust 10 characters
5 - Automatic Numberin
g
Auto Numbering Turns Auto Numbering Up/Down Arrow Key or Right/Left Arrow Key Off
Off On or Off turns Auto Numbering On or Off
Language
1. Deutsch Choice of operation Up/Down Arrow Key cycles through the
6 - Language 2. English Language Language menu. To select depress the English
3. Espanol Enter Key.
4. Francais
5. Nederlands
7 - Celcius/Fahrenheit Celsius/Fahr Change Temperature Up/Down Arrow Key selects desired Celsius
Scale Temperature Scale
8 - Serial Port Serial Comm Serial Port Function Up/Down Arrow Key selects desired Off
Off Setting setting: On or Off
1 = Label Quant
2 = Single Label Operation Mode Select menu number 1
3 = Continue
9 - Operation Mode Sub Menu Sub Menu
1 = Invoice Before
2 = Invoice After Use of Invoice Select menu number 3
3 = No Invoice
MENU OPTION #2 - SPECIAL MODE
MENU DISPLAY DESCRIPTION ADJUSTMENT DEFAULT
Type Password required to make Type in password and depress Enter Key Password
Password changes to defaults Y150TP
1 Factory Reset Change factory settings Depress Y for Yes or N for No N
Sure Y/N
2 Password Turns Password function Up/Down Arrow Key On/Off ON
On On or Off
Edit Passw Type Edit password and set Enter Y for Yes or N for No
Sure Y/N new password Type in current password and depress Enter Key Default
3Su
b Displays Password
Change Password Requests new password Enter new password Y150TP
Password again Varification of new password Re-Enter new password
Succeeded New password is set
4 Temperature Change temperature Up/Down Arrow Key adjust 1°C of 1°F 0
Offset offset setting Right/Left Arrow Key adjust 10°C or 10°F
5 Left Margin Adjust left margin label Up/Down Arrow Key adjust 1 unit 10
10 distance Right/Left Arrow Key adjust 10 units
6 Print Quality Adjustments to the Up/Down Arrow Key adjust 1 unit2
2 label print quality

20
Temporary, removable marking is used by laundries, hospitals, hotels, textile
suppliers, textile care companies and various other industries. The Y151
Thermo-Seal Machine is designed to be used for temporary marking of
garments and textile items.
Almost all garments or textile items can be marked directly or indirectly.
Because of the variety of fabrics, it is very important to follow some
instructions on textile care.
The default operating temperature of the Y151 Thermo-Seal machine is
176°C or 349°F. Materials that are sensitive to heat cannot be marked directly.
The mark on garment labels “Only wash/iron at low temperature” can also
indicate that the colors are sensitive to high temperatures or that the heating of
the finish on the fabric can cause the color to change.
If you are not sure about the sensitivity of the fabric, please mark the
garment or textile item indirectly. If there is no possibility for indirect
marking, the garment or textile item must be washed in a washing net that has
been marked. Be very careful when you want to mark articles that must be
cleaned chemically. The message “Only Dry Cleaning” normally means that the
garment or textile item is sensitive to heat, pressure and detergents.
5.1 Sealing Label Tags and Organization
There are ten different colors of Label Marking Tape for organizing and sorting
purposes. The colored tapes can be used for both the entire operations for a
customer and for the different lots.
One of the more popular systems is the Bundle Lot System. Garments from
multiple customers or sources can be mixed while washing but easily sorted.
Typical labels for a Bundle Lot System are as follows:
1. A01-05 2. 3A01-05
A= Week number Same as the left
01= Lot number in that week except 3= Number
05= Customer bundle number of pieces in the order
The tape color is changed at the end of each lot. The lot number is advanced by
1 and the bundle number is reset to 1. The colors are always used in the same
sequence.
5. Temporary Marking
