Thermorail VS900H User manual

Thermorail Vertical Rail
VS900H/VS900HB/VS900HBR/VS900SH/VS900HBG/VS900HGM/VS900HSW/VS900HBN
12Volt Heated Towel Rail
Installation Guide

Contents
What’s in the box?
Concealed Wiring Installation
Wiring Diagram
Technical Specications
Safety & Care Information
Warranty Information
Warranty Registration
Contact Us
3
4
5
5
6
7
7
8
2

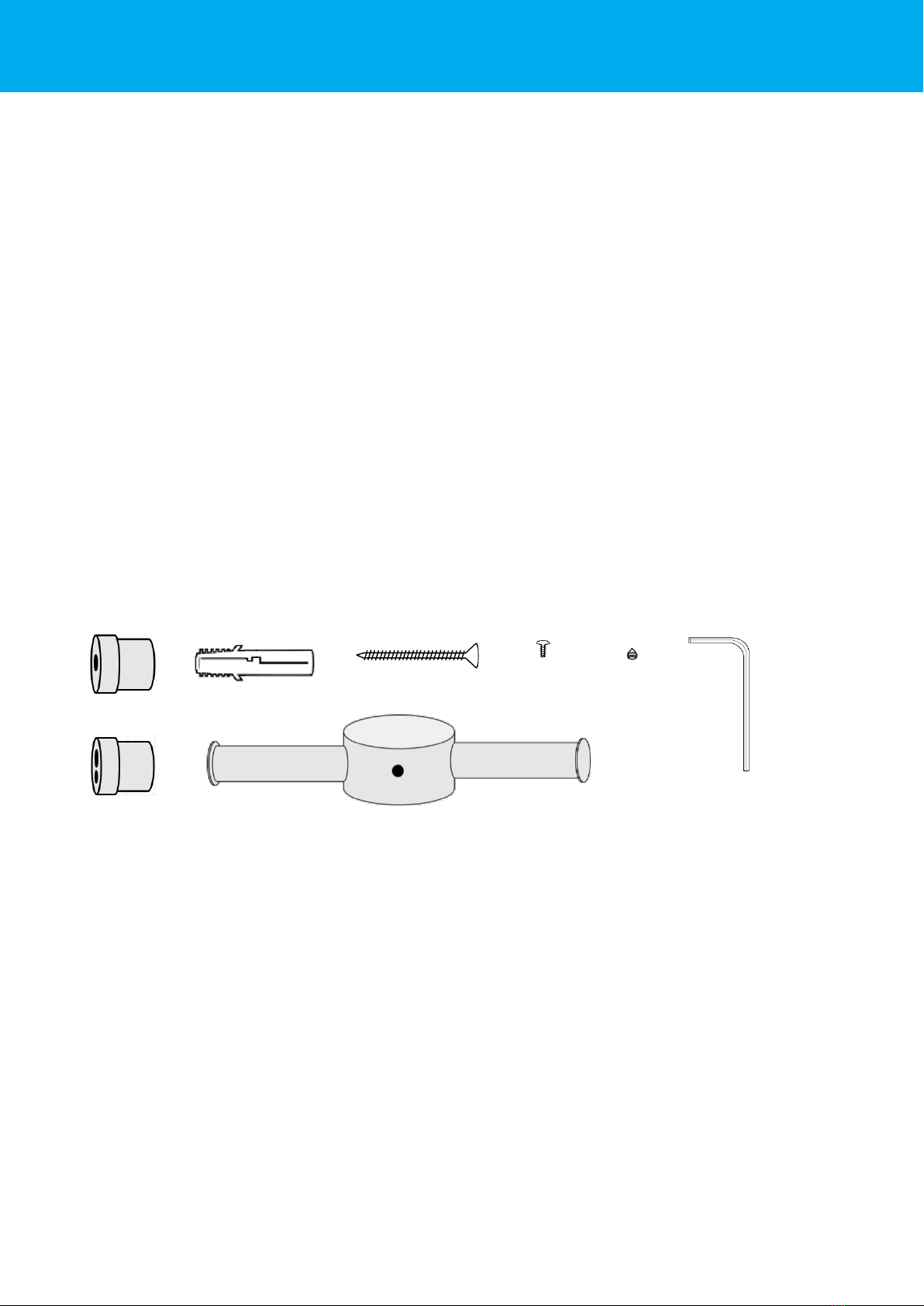

What’s in the box?
Check you’ve got everything
• Thermorail Single Vertical Bar Rail
• 12Volt Transformer
• Screw Kit including:
You will also need:
• Cross Head Screwdriver
• Pencil
• Spirit Level
• Tape Measure
• Drill Bits
• Cordless Drill
• Electrical Supply
• Timer/Switch
1 x Non-Wired Mounting Bracket
1 x Wired Mounting Bracket
2 x Wall Plugs
2 x Countersunk Screws
1 x Small Machine Screw
Grub Screws
1 x Hook
1 x Allen Key
Please note for some models the legs are supplied separate to the main rail.
Non-Wired
Mounting Bracket
3
Wired Mounting
Bracket
Wall Plug
Countersunk Screw Small Machine
Screw
Grub Screw
Allen Key
Please note these parts are not to scale

Concealed Wiring Installation
1. Switch off the mains power
You will be installing the Thermorail as part of a high voltage mains electrical circuit.
To ensure your safety and to protect the Thermorail, switch off the mains power
before you start the installation. Please ensure that means for disconnection are
incorporated in the xed wiring in accordance with the wiring rules.
2. Install the transformer
The transformer is to be installed in the ceiling or the wall cavity no further than 2m
from the rails and needs to be connected to the mains power supply in accordance with
current local building regulations. If mounting in the wall cavity the transformer must be
behind an access plate or a timer/switch to enable access and the transformer must
have ventilation.
3. Install two wall brackets
Measure and mark out the bracket positions making sure they are level. Drill a 6mm
hole for each of the two wall brackets and an extra hole for the cable at the wiring
point and insert suitable wall plugs. Fix the two mounting brackets in place using a
screwdriver and screws.
4. Electrical Connections
Ensure your electrical supply is switched off. Push the cable through the hole in the wall
bracket and connect to the transformer previously installed (refer to the wiring diagrams
opposite). When installing multiple of the Thermorail Vertical Rails it is recommended
that each rail is connected to its own individual transformers. Multiple rails connected to
individual transformers can be wired to a single timer/switch and must be wired in
parallel.

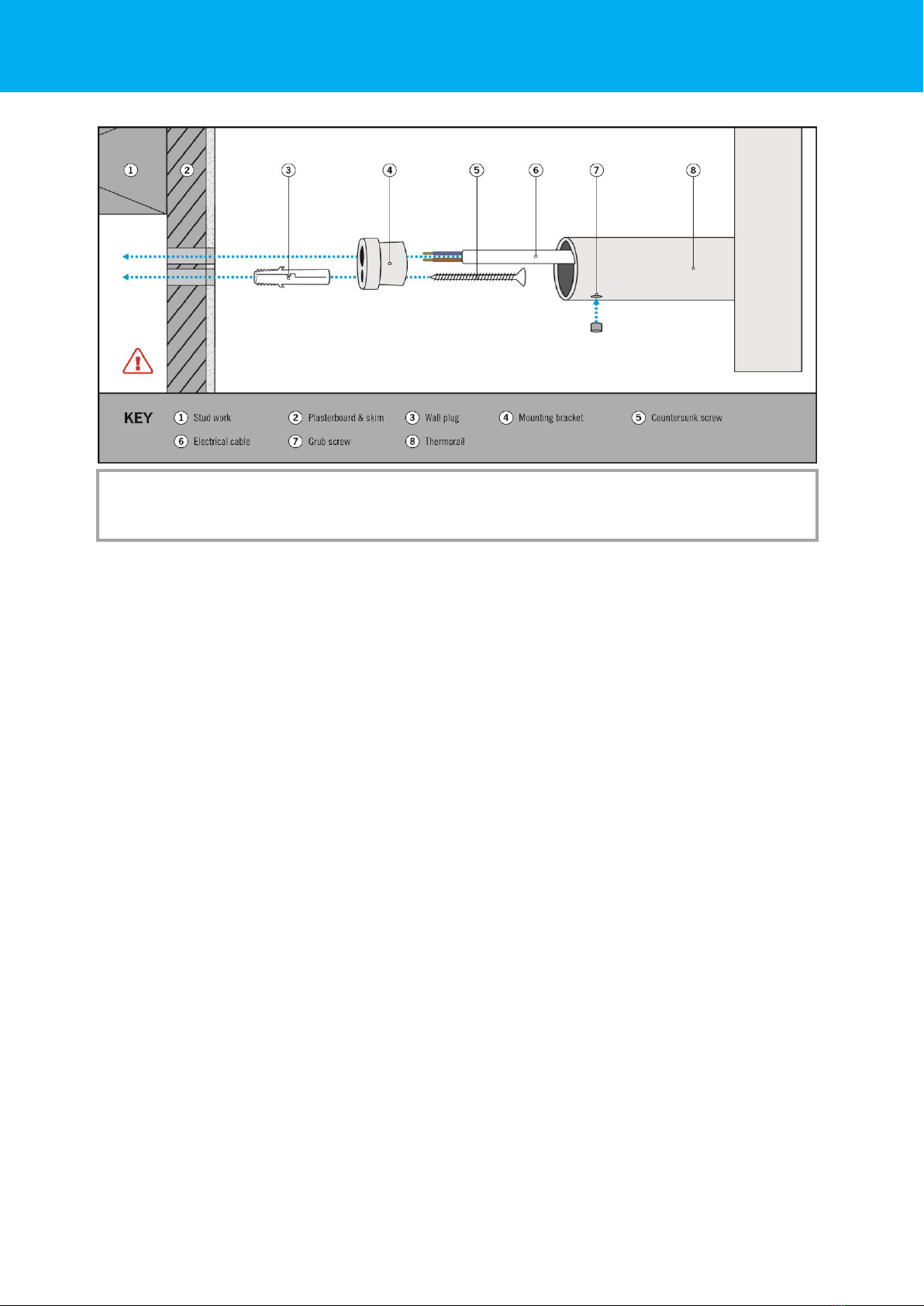

5. Fix Thermorail to the wall
Fit the Thermorail to the mounting brackets installed on the wall. You may need assistance
to hold the rail in place. Tighten the grub screws on the two wall mount arms using the
allen key provided.
4
WARNING: This is a 12Volt heated towel rail and MUST be wired to a transformer
(supplied). Connecting directly to the mains power supply will cause irreparable damage
to the element and the element cannot be replaced.

Concealed Wiring Installation & Technical Specications
6. Fix the hook to the vertical bar
Technical Specications
CODE
VS900H
VS900SH
VS900HB
VS900HBR
VS900HBG
VS900HSW
VS900HGM
VS900HBN
1
1
1
1
1
1
1
1
W142XH900XD100
W142XH900XD100
W142XH900XD100
W142XH900XD100
W142XH900XD100
W142XH900XD100
W142XH900XD100
W142XH900XD100
30
30
30
30
30
30
30
30
10
10
7
7
7
7
7
7
240V 50Hz
12V
Hardwired
1 Year
NO. OF
BARS SIZE (MM)
Polished
Polished
Matt Black
Brushed
Brushed Gold
Satin White
Gun Metal
Brushed Nickel
FINISH OUTPUT
WATTAGE WARRANTY
Transformer Wiring Diagram
Key
1. Wall Cavity
2. Transformer
3. Switch/Timer
4. Thermorail
Please note that the hook is optional and is not necessary for the unit to operate.
Slide the hook on the top of the vertical bar (ensuring that the small screw hole is facing
towards the wall) and hold in desired position. Use the small machine screw to x in
position.
Supply Voltage
Transformer Voltage
Wiring Method
Warranty on Transformer 5
1
2
3
4

Safety & Care Information
Safety Information
Thermorail Heated Towel Rails should be installed and tested by a qualied electrician
and in accordance with current local regulations. We recommend that the rail is
installed onto a at uniform wall, with the bottom at least 600mm from the oor, with
a 300mm clearance from permanent xtures. Where possible the Thermorail Heated
Towel Rail should be screwed into studs or if xing to hollow walls suitable anchors
should be used to ensure rail is secure.
Please read and understand this installation guide in full before commencing
installation. If you have any queries in regards to installation, please call 1300 368
631.
• Observe and adhere to electrical guidelines when placing your Thermorail in wet
areas
• Ensure any timers or switches used are installed in correct zones according to the
IP rating of the timer/switch
• Ensure that your Thermorail is protected by a suitably rated RCD circuit
• Do not use the towel rail to hold towels or other articles that have been in contact
with oil, petroleum based products or dry cleaning uids
• This appliance is intended to warm and dry towels and therefore is hot to touch
so when near young children or inrm persons, close supervision is necessary.
• Do not immerse your Thermorail in any liquid
• Ensure the transformer is located no further than 2m from the Thermorail(s)
• Ensure the transformer is accessible and has adequate ventilation
• Ensure that multiple rails connected to individual transformers are wired in parallel
to the switch/timer.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualied persons in order to avoid a hazard.
WARNING: In order to avoid a hazard for very young children, this appliance should be
installed so that the base of the rail is at least 600mm above the oor.
Care Information
The Stainless Steel nish of your Thermorail Heated Towel Rail is hard wearing and easy
to maintain. However, any harsh scrubbing, scratching or acid based cleaning products
will damage the surface of your towel rail. Cleaning with a soft cloth and a non-abrasive
cleaning agent will give the best results.
6

Warranty
Warranty Information
Thermogroup covers all its products with a satisfaction guarantee. In addition,
Thermogroup will supply a replacement product where a fault is shown to be caused by
manufacture, materials or workmanship providing the goods have been installed
correctly and according to installation instructions. This guarantee does not include
removal, freight or installation costs. Thermogroup’s products come with guarantees
that cannot be excluded under Australian Consumer Law and you are entitled to a
replacement or refund for a major failure & compensation for any other reasonable
foreseeable loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does not amount to
a major failure.
The details on the length of the warranty on the 12Volt Vertical Bars is on page 5 of this
installation guide. To use the warranty, repair or service the customer must provide
purchase invoice/receipt and have completed the online warranty registration form.
If the product develops a fault within the warranty period due to normal wear and tear,
Thermogroup at its discretion will recognise whether it’s a faulty product or not. If it is
impossible or not economical for the manufacturer to repair the product, the
manufacturer will replace the faulty product with a new unit of the same model or if
there is no stock available of the same model as the product, the manufacturer will
replace the product with a new unit of a similar size. No responsibility can be taken for
altered dimensions and lining up of existing holes.
The repair service offered within the warranty period only covers the faults and
problems as developed from the manufacturer’s errors. Any damage caused by
improper use or carelessness or incorrect wiring is not covered.
Thermogroup is not responsible for any monetary loss or injuries caused by improper
use of this product
Warranty Registration
The Thermorail Heated Towel Rail warranty against manufactures defects is a limited
liability warranty and will only apply if the product is registered online. Online
registration must be completed within 60 days of installation. Failure to complete the
warranty registration will void the warranty.
7

Contact Us
Thermogroup
1300 368 631 • [e-mail]
www.thermogroup.com.au
8
