1 General notes
This user manual contains important information on safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device, include the manual for
the next owner.
Our products are subject to a process of continuous development. We therefore reserve the
right to make changes without notice.
This section provides an overview of the symbols and signal words used in this user manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos-
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Symbols and signal words
General notes
active antenna splitter
4

Warning signs Type of danger
Warning – danger zone.
General notes
free solo
5

2 Safety instructions
This device is used in wireless transmission systems to distribute and amplify the incoming
antenna signals. Use the device only as described in this user manual. Any other use or use
under other operating conditions is considered to be improper and may result in personal
injury or property damage. No liability will be assumed for damages resulting from improper
use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Intended use
Safety instructions
active antenna splitter
6

DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
Safety
Safety instructions
free solo
7

NOTICE!
External power supply
The device is powered by an external power supply. Before connecting the
external power supply, ensure that the input voltage (AC outlet) matches the
voltage rating of the device and that the AC outlet is protected by a residual cur-
rent circuit breaker. Failure to do so could result in damage to the device and pos-
sibly the user.
Unplug the external power supply before electrical storms occur and when the
device is unused for long periods of time to reduce the risk of electric shock or
fire.
Safety instructions
active antenna splitter
8

3 Features and scope of delivery
This appliance is used when multiple radio links are to be operated with a single antenna pair.
The following features characterize the device:
nAmplifying the incoming high frequency signal of a pair of antennas and distribution to 4
× 2 antenna outputs in the frequency range of 500 MHz to 900 MHz
nCentral 12 V power supply for up to four units
n19" rack mountable
Included accessories: 12 V power supply, 2 × UHF omni-directional antennas, 10 × BNC cables.
Features and scope of delivery
free solo
9

4 Installation and starting up
Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.
Create all connections while the device is off. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
The unit has been designed for rack mounting in a standard 19-inch rack; it occupies one rack
unit.
Before you start, make sure that the frequencies of the connected wireless systems are legiti-
mate in the respective country and check whether the operation must be registered with the
responsible authority. For further information on that refer to the manual of the wireless sys-
tems.
Rack mounting
Notes on radio transmission
Installation and starting up
active antenna splitter
10

Attach the supplied antennas to appropriate positions, such as the PA rack. To improve the
transmission quality and to adapt to the spatial conditions, the antennas are rotatable and
swivelling. Position the antennas so that all used transmitters (e.g., wireless microphones,
body-pack transmitters) are within radio range. Install a BNC cable from both antennas to one
of the antenna inputs each of the device.
Connect one antenna output pair of the device each to the two antenna inputs of a wireless
system. To do so, use the supplied BNC cables.
Attaching and connecting
antennas.
Setting up the radio connection
Installation and starting up
free solo
11

NOTICE!
External power supply
The device is powered by an external power supply. Before connecting the
external power supply, ensure that the input voltage (AC outlet) matches the
voltage rating of the device and that the AC outlet is protected by a residual cur-
rent circuit breaker. Failure to do so could result in damage to the device and pos-
sibly the user.
Unplug the external power supply before electrical storms occur and when the
device is unused for long periods of time to reduce the risk of electric shock or
fire.
Connect the 12 V outputs of the device to the 12 V power supply inputs of the wireless sys-
tems. To do so, use the supplied power cords.
Connect the power adapter to the unit and then plug the power adapter into the power outlet.
Now switch on the device and the connected wireless systems.
Connect the voltage supply
Taking system in operation
Installation and starting up
active antenna splitter
12

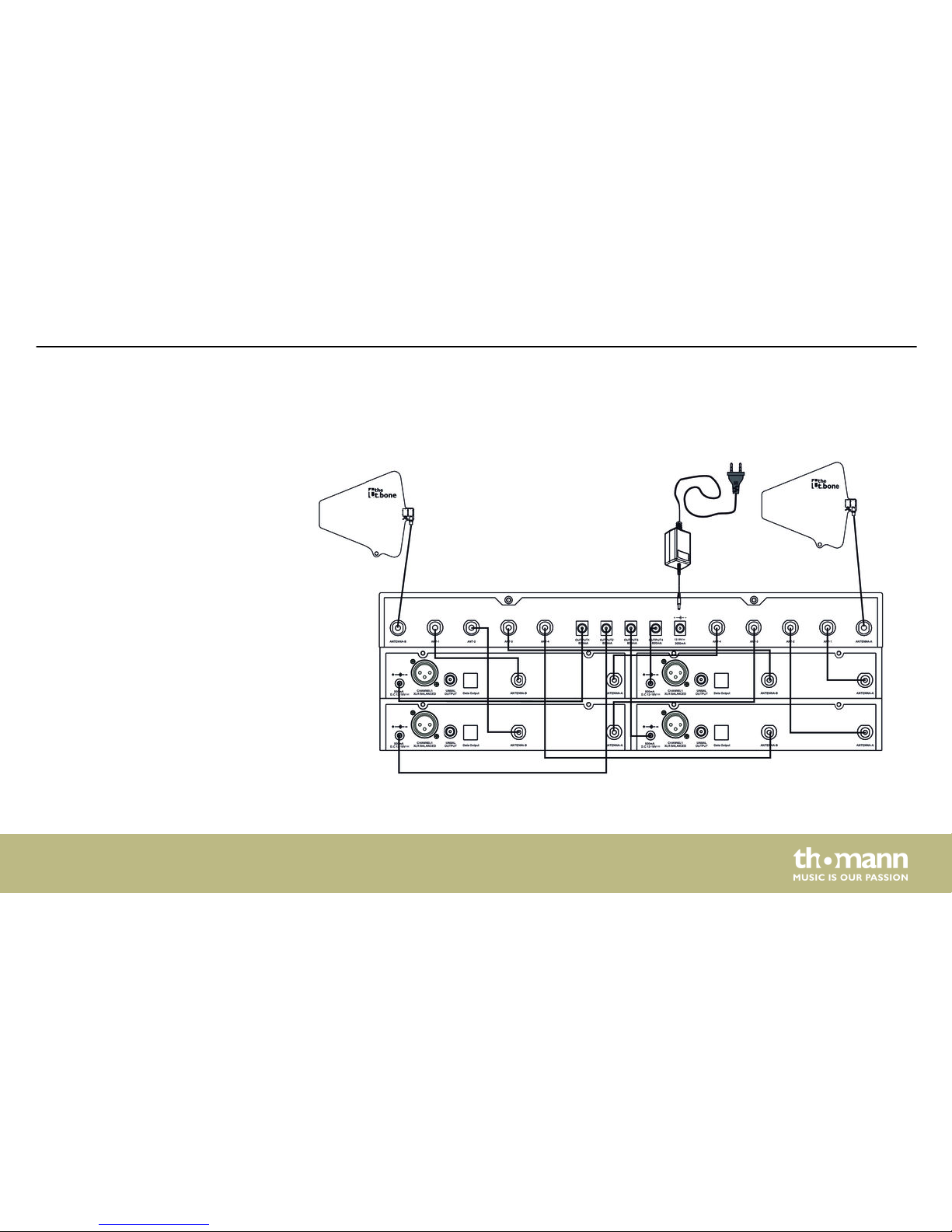

The following illustration shows how to connect the device to the optionally available paddles
and four wireless systems. Instead of paddles, you can also connect the device to the included
antennas.
Example
Installation and starting up
free solo
13

5 Connections and controls
Front panel
Connections and controls
active antenna splitter
14

1[POWER]
Main switch. Turns the device on and off.
Connections and controls
free solo
15

Connections and controls
active antenna splitter
16

2, 3 [ANTENNA-A], [ANTENNA-B]
BNC chassis connectors for cable connection to the supplied UHF omni-directional antennas.
4 Socket for connecting the supplied power adapter.
5, 6 [ANT-1] … [ANT-4]
BNC chassis connectors for cable connection to the connected wireless systems
7[OUTPUT1] … [OUTPUT4]
Power supply connections for the connected wireless systems.
Connections and controls
free solo
17

6 Technical specifications
Input impedance 50 Ω
Output impedance 50 Ω
Gain 3 dB
Bandwidth 400 MHz
Voltage supply Power adapter (12…18 V / 3000 mA), positive pole via inner contact
Dimensions (W × H × D, without antenna) 410 mm × 45 mm × 160 mm (1RU)
Weight 2000 g
Technical specifications
active antenna splitter
18

7 Protecting the environment
For the transport and protective packaging, environmentally friendly materials have been
chosen that can be supplied to normal recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose these materials with your normal household waste, but make sure that
they are fed to a recovery. Please follow the notes and markings on the packaging.
Batteries must not be disposed of as domestic waste or thrown into fire. Dispose of the bat-
teries according to national or local regulations regarding hazardous waste. To protect the
environment, dispose of empty batteries at your retail store or at appropriate collection sites.
Disposal of the packaging mate-
rial
Disposal of batteries
Protecting the environment
free solo
19
