thomann Stairville DMX Splitter 8 USB 3 pin User manual

DMX Splitter 8
USB 3 pin, USB 5 pin
DMX splitter
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
10.07.2019, ID: 414203_461295 (V2)

Table of contents
1 General information................................................................................................................................. 4
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 6
2 Safety instructions..................................................................................................................................... 8
3 Features....................................................................................................................................................... 12
4 Installation and starting up................................................................................................................ 13
5 Connections and controls................................................................................................................... 16
6 Technical specications....................................................................................................................... 23
7 Plug and connection assignment.................................................................................................... 26
8 Protecting the environment.............................................................................................................. 28
Table of contents
DMX Splitter 8 USB 3 pin, USB 5 pin
3

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
DMX splitter
4

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
DMX Splitter 8 USB 3 pin, USB 5 pin
5

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
General information
DMX splitter
6

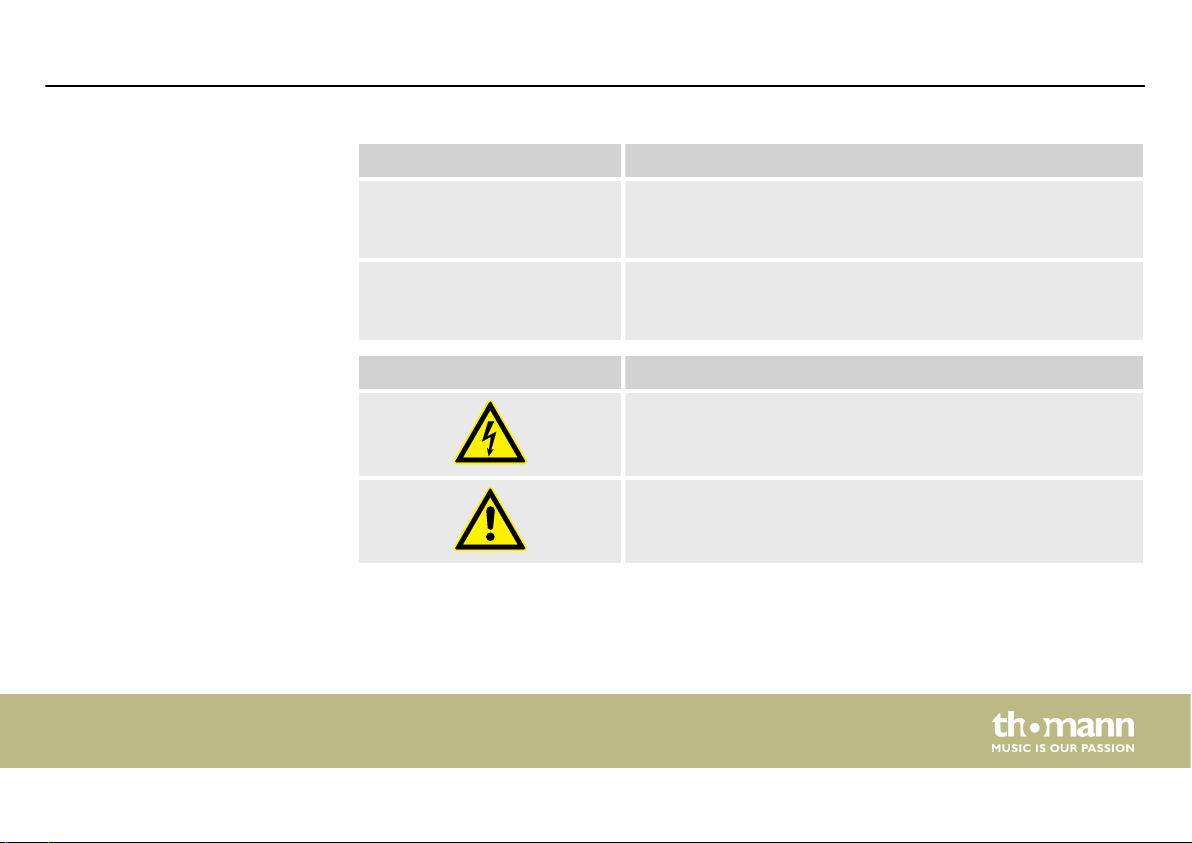

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General information
DMX Splitter 8 USB 3 pin, USB 5 pin
7

2 Safety instructions
This device is intended to be used for the distribution of DMX signals from one to multiple
DMX chains, or to extend a DMX chain. Use the device only as described in this user manual.
Any other use or use under other operating conditions is considered to be improper and may
result in personal injury or property damage. No liability will be assumed for damages resulting
from improper use.
Any other use or use under other operating conditions is considered to be improper and may
result in personal injury or property damage. No liability will be assumed for damages resulting
from improper use.
Intended use
Safety instructions
DMX splitter
8

DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or
damaged.
Safety
Safety instructions
DMX Splitter 8 USB 3 pin, USB 5 pin
9

DANGER!
Electric shock caused by short-circuit
Do not modify the mains cable or the plug. Failure to do so could result in electric
shock/death or re. If in doubt, seek advice from a registered electrician.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked ames.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
Safety instructions
DMX splitter
10

NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or re.
NOTICE!
Possible damage due to installation of a wrong fuse
The use of dierent types of fuses can cause serious damage to the unit. Fire
hazard!
Only fuses of the same type may be used.
Safety instructions
DMX Splitter 8 USB 3 pin, USB 5 pin
11

3 Features
nProfessional DMX splitter with following functions:
– Distribution of the DMX-512 signal to eight DMX chains in active mode
– Looping the DMX-512 signal in passive mode
–Amplication of the DMX-512 signal for longer distances to the controlled DMX
devices
– Processing of attenuated or disturbed DMX-512 signals
– Reduction of reections that can cause transmission interference
– The galvanic isolation of in and outputs and among the outputs ensures a protection
against damage from power surges of up to 2000 V
n1 × DMX input
n1 × passive DMX output
n8 × active DMX outputs
n2 × USB ports (5 V, 1 A), for example, for charging mobile phones
n19" rack-mountable
Features
DMX splitter
12

4 Installation and starting up
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
NOTICE!
Possible data transmission errors
To ensure trouble-free operation, use dedicated DMX cables and not normal
microphone cables.
Never connect the DMX outputs to audio devices such as mixers or ampliers.
Installation and starting up
DMX Splitter 8 USB 3 pin, USB 5 pin
13

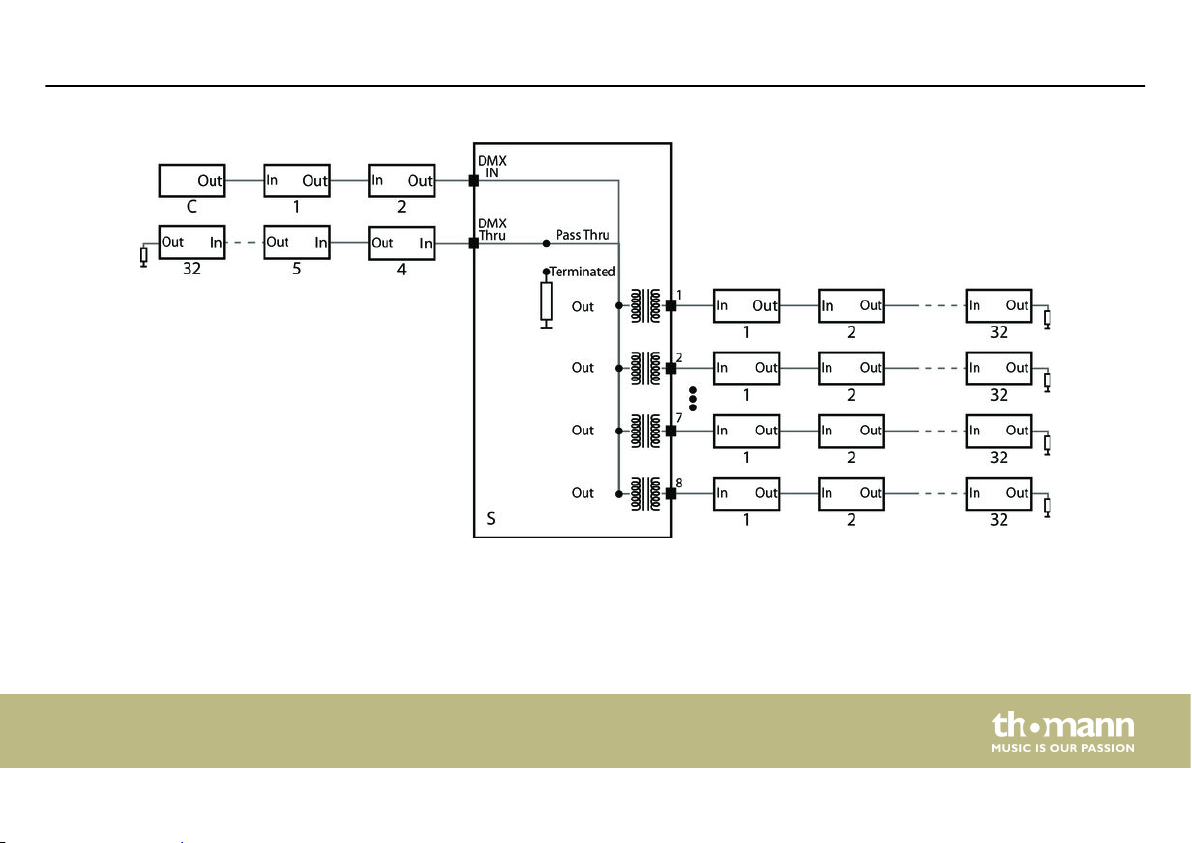

The following graphic illustrates how to integrate the unit into a DMX conguration.
Use the product (S) as the last part of the DMX chain that begins with your DMX controller (C).
Do do so, connect the output of the last device to the input of the DMX splitter.
You can connect each one DMX chain to the active DMX outputs of the device (S) (DMX
splitter), each of which can consist of a maximum of 32 DMX devices. Connect the output of
the rst DMX device to the input of the second and continue this way until all devices are con‐
nected. Make sure that the output of the last DMX device in the chain is terminated by a
resistor (110 Ω, ¼W). You can even expand the conguration of your DMX network if you are
running additional DMX splitters at the end of the DMX chains. Keep in mind that the total
number of usable DMX addresses in a ‘DMX universe’ is limited to 512.
At the direct DMX output [DMX Thru] you can connect another DMX chain from a maximum of
32 DMX devices. When using this output, the [Pass Thru / Terminated] switch must be in the
[Pass Thru] position (not pressed). If the device itself terminates a DMX chain, the
[Pass Thru / Terminated] switch must be in the [Terminated] (pressed) position. Then a termi‐
nating resistor is cut in.
DMX connections
Installation and starting up
DMX splitter
14

The unit has been designed for rack mounting in a standard 19-inch rack; it occupies one rack
unit.
Rack mounting
Installation and starting up
DMX Splitter 8 USB 3 pin, USB 5 pin
15

5 Connections and controls
Front panel USB 3 pin (414203)
Connections and controls
DMX splitter
16

1[ON/OFF]
Mains switch. Turns the device on and o.
2[DMX In]
DMX input, designed as 3-pin XLR chassis-mounted plug
3[DMX Thru]
Passive DMX output (XLR chassis socket, 3-pin) for looping the signal to a connected device. This output is only
active, if the [Pass Thru / Terminated] switch is not pressed.
4[Out 1]…[Out 8]
8 × active DMX outputs (XLR chassis sockets, 3-pin) to buer, amplify and distribute the signal to other DMX chains,
three- and ve-pin type with control LEDs for the signals on the DMX data lines of the DMX outputs. The red LED
indicates the operational readiness of the DMX outputs. The green LED lights up when a DMX controller is connected
and a signal is transmitted on the data line.
Connections and controls
DMX Splitter 8 USB 3 pin, USB 5 pin
17

5 2 × USB ports (5 V, 1 A), for example, for charging mobile phones
6[Pass Thru / Terminated]
In the [Terminated] position (switch pressed), the DMX wire of the DMX input is terminated with a resistor, the direct
DMX output (3) is switched o.
In the [Pass Thru] position (switch not pressed), the direct DMX output (3) is active.
Connections and controls
DMX splitter
18

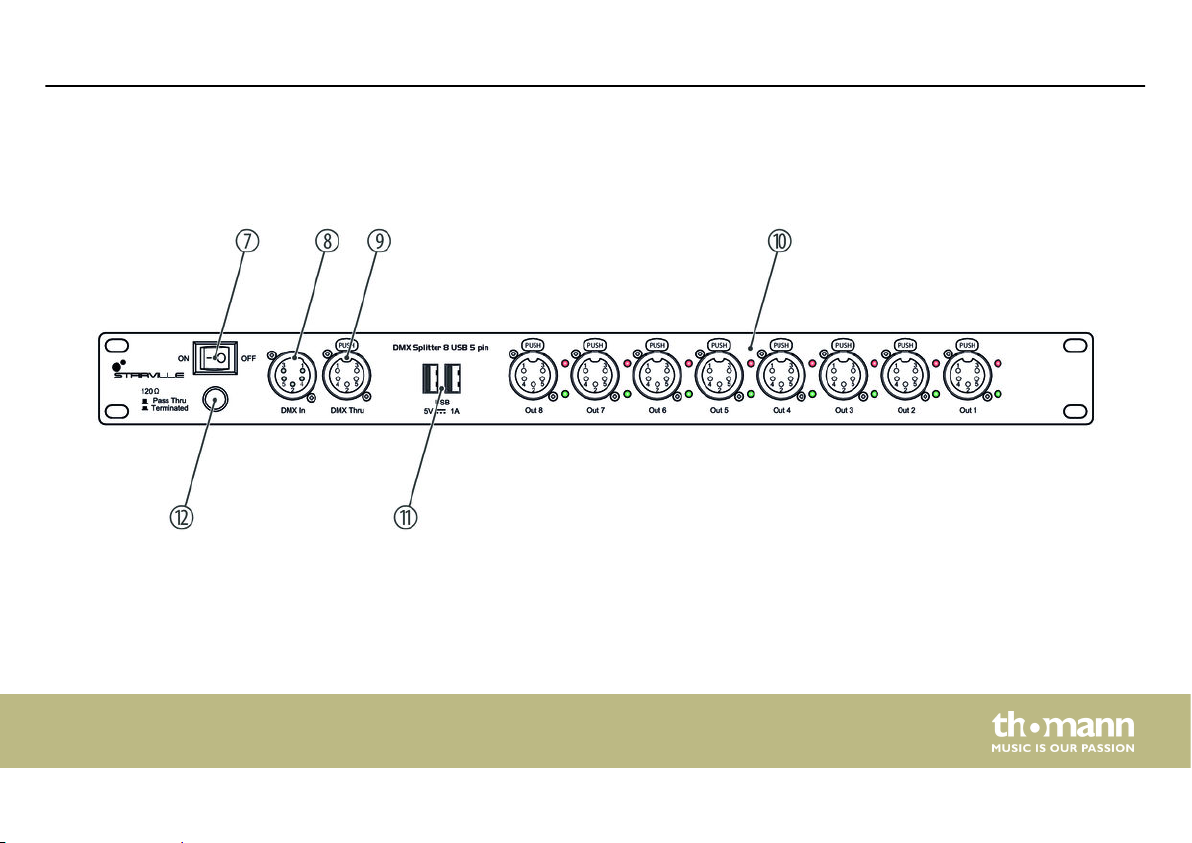

Front panel USB 5 pin (461295)
Connections and controls
DMX Splitter 8 USB 3 pin, USB 5 pin
19

7[ON/OFF]
Mains switch. Turns the device on and o.
8[DMX In]
DMX input, designed as 5-pin XLR chassis-mounted plug
9[DMX Thru]
Passive DMX output (XLR chassis socket, 5-pin) for looping the signal to a connected device. This output is only
active, if the [Pass Thru / Terminated] switch is not pressed.
10 [Out 1]…[Out 8]
8 × active DMX outputs (XLR chassis sockets, 5-pin) to buer, amplify and distribute the signal to other DMX chains,
three- and ve-pin type with control LEDs for the signals on the DMX data lines of the DMX outputs. The red LED
indicates the operational readiness of the DMX outputs. The green LED lights up when a DMX controller is connected
and a signal is transmitted on the data line.
