1 General notes
This user manual contains important information on safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device, include the manual for
the next owner.
Our products are subject to a process of continuous development. We therefore reserve the
right to make changes without notice.
This section provides an overview of the symbols and signal words used in this user manual.Symbols and signal words
General notes
DMX splitter
4

Signal word Meaning
DANGER! This combination of symbol and signal word
indicates an immediate dangerous situation
that will result in death or serious injury if it is
not avoided.
NOTICE! This combination of symbol and signal word
indicates a possible dangerous situation that
can result in material and environmental
damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General notes
DMX Splitter 4 MK II
5

2 Safety instructions
This device is intended to be used for the distribution of DMX signals from one to multiple
DMX chains, or to extend a DMX chain. Use the device only as described in this user manual.
Any other use or use under other operating conditions is considered to be improper and may
result in personal injury or property damage. No liability will be assumed for damages resulting
from improper use.
Any other use or use under other operating conditions is considered to be improper and may
result in personal injury or property damage. No liability will be assumed for damages resulting
from improper use.
Intended use
Safety instructions
DMX splitter
6

DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Safety
Safety instructions
DMX Splitter 4 MK II
7

DANGER!
Electric shock caused by short-circuit
Do not modify the mains cable or the plug. Failure to do so could result in electric
shock/death or fire. If in doubt, seek advice from a registered electrician.
NOTICE!
Risk of fire
Do not cover the device nor any ventilation slots. Do not place the device near
any direct heat source. Keep the device away from naked flames.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
Safety instructions
DMX splitter
8

NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.
Safety instructions
DMX Splitter 4 MK II
9

3 Features
The professional DMX splitter is characterized by the following special features:
nDistribution of DMX signals from one to four DMX chains
nDMX outputs galvanically isolated from the DMX input
nProcessing and level adjustment of DMX output signals
nAll DMX inputs and outputs in three- and five-pin version
nSwitchable termination resistor
nRobust metal housing
nControl LEDs for DMX signals
nSuitable for rack mounting
Features
DMX splitter
10

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the device against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Establish all connections as long as the unit is switched off. Use the shortest possible high-
quality cables for all connections.
The unit has been designed for rack mounting in a standard 19-inch rack; it occupies one rack
unit.
Rack mounting
Installation
DMX Splitter 4 MK II
11

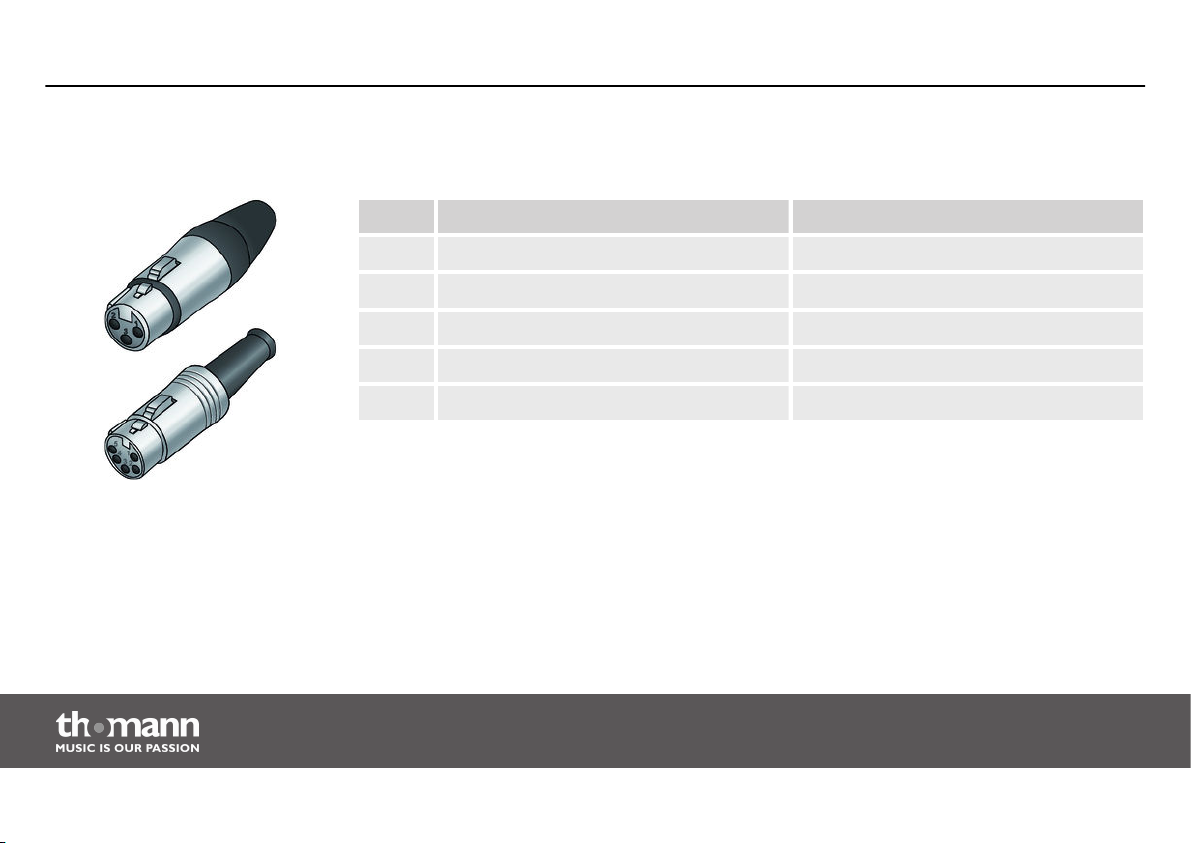

Three- and five-pin XLR sockets serve as DMX outputs, a three- or five-pin XLR plug is (option‐
ally) used as DMX input. The drawing below and the table show the pin assignment.
Pin 5-pin 3-pin
1 Ground (shielding) Ground (shielding)
2 Signal reversed (DMX–, ‘cold’) Signal reversed (DMX–, ‘cold’)
3 Signal (DMX+, ‘hot’) Signal (DMX+, ‘hot’)
4 not in use / second connection (DMX–)
5 not in use / second connection (DMX+)
DMX connections
Installation
DMX splitter
12

5 Starting up
Establish all connections as long as the unit is switched off. Use the shortest possible high-
quality cables for all connections.
NOTICE!
Possible interference in data transmission
To ensure smooth operation use special DMX cable instead of normal micro‐
phone cable.
Never connect DMX outputs to any audio equipment such as mixers or amplifiers.
Starting up
DMX Splitter 4 MK II
13

The figure below shows schematically how to integrate the unit into a DMX configuration.
Connect the device (S) as the last part of the DMX chain, which starts with your DMX controller
(C). To do so, connect the DMX input of the device to the DMX output of the second last DMX
device in this DMX chain.
Each of the unit's DMX outputs 1to 4allow connection of one DMX chain, which in turn may
consist of a maximum of 32 DMX devices. Connect the output of the first DMX device to the
DMX input of the second and so on, to form a series circuit. Make sure that the output of the
last DMX device in the chain is terminated by a resistor (110 Ω, ¼W). You can further expand
the configuration of your DMX network by using additional DMX splitters at the end of the
DMX chains. Keep in mind that the total number of usable DMX addresses in a so-called ‘DMX
universe’ is limited to 512.
You can connect an additional DMX-chain with up to 32 DMX devices to the direct DMX
output DMX OUT. If you use this output, the LINK OUT / TERMINAL switch must be in the
LINK OUT position (released). If the device itself terminates a DMX chain, the LINK OUT / TER‐
MINAL switch must be in the TERMINAL position (pressed). Then a termination resistor is con‐
nected.
DMX connections
Starting up
DMX splitter
14

Starting up
DMX Splitter 4 MK II
15

6 Components and functions

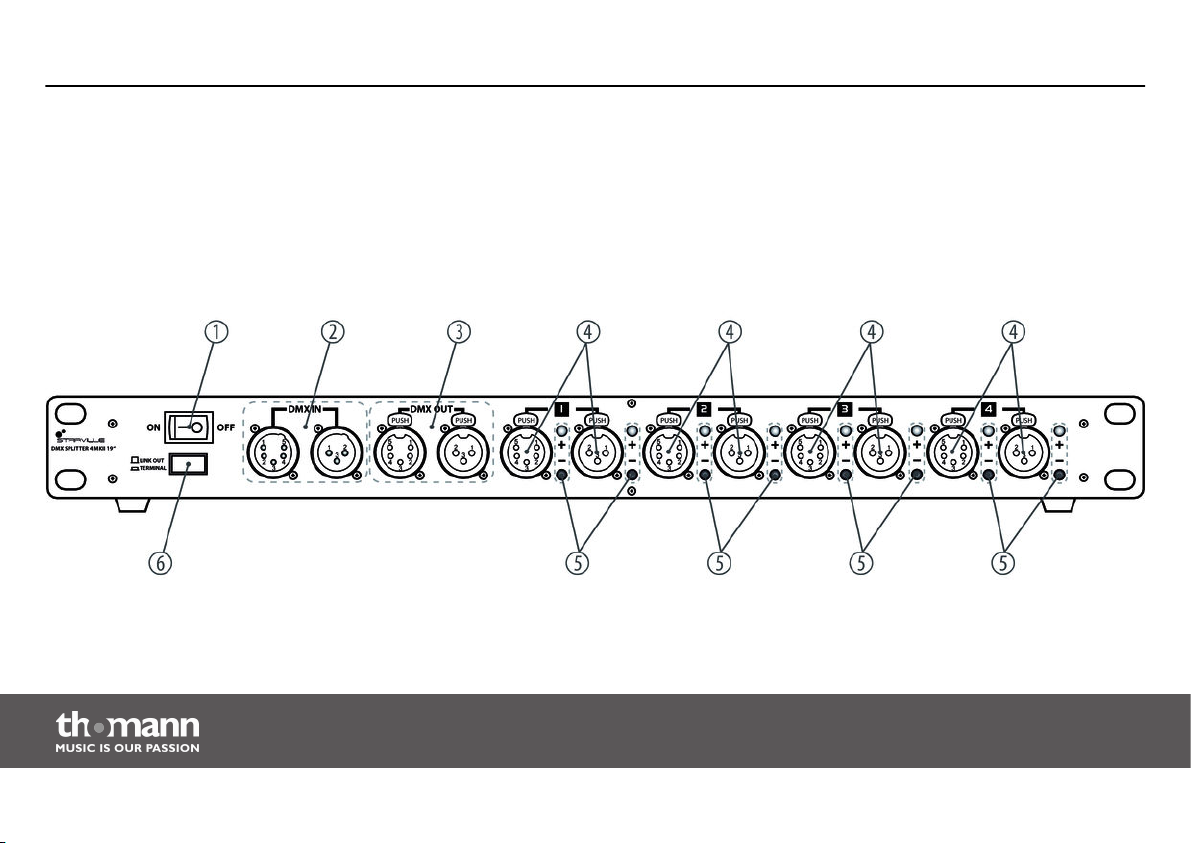

Front panel
Components and functions
DMX splitter
16

1 Main switch
Turns the device on or off.
2DMX IN
DMX input.
3DMX OUT
Direct DMX output for connecting additional DMX devices or DMX splitter within the same DMX chain as the DMX
input. This output is only active when the LINK OUT / TERMINAL switch is not pressed.
41, 2, 3, 4
DMX outputs 1 to 4 to connect further DMX chains. The outputs are galvanically isolated from the DMX input.
Components and functions
DMX Splitter 4 MK II
17

5+, –
Control LEDs for the signals on the DMX data lines of the DMX outputs.
6LINK OUT / TERMINAL
Operating mode switch
In TERMINAL position (switch is pressed), the DMX line of the DMX input is terminated by a resistor. The direct DMX
output (3) is off.
In LINK OUT position (switch is not pressed), the direct DMX output (3) is active.
Components and functions
DMX splitter
18

Rear panel
Components and functions
DMX Splitter 4 MK II
19

7 Fuse holder.
8 Ground connection.
9 Mains connection.
Components and functions
DMX splitter
