thomann the t.mix 402-USB Play User manual

402-USB Play
mixer
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
02.08.2018, ID: 441279

Table of contents
1 General information.............................................................................................................. 4
1.1 Further information........................................................................................................ 4
1.2 Notational conventions................................................................................................. 4
1.3 Symbols and signal words........................................................................................... 4
2 Safety instructions................................................................................................................. 6
3 Features....................................................................................................................................... 8
4 Installation................................................................................................................................. 9
5 Connections and controls................................................................................................ 10
6 Technical specications.................................................................................................... 15
7 Plug and connection assignment................................................................................. 16
8 Protecting the environment........................................................................................... 18
Table of contents
402-USB Play
3

1 General information
This manual contains important instructions for the safe operation of the unit. Read
and follow the safety instructions and all other instructions. Keep the manual for
future reference. Make sure that it is available to all those using the device. If you sell
the unit please make sure that the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are
subject to change.
1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and
details on the following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the
topics of interest for you quickly.
Online guides Our online guides provide detailed information on technical
basics and terms.
Personal
consultation
For personal consultation please contact our
technical hotline.
Service If you have any problems with the device the
customer service will gladly assist you.
1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words
that are used in this manual.
Letterings
General information
mixer
4

Signal word Meaning
DANGER! This combination of symbol and signal word indicates
an immediate dangerous situation that will result in
death or serious injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates
a possible dangerous situation that can result in mate‐
rial and environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General information
402-USB Play
5

2 Safety instructions
This device is intended to be used for amplication, mixing and playback of signals
from musical instruments and microphones. Use the device only as described in this
user manual. Any other use or use under other operating conditions is considered to
be improper and may result in personal injury or property damage. No liability will be
assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intel‐
lectual abilities and having corresponding knowledge and experience. Other persons
may use this device only if they are supervised or instructed by a person who is
responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and
are not within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the
like) from the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present.
Never remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are
missing or damaged.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord)
with a protective contact plug. Do not modify the mains cable or the
plug. Failure to do so could result in electric shock/death or re. If in
doubt, seek advice from a registered electrician.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any
direct heat source. Keep the device away from naked ames.
Intended use
Safety
Safety instructions
mixer
6

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage,
never expose the device to any liquid or moisture. Avoid direct sunlight,
heavy dirt, and strong vibrations.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet)
matches the voltage rating of the device and that the AC outlet is pro‐
tected by a residual current circuit breaker. Failure to do so could result
in damage to the device and possibly injure the user.
Unplug the device before electrical storms occur and when it is unused
for long periods of time to reduce the risk of electric shock or re.
Safety instructions
402-USB Play
7

3 Features
n4-channel DJ mixer with USB / MP3 player
n2 × microphone inputs with + 48 V and talk over (XLR / 6.35mm jack combo jack)
n2 × microphone inputs (1/4" phone socket)
n1 × headphones output (stereo, as 1/4" phone jack)
n2 × master outputs (XLR and RCA sockets) for left and right channel
n1 × FX Send / Return (RCA sockets)
n4 × line inputs (RCA sockets)
n2 × phone inputs (RCA sockets)
n4 × CD inputs (RCA sockets)
n1 × Booth output (RCA sockets)
n1 × USB port for playback
Features
mixer
8

4 Installation
NOTICE!
Danger of short circuit
Switching on phantom power will damage the device if unbalanced XLR
cables are connected.
Only turn on phantom power when exclusively balanced XLR cables are
connected.
Unpack and carefully check that there is no transportation damage before using the
unit. Keep the equipment packaging. To fully protect the device against vibration,
dust and moisture during transportation or storage use the original packaging or
your own packaging material suitable for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality
cables for all connections. Take care when running the cables to prevent tripping
hazards.
Connection options
Installation
402-USB Play
9

5 Connections and controls
1[MICROPHONES 1], [MICROPHONES 2]
Microphone input, designed as XLR / 1/4" phone combo socket
2[+48 V]
Enables the phantom power. This LED lights up when the phantom power is turned on.
The phantom power leads to damage to the device if unbalanced cables are connected. Only switch on phantom
power while exclusively balanced cables are connected.
3[GAIN]
Rotary control to adjust the microphone input signal to the working level of the unit.
4[EQ]
Rotary control for direct tone control of the microphone input signal (bass, mids, treble)
5[PAN]
Rotary control for adjusting the microphone input signal within the stereo panorama.
Front panel
Connections and controls
mixer
10

6[ON AIR]
Enables the Talk over function
When the button is pressed, all other signal sources are attenuated so that the mic 1 and 2 are clearly audible.
When the button is released, all signals retain their original level.
7[O'RIDE SENS]
Rotary control to adjust the threshold at which the microphone input signal is attenuated.
8[O'RIDE DEPTH]
Rotary control for adjusting the level (0 dB…20 dB), by which the microphone input signal is attenuated.
To disable the Talk over function, turn the knob to [Min] or switch [MIC O'RIDE / Active] o.
9[MIC O'RIDE / Active]
Enables the attenuation of the microphone input signal.
When the button is pressed, the signal is attenuated by the preset level. When the button is released, all signals
retain their original level.
10 Input source selector switch for the respective channel.
11 [GAIN]
Rotary control to adjust the input signal of the respective channel to the working level of the unit.
12 [EQ]
Rotary control for direct tone control of the input signal in the respective channel (bass, mids, treble).
13 [CUE]
Selects the channel that can be heard through the headphones.
14 [BOOTH]
Control for setting the BOOTH output level.
15 [MASTER]
Control for adjusting the master out volume
16 [ASSIGN]
Rotary control to select the channel assigned to the left or right side of the crossfader.
17 [PUNCH]
If the button is pressed, the current signal of the active channel is interrupted and the signal of the counter
channel is turned on.
18 [CROSSFADER]
Slider for mixing the signals of the left and right channel If the controller is in middle position, both channels can
be heard.
19 Slider for adjusting the volume of the respective channel
20 [CD / MP3]
Selector switch for choosing CD or MP3 player input.
21 Level meter shows the volume of the output channel or the currently selected solo channel.
Connections and controls
402-USB Play
11

22 MP3 player with display.
23 [USB]
Connection for recording or playback via a USB device. Before ejecting, pause USB stick playback or select another
playback source.
24 BNC plug for attachment of e.g. a goose neck lamp
25 [POWER]
Main switch. Turns the device on and o.
26 [BALANCE]
Rotary control for adjusting the stereo balance of the master output.
27 [CUE/MIX]
Selector switch to listen to the CUE or the active programme simultaneously or separately
At left-hand stop [CUE], mainly the headphone signal is audible; at right-hand stop [OP], mainly the master output
signal is audible.
28 [SEND]
Rotary control to adjust the signal output level of the connected eects device.
29 [AUX SELECT]
Rotary control to select the signal source to be sent to the connected eects unit.
30 Control for adjusting the headphones volume
31 [PHONES]
Monitor output for headphones, designed as 1/4" phone socket (stereo).
32 [RETURN]
Rotary control to adjust the signal input level of the connected eects device.
Connections and controls
mixer
12

33 Display
34 [REC]
Pressing the button opens the recorder. Press the button again to start or stop the recorder. A long press will save
the recording.
35 [MENU]
Pressing the button opens the menu of the player or recorder. Press the arrow keys to navigate through the menu.
Press the button again to conrm a selection. A long press returns you to the main menu.
36
Selects the next track for playback.
37
Starts or pauses playback.
38
Selects the previous track for playback.
Display
Connections and controls
402-USB Play
13

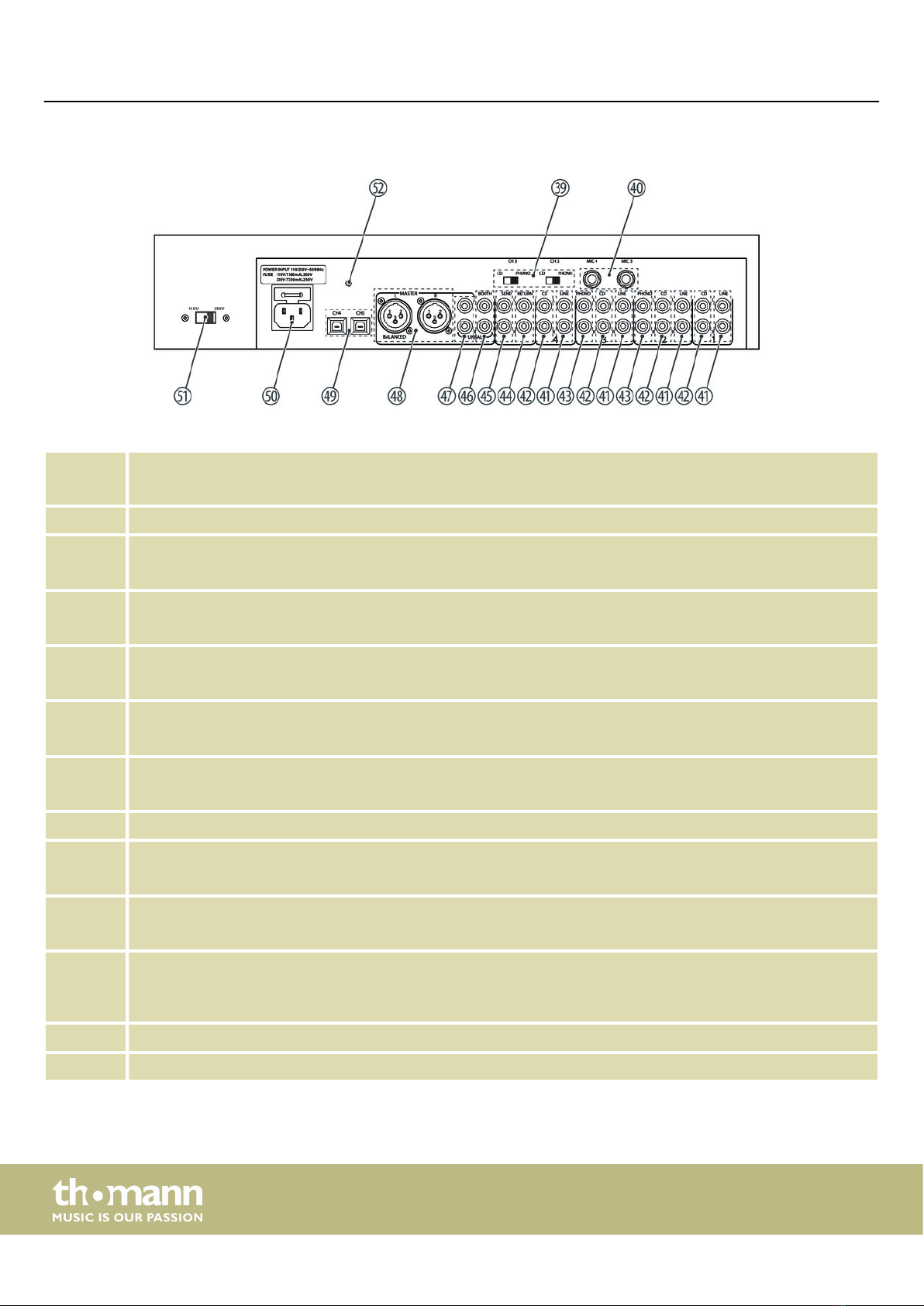

39 [CD / PHONO]
Input source selector for channel 2 and 3.
40 Microphone input, designed as 1/4" phone jack.
41, 42 [LINE], [CD]
Inputs for line level signals (e.g., CD, DVD, MP3), designed as RCA sockets.
43 [PHONO]
Inputs for signals with phono level (e.g. turntables), designed as RCA sockets.
44 [RETURN]
Input for connecting an eects device, designed as RCA sockets.
45 [SEND]
Output for connecting an eects device, designed as RCA sockets.
46 [BOOTH]
Output for connecting an amplier or other audio device, designed as RCA sockets
47 Output for connecting an amplier or powered speaker box, designed as RCA sockets.
48 [MASTER]
Master output for connecting an amplier or powered speaker box, designed as XLR sockets.
49 [CH4 / CH3]
Type B USB port to connect a computer for channels 3 and 4.
50 IEC chassis plug for operating voltage supply with fuse holder
Should the fuse have blown, disconnect the unit from the power supply and replace the fuse with a new fuse of
the same type.
51 Selector switch for power supply voltage.
52 Grounding screws to reduce hum noise when connecting turntables
Rear panel
Connections and controls
mixer
14

6 Technical specications
Inputs Microphone: 1.55 mV
Phono: 4.8 mV
Line/CD: 775 mV
Outputs Main: 0 dBu / 775 mV / < 50 Ω
Booth: 0 dBu / 775 mV / < 50 Ω
Phone: 20 dB / 112 mV / 32 Ω
Input impedance Microphone: 2 kΩ
Phono: 47 kΩ
Line/CD: 10 kΩ
Output impedance 10 kΩ
Tone control (bass, mids, treble) -26 dB…+12 dB
Frequency range 20 Hz…20 kHz
Gain –70…+10 dBu
Signal-to-noise ratio Microphone: –118 dB
Phono: –118 dB
Line/CD: –100 dB
Phantom power 48 V
THD Microphone: < 0.042 %
Line/CD: < 0.005 %
Operating supply voltage 110 / 230 V 50 / 60 Hz
Fuse 110 V: 5 mm × 20 mm, 500 mA, 250 V, slow-blow
230 V: 5 mm × 20 mm, 250 mA, 250 V, slow-blow
Dimensions (W × H × D) 484 mm × 266 mm × 101 mm
Weight 5.8 kg
Technical specications
402-USB Play
15

7 Plug and connection assignment
This chapter will help you select the right cables and plugs to connect your valuable
equipment in such a way that a perfect sound experience is ensured.
Please note these advices, because especially in ‘Sound & Light’ caution is indicated:
Even if a plug ts into the socket, an incorrect connection may result in a destroyed
power amp, a short circuit or ‘just’ in poor transmission quality!
Unbalanced transmission is mainly used in semi-professional environment and in hi
use. Instrument cables with two conductors (one core plus shielding) are typical rep‐
resentatives of the unbalanced transmission. One conductor is ground and shielding
while the signal is transmitted through the core.
Unbalanced transmission is susceptible to electromagnetic interference, especially at
low levels, such as microphone signals and when using long cables.
In a professional environment, therefore, the balanced transmission is preferred,
because this enables an undisturbed transmission of signals over long distances. In
addition to the conductors ‘Ground’ and ‘Signal’, in a balanced transmission a second
core is added. This also transfers the signal, but phase-shifted by 180°.
Since the interference aects both cores equally, by subtracting the phase-shifted
signals, the interfering signal is completely neutralized. The result is a pure signal
without any noise interference.
1 Signal
2 Ground, shielding
1 Signal (in phase, +)
2 Signal (out of phase, –)
3 Ground
Introduction
Balanced and unbalanced transmis‐
sion
1/4" TS phone plug (mono, unbal‐
anced)
1/4" TRS phone plug (mono, bal‐
anced)
Plug and connection assignment
mixer
16

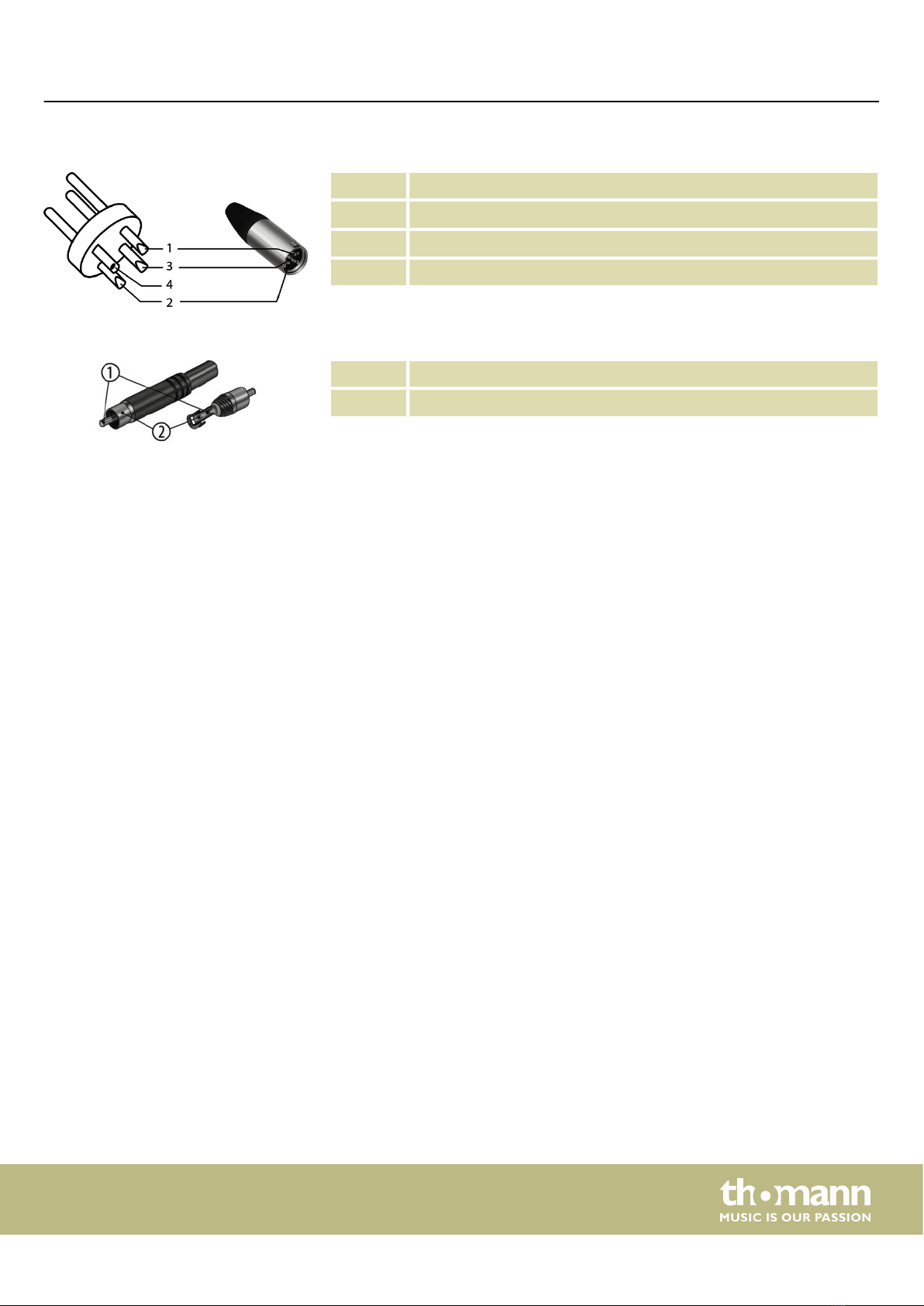

1 Ground, shielding
2 Signal (in phase, +)
3 Signal (out of phase, –)
4 Shielding on plug housing (option)
Drawing and table indicate the pin assignment of an RCA plug.
1 Signal
2 Ground, shielding
XLR plug (balanced)
RCA connection
Plug and connection assignment
402-USB Play
17

8 Protecting the environment
For the transport and protective packaging, environmentally friendly materials have
been chosen that can be supplied to normal recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make
sure that they are collected for recycling. Please follow the notes and markings on
the packaging.
This product is subject to the European Waste Electrical and Electronic Equipment
Directive (WEEE) in its currently valid version. Do not dispose with your normal
household waste.
Dispose of this device through an approved waste disposal rm or through your local
waste facility. When discarding the device, comply with the rules and regulations
that apply in your country. If in doubt, consult your local waste disposal facility.
Disposal of the packaging material
Disposal of your old device
Protecting the environment
mixer
18

Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de
