thomann Millenium MPS-200 User manual

MPS-200
e-drum module
user manual

Musikhaus Thomann e.K.
Treppendorf 30
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
24.10.2013

Table of contents
1 General notes............................................................................................................................................... 5
2 Safety instructions..................................................................................................................................... 7
3 Features....................................................................................................................................................... 10
4 Installation.................................................................................................................................................. 11
5 Operating elements............................................................................................................................... 14
6 Operation.................................................................................................................................................... 20
6.1 Functions............................................................................................................................................. 20
6.2 Playing, customising and accompanying songs.................................................................. 23
6.3 Creating drum kits........................................................................................................................... 27
6.4 Adjusting pad settings................................................................................................................... 29
7 Technical specifications....................................................................................................................... 34
8 Cleaning....................................................................................................................................................... 36
9 Protecting the environment.............................................................................................................. 37
Table of contents
MPS-200
3

10 Appendix..................................................................................................................................................... 38
10.1 Voice list............................................................................................................................................ 38
10.2 Kit list.................................................................................................................................................. 44
10.3 Song list............................................................................................................................................. 45
10.4 MIDI implementation................................................................................................................... 48
Table of contents
e-drum module
4

1 General notes
This user manual contains important information on safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to other users, be sure
that they also receive this manual.
Our products are subject to a process of continuous development. We therefore reserve the
right to make changes without notice.
This section provides an overview of the symbols and signal words used in this user manual.Symbols and signal words
General notes
MPS-200
5

Signal word Meaning
DANGER! This combination of symbol and signal word
indicates an immediate dangerous situation
that will result in death or serious injury if it is
not avoided.
CAUTION! This combination of symbol and signal word
indicates a possible dangerous situation that
can result in minor injury if it is not avoided.
NOTICE! This combination of symbol and signal word
indicates a possible dangerous situation that
can result in material and environmental
damage if it is not avoided.
Warning signs Type of danger
Warning – danger zone.
General notes
e-drum module
6

2 Safety instructions
Drum modules are intended to be used for converting digital trigger signals from drum pads
to various percussion sounds. Use the unit only as described in this manual. Any other use or
use under other operating conditions is considered to be improper and may result in personal
injury or property damage. No liability will be assumed for damages resulting from improper
use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Intended use
Safety instructions
MPS-200
7

DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
CAUTION!
Possible hearing damage
With loudspeakers or headphones connected, the device can produce volume
levels that may cause temporary or permanent hearing impairment.
Do not operate the device permanently at a high volume level. Decrease the
volume level immediately if you experience ringing in your ears or hearing
impairment.
Safety
Safety instructions
e-drum module
8

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
NOTICE!
External power supply
The device is powered by an external power supply. Before connecting the
external power supply, ensure that the input voltage (AC outlet) matches the
voltage rating of the device and that the AC outlet is protected by a residual cur‐
rent circuit breaker. Failure to do so could result in damage to the device and pos‐
sibly the user.
Unplug the external power supply before electrical storms occur and when the
device is unused for long periods of time to reduce the risk of electric shock or
fire.
Safety instructions
MPS-200
9

3 Features
n215 voices
n20 pre-installed drum kits, 10 user kits
n50 pre-installed songs
nClick and learning function
nFlexible assignment of the pad voices
nReverb effect and voice tuning
nHeadphones, AUX and MIDI connections
Features
e-drum module
10

4 Installation
Setup and installation of the pads and pedals are described in detail in the included setup
guide. Finally, check that all connecting cables between the pads and the drum module are
connected correctly.

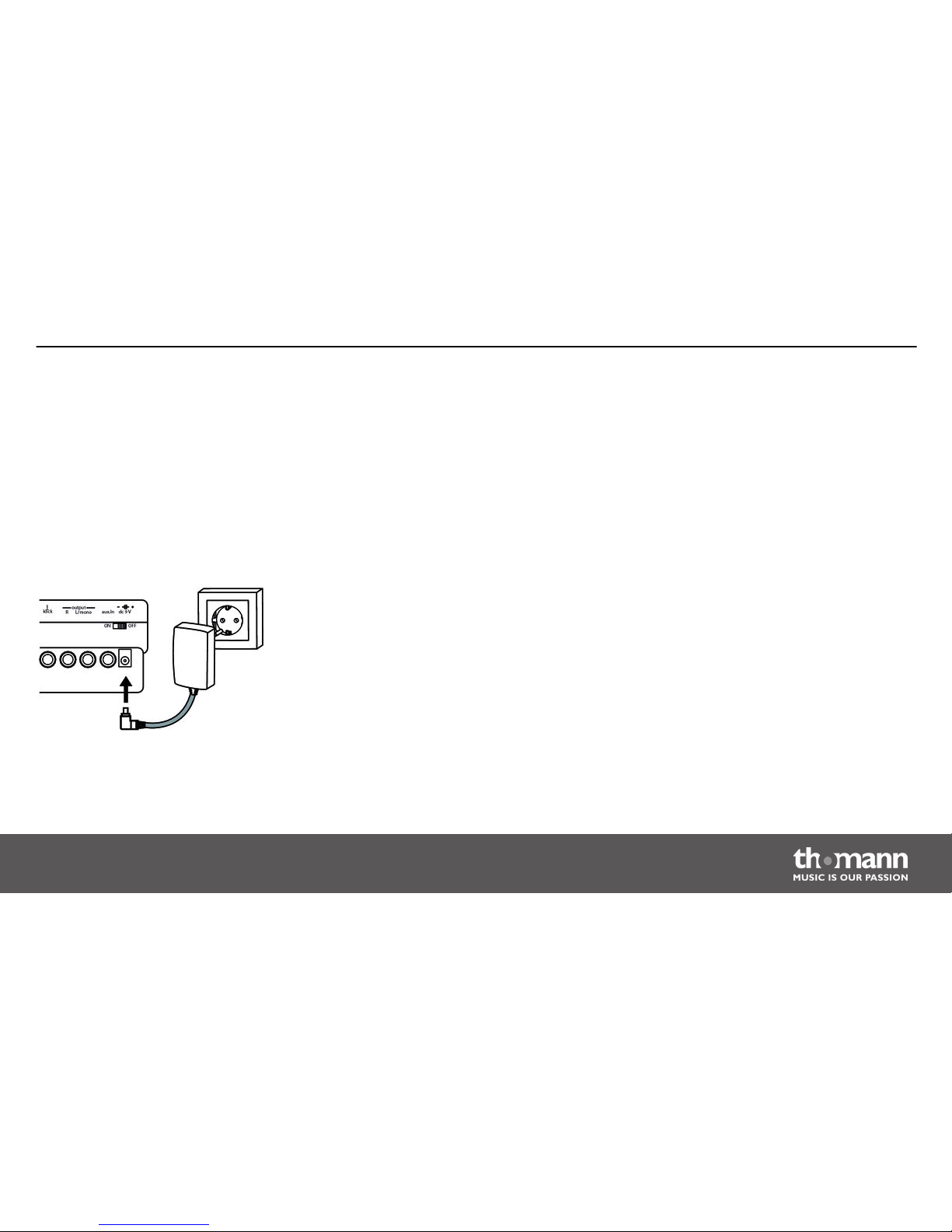

Connect the supplied power adapter to the 9 V input of the device and then insert the mains
plug into a mains wall outlet.
Setup, connecting pads and
pedals
Connecting the power supply
Installation
MPS-200
11

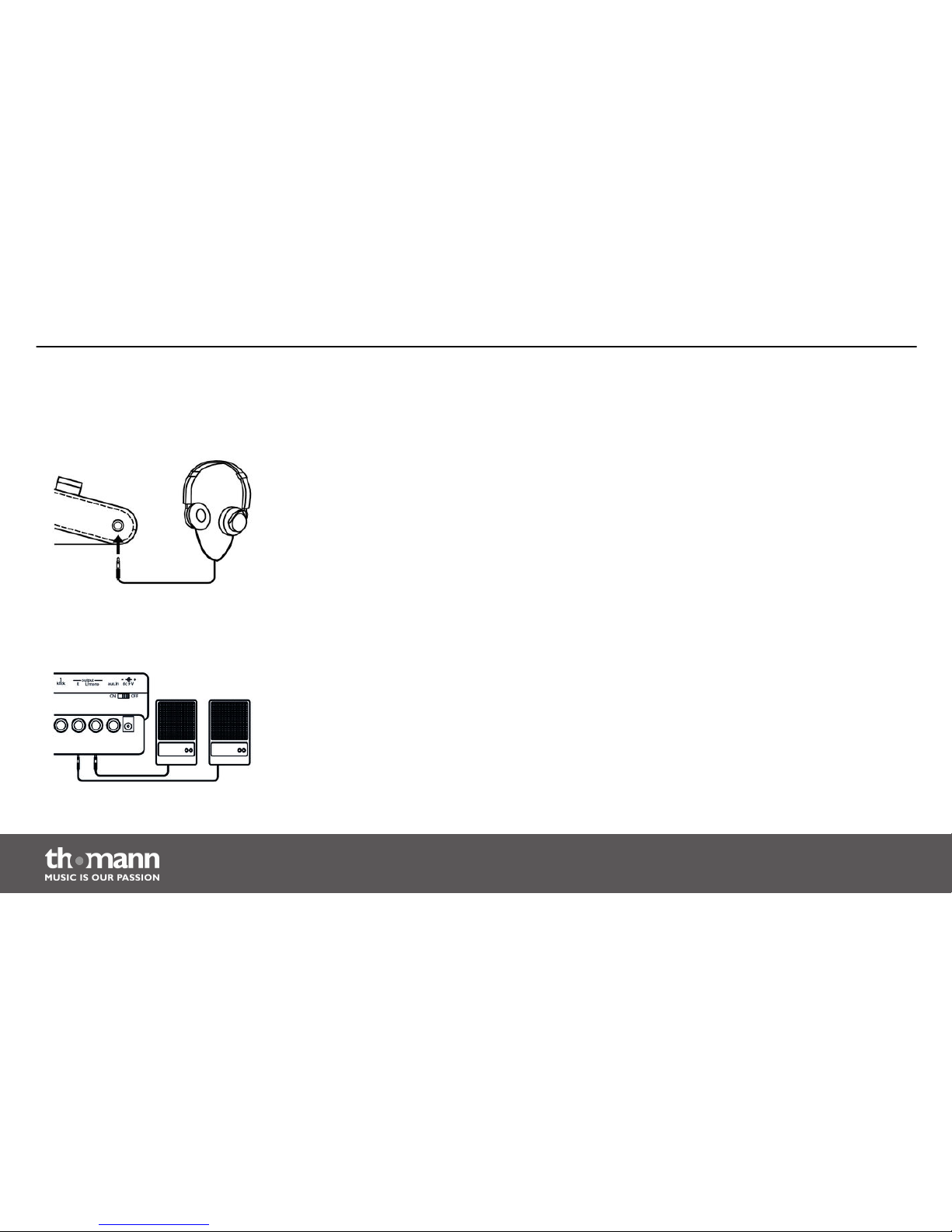

Connect your stereo headphones to the PHONES output of the drum module.
Connect the inputs of your amplifier or powered speaker to the ‘OUTPUT’ sockets of the drum
module. When using a mono amp, connect its input to the ‘L/MONO’ output socket of the
module.
Connecting headphones
Connecting audio devices
Installation
e-drum module
12

Connect external MIDI devices to the ‘MIDI IN’ connections of the drum module.
Connect CD or MP3 player to the ‘AUX IN’ input of the drum module.
Connecting MIDI devices
Connecting CD or MP3 player
Installation
MPS-200
13

5 Operating elements

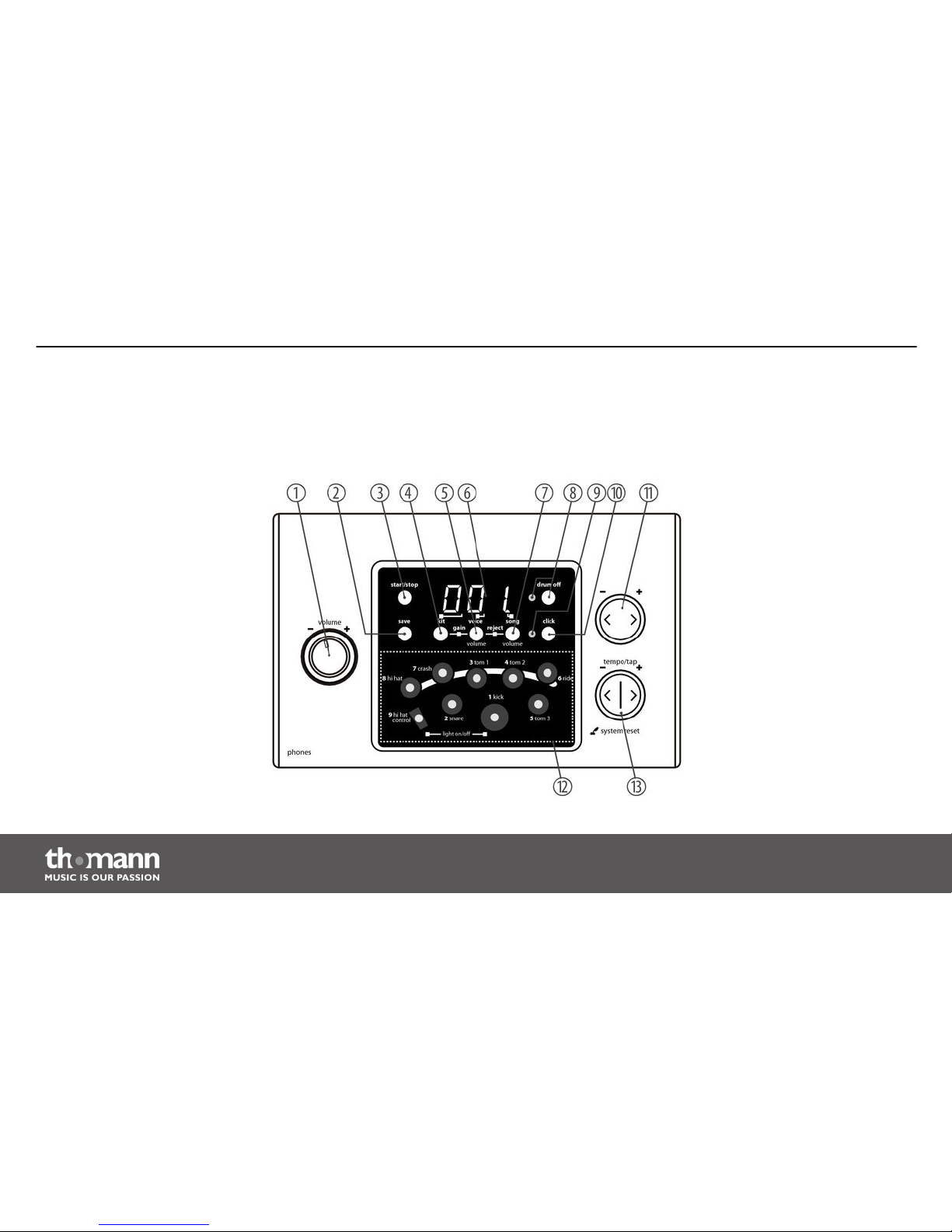

Front panel
Operating elements
e-drum module
14

1[volume]
Volume control for headphones and line out.
2[save]
Button for saving settings.
3[start/stop]
Button for starting and pausing song playback.
4[kit]
Button for opening the kit menu.
5[voice/volume]
Button for opening the voice menu and for volume indication.
6 3-digit LED display.
7[song/volume]
Button for opening the song menu and for volume indication.
Operating elements
MPS-200
15

8[drum off]
Button for muting the drum part. The indicator LED lights up, when the part is muted.
9Indicator LED
Flashes during playback according to metronome or current song beat.
10 [click]
Button for turning the metronome on or off.
11 [–] / [+]
Button for song and kit selection and for adjusting click and pad volume.
12 Pad selection field
Buttons with integrated indicator LED for activating and playing the pads.
13 [tempo/tap –/+]
Button for setting the metronome and playback speed and for resetting the device to factory default settings.
Operating elements
e-drum module
16

Rear panel
Operating elements
MPS-200
17

14 midi out
Connection for an external MIDI device.
15 Connection sockets for the pads.
16 – output – R / L/mono
Output to connect active monitor speakers, mixer or power amp.
17 aux.in
Input for external audio devices like MP3 or CD player.
18 9 V
Connection socket for the power supply adapter.
19 ON / OFF
Main switch to turn the device on or off.
Operating elements
e-drum module
18

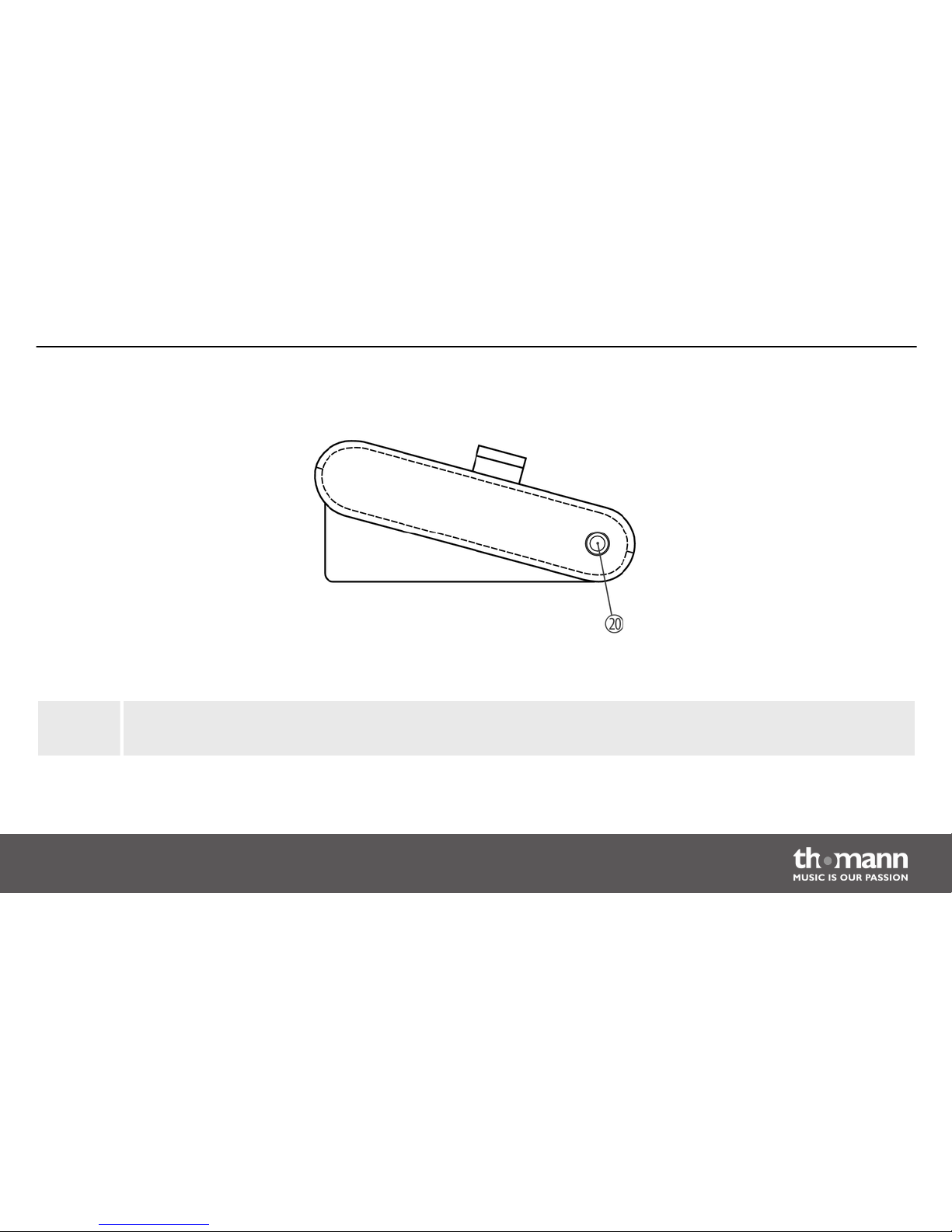

20 phones
Headphones socket.
Side view
Operating elements
MPS-200
19

6 Operation
6.1 Functions
Use the main switch [ON/OFF] on the rear panel to turn the unit on.
Check for proper connection of all cables before switching the unit on.
Before switching the unit on, turn the [volume] control down to minimum.
Automatic switchoff
–When the device is not used, it will switch off automatically after 30 minutes. To
switch it on again, switch to the ‘OFF’ position and then to the ‘ON’ position.
Deactivating the automatic switchoff
–To deactivate the automatic switchoff, press and hold the [START/STOP] button
while you switch on the device.
Switching on
Operation
e-drum module
20
