PD 332 / 363
power distributor
user manual

Musikhaus Thomann e. K.
Treppendorf 30
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
02.07.2012

Table of contents
1 General notes............................................................................................................................................... 4
2 Safety notes.................................................................................................................................................. 6
3 Performance characteristics................................................................................................................. 9
4 Installation and operation.................................................................................................................. 10
5 Connectors and controls...................................................................................................................... 11
6 Technical data........................................................................................................................................... 19
7 Protecting the environment.............................................................................................................. 20
Table of contents
PD 332 / 363
3

1 General notes
This user manual contains important information on safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to other users, be sure
that they also receive this manual.
Our products are subject to a process of continuous development. We therefore reserve the
right to make changes without notice.
This section provides an overview of the symbols and signal words used in this user manual.Symbols and signal words
General notes
power distributor
4

Signal word Meaning
DANGER! This combination of symbol and signal word
indicates an immediate dangerous situation
that will result in death or serious injury if it is
not avoided.
NOTICE! This combination of symbol and signal word
indicates a possible dangerous situation that
can result in material and environmental
damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General notes
PD 332 / 363
5

2 Safety notes
This device is used to distribute electrical power to several connected consumers. Use the
device only as described in this user manual. Any other use or use under other operating con‐
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Intended use
Safety
Safety notes
power distributor
6

DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
DANGER!
Electric shock caused by short-circuit
Do not modify the mains cable or the plug. Failure to do so could result in electric
shock/death or fire. If in doubt, seek advice from a registered electrician.
NOTICE!
Risk of fire
Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked flames.
Safety notes
PD 332 / 363
7

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.
Safety notes
power distributor
8

3 Performance characteristics
nPower distributor 32 A
nDigital display of voltage ("V") and current ("A") of each phase.
nOutputs
– 6 × Schuko installation sockets with hinged lid
– 1 × 5-pin CEE-built-in socket with hinged lid
nCircuit breaker with trip switch
nPower distributor 63 A
nDigital display of the voltage ("V") and current ("A") of each phase
nOutputs
– 4 × 5-pin CEE-built-in sockets with hinged lid
nCircuit breaker with trip switch
PD-332
PD-363
Performance characteristics
PD 332 / 363
9

4 Installation and operation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the device against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is off. Use power supply cables with earthed earthing
pin plug or 5-pin CEE-plug only.
Installation and operation
power distributor
10

5 Connectors and controls
POWER DISTRIBUTOR
V
V
V
A
A
A
ö # $ %

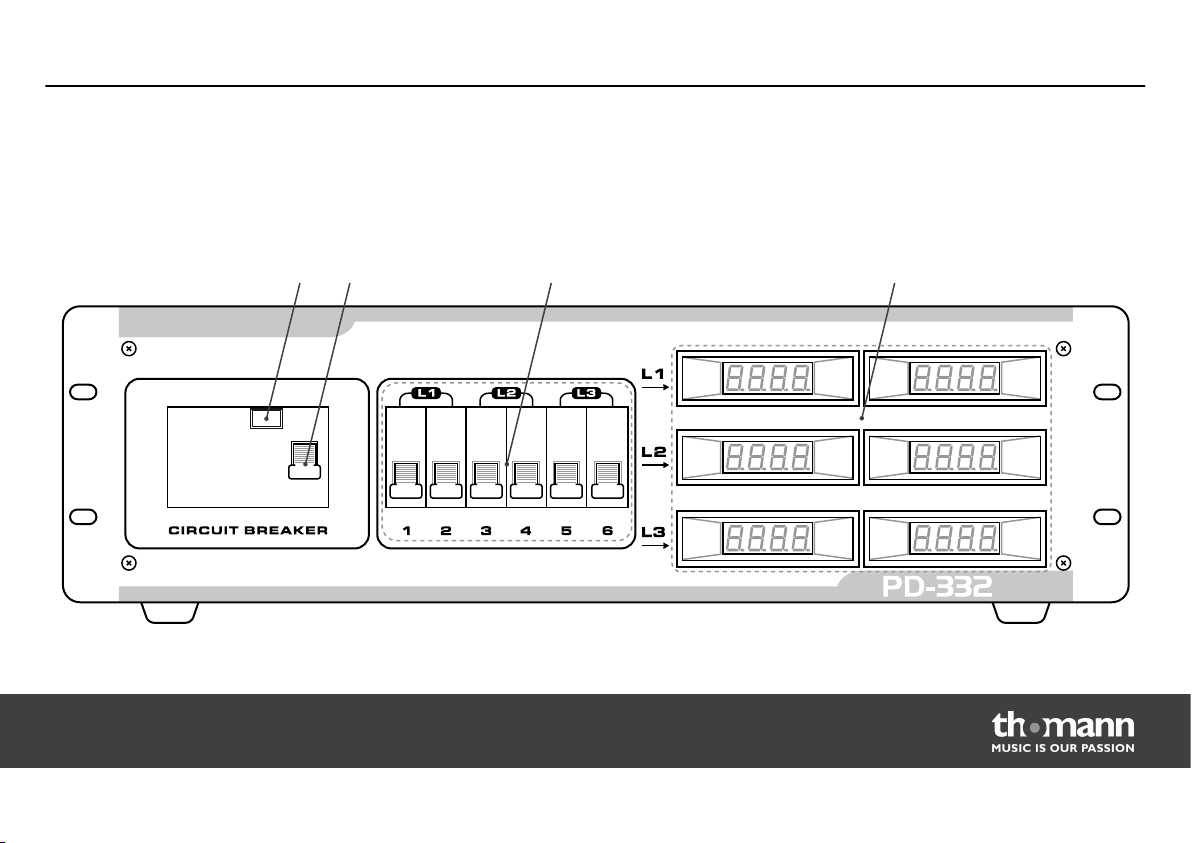

PD-332 front view
Connectors and controls
PD 332 / 363
11

1 Trip switch for manual switching of the circuit breaker.
2 Device circuit breaker. This circuit breaker automatically disconnects the device from the mains when the overall load
exceeds a value of 63 A.
3L1 / L2 / L3
Circuit breakers 1 to 6 for the three phases L1 / L2 / L3 of the power distributor by which two devices with earthing
pin plug each can be supplied. In case of overload (³32 A per phase), the circuit breaker will automatically disconnect
supply to the assigned built-in sockets.
4 Displays for voltage ("V") and current ("A").
Connectors and controls
power distributor
12

8
RISK OF ELECTRIC SHOCK
DO NOT OPEN
&' (
PD-332 rear view
Connectors and controls
PD 332 / 363
13

5Mains connection, supply voltage 380 V /50 Hz.
6 5-pin CEE-built-in socket with hinged lid (32 A).
7 6 × Schuko built-in sockets with hinged lid (each 16 A, corresponding to 32 A per phase).
Connectors and controls
power distributor
14

POWER DISTRIBUTOR
V
V
V
A
A
A
ö # $ %

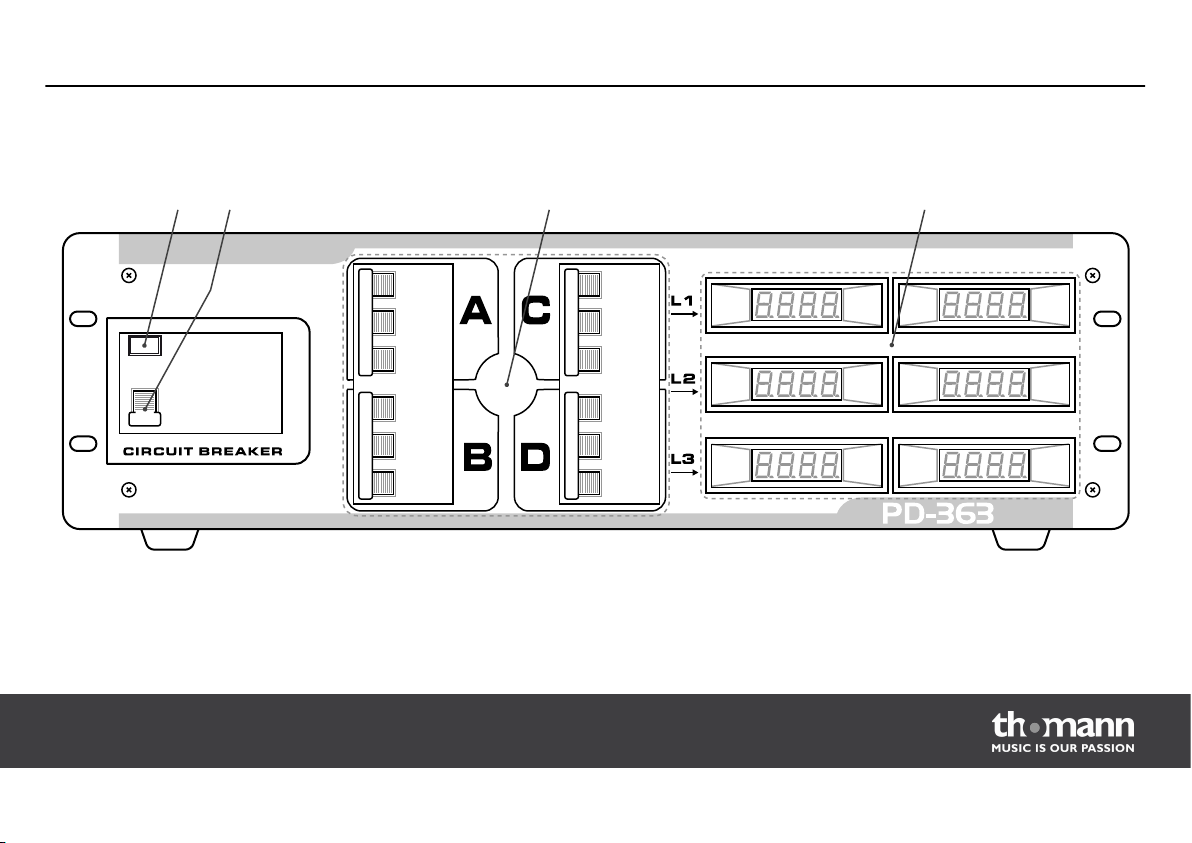

PD-363 front view
Connectors and controls
PD 332 / 363
15

1 Trip switch for manual switching of the circuit breaker.
2 Device circuit breaker. This circuit breaker automatically disconnects the device from the mains once the overall load
exceeds a value of 63 A.
3A / B / C / D
Circuit breakers A, B, C and D for the four 5-pin CEE-built-in sockets of the device. In case of overload (³32A), the
circuit breaker automatically disconnects supply to the assigned CEE built-in socket.
4 Displays for voltage ("V") and current ("A").
Connectors and controls
power distributor
16

RISK OF ELECTRIC SHOCK
DO NOT OPEN
8
&'

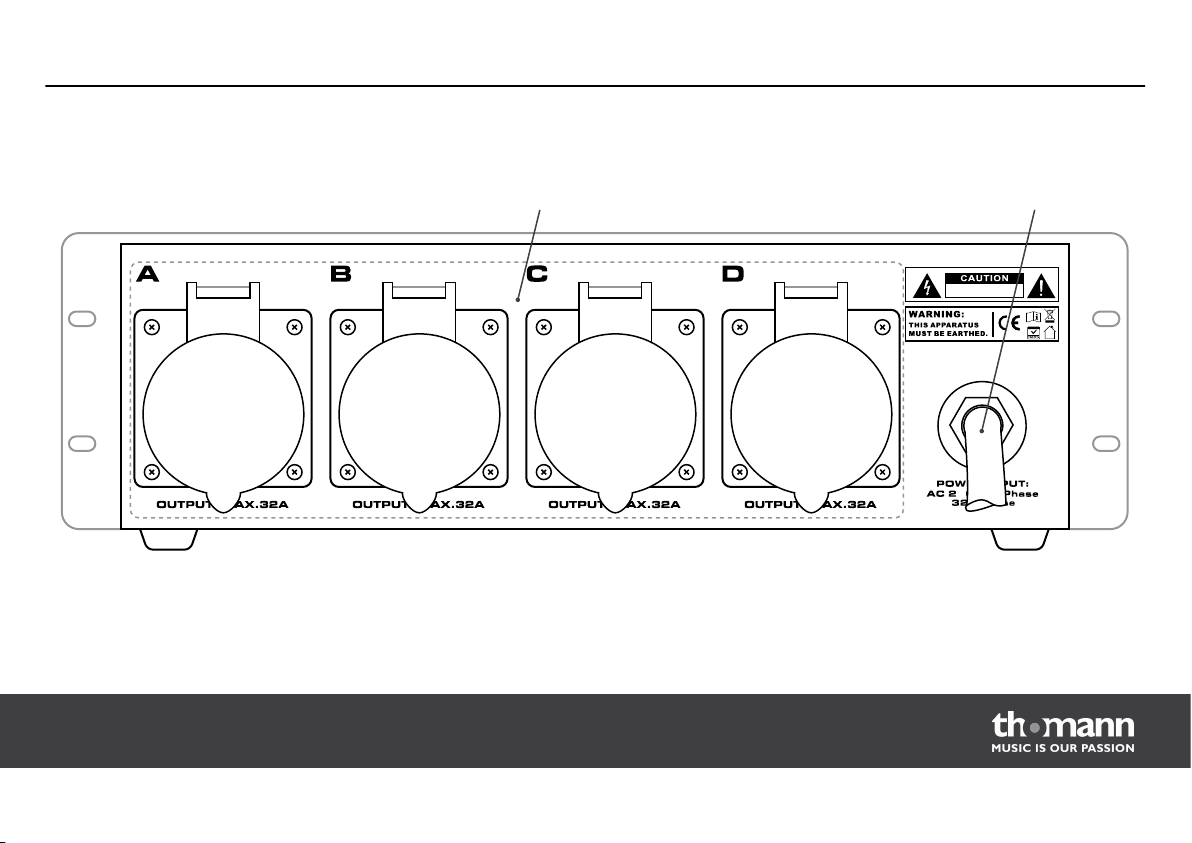

PD-363 rear view
Connectors and controls
PD 332 / 363
17

5Mains connection, supply voltage 380 V /50 Hz.
6 4 × 5-pin CEE-built-in sockets with hinged lid (A / B / C / D, each 32 A).
Connectors and controls
power distributor
18

6 Technical data
Circuit breaker/device 63 A
Circuit breaker/phase 6 × 16 A (PD-332)
4 × 32 A (PD-363)
Outputs 6 × Schuko built-in sockets , 1 × CEE-built-in socket (PD-332)
4 × CEE-built-in sockets (PD-363)
Protection class IP 44
Mains power supply 380 V (AC), 50 Hz
Dimensions (W × H × D) 482 mm × 134 mm × 256.7 mm / 19 in. × 5.3 in. × 10.1 in. (PD-332)
480 mm × 133 mm × 257.5 mm (PD-363) / 18.9 in. × 5.2 in. × 10.1 in. (PD-363)
Weight 8.2 kg / 18.1 lbs. (PD-332)
11 kg / 24.3 lbs. (PD-363)
Technical data
PD 332 / 363
19

7 Protecting the environment
For the transport and protective packaging, environmentally friendly materials have been
chosen that can be supplied to normal recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make sure that
they are collected for recycling. Please follow the notes and markings on the packaging.
This device is subject to the European directive 2002/96/EC.
Do not dispose of the device with your normal household waste.
Dispose of this device through an approved waste disposal firm or through your local waste
facility. When discarding the device, comply with the rules and regulations that apply in your
country. If in doubt, consult your local waste disposal facility.
Disposal of the packaging mate‐
rial
Disposal of your old device
