thomann Stairville Wild Wash Pro 648 LED White DMX User manual

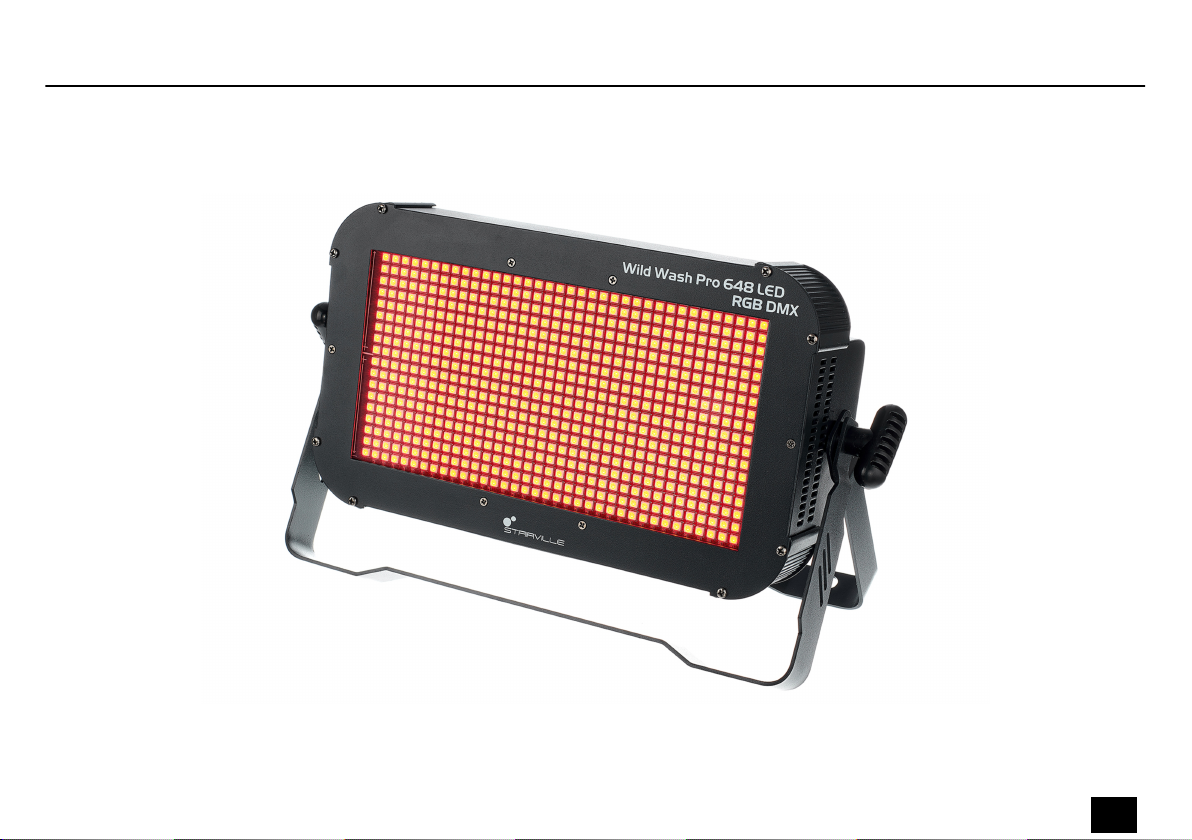

Wild Wash Pro 648 LED RGB DMX,
Wild Wash Pro 648 LED White DMX,
Wild Wash Pro 648 WW DMX
LED Spotlight
User Manual

Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
Internet: www.thomann.de
19.10.2023, ID: 432585, 432586 (V4)

Table of contents
1 General information................................................................................................................................. 6
1.1 Symbols and signal words............................................................................................................... 6
2 Safety instructions..................................................................................................................................... 9
3 Features....................................................................................................................................................... 13
4 Installation.................................................................................................................................................. 14
5 Starting up.................................................................................................................................................. 17
6 Connections and controls................................................................................................................... 19
7 Operating.................................................................................................................................................... 21
7.1 Starting the device........................................................................................................................... 21
7.2 Main menu.......................................................................................................................................... 22
7.3 Menu overview................................................................................................................................. 29
7.4 Functions in DMX mode 1ch........................................................................................................ 30
7.5 Functions in DMX mode 2Ch (model version with white LEDs)..................................... 30
7.6 Functions in DMX mode 2Ch1 (model version with RGB LEDs)...................................... 31
7.7 Functions in DMX mode 2Ch2..................................................................................................... 33
7.8 Functions in DMX mode 3Ch1 .................................................................................................... 34
7.9 Functions in DMX mode 3Ch2 (model version with RGB LEDs)...................................... 35
7.10 Functions in DMX mode 3Ch2 (model version with white LEDs)................................ 37
7.11 Functions in DMX mode 3Ch3 (model version with RGB LEDs)................................... 38
Table of contents
Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX 3
LED Spotlight

7.12 Functions in DMX mode 4Ch (model version with RGB LEDs)...................................... 39
7.13 Functions in DMX mode 5Ch (model version with white LEDs)................................... 42
7.14 Functions in DMX mode 6Ch (model version with RGB LEDs)...................................... 44
7.15 Functions in DMX mode 7Ch (model version with 648 white LEDs).......................... 46
8 Technical specications....................................................................................................................... 47
9 Plug and connection assignment.................................................................................................... 56
10 Troubleshooting...................................................................................................................................... 58
11 Cleaning....................................................................................................................................................... 60
12 Protecting the environment.............................................................................................................. 61
Table of contents
4Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX
LED Spotlight

Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX 5
LED Spotlight

1 General information
This document contains important instructions for the safe operation of the product. Read and
follow the safety instructions and all other instructions. Keep the document for future refer‐
ence. Make sure that it is available to all those using the product. If you sell the product to
another user, be sure that they also receive this document.
Our products and documentation are subject to a process of continuous development. They
are therefore subject to change. Please refer to the latest version of the documentation, which
is ready for download under www.thomann.de.
1.1 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this document.
General information
6Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX
LED Spotlight

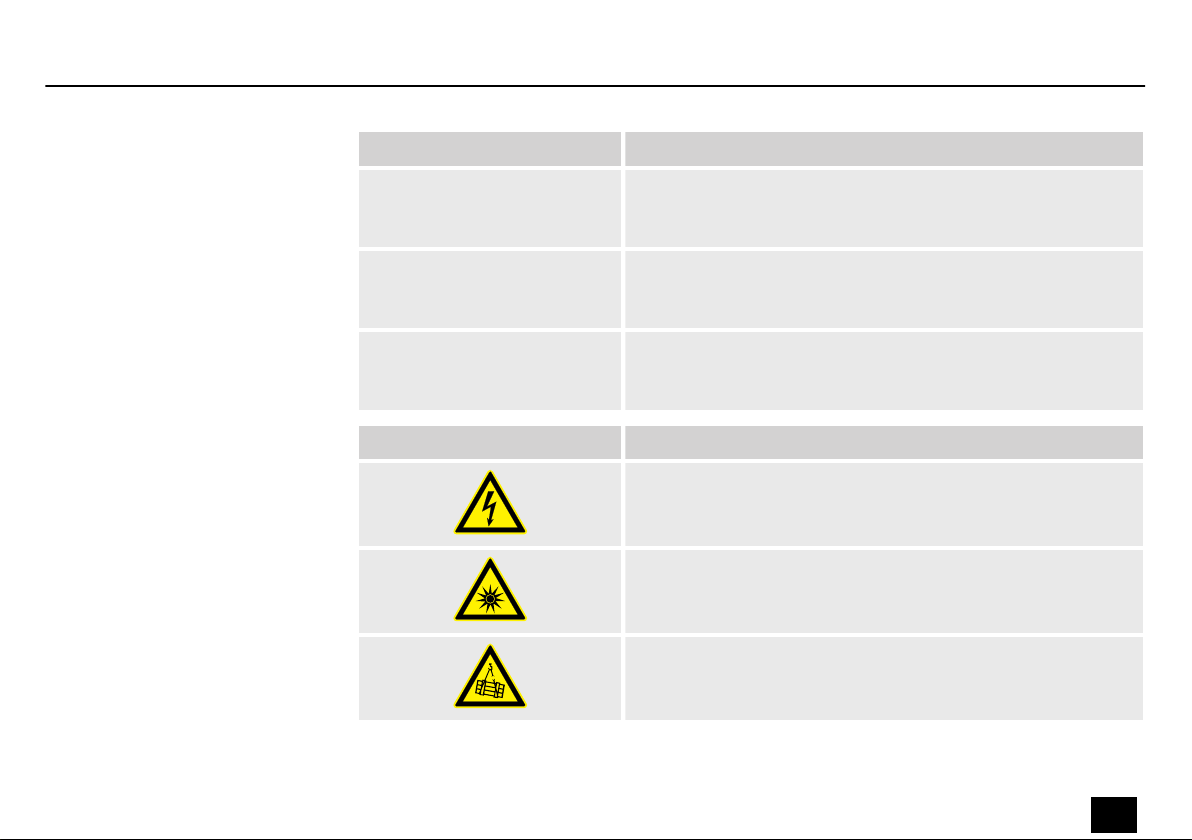

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – dangerous optical radiation.
Warning – suspended load.
General information
Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX 7
LED Spotlight

Warning signs Type of danger
Warning – danger zone.
General information
8Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX
LED Spotlight

2 Safety instructions
This device is intended for use as an electronic lighting eect by means of LED technology. The
device is designed for professional use only and is not suitable for use in households. Use the
device only as described in this user manual. Any other use or use under other operating con‐
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Extend the operating life of the device by regular breaks and by avoiding frequent
switching on and o. The device is not suitable for continuous operation.
Safety
DANGER!
Risk of injury and choking hazard for children!
Children can suocate on packaging material and small parts. Children can injure themselves when handling the device. Never allow
children to play with the packaging material and the device. Always store packaging material out of the reach of babies and small
children. Always dispose of packaging material properly when it is not in use. Never allow children to use the device without supervi‐
sion. Keep small parts away from children and make sure that the device does not shed any small parts (such knobs) that children
could play with.
Intended use
Safety instructions
Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX 9
LED Spotlight

DANGER!
Danger to life due to electric current!
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device when covers, safety equipment or optical components are missing or damaged.
DANGER!
Danger to life due to electric current!
A short circuit could lead to a re hazard and risk of death. Always use proper ready-made insulated triple-core mains cable with a
safety plug. Do not modify the mains cable or the plug. In case of isolation damage, disconnect immediately the power supply and
arrange repair. If in doubt, seek advice from a qualied electrician.
WARNING!
Risk of eye damage caused by high light intensity!
The device generates highly intense light radiation. Looking directly into the light source can damage the eyes. Never look directly
into the light source.
WARNING!
Risk of epileptic t due to ashing lights!
The device emits ashing lights (strobe eects). Flashing lights can trigger epileptic ts in specic people. If you are at risk of epi‐
lepsy, avoid spending longer periods of time subjected to ashing lights and looking into strobing light.
NOTICE!
Risk of re due to covered vents and neighbouring heat sources!
If the vents of the device are covered or the device is operated in the immediate vicinity of other heat sources, the device can over‐
heat and burst into ames. Never cover the device or the vents. Do not install the device in the immediate vicinity of other heat
sources. Never operate the device in the immediate vicinity of naked ames.
Safety instructions
10 Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX
LED Spotlight

NOTICE!
Damage to the device if operated in unsuitable ambient conditions!
The device can be damaged if it is operated in unsuitable ambient conditions. Only operate the device indoors within the ambient
conditions specied in the “Technical specications” chapter of this user manual. Avoid operating it in environments with direct sun‐
light, heavy dirt and strong vibrations. Avoid operating it in environments with strong temperature uctuations. If temperature uc‐
tuations cannot be avoided (for example after transport in low outside temperatures), do not switch on the device immediately.
Never subject the device to liquids or moisture. Never move the device to another location while it is in operation. In environments
with increased dirt levels (for example due to dust, smoke, nicotine or mist): Have the device cleaned by qualied specialists at reg‐
ular intervals to prevent damage due to overheating and other malfunctions.
NOTICE!
Damage to the device due to high voltages!
The device can be damaged if it is operated with the incorrect voltage or if high voltage peaks occur. In the worst case, excess vol‐
tages can also cause a risk of injury and res. Make sure that the voltage specication on the device matches the local power grid
before plugging in the device. Only operate the device from professionally installed mains sockets that are protected by a residual
current circuit breaker (FI). As a precaution, disconnect the device from the power grid when storms are approaching or it the device
will not be used for a longer period.
NOTICE!
Risk of re due to installation of a wrong fuse!
Using fuses of a dierent type than compatible with the device may cause a re and seriously damage the device. Only use fuses of
the same type. Observe the labelling on the device casing and the information in the "Technical data” chapter.
NOTICE!
Possible staining due to plasticiser in rubber feet!
The plasticiser contained in the rubber feet of this product may react with the coating of the oor and cause permanent dark stains
after some time. If necessary, use a suitable mat or felt slide to prevent direct contact between the device’s rubber feet and the oor.
Safety instructions
Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX 11
LED Spotlight

NOTICE!
Risk of overheating and re due to inadequate distance and bad ventilation!
If the distance between the light source and the illuminated surface is too short or the device is badly ventilated, the device can
overheat and cause res. Make sure that illuminated surfaces are more than 2 m away. Do not operate the device in ambient temper‐
atures above 40 °C. Always ensure sucient ventilation at the operating location.
NOTICE!
Risk of re by exceeding the maximum current
The device can supply power to other devices of identical design and connected in series. If too many devices are connected, the
power consumption can exceed the maximum permitted power consumption, which can cause the device to overheat and burst
into ames. Only connect devices of identical design to the device. When deciding how many devices you can connect in series,
make sure that the maximum permitted power consumption as stated on the device is not exceeded. Also refer to the specications
in the technical specications for the device. Only use power cords with a cable cross-section designed for the required current
intensity when connecting the devices in series.
Safety instructions
12 Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX
LED Spotlight

3 Features
The LED spotlight is particularly suitable for lighting applications in clubs, night clubs, on rock
stages, in theatres and musicals. It can also be used for eect lighting of stage backgrounds
and as blinder.
Special features of the device:
nEquipped with SMD LEDs with 0.2 W power consumption each, depending on the model
version:
– Stairville Wild Wash Pro 648 LED RGB DMX (item no. 432585): 648 tricolour LEDs (RGB)
– Stairville Wild Wash Pro 648 LED White DMX (item no. 432586): 648 cold white LEDs
– Stairville Wild Wash Pro 648 WW DMX (item no. 481229): 648 warm white LEDs
nControl via DMX (dierent modes depending on the model version) and via buttons and
display on the unit
nBuilt-in automatic show programmes
nSound control
nMaster / Slave mode
nRobust metal housing with compact design
nVersatile installation and mounting options with the included two-piece mounting bracket
For technological reasons, the light output of LEDs decreases over their lifetime. This eect
increases with higher operating temperature. You can extend the service life of the illuminants
by providing adequate ventilation and operating the LEDs with the lowest possible brightness.
Features
Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX 13
LED Spotlight

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
You can install the device standing or hanging. When in use, the device must be mounted at a
solid surface or clamped to an approved truss.
Work from a stable platform whenever you install or move the device or when you perform
any kind of maintenance. Block access under the work area.
WARNING!
Risk of injury from falling devices that were inadequately secured!
If devices are not properly secured during assembly, they can cause severe injury
and considerable damage by falling.
When installing and operating, make sure to follow the standards and regulations
that apply in your country.
Always secure the device with a secondary safety attachment, such as a safety
cable or a safety chain.
Installation
14 Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX
LED Spotlight

NOTICE!
Risk of overheating and re due to inadequate distance and bad ventilation!
If the distance between the light source and the illuminated surface is too short or
the device is badly ventilated, the device can overheat and cause res.
Make sure that illuminated surfaces are more than 2 m away.
Do not operate the device in ambient temperatures above 40 °C.
Always ensure sucient ventilation at the operating location.
NOTICE!
Data transfer errors due to improper wiring!
If the DMX connections are wired incorrectly, this can cause errors during the data
transfer.
Do not connect the DMX input and output to audio devices, e.g. mixers or ampli‐
ers.
Use special DMX cables for the wiring instead of normal microphone cables.
Installation
Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX 15
LED Spotlight

Please note that this device must not be connected to a dimmer.
Installation
16 Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX
LED Spotlight

5 Starting up
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.

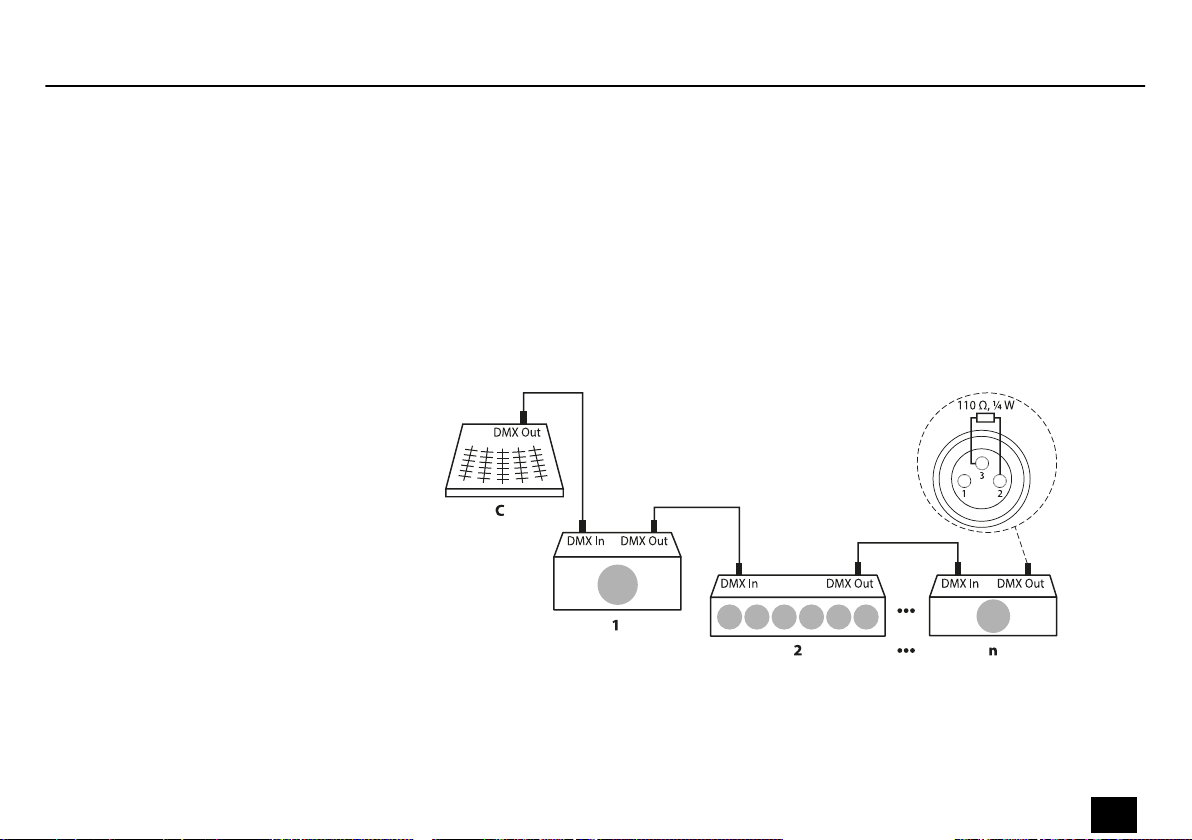

Connect the DMX input of the device to the DMX output of a DMX controller or another DMX
device. Connect the output of the rst DMX device to the input of the second one, and so on
to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain
is terminated with a resistor (110 Ω, ¼W).
Connections in DMX mode
Starting up
Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX 17
LED Spotlight

When you congure a group of devices in master/slave mode, the rst unit will control the
other units for an automatic, sound-activated, synchronized show. This function is ideal when
you want to start a show immediately. Connect the DMX output of the master device to the
DMX input of the rst slave device. Then connect the DMX output of the rst slave device to
the DMX input of the second slave device and so on.
Connections in master/slave
mode
Starting up
18 Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX
LED Spotlight

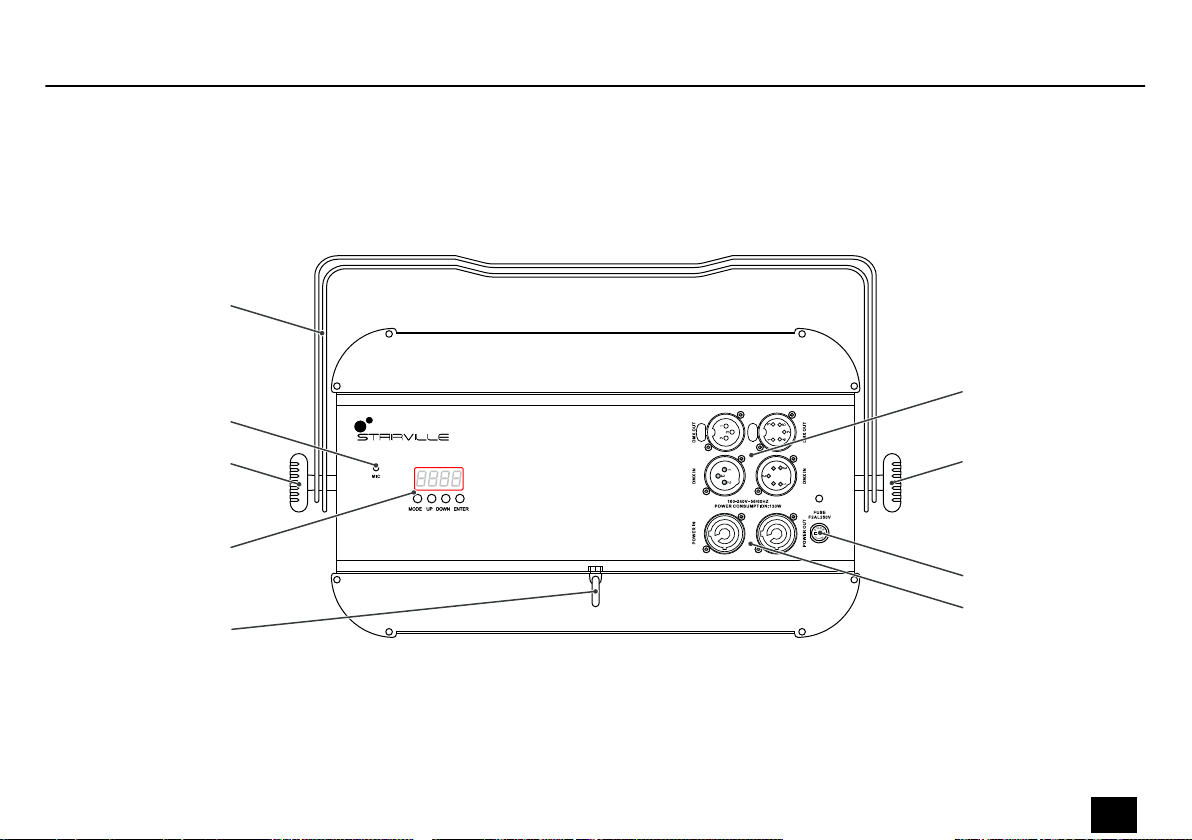

6 Connections and controls
PUSH
PUSH
4
5
Wild Wash Pro 648 LED
'
$
(
&
#
(
)
%
Connections and controls
Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX 19
LED Spotlight

1 Display and control buttons
[MENU] | Activates the main menu and switches between menu items.
[UP]
Increases the displayed value by one.
[DOWN] | Decreases the displayed value by one.
[ENTER] | Selects an option of the respective operating mode.
2[DMX IN] | DMX input sockets, three- and ve-pin
[DMX OUT] | DMX output socket, three- and ve-pin
3[MIC] | Microphone for sound control
4[POWER IN] | Lockable input socket (Power Twist) for the power supply of the device
[POWER OUT] | Lockable output socket (Power Twist) for powering a connected device (maximum output current
16 A)
5 Safety cable eyelet
6 Two-piece bracket for hanging or installation and for securing the safety cable
7 Locking screw for xing the spotlight
8[FUSE] | Fuse holder
Connections and controls
20 Wild Wash Pro 648 LED RGB DMX, Wild Wash Pro 648 LED White DMX, Wild Wash Pro 648 WW DMX
LED Spotlight
