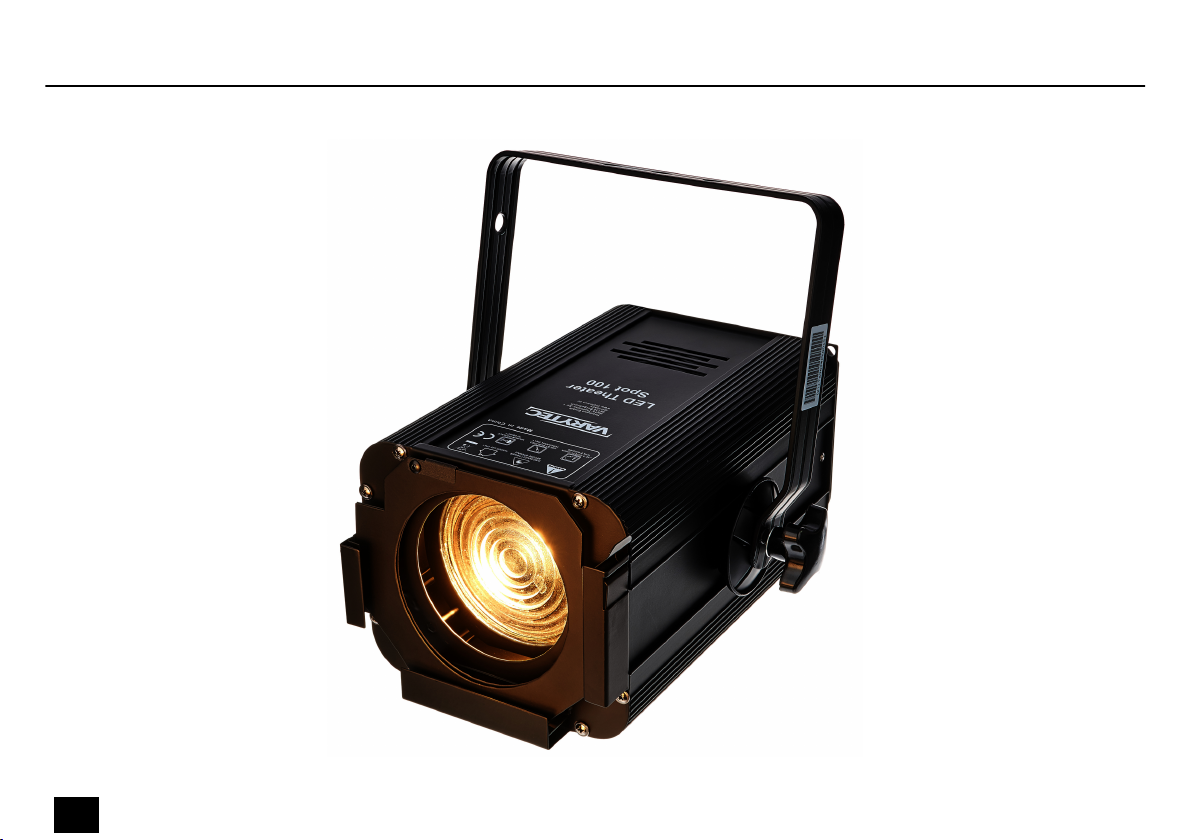

LED Theater Spot 100 3000K
LED Spotlight
User Manual

Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
Internet: www.thomann.de
21.09.2023, ID: 414220, 427226 (V5)

Table of contents
1 General information................................................................................................................................. 5
1.1 Symbols and signal words............................................................................................................... 5
2 Safety instructions..................................................................................................................................... 8
3 Features....................................................................................................................................................... 12
4 Installation.................................................................................................................................................. 13
5 Starting up.................................................................................................................................................. 16
6 Connections and controls................................................................................................................... 17
7 Operating.................................................................................................................................................... 20
7.1 Starting the device........................................................................................................................... 20
7.2 Main menu.......................................................................................................................................... 20
7.3 Menu overview................................................................................................................................. 23
7.4 Functions in 1-channel DMX mode........................................................................................... 24
7.5 Functions in 2-channel DMX mode........................................................................................... 24
8 Technical specications....................................................................................................................... 25
9 Plug and connection assignments.................................................................................................. 27
10 Troubleshooting...................................................................................................................................... 28
11 Cleaning....................................................................................................................................................... 30
12 Protecting the environment.............................................................................................................. 31
Table of contents
LED Theater Spot 100 3000K 3
LED Spotlight

4LED Theater Spot 100 3000K
LED Spotlight

1 General information
This document contains important instructions for the safe operation of the product. Read and
follow the safety instructions and all other instructions. Keep the document for future refer‐
ence. Make sure that it is available to all those using the product. If you sell the product to
another user, be sure that they also receive this document.
Our products and documentation are subject to a process of continuous development. They
are therefore subject to change. Please refer to the latest version of the documentation, which
is ready for download under www.thomann.de.
1.1 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this document.
General information
LED Theater Spot 100 3000K 5
LED Spotlight

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – dangerous optical radiation.
Warning – suspended load.
General information
6LED Theater Spot 100 3000K
LED Spotlight

Warning signs Type of danger
Warning – danger zone.
General information
LED Theater Spot 100 3000K 7
LED Spotlight

2 Safety instructions
This device is intended for use as an electronic lighting eect by means of LED technology. The
device is designed for professional use only and is not suitable for use in households. Use the
device only as described in this user manual. Any other use or use under other operating con‐
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Extend the operating life of the device by regular breaks and by avoiding frequent
switching on and o. The device is not suitable for continuous operation.
Safety
DANGER!
Risk of injury and choking hazard for children!
Children can suocate on packaging material and small parts. Children can injure themselves when handling the device. Never allow
children to play with the packaging material and the device. Always store packaging material out of the reach of babies and small
children. Always dispose of packaging material properly when it is not in use. Never allow children to use the device without supervi‐
sion. Keep small parts away from children and make sure that the device does not shed any small parts (such knobs) that children
could play with.
Intended use
Safety instructions
8LED Theater Spot 100 3000K
LED Spotlight

DANGER!
Danger to life due to electric current!
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device when covers, safety equipment or optical components are missing or damaged.
DANGER!
Danger to life due to electric current!
A short circuit could lead to a re hazard and risk of death. Always use proper ready-made insulated triple-core mains cable with a
safety plug. Do not modify the mains cable or the plug. In case of isolation damage, disconnect immediately the power supply and
arrange repair. If in doubt, seek advice from a qualied electrician.
WARNING!
Risk of eye damage caused by high light intensity!
The device generates highly intense light radiation. Looking directly into the light source can damage the eyes. Never look directly
into the light source.
WARNING!
Risk of epileptic t due to ashing lights!
The device emits ashing lights (strobe eects). Flashing lights can trigger epileptic ts in specic people. If you are at risk of epi‐
lepsy, avoid spending longer periods of time subjected to ashing lights and looking into strobing light.
WARNING!
Risk of injury from falling spotlights and barn doors that were inadequately secured!
If spotlights and barn doors are not properly secured when mounted, they can cause severe injury and considerable damage by
falling. When installing and operating, make sure to follow the standards and regulations that apply in your country. Always secure
spotlights with a secondary safety attachment, such as a safety cable or a safety chain. Always secure the barn door with a safety
cable on the spotlight. The safety cable must run outside the barn door to not interfere with the light emission.
Safety instructions
LED Theater Spot 100 3000K 9
LED Spotlight

NOTICE!
Risk of re due to covered vents and neighbouring heat sources!
If the vents of the device are covered or the device is operated in the immediate vicinity of other heat sources, the device can over‐
heat and burst into ames. Never cover the device or the vents. Do not install the device in the immediate vicinity of other heat
sources. Never operate the device in the immediate vicinity of naked ames.
NOTICE!
Risk of overheating and risk of re when operated with closed barn doors!
If the spotlight is operated with the barn doors closed, there is a risk of overheating and re. In addition, even short-term operation
with the barn doors closed can reduce the service life of the LEDs. Operate the device only with open barn doors.
NOTICE!
Damage to the device if operated in unsuitable ambient conditions!
The device can be damaged if it is operated in unsuitable ambient conditions. Only operate the device indoors within the ambient
conditions specied in the “Technical specications” chapter of this user manual. Avoid operating it in environments with direct sun‐
light, heavy dirt and strong vibrations. Avoid operating it in environments with strong temperature uctuations. If temperature uc‐
tuations cannot be avoided (for example after transport in low outside temperatures), do not switch on the device immediately.
Never subject the device to liquids or moisture. In environments with increased dirt levels (for example due to dust, smoke, nicotine
or mist): Have the device cleaned by qualied specialists at regular intervals to prevent damage due to overheating and other mal‐
functions.
NOTICE!
Damage to the device due to high voltages!
The device can be damaged if it is operated with the incorrect voltage or if high voltage peaks occur. In the worst case, excess vol‐
tages can also cause a risk of injury and res. Make sure that the voltage specication on the device matches the local power grid
before plugging in the device. Only operate the device from professionally installed mains sockets that are protected by a residual
current circuit breaker (FI). As a precaution, disconnect the device from the power grid when storms are approaching or it the device
will not be used for a longer period.
Safety instructions
10 LED Theater Spot 100 3000K
LED Spotlight

NOTICE!
Risk of re due to installation of a wrong fuse!
Using fuses of a dierent type than compatible with the device may cause a re and seriously damage the device. Only use fuses of
the same type. Observe the labelling on the device casing and the information in the "Technical data” chapter.
Safety instructions
LED Theater Spot 100 3000K 11
LED Spotlight

3 Features
The LED theatre spotlight replaces conventional Fresnel lens spotlights with 500 W … 650 W
power.
Special features of the device:
n1 × COB LED, 100 W
nFresnel lens
nColour temperature: 3000 K
nColour rendering index: 95
nMax. light output: 6350 lux (2 m)
n15° to 45° manually adjustable beam angle
nOperation in stand-alone or DMX mode (one or two channels, depending on operating
mode)
nOperating via buttons and display on the unit
nVery quiet temperature-controlled fan for quiet operation
nIdeally suitable for use in theatres
For technological reasons, the light output of LEDs decreases over their lifetime. This eect
increases with higher operating temperature. You can extend the service life of the illuminants
by providing adequate ventilation and operating the LEDs with the lowest possible brightness.
Features
12 LED Theater Spot 100 3000K
LED Spotlight

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
WARNING!
Risk of injury from falling spotlights and barn doors that were inadequately
secured!
If spotlights and barn doors are not properly secured when mounted, they can
cause severe injury and considerable damage by falling.
When installing and operating, make sure to follow the standards and regulations
that apply in your country.
Always secure spotlights with a secondary safety attachment, such as a safety
cable or a safety chain.
Always secure the barn door with a safety cable on the spotlight. The safety cable
must run outside the barn door to not interfere with the light emission.
Installation
LED Theater Spot 100 3000K 13
LED Spotlight

NOTICE!
Risk of overheating and re due to inadequate distance and bad ventilation!
If the distance between the light source and the illuminated surface is too short or
the device is badly ventilated, the device can overheat and cause res.
Make sure that illuminated surfaces are more than 2 m away.
Do not operate the device in ambient temperatures above 40 °C.
Always ensure sucient ventilation at the operating location.
NOTICE!
Potential property damage due to unsuitable stands!
If the device is mounted on an unsuitable stand, there is a risk that the stand will
fall over and cause damage.
Only use stands whose maximum bearing capacity is at least as high as the
weight of the device. Always ensure that the stand is stable.
Installation
14 LED Theater Spot 100 3000K
LED Spotlight

NOTICE!
Data transfer errors due to improper wiring!
If the DMX connections are wired incorrectly, this can cause errors during the data
transfer.
Do not connect the DMX input and output to audio devices, e.g. mixers or ampli‐
ers.
Use special DMX cables for the wiring instead of normal microphone cables.
Sie können das Gerät hängend oder stehend installieren. Die Befestigung während des
Gebrauchs muss immer auf einer festen Oberäche oder an einem dafür zugelassenen Träger
erfolgen. Benutzen Sie zur Befestigung die dafür vorgesehenen Önungen des Bügels.
Arbeiten Sie immer von einer stabilen Plattform aus, wenn Sie das Gerät installieren, bewegen
oder Wartungsarbeiten daran durchführen. Dabei muss der Bereich unterhalb des Geräts
abgesperrt sein.
Das Sicherheitsfangseil muss an der Fangseilöse befestigt werden.
Please note that this device must not be connected to a dimmer.
Befestigungsmöglichkeiten
Installation
LED Theater Spot 100 3000K 15
LED Spotlight

5 Starting up
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.

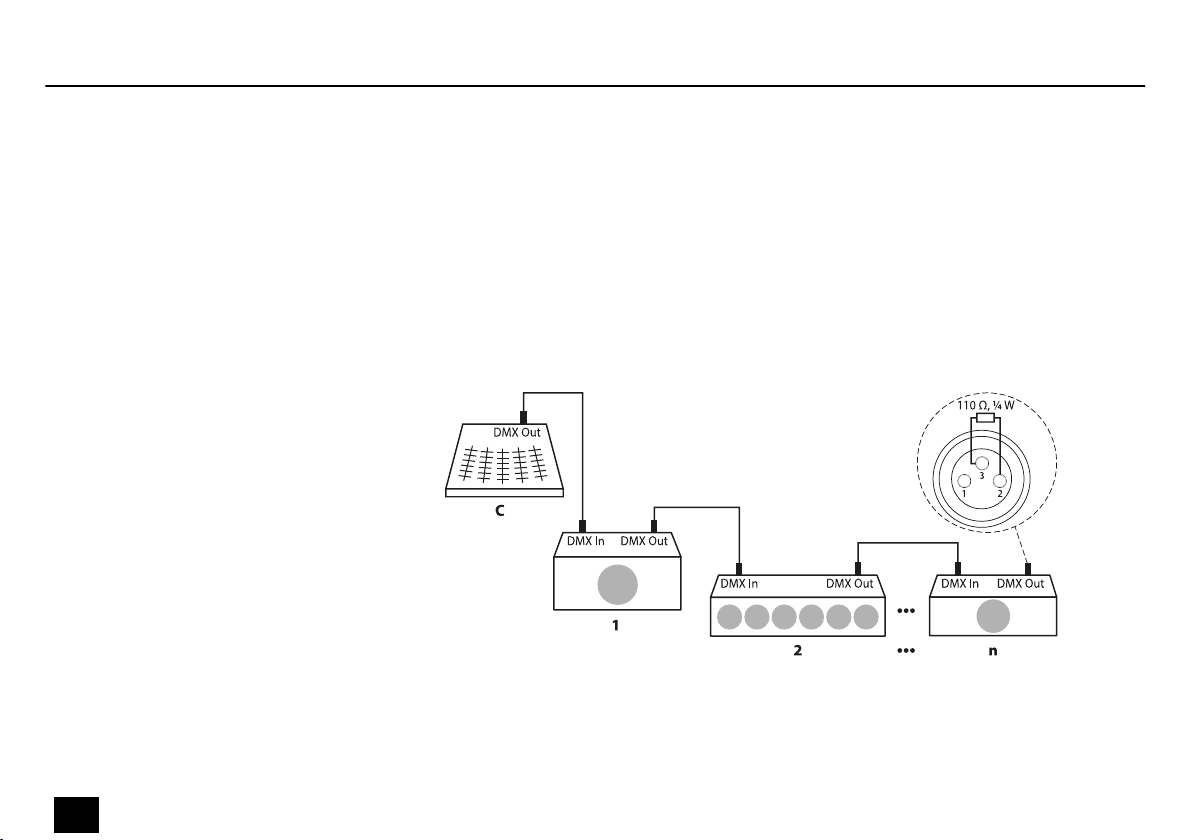

Connect the DMX input of the device to the DMX output of a DMX controller or another DMX
device. Connect the output of the rst DMX device to the input of the second one, and so on
to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain
is terminated with a resistor (110 Ω, ¼W).
Connections in DMX mode
Starting up
16 LED Theater Spot 100 3000K
LED Spotlight

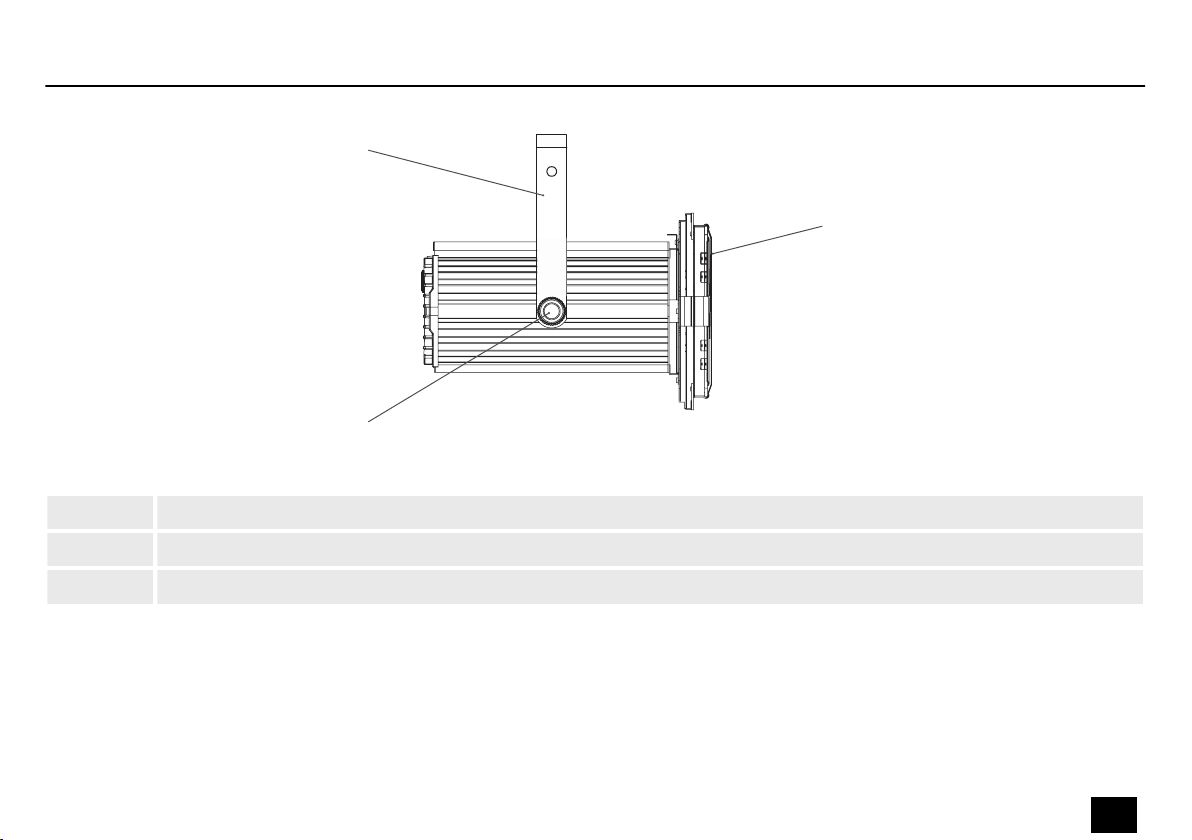

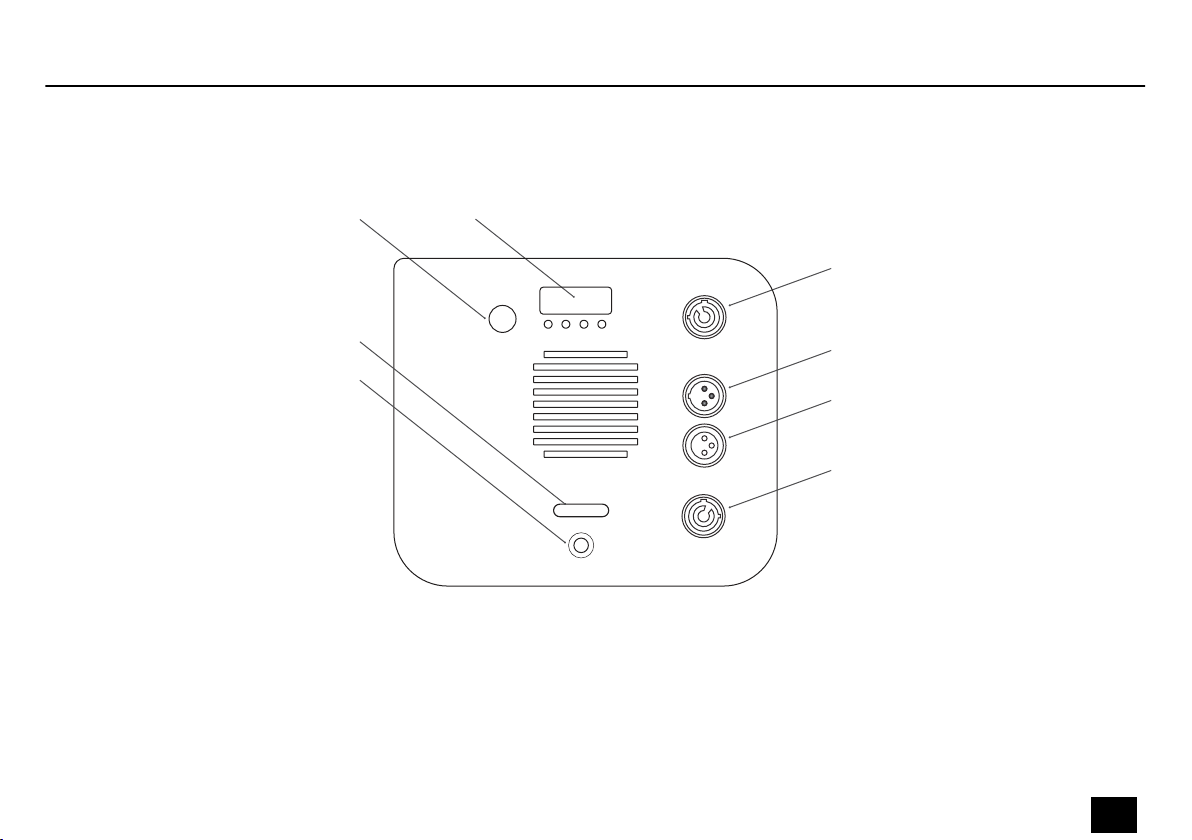

6 Connections and controls
ö
#
Menu Up Down Ente r
DMX
IN
DMX
OUT
Fuse
POWER IN
POWER OUT
%
&
$
'
)
(
Connections and controls
LED Theater Spot 100 3000K 17
LED Spotlight

1 Display with function buttons. The display ashes when a valid DMX signal is present.
[Enter] | Conrms a selected value.
[Up], [Down] | Increases / decreases the displayed value by one.
[Menu] | Calls up the main menu or a submenu.
2 Power-Twist connector for the power supply of the device.
3 Power-Twist connector for the voltage supply of a further device.
4[DMX IN] | DMX input
5[DMX OUT] | DMX output
6 Focus control. Adjusts the beam angle in a range from 15° to 45°.
7 Safety cable eyelet
8 Fuse holder
Connections and controls
18 LED Theater Spot 100 3000K
LED Spotlight

*
,
+
9 Mounting bracket
10 Front side with barn door attachment.
11 Locking screw for the mounting bracket.
Connections and controls
LED Theater Spot 100 3000K 19
LED Spotlight

7 Operating
7.1 Starting the device
Connect the device to the power supply to start operation. The device is immediately opera‐
tional and operates in the last mode with the settings last selected.
7.2 Main menu
Press [Menu] to open the main menu. Use [Up] or [Down] to select the desired parameter or to
change the respectively indicated value. When the display shows the desired parameter or
value press [Enter] to enter the respective submenu or conrm a new value. To return to the
previous menu level without changes, press [Menu].
If you do not press any button for 60 seconds, the display will automatically turn o. Possible
changes are not applied.
Menu control
Operating
20 LED Theater Spot 100 3000K
LED Spotlight
