thomann VARYTEC LED Theater Spot 250 MZ 3200K User manual

LED Theater Spot 250 MZ 3200K
LED Spotlight
User Manual

Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
Internet: www.thomann.de
23.06.2023, ID: 444937 (V4)

Table of contents
1 General information................................................................................................................................. 6
1.1 Further information........................................................................................................................... 7
1.2 Notational conventions.................................................................................................................... 8
1.3 Symbols and signal words............................................................................................................... 9
2 Safety instructions.................................................................................................................................. 12
3 Features....................................................................................................................................................... 17
4 Installation.................................................................................................................................................. 19
5 Starting up.................................................................................................................................................. 23
6 Connections and controls................................................................................................................... 25
7 Operating.................................................................................................................................................... 28
7.1 Starting the device........................................................................................................................... 28
7.2 Main menu.......................................................................................................................................... 28
7.3 Menu overview................................................................................................................................. 33
7.4 Functions in 3-channel DMX mode........................................................................................... 34
8 Technical specications....................................................................................................................... 35
Table of contents
LED Theater Spot 250 MZ 3200K 3
LED Spotlight

9 Plug and connection assignment.................................................................................................... 38
10 Troubleshooting...................................................................................................................................... 40
11 Cleaning....................................................................................................................................................... 42
12 Protecting the environment.............................................................................................................. 43
Table of contents
4LED Theater Spot 250 MZ 3200K
LED Spotlight

LED Theater Spot 250 MZ 3200K 5
LED Spotlight

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
6LED Theater Spot 250 MZ 3200K
LED Spotlight

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
LED Theater Spot 250 MZ 3200K 7
LED Spotlight

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’ , ‘OFF’ .
Letterings
Displays
General information
8LED Theater Spot 250 MZ 3200K
LED Spotlight

The individual steps of an instruction are numbered consecutively. The result of a step is
indented and highlighted by an arrow.
Example:
1. Switch on the device.
2. Press [Auto].
ðAutomatic operation is started.
3. Switch o the device.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Instructions
General information
LED Theater Spot 250 MZ 3200K 9
LED Spotlight

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – dangerous optical radiation.
General information
10 LED Theater Spot 250 MZ 3200K
LED Spotlight

Warning signs Type of danger
Warning – suspended load.
Warning – danger zone.
General information
LED Theater Spot 250 MZ 3200K 11
LED Spotlight

2 Safety instructions
This device is intended for use as an electronic lighting eect by means of LED technology. The
device is designed for professional use only and is not suitable for use in households. Use the
device only as described in this user manual. Any other use or use under other operating con‐
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Extend the operating life of the device by regular breaks and by avoiding frequent
switching on and o. The device is not suitable for continuous operation.
Intended use
Safety instructions
12 LED Theater Spot 250 MZ 3200K
LED Spotlight

Safety
DANGER!
Risk of injury and choking hazard for children!
Children can suocate on packaging material and small parts. Children can injure themselves when handling the device. Never allow
children to play with the packaging material and the device. Always store packaging material out of the reach of babies and small
children. Always dispose of packaging material properly when it is not in use. Never allow children to use the device without supervi‐
sion. Keep small parts away from children and make sure that the device does not shed any small parts (such knobs) that children
could play with.
DANGER!
Danger to life due to electric current!
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device when covers, safety equipment or optical components are missing or damaged.
DANGER!
Danger to life due to electric current!
A short circuit could lead to a re hazard and risk of death. Always use proper ready-made insulated triple-core mains cable with a
safety plug. Do not modify the mains cable or the plug. In case of isolation damage, disconnect immediately the power supply and
arrange repair. If in doubt, seek advice from a qualied electrician.
Safety instructions
LED Theater Spot 250 MZ 3200K 13
LED Spotlight

WARNING!
Risk of eye damage caused by high light intensity!
The device generates highly intense light radiation. Looking directly into the light source can damage the eyes. Never look directly
into the light source.
WARNING!
Risk of epileptic t due to ashing lights!
The device emits ashing lights (strobe eects). Flashing lights can trigger epileptic ts in specic people. If you are at risk of epi‐
lepsy, avoid spending longer periods of time subjected to ashing lights and looking into strobing light.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a
secondary safety attachment, such as a safety cable or a safety chain. Secure the barn door with a safety cable on the spotlight after
installation. The safety cable must run outside the barn door and must not interfere with the light emission.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked ames.
Safety instructions
14 LED Theater Spot 250 MZ 3200K
LED Spotlight

NOTICE!
Risk of re and overheating
The use with closed barn doors can cause re or overheating in the spotlight. The lifetime of the LEDs will be reduced when using
the device with closed barn doors. Otherwise, the integrated thermostat causes a thermically reasonable shutdown. Use the device
only with open barn doors.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside can
damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other malfunction.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC
outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the
user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric
shock or re.
Safety instructions
LED Theater Spot 250 MZ 3200K 15
LED Spotlight

NOTICE!
Fire hazard due to exceedance of the maximum current
The device can power other devices of identical construction. The current consumption of all other devices connected in series must
not exceed the values indicated in the technical specications. Otherwise you risk injuries and irreparable damages to the device.
Only connect so many identical devices that the maximum current consumption is not exceeded. Ensure the sucient dimensioning
(wire cross section) of the power cables used for all devices connected in series.
NOTICE!
Possible damage due to installation of a wrong fuse
The use of dierent types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used.
NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react with the coating of your surface and after some time
cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the surface and use a suitable underlay if neces‐
sary, i.e. felt pads or similar.
Safety instructions
16 LED Theater Spot 250 MZ 3200K
LED Spotlight

3 Features

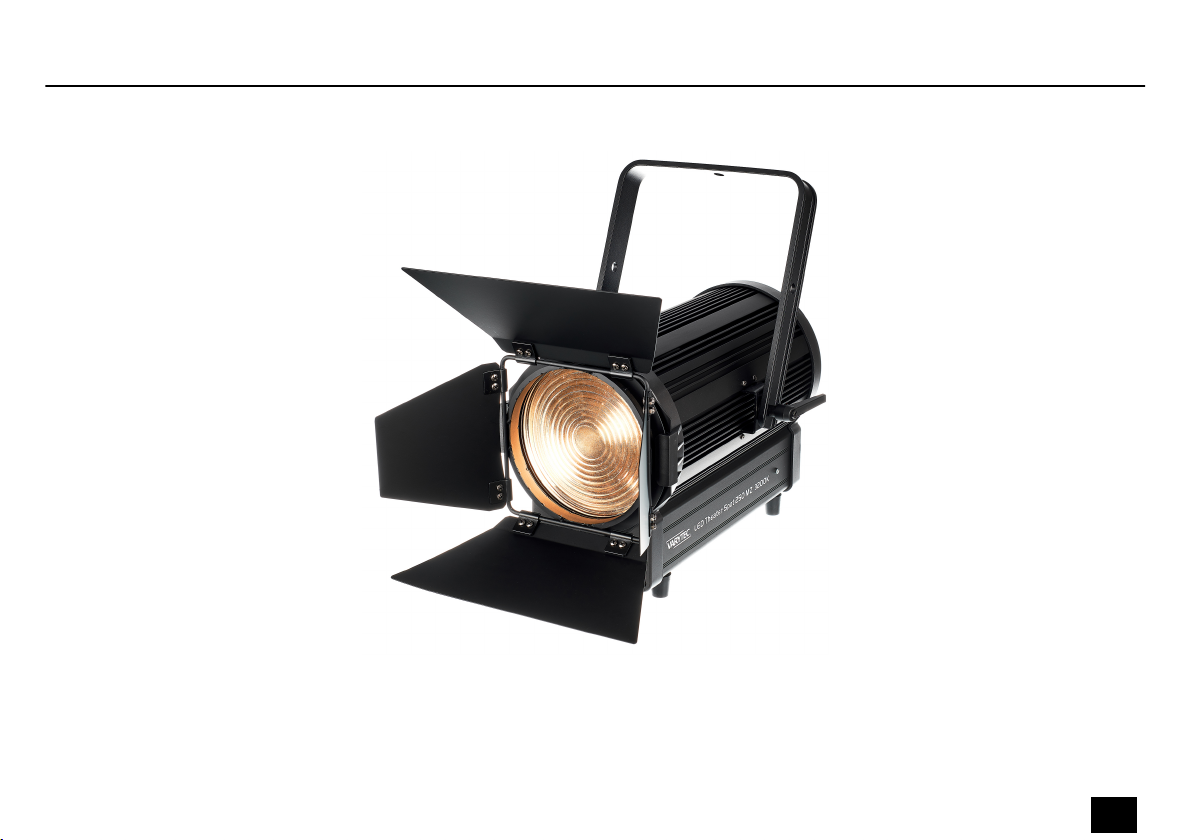

The LED theatre spotlight replaces conventional Fresnel lens spotlights with 1000 W power.
Special features of the device:
n1 × COB LED, 250 W
nFresnel lens
nColour temperature: 3200 K
nColour rendering index: > 95
nMax. light output: 12730 Lux (2 m, 15° beam angle)
nBeam angle 15° to 52°, variable by motorized zoom via DMX or on the device
nOperation in stand-alone or DMX mode (3 channels)
nOperating via buttons and display on the unit
nVery quiet temperature-controlled fan for quiet operation
nIdeally suitable for use in theatres
nBracket, mains cable and barn door included
Features
LED Theater Spot 250 MZ 3200K 17
LED Spotlight

For technological reasons, the light output of LEDs decreases over their lifetime. This eect
increases with higher operating temperature. You can extend the service life of the illuminants
by providing adequate ventilation and operating the LEDs with the lowest possible brightness.
Features
18 LED Theater Spot 250 MZ 3200K
LED Spotlight

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
DANGER!
Risk of death and damage to the device due to incorrect mounting of the
Power Twist plug!
The Power Twist plug is operated with lethal voltage. If the separately provided
Power Twist plug is mounted incorrectly, this can result in a short circuit or an
electric shock. This cause loss of life as well as res!
The Power Twist plug must be mounted only by a qualied electrician.
Never use an improperly mounted Power Twist plug with the device.
Installation
LED Theater Spot 250 MZ 3200K 19
LED Spotlight

WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.
Secure the barn door with a safety cable on the spotlight after installation. The
safety cable must run outside the barn door and must not interfere with the light
emission.
NOTICE!
Risk of overheating
The distance between light output and the illuminated surface must be more
than 1.5 m (19.7in).
Provide sucient ventilation.
The ambient temperature must always be below 40 °C (104 °F).
Installation
