02.31.4 User's Guide LDK 6985/01 - Script Board 1
Assy script Board
User's Guide
LDK 6985/01
The Scirpt board is used with LDK (S) and LDK 4482 superXpander.
Contents
About This Manual ............................................. 1-2
Exploded View ................................................... 1-5
Parts list ............................................................ 1-6

2 User's Guide LDK 6985/01 - Script Board 02.31.4
About This Manual
Purpose of this manual
Service policy
The LDK6985/01 is a sophisticated Script Board
containing state-of-the-art electronic components
which are designed to provide long-life operation
without the need for maintenance. With this in mind,
the service policy of Thomson Multimedia Broadcast
Solutions endeavours to ensure that help will be
quicklyonhandin theunlikely eventof anythinggoing
wrong. The guiding principles of the Thomson
MultimediaBroadcastSolutionsfirst linemaintenance
philosophy are speed and cost effectiveness. First
line maintenance is dedicated to keeping your
viewfinderoperational,despitea fault,byreplacement
boards and the replacement of minor mechanical
parts by the user.
Packing/Unpacking
Inspecttheshipping containerforevidenceof damage
immediately after receipt. If the shipping container or
cushioning material is damaged, it should be kept
untilthe contents ofthe shipment havebeen checked
for completeness and the units have been checked
mechanically and electrically.
The contents of the shipment should be checked
againstthepacking list.If the contentsare incomplete,
if there is mechanical damage or defect, or if the units
do not perform correctly when unpacked, notify your
Thomson Multimedia Broadcast Solutions sales or
service centre within eight days. If the shipping
containershows signs ofdamage or stress, notify the
carrier as well.
If a unit is being returned to Thomson Multimedia
Broadcast Solutions for servicing, try to use the
containers and materials of the original packaging.
Attach a tag indicating the type of service required,
returnaddress, model number,full serial number and
the return number which will be supplied by your
Thomson Multimedia Broadcast Solutions service
centre.
If the original packing can no longer be used, the
following general instructions should be used for
repacking with commercially available materials:
a. Wrap unit in heavy paper or plastic.
b. Use strong shipping container.
c. Usea layer of shock-absorbing material around all
sides of the unit to provide firm cushioning and
prevent movement inside container.
d. Seal shipping container securely.
e. MarkshippingcontainerFRAGILEtoensurecareful
handling.

02.31.4 User's Guide LDK 6985/01 - Script Board 3
Script Hook
Mounting the Script Board
1. Turn locking lever counterclockwise to reduce the
circumference of the mounting spindle.
2. Insert spindle into the holder on the camera.
3. Turn the locking lever clockwise to tighten the
spindle in the holder. If necessary remove the
lockinglever and pressthe lever release knob and
thentighten somemore with theknurled screwand
replace locking lever.
4. Connect the 3-pole connector to the script light
socket on the camera.
Locking lever release knob
Locking lever
3-pole script light connector
Paper rest
On/off Switch
The on/off switch is a 3-position switch with an OFF
position, a normal ON position, and a dimmed ON
position. Choose the position best suited to your
circumstances.
Positioning the Script
1. Hang the script from the two hooks provided.
2. Placethe scripton topof the paperrest. Thepaper
rest can be moved back and forward under the
script so that an even illumination of the paper is
obtained.

4 User's Guide LDK 6985/01 - Script Board 02.31.4
Rear of vertical axis
Front of horizontal
axis
On/off switch
Mounting Spindle
Dummy plate
Mounting Spindle
connection plate
Retaining nuts
Front of horizontal
axis
Alternative Script Board Positions
The height of the script board can be changed by
repositioning the mounting spindle connection plate
on the rear of the script board. Several bolts are
available for this purpose. Just unscsew the nuts
retainingthe mounting spindleconnection plate,place
theplate onthe alternative bolts, and secureit withthe
nuts.
The mounting spindle connection plate can also be
moved to the opposite side of the script board.
Remove the dummy plate and mount the mounting
spindle connection plate onto the freed bolts. Again
you can choose the set of bolts that gives you the
heightyou require.Store the dummy plate onthe bolts
vacated by the mounting spindle connection plate.
Adjusting the Friction
The force needed to tilt the script board can be
changed by adjusting the friction of the rotation axes.
The script board can tilt in two directions - vertically
andhorizontally.
Two rotation axes must be adjusted to change the
horizontalfriction. One rotation axis mustbe adjusted
to change the vertical friction. The method is the
same for all three rotation axes:
a. Loosen the locking nut at the rear of the axis.
b. Adjust the screw at the front of the axis to obtain
the desired friction.
c. Tighten the locking nut at the rear of the axis.

02.31.4 User's Guide LDK 6985/01 - Script Board 5

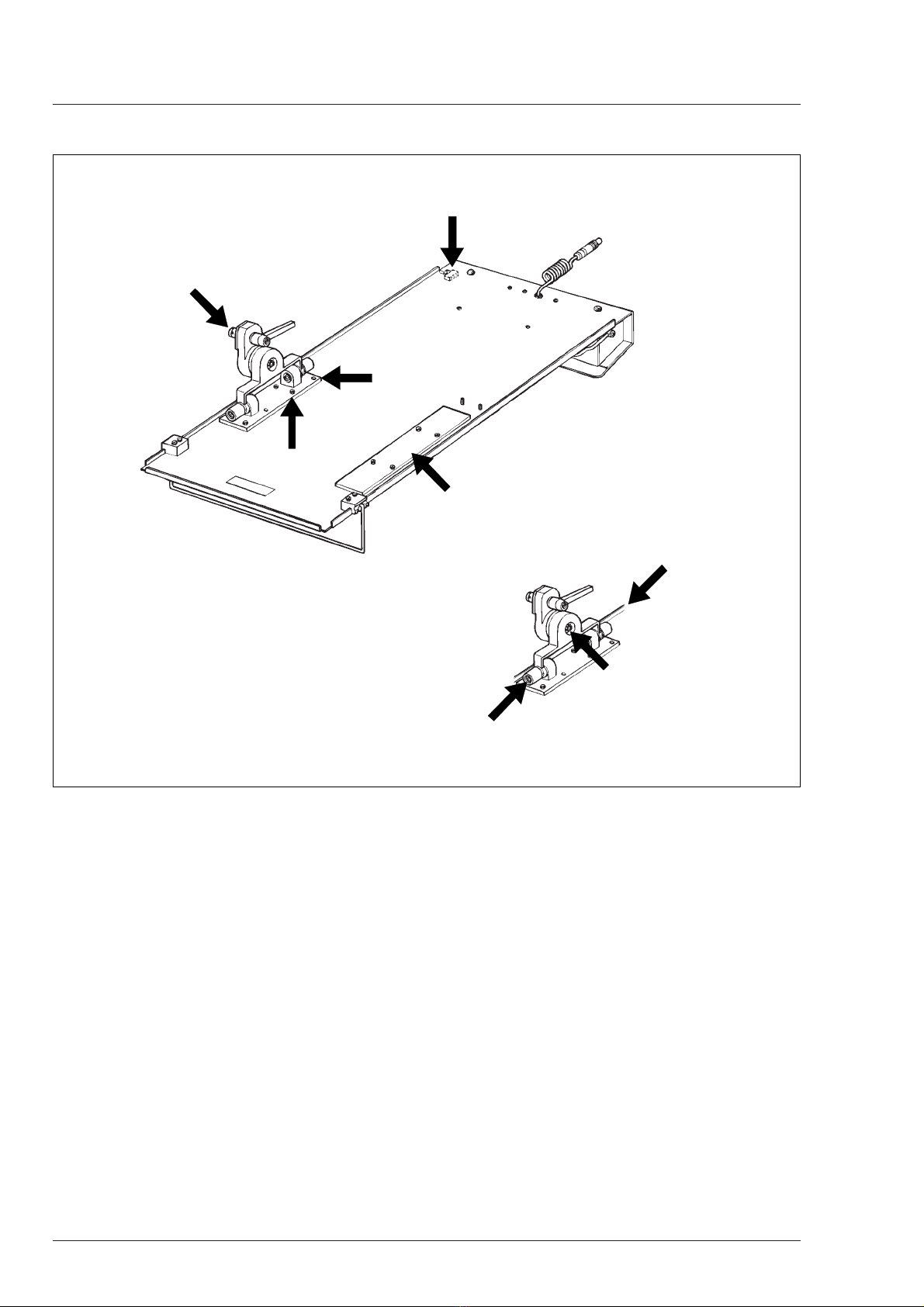

Exploded View

6 User's Guide LDK 6985/01 - Script Board 02.31.4
Parts list
SERVICE PARTS LIST
Item Code NumberDescription Item Code NumberDescription
1
PLATE
s
2
SUPPORT
3922 403 42252
s
3
BUSH
3922 404 00562
s
4
STUD
3922 403 38281
s
5
SCREW
3922 403 38293
s
6
SCREW
3922 403 38302
s
7
NUT
3922 403 38311
s
8
CLAMPING BUSH
3922 403 38321
s
9
PIN
3922 403 38331
s
10
PIN
3922 403 42261
s
11
BRACKET
3922 403 42243
s
12
SPRING
3922 403 38361
s
13
FORK
3922 402 02582
s
14
BLOCK
3922 402 02592
s
15
HINGE
3922 402 02602
s
16
BLOCK
3922 401 22091
s
17
RING
3922 401 17502
s
18
RING
3922 401 17511
s
19
STRIP
3922 401 17521
s
20
PLATE
3922 401 17532
s
21
WINDOW
3922 401 20523
s
22
RND NUT SLOT ST ZN M3
2522 420 19008
s
23
LEVER KNOB M6 BLK
5322 417 50185
s
25
LAMP 12V-0,25A BA 9S
9235 483 17215
s
26
BAJONET LAMPHOLDER
2413 474 02035
s
28
WIRE CLAMP ST PH 1X4X10
2522 705 45103
s
29
GROMMET INT 5,5X8X11
2422 015 17126
s
30
CH SCR STL ST M3X8
5322 502 11665
s
31
CSK SCR STL ST M3X10
5322 502 21348
s
32
HEX NUT STL M3
5322 505 10711
s
33
SPR WASH STL ST 3,1X5,7
4822 530 80188
s
34
CSK SCR STL ST M2,5X8
5322 502 21201
s
35
SET SCREW HEX CUP STL ST M3X3
5322 502 12649
36
RETAIN RING ST BLK 4
s
37
HEX NUT STL ST M6
2522 401 09013
s
38
SPR WASH STL ST 6,1X11,1
5322 530 80536
s
39
HEX NUT STL ST M4
5322 505 10511
s
40
SPR WASH STL ST 4,1X7,1
5322 530 80658
s
41
DISH SPRING 10X5,2X0,5
5322 492 60517
s
42
DISH SPRING 16X8,2X0,6
5322 530 80161
s
43
WASH PF-CP SH 5,3X10
5322 532 52448
s
44
WASH SRBP 8,4X17X1,6
2522 600 28152
s
45
DOWEL ST 5X18
2522 670 03072
s
46
WASH ST CR 3,2X7X0,5
2522 600 20017
s
47
CABLE PLUG 3POL
2432 026 00253
s
48
TOGGLE SWITCH 5A 115V 1-P
2422 125 01188
s
49
COILED CORD
3922 045 00262
51
SHRINK SLEEVE RNF3000 3/1
s
52
STEUN
3922 403 44402
s
53
LOCKING
3922 400 05741
s
54
CSK SCR STL ST M2,5X10
5322 502 21637
s
55
HEX NUT STL ST M2,5
5322 505 11129
906
RUBBER GLUE SYNTHETIC NBR 042
927
HEAT RESITANT RETAINER 648
s
R1
MTLRST FLM PR02 8E2 PM5
2322 194 13828
11
SHEET: OF
© Philips Digital Video Systems BV, Breda, The Netherlands
8926 698 50101
DATE:
1995-11-08
REF NR:
ORDERING CODE: STATUS:
8926 698 50101
SCRIPT BOARD WITH TOP LIGHT STUDIO CAM
products market with "s" are available as spare part,
other parts are printed for information only.
alt. code: LDK6985/01
