THOMSON TTN-BES-0808CP/75 User manual

MANUAL PART NO. 04-052062-002 Rev. 2
FEBRUARY 28, 2003
INSTALLATION MANUAL
TRITON routing switcher
Digital Audio Router 8x8
–
75 Ohm
With Local Control Panel
Product model no. TTN-BES-0808CP/75
the most watched worldwide

ii
Headquarters
Thomson Broadcast Systems
17 rue du Petit Albi - BP 8244
95801 Cergy Pontoise Cedex
FRANCE
Thomson Broadcast and
Media Solutions, Inc.
P.O. Box 599000
Nevada City, CA 95959-7900
USA
Copy
r
ight 2003 Thomson Broadcast and Media Solutions, Inc. All rights reserved. Grass Valley, Jupiter, and
Triton are trademarks of Thomson. Specifications subject to change without notice.
For customer service, please call [phone]. For comments or questions concerning this manual, please
contact: Technical Publications Department, P.O. Box 30816, Salt Lake City, Utah 84130 USA. Phone: (801)
972-8000. Fax: [phone]. Email: [e-mail]

iii
Contents
Electromagnetic Radiation Notice v
Hardware Warranty and Software License vi
Parts and Service vi
Revision history vii
1General 1
1.1 Specifications 1
1. Connection drawing 1
2Power connection 2
3Connecting the BES-0808CP/75 to your PC 2
3.1 Selection of router level 2
3.2 Pin-out of RS-232 connector 2
3.3 Maximum cable length 2
4NCB connection 3
4.1 Several routers in one system 3
4.2 Connecting control panels 3
4.3 Pin-out and cable type 4
4.3.1 RJ45 connectors 4
4.3.2 5-pin DIN connectors 4

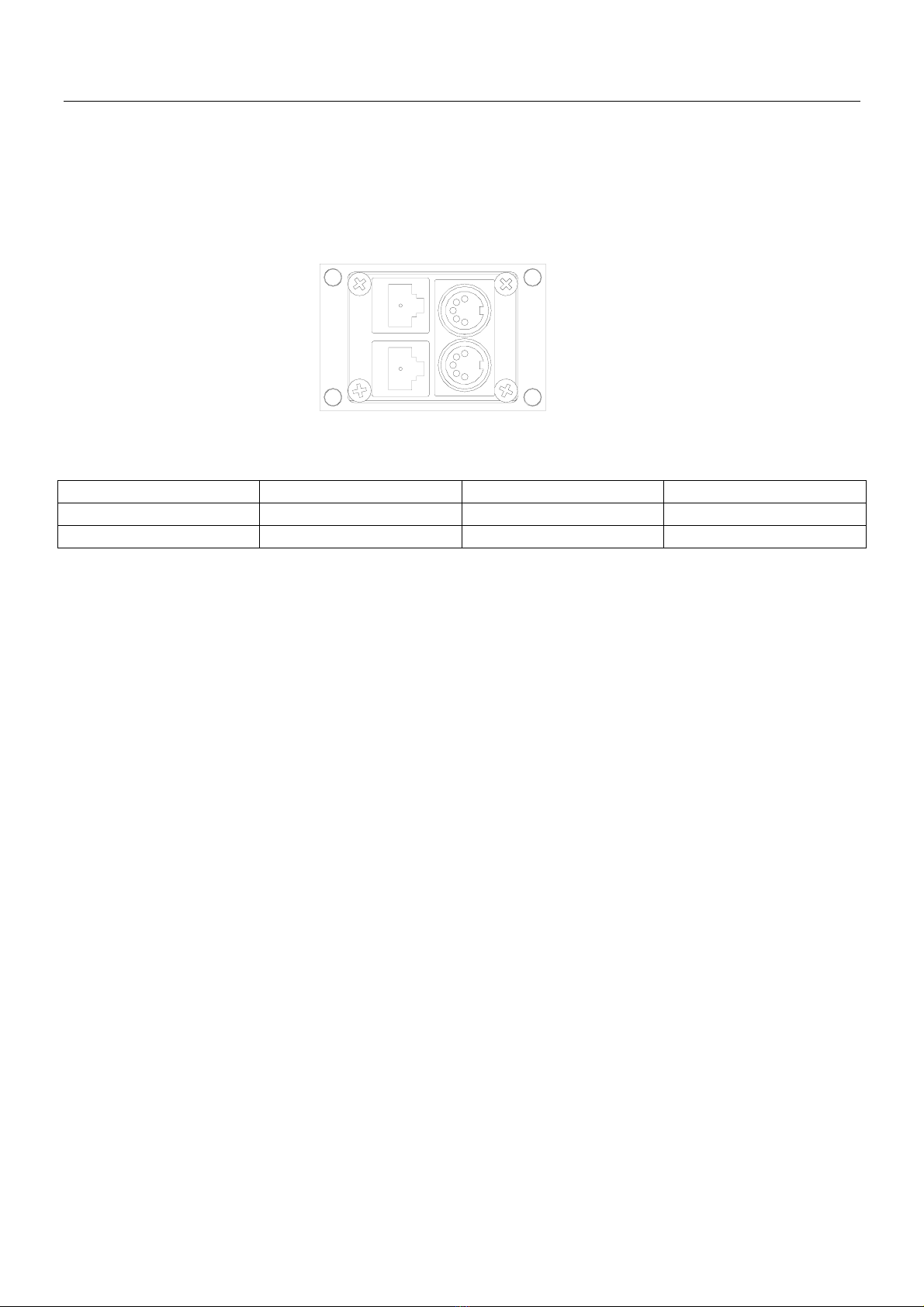

4.3.3 RJ45 to 5-pin DIN converter 5

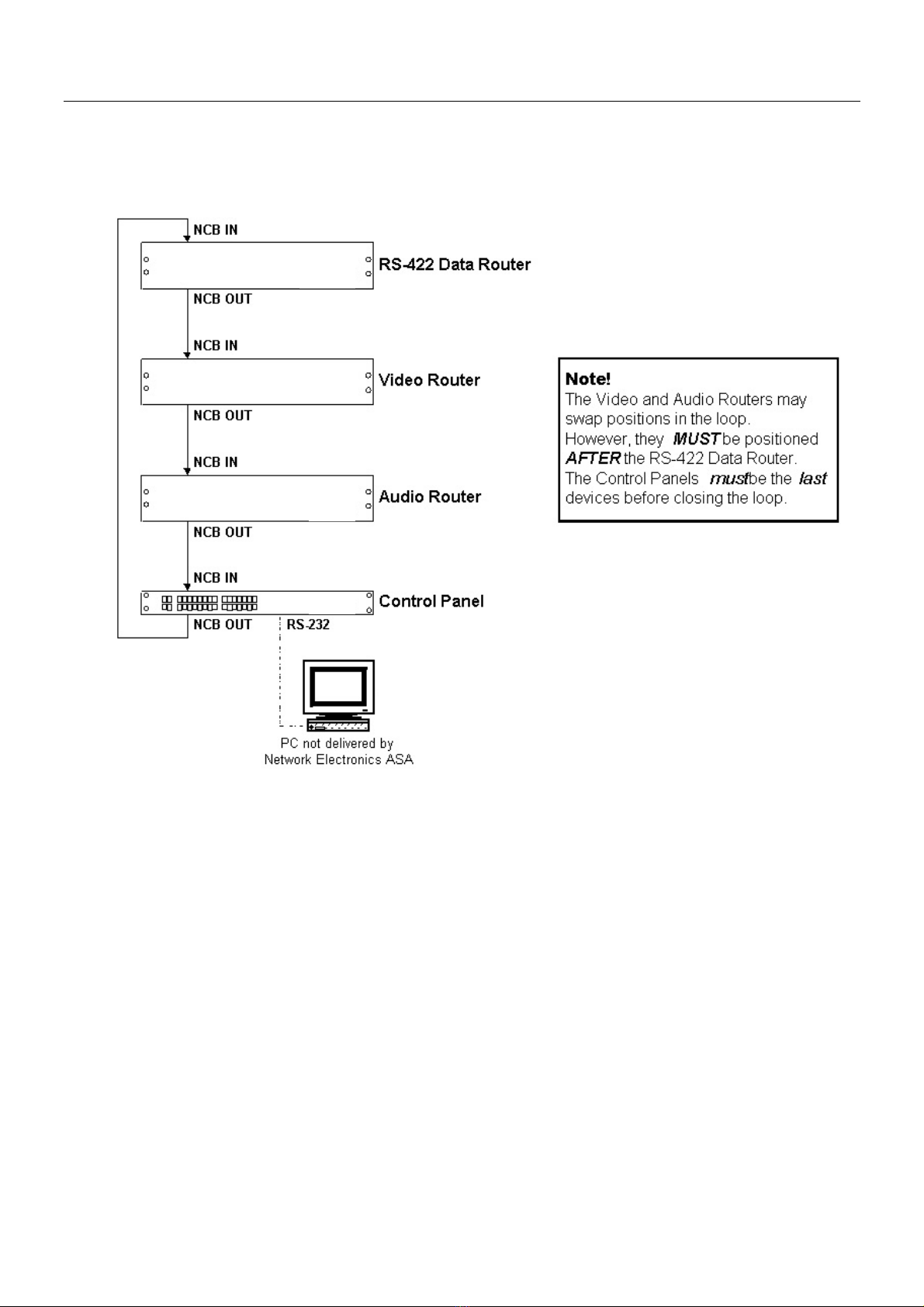

4.4 Control bus structure 5
4.5 Maximum distance between NCB devices 5
4.6 Control Bus configuration notes 5
5Router configuration 7
5.1 Router level 7
5.2 Router mode 8
5.3 Power up mode 9
5.4 Programming of restrictions 10
6Connecting audio signals to the BES-0808CP/75 10
7Control and connection of Triton systems, interface protocol 11
7.1 Important notes regarding the Triton Control Protocol 11
7.1.1 Binary Code 11
7.1.2 Echo 11
7.1.3 RS-422 Matrixes 11
7.1.4 Timeout 11
7.2 Basic principles 11
7.2.1 Example: A single unit with no NCB connected 11

iv
7.2.2 Example: Several units connected by NCB 12
7.3 RS232 12
7.4 NCB 12
7.5 Commands 13
7.5.1 Audio crosspoint set 13
7.5.2 Audio crosspoint set acknowledge 13
7.5.3 Video crosspoint set 13
7.5.4 Video crosspoint set acknowledge 14
7.5.5 Crosspoint status request 14
8Control panel operation 15
8.1 Front panel drawing 15
8.2 PANEL ENABLE button 15
8.3 V/A TOGGLE button 15
8.4 Operating crosspoints 15
8.5 TAKE function 15

v
Electromagnetic Radiation Notice
The following information is given to note compliance with the United States Government Federal Communications
Commission (FCC) Rules (47 CFR Part 15) designed to limit interference to radio and TV reception. The ruling establishes
measurement procedures and frequency criteria for Class A computing devices (commercial and industrial applications) with
the following conduction and radiation limits:
CLASS A COMPUTING DEVICE: CONDUCTION LIMIT (Part 15.812)
Frequency (MHz) Maximum RF Line Voltage (uV)
0.45 - 1.6 1000
1.6 - 30 3000
CLASS A COMPUTING DEVICE: RADIATION LIMIT (Section 15.810)
Frequency (MHz) Distance (meters) Field Strength (uV/m)
30 - 88 30 30
88 - 216 30 50
216 - 1000 30 70
The policy of Thomson is one of continual development and improvement. For that reason Thomson uses components and
manufacturing techniques that provide the current state-of-the-art suppression of electromagnetic radiation. This equipment, in
production before October 1, 1981, has not been tested to the above listed measurements. However, equipment such as this
delivered after October 1, 1983 will have the measurements on record at the factory. Therefore, in compliance with the stated
FCC Regulation, the following information is provided for the user:
NOTE
Interference to Radio Communications
This equipment generates, uses, and can radiate radio frequency energy and if not installed and used
in accordance with the instruction manual, may cause interference to radio communications. As
temporarily permitted by regulation it has not been tested for compliance with the limits for Class A
computing devices pursuant to Subpart J of of Part 15 of FCC Rules, which are designed to provide
reasonable protection against such interference. Operation of this equipment in a residential area
is likely to cause interference in which case the user at his own expense will be required to take
whatever measures may be required to correct the interference.

vi
Hardware Warranty and Software License
Please contact your local Thomson representative for
hardware warranty and software license information.
Parts and Service
Thomson maintains a full stock of replacement parts available for immediate shipment.
NORTH AMERICA PARTS AND SERVICE
Please call toll-free 1-800-547-8949.
You will be switched automatically to the parts and service representative nearest you.
For email correspondence: [email protected]
Internet: http://www.thomsongrassvalley.com
INTERNATIONAL PARTS AND SERVICE
Contact your Thomson representative.

vii
Revision history
Current revision of this document is the uppermost in the table below.
Revision Replaces Date Change Description
2 1 28/02/03 Updated with new Thomson/GVG design.
1 0 30/01/01 Corrected error in baud rate setting
0 - 10/10/00 Initial Revision

BES-0808CP/75 Rev. 2
1
1 General
The BES-0808CP/75 is an 8x8 AES/EBU digital audio router with unbalanced 75 Ohm in- and outputs.
This state of the art router provides high performance circuits in SMD technology for maximum system
performance. The BES-0808CP/75 is designed for all demanding routing tasks in digital studio and
broadcast environments. The built-in RS-232 interface allows the user to control the router via the Triton
Router Control System PC software with many operational features. The control bus allows linking the
unit to the BVS-0808 or BDS-0808 video router thus creating an 8x8 AFV router. Several units can be
combined to form a 2 or more layer AES/EBU matrix system. One or several Triton remote control
panels can control the BES-0808CP/75 as well. Another unique feature of the Triton 8x8 series is the
possibility to reconfigure the router via the configuration switch on the back plane so that the unit can be
several types of routers:
8x8 AES/EBU 1 Channel
4x4 AES/EBU 2 Channel
2x2 AES/EBU 4 Channel
1.1 Specifications
Signal type: AES/EBU digital audio
Number of inputs: 8 unbalanced
Input impedance: 75 ohms
Number of outputs: 8 unbalanced
Output impedance: 75 ohms
Jitter: 950ps
Delay: 150ns
Signal level: > 0.2 - 7Vpp
Sampling rates: 32 - 96 kHz
Switching mode: digitally transparent
Audio connector: BNC
AC power: External power supply 100 - 260 VAC
DC power: ±5V, connector DB9 male
Dimensions: 483 x 44 x 280 mm (19”, 1RU)
1. Connection drawing
Configuration switch
AES/EBU input AES/EBU output
OUTPUTINPUT
NCB1
Power connector RS-232 port
1Network Control Bus. The protocol of this bus is equal, and compatible to the MIDI bus protocol.

BES-0808CP/75 Rev. 2
2
2 Power connection
Do not connect mains to the desktop power supply before connecting the power supply to the
router.
Connect the DB9 female connector from the desktop power supply to the main unit. Tighten the screws to
assure a proper contact. To connect mains to the desktop power supply you need a mains cord with IEC
320 connector.
The BES-0808CP/75 is normally delivered with the desktop power model AC ±5V / 10W. Upon
customer request, BES-0808CP/75 can also be delivered with DC ±5V / 30W, which may be fed by a 36
– 72 VDC mains power source. A Frame mounted power supply solution is also available.
Please refer to the latest Triton Product Catalogue for power supply types, or call Thomson Grass Valley
for this information.
If any third party power supply is used the BES-0808CP/75 router requires ±5V DC with a minimum
current of 800mA. The following pin-out is used on the DB9 male power connector:
Pin 1 0V
Pin 2 +5V
Pin 6 -5V
3 Connecting the BES-0808CP/75 to your PC
For connection to a PC with Triton Router Control System, the RS-232 interface is used. The RS-232 port
on all Triton devices uses the standard DCE pin-out, see pin-out table under 4.3.
A standard modem cable can be used for connecting the router to the PCs serial port.
3.1 Selection of router level
The router level depends on the system configuration the router is going to work with. See chapter 5 for
more information. All routers are delivered with default level 1. Triton Router Control System offers the
control of up to 16 different routers or combinations of routers.
3.2 Pin-out of RS-232 connector
The DB9 female connector for the RS-232 port has the following pin-out:
Pin 2 Tx
Pin 3 Rx
Pin 5 GND
3.3 Maximum cable length
The maximum cable length for an RS-232 connection is per definition 15m. Longer distances can be
installed depending on the environmental conditions of the installation site. It is the responsibility of the
installer / user to secure a proper installation of the RS-232 connection.
