THORLABS MDFM-TE2000 User manual

MDFM-TE2000
Nikon TE2000 Microscopy
Filter Cube
Assembly Manual

Nikon TE2000 Filter Cube Assembly Manual
21399-D02 Rev A, August 27, 2010 Page 2 www.thorlabs.com
Table of Contents
Part 1.Safety ............................................................................................................................................3
Part 2.Assembly Instructions..................................................................................................................3
Part 3.Regulatory ....................................................................................................................................9
3.1.Waste Treatment is Your Own Responsibility ......................................................................................9
3.2.Ecological Background ............................................................................................................................9
Part 4.Thorlabs’ Worldwide Contacts ..................................................................................................10

Nikon TE2000 Filter Cube Assembly Manual
21399-D02 Rev A, August 27, 2010 Page 3 www.thorlabs.com
Part 1. Safety
All statements regarding safety of operation and technical data in this instruction manual will only apply
when the unit is assembled and operated correctly. Handle all optics with care. Gloves are recommended
for optic installations. Take care when tightening optics, as overtightening optics may cause the optic to
break or shatter.
Part 2. Assembly Instructions
Step 1
Carefully unpack the Nikon MDFM-TE2000
Filter Cube assembly. Take note where
the emitter and exciter sides of the cube
are (see Figure 1).

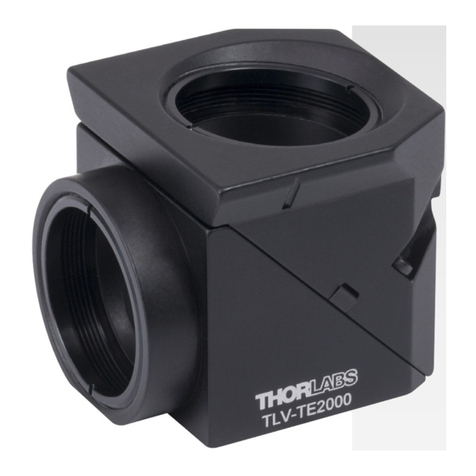

Figure 1. MDFM-TE2000 Filter Cube
Step 2.
Unscrew the exciter retaining ring, noting that the mounting sleeve is inside the exciter retaining ring.
The mounting sleeve fits into the indents in the exciter retaining ring and should be oriented with the flat
side against the lip of the retaining ring as shown in Figure 2.
Figure 2. Exciter Retaining Ring and Mounting Sleeve
Exciter Side
Emitter Side
Exciter
Retainer Ring
Exciter Retainer
Sleeve

Nikon TE2000 Filter Cube Assembly Manual
21399-D02 Rev A, August 27, 2010 Page 4 www.thorlabs.com
Step 3
Remove the emitter mount by depressing the clip on the filter cube and pulling the mount straight up.
Note that this mount has two parts, the threaded mount clip and the retaining ring.
Figure 3. Emitter Mount and Retainer Ring
Step 4
Remove the dichroic mirror retainer clip by
pulling up on the clip while holding the filter
cube. Take care not to break any of the
plastic tabs that hold the retainer clip to the
filter cube.
Note the orientation of the dichroic mirror
retainer clip as well as the location and
orientation of the spring clip.
Figure 4. Removing the Dichroic Mirror Retainer
Emitter
Mount
Clip
Emitter
Retainer
Ring
Dichroic
Mirror Retainer
Clip

Nikon TE2000 Filter Cube Assembly Manual
21399-D02 Rev A, August 27, 2010 Page 5 www.thorlabs.com
Step 5
The MDFM-TE2000 Filter Cube holds a standard set of Thorlabs MDF Series Dichroic Mirror,
Emission, and Excitation Filter Set, sold separately. The MDF-CY3.5 Filter set is shown in Figure 5.
Figure 5. Dichroic mirror set
The emission and excitation filters can be easily differentiated by the thickness of the filter mount rings:
emission (3.5 mm) and excitation (5.0 mm). Note that the dichroic mirror has a coated and an uncoated
side (see Figure 6).
Figure 6. Dichroic mirror orientation
When held at an angle, the coated side will appear uniform in reflection all the way to the edge. The
uncoated side, when held at the same angle, will not have a uniform reflection near the edge. There will
be a band of transmission that appears through the uncoated substrate. It is important to determine the
coated and uncoated sides of the dichroic mirror as there is only one orientation that will work with the
Filter Cube.
Reflective
(
Coated
)
Side
Uncoated Side
Excitation
Filter
Emission
Filter
Coating
Observed to
the Edge
See Edge
Transmission
Dichroic
Mirror

Nikon TE2000 Filter Cube Assembly Manual
21399-D02 Rev A, August 27, 2010 Page 6 www.thorlabs.com
Step 6
Place the dichroic mirror in the recess provided in the filter cube such that the reflective (coated) surface
faces DOWN.
Figure 7. Dichroic mirror placed in the filter cube, reflective side down. Note the orientation of the
dichroic mirror transmission and reflection in the center and right figures.
Step 7
Place the spring clip on the dichroic mirror with the bend facing up, then place the dichroic mirror
retainer clip on the cube and slowly press down until the clip clicks into place. Gently pull up on the
retainer clip to verify that the dichroic mirror is secured in the filter cube.
Figure 8. Replace dichroic mirror retainer spring and clip
Dichroic Mirror
Retainer Spring
Dichroic Mirror
Reflective Side
Must Face Down
Exciter Side
Emitter Side
Dichroic
Mirror Retainer
Clip

Nikon TE2000 Filter Cube Assembly Manual
21399-D02 Rev A, August 27, 2010 Page 7 www.thorlabs.com
Step 8
Place the emission filter in the emitter mount with the arrow pointed up as shown in Figure 9. Center the
emission filter on the three indents on the mount. Place the mounted emission filter onto the filter cube
and press down gently on the emitter mount until it clicks into place. Visually inspect the three mounting
tabs to verify proper seating of the emitter mount.
Figure 9. Emission filter orientation and mounting
Step 9
Orient the filter cube so the excitation side is
facing up. Insert the excitation filter in the
filter cube with the arrow facing into the cube,
towards the dichroic mirror. Place the filter
sleeve inside the exciter retaining ring as
described in Step 2 and Figure 2.
Slowly thread the exciter retaining ring,
with filter sleeve oriented in the correct direction
onto the filter cube. The retaining ring should
thread easily onto the filter cube and excitation
filter.
Figure 10. Excitation filter orientation and mounting
Mounting
Tabs
Mounting
Tab
Exciter
Retaining
Ring
Exciter
Retainer
Sleeve
Excitation
Filter
Emission
Filter
Emitter
Mount

Nikon TE2000 Filter Cube Assembly Manual
21399-D02 Rev A, August 27, 2010 Page 8 www.thorlabs.com
Step 10
The completed Nikon MDFM-TE2000 Filter Cube is shown in Figure 11.
Figure 11. The MDFM-TE2000 Filter Cube with emission filter, excitation filter, and dichroic mirror
installed

Nikon TE2000 Filter Cube Assembly Manual
21399-D02 Rev A, August 27, 2010 Page 9 www.thorlabs.com
Part 3. Regulatory
As required by the WEEE (Waste Electrical and Electronic Equipment Directive) of the European
Community and the corresponding national laws, Thorlabs offers all end users in the EC the possibility
to return “end of life” units without incurring disposal charges.
•This offer is valid for Thorlabs electrical and electronic equipment:
•Sold after August 13, 2005
•Marked correspondingly with the crossed out “wheelie bin” logo (see right)
•Sold to a company or institute within the EC
•Currently owned by a company or institute within the EC
•Still complete, not disassembled and not contaminated
As the WEEE directive applies to self-contained operational electrical and electronic products, this end
of life take back service does not refer to other Thorlabs products, such as:
•Pure OEM products, that means assemblies to be built into a unit by the user (e. g. OEM laser
driver cards)
•Components
•Mechanics and optics
•Left over parts of units disassembled by the user (PCB’s, housings etc.).
If you wish to return a Thorlabs unit for waste recovery, please contact Thorlabs or your nearest dealer
for further information.
3.1. Waste Treatment is Your Own Responsibility
If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste
recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site.
3.2. Ecological Background
It is well known that WEEE pollutes the environment by releasing toxic products during decomposition.
The aim of the European RoHS directive is to reduce the content of toxic substances in electronic
products in the future.
The intent of the WEEE directive is to enforce the recycling of WEEE. A controlled recycling of end of
life products will thereby avoid negative impacts on the environment.
