THORLABS TLV-U-MF2 User manual

TLV-U-MF2
Filter Cube Assembly for Olympus
AX, BX2, and IX2 Microscopes
User Guide

Filter Cube Assembly
Table of Contents
Chapter 1Safety.................................................................................1
Chapter 2Assembly Instructions..................................................... 2
Chapter 3Regulatory.........................................................................7
Chapter 4Thorlabs Worldwide Contacts.........................................8

Filter Cube Assembly Chapter 1: Safety
Rev A, February 26, 2016 Page 1
Chapter 1 Safety
All statements regarding safety of operation and technical data in this instruction
manual will only apply when the unit is operated correctly. Handle all optics with
care. Gloves are recommended for optic installations. Take care when tightening
optics, as overtightening optics may cause the optic to break or shatter.

Filter Cube Assembly Chapter 2: Assembly Instructions
Page 2 TTN013152-D02
Chapter 2 Assembly Instructions
2.1. Step 1
Carefully unpack the TLV-U-MF2 Filter Cube assembly. Use a Thorlabs SM1
Spanner Wrench (such as Item # SPW602) to remove the retaining rings from
the excitation and emission ports (see Figure 1).
Figure 1 Filter Cube Assembly with Retaining Rings
Note the orientation of the retaining rings. The side of the retaining ring with the
spanner wrench slots should always face away from the cube.
2.2. Step 2
Remove the two screws holding the filter cube together (see Figure 1; Phillips
head, M2 threaded). Carefully separate the two filter cube halves. Take note of
the excitation/emission filter halves (see Figure 2).
Figure 2 Disassembling the Filter Cube
Excitation
Filter Half
Emission
Filter Half
Retaining Rings
Screws

Filter Cube Assembly Chapter 2: Assembly Instructions
Rev A, February 26, 2016 Page 3
2.3. Step 3
The TLV-U-MF2 Filter Cube holds a standard set of Dichroic Mirror
(up to 25.2 x 36.0 x 1.1 mm), Emission (Ø25 mm), and Excitation Filters
(Ø25 mm), sold separately. Thorlabs’ MDF-GFP Filter Set is shown in Figure 3.

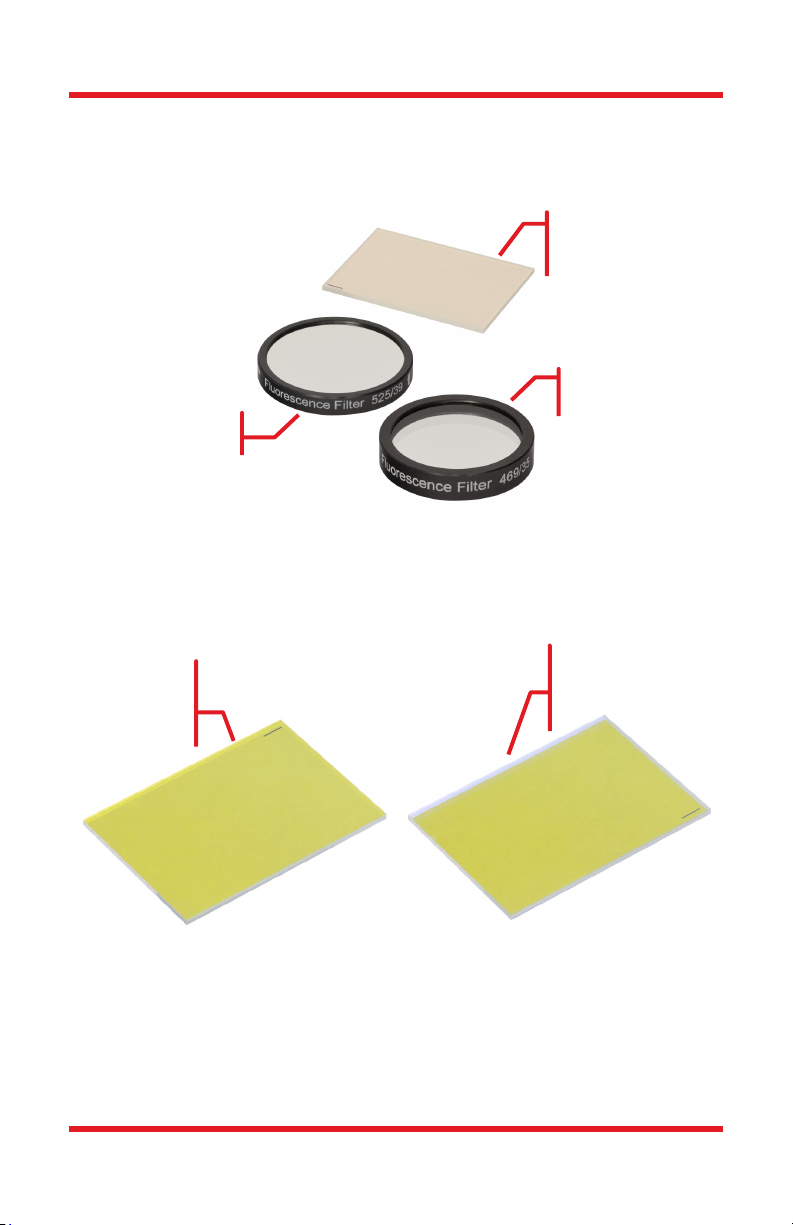

Figure 3 Dichroic Filter Set for Fluorescence Imaging
Thorlabs’ emission and excitation filters can be easily differentiated by the
thickness of the filter mount rings: emission (3.5 mm) and excitation (5.0 mm).
Note that the dichroic mirror has a beamsplitter coating on one side (see Figure
4).
Figure 4 Dichroic Filter Orientation
When held at an angle, the beamsplitter-coated side will appear uniform in
reflection all the way to the edge. The opposite side, when held at the same
angle, will not have a uniform reflection near the edge. There will be a band of
transmission that appears through the substrate. It is important to determine the
beamsplitter-coated side of the dichroic mirror as there is only one orientation
that will work with the filter cube.
Dichroic Mirror
Emission Filter
Excitation Filter
Edge
Transmission
is Visible
Coating
Extends to
the Edge

Filter Cube Assembly Chapter 2: Assembly Instructions
Page 4 TTN013152-D02
2.4. Step 4
Place the dichroic mirror in the excitation filter half’s slot. The surface of the
dichroic mirror with the beamsplitter coating must face DOWN.

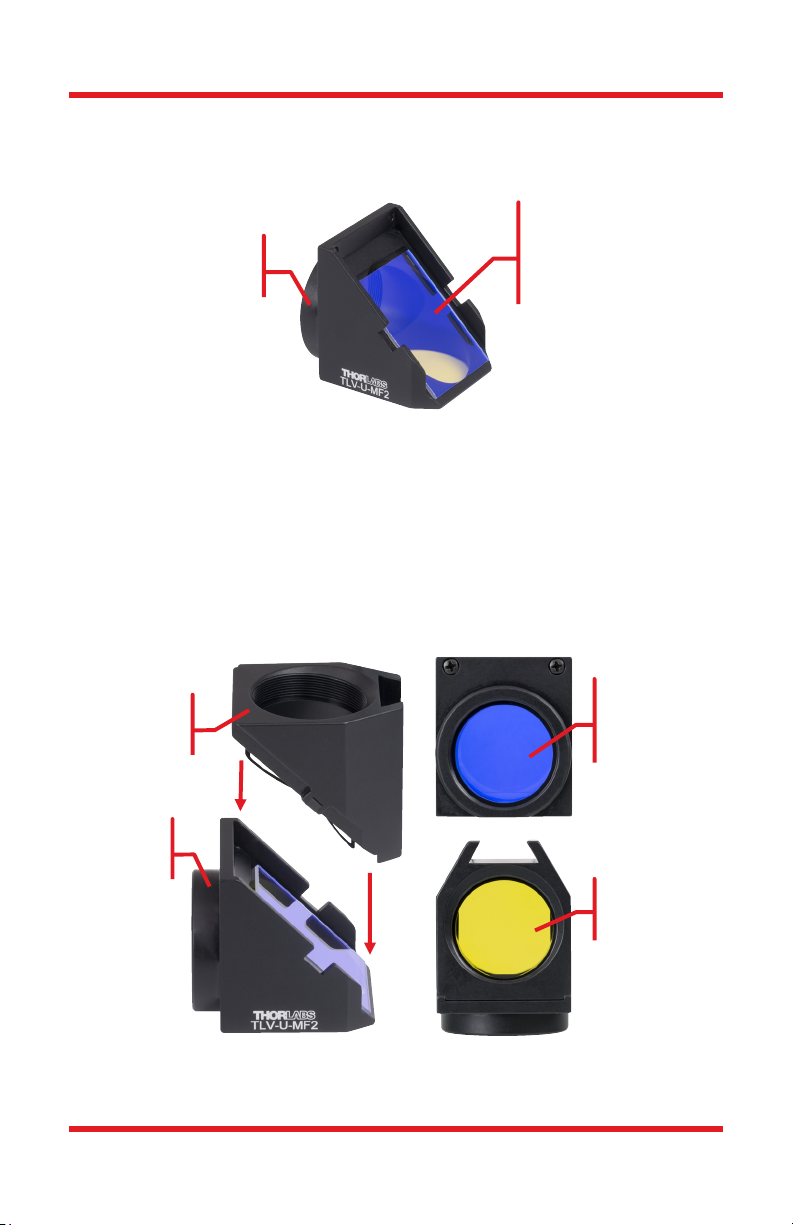

Figure 5 The dichroic mirror is inserted into the excitation filter half.
2.5. Step 5
Align the emission filter half with the notch on the excitation filter half as shown in
Figure 6. Alternate tightening between the two assembly screws taking care not
to allow movement of the dichroic mirror.
Check the orientation of the dichroic mirror by looking into the excitation and
emission sides of the filter cube. The reflective (beamsplitter-coated) side should
be visible through the excitation side of the cube.
Figure 6 Reassembling the Filter Cube and Checking Dichroic Mirror Orientation
Excitation
Filte
r
Half
Dichroic Mirror
(Beamsplitter-
Coated Side Must
Face Down
)
Excitation
Filte
r
Half
Emission
Filte
r
Half
Excitation
Side
(Coated)
Emission
Side

Filter Cube Assembly Chapter 2: Assembly Instructions
Rev A, February 26, 2016 Page 5
2.6. Step 6
Orient the filter cube so the emission side is facing up. Insert the emission filter in
the filter cube with the arrow facing away from the cube as shown in Figure 7.
Thread an SM1 retaining ring above the filter to secure it.
Note: The emission filter will not be parallel with the face of the cube.
Orient the filter cube so the excitation side is facing up. Insert the excitation filter
with the arrow pointing towards the cube and dichroic mirror, as shown in Figure
7. Thread the other SM1 retaining ring into the excitation port to secure the filter.

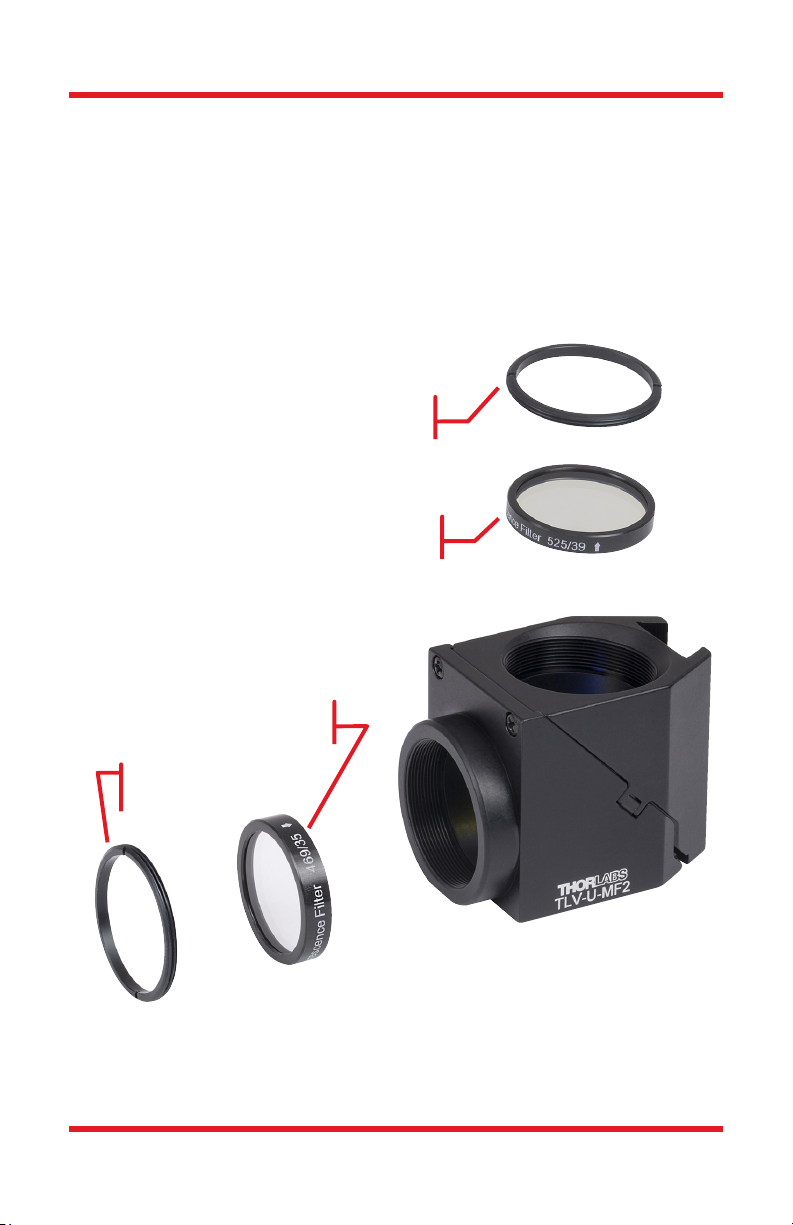

Figure 7 Installing the Excitation and Emission Filters
Emission Filter
Excitation Filter
Retaining Ring
Retaining Ring

Filter Cube Assembly Chapter 2: Assembly Instructions
Page 6 TTN013152-D02
The assembled TLV-U-MF2 Filter Cube is shown in Figure 8.
Figure 8 Filter Cube with Filters Installed
