INSTALLATION MANUAL
SAILOR 6120/30/40/50 System


SAILOR 6120/30/40/50 System
Installation manual
Document number: 98-131589-A
Release date: May 16, 2011

Disclaimer
Any responsibility or liability for loss or damage in connection with the use of this
product and the accompanying documentation is disclaimed by Thrane & Thrane. The
information in this manual is provided for information purposes only, is subject to
change without notice and may contain errors or inaccuracies.
Manuals issued by Thrane & Thrane are periodically revised and updated. Anyone
relying on this information should acquire the most current version e.g. from
http://www.thrane.com or from the distributor.
Thrane & Thrane is not responsible for the content or accuracy of any translations or
reproductions, in whole or in part, of this manual from any other source.
Copyright
© 2011 Thrane & Thrane A/S. All rights reserved.
Trademark Acknowledgements
•Thrane & Thrane is a registered trademark of Thrane & Thrane A/S in the European
Union and the United States.
•Inmarsat is a registered trademark of the International Maritime Satellite
Organisation (IMSO) and is licensed by IMSO to Inmarsat Limited and Inmarsat
Ventures plc.
•SAILOR is a registered trademark of Thrane & Thrane A/S in the European Union, the
United States and other countries.
• Other product and company names mentioned in this manual may be trademarks or
trade names of their respective owners.

iii
Safety summary 1
The following general safety precautions must be observed during all
phases of operation, service and repair of this equipment. Failure to comply
with these precautions or with specific warnings elsewhere in this manual
violates safety standards of design, manufacture and intended use of the
equipment. Thrane & Thrane assumes no liability for the customer's failure
to comply with these requirements.
Observe marked areas
Under extreme heat conditions do not touch areas of
units that are marked with this symbol, as it may
result in injury.
Microwave radiation hazards
During transmission the antenna in this system radiates Microwave
Power.This radiation may be hazardous to humans close to the antenna.
When the system is powered, make sure that nobody gets closer than the
recommended minimum safety distance of 0.3 m (1 ft.).
Keep away from live circuits
Operating personnel must not remove equipment covers. Only qualified
maintenance personal must make component replacement and internal
adjustment. Under certain conditions, dangerous voltages may exist even
with the cable removed. To avoid injuries, always disconnect power and
discharge circuits before touching them.
Compass safe distance
Minimum safety distance: 5 m from the Mini-C Terminal.

iv
About the manual 2
Naming conventions
This manual covers four different types of system. For information
that applies to all four types, the following naming conventions are
used:
Intended readers
This manual is an installation manual for the SAILOR
6120/30/40/50 Mini-C Systems. The manual is intended for
installers of the system and service personnel. Personnel installing
or servicing the system must be properly trained and authorized by
Thrane & Thrane. It is important that you observe all safety
requirements listed in the beginning of this manual, and install
the system according to the guidelines in this manual.
Common name Used for
Mini-C System SAILOR 6120 SSA System
SAILOR 6130 LRIT System
SAILOR 6140 Maritime System
SAILOR 6150 Non-SOLAS System
Mini-C Terminal SAILOR 3027 SSA Terminal
SAILOR 3027 LRIT Terminal
SAILOR 3027 Maritime Terminal
SAILOR 3027 Non-SOLAS Terminal

v
Manual overview
Note that this manual does not cover how to use the system. For
information on usage refer to the user manual. Part numbers for
related manuals are listed in the next section.
This manual has the following chapters:
•Introduction contains an overview of the system.
•Installing the system explains how to mount the units.
•Connecting the system explains how to connect the units in the
system and shows wiring, pin-out and cable requirements.
•Configuration describes the tools available and explains the
initial configuration of the system.
•Installation check and test contains a check list for verifying the
physical installation and guidelines for testing the installation.
•Service and maintenance contains guidelines for handling,
maintaining and repacking the SAILOR 6120/30/40/50 system.
Related documents
The below list shows the documents related to this manual and to
the SAILOR 6120/30/40/50 Mini-C System.
Ref Title and description Document
number
[1] SAILOR 6120/30/40/50 System,
User manual
98-131590
[2] SAILOR 6006 and 6007 Message Terminal,
Installation manual
98-130088
[3] THRANE 6194 Terminal Control Unit,
Installation and user manual
98-131593

vi
Typography
In this manual, typography is used as indicated below:
Bold is used for the following purposes:
• To emphasize words.
Example: “Do not touch the antenna”.
• To indicate what the user should select in the user interface.
Example: “Select SETTINGS > LAN”.
Italic is used to emphasize the paragraph title in cross-references.
Example: “For further information, see Connecting Cables on
page...”.
COURIER is used to indicate low level commands or text in the
display.
Example: “The display shows Distress”.
Online training for Thrane & Thrane partners
As a Thrane & Thrane Partner you have access to free of charge
technical training in this SAILOR product covering installation,
commissioning and repair.
For details on available training classes please consult the Thrane
Academy at http://extranet.thrane.com/Training.aspx.
To learn more on CAN-bus as used with this product you may take
the eLearning course “Introduction to CAN-bus” available at
http://extranet.thrane.com/Training.aspx
[4] THRANE 6194 Software Interface
Reference Manual
98-132853
[5] SAILOR 3027 Software Interface Reference
Manual
98-132852
Ref Title and description Document
number

vii
Table of contents
Chapter 1 Introduction
1.1 SAILOR 6120/30/40/50 system overview .....................2
1.2 Units in the system ....................................................6
Chapter 2 Installing the system
2.1 Unpacking ................................................................ 11
2.2 General installation requirements .............................13
2.3 Installing the SAILOR 3027 ........................................14
Chapter 3 Connecting the system
3.1 Connecting the units .................................................21
3.2 Grounding the units .................................................28
3.3 The CAN backbone ....................................................31
3.4 Connecting power .................................................... 32
3.5 Connectors and pin-out ...........................................38
Chapter 4 Configuration
4.1 Registering your SAILOR 3027 ..................................46
4.2 Configuration tools ..................................................48
4.3 Configuration using easyMail ..................................49
4.4 Configuration using commands ...............................54
Chapter 5 Installation check and test
5.1 Installation check list ...............................................58
5.2 Testing the SAILOR 6130 LRIT System .......................59

Table of contents
viii
5.3 Testing the system with easyMail ............................ 60
Chapter 6 Service and maintenance
6.1 Updating software ....................................................63
6.2 Maintenance guidelines ...........................................65
6.3 Service and repair ....................................................66
6.4 Available parts .........................................................67
App. A Technical specifications
A.1 SAILOR 6120/30/40/50 system specifications ........... 69
A.2 SAILOR 3027 specifications .......................................70
Glossary .........................................................................................73
Index .........................................................................................77

Chapter 1: Introduction
2 SAILOR 6120/30/40/50 system overview
1.1 SAILOR 6120/30/40/50 system overview
This manual describes four different systems:
• SAILOR 6120 SSA System
• SAILOR 6130 LRIT System
• SAILOR 6140 Maritime System
• SAILOR 6150 Non-SOLAS System
The following sections describe each of the systems and each of the units that
are part of these systems.
1.1.1 SAILOR 6120 SSA System
The drawing below shows an example of a SAILOR 6120 SSA System.
The SSA (Ship Security Alert) System provides ships with alarm buttons, which
can be activated in case of a piracy or terrorist attack. The alarm is a covert
signal that has no sound and no flashing lights, so it is not seen nor heard by
any intruders on board the ship.
SAILOR 3027
THRANE 6194
SSA buttons
(not included)
SSA Terminal

Chapter 1: Introduction
SAILOR 6120/30/40/50 system overview 3
1111
Introduction
The SAILOR 6120 has three SSA buttons (two alarm buttons and one test
button), which connect to the SAILOR 3027 SSA Terminal through the THRANE
6194 Terminal Control Unit. The CAN interface, which connects the SAILOR
3027 SSA Terminal to the THRANE 6194, also provides the power for the
THRANE 6194.

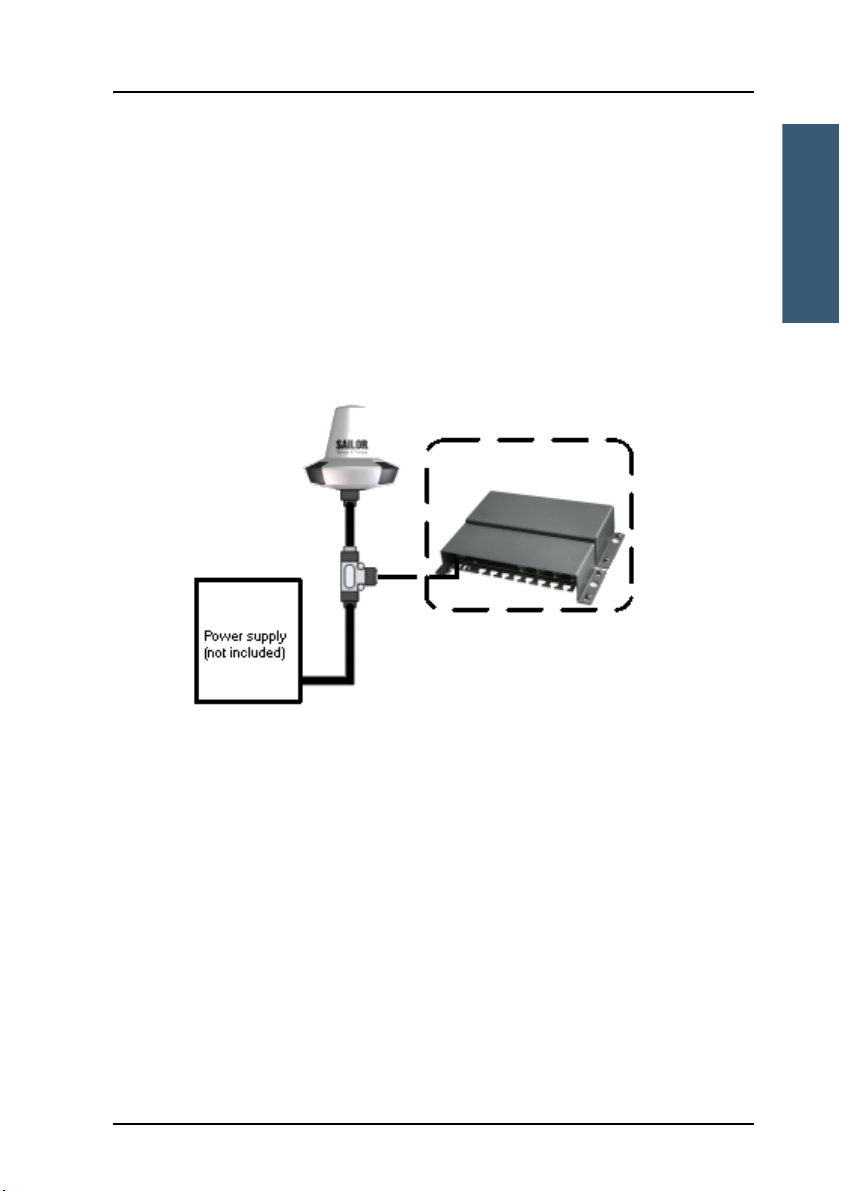

1.1.2 SAILOR 6130 LRIT System
The drawing below shows an example of a SAILOR 6130 LRIT System.
Ships that are subject to the LRIT (Long Range Identification and Tracking)
regulation must report their position to their Flag Administration at least 4
times a day.
In addition to the basic Mini-C functions listed in the next section, the
SAILOR 6130 LRIT System complies with the LRIT regulation and automatically
reports the position of the ship every 6 hours.
When used with a THRANE 6194 Terminal Control Unit, the SAILOR 6140 can be
connected to a computer using either the LAN interface or the RS-232
interface (e.g. for software update).
SAILOR 3027
LRIT Terminal Optional
THRANE 6194

Chapter 1: Introduction
4 SAILOR 6120/30/40/50 system overview
1.1.3 SAILOR 6140 Maritime System
The drawing below shows an example of a SAILOR 6140 Maritime System.
The SAILOR 6140 is a basic Mini-C System that can be used for tracking and
polling, messaging, logging and EGC (Enhanced Group Call).
When used with a THRANE 6194 Terminal Control Unit, the SAILOR 6140 can be
connected to a computer using either the LAN interface or the RS-232
interface, and to other equipment using the I/O interface of the THRANE 6194.
SAILOR 3027
Maritime Terminal
Optional
THRANE 6194

Chapter 1: Introduction
SAILOR 6120/30/40/50 system overview 5
1111
Introduction

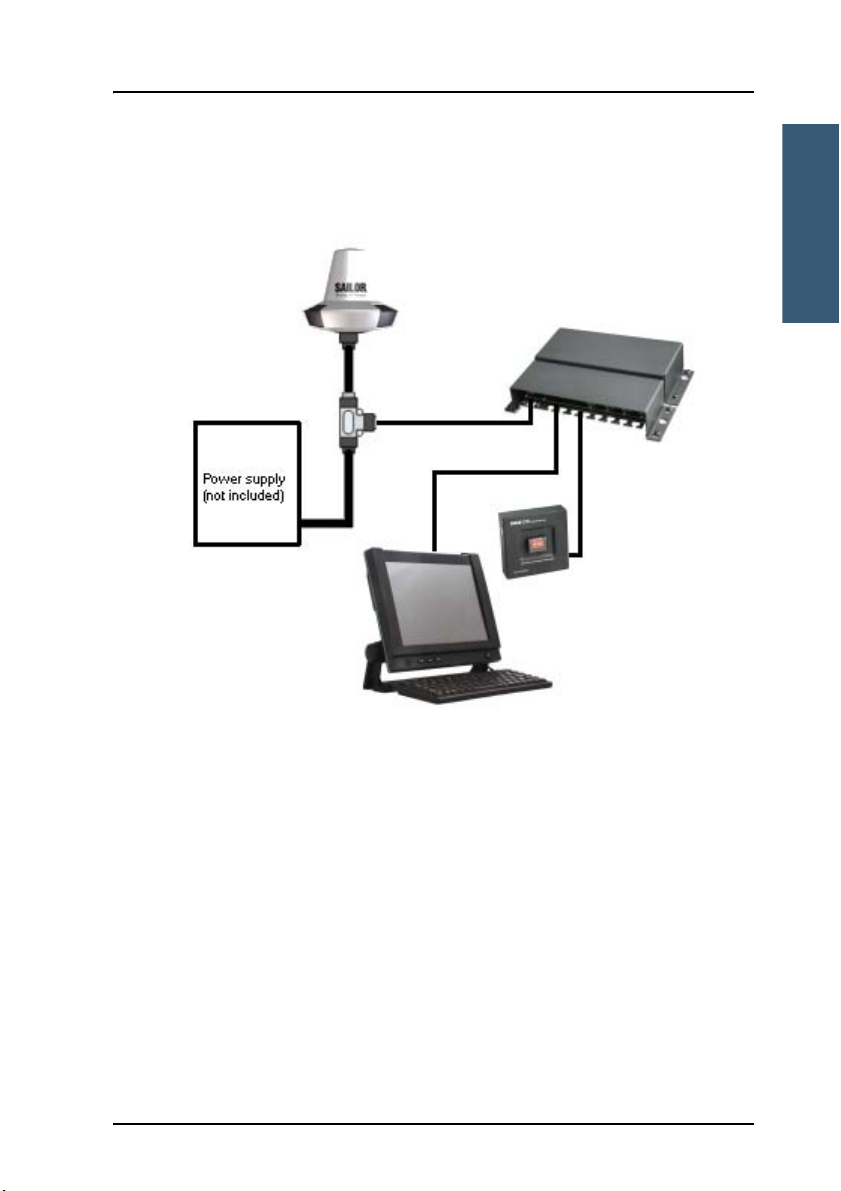

1.1.4 SAILOR 6150 Non-SOLAS System
The drawing below shows an example of a SAILOR 6150 Non-SOLAS System.
In addition to the basic Mini-C functions listed in the previous section, the
SAILOR 6150 can be used in non-SOLAS Distress systems to send Distress
alerts using the SAILOR 6108 Non-SOLAS Alarm Panel or SAILOR 3042E.
In non-SOLAS Distress systems a user interface is mandatory. You can use the
easyMail application installed on a computer or on a SAILOR 6007 Message
Terminal, or you can use a SAILOR 6006 Message Terminal, which has its own
built-in user interface. See Configuration tools on page 48.
SAILOR 3027
SAILOR 6108
THRANE 6194
SAILOR 6007 Message Terminal or
computer with easyMail
(not included)

Chapter 1: Introduction
6 Units in the system
1.2 Units in the system

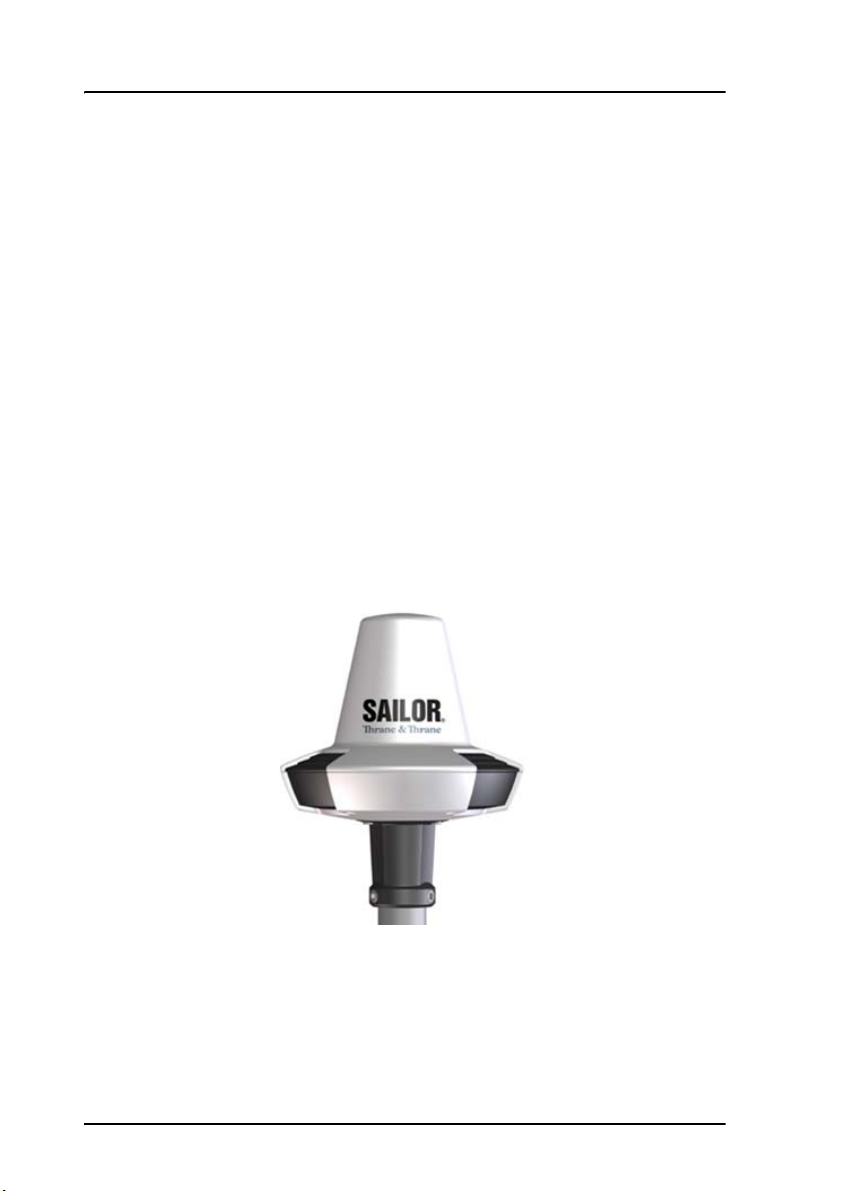

1.2.1 SAILOR 3027 Mini-C Terminal
The SAILOR 3027 comes in different variants for different systems. The
functions are different for each variant but the description below applies to all
off these four variants:
• SAILOR 3027 SSA Terminal
• SAILOR 3027 LRIT Terminal
• SAILOR 3027 Maritime Terminal
• SAILOR 3027 Non-SOLAS Terminal
The SAILOR 3027 Mini-C Terminal is a mobile satellite terminal for the
Inmarsat C system. It has a built-in LNA/HPA and an omni-directional antenna
designed to operate on vessels. The housing is sealed and contains no user
serviceable parts.
The SAILOR 3027 is very compact and is designed to operate in extreme
weather conditions. It has a highly sensitive built-in GPS module with 50
channels. The antenna has an elevation angle of -15°, ensuring optimum
communication even in rough weather.

Chapter 1: Introduction
Units in the system 7
1111
Introduction
The SAILOR 3027 connects to other equipment using a CAN bus interface,
capable of carrying power as well as bi-directional communication.
For information on how to install the SAILOR 3027, see Installing the SAILOR
3027 on page 14.
1.2.2 THRANE 6194 Terminal Control Unit
The THRANE 6194 is used for the following purposes:
• For connecting
• covert alert buttons for use in Ship Security Alert (SSA) systems such as
SAILOR 6120, or
• SAILOR 6108 Non-SOLAS Alarm Panels e.g. in Non SOLAS Distress
systems (SAILOR 6150).
• For connecting other equipment that has Ethernet or RS-232 interface with
the SAILOR 3027 terminal, which has a CAN interface.
The power for the THRANE 6194 is supplied through the CAN interface
(extended input range 9-32 V DC).

Chapter 1: Introduction
8 Units in the system
1.2.3 SAILOR 6007 Message Terminal
On the SAILOR 6007 with the easyMail application installed you can read and
write messages, monitor system status, change the configuration and test the
system.
The SAILOR 6007 has a touch-screen interface and can be operated without a
keyboard. You can also connect a keyboard if you prefer that.
An Ethernet interface connects to the SAILOR 3027 Mini-C Terminal through
the THRANE 6194 Terminal Control Unit.
For information on how to install the SAILOR 6007, see SAILOR 6006 and 6007
Message Terminal, Installation manual [2].
For information on how to install and use the easyMail application, see
Configuration using easyMail on page 49.

Chapter 1: Introduction
Units in the system 9
1111
Introduction
1.2.4 SAILOR 6006 Message Terminal (for SAILOR 6150 only)
With the SAILOR 6006 you can send distress alerts, read and write messages,
monitor system status, change the configuration and test the system. The
SAILOR 6006 has a Distress button for sending Distress alerts.
The SAILOR 6006 has a touch-screen interface and can be operated without a
keyboard.
A CAN interface connects to the SAILOR 3027 Mini-C Terminal and an Ethernet
interface connects to other equipment.
For information on how to install the SAILOR 6006, see SAILOR 6006 and 6007
Message Terminal, Installation manual [2].

Chapter 1: Introduction
10 Units in the system
This manual suits for next models
3
Table of contents
Other Thrane&Thrane Antenna manuals

Thrane&Thrane
Thrane&Thrane SAILOR 900 VSAT System User manual

Thrane&Thrane
Thrane&Thrane EXPLORER 700 User manual

Thrane&Thrane
Thrane&Thrane SAILOR 150 User manual

Thrane&Thrane
Thrane&Thrane SAILOR 900 User manual

Thrane&Thrane
Thrane&Thrane TT-3720A EXPLORER 700 User manual

Thrane&Thrane
Thrane&Thrane Explorer 325 User manual

Thrane&Thrane
Thrane&Thrane Explorer 527 User manual

Thrane&Thrane
Thrane&Thrane EXPLORER 500 User manual

Thrane&Thrane
Thrane&Thrane SAILOR 6110 User manual

Thrane&Thrane
Thrane&Thrane Explorer 300 User manual
