INTRODUCTION
The SAILOR RT2048 VHF radiotelephone has been designed
to comply with the increasing demands of a highly technological
product, which means high quality, small size, etc.
The SAILOR RT2048 has furthermore been designed to fit into
the SAILOR Compact 2000 module programme.
The SAILOR RT2048 can either be installed and operated as
an independent unit, or in combination with other elements of
the Compact 2000 programme. These include a duplex VHF
radiotelephone, a coast telephony station with a 400W PEP
SSB transmitter, and an SSB receiver with built-in FM and AM
bands, and a scrambler which ensures complete communica-
tion secrecy.
The SAILOR VHF RT2048 has, by means of the latest technol-
ogy in casting technique, been constructed to withstand the most
extreme conditions experienced in small, semi-open boats. Its
compact, weatherproof construction ensures a degree of resist-
ance to sea spray.
The printed circuits inside have been designed with a high degree
of compactness and exceptional performance.
For more than half a century, SAILOR has been synonymous with
state-of-the-art, high-quality maritime communications equipment
- known for sturdiness, ease of operation and compact design.
SAILOR is a world leader in the technologically advanced field
of maritime communications. A wide range of products from
GMDSS equipment, UAIS, and satellite communications equip-
ment to simple VHF radios ensures the safety at sea and the
daily communication around the world.
In the design of this VHF RT2048 radiotelephone, SAILOR has
taken into account all the circumstances it will be exposed to
in day-to-day operation. However, even a product of this high
quality requires regular servicing and maintenance, and we
recommend a close observance of the directions contained in
the instruction manual.
Fast and professional service is one of our main concerns.
SAILOR has a world-wide net of authorized distributors in more
than 90 countries - and on top of that the SAILOR Certified
Service Centre concept. In this way we are able to service you
in the best way possible all over the world.
DISCLAIMER
Any responsibility or liability for loss or damage in connection
with the use of this product and the accompanying documenta-
tion is disclaimed by Thrane & Thrane. The information in this
manual is provided for information purposes only, is subject to
change without notice, may contain errors or inaccuracies, and
represents no commitment whatsoever by Thrane & Thrane.
This agreement is governed by the laws of Denmark.
Manuals issued by Thrane & Thrane are periodically revised
and updated. Anyone relying on this information should satisfy
himself/herself as to the most current version. Providers with
access to Thrane & Thrane’s Extranet may obtain current copies
of manuals at: http://extranet.thrane.com.
Thrane & Thrane is not responsible for the content or accuracy
of any translations or reproductions, in whole or in part, of this
manual from any other source.
B2048GB-0a.indd iiB2048GB-0a.indd ii 23-08-2006 13:22:1023-08-2006 13:22:10

DISTRESS CALL PROCEDURE
Transmit on channel 16:
MAYDAY MAYDAY MAYDAY
This is:
NAME OF SHIP, call sign or
other identification (THREE
TIMES), followed by:
MAYDAY - NAME OF SHIP -
Position, type of emergency,
help required and other infor-
mation which may help rescue
operations.
For clarity when SPELLING OUT
words, the following alphabet
should be used:
A-Alfa
B-Bravo
C-Charlie
D-Delta
E-Echo
F-Foxtrot
G - Golf
H-Hotel
I - India
J - Juliett
K-Kilo
L-Lima
M - Mike
NOTE:
1. The distress call should be
repeated from time-to-time
until an answer is heard.
2. If no reply is heard on channel
16, the call should be repeated
on any other available channel.
3. Speak slowly, pronouncing
each word distinctly.
16
N-November
O- Oskar
P-Papa
Q - Quebec
R-Romeo
S-Sierra
T-Ta n go
U-Uniform
V-Victor
W- Whiskey
X-X- ray
Y-Yankee
Z-Zulu

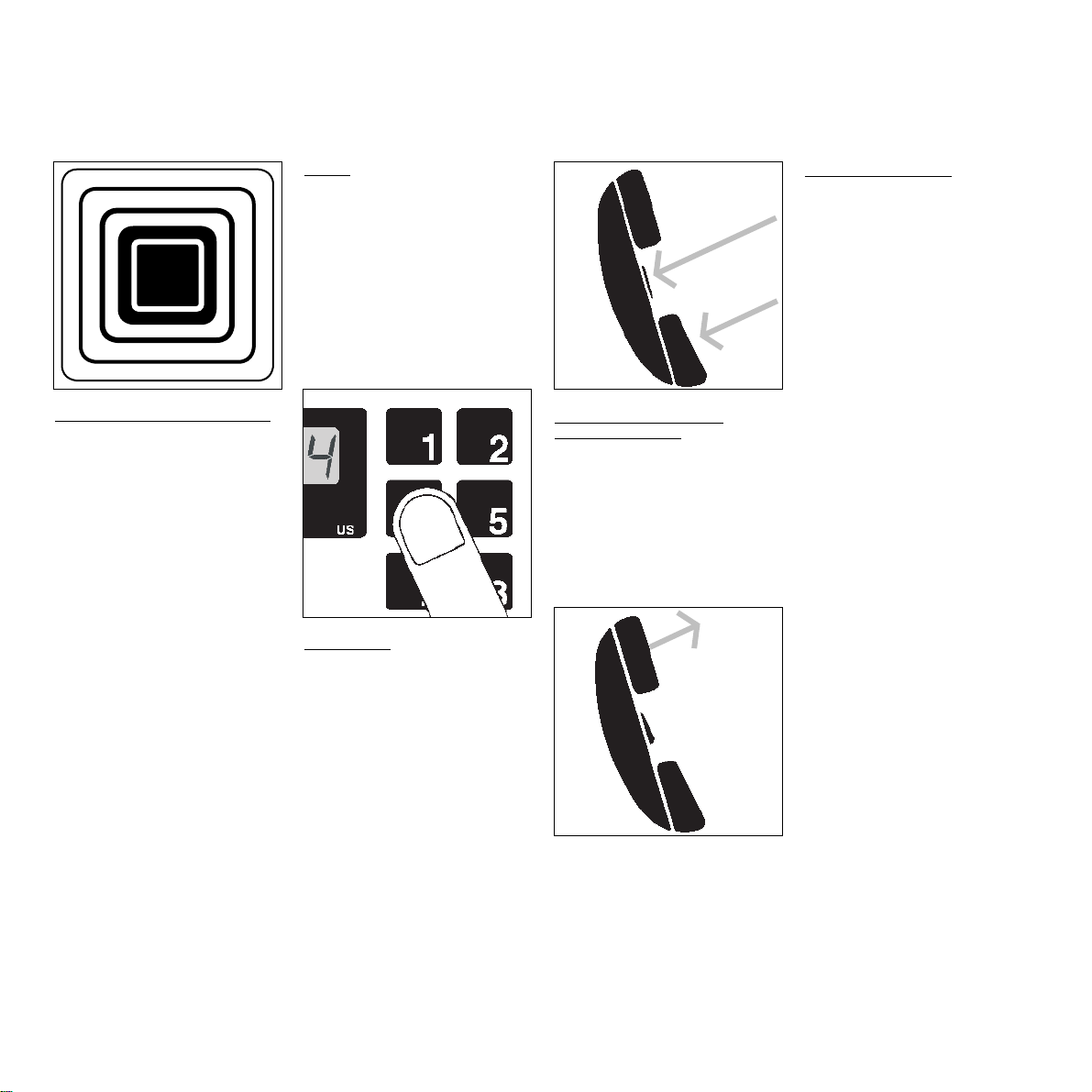

OPERATING
The operating panel is provided
with a really high quality pushbut-
ton keyboard, offering an attrac-
tive solid feel. Furthermore, keyed
operations are instantly confirmed
by means of the display read-out.
To ensure safe operation under all
conditions, the keyboard is fitted
with night-time illumination.
SIMPLEX/SEMI-DUPLEX
COMMUNICATION
All the communication, that means
ship/ship, ship/port, and ship/coast
station, is carried out in the sim-
plex or semi-duplex mode. This
means that the handset key switch
is depressed while the message
is delivered, ending with the word
"over". The switch is now released,
allowing the other party to reply.
PRIVATE CHANNELS
There is standard provision for the
programming of up to 10 private
channels. However, it is possible
to increase the total to 40 private
channels if the scanning facilities
are not required.
A private channel is indicated with
a prefix and a single digit. For the
10 standard channels the prefix is
a “P”, if increased to 40 private
channels the prefix will be “A”, “E”
and “F”.
Private channels include fishing
and leisure channels as well as the
special channels allocated by post
and telegraph authorities.

CONTROLS
16
1
SHIFT
1W
U.S.
D.W.
SCAN
SCAN
ADD
SCAN
DELETE
SCAN
TIME
SELCALL
T/ R
P
DIM
Quick select of the call and distress channel 16.
Digits from 1 to 0.
Deletes a channel from the scanning table.
Selects the scan time from 1 to 99 seconds. The time chosen
will be used to listen on one of the secondary channels
receiving a signal.
Selects the dual watch facility.
Selects 1W reduced power output.
Selects the VHF channels used in the USA.
The intensity of the LED-indicators can be controlled
in four steps. The keyboard illumination is switched on and off.
Tests the selcall decoder and resets the selcall decoder
after a call.
Selects the standard private channels.
Activates the functions marked in orange
on the keyboard. Whenever the keyboard
is in “shift-mode” it will be indicated by
“cornerbars” in the display.
Selects scanning programme.
Adds a channel to the scanning table.
1w Tx US
Indication of ON/OFF/VOL
turn-style knob operation.
Squelch sensitivity control knob with turn-style operation.
SQ
VOL
OFF

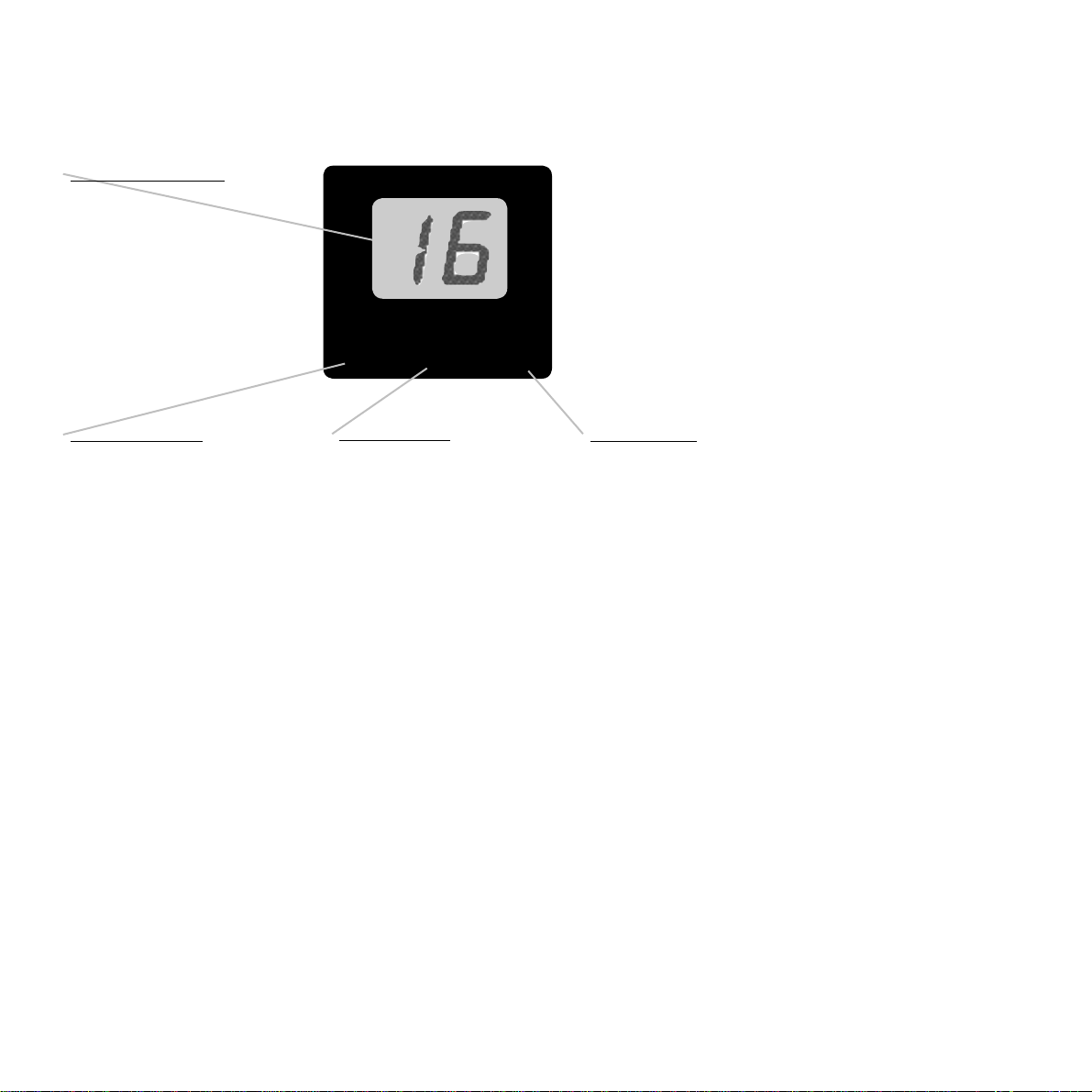

READ-OUT
US-CHANNELS
In the USA a number of the inter-
national duplex channels are used
as simplex channels. Ships sailing
in American waters must, therefore,
be able to select these channels
as simplex channels. The appear-
ance of "US" on the display indi-
cates that this mode of operation is
in use.
1W Tx US
•
CHANNEL READ-OUT
All international maritime channels
are shown by the two digits, when
the channel has been keyed in.
Selection of a standard private
channel will be indicated with a P-.
•
REDUCED POWER
In harbour areas, or in the close
vicinity of another vessel, transmis-
sions should be with reduced pow-
er. When the display shows 1W,
the transmitter power output is
reduced from 25W to 1W.
Where two stations are close
together, this reduction can
improve communication quality.
•TRANSMITTING
Whenever the handset switch is
depressed, and the transmitter
output power level has reached
an appropriate level, the "TX" will
appear.
If the transmitter time-out timer
is enabled, and an automatic ter-
mination of a transmission has
occurred, this indicator will be
flashing.
•

OPERATION
The VHF radiotelephone is operated by means of two turn-style knobs
and a push-button keyboard. This combination ensures a high continuous
resolution on squelch and AF-level, and an easy selection of channels etc
in all situations.
The highly efficient LED-display shows the operating channel both under
normal use and in dual watch mode. The display also indicates when the
set is scanning or a call has been detected by the selcall decoder. The
functions 1W, TX, and US are indicated by means of LED-illumination.
When the station is switched off, the necessary settings will be stored in
the built-in-memory, and as soon as the station is switched on again, it will
start up on the same channel etc.

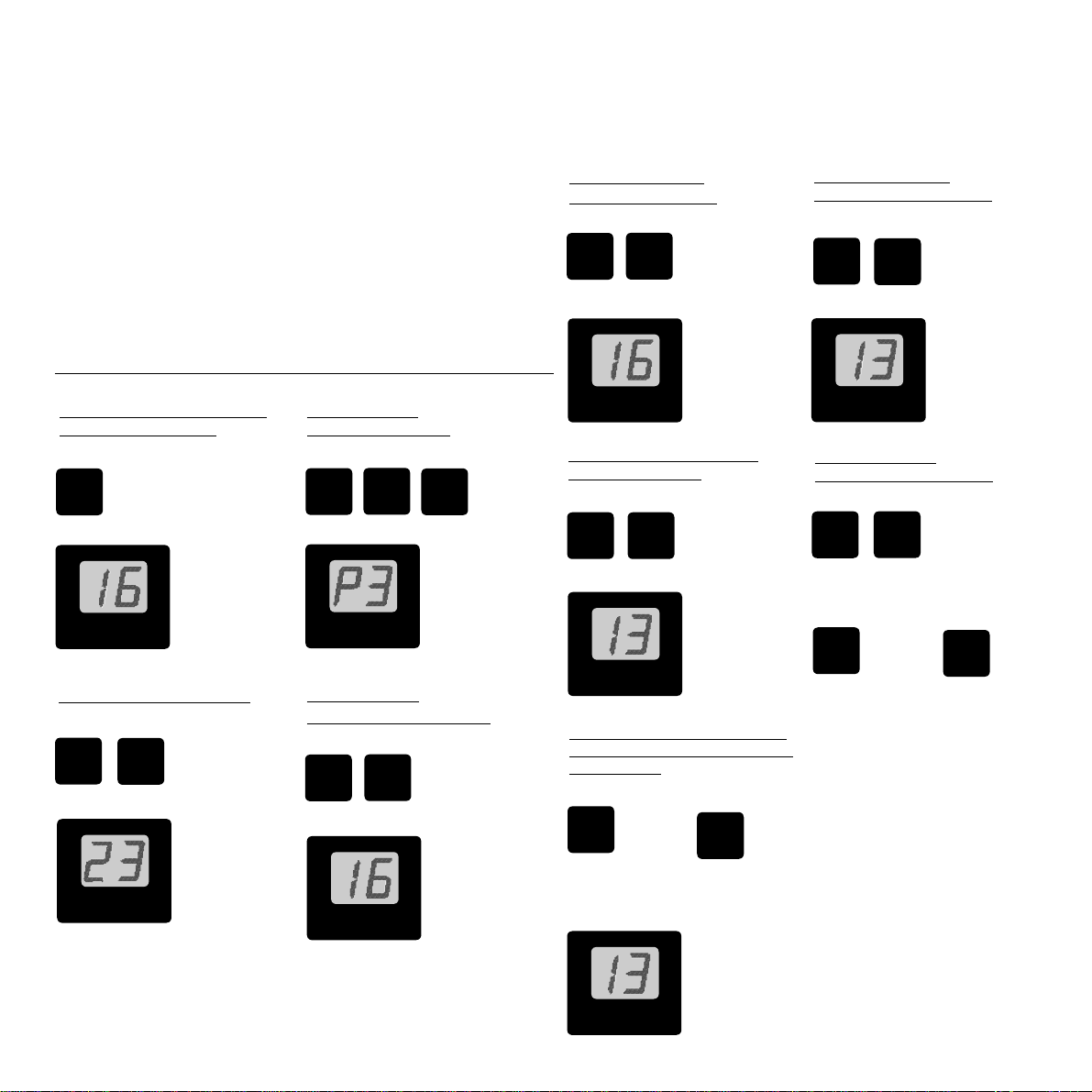

How to Select the Distress
and Call Channel 16
Press:
Read-out:
How to Select a Channel
E.g. channel 23. Press:
Read-out:
How to Select
a Private Channel
E.g. channel P3. Press:
Read-out:
How to Select
Reduced Output Power
Press:
Read-out:
16
2
SHIFT
1W
P
1W Tx US
3
3
1W Tx US
How to Return to
25W Output Power
Press:
Read-out:
How to Select Channels
Used in the USA
Press:
Read-Out
How to Raise Output Power
to 25W on Channels 13 or 67
in US-Mode
Press:
and keep
depressed simultaneously with the
handset key.
Read-out:
1W Tx US
1W Tx US
SHIFT
How to Return to
International Channels
Press:
Read-out:
How to Change
Display Light Intensity
Press:
For single step change
or
and keep
depressed for multiple step change.
Totally 4 steps in the cycle. In the
step before extinction, the keyboard
will be illuminated.
1W
SHIFT
1W Tx US
1W Tx US
SHIFT
U.S.
1W
SHIFT
1W Tx US
DIM
SHIFT
SHIFT
U.S.
1W Tx US
DIM
SHIFT

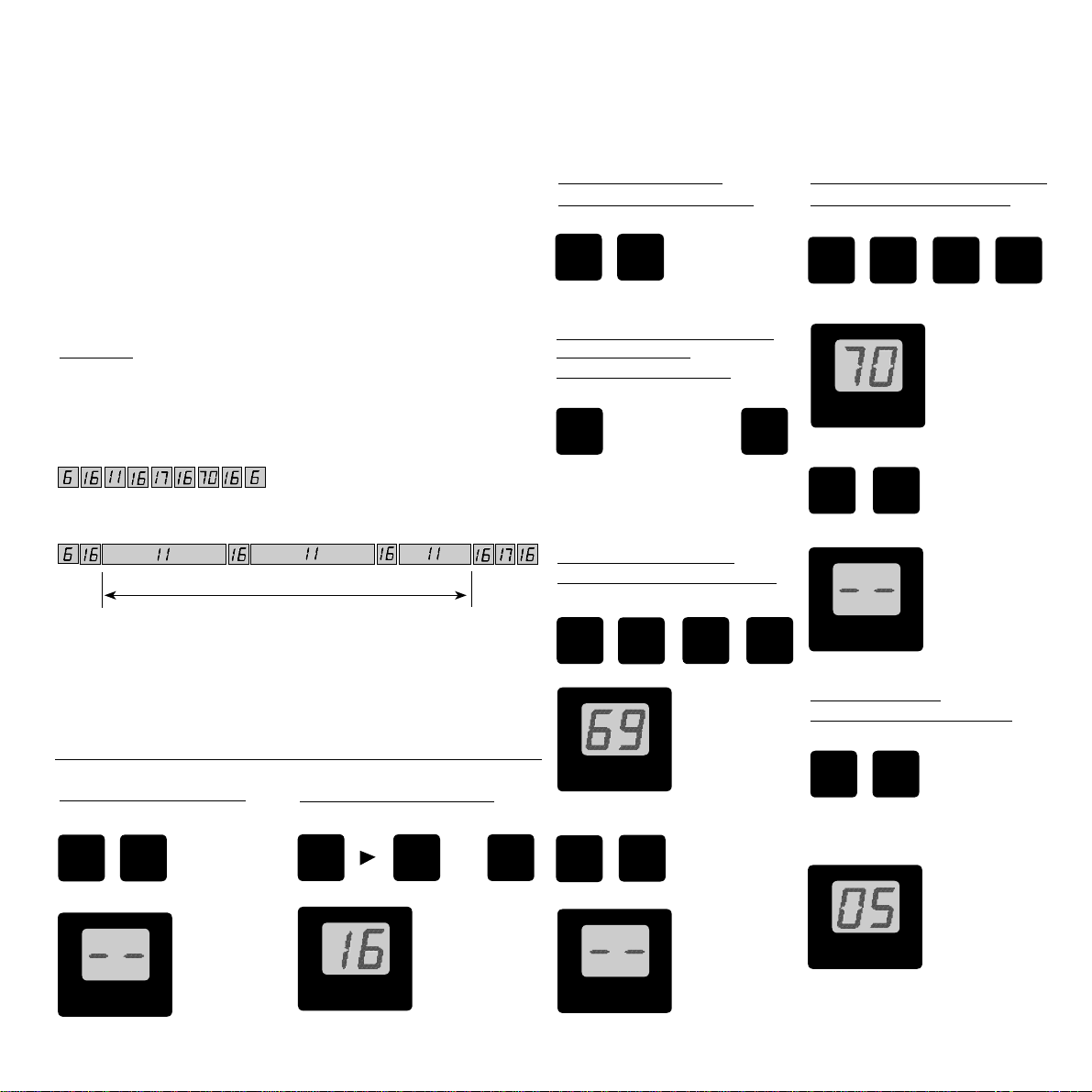

DUAL WATCH OPERATION
SELECTIVE CALLING
(If built-in)
When a selective call is received from a coast station, the read-out
will alternatively show CA, and the actual selected channel and the
acoustic alarm will sound for 10 seconds.
When an "all ships call" containing distress messages, gale warnings,
navigational warnings, etc, is received from a coast station, the read-
out will alternatively show C0, and the actual selected channel and
the acoustic alarm will sound until the selcall is reset.
In addition to the selected channel, which is shown on the display, the VHF
station will listen on channel 16 for 0.1 second every 1.2 second.
If there is a signal on channel 11, the dual watch sequence will be as follows:
Any signal received on channel 16 will be heard continuously and the read-
out will show "16" until the signal ceases.
If the transmitter is keyed, the dual watch function will be switched off and the
read-out will show the channel selected.
How toTest the
Selcall Decoder
Press:
The read-out will alternate between:
and
The acoustic alarm will sound.
This read-out indicates that the test
has been correctly carried out.
Now press:
to reset the selcall decoder.
How to Reset
the Selcall Decoder
After an individual call or an "all ships
call" has been received, press:
How to Select Dual Watch
Press:
Read-out:
and
alternatively.
How to Switch Off
Dual Watch
Press:
Read-out:
SHIFT
D.W.
SELCALL
T/ R
1W Tx US 1W Tx US
SHIFT
SELCALL
T/ R
SHIFT
SELCALL
T/ R
SHIFT
1W Tx US 1W Tx US
D.W.
SHIFT
1W Tx US

SCAN
TIME
How to Start the Scanner
Press:
Read-out:
SCANNING OPERATION
(If scanning is enabled)
The VHF radiotelephone is provided with a flexible scanning facility.
The scanning programme is fully user programmable, and can include all the
international channels and the ten private channels PO -P 9.
When a scanning programme is created by the operator, the programme will
be stored in a memory which retains the scanning programme even when
the station is switched off.
The scanning programme can be changed during operation by pressing
"ADD" or "DELETE".
SCANNING
In principle, scanning is an advanced form of the dual watch system in which
the secondary channel selected changes constantly whilst the distress and
call channel 16 is listened to simultaneously
If, for example, a scanning programme consists of channels 6, 11, 17, and 70,
the scanning sequence will look like this:
If there is a signal on channel 11, the sequence will be:
The "Scan Time" is the time during which the scanner listens on channel
11 whilst at the same time watching out on channel 16 - exactly as it
happens on the dual watch system. The "Scan Time" can be programmed
by the operator
To obtain a continuous listening to the signal being received on channel 11,
the scanning is stopped by simply pressing "SHIFT" "SCAN".
The scanning can be started again by pressing "SHIFT" "SCAN".
»Scan Time«
How to Stop the Scanner
Press any of the buttons:
or
Read-out e.g.:
The channel number corresponding
to the activated push-button.
How to Return to the
Last Channel with Signal
Press:
How to Check the Channels
Contained in the
Scanning Programme
Press:
and a long press on
and the channels in the programme
will slowly be shown in the display.
How to Add a Channel
to the Scanning Programme
E.g. to add channel 69, press:
Read-out:
To restart the scanning programme,
press:
Read-out:
1W Tx US 1W Tx US
SHIFT
SCAN 90 16
SHIFT
How to Delete a Channel from
the Scanning Programme
E.g. to delete channel 69, press:
The read-out shows the next
channel in the programme, e.g.:
The revised scanning programme
becomes operative by pressing:
Read-out:
How to Read the
Programmed "Scan Time"
Press:
and the actual "Scan Time" will be
read out in the next 2.5 seconds,
e. g. scan time = 5 seconds:
followed by the selected channel.
SCAN
SHIFT
SCAN
SHIFT
9
6 SCAN
ADD
1W Tx US
1W Tx US
SHIFT
SCAN
SHIFT
96
1W Tx US
SCAN
DELETE
SHIFT
SCAN
1W Tx US
1W Tx US
SHIFT
SCAN
TIME

How to Programme/Change
the "Scan Time"
To set the "Scan Time" to
10 seconds press:
Note! After "SHIFT" "Scan Time"
has been keyed in. The maximum
time between the following entries
must be 2.5 seconds, or the input
sequence will be ignored.
The read-out will be the entered
digits, followed by the selected
channel after a period of 2.5
seconds.
Empty Scanning Programme
If the scanning programme is
empty, or attempt has been made
to add a new channel to a
»full« scanning programme (which
means that the existing pro-
gramme includes the maximum
number of channels permitted),
the read-out will show:
for a period of 2.5 seconds, fol-
lowed by the selected channel.
1
SHIFT
SCAN
TIME 0 SHIFT
SCAN
TIME
1W Tx US

CHANNEL APPLICATION AND FREQUENCY TABLE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
P
P
P
P
P
Tx: 156.050 MHz
Rx: 160.650 MHz
Tx: 156.100 MHz
Rx: 160.700 MHz
Tx: 156.150 MHz
Rx: 160.750 MHz
Tx: 156.200 MHz
Rx: 160.800 MHz
Tx: 156.250 MHz
Rx: 160.850 MHz
Tx: 156.300 MHz
Rx: 156.300 MHz
Tx: 156.350 MHz
Rx: 160.950 MHz
Tx: 156.400 MHz
Rx: 156.400 MHz
Tx: 156.450 MHz
Rx: 156.450 MHz
Tx: 156.500 MHz
Rx: 156.500 MHz
Tx: 156.550 MHz
Rx: 156.550 MHz
Tx: 156.600 MHz
Rx: 156.600 MHz
Tx: 156 650 MHz
Rx: 156.650 MHz
Tx: 156.700 MHz
Rx: 156.700 MHz
Tx: 156.750 MHz
Rx: 156.750 MHz
Tx: 156.800 MHz
Rx: 156 800 MHz
Tx: 156.850 MHz
Rx: 156.850 MHz
Tx: 156.900 MHz
Rx: 161.500 MHz
Tx: 156.950 MHz
Rx: 161.550 MHz
Tx: 157.000 MHz
Rx: 161.600 MHz
Tx: 157.050 MHz
Rx: 161.650 MHz
Tx: 157.100 MHz
Rx: 161.700 MHz
Tx: 157.150 MHz
Rx: 161.750 MHz
Tx: 157.200 MHz
Rx: 161.800 MHz
Tx: 157.250 MHz
Rx: 161.850 MHz
Tx: 157.300 MHz
Rx: 161.900 MHz
Tx: 157.350 MHz
Rx: 161.950 MHz
Tx: 157.400 MHz
Rx: 162.000 MHz
SIMPLEX DUPLEX FREQUENCIES
CHANNELS
INTER SHIP
PORT
PORT
PUBLIC
FREQUENCIES
Tx: 156.050 MHz
Rx: 160.650 MHz
Tx: 156.100 MHz
Rx: 160.700 MHz
Tx: 156.150 MHz
Rx: 160.750 MHz
Tx: 156.200 MHz
Rx: 160.800 MHz
Tx: 156.250 MHz
Rx: 160.850 MHz
Tx: 156.300 MHz
Rx: 156.300 MHz
Tx: 156.350 MHz
Rx: 156.350 MHz
Tx: 156.400 MHz
Rx: 156.400 MHz
Tx: 156.450 MHz
Rx: 156.450 MHz
Tx: 156.500 MHz
Rx: 156.500 MHz
Tx: 156.550 MHz
Rx: 156.550 MHz
Tx: 156.600 MHz
Rx: 156.600 MHz
Tx: 156 650 MHz
Rx: 156.650 MHz
Tx: 156.700 MHz
Rx: 156.700 MHz
Tx: 156.750 MHz
Rx: 156.750 MHz
Tx: 156.800 MHz
Rx: 156 800 MHz
Tx: 156.850 MHz
Rx: 156.850 MHz
Tx: 156.900 MHz
Rx: 156.900 MHz
Tx: 156.950 MHz
Rx: 156.950 MHz
Tx: 157.000 MHz
Rx: 161.600 MHz
Tx: 157.050 MHz
Rx: 157.050 MHz
Tx: 157.100 MHz
Rx: 157.100 MHz
Tx: 157.150 MHz
Rx: 157.150 MHz
Tx: 157.200 MHz
Rx: 161.800 MHz
Tx: 157.250 MHz
Rx: 161.850 MHz
Tx: 157.300 MHz
Rx: 161.900 MHz
Tx: 157.350 MHz
Rx: 161.950 MHz
Tx: 157.400 MHz
Rx: 162.000 MHz
USA-SIMPLEX CHANNELS
USA-DUPLEX CHANNELS
• •
• •
• •
• •
• •
• •
•
•
•
•• •
•
•
•• •
••
••
•
•
•
••
•
•
•
•
•
•
Distress and Calling
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
P
P
P
P
SIMPLEX DUPLEX FREQUENCIES
CHANNELS
INTER SHIP
PORT
PORT
PUBLIC
FREQUENCIES
USA-SIMPLEX CHANNELS
USA-DUPLEX CHANNELS
• •
• •
• •
• •
• •
• •
• •
•
••
•
•
•
•
• •
•
•• •
•
•
•
•• •
•
•• •
•
DSC
Tx: 156.025 MHz
Rx: 160.625 MHz
Tx: 156.075 MHz
Rx: 160.675 MHz
Tx: 156.125 MHz
Rx: 160.725 MHz
Tx: 156.175 MHz
Rx: 160.775 MHz
Tx: 156.225 MHz
Rx: 160.825 MHz
Tx: 156.275 MHz
Rx: 160.875 MHz
Tx: 156.325 MHz
Rx: 160.925 MHz
Tx: 156.375 MHz
Rx: 156.375 MHz
Tx: 156.425 MHz
Rx: 156.425 MHz
Tx: 156.475 MHz
Rx: 156.475 MHz
Tx: 156.525 MHz
Rx: 156.525 MHz
Tx: 156.575 MHz
Rx: 156.575 MHz
Tx: 156.625 MHz
Rx: 156.625 MHz
Tx: 156.675 MHz
Rx: 156.675 MHz
Tx: 156.725 MHz
Rx: 156.725 MHz
Tx: 156.775 MHz
Rx: 156 775 MHz
Tx: 156.825 MHz
Rx: 156.825 MHz
Tx: 156.875 MHz
Rx: 156.875 MHz
Tx: 156.925 MHz
Rx: 161.525 MHz
Tx: 156.975 MHz
Rx: 161.575 MHz
Tx: 157.025 MHz
Rx: 161.625 MHz
Tx: 157.075 MHz
Rx: 161.675 MHz
Tx: 157.125 MHz
Rx: 161.725 MHz
Tx: 157.175 MHz
Rx: 161.775 MHz
Tx: 157.225 MHz
Rx: 161.825 MHz
Tx: 157.275 MHz
Rx: 161.875 MHz
Tx: 157.325 MHz
Rx: 161.925 MHz
Tx: 157.375 MHz
Rx: 157.375 MHz
Tx: 157.425 MHz
Rx: 157.425 MHz
Tx: 156.025 MHz
Rx: 160.625 MHz
Tx: 156.075 MHz
Rx: 160.675 MHz
Tx: 156.125 MHz
Rx: 160.725 MHz
Tx: 156.175 MHz
Rx: 156.775 MHz
Tx: 156.225 MHz
Rx: 160.825 MHz
Tx: 156.275 MHz
Rx: 156.275 MHz
Tx: 156.325 MHz
Rx: 156.325 MHz
Tx: 156.375 MHz
Rx: 156.375 MHz
Tx: 156.425 MHz
Rx: 156.425 MHz
Tx: 156.475 MHz
Rx: 156.475 MHz
Tx: 156.525 MHz
Rx: 156.525 MHz
Tx: 156.575 MHz
Rx: 156.575 MHz
Tx: 156.625 MHz
Rx: 156.625 MHz
Tx: 156.675 MHz
Rx: 156.675 MHz
Tx: 156.725 MHz
Rx: 156.725 MHz
Tx: 156.775 MHz
Rx: 156 775 MHz
Tx: 156.825 MHz
Rx: 156.825 MHz
Tx: 156.875 MHz
Rx: 156.875 MHz
Tx: 156.925 MHz
Rx: 156.925 MHz
Tx: 156.975 MHz
Rx: 156.975 MHz
Tx: 157.025 MHz
Rx: 157.025 MHz
Tx: 157.075 MHz
Rx: 157.075 MHz
Tx: 157.125 MHz
Rx: 157.125 MHz
Tx: 157.175 MHz
Rx: 157.175 MHz
Tx: 157.225 MHz
Rx: 161.825 MHz
Tx: 157.275 MHz
Rx: 161.875 MHz
Tx: 157.325 MHz
Rx: 161.925 MHz
Tx: 157.375 MHz
Rx: 157.375 MHz
Tx: 157.425 MHz
Rx: 157.425 MHz
•
0548
•
•
•

QUICK SELECT CHART
Distress and Call Channel
Channel Selection
US-mode (Channel Required in the USA)
Reduced Power
Dual Watch
Start Scanning
Add a Channel to Scanning Programme
Delete a Channel from Scanning Programme
Set of ”Scan Time” to 10 Seconds
16
1 3
3
3
1 0
SHIFT
2
2
SHIFT
SHIFT
1W
U.S.
D.W.
SHIFT
SCAN
ADD
SCAN
DELETE
SHIFT
SCAN
TIME
SHIFT SHIFT
SCAN
TIME
SCAN
SHIFT
B2048GB-0a.indd iiiB2048GB-0a.indd iii 23-08-2006 13:22:1023-08-2006 13:22:10

Thrane & Thrane A/S •[e-mail] •www.thrane.com
B2048GB Issue: C/0548
B2048GB-0a.indd ivB2048GB-0a.indd iv 23-08-2006 13:22:1023-08-2006 13:22:10
