THUNDER TIGER raptor e700 User manual

INSTRUCTION MANUALINSTRUCTION MANUAL
組裝說明書
This radio control model is not a toy! Before beginning assembly, please read this
manual thoroughly.
The contents are subject to change without prior notice due to product improvements
and specification changes.
本產品為高性能模型非一般玩具，組裝與操作前請詳閱本產品說明書。
本套件所附之零件可能跟圖示有所差異。因產品後續之設計研發或功能不斷改善之原因，我們
將保留產品規格變更權利，不再另行通知使用者。
FEATURES / 特色
1. Latest fiberglass canopy design w/sleek scheme
2. Collective pitch range +/-15 degrees
3. Innovative quick calibration system
4. Elevator control arm link use bearing connect for stability and smoothly
5. Lightened metal main shaft bearing blocks
6. 12mm hardened hollow steel main shaft
7. 2mm aerospace grade true carbon side frame
8. Lightweight and heavy-duty 14mm herringbone 128T main gear V.S. 13T Pionion
9. Lite yet rigid one-piece machined AL tail case
10. Precisely and heavy-duty tail rotor system
11. 8mm torque tube driven w/efficient helical bevel tail gear
12. Quick-release battery tray(Patent Pending) fits two 6 cells Lipo battery packs
13. Extended electronics tray for installation versatility
14. Top mounted motor for better center of gravity and efficient heat dissipation
15. Adjustable motor mount and pinion bearing block
16. Rear rudder servo plate for easy maintenance and efficient heat dissipation
17. Lightweight and rugged landing skid for low center of gravity
18. Easy to install tail rotor rod guide
19. Lightweight one-piece metal tail boom support bracket
20. All metal servo horns and control arms assembly eliminate the need for upgrades
1. 原廠塗裝完成高彩度玻璃纖維機頭罩
2. 主旋翼攻角最大可達+/-15度
3. 原創中立點快速校正系統
4. 升降舵連接座採滾珠軸承固定，增加耐用度與順暢度
5. 輕量化主軸軸承座
6. 12mm熱處理強化主軸
7. 高強度2mm碳纖維側板
8. 高負載輕量化14mm人字型128T主齒盤，搭配13T馬達齒輪
9. 一體成型輕量化高強度金屬尾座
10. 高精度全金屬尾旋翼系統
11. 8mm尾傳動軸並搭配高負載尾螺旋傘齒
12. 原創電池快拆機構，可容納2組6CELLS鋰電池
13. 加大電子設備固定座，方便配置
14. 上置式馬達設計使機體重心更為集中且高效散熱
15. 可調式馬達固定座及馬達驅動齒輪支撐座
16. 後置式尾舵伺服機固定座方便維修與散熱
17. 高強度輕量化低重心腳架組
18. 快拆式尾舵拉桿導環
19. 一體成型輕量化金屬尾管支撐固定座
20. 配備金屬伺服機舵片及控制臂組，無需額外進行升級改裝
JK6176
No.4761
No.4761
SPECIFICATION / 規格表
Description / 產品名稱
Item No. / 產品料號
Power / 動力
Rotor Head / 主旋翼頭型式
Length / 總長
Width / 總寬
Height / 總高
Main Gear / Pinion 主齒盤 / 驅動齒數
Gear Ratio (E:M:T) / 齒輪比
Full Equipped Weight w/o Battery
全配重量不含電池
Max. Battery on Board
電池最大承載量
Recommended Power Configuration
動力搭配建議
Battery: 12S (6S x 2) 5.0Ah
Battery C-rate: Above 30C
ESC:120~160A
Motor:520~560KV
Est. Rotor rpm:2200~2300
160 x 50 x 65 mm (6.3 x 1.96 x 2.55”)
RAPTOR E700
4761
Electric Motor
Flybarless
1277 mm / ( 50.3" )
191mm / ( 7.5" )
385 mm / ( 15.2" )
690~700 mm / ( 27.2~27.5" )
1538~1558 mm / ( 60.5~61.3" )
105 mm / ( 4.1" )
280 mm / ( 11.0" )
128T / 13T
9.85 : 1 : 4.27
2917-gram
(102.9 oz)
Main Rotor (Req’d)
主旋翼
Length / 長度
Diameter / 迴轉直徑
Length / 長度
Diameter / 迴轉直徑
Tail Rotor
尾旋翼
3D
E700
Ø1538~1558
191
385
1277
Ø280

-1-
CONTENTS
INTRODUCTION
Intro & Caution / 簡介與注意事項
Other Items Required / 其餘必須配件
Assembly / 組裝步驟
Main Rotor System / 主旋翼機構組裝
Main Rotor System & Linkage Rod / 主旋翼機構及連桿組裝
Tail Boom Bracket Assembly / 尾管固定座組裝
Main Frame / 本體組裝
Main Gear Set / 主齒輪組組裝
Landing Skid / 腳架組組裝
Control Arm Set / 控制臂組組裝
Tail Rotor System / 尾旋翼機構組裝
Tail Unit / 尾部總成組裝
Servo Installation / 伺服機裝配
Linkage Rod & Main Rotor Blade / 連桿及主旋翼組裝
Electronic Device & Battery Tray / 電子設備及電池座組裝
Electronic Device & Canopy / 電子設備及機殼罩
Set-up Section / 設定程序說明
Radio System Setup / 遙控系統設定
Swashplate Type Setting / 十字盤模式設定
Electric Device Connection / 電子設備連接說明
Mechanism Neutral Position Setting / 中立點設定
Swashplate & Servo Direction Setting / 十字盤及伺服機方向設定
Index of Linkage Length / 連桿長度索引
Tail Control & Gyro Setup / 尾舵控制及陀螺儀控制
Throttle & Pitch Curve Setting / 油門及螺距曲線設定
Blade Tracking Adjustment / 主旋翼軌跡調整
Cautions of Li-Po Battery Pack Using / 鋰聚電池使用注意事項
After Flight Checklist / 飛行後的檢查項目
Regular Maintenance / 定期保養事項
Spare Parts / 維修零件包
Optional Parts / 改裝零件包
Electronic Device & Accessory / 電子設備及配件
Exploded View / 爆炸圖檢索
2
4
6
7
8
9
12
13
14
15
17
18
19
20
21
22
22
22
23
24
24
25
26
27
28
28
28
29
35
35
36

-2-
INTRODUCTION / 簡介
Thank you for purchasing the Thunder Tiger RAPTOR E700 R/C helicopter. This new helicopter is the
latest innovation by Thunder Tiger. It has the perfect combination of flying stability and the agility for 3D
flying. This helicopter is an excellent choice for flying enthusiasts like you. For convenient assembly and
safe operation of the helicopter, please read the instructions carefully. Retain the user manual in case you
need it for any information or reference.
感謝您購買雷虎科技 RAPTOR E700 直昇機產品，本項產品為雷虎科技全新開發機種，兼具高度穩定性與3D飛行特
性，是熱衷引擎直昇機的您不可錯過的選擇。請於使用本產品前詳盡閱讀使用手冊，以利於組裝工作順暢進行與安全
操控本產品。請妥善保存使用說明書，以利後續調整與維修參考用途。
CAUTION / 警告
1. R/C models are not toys. This product is a high-precision flying machine. Possibilities of unexpected
crashes may occur due to electronic interference, incorrect operation, or poor mechanical maintenance.
Although it is a R/C model helicopter, the rotor blades rotate at high speeds, which may cause serious
damage, injury, or death if the model hits people or property. Therefore, extreme caution must be
exercised during operation.
2. Thunder Tiger ensures parts packaged in this product is of the highest quality. However, after assembly
and usage, parts damaged due to wear or misuse will not be replaced under any circumstances. If you
have any questions regarding its operation and repair, Thunder Tigers service agents are able to
provide free technical guidance.
3. This product is only recommended for users ages 16 and up. Because flying a R/C helicopter is difficult,
beginners must receive guidance and supervision from experienced pilots to minimize unexpected danger.
Practice in spacious areas, far away from obstacles such as buildings, trees, electrical towers, or crowds.
4. To decrease the cost of repair and maintenance for beginners, it is recommended to fly the helicopter
with a practice rack and to learn basic flying skills with a computer R/C flying simulator. (Crashes in
simulators are free to repair!)
1. 本項遙控直昇機產品並不是玩具，是一項結構精密、高專業度模型產品，如果未經正確組裝與操控，將可能對操控
者或其他人造成身體傷害。使用者必須了解，若未確實進行飛行前安全檢查或操控不當，而造成人員受傷或物體損
壞，使用者必須負起法律責任。
2. 本產品由高品質零組件組成，雷虎科技對於安裝過程、使用過後..等人為因素造成損壞事件不負損壞賠償之責。如您
需要本產品相關組裝、調整或其他協助，可與雷虎科技全省經銷商聯繫。
3. 本項產品禁止十六歲以下青少年與孩童使用。強烈建議初學者應取得技術支援後再進行飛行，以避免危險發生。請
於空曠地區操控本產品，並避免於建築物、樹木、電塔..等障礙物區域飛行。
4. 建議初學者可安裝練習架或透過電腦模擬軟體練習，可達到實際練習效果與符合經濟效益。
AMA INFORMATION / 特別注意事項
Operating a model helicopter requires a high degree of responsibility and skill. If you are a newcomer to the
hobby, it is best to seek help and guidance from accomplished model helicopter pilots. This will greatly
speed up the learning process and have you flying successfully in a reasonable amount of time. We also
would strongly urge you to join the Academy of Model Aeronautics, if you are in States. The AMA is a
non-profit organization that provides its members with a liability insurance plan as well as monthly magazine
entitled Model Aviation. All AMA charter aircraft clubs require all pilots to hold a current AMA sporting
license prior to operation of their models at club fields. For further information, contact the AMA at:
Academy of Model Aeronautics
5151 East Memorial Drive
Muncie, IN 47302
[phone]
http://www.modelaircraft.org
操控遙控直昇機對於飛行安全要求極高，需要高度的負責任態度配合，以及較高的操控技巧。如果您是一位初學者，
建議您必須向當地專業模型經銷商，或是遙控直昇機相關組織以及經驗豐富的玩家尋求相關協助，以獲得您所需要的
訊息以及專業知識。如此可有效協助您縮短學習的時間，更容易學會遙控直昇機的組裝、設定與操控技巧。

-3-
FLIGHT SAFETY CHECKLIST / 飛行前安全確認工作項目
POST FLIGHT INSPECTION / 飛行結束安全檢查事項
CAUTION / 注意事項
1. Make sure that the transmitter battery is fully charged before flying.
2. Make sure all control surfaces are operated properly before flying.
3. Do a range check of the radio before the first flight. The electronic equipment must operate properly at
a range of at least 5 meters (18 ft) even with the transmitter antenna collapsed.
4. Make sure there are no other pilots using the same radio frequency with yours and that there are no
other radio interference on your frequency.
5. Be sure to turn on the transmitter first with the throttle stick in the idle position. Plug the battery into the
ESC last.
6. The main rotor and the tail rotor spin at very high RPM. Make sure nothing can come in contact with the
rotor blades during flight.
7. Always maintain a safe distance from the helicopter during flight.
8. Never fly the helicopter in the rain or in excessive wind conditions.
9. Always operate and fly the helicopter in a safe and responsible manner.
10. Never fly the helicopter over other pilots, spectators, cars or anything that could result in injury or
property damage.
1. 確認接收機與發射機電池，均已確實充電完成。
2. 確認所有操控介面運作順暢。
3. 確認無其他無線電波干擾，且不與其他同好同時使用相同頻率。
4. 確實將油門搖桿放置於低速，再將發射機電源開啟，然後再將電池接上。
5. 確認遙控器發射器與接收機工作正常，將機體放至於距離5公尺外，確認遙控器是否正常，機體控制動作是否正確。
6. 主旋翼與尾旋翼轉速相當高，運轉時須避免任何障礙物與旋翼接觸。
7. 飛行時，需與遙控直升機保持安全距離。
8. 勿於下雨天或是強風的狀態下操控遙控直升機。
9. 請以安全為第一考量，並以高度負責任的態度參與遙控直升機活動。
10. 禁止於人群、車輛..或任何其他障礙物上方飛行遙控直升機，避免意外發生。
1. Inspect the model thoroughly to insure no parts have come loose or become damaged during the flight
and landing. Replace damaged parts and tighten loose screws before flying again.
2. Clean the helicopter body.
3. Lubricate all moving parts to ensure smooth operation for the next flying.
4. Replace any worn ball links and damaged bearings.
5. Store the model in a cool, dry place. Avoid putting it under direct sunlight or near a source of heat.
Following these simple rules will allow you to enjoy the thrill of model helicopter flying for many years.
1. 飛行結束後確認機體所有的零件與螺絲是否有損壞或鬆動，更換損壞零件與確實固定鬆動的螺絲。
2. 機體清潔乾淨。
3. 檢查所有活動零組件是否運作順暢，以利下次飛行。
4. 更換所有鬆動的連桿、接頭，以及損壞的軸承。
5. 將機體存放於陰涼通風處，避免機體放置於陽光直射處或接近熱源。
確實執行上述幾項簡單的步驟，將可確保您的愛機維持數年的壽命！
When the model has crashed, inspect the flybar, rotor shaft and the blade spindle to make sure they are
not bent. If any item is damaged, it must be replaced with a new part to ensure safe operation. Do not
glue any broken or damaged plastic parts. Do not repair broken rotor blades.
Always inspect the following items:
Gears, Ball links, Link rods, Bearings, Main shaft, Flybar, Spindle, Tail boom and support, Fins, Tail rotor
shaft, Main blades, Tail blades, the Motor, the Speed control and the Battery.
機體一旦發生墜落事件，請確實檢查平衡桿、主軸、橫軸是否有彎曲變形，如果有任何的損壞，請立即更換原廠新
的零組件，確認機體操作安全！切勿使用任何接著劑嘗試黏合塑膠零件；請勿使用修復過的主旋翼。
發生機體墜落事件後，請確實檢查下列項目：
齒輪組、球頭連桿、連桿頭、軸承、主軸、橫軸、尾軸、平衡桿、平衡片、尾管、尾管支撐架、垂直與水平尾翼、
尾驅動輪、主旋翼、尾旋翼、馬達、速控器、電池。

-4-
Screw Driver
各種規格的螺絲起子
7mm
5.5mm
7mm
8mm
Hobby Knife
美工刀
C.A Glue
瞬間膠
Grease
潤滑油
Epoxy
環氧樹酯
Hex Wrench
六角板手
Threadlocker
螺絲防鬆膠
Needle Nose Pliers
尖嘴鉗
Wrench
開口板手
5.5mm
Ball Link Pliers
拆連桿頭的專用鉗子
Nipper
斜口鉗
Scissors
剪刀
Metric 4-way Wrench
十字套筒板手
5.5mm
7mm
8mm
10mm
Socket Drivers
套筒螺絲起子

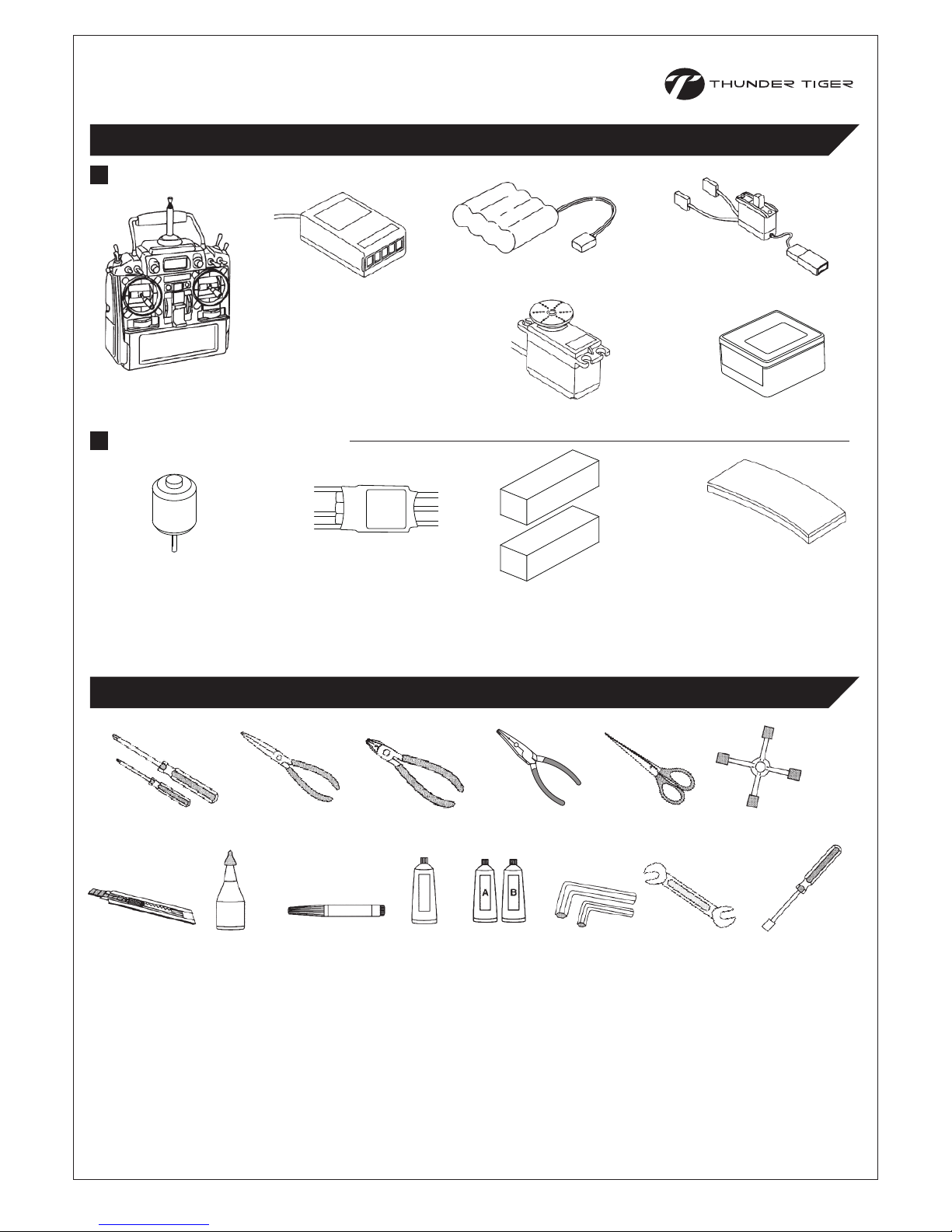

TOOLS REQUIRED FOR ASSEMBLY / 需要準備的工具
RADIO SET / 遙控系統
POWER SYSTEM / 動力系統
Receiver
接收機
3-AXIS Gyro
3軸陀螺儀
Switch Harness
具備充電線的開關組
Servos
伺服機
OTHER ITEMS REQUIRED / 其餘必須配件
發射機（需具備直昇機控制功能
的6動以上遙控器）
Transmitter (helicopter type
only, 6 or more channels)
Electric Brushless Motor
無刷馬達
Electronic Speed Controller
速控器
12-14S Li-Po Battery Pack
鋰聚電池組
Rx Battery
接收機電池
Foam
雙面膠帶

Apply C.A Glue
使用快乾膠黏合
Assemble as many times as specified
依指示組裝所需數量
Assemble left and right side the same way
左右側組件相同
Assemble in right order
依標示順序組裝
Drill holes with the specified diameter
依標示尺寸鑽孔
Hint
組裝提示
Must be purchased separately
改裝品需另購
Cut off shaded portion
依標示部分裁切
Ensure smooth, non-binding movement when assembling
確認組件靈活度
Pay close attention here
注意組裝步驟
Cut off excess
裁剪多餘部分
Apply grease
使用潤滑油膏
Apply threadlocker
使用螺絲防鬆膠
The parts in the KIT are packed according to each major assembly steps. The part number and quantity are always
shown in the table on each page. As good practice, only open up the bag that you need for the paticular assembly.
零件均依照組裝步驟包裝，請依照組裝程序，逐一開啟零件包，避免零件遺失。
T22(#262) THREADLOCKER / 螺絲防鬆膠
CA CA GLUE / 快乾膠
Note / 注意
Assembly drawings will contain icons that indicate use of
Threadlocker or CA glue as needed.
Examples of the icons are as right shown:
請依組裝步驟圖示，使用防鬆膠或接著劑。
圖示範例如右：
A: Indicates the assembly step number and the parts bags that
are to be assembled.
B: Displays actual size drawings, and part quantities used.
C: Refer to parts drawing or exploded view in the last few pages
of this manual, order the corresponding item no. for correct
replacement parts.
D: This instruction manual uses several symbols. Pay careful
attention to them during construction. Details are given at
the bottom of each page.
A: 顯示組立步驟及需組立之零件包順序。
B: 零件實際對照尺寸及使用數量。
C: 請比對零件形狀以及後附零件包圖示或爆炸圖找出需求零件料號。
D: 操作說明符號可更有效協助組裝者使用此說明書，請依說明書符號
指示進行組裝步驟。
A GUIDE TO THE INSTRUCTION MANUAL / 說明書操作指南
SYMBOLS USED THROUGHOUT THE MANUAL / 符號說明
Example 說明範例
-5-
B
A
C
B
D
C

-6-
Main Rotor System / 主旋翼機構組裝
Bag A
Apply threadlocker
使用螺絲防鬆膠
Assemble left and right side the same way
左右側組件相同
Apply grease
使用潤滑油膏

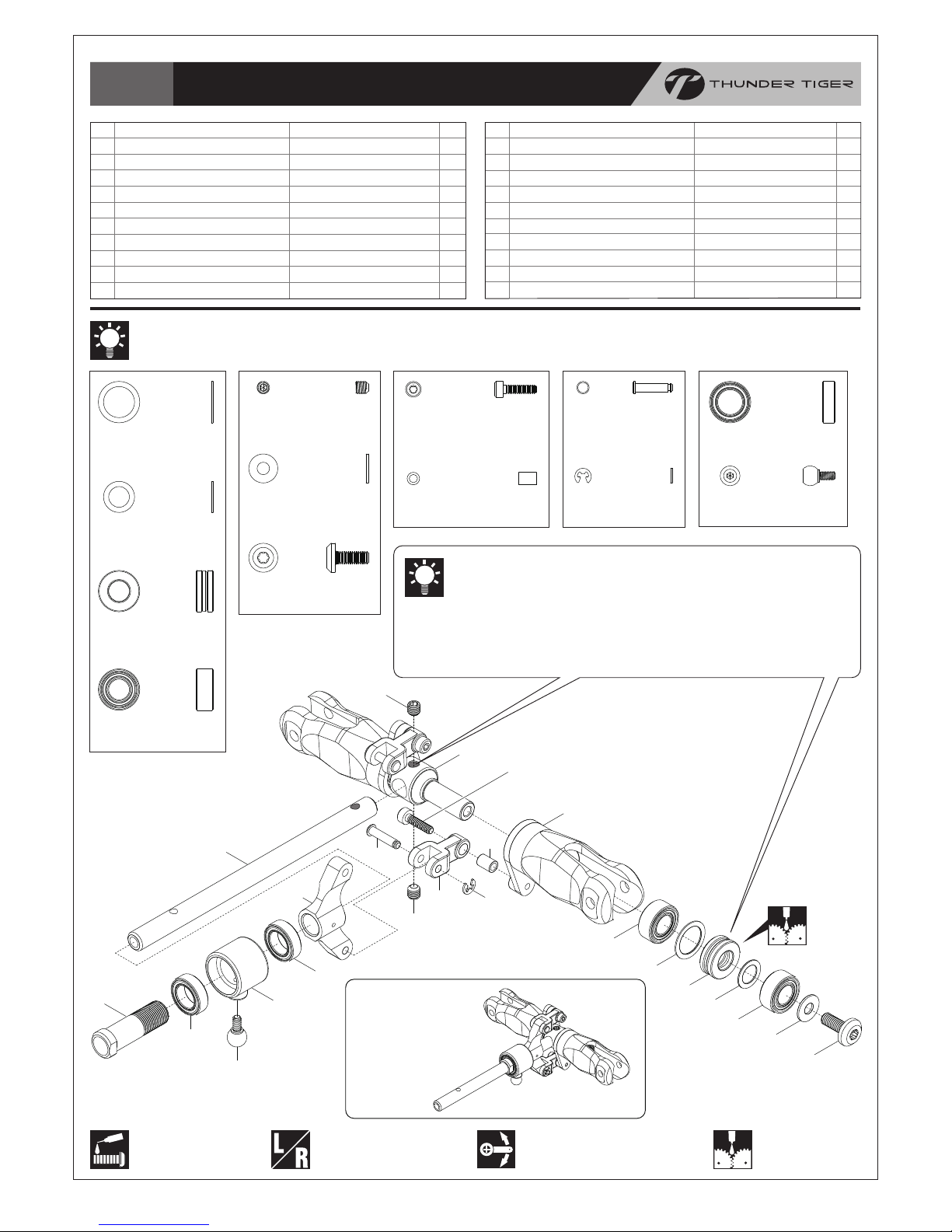

Assemble the main rotor pitch housing as drawing
主旋翼轉座組裝圖
The bearings come with the grips which had been
assembled by Factory.
主旋翼夾座內軸承已由原廠壓配完成。
No.
1
2
3
4
5
6
7
Qty
2
2
2
2
4
2
2
Description 名稱
MAIN ROTOR GRIP POST
SOCKET SCREW, M3x12
FBL ROTOR GRIP LEVER
WASHER, d3xD8xW1.4
SOCKET SCREW, M3x6
LINKAGE BALL(A)
META ROTOR GRIP SET
金屬主旋翼轉座支柱
內六角螺絲, M3x12
金屬旋翼轉座搖臂
墊圈
, d3xD8xW1.4
內六角螺絲, M3x6
內六角連接頭螺絲(A)
主旋翼轉座組
No.
7-1
7-2
7-3
8
9
10
11
QtyDescription 名稱
BEARING, d8xD16xW5
THRUST BEARING , d8xD16xW5
THRUST COLLAR , d8xD12xW0.5
METAL SWASHPLATE
SWASHPLATE POST
LINKAGE BALL
LINK BALL
滾珠軸承
, d8xD16xW5
止推軸承 , d8xD16xW5
推力軸環 , d8xD12xW0.5
金屬十字盤
十字盤球型支柱
十字盤球頭
連接球座
2
1
1
1
2
1
2
(6)
(7)
(5)
(5)
(4)
(2)
(3)
(1)
Large Internal Diameter always goes
toward the Main Rotor Hub
內徑較大的一側，面向主旋翼固定座組(內側)。
Small Internal Diameter always goes
toward the Blade
內徑較小的一側，面向主旋翼組(外側)。
Checking Tips: >
轉動角度： >
（轉動角度大者，內孔大；轉動角度小者，內孔小）
Diagram for Thrust Bearing Assembly
止推軸承安裝示意圖
Secure all screws shown on this page with a drop of threadlocker.
本頁顯示之螺絲請使用適量防鬆膠鎖固。
DO NOT over tighten the
linkage ball while securing in
order to avoid the screw broken.
鎖固時，切勿過度迫緊連接頭螺絲
以避免螺牙段斷裂。
(7-1) (7-1)(7-2)
(7-3)
LINKAGE BALL
大球頭
SWASHPLATE POST
十字盤球型支柱
BEARING, d8xD16xW5
滾珠軸承, d8xD16xW5
THRUST COLLAR, d8xD12xW0.5
止推軸環 , d8xD12xW0.5
THRUST BEARING, d8xD16xW5
止推軸承, d8xD16xW5
SOCKET SCREW , M3x12
內六角螺絲, M3x12
WASHER, d3xD8xW1.4
墊圈, d3xD8xW1.4
SOCKET SCREW , M3x6
內六角螺絲, M3x6
LINKAGE BALL(A)
內六角連接頭螺絲(A)
LINK BALL
連接球座
(10)
(9)
(9)
(8)
(11)
(11)

-7-
No.
15
16
17
18
19
20
21
22
23
24
25
26
26-1
26-2
QtyDescription 名稱
OUTER DAMPER
INNER DAMPER
SPINDLE
THRUST COLLAR, 0.5mm
THRUST COLLAR, 1mm
THRUST COLLAR, 0.2mm
THRUST COLLAR, 0.1mm
WASHER, d5xD11xW1.7
SOCKET SCREW, M5x10
FBL HEAD BUTTON
SOCKET SCREW, M2.5x6
LINKAGE ROD SET, 42.55mm
LINGAGE ROD
BALL LINK
外避震墊圈
內避震墊圈
固定軸
推力軸環, 0.5mm
推力軸環, 1mm
推力軸環, 0.2mm
推力軸環, 0.1mm
墊片, d5xD11xW1.7
內六角螺絲
, M5x10
無平衡翼煞車盤
內六角螺絲
, M2.5x6
連接桿組 , 42.55mm
連接桿
單頭連接桿
2
2
1
2
2
2
2
2
2
1
2
2
1
2
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
QtyDescription 名稱
HARDENED MAIN SHAFT(12mm)
SOCKET SCREW, M3x5
METAL SWASHPLATE
FBL CONTROL LEVER
BEARING, d4xD8xW3
COLLAR, d3xD4xW8.5
SOCKET SCREW, M3x14
WASHER, d3xD5xW0.5
LINKAGE BALL(A)
FBL WASHOUT LINKAGE
BEARING, d3xD6xW2.5
COLLAR, d2xD3xW3.4
BUTTON HEAD SOCKET SCREW, M2x8
FBL MAIN ROTOR HUB
強化主軸(12mm)
內六角螺絲
, M3x5
金屬十字盤
無平衡翼控制搖臂
滾珠軸承, d4xD8xW3
軸套,
d3xD4xW8.5
內六角螺絲 , M3x14
墊片, d3xD5xW0.5
內六角連接頭螺絲(A)
無平衡翼連接座
滾珠軸承,
d3xD6xW2.5
軸套, d2xD3xW3.4
半圓頭內六角螺絲 , M2x8
金屬主旋翼固定座
1
4
1
2
4
2
2
2
2
2
4
4
4
1
(24)
(25)
(26)
(26)
(14)
(13)
(16)
(17)
(15)
Main Rotor System & Linkage Rod / 主旋翼機構及連桿組裝
Bag A
(11)
(12)
(13)
(11)
(10)
(5)
(5)
(4)
(2) (2)
(1)
(3)
(6)
(9)
(8) (7)
(12)
(22)
(23)
(18~21)
SOCKET SCREW, M3x14
內六角螺絲 , M3x14
BEARING, d4xD8xW3
滾珠軸承 , d4xD8xW3
SOCKET SCREW, M3x5
內六角螺絲 , M3x5
COLLAR, d3xD4xW8.5
軸套 , d3xD4xW8.5
SOCKET SCREW, M2.5x6
內六角螺絲, M2.5x6
SOCKET SCREW, M5x10
內六角螺絲, M5x10
WASHER, d5xD11xW1.7
墊片, d5xD11xW1.7
LINKAGE BALL(A)
內六角連接頭螺絲(A)
WASHER , d3xD5xW0.5
墊片 , d3xD5xW0.5
Secure all screws shown on this page
with a drop of threadlocker.
本頁顯示之螺絲請使用適量防鬆膠鎖固。
The holes should
point up.
有2孔的一端應朝上
Apply threadlocker
使用螺絲防鬆膠
Assemble left and right
side the same way
左右側組件相同
Ensure smooth, non-binding
movement when assembling
確認組件靈活度
Apply grease
使用潤滑油膏
COLLAR
, d2xD3xW3.4
軸套 , d2xD3xW3.4
BEARING , d3xD6xW2.5
滾珠軸承 , d3xD6xW2.5
BUTTON HEAD
SOCKET SCREW, M2X8
半圓頭內六角螺絲, M2X8
Rotate the Main Rotor
Grip to check if it runs
effortlessly and smoothly;
please reallocate the different
thickness of Thrust Collars for
getting a proper mesh if too much
play or over tight.
完成組裝後，請轉動主旋翼轉座確認
作動是否順暢；如間隙過大或過緊，
請更改不同厚度之推力軸環組合以獲
得適當間隙。
(1.0mm) (0.5mm) (0.2mm) (0.1mm)
d8xD12
42.55
24
Scale=1:1 (unit:mm)
x2
(26-1)
(26-2)
(26-2)

-8-
Tail Boom Bracket Assembly / 尾管固定座組裝
No.
1
2
3
3-1
3-2
3-3
4
5
6
7
8
QtyDescription 名稱
機身尾管固定座(右)
機身尾管固定座(左)
驅動傘齒軸套組
驅動傘齒軸套
滾珠軸承
, d12xD18xW4
傘齒軸環 , d12xD13xW6.85
尾螺旋傘齒輪A(24T)
尾螺旋傘齒輪B(24T)
尾驅動齒輪軸
尾驅動齒輪26T
固定銷
, ∅2x12
TAIL BOOM BRACKET-R
TAIL BOOM BRACKET-L
BEVEL SHELL SET
BEVEL SHELL
BEARING, d12xD18xW4
BEVEL COLLAR, d12xD13xW6.85
TAIL DRIVE BEVEL GEAR-A (24T)
TAIL DRIVE BEVEL GEAR-B (24T)
TAIL DRIVE GEAR SHAFT
TAIL DRIVE GEAR-26T
PIN, ∅2x12
1
1
1
1
2
1
1
1
1
1
2
No.
9
10
11
12
13
14
15
16
17
18
QtyDescription
名稱
滾珠軸承, d5xD11xW5
無頭內六角螺絲, M3x4
側板支柱
伺服機後置固定板
內六角螺絲, M3x22
內六角螺絲, M3x16
內六角螺絲, M3x10
止鬆螺帽, M3
墊片, d12xD14.5xW0.2
墊圈, d3xD8xW1.4
BEARING, d5xD11xW5
SET SCREW, M3x4
FRAME SPACER
REAR SERVO FRAME
SOCKET SCREW, M3x22
SOCKET SCREW, M3x16
SOCKET SCREW, M3x10
LOCK NUT, M3
WASHER, d12xD14.5xW0.2
WASHER, d3xD8xW1.4
2
2
4
1
2
2
2
6
1
2
Apply threadlocker
使用螺絲防鬆膠
Bag B
(2)
(3)
(1)
(16)
(16)
(11)
(12)
(15)
(18)
(18)
(14)
(14)
(13)
Assemble the Tail Boom Bracket as
drawing. Secure the Screws but do
not tighten at this step.
參考圖示組裝尾管固定座，螺絲只需
稍事固定，暫無需鎖緊。
SOCKET SCREW, M3x16
內六角螺絲, M3x16
SOCKET SCREW, M3x10
內六角螺絲, M3x10
LOCK NUT, M3
止鬆螺帽, M3
BEVEL COLLAR, d12xD13xW6.85
傘齒軸環 , d12xD13xW6.85
BEARING, d12xD18xW4
滾珠軸承, d12xD18xW4
BEARING, d5xD11xW5
滾珠軸承, d5xD11xW5
PIN, ∅2x12
固定銷, ∅2x12
SET SCREW, M3x4
無頭內六角螺絲, M3x4
SOCKET SCREW, M3x22
內六角螺絲, M3x22
WASHER, d12xD14.5xW0.2
墊片 , d12xD14.5xW0.2
(6)
(7)
(5)
T22
T22
(10)
(10)
(9)
(9)
(8)
(8)
(3-2)
(3-1)
(3-3)
(3-2)
(17)
(4)
Check the mesh of gears (#4 & #5),
please add the washer (#17) for a
proper mesh if too much play.
請檢查齒輪間隙(#4及#5)，間隙過大時
請酌加墊片(#17)。
WASHER, d3xD8xW1.4
墊圈, d3xD8xW1.4

-9-
Secure all screws & Washer Mount shown on this page with a drop of threadlocker.
本頁顯示之螺絲及控制臂軸承座請使用適量防鬆膠鎖固。
Left Frame
左側板
Right Frame
右側板
No.
1
2
3
4
5
6
QtyDescription 名稱
碳纖側板-左
碳纖側板-右
控制臂軸承座
軸承座螺帽
控制臂固定座
沈頭內六角螺絲
, M2.5x5
SIDE FRAME-L
SIDE FRAME-R
ELEVATOR WASHER MOUNT
Nut
CONTROL LEVER BASE
SINK SOCKET SCREW, M2.5x5
1
1
2
2
2
8
No.
7
8
9
10
11
12
QtyDescription
名稱
側板支柱
陀螺儀座
主軸軸承座
無頭內六角螺絲
, M3x20
機身固定柱(32mm)
星型低頭螺絲
, M3x8
FRAME SPACER
GYRO TRAY
MAIN SHAFT BRG BLOCK SET
SET SCREW, M3x20
CANOPY RETAINING POST(32mm)
TORX SCREW, M3x8
8
1
1
1
1
11
(7)
(7)
(8)
(10)
(9)
(6)
(6)
(3)
(11)
(5)
(1)
(2)
(12)
(4)
Main Frame / 本體組裝
Bag C+D
Apply threadlocker
使用螺絲防鬆膠
(5)
(4)
(3)
Nut
軸承座螺帽
SINK SOCKET SCREW, M2.5x5
沈頭內六角螺絲, M2.5x5
SET SCREW, M3x20
無頭內六角螺絲, M3x20
TORX SCREW, M3x8
星型低頭螺絲, M3x8
The larger hole always goes
toward the inner side.
請注意螺絲鎖固孔徑較大者朝內。

-10-
Apply threadlocker
使用螺絲防鬆膠
No.
1
2
3
4
5
6
QtyDescription 名稱 No.
7
8
9
10
11
12
QtyDescription 名稱
接收機承座
側板支柱
碳纖下側板﹣左
碳纖下側板﹣右
支撐架固定座
沈頭內六角螺絲
, M3x8
電池盒支柱
星型低頭螺絲
, M3x8
接收機承座補強板
機身固定柱(32mm)
無頭內六角螺絲
, M3x20
主軸軸承座
RADIO TRAY
FRAME SPACER
LOWER SIDE FRAME-L
LOWER SIDE FRAME-R
SKID BRACKET
SINK SOCKET SCREW, M3x8
BATTERY POST
TORX SCREW, M3x8
RADIO TRAY BRACKET
CANOPY RETAINING POST(32mm)
SET SCREW, M3x20
MAIN SHAFT BRG BLOCK SET
1
4
1
1
4
8
1
10
1
1
1
1
(4)
Main Frame / 本體組裝
Bag C+D
SET SCREW, M3x20
無頭內六角螺絲, M3x20
TORX SCREW, M3x8
星型低頭螺絲, M3x8
SINK SOCKET SCREW , M3x8
沈頭內六角螺絲, M3x8
(2)
(5)
(5)
(1)
(2)
(6)
(6)
(12)
(8)
(10)
(11)
(9)
(8)
(5)
(5)
(6)
(7)
(3)
(6)
(8)
The flat surface of the Block
always goes toward the
inner side (Main Gear).
軸承座上平面一側朝內（朝向
主齒盤）。
Upper
Lower
Secure all screws & Washer Mount shown on this page with a drop of threadlocker.
本頁顯示之螺絲及控制臂軸承座請使用適量防鬆膠鎖固。
The larger hole
always goes toward
the inner side.
請注意螺絲鎖固孔徑
較大者朝內。

-11-
No.
1
2
3
4
5
6
7
QtyDescription 名稱
金屬升降舵控制臂
升降舵連接座
滾珠軸承,
d2.5xD7xW3.5
內六角螺絲, M2.5x8
馬達齒輪(13T)
無頭內六角螺絲, M4x4
馬達固定座
ELEVATOR CONTROL ARM
ELEVATOR CONTROL ARM LINK
BEARING, d2.5xD7xW3.5
SOCKET SCREW, M2.5x8
MOTOR PINION-13T
SET SCREW, M4x4
MOTOR MOUNT
1
1
2
2
1
2
1
Main Frame / 本體組裝
Bag D
No.
8
9
10
11
12
13
QtyDescription 名稱
馬達齒輪固定座
機身固定柱(32mm)
無頭內六角螺絲, M3x20
接收機承座補強板
星型低頭螺絲, M3x8
沈頭內六角螺絲, M4x8
MOTOR PINION BLOCK
CANOPY RETAINING POST(32mm)
SET SCREW, M3x20
RADIO TRAY BRACKET
TORX SCREW, M3x8
SINK SOCKET SCREW, M4x8
1
2
2
1
29
4
The flat surface of the Block
always goes toward the top.
軸承座上平面一側朝上。
Bearing / 軸承
Block / 固定座
Side View
側視圖
(12) (11)
(9)
(8)
(10)
(12)
(1)
(2) (4)
(3)
(3)
(4)
(10)
(9)
(12)
TORX SCREW, M3x8
星型低頭螺絲, M3x8
SET SCREW, M3x20
無頭內六角螺絲, M3x20
SET SCREW, M4x4
無頭內六角螺絲, M4x4
BEARING, d2.5xD7xW3.5
滾珠軸承, d2.5xD7xW3.5
SOCKET SCREW , M2.5x8
內六角螺絲, M2.5x8
Applicable to a M4x30mm, M4x25mm, or
M3x25mm motors with 4 setting screws
installation. 6.0mm/0.236” diameter
motor shaft as standard and 38mm/1.496”
long shaft is recommended.
可適用M4x30mm, M4x25mm或M3x25mm
鎖固孔位馬達。原廠馬達齒及馬達齒輪固定座
可裝配6.0mm/0.236” 軸心馬達，建議馬達軸
心長度為38mm/1.496”。
(5)
(7)
(6)
(13)
(6)
Secure all screws shown on this page with a drop of threadlocker.
本頁顯示之螺絲請使用適量防鬆膠鎖固。
Apply threadlocker
使用螺絲防鬆膠
Must be purchased
separately
改裝品需另購
Ensure smooth, non-binding movement when assembling
確認組件靈活度
The larger hole goes
toward the swashplate.
較大孔面朝十字盤。
SINK SOCKET SCREW, M4x8
沈頭內六角螺絲, M4x8

-12-
No.
1
1-1
1-2
1-3
1-4
QtyDescription 名稱 No.
1-5
1-6
2
3
4
QtyDescription 名稱
MAIN GEAR SET
MAIN GEAR, 128T
TAIL DRIVE PULLEY, 111T
ONE WAY BEARING SHAFT
C-CLIP, #16
SOCKET SCREW, M2.5x6
ONE WAY CLUTCH HOUSING
SOCKET SCREW, M4x6
MAIN SHAFT LOCK RING
SOCKET SCREW, M3x6
主齒輪組
主齒輪(128T)
尾驅動輪(111T)
單向離合器軸
C型扣環, #16
內六角螺絲, M2.5x6
單向離合器座
內六角螺絲, M4x6
主軸止檔
內六角螺絲, M3x6
1
1
1
1
1
8
1
2
1
2
(4)
(4)
(3)
Secure all screws shown on this page with a drop of threadlocker.
本頁顯示之螺絲請使用適量防鬆膠鎖固。
Apply threadlocker
使用螺絲防鬆膠

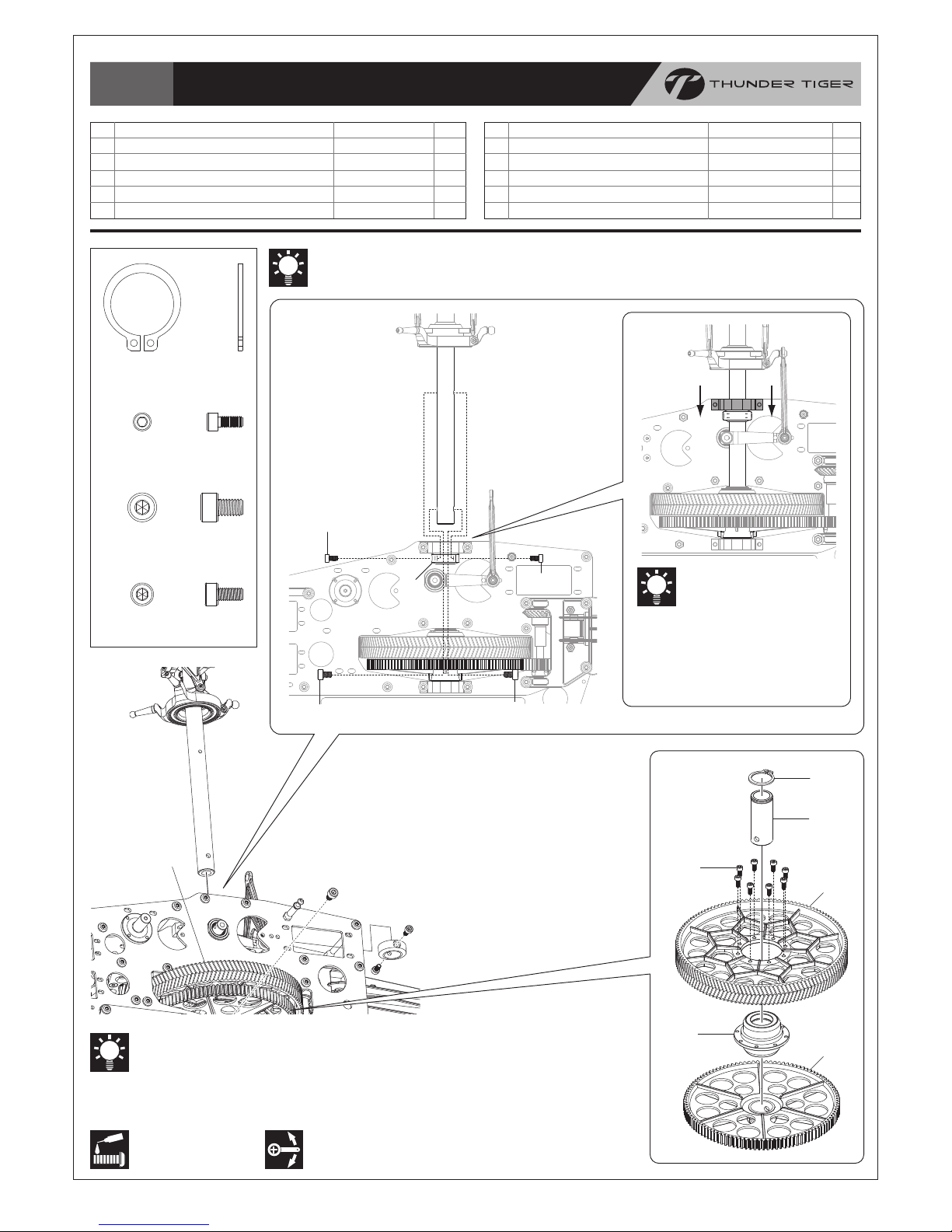

Main Gear Set / 主齒輪組組裝
Bag E
SOCKET SCREW, M2.5x6
內六角螺絲 , M2.5x6
SOCKET SCREW, M3x6
內六角螺絲, M3x6
SOCKET SCREW, M4x6
內六角螺絲, M4x6
C-CLIP, #16
C型扣環, #16
(2)
(1)
(2)
(1-4)
(1-6)
(1-5)
(1-1)
(1-3)
(1-2)
Line up the holes of the Autorotation Tail Drive Gear, One Way Bearing Shaft
& Main Shaft, and then insert the Socket Screw to fix. Add a drop of
threadlocker when securing, but do not over tighten.
對正尾驅動齒、單向軸套及主軸上孔位後，鎖入內六角螺絲，並使用適量防鬆劑固定。
注意！請勿過度緊迫螺絲。
Lower the Upper Main Shaft
Bearing Block to eliminate the
play after securing all screws.
鎖固定位螺絲後，將上主軸軸承座
下壓以消除間隙。
Ensure smooth, non-binding movement when assembling
確認組件靈活度

-13-
LANDING SKID BRACE
SKID PIPE
SKID PIPE END CAP
腳架
底座圓管
圓管塞
2
2
4
No.
1
2
3
QtyDescription 名稱
SOCKET SCREW, M3x12
SET SCREW, M4x5
No.
4
5
QtyDescription
4
4
名稱
內六角螺絲, M3x12
無頭內六角螺絲, M4x5
Apply threadlocker
使用螺絲防鬆膠
Landing Skid / 腳架組組裝
Bag F
SOCKET SCREW, M3x12
內六角螺絲, M3x12
SKID PIPE END CAP
圓管塞
SET SCREW, M4x5
無頭內六角螺絲, M4x5
(5)
(4) (1)
(2)
(3)
(3)
(4)
(1)
(5)
(5)
(5)
Secure all screws shown on this page with a drop of threadlocker.
本頁顯示之螺絲請使用適量防鬆膠鎖固。
Assemble left and right
side the same way
左右側組件相同

-14-
Apply threadlocker
使用螺絲防鬆膠

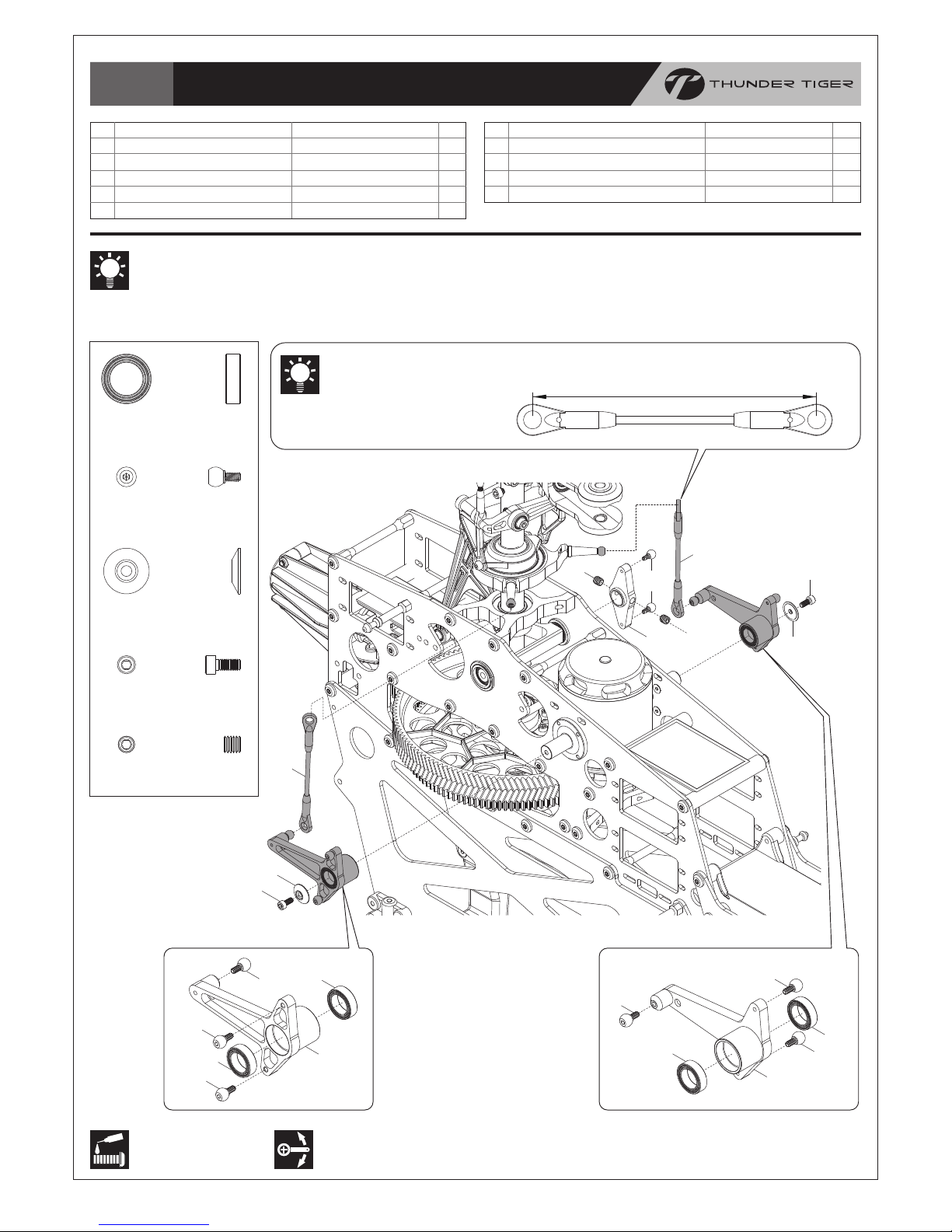

Control Arm Set / 控制臂組組裝
(7)
(9)
Bag F
No.
1
2
3
4
5
Qty No.
6
7
8
9
QtyDescription
CONTROL LEVER-L
CONTROL LEVER-R
BEARING, d8xD12xW3.5
LINKAGE BALL(A)
WASHER
Description
SOCKET SCREW, M2.5x6
LINKAGE ROD SET(68.57mm)
ELEVATOR CONTROL LEVER
SET SCREW, M4x4
名稱
金屬側轉控制臂(左)
金屬側轉控制臂(右)
滾珠軸承,
d8xD12xW3.5
內六角連接頭螺絲(A)
墊圈
名稱
內六角螺絲, M2.5x6
連接桿組(68.57mm)
金屬升降舵控制搖臂
無頭內六角螺絲, M4x4
1
1
4
8
2
2
2
1
2
SET SCREW, M4x4
無頭內六角螺絲, M4x4
LINKAGE BALL(A)
內六角連接頭螺絲(A)
BEARING, d8xD12xW3.5
滾珠軸承, d8xD12xW3.5
WASHER
墊圈
SOCKET SCREW, M2.5x6
內六角螺絲, M2.5x6
The length of the Linkage
Rod Set is fixed (68.6mm)
and to adjust is unnecessary.
此處連桿長度固定為68.6mm，
長度無需進行調整。
Scale=1:1 (unit:mm)
68.6 (Fixed Length)
(7)
(6)
(5)
(6)
(4)
(2)
(5)
(4)
(4)
(4)
(4)
(4)
(3)
(3)
(3)
(3)
(1)
(8)
(4)
(9)
Secure all screws shown on this page with a drop of threadlocker.
本頁顯示之螺絲請使用適量防鬆膠鎖固。
Attach the Control Arm onto the Main Frames as drawing, and note the difference of Left & Right Control Arms.
參考圖示將控制臂裝上側板上，請注意左、右邊方向性。
x2
Ensure smooth, non-binding movement when assembling
確認組件靈活度

-15-
1. Note the orientation of the Thrust Bearings; please refer
page 6, Diagram for Thrust Bearing Assembly.
2. Line up the concave of Tail Rotor Shaft and the hole of Hub
when securing the Tail Rotor Hub onto the Tail Rotor Shaft.
1. 請參考第 6 頁止推軸承安裝示意圖，注意安裝方向性。
2. 將尾旋翼固定座鎖上尾旋翼主軸時，請注意軸上凹槽需對正固定
座上螺絲孔。
METAL TAIL GRIP
WASHER, d7.5xD10xW0.3
WASHER, d5xD7.5xW0.3
THRUST BEARING, d5xD10xW4
BEARING, d5xD10xW4
TAIL ROTOR HUB
SET SCREW, M3x3
WASHER, d3xD7xW0.5
TORX SCREW, M3x8
TAIL PITCH CONTROL LINK
2
2
2
2
4
1
2
2
2
2
No.
1
2
3
4
5
6
7
8
9
10
QtyDescription 名稱
金屬尾旋翼轉座
墊片
, d7.5xD10xW0.3
墊片 , d5xD7.5xW0.3
止推軸承 , d5xD10xW4
滾珠軸承, d5xD10xW4
尾旋翼座
無頭內六角螺絲, M3x3
墊圈
, d3xD7xW0.5
星型低頭螺絲, M3x8
尾旋翼連接頭
SOCKET SCREW, M2x8
COLLAR, d2xD3xW4.2
PIN, ∅2 x19
E-CLIP, #1.5
TAIL ROTOR SHAFT
TAIL PITCH CONTROL FORK
TAIL PITCH SLIDER
BEARING, d6xD10xW3
TAIL PITCH SLIDER BUSHING
LINKAGE BALL(B)
2
2
2
2
1
1
1
2
1
1
No.
11
12
13
14
15
16
17
18
19
20
QtyDescription 名稱
內六角螺絲, M2x8
軸環
, d2xD3xW4.2
固定銷 , ∅2 x19
E型扣環 , #1.5
尾旋翼軸
尾旋翼控制座
尾旋翼滑座
滾珠軸承, d6xD10xW3
尾旋翼控制軸套
內六角連接頭自攻螺絲(B)
(13)
(7)
(7)
(11)
(12)
(14)
(10)
(6)
(1)
(5)
(2)
(4) (3)
(8)
(9)
(18)
(18)
(17)
(20)
(19)
(15)
(16)
Secure all screws shown on this page with a drop of threadlocker.
本頁顯示之螺絲請使用適量防鬆膠鎖固。
Tail Rotor System / 尾旋翼機構組裝
Apply threadlocker
使用螺絲防鬆膠
(5)
Bag G
WASHER, d7.5xD10xW0.3
墊片 , d7.5xD10xW0.3
WASHER, d5xD7.5xW0.3
墊片 , d5xD7.5xW0.3
THRUST BEARING, d5xD10xW4
止推軸承 , d5xD10xW4
BEARING, d5xD10xW4
滾珠軸承, d5xD10xW4
SOCKET SCREW, M2x8
內六角螺絲, M2x8
COLLAR, d2xD3xW4.2
軸環, d2xD3xW4.2
PIN, ∅2 x19
固定銷, ∅2 x19
E-CLIP, #1.5
E型扣環, #1.5
WASHER , d3xD7xW0.5
墊圈 , d3xD7xW0.5
SET SCREW, M3x3
無頭內六角螺絲, M3x3
TORX SCREW, M3x8
星型低頭螺絲, M3x8
LINKAGE BALL(B)
內六角連接頭自攻螺絲(B)
BEARING, d6xD10xW3
滾珠軸承, d6xD10xW3
Completed View
組裝完成
Assemble left and right
side the same way
左右側組件相同
Apply grease
使用潤滑油膏
Ensure smooth, non-binding
movement when assembling
確認組件靈活度

-16-
QtyDescription 名稱
1
2
2
1
1
1
1
1
1
1
2
No.
1
2
3
4
5
6
7
8
9
10
11
METAL TAIL UNIT HOUSING
FLANGE BEARING , d5xD13xW4
BEARING, d12xD18xW4
COLLAR, d16.5xD18xW6.83
COLLAR, d12xD13xW6.85
TAIL INPUT BEVEL-A(24T)
TAIL OUTPUT BEVEL-B(24T)
PIN, d2x12
SET SCREW, M3x4
TAIL LEVER BKT
SOCKET SCREW, M2.5x8
金屬尾座
凸緣軸承, d5xD13xW4
滾珠軸承, d12xD18xW4
尾座軸承間隔環
, d16.5xD18xW6.83
尾傘齒軸環 , d12xD13xW6.85
尾螺旋傘齒輪A(24T)
尾螺旋傘齒輪B(24T)
軸承滾針
, d2x12
無頭內六角螺絲, M3x4
金屬尾控制臂座
內六角螺絲, M2.5x8
Tail Rotor System / 尾旋翼機構組裝
Apply threadlocker
使用螺絲防鬆膠
No.
12
13
14
15
16
17
18
19
20
21
QtyDescription 名稱
TAIL PITCH CONTROL LEVER
BEARING, d4xD7xW2.5
WASHER, d3xD5xW0.5
COLLAR, d3xD4xW10
SOCKET SCREW, M3x14
LINKAGE BALL(B)
CARBON TAIL BLADE
LOCK NUT, M3
SOCKET SCREW, M3x20
WASHER, d5xD8xW0.15
尾旋翼控制桿
滾珠軸承, d4xD7xW2.5
墊片
, d3xD5xW0.5
軸環 , d3xD4xW10
內六角螺絲, M3x14
內六角連接頭自攻螺絲(B)
碳纖尾旋翼
止鬆螺帽
, M3
內六角螺絲, M3x20
墊片, d5xD8xW0.15
1
2
1
1
1
1
2
2
2
1
Ensure the leading edges
of the blades are toward
correct side as shown.
請確認旋翼前櫞朝向正確方向(如圖示)。
Bag H
Apply grease
使用潤滑油膏
Ensure smooth, non-binding
movement when assembling
確認組件靈活度
BEARING, d12xD18xW4
滾珠軸承 , d12xD18xW4
FLANGE BEARING, d5xD13xW4
凸緣軸承 , d5xD13xW4
COLLAR, d16.5xD18xW6.83
尾座軸承間隔環 , d16.5xD18xW6.83
COLLAR , d12xD13xW6.85
尾傘齒軸環, d12xD13xW6.85
PIN, d2x12
軸承滾針, d2x12
SET SCREW, M3x4
無頭內六角螺絲 , M3x4
SOCKET SCREW, M2.5x8
內六角螺絲, M2.5x8
BEARING, d4xD7xW2.5
滾珠軸承, d4xD7xW2.5
WASHER , d3xD5xW0.5
墊片 , d3xD5xW0.5
LINKAGE BALL(B)
內六角連接頭自攻螺絲(B)
COLLAR, d3xD4xW10
軸環, d3xD4xW10
SOCKET SCREW, M3x14
內六角螺絲, M3x14
LOCK NUT, M3
止鬆螺帽, M3
SOCKET SCREW, M3x20
內六角半牙螺絲, M3x20
WASHER, d5xD8xW0.15
墊片, d5xD8xW0.15
Check the mesh of gears (#6 & #7), please add the
washer (#21) for a proper mesh if too much play.
請檢查齒輪間隙(#6及#7)，間隙過大時請酌加墊片(#21)。
(18)
(17)
(20)
(16)
(12)
(13)
(13)
(19)
(9)
(7)
(21)
(8)
(14)
(15)
(19)
(20)
Secure all screws shown on this page with a drop of threadlocker.
本頁顯示之螺絲請使用適量防鬆膠鎖固。
Apply some of silicon
oil or grease onto the
gears. (Using PV0269
Grease for Plastic Parts is
recommended.)
在傘齒輪上塗抹些許矽膠
油或塑膠零件潤滑油
(推薦使用PV0269塑膠
零件潤滑油)。
(11)
(6)
(10)
(3)
(1)
(2)
(2)
(4)
(5)
(3)

-17-
No.
1
2
3
4
5
6
7
8
9
10
QtyDescription
TAIL DRIVE SHAFT
TAIL DRIVE SHAFT BRG
LOCK NUT, M2.5
TAIL DRIVE SHAFT LINKER
SOCKET SCREW, M2.5x12
TAIL BOOM
TORX SCREW, M3x8
CARBON VERTICAL FIN
TAIL STOPPER
SOCKET SCREW, M3x8
名稱
尾驅動軸
尾驅動軸軸套組
止鬆螺帽, M2.5
尾驅動連接棒
內六角螺絲, M2.5x12
尾管
星型低頭螺絲
, M3x8
碳纖垂直安定面
尾管止擋塊
內六角螺絲, M3x8
1
2
2
2
2
1
2
1
1
2
No.
11
12
13
14
15
16
17
18
19
QtyDescription
TAIL SUPPORT BRACKET
SOCKET SCREW, M3x10
ROD GUIDE
SELF TAPPING SCREW, M2x8
TAIL SUPPORT ROD
TAIL SUPPORT ROD END
BATTERY POST
SOCKET SCREW, M3x12
BUTTON HEAD SOCKET SCREW , M3x6
名稱
尾管固定座
內六角螺絲, M3x10
推拉桿固定環
自攻螺絲, M2x8
尾管支撐架
尾管支撐架接頭
電池盒支柱
內六角螺絲, M3x12
半圓頭內六角螺絲, M3x6
1
2
3
7
2
4
1
2
1

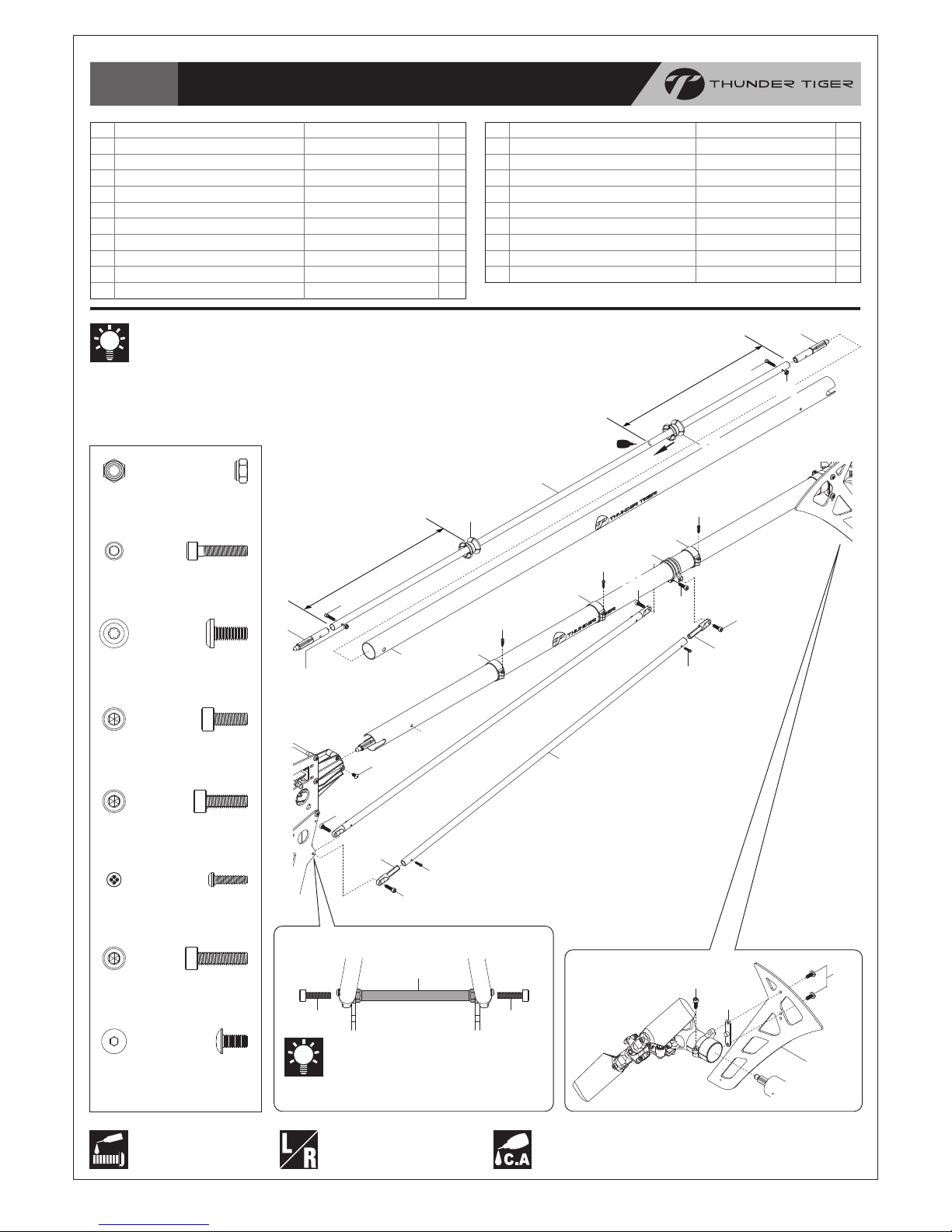

Tail Unit / 尾部總成組裝
Bag I+J
SOCKET SCREW, M3x10
內六角螺絲, M3x10
SOCKET SCREW, M3x8
內六角螺絲, M3x8
SOCKET SCREW, M2.5x12
內六角螺絲, M2.5x12
BUTTON HEAD
SOCKET SCREW, M3x6
半圓頭內六角螺絲, M3x6
TORX SCREW, M3x8
星型低頭螺絲, M3x8
SELF TAPPING SCREW, M2x8
自攻螺絲, M2x8
LOCK NUT, M2.5
止鬆螺帽, M2.5
SOCKET SCREW, M3x12
內六角螺絲, M3x12
Secure the screws into the Frame
Spacer when attaching the Tail Boom
Support End on the Main Frames.
安裝尾管支撐桿於側板上時，請注意需將
鎖固螺絲鎖固於六角固定支柱上。
(17)
Rear View 後視圖
(18) (18)
Apply C.A Glue
使用快乾膠黏合
Apply threadlocker
使用螺絲防鬆膠
Assemble left and right
side the same way
左右側組件相同
(10)
(9)
(8)
(7)
240mm/9.45”
(4)
(3)
(5)
(2)
(1)
C.A
(4)
(6)
240mm/9.45”
(2)
(3)
(5)
(13)
(14)
(13)
(13)
(19)
(11)
(10)
(16)
(16)
(12)
(18)
(14)
(14)
(15)
(14)
(12)
(18)
(14)
Add a drop of thin CA glue on the Tail Drive Shaft next to where the
bearing should be, and then slide the bearings over the position quickly;
the distance from the Shaft Drive End to the Rubber Shaft Bearing
Support is approx. 240mm / 9.45”.
在尾傳動軸上軸承固定位置前方，塗抹少量快乾膠，迅速滑動軸承至定位固定；
該定位大約距離軸傳動接頭240mm / 9.45”處。

-18-
Servo Installation / 伺服機裝配
Bag K
Apply threadlocker
使用螺絲防鬆膠
Must be purchased separately
改裝品需另購
No.
1
2
3
4
5
6
7
8
QtyDescription
名稱
連接球座
伺服機墊片
伺服機螺帽
伺服機固定片
伺服機固定座
伺服機擺臂軸套
伺服機擺臂
尾舵伺服機擺臂
LINK BALL
SERVO MOUNTING
SERVO NUT
SERVO MOUNTING
SERVO BED
SERVO HORN COLLAR
SERVO HORN
RUDDER SERVO HORN
6
6
6
2
2
4
3
1
No.
9
10
11
12
13
14
15
QtyDescription
名稱
內六角連接頭螺絲(A)
無頭內六角螺絲, M3x3
內六角螺絲, M2.5x6
半圓頭內六角螺絲
, M3x5
扁圓自攻螺絲(粗) , M2.6x10
扁圓自攻螺絲(粗) , M2.6x14
星型低頭螺絲 , M3x8
LINKAGE BALL(A)
SET SCREW, M3x3
SOCKET SCREW, M2.5x6
BUTTON HEAD SOCKET SCREW, M3x5
BUTTON PHILLIPS TAPPING SCREW, M2.6x10
BUTTON PHILLIPS TAPPING SCREW, M2.6x14
TORX SCREW, M3x8
1
4
4
4
4
12
4
The adaptors come with the kit are applicable to ACR RC /
Futaba servos as standard parts. The option adaptors for JR or
Hitec are also available separately:
內附標準伺服機擺臂軸套適用於ACE RC及Futaba伺服機。
JR或Hitec伺服機使用之軸套可另外購買：
No.PV1623-J Servo Horn Adaptor for JR 伺服機擺臂軸套, JR
No.PV1623-H Servo Horn Adaptor for Hitec 伺服機擺臂軸套, Hitec
LINK BALL
連接球座
LINKAGE BALL(A)
內六角連接頭螺絲(A)
BUTTON PHILLIPS
TAPPING SCREW
, M2.6x10
扁圓自攻螺絲(粗) , M2.6x10
BUTTON PHILLIPS
TAPPING SCREW , M2.6x14
扁圓自攻螺絲(粗) , M2.6x14
TORX SCREW, M3x8
星型低頭螺絲, M3x8
SET SCREW, M3x3
無頭內六角螺絲, M3x3
SOCKET SCREW, M2.5x6
內六角螺絲, M2.5x6
(1)
(2)
(14)
(6)
(11) (7)
(10)
(12)
Do not tighten the screw #11 & #10 at
this step for preforming servo of
calibations later.
螺絲#11 & #10暫勿鎖緊以
便後續中立點調整。
(2)
(3)
(3)
(15)
(13)
(4)
(4)
(1)
(7)
(6)
(11)
(10)
(5)
(5)
(12)
(13)
(6)
(2)
(2)
(9)
(8)
(3)
(3)
(11) (14)
(12)
(14)
(10)
BUTTON HEAD
SOCKET SCREW, M3x5
半圓頭內六角螺絲, M3x5

-19-
No.
1
2
3
QtyDescription 名稱 No.
4
5
6
QtyDescription 名稱
1. You may need to adjust the linkage to ensure the blade tracking. Please refer page 27 : Blade Tracking Adjustment.
2. Install the main blades with the Socket Screw. Do not over tighten and ensure the blades run effortlessly.
3. For safety the rpm of using carbon blades should not exceed 2,300.
1. 您可能必需調整相關的連桿來確保旋翼旋轉軌跡正常。請參閱第27頁〝主旋翼軌跡調整〞說明。
2. 以內六角螺絲安裝上主旋翼。請勿過度鎖緊。
3. 安全起見，碳纖維主旋翼轉速請勿超過2,300rpm。
TAIL LINKAGE ROD
LINKAGE ROD
BALL LINK
尾推拉桿
連接桿
單頭連接桿
1
6
2
主旋翼墊片
內六角螺絲, M5x35
止鬆螺帽, M5
2
2
2
Linkage Rod & Main Rotor Blade / 連桿及主旋翼組裝
Bag
J+KP1
Must be purchased separately
改裝品需另購
ROTOR SPACER
SOCKET SCREW, M5x35
LOCK NUT, M5
(4)
(4)
(3)
(3)
(6)
(6)
(5)
(1)
LOCK NUT, M5
止鬆螺帽, M5
SOCKET SCREW, M5x35
內六角螺絲, M5x35
Scale=1:1 (unit:mm)
70.95(Fixed Length)
x6
The length of the Linkage Rod Set is fixed
(70.95mm) and to adjust is unnecessary.
此處連桿長度固定為70.95mm，長度無需進行調整。
(2)
(2)
(2)
