MOVING HEAD BEAM THUNDERBOLT FL-200
Instruction Manual

www.flash-butrym.pl
Content
1. Instruction----------------------------------------------------------------------------------------------------------------------------2
1.1 Application According to Purpose---------------------------------------------------------------------------------------------------------------------2
1.2 Safety and Maintenance----------------------------------------------------------------------------------------------------------------------------------2
1.3 Safety operation---------------------------------------------------------------------------------------------------------------------------------------------2
2. Lamp-----------------------------------------------------------------------------------------------------------------------------------3
2.1Replacing t e lamp----------------------------------------------------------------------------------------------------------- ------------------------------3
3. Supply Voltages, Mains Cord and Connection to Mains-------------------------------------------------- ------------------------------3
4 Housing---------------------------------------------------------------------------------------------------------------------------------4
5 Operating Environment-----------------------------------------------------------------------------------------------------------5
6. Installation---------------------------------------------------------------------------------------------------------------------------5
7. Operation-----------------------------------------------------------------------------------------------------------------------------6
7.1 Controls-----------------------------------------------------------------------------------------------------------------------------6
7.2 Navigation in t e Menu------------------------------------------------------------------------------------------------------------6
7.3 DMX Protocol-----------------------------------------------------------------------------------------------------------------------7
8. Fuse-------------------------------------------------------------------------------------------------------------------------------------9
9. Maintenance and cleaning-------------------------------------------------------------------------------------------------------9
10. Tec nical information---------------------------------------------------------------------------------------------------------10
More information, please visit our website: www.flash-butrym.pl.
Information under this manual subjects to update without prior advice.
Please read this manual carefully before operating the products.

www.flash-butrym.pl
Congratulations on purchasing this Beam 190
Thank you for extending your trust in our technology!
For reasons of safety and approval (CE) the personal reconstruction and/or modification of this product is prohibited. Please
observe that damage caused by modifications performed manually to this device is not covered by the warranty.
This product leaves our works in a perfect condition. Please observe all notes in these operating instructions to warrant this
condition and the safe operation of the product!
Any damage caused as a result of the non-compliance with these operating instructions leads to the expiration of any warranty
claim. The manufacturer does not accept liability for any damage to property or for personal injury resulting from the improper
handling of the product, or non-observance of the operating instructions.
Store these operating instructions in a safe place for later reference and pass them to any new holder when selling or lending or
leaving this device in the hands of any other party.
1. Instruction
1.1. Application According to Purpose
This product is a lighting effect which creates special light effects with one lamp. To generate these effects, the product must be
connected to mains and a DMX-512 compatible controller.
This product is designed for 230V, 50Hz A/C operation and exclusively for indoor use.
If used for any purpose other than described in these operating instructions, the device may suffer damage and the warranty
expires. Also, any other use is linked with risks such as short circuits, fire, electrical shock, etc.
The manufacturer's serial number must never be removed as otherwise the warranty expires.
1.2. Safety and Maintenance
Indoor use only
Make sure the equipment load-bearing structures can withstand the weight of more than 10 times when above ground
installation
Disconnect with power supply before replacing lamp, fuse or other accessories
Only operation under electrical standards with leakage protection device A/C
Cool down for 15 mins before replacing lamps. Please do not use other company's accessories.
Contact your specialized dealer for any technical problem
1.3. Safety operation

www.flash-butrym.pl
Do not operate without outer cover or lenses
Do not look directly to the light
Replace immediately when lamp broken
Do not project directly to items near 0.5M
Do not operate when temperature up to 40°C
2. Lamp
ATTENTION:
DANGER OF LIFE! RISK OF BURNS!
RISK OF FIRE!
During operation, the lamps will reach temperatures of up to 600°C. Touching the lamps may cause serious burns! Objects coming
into contact with the lamps during and shortly after operation may catch fire!
2.1 Replacing the lamp
a. Disconnect the product from mains prior to installing or before changing a lamp! Allow a lamp to cool for approx. 15 minutes
before exchanging it!
b. After make sure projector cool down, take off the four screws in the head cover, then take off the fans from the projector.
c. Take the new lamp out of its package and insert in the fitting.
WARNING: Do not touch the lamp’s envelope with bare hands. Should this happen, clean the bulb with a cloth soaked in alcohol
and dry it with a clean, dry cloth.
Never touch a lamp with bare hands! If damaged or deformed, a lamp must be exchanged!
d. When exchanging the lamp be sure to use suitable lamps only. Lamps with greater performance generate excessive heat for the
product; risk of fire! Damage resulting from the use of an unsuitable lamp is exempt from warranty!
e. Never connect the lighting effect to the mains prior with opened housing.
f. After changing lamps, well connected the cables, fans, otherwise will damage the parts inside.
3. Supply Voltages, Mains Cord and Connection to Mains
ATTENTION:
DANGER OF LIFE!
RISK OF FIRE! RISK OF SHORT CIRCUIT!
The handling of supply voltage, mains cords and connections to mains calls for particular care considering the risk from a
life-threatening electric shock, the risk of fire and the risk of short circuits! Please observe the following notes in particular:

www.flash-butrym.pl
Products operating on supply voltage should be kept out of the reach of children. Therefore ensure the permanent supervision if
children are in the immediate vicinity of the product!
For commercial facilities the regulations on the prevention of accidents of the respective trade association must be observed. The
operation of this equipment at schools, training facilities, and hobby or self-help workshops must be supervised responsibly by
trained personnel.
Check the product regularly for any damage to the mains cord! Should you discover any damage to the mains cord, do not operate
or disconnect this product! Secure the product against accidental operation and contact your specialized dealer!
Always separate the product from mains by holding the mains plug by the handling surface. Never disconnect by holding the line
cord! Be sure to connect the product exclusively to 230 V, 50 Hz A/C!
Always ensure during installation, operation, transport and when storing the product that the mains cord is not exposed to possible
mechanical damage, or damage caused by humidity, fluids, heat or cold!
The product's cable entry must not be exposed to stress from pull! Create the mains connection once the product has been
installed only. Always connect the mains plug last!
The product must only be connected to a proper outlet of the public supply grid. Connect the mains cord to suitable outlets only!
Use extensions cords in compliance with specifications only! Do not allow the mains cord to come into contact with other cords!
Ensure during installation, operation, transport and storage that none of the cables are freely exposed! Never touch the mains cord,
mains plug and outlets with wet or damp hands!
When not using the product, and prior to cleaning always disconnect the product from mains! To do so, hold the mains plug by the
handling surface and never pull the mains cord!
Never connect the device to dimmer packs!
4 Housing
ATTENTION:
DANGER OF LIFE! RISK OF BURNS!
RISK OF FIRE! RISK OF SHORT CIRCUIT!
Always ensure during installation, operation, transport and when storing the product that no shocks or other forces impact the
housing!
The housing must not touch onto any other devices or objects during operation!
Easily flammable materials, e.g. decoration material and other surfaces and objects, must maintain a minimum distance of 3m to
the housing! Walls must maintain a minimum distance of 50cm to the housing! The device must be installed on a fireproof surface
only (no carpet)! Always ensure a proper circulation of air.
Do not touch the housing during operation - it will heat up. The housing is safe to touch approx. 5 minutes following the end of
operation!
The device must never be carried via the projector arms. Use the carrying handles only!
Fluids must not enter the housing as this could reduce the protective insulation and may trigger short circuits which may lead to
fatal electric shocks! If fluids have entered, disconnect the mains plug immediately and secure the product against unintentional
operation and contact your specialized dealer! Damage caused as a result of fluids entering the housing is exempt from warranty.

www.flash-butrym.pl
No metal parts or other items must enter the housing as this may reduce the protective insulation or trigger short circuits which may
lead to fatal electric shocks! If metal parts or other items have entered, disconnect the mains plug immediately, secure the product
against unintentional operation and contact your specialized dealer! Damage caused by metal parts or other items in the housing is
exempt from warranty.
5 Operating Environment
ATTENTION:
DANGER OF LIFE! RISK OF BURNS!
RISK OF FIRE! RISK OF SHORT CIRCUIT!
The product must be operated and stored in a dry environment only! Splash water, rain, humidity, fog may reduce the protective
insulation which may lead to fatal electric shocks! The limit value for relative humidity is 50% at 45°C. A minimum distance of 1.5m
to a fog machine must be observed; fog saturation in the room must not reduce the visibility to below 10m.
The product must be operated at a temperature range of between -5 °C and 45 °C only. Protect the product against direct exposure
to sunlight or other heat, such as from radiators! If the product is taken from a cold environment into a warm environment it must
only be taken into operation once it has reached ambient temperature, since the condensation created by the difference in
temperature may destroy the device!
Protect the product against dust! Dust may reduce the protective insulation, which may cause fatal electric shocks!
The product must be operated at altitudes ranging between 20m below and 3000m above sea level only!
The product must not be operated during thunder storms; risk of destruction from surge voltages!
The product must be operated at a minimum distance of 12 m to lit objects only!
6. Installation
ATTENTION:
DANGER OF LIFE!
This product can be operated suspended or as a stand-alone system.
Should your lighting effect show any signs of damage, do not install the device! In this case, have your lighting effect repaired by
your specialized dealer. The manufacturer does not accept responsibility or liability for damage to property or personal injury
resulting from an improperly installation!
As a stand-alone system the device must be installed vertically on an absolute planar, firm, fireproof, shock- and vibration-free
surface. The installation of this lighting effect must be carried out by trained and professional staff! The installation of this lighting
must only be carried out with the appropriate materials!
The suspended installation of this lighting effect necessitates a suitable suspension system! The lighting effect must never be fixed
swinging freely in the room. No individuals should linger underneath the lighting effect during suspended installation!
It is a must to install this device with a second independent fixture. Such second fixture must guarantee in the event of failure of the
main fixture that no assembly parts will fall down. Use the fixture on the undersurface only.

www.flash-butrym.pl
The light effect unit must be attached via two certified hooks and omega bracket to a tie-bar system. Use the screw threads on the
undersurface only.
It must be ensured that an expert inspects the mechanical and safety-relevant installation prior to the initial operation and following
major modifications, prior to the renewed operation. It must be ensured that an expert inspects the mechanical and safety-relevant
installation at least once a year. It must be ensured that an expert inspects the mechanical installation and the installation of
relevance to safety within the framework of an acceptance test at least every four years.
The installation fixture must be as such that it can withstand for a period of 60 minutes 10 times the load capacity without harmful
deformation.
It is prohibited for any individual to unnecessarily stay or pass beneath the installation during any type of assembly work.
The light effect unit must be secured by a safety arrester cable if fly-mounted. The cable must withstand 12 times the weight of the
light effect unit. Use arrester cables equipped with quick closing links. The dropping distance must not exceed 20 cm. Defect
arrester cables or arrester cables that have already been exposed to stress must not be used.
7. Operation
ATTENTION:
RISK OF HEALTH!
7.1 Controls

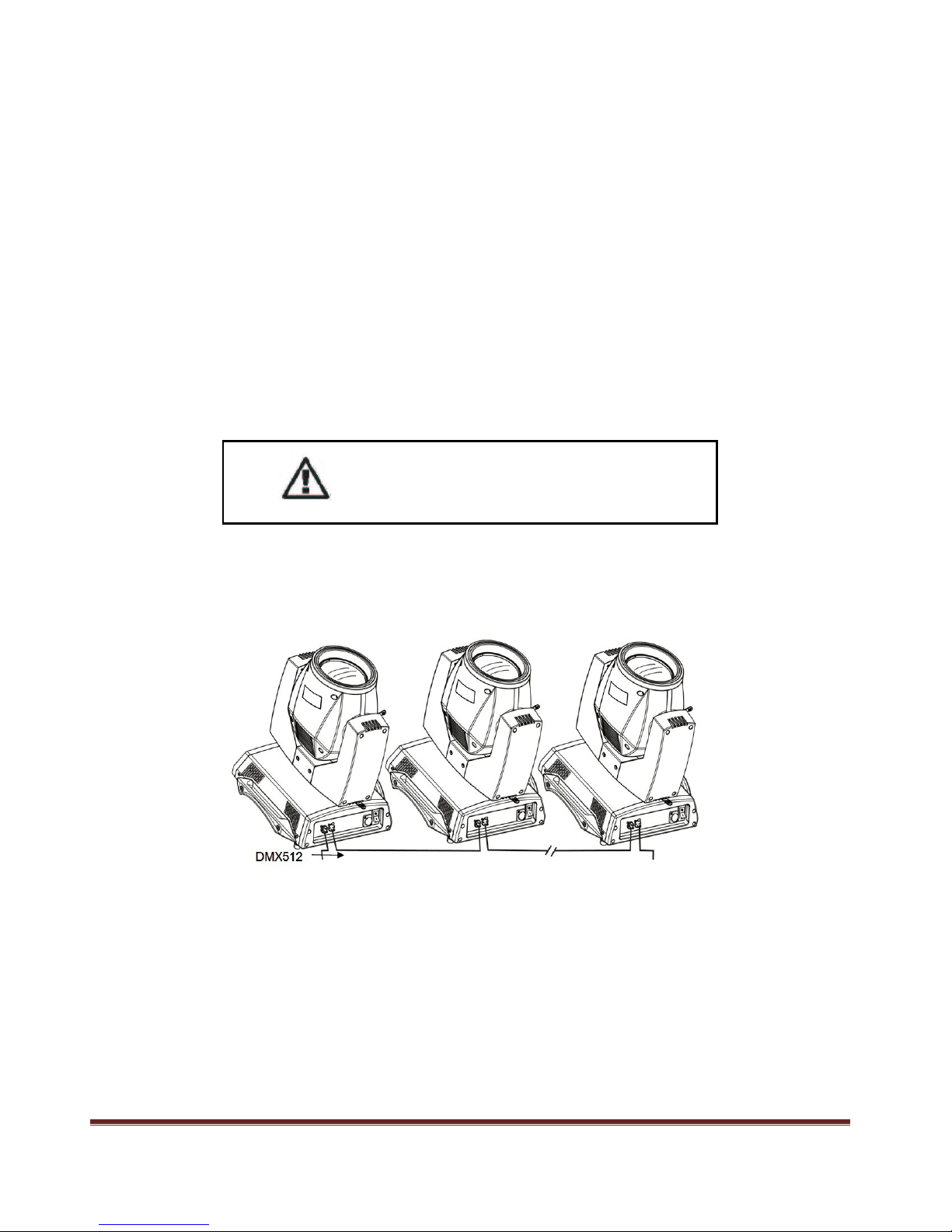

Link all DMX devices with a DMX-512 controller by using a standard, 3-pin DMX cable or 5-pin DMX cables.Connect the output of
the first device with the input of the second device and the output of the second device with the input of the third device and so on.
Connect the mains plug to an outlet.
Operating the product for the first time may generate smoke and odour; this is not a defect. Avoid dis/connecting the product
repeatedly and quickly from/with mains! Always wait 15 minutes prior to the next dis/connection!
7.2 Navigation in the Menu
The display control board is controlled by roller, you could simply control by roller selection, press “ENTER” by comfirmtion.
After well connect with power, LCD display will be displayed as following:

www.flash-butrym.pl
7.3 Menu setting
The device starts not until a self-testing and starting time. If the moving head is ready to start, push and roll the function wheel. The
LCD display shows the options, as below:
7.4 DMX Protocol
Control-channel 1 - Pan movement
DMX Value Feature
0 255 0-540°pan movement
Control-channel 2 - Tilt movement
DMX Value Feature
0 255 0-280°tilt movement
Control-channel 3 - Pan/tilt speed
Display Function Menu settings
ADDR 001—512 Setting DMX address
Pan rev
YES
Setting Pan reverse
NO
Tilt rev YES Setting Tilt reverse
NO
RSLTN 16 bit Setting Resolution
8 bit
Motor adj
X （-30-+30）
Motor adjustment
Y （-30-+30）
Color （-30-+30）
Gobo （-30-+30）
Mode
DMX DMX operator model
Running mode
MUSIC Sound control model
AUTO automatic model
SLAVE Master/Slave model
Reset YES Reset
NO
EXIT EXIT MENU Exit
LCD DISPLAY
DMX
Addr
：
：：
：
001
Model
SELECT/ENTER
YOUR BRAND

www.flash-butrym.pl
DMX Value Feature
0 255 Pan/tilt speed from fast to slow
Control-channel 4 -Strobe
DMX Value Feature
0 19 No function
20 39 Open
40 89 Strobe, from slow to fast
90 139 Strobe effect, open increasing
140 189 Strobe effect, close decreasing
190 239 Random strobe, from slow to fast
240 255 Open
Control-channel 5 – Dimming
DMX Value Feature
0 255 0-100% dimming
Control-channel 6 – Lamp on/off，
，，
，shutter off
DMX Value Feature
0 9 No function
10 19 Shutter off when pan movement
20 29 Shutter off when tilt movement
30 39 Shutter off when color wheel movement
40 49 No function
50 59 Shutter off when pan, tilt and color wheel movement
60 199 No function
200 209 Lamp off after 5S
210 219 Lamp on after 5S
220 255 No function
Control-channel 7- Color wheel
DMX Value Feature
0 9 White
10 19 Red
20 29 Orange
30 39 Aquamarine
40 49 Green
50 59 Light green
60 69 Lavender
70 79 Pink
80 89 Yellow
90 99 Magenta
100 109 Cyan
110 119 CTO260
120 129 CTO290
130 139 CTO8000
140 149 Blue
150 214 White + 14 mixing color effect
215 234 Color wheel anti-clockwise rotation, from fast to slow, rainbow effect

www.flash-butrym.pl
235 255 Color wheel clockwise rotation, from slow to fast, rainbow effect
Control-channel 8 –Static Gobo wheel
DMX Value Feature
0 4 Blank
5 9 Gobo 1
10 14 Gobo 2
15 19 Gobo 3
20 24 Gobo 4
25 29 Gobo 5
30 34 Gobo 6
35 39 Gobo 7
40 44 Gobo 8
45 49 Gobo 9
50 54 Gobo 10
55 59 Gobo 11
60 64 Gobo 12
65 69 Gobo 13
70 74 Gobo 14
75 79 Gobo 15
80 84 Gobo 16
85 89 Gobo 17
90 94 Gobo 17 shaking, speed from slow to fast
95 99 Gobo 16 shaking, speed from slow to fast
100 104 Gobo 15 shaking, speed from slow to fast
105 109 Gobo 14 shaking, speed from slow to fast
110 114 Gobo 13 shaking, speed from slow to fast
115 119 Gobo 12 shaking, speed from slow to fast
120 124 Gobo 11 shaking, speed from slow to fast
125 129 Gobo 10 shaking, speed from slow to fast
130 134 Gobo 9 shaking, speed from slow to fast
135 139 Gobo 8 shaking, speed from slow to fast
140 144 Gobo 7 shaking, speed from slow to fast
145 149 Gobo 6 shaking, speed from slow to fast
150 154 Gobo 5 shaking, speed from slow to fast
155 159 Gobo 4 shaking, speed from slow to fast
160 164 Gobo 3 shaking, speed from slow to fast
165 169 Gobo 2 shaking, speed from slow to fast
170 174 Gobo 1 shaking, speed from slow to fast
175 179 White shaking, speed from slow to fast
180 255 Gobo wheel clockwise rotation, from fast to slow,flow effect
Control-channel 9 – Frost lens
DMX Value Feature
128 255 Frost lens
Control-channel 10 – Reset

www.flash-butrym.pl
DMX Value Feature
0 199 No function
200 209 Reset after 5S
210 255 No function
Control-channel 11 - Fine pan movement
DMX Value Feature
0 255 16-bit pan movement
Control-channel 12 - Fine tilt movement
DMX Value Feature
0 255 16-bit tilt movement
8. Fuse
ATTENTION:
DANGER OF LIFE!
Disconnect the product from the mains prior before changing a fuse.
Only replace the fuse by a fuse of same type and rating! An incorrect fuse could damage or destruct the lighting effect.
Replace a fuse by levering the fuse holder cover with an appropriate screwdriver. Remove the old fuse and place the fuse inside
the holder. Replace the fuse holder and insert it.
Never connect the lighting effect to the mains prior with opened housing.
9. Maintenance and cleaning
ATTENTION:
DANGER OF LIFE! RISK OF FIRE!
RISK OF SHORT CIRCUIT!
The product must be freed regularly from dust, other deposits and contamination as this may reduce the protective insulation,
which may lead to a fatal electric shock!
Before cleaning, always disconnect the product from mains!
This product should be cleaned with a moist cloth only; never use aggressive cleaning agents, solvents or benzine for cleaning.
Ensure that the product is completely dry before operating it again after cleaning!
10. Technical information
Voltage：
AC100-110V AC110-120V 50HZ
AC210-220V AC230-240 60HZ
√
√

www.flash-butrym.pl
Lamp：R5 200W
Color temperature：8000K
luminous flux：6600lm
Lamp life: 2000Hrs
Movement angle：
Pan=540°Tilt=280°
Movement speed：
Pan=5s Tilt=3s
Beam angle：
Pan=8°Tilt=8°
Signal:DMX512
Package size：
46.5×40.5×51cm
Net weight：14kg
Gross weight: 17kg
