TIDI Zero-Gravity ZGM-6-5H User manual

Uncrating Instructions
Original Translation Source is in English
ZGM-6-5H | ZGHSA | ZGCM-HSA | ZGCM-48 | ZGCM-66
Floor & Ceiling Mounted Units

Floor & Ceiling Mounted Units (82000)2
Zero-Gravity®Radiation Protection System Uncrating Instructions
Table of Contents
Important Information........................................................................................................................ 4
Read this Manual Before Starting to Work!.......................................................................................... 4
Zero-Gravity Document List ................................................................................................................ 4
System Identication............................................................................................................................ 5
Intended Use ...................................................................................................................................... 6
Zero-Gravity® Radiation Protection System ...................................................................................... 6
Foreseeable Misuse ........................................................................................................................... 6
Uncrating Instructions ......................................................................................................................... 6
System Description ............................................................................................................................ 7
Zero-Gravity Floor Unit (ZGM-6-5H) ................................................................................................... 7
Zero-Gravity Hinged Swing Arm Unit (ZGHSA) .................................................................................. 7
Zero-Gravity Monorail Hinged Swing Arm (ZGCM-HSA)..................................................................... 8
Zero-Gravity Monorail Unit (ZGCM-48 or ZGCM-66) ......................................................................... 8
Safety Symbols ..................................................................................................................................... 9
Document Safety Symbols ............................................................................................................... 10
Verify Components ............................................................................................................................ 12
Packing List – Floor Unit (ZGM-6-5H) .......................................................................................... 13
Figure 1.............................................................................................................................................. 13
Packing List – Ceiling Mounted Unit (ZGHSA).......................................................................... 14
Figure 2.............................................................................................................................................. 14
Packing List – Ceiling Mounted Unit (ZGCM-48 | ZGCM-66)................................................. 15
Figure 3.............................................................................................................................................. 15
Packing List – Ceiling Mounted Unit (ZGCM-HSA) .................................................................. 16
Figure 4.............................................................................................................................................. 16
Uncrating the System – Floor Unit (ZGM-6-5H) ........................................................................ 17
Open the Crate ................................................................................................................................. 17
Figure 5 ........................................................................................................................................... 17
Figure 6 .......................................................................................................................................... 18
Figure 7 .......................................................................................................................................... 18
Figure 8 .......................................................................................................................................... 18
Unpack the Contents ........................................................................................................................ 19
Figure 9 .......................................................................................................................................... 19
Figure 10 ........................................................................................................................................ 21
Figure 11 ........................................................................................................................................ 22
Figure 12 ........................................................................................................................................ 22
Figure 13 ........................................................................................................................................ 23
Uncrating the System – Ceiling Mounted Unit (ZGHSA) ...................................................... 24
Open the Crate ................................................................................................................................. 24
Figure 14 ........................................................................................................................................ 24
Figure 15 ........................................................................................................................................ 25
Unpack the Boom Arm Assembly ...................................................................................................... 26
Figure 16 ........................................................................................................................................ 26
Unpack the Drop Tube....................................................................................................................... 27
Figure 17 ........................................................................................................................................ 27

Zero-Gravity® Radiaon Protecon System Uncrang Instrucons 3
Floor & Ceiling Mounted Units ZGM-6-5H | ZGHSA | ZGCM-HSA | ZGCM-48 | ZGCM-66
Translations available on the TIDI Products website: https://www.tidiproducts.com/ifu
Oversættelser kan ndes på TIDI Products' websted: https://www.tidiproducts.com/ifu
Vertalingen beschikbaar op de website van TIDI Products: https://www.tidiproducts.com/ifu
Traductions disponibles sur le site Web de TIDI Products : https://www.tidiproducts.com/ifu
Übersetzungen sind auf der Website von TIDI Products verfügbar: https://www.tidiproducts.com/ifu
Traduzioni disponibili sul sito web di TIDI Products: https://www.tidiproducts.com/ifu
Tłumaczenia są dostępne w witrynie internetowej rmy TIDI Products: https://www.tidiproducts.com/ifu
Traduções disponíveis no site dos Produtos TIDI: https://www.tidiproducts.com/ifu
Traducciones disponibles en el sitio web de TIDI Products: https://www.tidiproducts.com/ifu
Unpack the Support Plate.................................................................................................................. 28
Figure 18 ........................................................................................................................................ 28
Unpack the Body Shield Assembly .................................................................................................... 29
Figure 19 ........................................................................................................................................ 29
Figure 20 ........................................................................................................................................ 30
Remove Balancer from Foam Cradle ............................................................................................... 30
Figure 21 ........................................................................................................................................ 30
Remove Boxes from Crate ............................................................................................................... 31
Figure 22 ......................................................................................................................................... 31
Uncrating the System – Ceiling Mounted Unit (ZGCM-48 | ZGCM-66 | ZGCM-HSA) .... 32
Open the Crate ................................................................................................................................. 32
Figure 23 ........................................................................................................................................ 32
Unpack Drop Tube (ZGCM-48 | ZGCM-66) ...................................................................................... 33
Figure 24 ........................................................................................................................................ 33
Unpack Body Shield .......................................................................................................................... 34
Figure 25 ......................................................................................................................................... 34
Figure 26 ........................................................................................................................................ 35
Figure 27 ......................................................................................................................................... 36
Figure 28 ........................................................................................................................................ 36
Figure 29 ........................................................................................................................................ 37
Figure 30 ........................................................................................................................................ 37
Unpack Boom Arm Assembly ........................................................................................................... 38
Figure 31 ........................................................................................................................................ 38
Unpack Rail Assembly and Swivel Boom Assembly ......................................................................... 38
Figure 32 (ZGCM-48 | ZGCM-66) .................................................................................................. 39
Figure 33 (ZGCM-HSA) .................................................................................................................. 39
Figure 34 ........................................................................................................................................ 40
Limited Warranty .............................................................................................................................. 41
Declarations of Conformity ........................................................................................................... 41

Floor & Ceiling Mounted Units (82000)4
Zero-Gravity®Radiation Protection System Uncrating Instructions
Important Information
Read this Manual Before Starting to Work!
This information is necessary for the safe and efcient operation of the equipment.
This document should be stored with, or in the immediate vicinity, of the unit.
Zero-Gravity Document List
● 81000 – Preventative Maintenance Checklist
●82000 – Uncrating Guide
●83000 – Installation Guide
●84000 – User’s Guide
Zero-Gravity® Radiation Protection System is a registered trademark of TIDI Products, Inc.
United States Patents 7,973,299; 8,207,516; 8,558,204; 8,598,554 B2; 8,925,553;
8,933,426
For U.S. and Foreign Patent information, see //go.tidiproducts.com/patents Additional
Patents Pending
The contents of this publication may not be reproduced, copied, or translated in whole or in
part without prior consent from TIDI Products.
Pursuant to continuous product improvement, TIDI Products reserves the right to change
the equipment design and technology at any time.
All rights under the copyright laws are expressly reserved by TIDI Products.
Within the bounds of the legal requirements, the manufacturer is only responsible for
the technical safety characteristics of this apparatus if the maintenance, repairs, and
modications to this apparatus are performed by TIDI Products or an approved TIDI
Products representative.
The Zero-Gravity® Radiation Protection System can also be referred to as Zero-Gravity or
Zero-Gravity System.
The Zero-Gravity Radiation Protection System is available in the following options:
Floor Unit (ZGM-6-5H)
Monorail (ZGCM-48 and ZGCM-66)
Hinged Swing Arm (ZGHSA)
Monorail Hinged Swing Arm (ZGCM-HSA)
This guide applies to Zero-Gravity Systems manufactured after November 2019. For
models prior to November 2019, some features may not apply. Contact TIDI Products
service for additional information.

Zero-Gravity® Radiaon Protecon System Uncrang Instrucons 5
Floor & Ceiling Mounted Units ZGM-6-5H | ZGHSA | ZGCM-HSA | ZGCM-48 | ZGCM-66
System Identication
The uncrating instructions in this document refer to the Zero-Gravity® Radiation Protection
System with the following identication:
●Manufactured for: TIDI Products, LLC
●Product name: Zero-Gravity® Radiation Protection System
●Type designation: Floor Unit (ZGM-6-5H), Hinged Swing Arm (ZGHSA), Monorail
Hinged Swing Arm (ZGCM- HSA), Monorail 48 (ZGCM-48) or 66 inches (ZGCM-66)
●Serial Number: See Identication Tag
●Sterile covers manufactured by: TIDI Products, LLC
●Authorized representatives: See Declarations of Conformity.
●Manufacture date: See Identication Tag
● Conforms to Annex II, Personal Protective Equipment (EU) Regulation 2016/425
Category III, and as brought into UK law and amended.
Manufactured for:
TIDI Products, LLC
570 Enterprise Drive
Neenah, WI 54956 USA
Phone: [phone]
+1.920.751.4300
www.tidiproducts.com
0086
NOTIFIED BODY APPROVED BODY
BSI Group The Netherlands B.V.
Say Building
1066 EP Amsterdam
The Netherlands
BSI Assurance UK Ltd
Kitemark Court,
Davy Avenue Knowlhill
Milton Keynes, MK5 8PP UK

Floor & Ceiling Mounted Units (82000)6
Zero-Gravity®Radiation Protection System Uncrating Instructions
Intended Use
Zero-Gravity® Radiation Protection System
See 84000 Users Guide for Intended Use
Foreseeable Misuse
Zero-Gravity®Radiation Protection System has risk and other foreseeable misuse
conditions that are identied in the Safety Symbols section of this document. Please read
this document in its entirety before using this equipment.
Uncrating Instructions
●This document is intended to provide guidance for the proper uncrating of
Zero-Gravity oor unit and is used to train personnel.
● It is essential that all personnel removing equipment from the crate read this
document, in its entirety, with special consideration to keywords and symbols.
●Particularly helpful information is italicized.
●Personnel removing equipment from the crate should refer to TIDI Products
document 82000 (Uncrating Instructions).
●Installers should refer to TIDI Products document 83000 (Installation Guide).
●Users should refer to TIDI Products document 84000 (User’s Guide).
●For additional information contact TIDI Products service at +1.920.751.4300.

Zero-Gravity® Radiaon Protecon System Uncrang Instrucons 7
Floor & Ceiling Mounted Units ZGM-6-5H | ZGHSA | ZGCM-HSA | ZGCM-48 | ZGCM-66

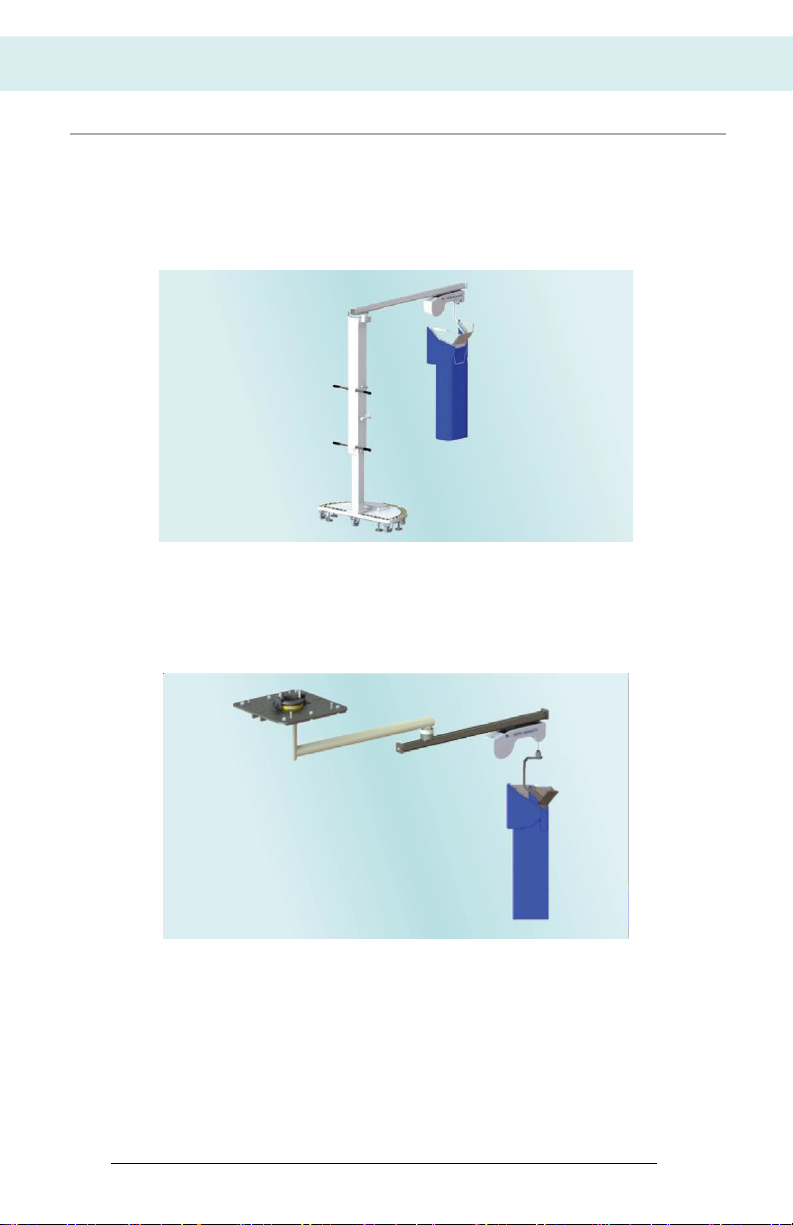

System Description

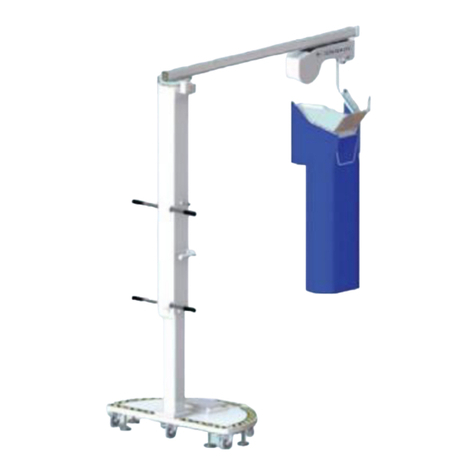

Zero-Gravity Floor Unit (ZGM-6-5H)
Features: Mobile unit with heavy base with casters and locks, variable-height mast, 48”
pivoting boom.
Zero-Gravity Hinged Swing Arm Unit (ZGHSA)
Features: Ceiling mounted central pivot-plate, swinging rigid arm, 48” lower track.

Floor & Ceiling Mounted Units (82000)8
Zero-Gravity®Radiation Protection System Uncrating Instructions

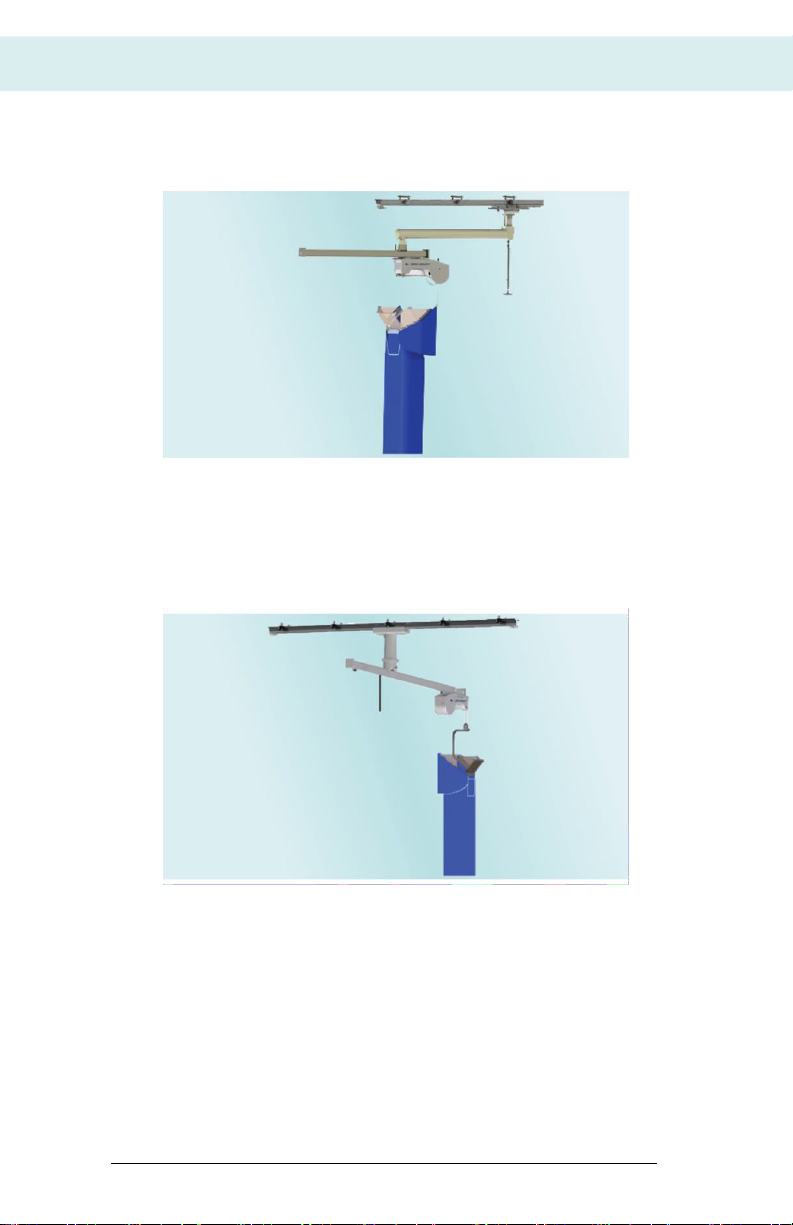

Zero-Gravity Monorail Hinged Swing Arm (ZGCM-HSA)
Features: Ceiling mounted upper track, central pivot on upper trolley with 48” lower track.
Zero-Gravity Monorail Unit (ZGCM-48 or ZGCM-66)
Features: Ceiling mounted upper track, (ZGCM-48) 48” lower track or (ZGCM-66) 66” lower
track.

Zero-Gravity® Radiaon Protecon System Uncrang Instrucons 9
Floor & Ceiling Mounted Units ZGM-6-5H | ZGHSA | ZGCM-HSA | ZGCM-48 | ZGCM-66
Safety Symbols
Important information in this document is marked with symbols and keywords. Keywords
such as WARNING, CAUTION, or ATTENTION indicate the level of risk involved. The
symbols emphasize the message visually.
WARNING!
Indicates a potentially hazardous
situation, which could result in a serious
risk of injury or death to patient or
operator and or damage to equipment
or property.
CAUTION!
Indicates a potentially hazardous
situation, which could result in a minor
or moderate risk of injury to patient or
operator and or damage to equipment
or property.
ATTENTION!
(Without safety alert symbol)
Indicates a situation that may result in
damage to equipment or property.
NOTE
Useful additional information and tips.

Floor & Ceiling Mounted Units (82000)10
Zero-Gravity®Radiation Protection System Uncrating Instructions
Document Safety Symbols
Read and follow all safety instructions in the document and on the device.
CAUTION! HEAVY EQUIPMENT
• A second person is required for lifting and handling.
• Use caution when unpacking and handling the Zero-Gravity
System.
CAUTION! HEAVY EQUIPMENT
Crate includes heavy interior ramp, which must be lowered to the
ground by two people. The body shield assembly weighs ~ 54
pounds (24.5 kilograms) and must also be removed and handled
by two people. Use care when handling the base. The base
weighs ~ 660 pounds (300 kilograms) and is not intended to be
lifted.
CAUTION: HEAVY EQUIPMENT
Use care when handling the crate lid. The crate lid weighs ~ 50
pounds (23 kilograms).
CAUTION: HEAVY EQUIPMENT
Use care when handling the Crate Lid. The Crate Lid weighs ~ 90
pounds (41 kilograms). Two people are required for handling.
CAUTION: HEAVY EQUIPMENT
Use care when handling the crate side panel. The side panel
weighs ~ 65 pounds (30 kilograms). Two people are required for
handling.
CAUTION: HEAVY EQUIPMENT
Use care when handling the Boom Arm assembly. The Boom Arm
assembly weighs ~ 40 pounds (18 kilograms) for the ZGM-6-5H,
ZGHSA, ZGCM-HSA and ZGCM-48, and the ZGCM-66 weighs ~
50 pounds (23 kilograms). Two people are required for handling.
CAUTION: HEAVY EQUIPMENT
Use care when handling the drop tube. The drop tube weighs
~ 140 pounds (63.5 kilograms). Two people are required for
handling.
CAUTION: HEAVY EQUIPMENT
Use care when handling the Rail Assembly. The Rail Assembly
weighs ~ 150 pounds (68.0 kilograms) and must be handled by
two people.
CAUTION: HEAVY EQUIPMENT
Use care when handling the Support Plate. The Support Plate
weighs ~ 200 pounds (91 kilograms). (Forklift Required)

Zero-Gravity® Radiaon Protecon System Uncrang Instrucons 11
Floor & Ceiling Mounted Units ZGM-6-5H | ZGHSA | ZGCM-HSA | ZGCM-48 | ZGCM-66
CAUTION: HEAVY EQUIPMENT
Use care when handling leaded body shield assembly. The
assembly weighs ~ 54 pounds (24.5 kilograms) and must be
handled by two people.
CAUTION! HEAVY EQUIPMENT
Use care when handling the base. The base weighs ~660 pounds
(300 kilograms) and is not intended to be lifted.
WARNING! RADIATION HAZARD
The body shield must be handled with care so that it is not
damaged due to contact with other objects. If the body shield is
damaged, it must be rechecked according to the Maintenance
section of the User’s Guide (TIDI Products document 84000)
CAUTION! PINCH POINT HAZARD
Never push or pull a Zero-Gravity oor unit by placing hands on
the large D-shape base. The casters may swivel and pinch hands
or ngers.
ATTENTION! DAMAGE CAN OCCUR IF THE BODY SHIELD IS ALLOWED TO
DRAG ACROSS THE SIDE OF THE CRATE.

Floor & Ceiling Mounted Units (82000)12
Zero-Gravity®Radiation Protection System Uncrating Instructions
Verify Components
Follow the steps below to verify the system is not damaged and is
ready for installation.
1. Inspect each component of the system following the uncrating instructions.
2. Make sure all items on the packing list are included.
3. Inspect all components to make sure no damage occurred during shipping.
4. If system arrives with damaged or missing components, do not operate the
system until the components are replaced. Failure to do so could result in injury
to personnel, patient, or damage to property and or equipment.

Zero-Gravity® Radiaon Protecon System Uncrang Instrucons 13
Floor & Ceiling Mounted Units ZGM-6-5H | ZGHSA | ZGCM-HSA | ZGCM-48 | ZGCM-66
Packing List – Floor Unit (ZGM-6-5H)
Item QTY Part
A 1 Shipping Crate with Labels
B 1 Boom Arm Assembly
C 1 Balancer
D End Stop Cap and (2) screws, Spring Pin, Docking
Station, (4) Black Plastic Hole Plugs
E 1 Body and Face Shield with Right and Left Shoulder
Shields
F 1 Base Assembly (including Identication Tag)
G 1 Box Containing Sterile Covers
H 1 Box Containing Vests
I 1 Tool Box (located in the Base Assembly) – Includes the
Documentation Packet
J 1 Documentation Packet – includes User and Installation
Guides (Keep near unit)
Figure 1
A
B
F
I
E
D
G
H
JC

Floor & Ceiling Mounted Units (82000)14
Zero-Gravity®Radiation Protection System Uncrating Instructions
Packing List – Ceiling Mounted Unit (ZGHSA)
Item QTY Part
A 1 Shipping Crate
B 1 Foam Packaging Block
C 1 Support Plate Assembly
D 1Drop Tube (including Identication Tag)
E 1 Body and Face Shield and (1 Each) Right and Left
Shoulder Shields
F 1 Boom Arm Assembly
G 1 Balancer
H 1 Box Containing System Components: (1) Box Containing
Vests and (1) Box Containing Sterile Covers
Figure 2
A
C
H
B
E
D
F
G

Zero-Gravity® Radiaon Protecon System Uncrang Instrucons 15
Floor & Ceiling Mounted Units ZGM-6-5H | ZGHSA | ZGCM-HSA | ZGCM-48 | ZGCM-66
Packing List – Ceiling Mounted Unit
(ZGCM-48 | ZGCM-66)
Item QTY Part
A 1 Shipping Crate
B 1 Boom Arm Assembly
C 1 Rail Assembly
D 1 Drop Tube
E 1 Packing Foam Piece A
F 2 Packing Foam Piece B
G 1 Protective Foam Cover
H 1 Body and Face Shield
I 1 (1 Each) Right and Left Shoulder Shields
J 1 Box Containing (1 each) Balancer, Carriage Cover, and
Tool Pouch
K 1 Box Containing Sterile Covers
L 1 Box Containing Vests
M 1 Box Containing System Hardware
(including Identication Tag)
N 1 Documentation Packet includes User and Installation
Guide (Keep near unit)
Figure 3
A
D
C
B
E
G
H
F
INJKLM

Floor & Ceiling Mounted Units (82000)16
Zero-Gravity®Radiation Protection System Uncrating Instructions
Packing List – Ceiling Mounted Unit (ZGCM-HSA)
Item QTY Part
A 1 Shipping Crate
B 1 Boom Arm Assembly
C 1 Swivel Boom Assembly
D 1 Rail Assembly (including Identication Tag)
E 1 Packing Foam Piece A
F 2 Packing Foam Piece B
G 1 Protective Foam Cover
H 1 Body and Face Shield
I 1 (1 Each) Right and Left Shoulder Shields
J 1 Box Containing (1 each) Balancer, Carriage Cover, and
Tool Pouch
K 1 Box Containing Sterile Covers
L 1 Box Containing Vests
M 1 Box Containing System Hardware
N 1 Documentation Packet includes User and Installation
Guide (Keep near unit)
Figure 4
A
H
E
G
B
C
I
F
ND
M
L
K
J

Zero-Gravity® Radiaon Protecon System Uncrang Instrucons 17
Floor & Ceiling Mounted Units ZGM-6-5H | ZGHSA | ZGCM-HSA | ZGCM-48 | ZGCM-66
Uncrating the System – Floor Unit (ZGM-6-5H)
CAUTION! HEAVY EQUIPMENT
Crate includes heavy interior ramp which must be lowered to the ground
by two people. The body shield assembly weighs ~ 54 pounds (24.5
kilograms) and must also be removed and handled by two people. Use
care when handling the base. The base weighs ~ 660 pounds (300
kilograms) and is not intended to be lifted.
1. Position crate with 12 feet (3.7 meters) of oor space in front to accommodate
lowering the inner ramp (Figure 5).
2. Untwist three (3) steel clasps on left side of door.
Open the Crate
Figure 5
Steel Clasp (3)
Requires 12 Feet
(3.7 meters) of Floor Space
Hinges

Floor & Ceiling Mounted Units (82000)18
Zero-Gravity®Radiation Protection System Uncrating Instructions
3. With your right hand pressed rmly against the door, release the clasps,
releasing the door. The ramp is now visible (Figure 6).
Figure 6
Ramp Sections
(folded)
4. With the door open, remove the steel bolt on the right side, releasing the ramp’s
two sections (Figure 7).
Figure 7
Steel Bolt
5. Lower both sections of the ramp to the oor; unfold the outer section (Figure 8).
Figure 8
Ramp Sections
(unfolded)

Zero-Gravity® Radiaon Protecon System Uncrang Instrucons 19
Floor & Ceiling Mounted Units ZGM-6-5H | ZGHSA | ZGCM-HSA | ZGCM-48 | ZGCM-66
Unpack the Contents
1. Remove and set aside the boxes from crate.
2. Remove Foam Block 1 and carefully set aside the system components
(Figure 9).
WARNING! RADIATION HAZARD
The body shield must be handled with care so that it is not damaged
due to contact with other objects. If the body shield is damaged, it must
be rechecked according to the Maintenance section of the User’s Guide
(TIDI Products document 84000).
3. Leaving the protective foam cover intact, carefully remove the body shield
assembly and place them on a clean, at surface. The protective foam cover
must remain in place until nal installation.
4. Remove the (2) shoulder shields.
5. Remove foam block 2.
Figure 9
Protective Foam
Cover on Face Shield
Body Shield
Between Foam Blocks 1 & 2
Foam Block 1
Remove System
Components from Cavity
Column
Foam Block 2

Floor & Ceiling Mounted Units (82000)20
Zero-Gravity®Radiation Protection System Uncrating Instructions
CAUTION! HEAVY EQUIPMENT
Use care when handling the base. The base weighs~ 660 pounds (300
kilograms) and is not intended to be lifted.
6. Find the spring pin in Foam Block 1 from Figure 9. Place the spring pin into the
hole on the far side of the column.
7. Slightly loosen the ratchet straps. Ensure the column spring pin is not locked in
the retracted position so it will slide into place. Let the column move up slightly
till the column locking spring pin moves into position. This should occur within 1”
of upward movement. The snubber handle will need to be open to allow for the
upward movement.
8. Once the column pin is in place and holding the column remove the 2 ratchet
straps. Close the snubber handle so it clamps on the column.
9. To remove the base assembly from the wood frame, remove (2) hex head screws
and (2) eye bolts, these should be nger tight and loosen easily. Also remove the
front and back wood frame pieces (Figure 10).
10. Using a 5/16-inch hex key, Located in the Tool Box (I from Figure 1) in the Base
Assembly, lower the leveling pads until the base assembly lifts from the wood
blocks (Figure 11).
