Tiger Tool 10218 User manual

1.800.661.4661
View demonstration videos and a
complete product list at tigertool.com
Technical Support
Have What It Takes
•
Stay Alert! Watch what you are doing and use common sense when
operating this tool.
•
Inspect product for damage prior to using; do not use if product is
in unsafe condition.
• Do not operate tool while under the influence of drugs, alcohol
or medication.
•
Always use safety equipment to prevent injuries. Approved face
and eye protection must always be worn by the operator, as well
as others in the work area.
•
Do not overreach. Keep proper footing and balance at all times.
•
Dress properly. Do not wear loose clothing or jewelry.
Keep your hair, clothing and gloves away from moving parts.
• Keep your work area clean and well lit.
CAUTION: FAILURE TO CHECK THE SPHERICAL THRUST WASHER AND REPLACE AS NECESSARY MAY RESULT
IN UNREPAIRABLE DAMAGE TO YOUR U-JOINT PULLER GLOVE CASTING. PREVENTATIVE MAINTENANCE AS
OUTLINED BELOW WILL ENSURE MANY YEARS OF USE FROM YOUR TIGER TOOL PULLER. FAILURE TO PERFORM
PREVENTATIVE MAINTENANCE WILL VOID YOUR WARRANTY.
Safety Warning
Read all instructions and safety warnings prior to operation. Failure to do so could
result in equipment damage, personal injury or even death.
NOTE: HAMMERING THIS TOOL WILL VOID YOUR WARRANTY.
Severe Heavy Duty
Bearing Cup Installer
10218

Operating Instructions
1 Clean bearing cup bores of all rust and debris.
2 Select & install the correct anvil for the driveline being
worked on:
A For the Spicer driveshaft – use the “SPL 350” anvil
B For the Meritor driveshaft – use the “RPL 35” anvil
3 Press one bearing cup into the yoke by hand, then place
the tool over top of the yoke/protruding bearing cup.

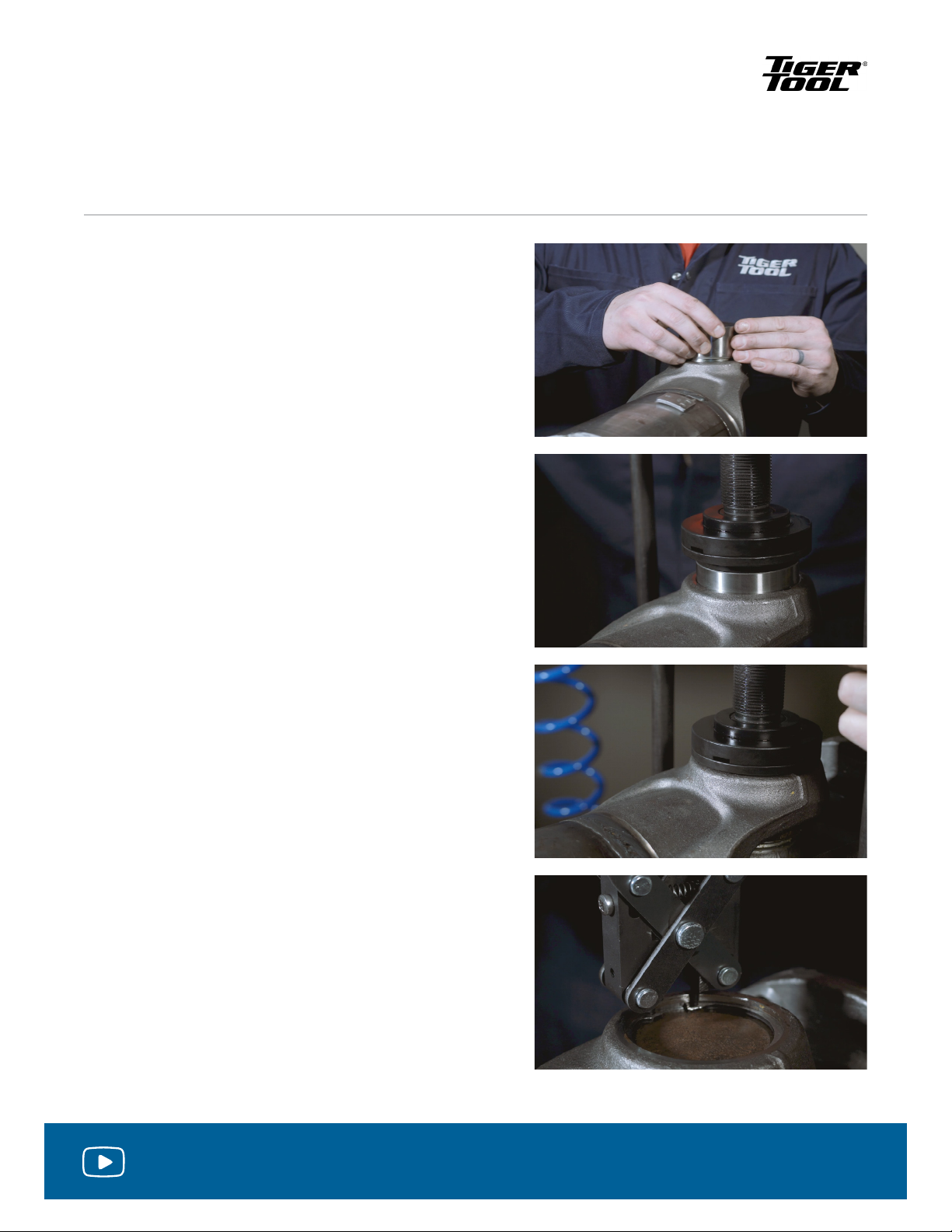

(Figure 1)
4 Using a wrench or ratchet, turn the forcing screw and
press the bearing cup in to the yoke until the bottom of
the cup is flush with the underside of the yoke.
(Figure 2)
5 Rotate the driveshaft 180 degrees and place the U-joint
cross in to the half-installed bearing cup.
6 Repeat steps 3 and 4 on the opposing yoke, making
sure the needle bearings stay in place and the u-joint
cross rotates freely inside the cups.
7 Rotate the driveshaft 180 degrees and press the half-
installed bearing cup down to the installed depth.
(Figure 3)
8 Install new retaining rings. (Figure 4)
Here at Tiger Tool, your satisfaction is our number one
priority. Should you have any questions about this or any
of our products, please call us at 1.800.661.4661.
2
1
3
4
1.800.661.4661
View demonstration videos and a
complete product list at tigertool.com
Technical Support
Have What It Takes
Severe Heavy Duty
Bearing Cup Installer
10218

Item No.
1
2
3
4
5
6
Part Number
90150-13
10218-14
10218-1
90150-14
10218-3
10218-13
Qty.
1
2
1
1
1
1
Description
Forcing Screw - Short
SHCS
Installer Top Plate
O-Ring
Installer Anvil
Adapter
Parts Breakdown
1.800.661.4661
View demonstration videos and a
complete product list at tigertool.com
Technical Support
Have What It Takes
Severe Heavy Duty
Bearing Cup Installer
10218
1
2
3
4
5
6

Item No.
7
8
9
10
11
Part Number
10100-5
10218-4
10218-12
10218-5
10218-2
Qty.
1
1
2
1
1
Description
FHMS
Anvil End Plate - SPL 350
O-Ring
Anvil End Plate - RPL 35
Installer Bottom Plate
Parts Breakdown
1.800.661.4661
View demonstration videos and a
complete product list at tigertool.com
Technical Support
Have What It Takes
Severe Heavy Duty
Bearing Cup Installer
10218
7
8
9
11
10
