Tiger INS40 User manual

TIGER
GARDEN
PERGOLA
GENERAL ASSEMBLY
INSTRUCTIONS
INS40

BEFORE YOU GET STARTED
02 tigersheds.com 0113 205 4189 [email protected]
PLEASE READ INSTRUCTIONS CAREFULLY
• Check the pack and make sure you have all the parts listed.
• When you are ready to start, make sure you have the right tools at hand (not supplied).
• Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, timber can be affected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood logs may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can
be mitigated. It is suggested that the outdoor building is sprayed with water during extended periods of warm
sunshine and sheltered as much as possible during rain or snow.
Please do not paint or treat your cabin timbers before assembly as they must stay dry for a snug tongue and
groove t. To validate your guarantee and ensure longevity of the product, it is ESSENTIAL that your building is
treated with a suitable wood preserver or paint AFTER assembly, both internally and externally.
BUILDING A BASE
Care must be taken to ensure the product is placed on a suitable base. When thinking about where the building
and base is going to be constructed: Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is rm and level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run off for water. It is also recommended that the oor be at least 25mm
above the surrounding ground level to avoid ooding.
TYPES OF BASE
• Concrete 75mm laid on top of 75mm hard-core.
• Slabs laid on 50mm of sharp sand.
• Timber Base - Self constructed/Buy pre-made.
WOOD WARPING
MAY OCCUR
WINTER
EXPANSION
SUMMER
CONTRACTION
CONCRETE BASE SLAB BASE TIMBER BASE BROKEN SLABS BARE SOIL LOOSE GRAVEL

Please retain instructions for future reference
03
CAUTION:
All buildings should be erected
by two competent adults.
CAUTION:
It is advisable to wear safety
gloves during building installation.
Whilst all products manufactured are made to the highest standards of safety and in the case of children’s products independently tested to
EN71 level, we cannot accept responsibility for your safety whilst erecting or using this product.
MADE IN THE UK SINCE 1913.
We have been making our high quality, great
value sheds here in Britain for decades.

BEFORE YOU GET STARTED
04 tigersheds.com 0113 205 4189 [email protected]
TOOLS REQUIRED:
We recommend using the following tools (not supplied):
LADDER TAPE MEASURE SHARP KNIFE SPIRIT LEVELSCREWDRIVER +
• Assembly is relatively straightforward if you follow these step by step instructions.
• We recommend getting everything aligned properly before screwing together and that
screw holes should be pre-drilled to avoid splitting the timber. (Do not come pre-drilled).
IMPORTANT
• Before assembly please make sure you have a suitable base ready to erect your building on.
• This base MUST be rm and level to ensure that the building is assembled properly and lines up.
• Please carefully unpack the components in your delivery, and remove the timber supports that make up the
delivery pallet.
• CAUTION: Parts may have moved during transportation. Be careful when unpacking supplied shed.
• DO NOT start your build until you have checked that all the parts of your building are present, correct and in a
suitable condition.
• Pre-drilling screw holes is recommended to reduce the chances of the timber framing splitting.
• If you are organising a third party to install your building, it is best practice not to schedule this immediately on receipt of your
order, to give you time to check your delivery.
RUBBER MALLET
FIXING KIT GUIDE:
S70
Screws (70mm Galvanised - QTY 55)
S100
Screws (100mm Galvanised - QTY 10)
IMPORTANT:
Customer to supply own xings
for type of ground.
Posts 92mm square.
DRILL

Please retain instructions for future reference
05
BUILDING PACK CONTENTS:
For full details of what should be included please see the Product Construct Diagram and itemised Cutting List
that are supplied with the delivery. They are also available on request in pdf form from our helpful Customer
Support team – please call 0113 2054189 for Customer Support or use the Items Delivered Query form at
tigersheds.com/contact.

TIGER GARDEN PERGOLA ASSEMBLY GUIDE
06 tigersheds.com 0113 205 4189 [email protected]
A
2382 CENTERS
2474 EXTERNAL
UPRIGHT
POST LAYOUT
2290 INTERNAL
2474 EXTERNAL
2290 INTERNAL
2382 CENTERS
NOTE - Make sure that customer supplied xings
are in place before building commences - For post layout. (Detail A)
IMPORTANT:
Customer to supply own xings
for type of ground.
Posts 92mm square.

Please retain instructions for future reference
07

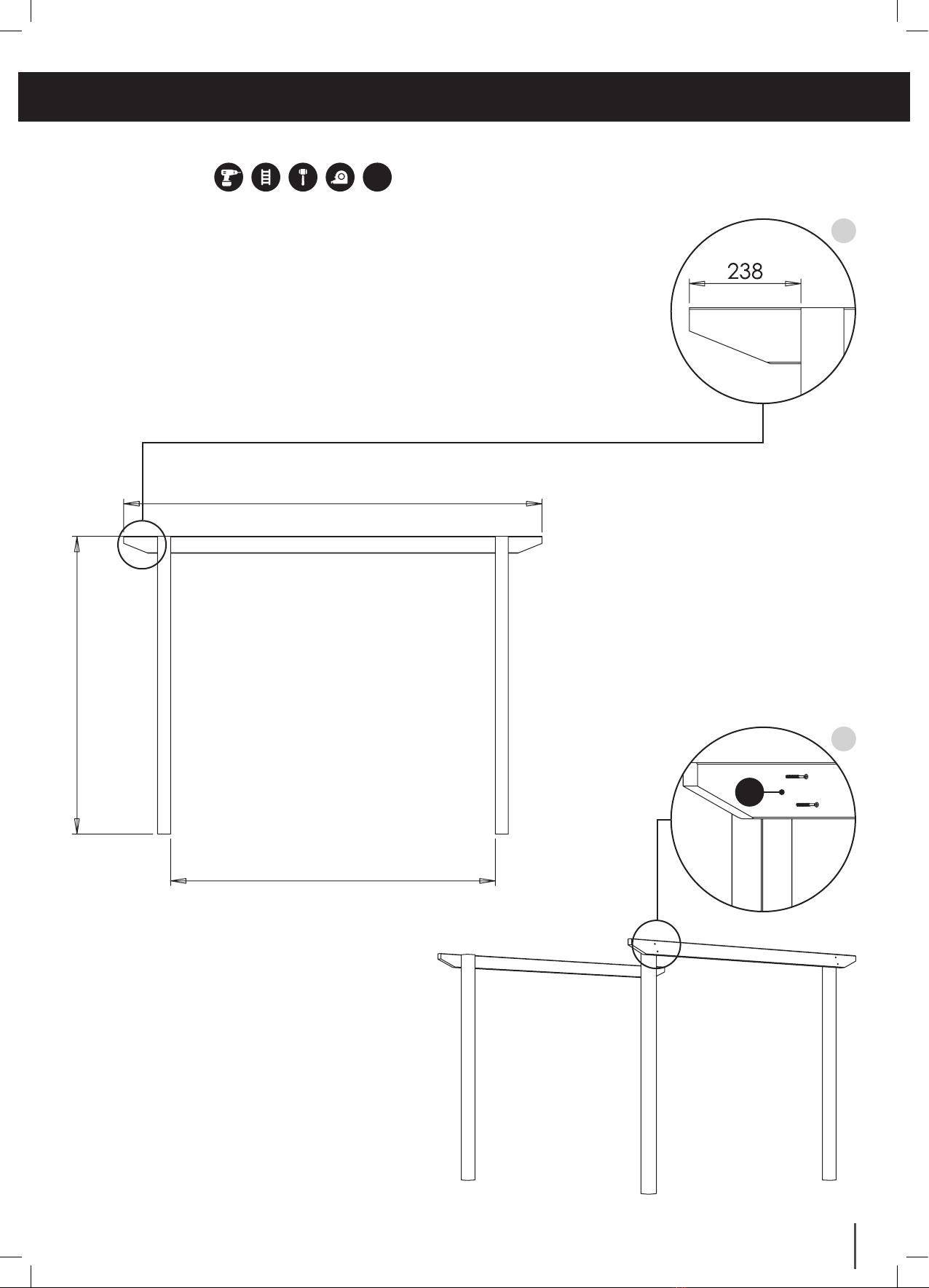

Step 1:
• Layout upright posts and side rails (un-notched) as shown. (Detail B)
• Pre-drill holes in side rails to reduce risk of wood splitting.
• Secure together using 2x 70mm (S70) screws per join. (Detail C)
NOTE - Make sure frame is square.
• Repeat for other side.
• Stand frames upright and secure to xings.
S70
S70
B
C
2950
2290
2100
UPRIGHT POST
SIDE RAIL
INSIDE VIEW
EXTERNAL VIEW
UPRIGHT POST

08 tigersheds.com 0113 205 4189 [email protected]
TIGER GARDEN PERGOLA ASSEMBLY GUIDE
Step 2:
• Slot in outer top rails (notched) as shown. (Detail D)
• Pre-drill holes in top rails to reduce risk of wood splitting.
• Secure to side rail using 1x 100mm (S100) screw from top and
1x 70mm (S70) screw from front into upright post. (Detail D)
• Repeat for all remaining corners.
S70
D
S70
S100
• Slot in remaining top rails as shown.
NOTE - We recommend equal spacing.
• Secure to side rail using
2x 100mm (S100) screws from
top per top rail.
OUTER TOP RAILS
REMAINING
TOP RAILS
S100

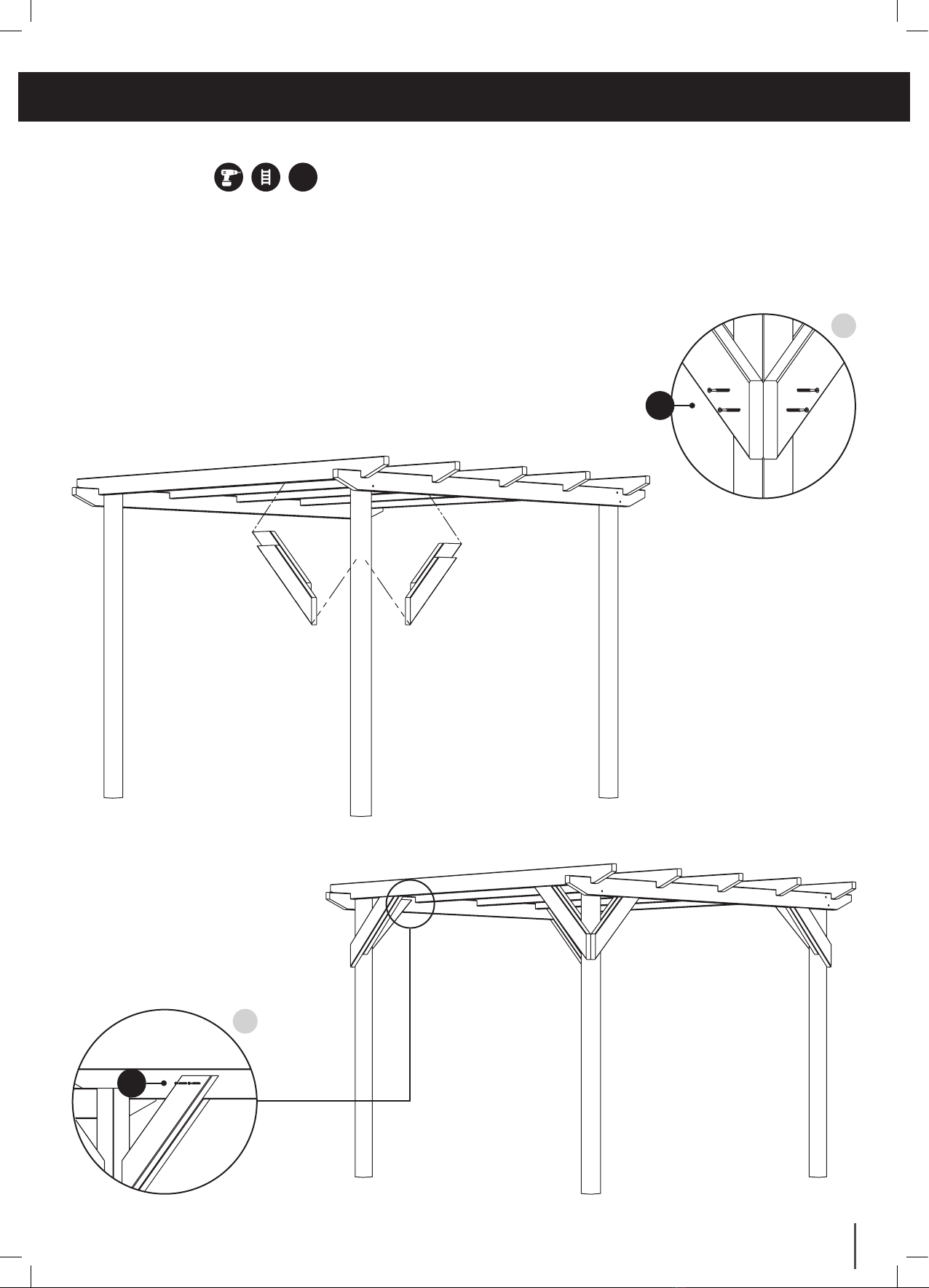

Step 3:
• Slot together pergola support arms into the corner of framework.
• Pre-drill holes to reduce risk of wood splitting.
• Secure to upright post using 2x 70mm (S70) screws per join. (Detail E)
• Secure to horizontal rails using 2x 70mm (S70) screws per join. (Detail F)
NOTE: We recommend securing from the inside as shown.
• Repeat for remaining corners.
S70
Please retain instructions for future reference
09
E
F
SUPPORT
ARM
SUPPORT
ARM
EXTERNAL VIEW
INTERNAL VIEW
S70
S70

Step 4:
• Pre-drill holes in feet to reduce risk of wood splitting.
• Secure feet to upright post using 2x 70mm (S70) screws per foot.
2 feet supplied per post. (Detail G)
NOTE: Please check type of ground xings used that the feet can sit ush.
• Repeat for remaining corners.
10 tigersheds.com 0113 205 4189 [email protected]
TIGER GARDEN PERGOLA ASSEMBLY GUIDE
S70
G
S70
S100
FOOT

Please retain instructions for future reference
11
