在摄影领域中 , 车内拍摄及跟车拍摄在摄影镜头中越来越多 , 经常需要拍摄汽车内外的各种对话、动作、等镜头来实现故
事情节的延伸 。由于汽车的运动状态总是发生快速的变化，这就要求摄影机在高速运动的汽车中达到良好的拍摄效果。因
此 , 车拍支架成了拍摄环节中必不可少的设备了。
如影 S 车拍轻便支架的组成包括三个部分，分别是载重吸盘、多功能滑板支撑组合、减震系统。这套系统可以根据具体的
拍摄需求吸附在任何一辆家用车上，除了推荐的四种安装方式外还有无限种可能，他可以像乐高一样搭建出你想要的机
位，可前可后，可高可低，整套设备配有四块长短不一的快装板 ，一条载重 7.5kg 减振臂，还有一个减震头，一个供电模块，
和三个大小不一的吸盘。只要有能让吸盘吸附的地方，他就能帮你实现高速车拍。包括我们推出更多的选配件，根据不同的
需求可以任意组合安装，实现更有冲击力的镜头语言，并满足能够方便的拆卸和运输。
Nowadays, in the field of cinema, in-car and car-following shots are becoming more and more common in films. Filmmakers
will often need to shoot scenes. from inside or outside of the car to keep the story line flowing. Because of the erratic motion of
a moving vehicle, cameras have been put into tougher challenges. Therefore, car mount stabilization systems is considered to
be the most essential piece of equipment in this kind of situation.
This Ronin S lightweight car mount stabilization system is divided into three parts: the heavy load suction discs, the multi-func-
tional sliding support platform and the shock absorbing system. This stabilization system can be mounted to any vehicle to
comfortably fulfill your shooting requirements. Apart from the five mounting configurations that we recommend, you also can
build your own LEGO style stabilization system in various ways. The whole system is equipped with four quick release plates
that vary in length, one 7.5kg payload shock absorbing arm, one shock absorbing head and three different sized suction discs.
Moreover, we provide a variety of accessories to achieve even more possibilities. 01
燕尾支撑板L2
燕尾支撑板L1
吸盘
按压式抽气阀
燕尾支撑板L4 燕尾支撑板L3
燕尾滑块固定旋钮
供电模块
钢丝减震头
如影S供电底座
减震头接驳件
spring arm
Dovetail sliding plate locking knob
Dovetail support plate L2
Dovetail support plate L3
Dovetail support plate L1
Dovetail support plate L4
Power supply module
Steel wire shock absorbing head
Ronin S power supply baseplate
Shock-absorbing head connector
Suction valve suction disc
减震臂
ALIEN ARM
INTRODUCTION OF ALIEN ARM
认识

02
ALIEN ARM
减震头接驳件
安全销
V口供电板
弹簧
线卡
燕尾滑块固定旋钮
米歇尔接口
十字交叉连接件
燕尾滑块
钢丝减震头
锁扣
safety pin
安全销
safety pin
V lock battery plate
locking lever
spring
cable clip
Dovetail sliding plate
locking knob
Shock-absorbing
head connector
spring arm tension
adjustment knob
Michelle mounting point
cross connecter
dovetail sliding plate
dovetail slot
Steel wire shock absorbing head
power supply port
Manfrotto sliding plate
Ronin S sliding slot
suction valve
suction disc x 1
suction disc x 2
cable clip hole
counterweight x 8
T shape hexagonal screwdriver
力臂调节旋钮
燕尾滑槽
曼富图滑块
供电接口
如影S滑槽
按压式抽气阀
线卡孔
配重砝码X8
T型圆头六角螺丝刀
注：另配备安全绳一根
大吸盘X1
小吸盘X2
INTRODUCTION OF ALIEN ARM
了解

03

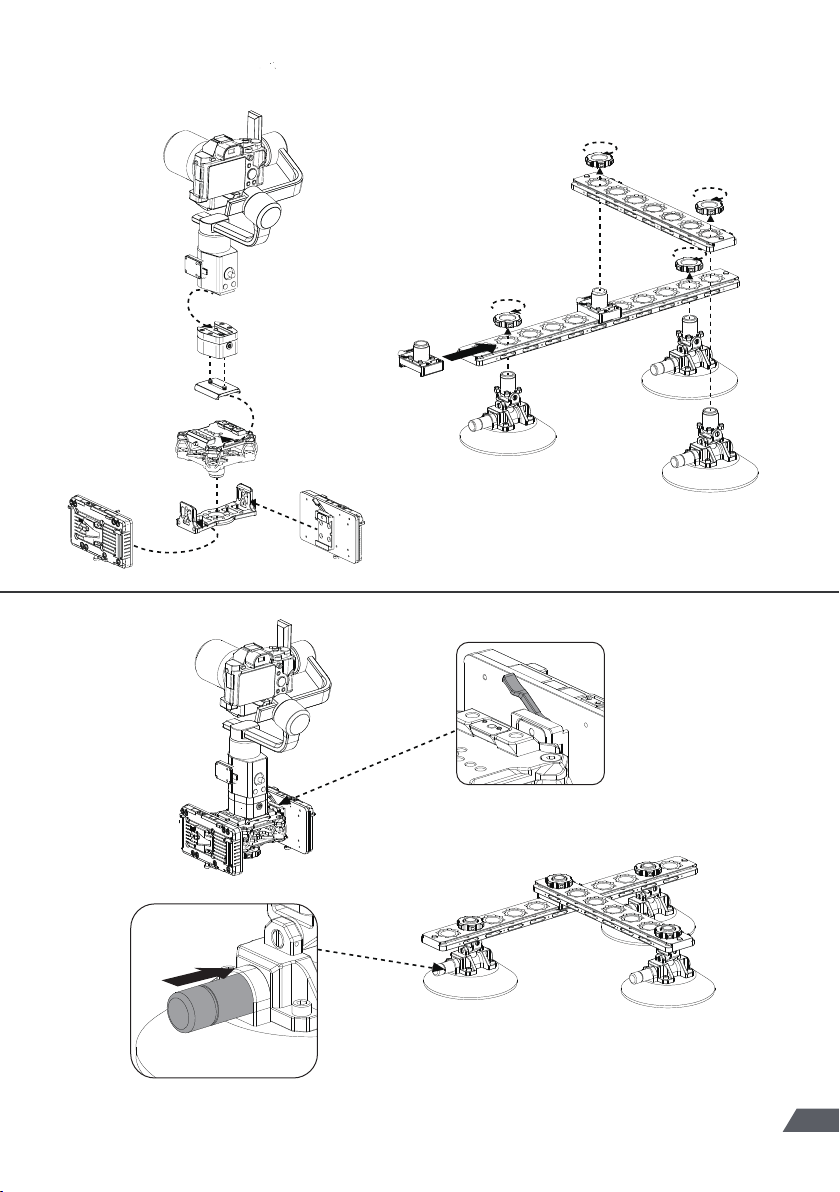

减震供电安装方式 支架吸盘安装方式
Install shock-absorbing power supply system Install suction disc platform
Install the battery plate,then pull the lever to lock.
Note: Make sure the cross connector is installed
before mounting the suction discs.
Mount the suction discs to a smooth surface,then press the
suction valve until the white ring is covered by the valve. (If the
white ring moves out of the valve in a short period of time,
please check immediately for air leakage. )
注：安装吸盘时应先安装十字交叉连接件。
供电板装好锁扣卡紧
将吸盘放在平滑位置连续按压抽空气阀直到活塞杆
上的白色圈置于在泵体内
( 如果白色圈在短时间内回到泵体外说明有漏气现象需要及时检查）

04
安装方式
INSTALLATION
注：若无需外部供电可将供电板拆卸替换配重砝码

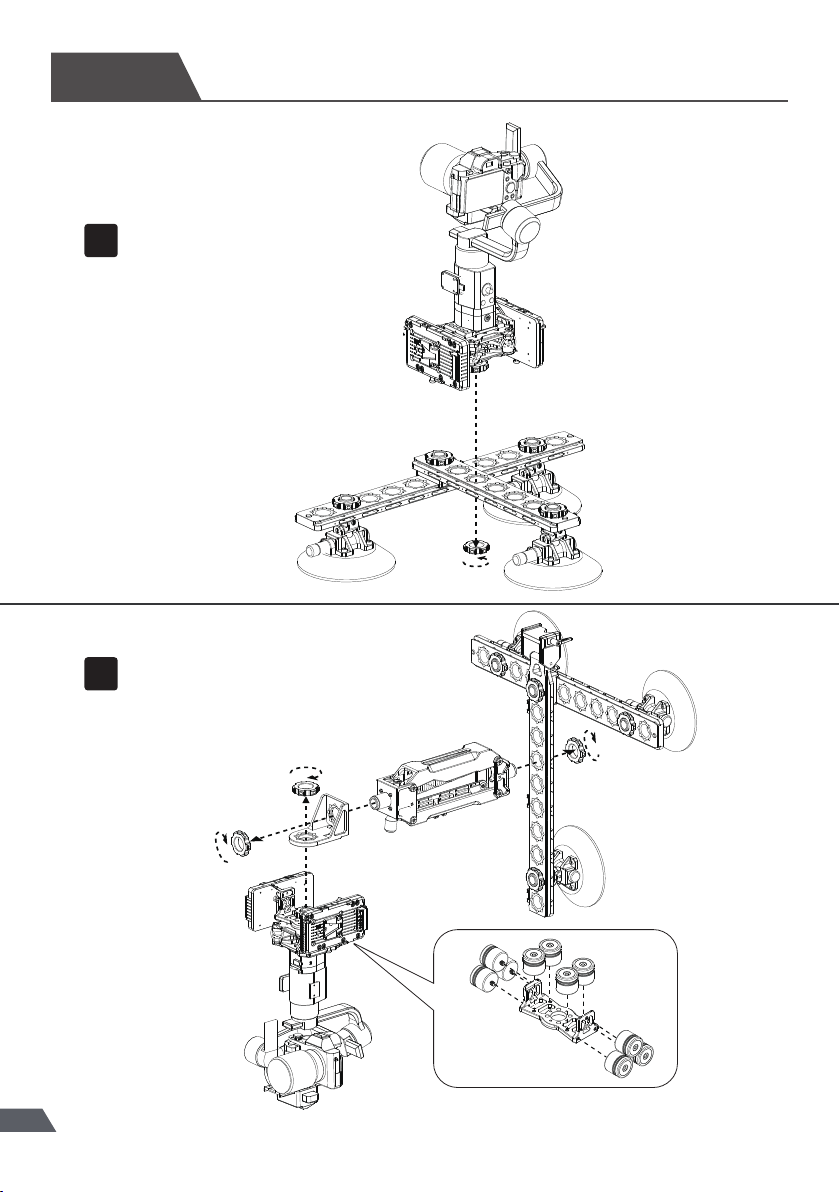

Suitable for mounting on flat surface, e.g.
car roof, car bonnet etc.
Mounting horizontally
Shock-absorbing arm is required in this position.
Note: Power supply system can be removed for
installing counterweights.
Mounting vertically for low shooting angle
安装简单，适合较平整的方位
例如车顶、引擎盖、尾箱等位置
水平立装方式
垂直低机位安装方式
此安装方式搭配减震臂后具有良好的减震效果
01
02

05
注：安装吸盘时应先安装十字交叉连接件
注：安装好后锁紧燕尾滑块
L4
L1
Install part L4 horizontally.
Note: Make sure the sliding plate is fully fastened.
Mounting vertically without
shock-absorbing arm
Mounting on the front or rear of the car
安装时燕尾支撑板L4保持水平状态
垂直支撑安装方式（无需减震臂）
车头&车尾安装方式
安装燕尾支撑板L1最好保持垂直状态
此安装方式能在复杂的方位安装
例如车尾、车头等
Keep part A vertical. This method is suitable
when mounting in complex positions, such
as the rear or front of the car.
Note: Install the cross connector before
installing the suction discs.
03
04

06
引擎盖方式
MOUNTING ON CAR BONNET

07
侧装低拍方式
MOUNTING SIDEWAYS AT
LOW SHOOTING ANGLE

08
侧装高拍方式
MOUNTING SIDEWAYS AT
HIGH SHOOTING ANGLE

09

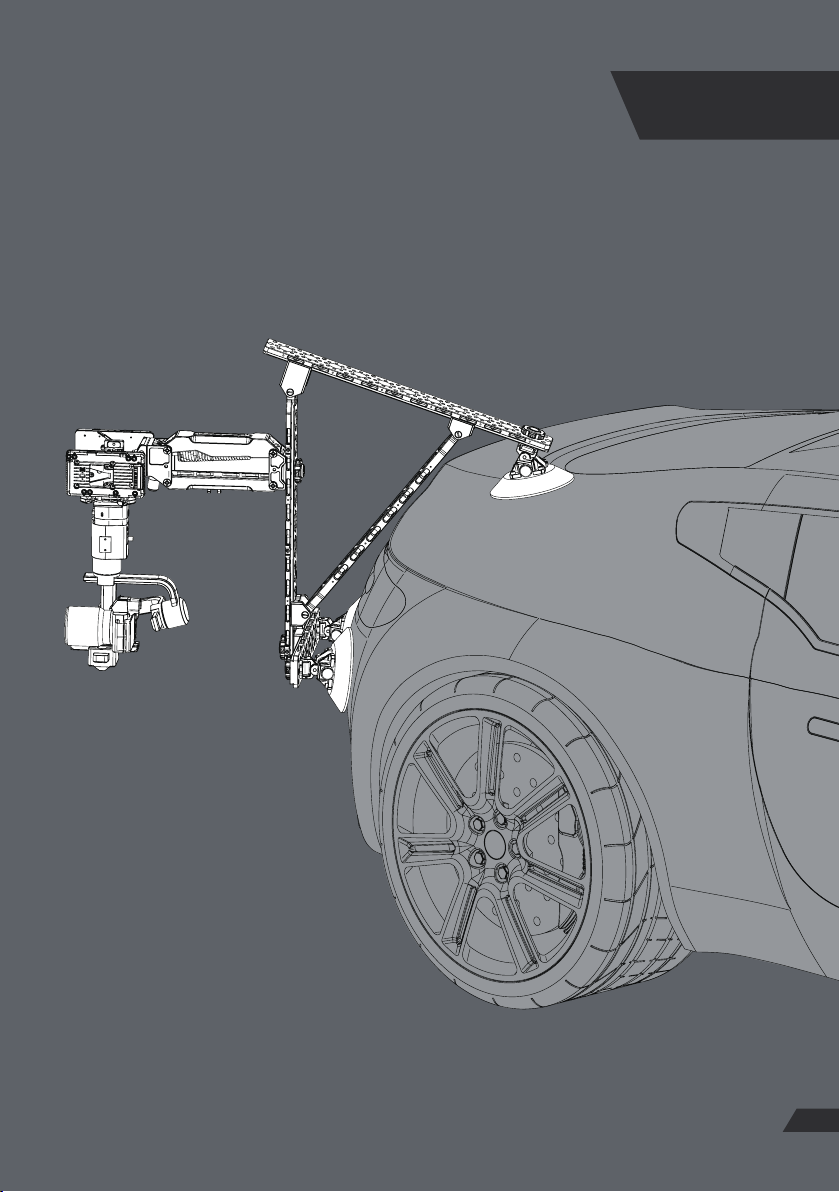

车尾拍摄方式
轿车尾部安装
SHOOTING FROM
THE REAR OF THE CAR

10
SUV尾部安装
车尾拍摄方式
SHOOTING FROM
THE REAR OF THE CAR

11

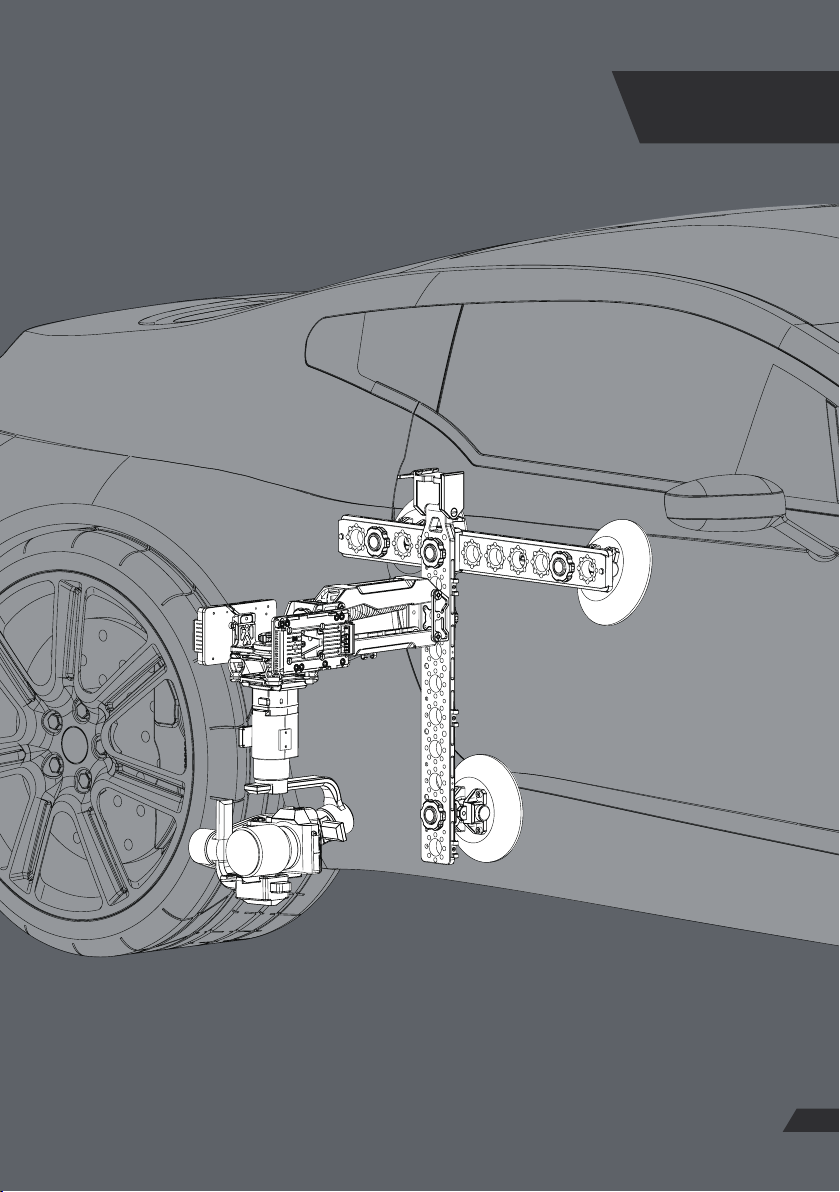

车头侧装拍摄方式
SHOOTING FROM THE
FRONT SIDE OF THE CAR
