GreenTech ECOBUS User manual

Owner’s Manual
Mountable Air Purification

2
About ECOBUS
Table of Contents
This unit is designed to be permanently mounted to a wall surface in several dierent
applications. Since ECOBUS is powered by 24VDC it is a perfect product to be used
in motor coaches or any other vehicle that uses 24VDC. However, ECOBUS can be
outfitted with a mounting bracket and 120-240VAC power adapter and used as a wall
mounted air purifier in a large room, small oce, or similar space. ECOBUS eectively
renders bacteria, viruses, mold, mildew and other contaminants in the air, and on
surfaces, harmless on a continuous basis. Treatment from ECOBUS also eliminates
odors to create a cleaner, safer environment.
ECOBUS utilizes Active Radiant Catalysis (ARC™) technology that generates advanced
oxidation products (AOP’s), primarily consisting of hydro-peroxides, or vaporized
hydrogen peroxide. Active Radiant Catalysis technology replicates natures purifying
process through the use of ultraviolet energy to activate a multi-metal catalyst,
converting water vapor into oxidizers including peroxide and hydroxyls. These oxidants
will either inactivate the microbe by the process of cell lysing which compromises the
cellular integrity by oxidation penetrating the cell wall, or by changing the molecular
structure rendering the contaminant harmless. In addition, the Stationary Model
includes Bi-Polar Ionization to assist in neutralizing pollutants and odors.
Specifications ........................................................... 3
Warnings ............................................................... 3
Unit Diagrams ........................................................... 4
Installation (Mobile Unit) .................................................. 5
Installation (Stationary Unit) ............................................... 6
Cleaning the Unit ........................................................ 7
Filter Replacement ....................................................... 7
ARC Cell Replacement ................................................... 8
Replacement Part Numbers ............................................... 9
Cell Disposal ............................................................ 9
Troubleshooting ........................................................ 10
Warranty Information.....................................................11

3
Specifications
Mobile Model
Dimensions.....................10.25” H (260mm) x 8.00” W (203mm) x 3.25” D (83mm)
Weight ..........................................................2.3 lb (1kg)
Electrical Input ..................................................... 24VDC
Warranty .......................................................... 2 Years
Stationary Model
Dimensions......................10.25” H (260mm) x 9.75” W (248mm) x 3.75” D (95mm)
Weight .........................................................2.7 lb (1.2kg)
Electrical Input .......................... 120/240VAC to 24VDC Power Adapter
Eective Area* ................................................Up to 1,200ft2
Warranty .......................................................... 2 Years
*Depending on variables such as the severity and frequency of pollution, flow of air in the
environment, humidity, and temperature.
Warnings
WARNING: Electrical shock may occur. Hard-wired Installations should be
handled by a licensed professional.
WARNING: Never service the unit while it is connected to a power source.
Electrical shock or injury may occur.
NOTE: A slight odor may be noticeable when the unit is first installed and
operated. This is due to the newness of the UV bulb being used and the initial
cleaning of the contaminated space. The odor is completely harmless.
Record the name and phone number of your Distributor as well as unit serial number.
Name__________________________________________________________________________________________
Phone #: _______________________________________________________________________________________
Serial #: ________________________________________________________________________________________

4
Unit Diagrams
Unit Front
Unit Rear
Unit Bottom Unit Internals
Mounting Bracket
(Stationary Only)
Unit Cover
Air Outlet
Air Intake
Filter Cover Plate
Security Mounting Holes
Power Outlet
DC Power Plug
Security Screw Holes
ARC Cell
JST Connector
(Mobile Only)

5
Installation (Mobile - Buses, Service Vehicles)
1. Determine location for desired
placement of unit. Typically, the angled
grill should be pointed upward and
mounted as high on the wall as practical.
2. Make access available for 24VDC
connection (ignition lead if unit is only to
be on when vehicle’s engine is running).
If not, a switch (not included) will be
necessary between the electrical lead
from vehicle and power lead of ECOBUS.
3. Remove cover from unit (requires a
security TORX bit {T10} – not included).
4. Option – If utilizing the LED operation
indicator light, determine where the
light should be located and how to run
the line from the unit to that location.
Connect the LED Leads JST Connector to
the JST Connector from ECOBUS.
5. Make proper electrical connection.
Run LED line to its determined position
if using.
6. Remove protective film from sponge
adhesive back material and carefully
align and stick unit in place.
7. Securely mount ECOBUS using the three
screw openings in back of the unit.
8. Replace the unit cover.
STEP 7
STEP 3 & 8
STEP 4
STEP 5
STEP 1

6
Installation (Stationary - Surface Mount in Buildings)

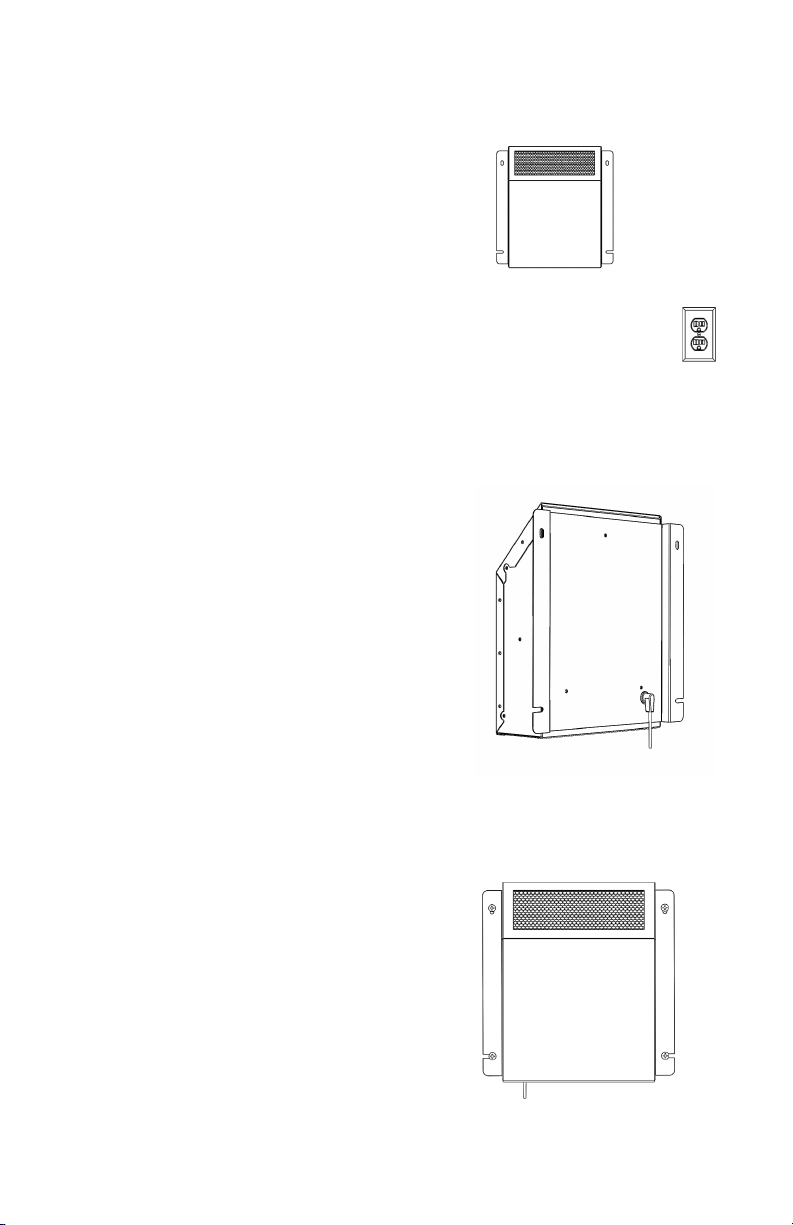

1. Determine location for desired
placement of unit close enough to
a power outlet to allow the included
120/240 VAC to 24 VDC power
adapter to be plugged in. Typically,
the angled grill should be pointed
upward and mounted as high on the
wall as practical, within 18 inches of
the ceiling if possible.
2. Plug the power adapter’s elbow style
DC connector to back of ECOBUS unit.
3. Attach the ECOBUS unit to the wall
location with included screws utilizing
the mounting bracket flanges.
4. Make proper electrical connection of
24VDC power adapter to outlet.
STEP 1
STEP 2
STEP 3

7
Cleaning the Unit
Filter
Filter Replacement
1. Disconnect unit from power source.
2. Remove the Filter Cover Plate from the unit.
3. Remove the Cover from the unit.
4. Wipe everything down with a damp cloth.
5. Replace the Cover of the unit.
6. Replace the Filter Cover Plate of the unit.
7. Reconnect unit to power source.
1. Disconnect unit from power source
2. Remove the Filter Cover Plate from the unit.
3. Remove the used Filter.
4. Replace with the new Filter (Red side facing out).
5. Replace the Filter Cover Plate.
6. Reconnect unit to power source
WARNING: Make sure to disconnect the unit from its power source before
any maintenance or cleaning is done.
WARNING: Make sure to disconnect the unit from its power source before
any maintenance or cleaning is done.
We recommend replacing the Filter after 90 days or when noticeably contaminated.
See Page 9 for Replacement Part Numbers.
The unit will need to be cleaned inside from time to time as well. Be sure to use extreme
caution when doing this in order to avoid any damage to the unit or harm to yourself.
STEP 2 & 6
STEP 2 & 6
STEP 3 & 5

8
ARC™Cell Replacement
1. Disconnect unit from power source.
2. Remove the Filter Cover Plate from the unit.
3. Remove the Cover from the unit.
4. Locate the ARC Cell and gently lift it up out
of the case.
5. Disconnect the power to your old ARC
Cell and replace it with your new ARC
Cell. Ensure plug is fully seated in the
connection and the wire is fully seated into
the grommet/bulkhead.
6. Place the ARC Cell in place in the unit.
7. Replace the Cover.
8. Replace the Filter Plate Cover.
9. Reconnect unit to power source.
WARNING: Make sure to disconnect the unit from its power source before
any maintenance or cleaning is done.
WARNING: Please do not throw a used ARC™ Cell in the garbage. See
CELL DISPOSAL (PG. 9) for disposal instructions
Your ARC Cell should be replaced every 2 years. STEP 2 & 8
STEP 3 & 7
STEP 4-6
See Page 9 for Replacement Part Numbers.

9
Cell Disposal (Hg - LAMP CONTAINS MERCURY)
Please do not throw a used ARC™Cell in the garbage. The special germicidal
UVC bulb used in the unit contains a very small amount of mercury. Manage
in accordance with disposal laws.
(Visit www.lamprecycle.org for proper instructions.)
Dispose of the spent ARC Cell and UV Lamp at your local recycling center or
by local regulations. You may also send your spent ARC Cell and UV Lamp, in
the same container you received your replacement, to:
GreenTech Environmental Reclamation
6118 Kingsport Hwy 36
Johnson City, TN 37615
Replacements Part Numbers
Please reference these part name and numbers when contacting your dealer or
GreenTech Environmental for replacement parts.
ECOBUS Replacement ARC™Cell ..................................... 1X3200
ECOBUS Replacement Filter .......................................... 1X5098

10
Troubleshooting
ARC™Cell Doesn’t Turn On
• Check for secure connection
• Try another ARC™ Cell
• Ballast needs replaced (Visit www.greentechenv.com for contact information)
Fan Doesn’t Turn On
• Check for secure connection
• Fan needs replaced (Visit www.greentechenv.com for contact information)

11
Warranty Information
Your ECOBUS (Product) and ARC™Cell are warranted warranted to be free from all defects in material
and workmanship in normal use for a period of two (2) years from date of purchase.
The warranty is granted only to the original purchaser. The warranty is subject to the following provisions:
Any damages or malfunctions caused by negligence, abuse, or use not in accordance with the Product
Owner’s Manual are not covered by this warranty. Likewise, any defects or damages caused by
unauthorized service or the use of other than Genuine GreenTech Environmental Parts are not covered.
GreenTech Environmental will, at its option, repair or replace a defective Product or part(s) for the
Product that is/are covered by this warranty. As a matter of warranty policy, GreenTech Environmental
will not refund the customer’s purchase price.
OBTAINING WARRANTY SERVICE
To obtain warranty service you must return the defective product along with proof of purchase to the
GreenTech Environmental Authorized Service Center. All shipping costs submitted under this Warranty
shall be borne by purchaser. Unless this Warranty is expressly renewed or extended by GreenTech
Environmental, any repaired or replaced part of unit shall be warranted to the original purchaser
only for the length of the unexpired portion of the original warranty. For the location of the nearest
GreenTech Environmental Authorized Service Center or for other service information, please visit us
online at:
www.GreenTechEnv.com/Support
Before any product is sent for service, the customer should contact the GreenTech Environmental
Service Center to obtain a Return Merchandise Authorization (RMA) Number. This RMA Number
should be clearly written on the box before shipping. All components/parts including the remote
(if applicable), manuals, and original packaging should be included in the return if available.
FURTHER LIMITATIONS AND EXCLUSIONS ARE AS FOLLOWS
Any warranty that may be implied in connection with your purchase or use of the Product, including
any warranty of merchantability or any warranty for Fitness For A Particular Purpose is limited to the
duration of this warranty. Some states do not allow limitations on how long an implied warranty lasts,
so the above limitations may not apply to you.
Your relief for the breach of this warranty is limited to the relief expressly provided above. In no
event shall GreenTech Environmental be liable for any consequential or incidental damages loss
of prot, or medical expenses caused by any misuse, abuse, accident, negligence, or failure to
follow instructions. The company will not be responsible for any written or oral statements made that
are inconsistent with this written warranty, or which are misleading or inconsistent with the facts as
published by the company in the literature or specications. Some states do not allow the exclusion
or limitation of incidental or consequential damages, so the above limitation or exclusion may not
apply to you. This Warranty gives you specic legal rights, and you may also have other rights which
vary from state to state.
REGISTRATION
Please register your Product within 10 days of purchase by contacting GreenTech Environmental at:
www.GreenTechEnv.com/Warranty
Registering your new GreenTech product entitles you to the most up-to-date GreenTech Environmental
warranty and promotion information.
