TIMBERWOLF PTO 300H
Thank you for choosing this Entec/Timberwolf brushwood chipper. Entec/Timberwolf
chippers are designed to give safe and dependable service if operated according to the
instructions.
Before using your new chipper, please take time to
read this manual which contains
IMPORTANT HEALTH AND SAFETY INFORMATION
and explains the chipper controls - failure to do so could result in:
- personal injury
- equipment damage
- damage to property
- a member of the general public becoming injured
This manual covers the operation and maintenance of the Timberwolf 300H. All
information in this manual is based on the latest product information available at the
time.
NOTE - Also supplied with this manual. 1 x Prop shaft instruction sheet.
All the information you need to operate the machine safely and effectively is contained
within pages 2 to 12. Ensure that all operators are adequately trained for operating
this machine especially with regard to safe working practices.
Entec's policy of constantly improving their products may involve major or minor
changes to the chippers or their accessories. Entec Industries reserves the right to
make changes at any time without notice and without incurring any obligation.
Due to improvements in design and performance during production, in some cases
there may be minor discrepancies between the actual chipper and the text in this
manual.
The manual should be considered a permanent part of the
machine and should remain with it if the machine is resold.
!CAUTION or WARNING
Be aware of this symbol and where shown
carefully follow the instructions
This caution symbol indicates important safety messages in this manual. When
you see this symbol be alert to the possibility of injury to yourself or others, and
carefully read the message that follows.
Always follow safe operating and maintenance practices
INTRODUCTION
1

TIMBERWOLF PTO 300H
PURPOSE OF MACHINE
2
The Timberwolf 300H brushwood chipper is designed to chip solid wood
material up to 300mm in diameter, depending on tractor horsepower. It is
capable of chipping over five tonnes of brushwood per hour.
1725 mm
SPECIFICATIONS
2610 mm
2280 mm
1470 mm
570 mm
Serial No Location
The serial number can be found on top
guard over the rotor housing. Do not
remove/deface this plate - these numbers
must be quoted in any correspondence
with Entec Industries.
Power Source Tractor PTO Drive
Overall Weight 1120 kilos
(without prop shaft)
Type of Feed Hydraulic
Maximum Diameter Material 300mm
Material Processing Capacity 5 tonnes/hr
Maximum Engine Power 112KW/150hp
PTO Speed 1000 RPM

PARTS LOCATOR 3
DISCHARGE
BUCKET DISCHARGE
TUBE
CONTROL BOX
FUNNEL
FRAME
SAFETY BAR
LOWER
SAFETY BAR
ROTOR
ROLLER BOX
COVERS
OPENING
ROTOR
HOUSING
DISCHARGE
CLAMP
BOLT
OPEN SIDE
GUARD
TOP GUARD
MOTOR SIDE
GUARD
BELT GUARD
fig 1.

PARTS LOCATOR 4
PTO CONNECTOR
PUMP BELTS
HYDRAULIC
PUMP
OIL LEVEL GAUGE
TANK TOP FILTER
HYDRAULIC MOTORS
TOP BAR ASSEMBLY
HYDRAULIC OIL TANK
SUMP PLUG
fig 2.
ROLLER BOX
TRAILER PLUG
GAS
SPRING
ELECTRIC
VALVE
CATCH
SLIDE
3 POINT
LINKAGE

SAFE WORKING
OPERATOR'S PERSONAL PROTECTIVE EQUIPMENT REQUIRED
Chainsaw safety helmet fitted
with visor and recommended
ear defenders to the
appropriate specifications
Loose fit,
Heavy-duty gloves.
Close fitting heavy-duty
non-snag clothing
Face mask if
appropriate.
DO NOT
wear rings, bracelets,
watches, jewellery or any
other items that could be
caught in the material and
draw you into the chipper.
BASIC WOODCHIPPING SAFETY
The operator should be aware of the following points:
MAINTAIN A SAFETY EXCLUSION ZONE around the chipper of at least 10 metres for the
general public or employees without adequate protection. - Use hazard tape to identify this
working area and keep it clear from debris build up. Chips should be ejected away from any
area the general public have access to.
HAZARDOUS MATERIAL - Some species of trees and bushes are poisonous. The chipping
action can produce vapour, spray and dust that can irritate the skin. This may lead to
respiratory problems or even cause serious poisoning. Check the material to be chipped before
you start. Avoid confined spaces and use a facemask if necessary.
BE AWARE when the chipper is processing material that is an awkward shape. The material
can move from side to side in the funnel with great force. If the material extends beyond the
funnel the brash may push you to one side causing danger. Badly twisted brash should be
trimmed before being chipped to avoid thrashing in the feed funnel.
BE AWARE that the chipper can eject chips out of the feed funnel with considerable force.
Always wear full head and face protection.
ALWAYS work on the side of the machine furthest from any local danger, e.g not road side.
WARNING
The Timberwolf PTO will feed material through on its own. To do this, it relies on
sharp blades on the chipper rotor. To keep the blades sharp, only feed
the machine with clean brushwood.
DO NOT put muddy / dirty wood, roots, potted plants, bricks,
stones or metal into the chipper.
!
!
Safety Boots
5

SAFE WORKING 6
GENERAL SAFETY MATTERS
DO NOT use chipper unless available light is
sufficient to see clearly.
DO NOT use or attempt to start the chipper
without the feed funnel, belt guard, guards and
discharge unit securely in place.
DO NOT start the chipper running unless properly
guarded.
DO NOT stand directly in front of the feed funnel
when using the chipper. Stand to one side.
DO NOT allow -
DO NOT smoke when refuelling.
Petrol is explosive!
DO NOT let anyone who has not received
instruction operate the machine.
DO NOT climb on the machine at any time.
DO NOT handle material that is partially engaged
in the machine.
DO NOT touch any exposed wiring whilst
machine is running.
- to enter the machine, as damage is likely.
BRICKS STRING CLOTH PLASTIC STONES
METAL GLASS RUBBER ROOTS BEDDING
PLANTS
ALWAYS stop the chipper engine before making
any adjustments, refuelling, or cleaning.
ALWAYS check machine has stopped rotating
and remove chipper ignition key before
maintenance of any kind, or whenever the
machine is to be left unattended.
ALWAYS check machine is well supported and
cannot move.
ALWAYS run with the engine set to maximum
speed.
ALWAYS check (visually) for fluid leaks.
ALWAYS take regular breaks. Wearing personal
protective equipment for long periods can be
tiring and hot.
ALWAYS keep hands, feet and clothing out of
feed opening, discharge and moving parts.
ALWAYS use the next piece of material or a push
stick to push in short pieces. Under no
circumstances should you reach into the funnel.
ALWAYS keep the operating area clear of people,
animals and children.
ALWAYS keep the operating area clear from
debris build up.
ALWAYS keep clear of the chip discharge tube.
Foreign objects may be ejected with great force.
ALWAYS ensure protective guarding is in place
before commencing work. Failure to do so may
result in personal injury or loss of life.
ALWAYS use chipper in a well ventilated area -
exhaust fumes are dangerous.
DO’S AND DONT’S !

SAFE WORKING
MACHINE:
NOTES:
TIMBERWOLF PTO 300H ATTACHED TO A JCB
FASTRAK
TESTED CHIPPING 4 INCH ROUND POLES
ALL READINGS REPRESENT TRACTOR WITH
CHIPPER CHIPPING
115.0 dB
105.8 dB
1 METRE
101.8 dB 98.2 dB
90.4 dB
R= 4 metres
Noise levels between 90 and 113.3dBA will be experienced at the working position. Wear ear
defenders at all times to prevent possible damage to hearing. All persons within a 4 metre
radius must also wear ear defenders.
NOISE TEST
fig 3.
7

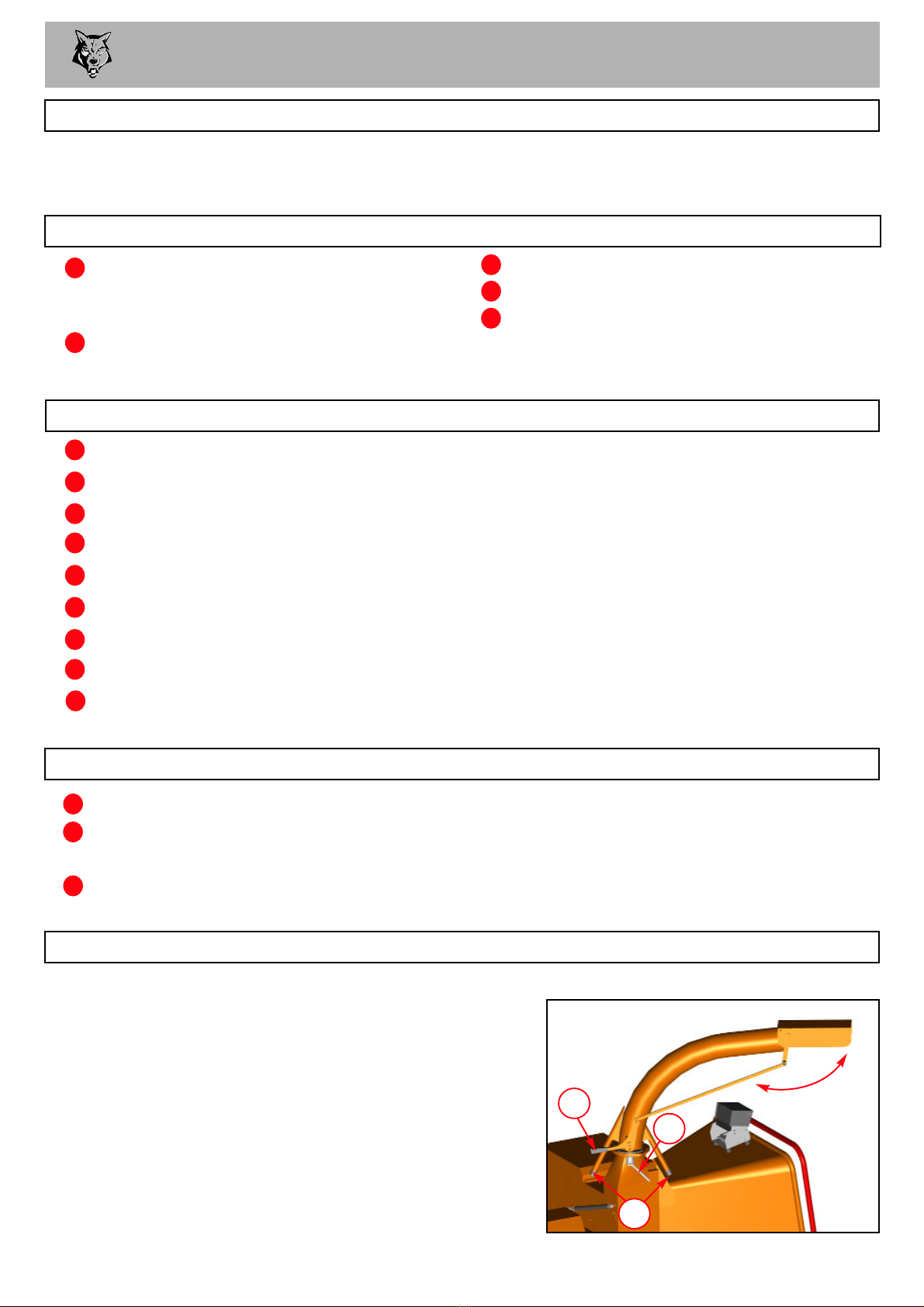

OPERATING INSTRUCTIONS
BEFORE STARTING TRACTOR
BEFORE USING THE CHIPPER
ENSURE feed funnel, feed roller guard, prop shaft guards and access covers are fitted and secure, and that
discharge unit is fitted and pointing in a safe direction.
WHEN ready to start chipping, increase PTO speed slowly until 1000 rpm. is achieved.
IT IS ESSENTIAL TO CARRY OUT THE FOLLOWING TESTS to check safety equipment - this
sequence of tests will only take a few seconds to carry out. We recommend that these tests are
carried out daily. Observing the function as described will confirm that the safety circuits are
working correctly. This is also a good opportunity to remind all operators of the control and
emergency stop systems. After step 9 machine is ready to use.
CONNECTING TO TRACTOR
WARNING
Ensure the tractor is turned off and the ignition key removed before
connecting the PTO. PTO shafts are the major cause of
incidents on agricultural machinery.
ENSURE drive shaft ends are securely fitted to PTO shaft and implement input shaft.
CHECK for properly guarded PTO shaft, implement input and drive shaft.
CHECK that guard chains are securely attached to stationary frame to prevent rotation of guard.
CONNECT power cable from tractor to chipper.
LOCATE the machine on firm level ground.
CHECK the discharge unit is in place and fastened securely.
CHECK discharge tube is pointing in a safe direction.
CHECK the feed funnel to ensure no objects are inside.
CHECK feed table is in up position - to prevent people reaching rollers.
CHECK controls as described on page10.
For parts location see TIMBERWOLF 300H diagrams on pages 3 & 4
8
!
!
5
8
679
12
PRESS THE
GREEN BUTTON
THE ROLLERS
SHOULD TURN
FORWARDS
PRESS THE RED
SAFETY BAR
THE ROLLERS
SHOULD STOP
PRESS THE BLUE BUTTON
THE ROLLERS SHOULD
TURN BACKWARDS ONLY
WHILE THE BUTTON IS
PRESSED
PRESS THE GREEN
BUTTON AGAIN
THE ROLLERS
SHOULD TURN
FORWARDS
PRESS THE
EMERGENCY RED
BUTTON
THE ROLLERS
SHOULD STOP
PRESS THE BLUE
BUTTON
THE ROLLERS
SHOULD NOT
TURN
PULL TO RESET THE RED BUTTON
WHILE PUSHING(OR PULLING) THE
SAFETY BAR, PRESS THE BLUE BUTTON.
ROLLERS SHOULD TURN BACKWARDS
ONLY WHILE BLUE BUTTON IS PRESSED
3
PRESS THE
GREEN BUTTON
THE ROLLERS
SHOULD TURN
FORWARDS
4
PULL THE RED
SAFETY BAR
THE ROLLERS
SHOULD STOP
WITH THE ROTOR RUNNING AT 1000 RPM
DO NOT move the chipper with the rotor running.
MOVING THE CHIPPER

OPERATING INSTRUCTIONS
DELIVERY
All Timberwolf PTO 300H machines have a full pre delivery inspection before leaving the factory and are
ready to use. Read and understand this instruction manual before attempting to operate the Chipper. In
particular, read pages 5-8 which contains important health and safety information and advice.
DAILY CHECKS BEFORE STARTING
ENSURE drive shaft ends are securely fitted to PTO shaft and implement input shaft.
CHECK for properly guarded PTO shaft, implement input and drive shaft.
CHECK that guard chains are securely attached to stationary frame to prevent rotation of guard.
CONNECT charging cable from tractor to chipper (if available).
LOCATE the machine on firm level ground.
CHECK the discharge unit is in place and fastened securely.
CHECK discharge tube is pointing in a safe direction.
CHECK the feed funnel to ensure no objects are inside.
CHECK controls as described on page 10.
For parts location see diagrams on page 3 & 4.
CHECK the angle of the prop shaft when connected to the tractor, which should not exceed 16o.
CHECK that when the machine is lifted for transport the prop shaft does not reach an angle
that causes damage.
IF the prop shaft is supplied with a torque limiter or clutch, this must be fitted to the chipper
end of the drive shaft.
PTO SHAFT
9
DISCHARGE CONTROLS
Controlling the discharge is an essential part of safe working.
ROTATION
1. Slacken nut using integral handle.
2. Rotate tube using handles.
3. Retighten nut.
BUCKET ANGLE
4. Adjust the bucket to the desired angle using the
handle provided.
1
fig 4.
2
4
OPERATOR’S PERSONAL PROTECTIVE EQUIPMENT REQUIRED
CHAINSAW safety helmet fitted with visor and
recommended ear defenders to an appropriate
specification.
HEAVY-DUTY gloves.
CLOSE - FITTING heavy-duty non-snag clothing.
SAFETY footwear.
FACE MASK (if appropriate).
See page 5 for more detailed information.

OPERATING INSTRUCTIONS
Roller control box - is the control box above the feed opening of the chipper funnel. Its function is to control
the feed rollers. The feed rollers draw material into the machine. It does not control the main rotor.
RED SAFETY BAR = This is the large red bar that surrounds the top and sides of the feed funnel.
The bar is spring loaded and connected to a switch that will interrupt the power to the rollers. The
switch is designed so that it only activates if the bar is pushed or pulled to the limit of its travel. The
rollers stop instantly, but can be made to turn again by pressing either the GREEN FEED or BLUE
REVERSE control buttons.
LOW STOP BAR = An additional stop bar is located along the bottom of the low funnel. This is linked
directly to the main bar, and will stop the rollers if pushed only. Pulling this bar will only move it into
its ‘stowed’ (up) position.
GREEN BUTTON = forward feed - Push the button once - this activates the rollers and will allow you
to start chipping (if the rotor speed is high enough).
RED BUTTON = stop feed / emergency stop - This button stops the rollers from feeding. It overrides
all other buttons or bars and will not allow the other buttons to function until it has been reset.
To reset, pull out to its original position. The forward and reverse buttons will now function.
BLUE BUTTON = reverse feed - allows you to back material out of the rollers. The rollers will only
turn in reverse as long as you keep pressing the button. You do not have to press the STOP button
before pressing the GREEN FEED button to recommence feeding. NOTE: This reverse function will
work even if the safety bar is pushed or pulled.
MANUAL CONTROLS
The no stress unit controls the feed rate of the material going into the chipping chamber. If the rotor
speed is below the predetermined level the No Stress Unit will not allow the feed rollers to work in the
forward direction until the rotor speed rises above the predetermined level, at which point the feed
rollers will start turning automatically without warning. NOTE: The reverse button will operate at any
speed, and with the safety bar pressed or pulled.
Control Panel Diagram
Push the RED STOP button or push the RED SAFETY BAR
(whichever is the quickest for you to reach).
Turn off tractor ignition key or operate tractor stop lever.
The emergency stop will prevent any more material being fed into the chipper. The rotor will still be
turning. The tractor must be disengaged or powered down to stop the rotor.
EMERGENCY STOPPING
fig 5.
10
GREEN
FORWARD
FEED
PANEL
BLUE
REVERSE
FEED
PANEL
RED STOP FEED -
EMERGENCY STOP BUTTON
RED STOP BAR
P
U
S
H
T
O
S
T
O
P
P
U
L
L
T
O
R
E
S
E
T
Do not rely on the red bar to keep the rollers stationary if it is
necessary to clear or touch the rollers. Always remove power
from the machine before approaching the rollers.
AUTO CONTROLS

OPERATING INSTRUCTIONS
CHIPPING
Wood up to 300mm diameter can be fed into the feed funnel. Put the butt end in first and engage it
with the feed roller. The hydraulic feed rollers will pull the branch into the machine quite quickly. Large
diameter material will have its feed rate automatically controlled depending on the tractor power
available.
Sometimes a piece of wood that is a particularly awkward shape is too strong for the feed rollers to
break. This will cause the top roller to either bounce up and down on the wood or both rollers to stall.
If this occurs press the BLUE REVERSE button until the material has been released. Pull the material
out of the feed funnel and trim it so the chipper can handle it.
Both feed rollers should always turn at the same speed. If one or both rollers stop or suddenly slow
down it may be that a piece of wood has become stuck behind one of the rollers. If this occurs press
the BLUE REVERSE button and hold for 2 seconds - then repress GREEN FEED button. This should
enable the rollers to free the offending piece of material and continue rotating at the correct speed. If
the rollers continue to stall in the 'forward feed' or 'reverse feed' position push the RED STOP
BUTTON, turn tractor engine off, remove ignition key and investigate.
STARTING THE CHIPPER
WARNING
Do not use or attempt to start the chipper without the
protective guarding and discharge unit securely in place.
Failure to do so may result in personal injury or loss of life.
!!
CONNECT the tractor power cable.
START tractor.
GENTLY engage PTO clutch.
INCREASE tractor revs until tractor PTO speed = 1000 rpm.
DO NOT RUN ON ANY OTHER PTO SPEED SETTING.
CHECK that chipper is running smoothly.
PULL the red stop button.
PRESS the green control button. The rollers will commence turning.
STAND to one side of the feed funnel.
PROCEED to feed material into the feed funnel.
11
This is situated on the side of the hydraulic oil tank. When the chipper is
running the oil temperature should not exceed 65oC. If it does, stop the
machine immediately. Failure to do so may result in damage. Overheating can
result from the chipper being worked extremely hard in hot conditions, as the
oil is not getting a chance to cool down. Stop the chipper and allow oil to cool
before continuing. If the temperature goes above 65oC and the machine is not
being worked hard or the air temperature is not particularly high this indicates low
oil, a jammed hydraulic motor or valve. Stop immediately and investigate.
When the chipper is on level ground the oil level should sit between the red
line at the bottom of the gauge and the blue line at the top. If this level drops
significantly it indicates an oil leak. Stop immediately and investigate.
HYDRAULIC OIL THERMOMETER / OIL LEVEL INDICATOR
fig 6.

OPERATING INSTRUCTIONS
PUSH the RED STOP button (see Control Panel fig. 5, page 10).
KEEPING PTO engaged set tractor speed to idle.
WHEN idle speed steady stop tractor engine.
WHEN engine stationary disengage PTO clutch.
DO NOT disengage the PTO clutch while engine is running as the chipper cutting disc may
continue to free wheel for a long time.
BLOCKAGES
Always be aware that what you are putting into the chipper must come out. If the chips stop coming
out of the discharge tube but the chipper is taking material in - STOP IMMEDIATELY. Continuing to
feed material into a blocked machine may cause damage and will make it difficult to clear.
If the chipper becomes blocked proceed as follows:
STOP the tractor engine and remove the ignition keys. Ensure rotor has stopped turning by
observation of the drive shaft.
REMOVE the two opening rotor housing bolts and use the handle to raise the housing.
The chips causing the blockage should fall clear. It is not necessary to remove all the chips.
Some will remain lying in the bottom of the rotor housing, which the chipper will eject when it
is restarted.
WARNING
Do not reach into the rotor housing with unprotected hands. There are
sharp blades and any small movement of the rotor may cause serious injury.
CLOSE the housing and re install the bolts.
RESTART tractor, engage the PTO and run at working speed.
ALLOW machine time to clear excess chips still remaining in rotor housing before you
continue feeding brushwood. Feed in a small piece of wood whilst watching to make sure
that it comes out of the discharge. If this does not clear it, repeat the process and carefully
inspect the discharge tube to find any obstruction.
NOTE
Continuing to feed the chipper with brushwood once it has become blocked will cause the chipper to
compact the chips in the rotor housing and it will be difficult and time consuming to clear.
AVOID THIS SITUATION - WATCH THE DISCHARGE TUBE AT ALL TIMES.
STOPPING THE CHIPPER
!!
12

Lubricate Roller Box slides.
Inspect blades and change if necessary.
Lubricate PTO shaft coupling grease nipples.
Check for tightness all visible nuts bolts and
other fasteners.
Grease hydraulic motor spline drives.
Check pump belt tension.and adjust if
necessary.
Check hoses for signs of chafe or leakage.
Service safety bar.
Change hydraulic oil and filter.
Inspect anvil and roller feed blades. Replace
or sharpen as appropriate.
SERVICE INSTRUCTIONS
ALWAYS IMMOBILISE THE MACHINE BY STOPPING THE TRACTOR AND
REMOVING THE IGNITION KEY BEFORE UNDERTAKING ANY MAINTENANCE WORK.
WHEN THE TRACTOR IS STOPPED IT WILL BE NECESSARY TO DISENGAGE
THE PTO SO THAT THE ROTOR CAN BE TURNED.
WARNING
NOTE: Main Rotor Bearings are sealed for life. No greasing or lubrication is necessary.
!
!
13
8
hours
16
hours
50 hours
(once a month)
400 hours
(once a year)
TABLE 1. SERVICE SCHEDULE
Carry out the tasks below every:
Only fit genuine Entec replacement blades, bolts and chipper spares. Failure to do so will result in
the invalidation of the warranty and may result in damage to the chipper, personal injury or even loss
of life.
SPARES

SERVICE INSTRUCTIONS
ALWAYS stop the tractor engine before
installing or removing the prop shaft.
WHENEVER possible the pump belt
should be connected while changing
blades, as this will restrict sudden
movement of the rotor.
AVOID contact with hydraulic oil.
HANDLE blades with extreme caution to
avoid injury. Gloves should always be worn
when handling the cutter blades.
THE major components of this machine are
heavy. Lifting equipment must be used for
disassembly.
CLEAN machines are safer and easier to service.
SAFE MAINTENANCE
14
NOTE. If the roller blades become worn and rounded to the point where the in-feed pulling
power of the chipper becomes noticeably reduced, it is permissible to sharpen the roller
blades by grinding in situ.
1. With the tractor stopped and the PTO drive disconnected
remove the roller box covers (see Parts Locator fig. 1,
page 3).
2. Disconnect the plug under the feed funnel.
3. Using lifting equipment support feed funnel.
4. Remove retaining nuts.
5. Using lifting equipment, remove feed funnel.
6. Unclip the four assister springs on the roller box.
7. Lift up the roller frame and use a piece of wood under
the roller brace bar to prevent it falling down again.
8. Use an angle grinder to re-create an edge. The rollers
may be turned by hand to reach successive edges.
9. When all the edges have been dressed, sweep up the
grinding dust and clean the area.
10. Remove the wooden prop and lower the top roller frame.
Caution - this is heavy and easy to trap hands in.
11. Reconnect the four assister springs.
12. Refit feed funnel, reconnect electrics and fit main guards.
6
7
fig 8.
WARNING
Use rigger gloves, eye protection and
refer to the angle grinder safety
leaflet before attempting
this operation.
!!
ALWAYS IMMOBILISE THE TRACTOR BEFORE UNDERTAKING ANY MAINTENANCE WORK
ON THE CHIPPER.
SAFE LIFTING OF THE PT0 300
The TW PTO 300 wood chipper has been designed to be lifted
safely utilising two lifting positions together. The main lifting eye
located at the top of the narrow end of the feed funnel, and the
uppermost of the three-point tractor mounts must only be used
together.
A chain or strap, which is 700mm long (1) and having a rating of 1.5
tons, is to be attached with a suitable shackle to the lifting eye. A
second chain or strap, 1200mm long, (2) also rated at 1.5 tons
minimum, is to be attached to the second lifting point (the uppermost
of the three-point tractor mount with its pin.) Both of these lifting
apparatus are to be attached together to the appropriate lifting
equipment via a hoist hook.
12
SHARPEN THE ROLLER BLADES
x4
fig 7.
700mm
1200mm

SERVICE INSTRUCTIONS
1. Rotate discharge chute fully anticlockwise
and clamp.
2. Locate rotor housing bolts.
3. Using a 24mm spanner remove the bolt plate.
4. Lift the rotor housing until the catch engages.
5. Turn the rotor to a convenient position using
the fan blades. Use a large piece of wood (at
least 600mm) to wedge the rotor and prevent
it from turning.
6. Brush away all dirt and debris from the rotor
and blades.
7. Using a 24mm socket spanner remove the
two M16 nuts at the back of one blade,
blades are reversible and can be turned to
allow use of the opposite side. If both sides
are blunt or damaged the blade should be
removed for re-grinding.
8. After removing the blade from the rotor it is
necessary to extract the bolts from it. To
do this lay the blade face down on a solid
metal surface and give the thread end of
each bolt a sharp tap with a hammer. The
bolt is specially machined to allow for this.
9. Before refitting the blade in the rotor, the
underside of the blade and the tapered
bolt holes must all be scrupulously
clean.
10. Refit the blades when ready to do so.
Apply a smear of anti seize compound to the
bolt threads and tighten the M16 nuts to
150 Lbft / 203Nm.
11. Release the catch and lower the rotor
housing into place. It will be necessary to
push it down the last bit to overcome the
assister spring. Fit the two retaining bolts
and tighten to 65 lbs ft (88Nm).
WARNING
Wear riggers gloves for the blade changing operation.
CHANGE BLADES
fig 9. fig 10.
1
2
4
Rotor housing
in open position
5
7
!
!
15
WARNING
Always sharpen blades on a regular basis. Failure to do so will
cause the machine to under perform and will overload engine and
bearings causing machine breakdown. Blades must not be
sharpened beyond the wear mark (see diagram). Failure to comply
with this could result in machine damage, injury or loss of life.
!
!
WEAR
MARK
fig 14.

SERVICE INSTRUCTIONS
TENSION HYDRAULIC PUMP BELT
NOTE: This is best done with the chipper removed from the tractor.
1. Access four screws (two either side) that support the pump mounting
plate and slacken using a 17mm socket spanner. The nuts are captive.
2. Adjust the bolt at the bottom of the pump plate until the desired
tension is achieved. Tension is correct when 3kg of force deflects one
belt 4mm at the centre of its span. (Push the belt firmly with your
index finger; it should deflect to roughly the depth of your fingernail).
3. Retighten the four pump plate bolts to 40 lbs ft (55Nm).
fig 13.
The Timberwolf PTO 300H is subject to large vibrations during the normal course of operation.
Consequently there is always a possibility that nuts and bolts will work themselves loose. It is
important that periodic checks are made to ensure the security of all fasteners. Fasteners should be
tightened using a torque wrench to the settings listed below .
1
2
PTO DRIVE SHAFT MAINTENANCE
1. Lubricate regularly. At least every 16 hours on
coupling grease nipples and 8 hours on all other
lubricated points.
Replace prop shaft shear bolts only with correct
grade of bolt available from the shaft supplier.
SEE SEPARATE PROP SHAFT INSTRUCTION SHEET FOR FULL DETAILS.
Further information on the safe use of PTO shafts can be found in HSE leaflet AS 24
fig 11.
1
Size Pitch Head Length (mm) Detail Torque Ibft Torque Nm
Blade Bolts M16 Fine 24mm Hex 74 Specialist 150 203
Rotor Housing Clamp Bolts M16 Standard 24mm Hex 35 Standard 60 80
Pump Adjuster Bolts M10 Standard 17mm Hex 30 Standard 35 50
Discharge Retaining Bolts M10 Standard 17mm Hex 40 Standard 35 50
Hyd Motor Retaining Bolts M10 Standard 17mm Hex 35 Standard 35 140
Chipper Head Retaining Bolts M20 Standard 24mm Hex 80 Partial Thread 105 140
Chipper Head Retaining Bolts M20 Standard 24mm Hex 80 Standard 105 140
Rotor Shaft Retaining Screws M20 Standard 17mm Allen 100 Standard 105 140
Funnel Retaining Studs M16 Standard 24mm Hex 80 Standard 80 110
Anvil Retaining Screw M16 Standard 14mm Allen 80 Standard 80 110
General M8 Standard 13mm Hex n/a Standard 17 23
General M10 Standard 17mm Hex n/a Standard 34 46
General M12 Standard 19mm Hex n/a Standard 60 80
16
CHECK FITTINGS
GREASING THE ROLLER BOX
Apply several pumps of grease to the four grease nipples, as
shown before each work session.
fig 12.

SERVICE INSTRUCTIONS
WARNING
This job is best carried out when changing the blades. Before attempting to
change the anvil follow the instruction for changing the blades
and remove all the blades.
The anvil is made of toughened wear resistant steel, but eventually wear will occur on the top edge.
When this happens the chipper will not cut stringy thin material as efficiently. If this becomes a problem
the anvil should be replaced.
CHANGE ANVIL
4. Withdraw from the locating slot.
5. Before fitting a new anvil reach in and
carefully clean the anvil seat.
6. Refitting is an exact reversal of the removal process.
1. Remove blades (see page 17).
2. Undo and remove the anvil retaining screw
using a 14mm Allen key.
3. Prise anvil away from the rollerbox at screw end.
fig 16.
WARNING
Use plastic gloves to keep oil off skin and dispose of the used oil and filter in an
ecologically sound way. The oil and filter should be changed once a year or at
any time it becomes contaminated. Before starting check that the chipper is
standing level and brush away loose chips.
CHANGE HYDRAULIC OIL AND FILTER
1. Remove the black screw cap from the top of the filter
housing.
2. Partially remove filter element from inner cup. Leave filter
to drain for 15 minutes.
3. Remove filter element from cup when clear of hydraulic oil.
4. Remove drain plug and drain oil into a suitable container.
5. Replace drain plug.
6. Refill with VG 32 hydraulic oil until the level is half way up
the sight glass (about 40 litres).
7. Replace the filter cup, install a new filter element and
replace the filter cap (screw).
fig 14.
CHECK HOSES
All the hydraulic hoses should be regularly inspected for chafing and leaks. The hydraulic system is
pressurized to over 200 Bar and thus the equipment containing it must be kept in good condition.
Identify the hoses that run to the top motor. These have the highest chance of damage as they are
constantly moving. If any hydraulic components are changed new seals should be installed during
reassembly. Fittings should then be retightened correctly.
1
2
4
6
2
4
!!
!!
17
1
fig 15.

TIMBERWOLF PTO 300H 18
WARRANTY PERIOD
The warranty period for the woodchipper commences on the date of sale to the first end user and
continues for a period of 12 months.
This guarantee is to the first end user only and is not transferable except when an authorised
Timberwolf Dealer has a woodchipper registered with Entec Industries as a hire chipper or long term
demonstrator – in these situations they are duly authorised to transfer any remaining warranty period
to their first end user. Any warranty offered by the Timberwolf Dealer beyond the original 12 month
period will be wholly covered by said Dealer.
LIABILITY
Our obligation under this warranty is limited to repair at Entec Industries premises or at our option an
Entec approved Timberwolf dealer. No liability will be accepted for special, indirect, incidental, or
consequential loss or damages of any kind.
WARRANTY STATEMENT
Entec Industries warrants to the first end user that;
-Your woodchipper shall be designed, built and equipped, at the point of sale, to meet all current
applicable regulations.
-Your chipper shall be free from manufacturing defects both in materials and workmanship in
normal service for the period mentioned above.
Warranty will not apply to a failure where normal use has exhausted the life of a component.
Engine units are covered independently by their respective manufacturer warranties.
OWNERS WARRANTY RESPONSIBILITIES
As the owner of an Entec woodchipper you are responsible for the following;
-Operation of the woodchipper in accordance with the Entec instruction manual.
-Performance of the required maintenance listed in your Entec instruction manual.
-In the event of a failure the Entec authorised Timberwolf dealer is to be notified within 10 days of
failure and the equipment is to be made available for unmolested inspection by the dealer technician.
WARRANTY RESTRICTIONS
The Entec warranty is restricted to the first end user only and is not transferable except when an
authorised Timberwolf Dealer has a woodchipper registered with Entec Industries as a hire chipper
or long term demonstrator – in these situations they are duly authorised to transfer any remaining
warranty period to their first end user.
The Entec warranty may be invalidated if any of the following apply;
-The failed parts or assembly is interfered with in any way.
-Normal maintenance in accordance with that set out in the Entec manual has not been performed.
-Incorrect reassembly of components.
-The machine has undergone modifications not approved in writing by Entec Industries.
-In the case of tractor driven equipment, use has been on an unapproved tractor.
-Conditions of use can be deemed abnormal.
-The machine has been used to perform tasks contrary to those stated in the Entec instruction
manual.
WARRANTY SERVICE
To obtain warranty service please contact your nearest Entec approved Timberwolf dealer. To obtain
details of the nearest facility please contact Entec Industries at the address on the front of this manual.
These warranty terms are in addition to and not in substitution for and do not affect any right and
remedies which an owner might have under statute or at common law against the seller of the goods
under the contract by which the owner acquired the goods.
ENTEC 12 MONTH CHIPPER WARRANTY

TIMBERWOLF PTO 300H 19
