TIME LED Elements Storm SITE110 Batten User manual

Package includes:
1 x Elements Storm Batten 2ft or 6ft
1 x Cable Gland
2 x Mounting Bracket
4 x Screws
4 x Wall Plugs
1 x Manual
Features:
• Equipped with rubber protection Gland and nylon cover protector
• Wiring specification: only use H07RN-2 x 1.0mm2(WARNING: Do Not Use PVC Cable)
• LED Lamp
• Class II Luminaire
Safety:
• Electrical work, including installation and repair, must always be completed by a qualified technician.
• Disconnect the lamp from the mains supply and let the product cool down before you replace the light source.
• Never touch the light source when the lamp is turned on.
• In case of product failure, disconnect the lamp from the mains supply.
• The product is suitable for connecting through to multiple units up to a maximum of 500W.
Installation of this luminaire should only be carried out by a qualified electrician or competent person to the current
Building and IEE Wiring Regulations (BS7671).
INS-ELEMENTS_STORM SITE110-BATTEN-V1
Elements Storm SITE110 Batten
Installation and Operating Instructions
Please read and follow the instructions before operating your light
and save this manual for future reference.
TIME LED is part of Pitacs Limited. For customer support contact:
Bradbourne Point, Bradbourne Drive, Tilbrook, Milton Keynes, Buckinghamshire MK7 8AT
T: [phone] E: [email protected] W: www.TIMELED.co.uk

Product Code 313950 - 2ft
313967 - 6ft
Size (mm) 600x68x65 (313950)
1830x68x65 (313967)
Lamp SMD
Watts 20W (313950)
75W (313967)
Lumens 2400 lm (313950)
9000 lm (313967)
X4
X4
X2
X1
Application:
Suitable for use in:
• Construction applications
• This product is suitable to be connected to a 110V - 230V power source
Installation:
Accessory Pack includes:
1 x Cable Gland 2 x Mounting Bracket
4 x Screws 4 x Wall Plugs
1) Ax mounting brackets in a suitable location and to a suitable surface.
2
Lifespan 30,000hrs
Beam Angle 120°
Colour Temp 5000K Daylight
Material PC
Dimmable No
Voltage 110V - 230V
Hertz 50Hz
Warranty 3 Years
IP Rating IP65
Energy Rating E

3) This product can be daisy-chained to a maximum of 500W.
2) To connect the product:
• Twist the waterproof lock anti-clockwise and pull open the power connection carrier.
• Insert the power cable through the IP Gland.
• Lift the levers on the connectors and insert the live (brown) and neutral (blue) cable as shown.
• Tighten the IP Gland, re-insert the power connection carrier and tighten the waterproof
lock clockwise.
4) To daisy-chain the product:
• To access the output carrier, remove the plastic bung and screw in the supplied
• Cable Gland.
• Twist the waterproof lock anti-clockwise and pull open the power connection carrier.
• Insert the power cable through the IP Gland.
• Lift the levers on the connectors and insert the live (brown) and neutral (blue) cable as
shown.
• Tighten the IP Gland, re-insert the power connection carrier and tighten the waterproof
lock clockwise.
See Fig. 3.
Power
Max 500W
......
4
L N
2*1.0mm²
press
3

Elements Storm
SITE110 Batten
Cleaning:
• Do not use any chemical or abrasive cleaners.
• Only clean the product with a soft dry cloth.
Warning:
• This product must be disconnected from the circuit if subjected to any high voltage or insulation
resistance testing. Irreparable damage will occur if this instruction is not followed.
• This product can be connected to a 110V - 230V power source.
Recycling Advice:
• Electrical products should not be disposed of with household waste. Please check with your local
authority or retailer for responsible recycling advice.
Warranty:
• This product is warranted to be free of defects in materials, design and workmanship for 3 years
from the date of purchase (conditions apply, please see TIME LED website for further details).
If a suspected fault should develop in this time, please contact us via the address below.
Full technical specification available upon request. Contact [email protected]om for PDF.
More products available from the TIME LED range
Polar CCT
Bulkhead Lights
793473 - 18W CCT
793480 - 30W CCT

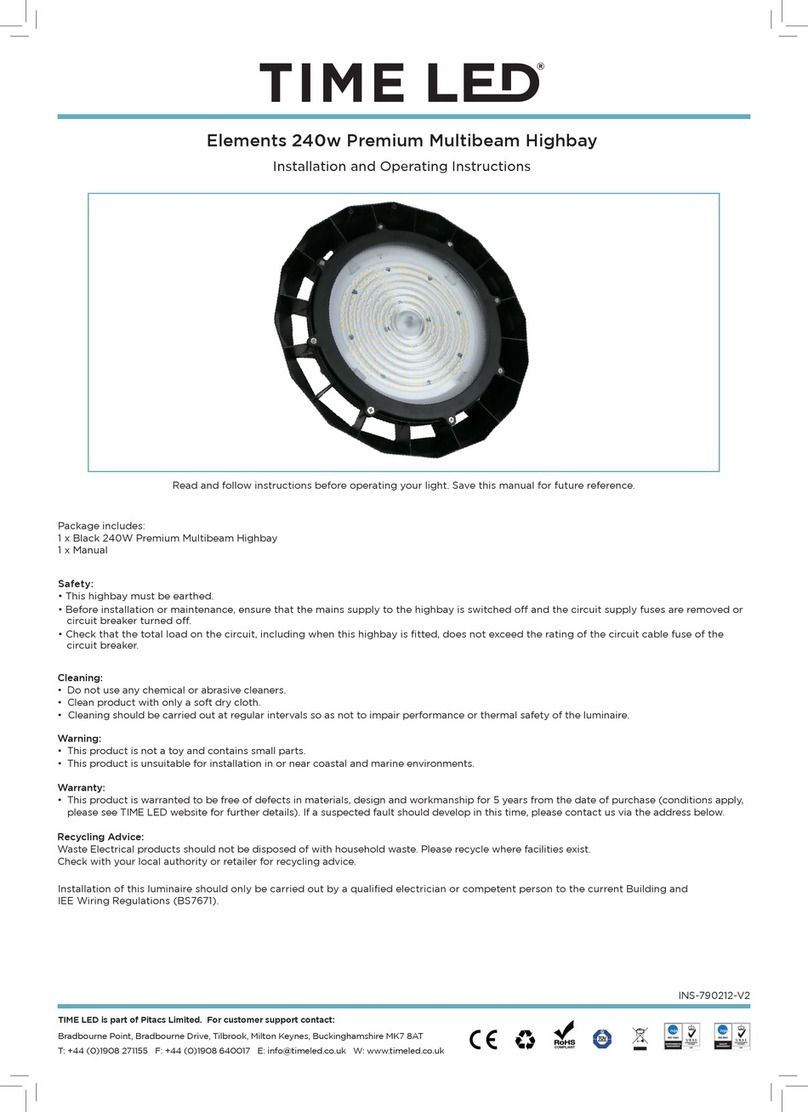

Elements Premium
