TIME LED Guardian 5W Emergency Bulkhead User manual

Installation and Operating Instructions
INS-793497-V1
Read and follow instructions before operating your light.
Save this manual for future reference.
Package includes:
1 x Guardian 5W Emergency Bulkhead
1 x Manual
TIME LED is part of Pitacs Limited. For customer support contact:
Bradbourne Point, Bradbourne Drive, Tilbrook, Milton Keynes, Buckinghamshire MK7 8AT
T: [phone] F: [phone] E: [e-mail] W: www.timeled.co.uk
015 015
Guardian 5W Emergency Bulkhead
Safety:
• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671) and
 currentBuildingRegulations.Ifinanydoubt,consultaqualiedelectrician.
• Isolate mains prior to installation or maintenance.
•Checkthetotalloadonthecircuit(includingwhenthisluminaireistted)doesnotexceedtheratingofthecircuit
cable, fuse or circuit breaker.
• This product is IP65 rated.
•TheLEDsttedinthisproductarenon-replaceable.
• This product is non-dimmable.
Full Technical specification available upon request. Contact [e-mail] for PDF.
Guardian 5W Emergency Bulkhead
Installer and Maintenance Record:
Installer:.........................................................................................
Installation:................................................................................... Type: ...........................................................................
Installation Test Duration & Date: ...................................................................................................................................
IP65
3 YEARS
WARRANTY
5W
25,000
HOURS
LIFESPAN
Month Te s t
1st Year 2nd Year 3rd Year 4th Year 5th Year
Signed Date Signed Date Signed Date Signed Date Signed Date
1 Short
2 Short
3 Short
4 Short
5 Short
6 Short
7 Short
8 Short
9 Short
10 Short
11 Short
12
1 Hour
3
Hours

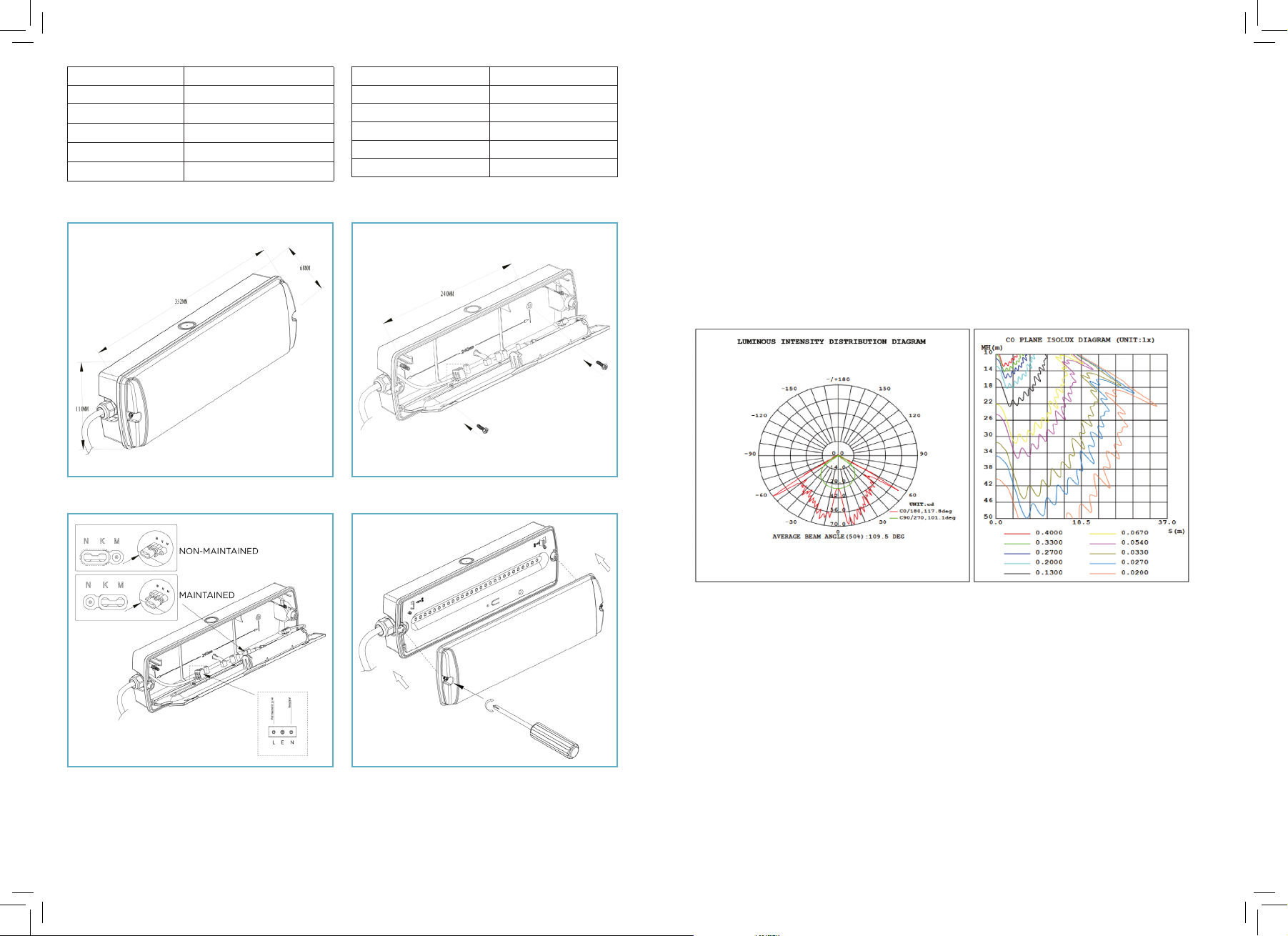

Instructions for new installations:
Figure 1
Figure 3
Figure 2
Figure 4
Testing:
The emergency lighting must be inspected and tested regularly in accordance with local codes of practice.
Note: For safety reasons, tests should be carried out during day light hours. The testing should be done in a dry
environmentandbyaqualiedperson.
Move the plastic diffuser, press the test button to simulate failure of mains power; the emergency light should
come on and driven by battery. The minimum recommended test schedule is as follows: After installation, allow 36
hours to ensure full battery charge and then interrupt the supply; check after 3 hours that the luminaire is still lit.
Recommended Checks:
1. Daily check that charge indicator LED is working
2. Monthly interrupt mains for a short period and check LED lights
3. Six-monthly, check 1 hour duration
4. At the end of the year and subsequently every year; check 3 hour duration: batteries must be replaced when
they can no longer support 3 hour operation.
5.TheincludedMaintenanceRecordshouldbeupdatedwithongoingtestrecordsforinspectionbyareofcer
or other authorized person.
Product Code 793497
Size (mm) 352 x 68 x 110
Colour Temp 6500K Daylight
Lifespan 25,000 Hours
Warranty 3 Years
Energy Rating A
IP Rating IP65
Material PC
Emergency Battery Ni-Cad 3.6v 1500mAh
Charging Time 24 Hours
Emergency Discharge Time 3 Hours
Battery Life 4 Years
Cleaning:
• Do not use any chemical or abrasive cleaners.
• Clean product with only a soft dry cloth.
Warning:
• This product shall be installed by a licenced electrician in compliance with the requirements set out in AS/NZS 3000
(current edition) and other relevant Standards and Regulations pertaining to the installation.
• This product must only be used for the purpose outlined in this instruction manual.
• Prior to installing this product, check the product has not been damaged during transport. Do not operate/install
the product if any damage is visible in any way. Return complete product to place of purchase for inspection, repair
or replacement.
Warranty:
This product is guaranteed against faulty workmanship and material for a period of 3 years from date of installation.
TIME LED at its discretion will repair, replace or offer a refund for any defective product. Any alterations or
modicationstothisproductwithoutpermissionwillvoidwarranty.TIMELEDwillnotberesponsibleforcostof
removing, retrieving, reinstalling and installation of any replacements.
Recycling Advice:
Waste Electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check
with your local authority or retailer for recycling advice.
