Tiny Tatty Teddy
Cradle Swing
Model # 037696-328
IMPORTANT: RETAIN FOR FUTURE REFERENCE.
READ CAREFULLY.

32
Due to variations in the style and design of our products, the photographs and illustrations
shown in this instruction manual are generic, therefore product fabrics, colour and
design may vary from images shown. CNP Brands reserves the right to alter product
specications without notice as a result of our ongoing policy of product improvement.
Contents
Assembly contents list
Assembly / Operating instructions
How to care for your Cradle Swing
Congratulations on your purchase of the
Tiny Tatty Teddy Cradle Swing.
This product has been designed and developed with
safety, comfort and functionality in mind. Please take
the time to read this manual carefully before using
this product and keep it in a safe place for future
reference.
Before assembling this swing, read and understand the instructions.
Incorrect assembly may make the swing unsafe. Do not use this swing
if any part is broken, torn or missing. Keep instructions in a safe place
for future reference.
Safety Precautions
Make sure all the locking equipment is installed well before using the cradle swing.
Do not use the cradle swing on an rough surface to avoid any injury to the infant.
Discontinue use of cradle swing when infant attempts to climb out.
Discontinue use of cradle swing when infant can roll over.
Never use the toy-bar to carry the cradle swing.
Age range suitability: 0 - 6mths/9kgs.
This cradle swing does not replace a cot or a bed. Should your child need to sleep, then it should
be placed in a suitable cot or bed.
Do not use accessories or replacement parts other than those approved by the manufacturer.
WARNING :FOLLOW THE MANUFACTURER’S
INSTRUCTIONS.
NEVER LEAVE THE CHILD UNATTENDED.
NEVER USE THIS PRODUCT ON AN ELEVATED SURFACE,
E.G A TABLE.
THIS RECLINED CRADLE IS NOT INTENDED FOR
PROLONGED PERIODS OF SLEEPING.
ALWAYS USE THE RESTRAINT SYSTEM.
DO NOT USE THE RECLINED CRADLE ONCE YOUR CHILD
CAN SIT UNAIDED (APPROXIMATELY 6 MONTHS UNTIL
9KGS).
TO AVOID INJURY ENSURE THAT CHILDREN ARE KEPT
AWAY WHEN UNFOLDING AND FOLDING THIS PRODUCT.
DO NOT LET CHILDREN PLAY WITH THIS PRODUCT.
DO NOT MOVE OR LIFT THIS PRODUCT WITH THE BABY
INSIDE IT.

54
x1
Assembly Contents Assembly Contents
Check what you have received...
You have received 1 box. Please check the contents of the box against the list below.
If anything is missing, please contact Customer Service. In Australia, contact CNP
Brands on 1300 667 137, in New Zealand contact Wainhouse Distribution on
0800 567 5000.
Supplied loose in box:
Main module with Toy arm
Seat support frame assembly
Seat pad
Snack tray
Front tube seat frame
Left leg tube
Right leg tube
x1
x1
x1
x1
x1
x1
x1
Left support tube
Right support tube
Lower boom tube
27mm Screw (lower boom tube)
22mm Screw (lower boom tube)
External power adapter
17mm Screw (lower boom tube)
x1
x1
x2x2
x1
x1

76

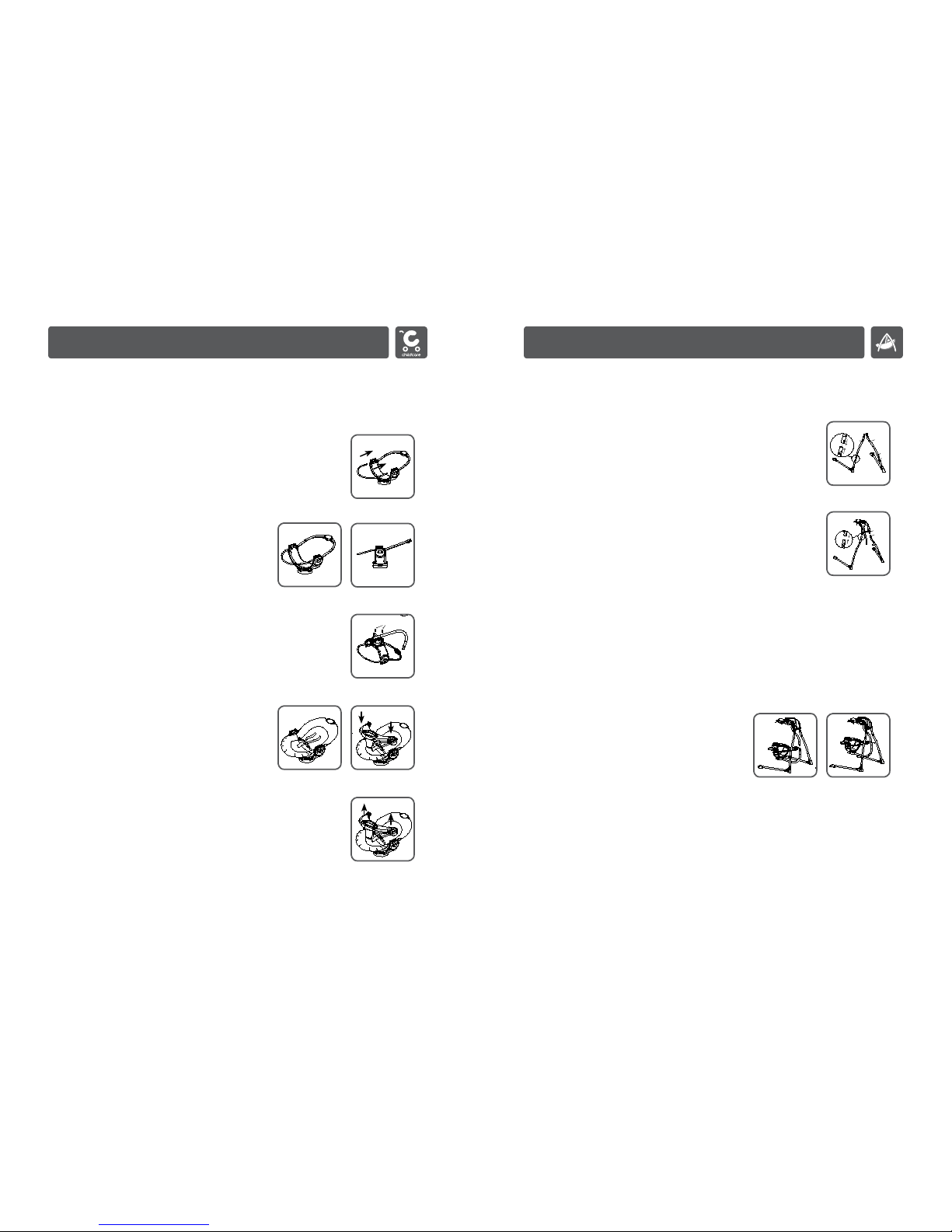

Insert front tube seat frame into the plastic
mouldings of the seat support frame assembly
according to the direction of the arrows, make
sure all tubes are installed properly. Ensure the
corresponding tube labelled ‘E’ is aligned with the
‘E’ on the seat support frame assembly.
Connect the lower boom tube into the swing tube
on the main module with toy arm. Ensure that
you hear a ‘click’ allowing the pop-pins to engage
securely.
Then use a 17mm screw to lock the tubes together
as a secondary locking device.
Ensure that you hear the pop-ins click once
engaged in holes in the plastic mouldings. After
completing the installation, the seat frame direction
is downwards as shown in the diagram.
Insert left leg tube unto left support tube, ensuring
that the label ‘A’ on each tube aligns as per diagram.
Repeat previous step for the right leg tube, ensuring
that the label ‘B’ on each tube aligns as per diagram.
Install the lower boom tube to the bottom of the
seat support frame using two 27mm screws, and
two 22mm screws to secure in place.
Insert left support tube into the left tube of the main
module with toy arm, ensuring that the label ‘C’ on
each tube aligns as per diagram.
Repeat previous step for the right support tube,
ensuring that the label ‘D’ on each tube aligns as
per diagram.
Install the seat pad to the seat support frame
assembly by placing the seat tubes into the seat
fabric pockets on the underside.
Place the snack tray side clips over seat support
frame assembly in the direction of the arrows shown
in the second picture of diagram
To release the snack tray, pull side clips of the snack
tray outwards and lift upwards.
Assembly / Operating Instructions
Assembling Seat Frame
PLEASE NOTE: You may need the help of another adult.
1.
1.
2.
2.
1.
3.
2.
3.
4.
5.
Assembly / Operating Instructions
Assembling Swing
Installing seat frame assembly
to support frame assembly
22mm
27mm
22mm screws
C
A
c
A
c
D
B
B
D
D

98
To correctly thread harness,
route each shoulder strap
through the corresponding
buckle as shown in the
diagram.

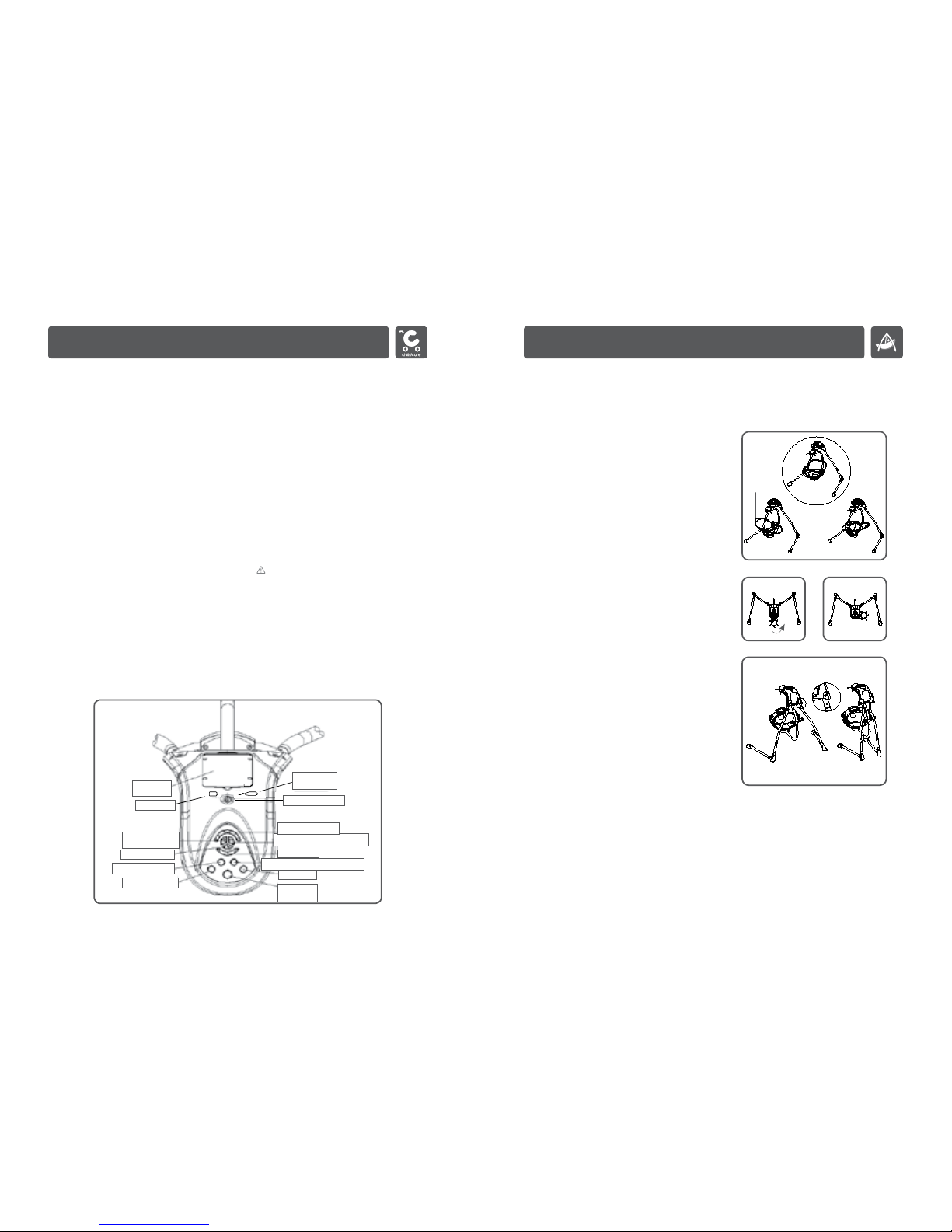

Power (“ / ”) selector switch:
a) Slide selector switch toward “ ” to
activate battery power supply operation.
b) Slide selector switch toward “ ”
to activate external adapter power supply
operation - recommended where a 240V
power point is available.
Swing Function:
Five swing speeds available. The indicator
lamps will light once you press the swing start/
speed increase button which means the rst
speed has started.
The indicator lamps will light one after one
while the swing speeds will increase for every
press “+” button. The indicator lamps will turn
off for every press “-” button which decreases
the swing speed until the swing has come to a
stop and all lamps are off.
Locate the swing/music box at the back of the main
module with toy arm.
Unscrew the battery compartment cover.
Install 4 x ‘D’ (1.5V) alkaline batteries (not included)
into battery compartment. Ensure that the batteries
are facing the appropriate polarity.
Replace the battery cover and screw back on.
WARNING:
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc) or
rechargeable (nickle-cadmium) batteries.
Adult supervision is required when charging
rechargeable batteries.
Always remove at or exhausted batteries from
the toy.
Do not short circuit the supply terminals.
Non-rechargeable batteries are not to be
recharged
Place the infant in the seat as show in the diagram.
Insert the left and right sets of buckles into the
restraint latch.
Adjust the straps in the buckles as needed so that
the restraint ts snugly, but not too tightly.
1. 1.
2.
3.
1.
2.
2.
4.
3.
3.
4.
Assembly / Operating Instructions Assembly / Operating Instructions
Restraints - harness Power / swing / music / time / mobile function
Battery power
Time Function:
There are three time settings available.
Press the button once and the eight
minute light indicator will illuminate. Press
the button for the second time and two
lamps will illuminate for fteen minutes.
Press the button for the third time and
three lamp lights will illuminate for thirty
minutes.
All the time functions will stop once the
selected time is reached, then the swing
function will stop.
If you don’t select as time setting function
all other functions will continue to work
until power off button is selected.
Water sound button
Music button ON/OFF
Time setting button
Swing stop/increase
speed button
Battery
compartment
Toy mobile
control button
Twitter button
Time indicator
Music selection/volume control button
Swing stop/decrease speed button
Speed select indicator
External power
adapter option
Battery option Power selector switch

1110
Music Function:
Press music on/off button once to start
the music, then press again to stop the
music.
The music selection/volume control
button allows you to select other
melodies for each press of the button. If
you continue to press the button you can
increase/decrease the volume.
Twitter button:
The twitter will start once you press the
button, press again to stop.
Water sound button:
The water sound will start once you press
the button, press again to stop.
The seat direction can be adjusted in three
angles: please revolve the seat to the left or
right totally three angles according to the
arrowheads marked in the diagram.
To adjust the seat backrest:
The seat backrest can be adjusted into
two positions by squeezing the adjustment
lever upwards and releasing it at the desired
location.
Mobile toy arm:
The toy mobile arm can be revolved to it’s side
as shown in the diagram.
4.
5.
6.
7.
Assembly / Operating Instructions Assembly / Operating Instructions
Power / swing / music / time / mobile function (cont) Operating swing
seat backrest
adjustment lever
Folding:
Press the spring pin to fold the two supporting
legs.
Toy mobile control button:
The toy mobile starts turning when you
press the button once (the toy mobile’s
lamp will not ash). When you press the
button the second time the toy mobile will
stop turning and the toy mobile’s lamp
will illuminate.
When you press the button the third time
the toy mobile will start turning and the
toy mobile’s lamp will ash.
WARNING:
Transformers used with the infant
swing are to be regularly examined for
damage to the cord, plug, enclosure
and other parts, and in the event of
such damage, they shall not be used.
The infant swing shall only be used
with the recommended transformer.
Please note: The adapter and the
batteries cannot be used at the same
time.
Water sound button
Music button ON/OFF
Time setting button
Swing stop/increase
speed button
Battery
compartment
Toy mobile
control button
Twitter button
Time indicator
Music selection/volume control button
Swing stop/decrease speed button
Speed select indicator
External power
adapter option
Battery option Power selector switch

1312
Trouble shooting & care instructions
Cleaning:
To ensure the long-lasting use of your swing, do not use abrasive cleaners. Always store product in
a clean dry place.
Seat pad:
Remove from frame. Fasten buckles on seat restraint and seat pad. Machine wash with cold water,
gentle cycle. No bleach.
Snack tray:
Wipe clean with a damp cloth and mild soap. Air dry. Do not immerse in water.
Maintenance:
Always check parts regularly for tightness of screws, nuts and other fasteners - tighten or replace
if required. To maintain the safety of your swing, seek prompt repairs for bent, torn, worn or broken
parts.
Storage:
Always store product in a clean and dry place.
Remove batteries prior to placing unit in storage to prevent battery leakage/corrosion to battery
compartment.
Use only those parts and accessories approved by CNP Brands.
If you have any difculties in assembling the swing, please contact our
Service Department on 1300 667 137.
How to care for your Childcare swing
Music or swinging motion cuts off
No response when starting up
Long time storage
Rock inadequately
- Batteries may be exhausted
- Ensure swing is assembled properly in all areas
- Power adapter not connected properly
- Ensure power is in the ‘on’ position at power point
- Check on battery polarity; ensure that the battery
is inserted correctly to avoid damage to the battery
and motor head
- Power adapter not connected properly.
- Ensure power is in the ‘on’ position at power
point.
- Remove batteries
- Check on the frame lock tube; ensure it is clicked
into the correct position
Problem Solutions

Distributed in Australia by CNP Brands, 20 Calarco Drive, VIC, 3030
Customer Service 1300 667 137 www.cnpbrands.com.au
Distributed in New Zealand by Wainhouse Distribution, 2-6 Argyle St,
Morningside, PO Box 41-014, St Lukes, Auckland, New Zealand
Customer Service: 0800 567 5000 [email protected]
