Tion MagicAir Base Station User manual

USER MANUAL
Air quality monitor and climatic devices controller
MagicAir Base Station
Model: Tion BS310

2
User Manual
CONTENTS
GENERAL INFORMATION
PACKAGE CONTENTS
SAFETY MEASURES
SPECIFICATIONS
PREPARATION TO OPERATION
ARRANGEMENT AND OPERATING PRINCIPLE
MAINTENANCE
STORAGE, TRANSPORTATION AND DECOMMISSIONING
WARRANTY
1.
2.
3.
4.
5.
6.
7.
8.
9.
3
4
4
6
7
9
15
16
17

3
MagicAir Base Station
Air quality monitor and climatic devices controller MagicAir Base Station, model:
Tion BS310 (hereinafter referred to as base station or device) is a compact device
designed to monitor indoor air quality and control climate equipment.
Basic functions:
• measurement of air parameters (carbon dioxide concentration, humidity
and temperature) using a sensor system;
• collection and transmission of air condition data to a cloud server;
• display of air quality in the operating mode using the light indication;
• automatic control of climatic equipment based on sensor readings and
user settings.
Before using the device, carefully read the User Manual, warranty conditions, and also
check the completeness and appearance.
The device meets the requirements of:
• ТU 4257-004-66248641-2016;
• directive 2014/30/EU EMC;
• directive 2014/35/EU LVD;
• directive 2014/53-EU RED;
• directive 2011/65/EU and amendment directive 2015/863/EU RoHS.
The Certificate of Conformity is available on tion.global/doc.
Developed and manufactured by Tion Smart microclimate, JSC.
112,20, Inzhenernaya st., Novosibirsk, 630090, Russia.
Factory: Tion Smart microclimate, JSC 112, 20 Inzhenernaya st., 630090,
Novosibirsk, Russia
tion.global
1. GENERAL INFORMATION
Dear Customer!
Thank you for purchasing Air quality monitor and climatic devices controller Mag-
icAir Base Station, model: Tion BS310! This manual contains full information about
the device, adjustment procedures and maintenance rules.

4
User Manual
The full package contents are shown in Table 2.1.
The following notations are used in this User Manual:
Table 2.1 — Package contents
2. PACKAGE CONTENTS
3. SAFETY MEASURES
List of items and accessories Quantity, pcs
Device 1
Power supply unit 100–240 V~, 50/60 Hz 1
Quick Start Guide 1
Warranty card 1
DANGER! Requirements, non-observance of which may result
in failure of the device or dangerous conditions for health and life.
CAUTION! Requirements, non-observance of which may result
in failure of the device or dangerous conditions for health and life.
The device is not intended for use by children and people with special
physical, sensory or mental development, except when the operation is
carried out under the control of persons responsible for their safety.
Do not leave the power cord in the reach of children or pets, even when the
device is turned off.
Do not repair or modernize design of the base station. If you find any
damage or signs of abnormal operation, contact the service organization
of the seller for advice on the possibility of further operation of the device.
Do not operate the device if the insulation of the power cord or the parts
is damaged.
Do not use power supplies with an output voltage exceeding value
indicated on power unit included into scope of supply. Excessive voltage
or current supply to the base station can lead to a fire hazard.
To prevent fire or electric shock, do not expose the device to atmospheric
precipitation, vapors and liquids, open flames or direct heat radiation from
heating devices.

5
MagicAir Base Station
The device is intended for use at temperatures from 0 to +45 °C, relative
humidity from 0 to 95% and for storage at temperatures from -20 to +45 °C.
Do not cover or subject the base station to shock: this may lead to
incorrect measurements of air parameters and damage to the device.
Do not connect the device to power using the USB port of a personal
computer: this can result in unstable operation of the base station.
Do not install the base station in places where animals and humans are
permanently located: near a computer, on a desktop, or in a recreation
area. This can lead to excessively high readings of the device of carbon
dioxide concentrations an increase in the load on controlled climate
devices.
It is necessary to turn off and disconnect the device from the power
supply during a thunderstorm.
The device is designed for indoor use only. Do not use it in rooms
with sources of water and steam: pools, baths, saunas, bathrooms or
sanitary rooms.

6
User Manual
Specifications of base station are shown in Table 4.1
Table 4.1 — Specifications
4. SPECIFICATIONS
Parameter Value
Overall dimensions (H×W×D) 100×100×27 mm
Weight (net) (133±3) g
Power voltage (5±0,1) V
Current consumption NMT 1 А
Concentration of carbon dioxide measurement range 0–5000 ppm1
Concentration of carbon dioxide measurement accuracy ±(50 ppm + 5% of measured
value)
Temperature measurement range 0–45 °С
Temperature measurement accuracy ±1,5 °С
Relative humidity measurement range 0–95% (free of condensate
formation)
Relative humidity measurement accuracy2±4%
Compatibility with Wi-Fi Wireless Technology Standards IEEE 802.11b/g/n (only 2,4
GHz)
Compatibility with Bluetooth Wireless Technology Standards IEEE 802.15.1 (Bluetooth
4.0–4.2, 5.0 Low Energy)
Control of devices within the system IEEE 802.15.1 (Bluetooth 4.2
Low Energy) — up to 8 devices
TIONMA-868 (proprietory
protocol for RF channel 868
MHz) — up to 32 devices3
RF-module frequency band 868.8-869.1 MHz
RF-module maximum ERP 25 mW
BLE-module frequency band 2400–2483 MHz
BLE-module maximum EIRP 2.5 mW
Wi-Fi-module frequency band 2400–2484 MHz
Wi-Fi-module maximum EIRP 100 mW
Warranty operating life 1 year
Lifetime 10 years
1ppm (parts per million) — is measurement unit for carbon dioxide concentration.
2 Measurement accuracy is indicated in absolute values (%). For example, at relative humidity of 80%, the actual
humidity is in the range of 76–84% or (80 ± 4)%.
3A maximum of 32 devices can be connected to one base station. No more than 8 devices can be controlled by
BLE technology (IR Module MagicAir and Danfoss Eco smart radiator thermostat).

7
MagicAir Base Station
5.1 Unpacking and pre-examination
Remove the device from the packaging bag, carefully inspect it and make sure that
there is no damage. Possible defects include the following: scratches, chips, uneven
color of plastic on the device’s case, as well as similar damage to the power supply unit
and violation of the integrity of the USB cable. If you find any defects, ask the supplier
to provide written confirmation of the damage.
If the device has been stored or transported at an air temperature below +10 °C, let it
stay in the packaging bag in the room for 2 hours to warm it to the room temperature.
It is required for eliminating condensation, damage of plastic parts while assembling
and malfunction of the device.
5.2 Installation
The device is designed for indoor use only. When choosing place of installation, make
sure that all the safety requirements specified in section 3 of this User Manual are met.
The device can be located on any horizontal surface or on a wall. Eyelet designed for
hanging on the bottom side is used for this purpose.
Base station should be protected from exposure to liquids, steam or other abundant
moisture. Do not place the device in bathrooms or sanitary rooms. Do not use the
device in the immediate vicinity of a cooking place or humidifier.
Do not install near any heat sources such as radiators, heaters, or stoves. Do not
place the base station near radiators of household appliances (for example, acoustic
devices, refrigerators, etc.).
Place USB-cable so that it does not twist, jam or bend excessively. Do not leave it in
places accessible for children or pets.
5.3 Set up
To ensure operation of Smart Microclimate Control System MagicAir, you should first
connect the base station on MagicAir mobile application.
The application is developed for mobile devices based on iOS (10.0 and later) and
Android (4.4 and later) operating systems. For installation, it is necessary to have
smartphone, which ensures access to the Internet. The application is available free at
and .
Choose any way to install the application:
5. PREPARATION TO OPERATION

8
User Manual
1. Scan the QR code below to proceed with downloading the application.
Then click Install.
2.Follow the direct link on your smartphone:
https://play.google.com/store/apps/details?id=com.tion.magicair
https://apps.apple.com/us/app/magicair/id1111104830
After installing and running the application, you must register and create an account.
Enter your account information: email and password. The system will send a letter
to the specified address with a link to confirm personal data. After clicking on it,
registration will be completed.
Re-enter the application and follow the step-by-step instructions to configure the base
station.
Connection to one base station results in creation of one home. This is a virtual
space where you plan to place climatic devices and collect microclimate data. Home
combines the neighboring rooms (rooms) in which the devices are located.
A maximum of 32 devices can be connected to one base station.
No more than 8 devices can be controlled by BLE technology. You
can add up to 12 rooms in one home. You can create a maximum of
20 homes on one account.

9
MagicAir Base Station
6. ARRANGEMENT AND OPERATING PRINCIPLE
6.1 Arrangement
Base station is a solid block (Fig. 6.1, p. 1), which contains the following:
• sensors (temperature, humidity, concentration of carbon dioxide);
• microprocessor;
• Wi-Fi module;
• block of BLE-module and RF channel for connection with climatic devices;
• light indicating system.

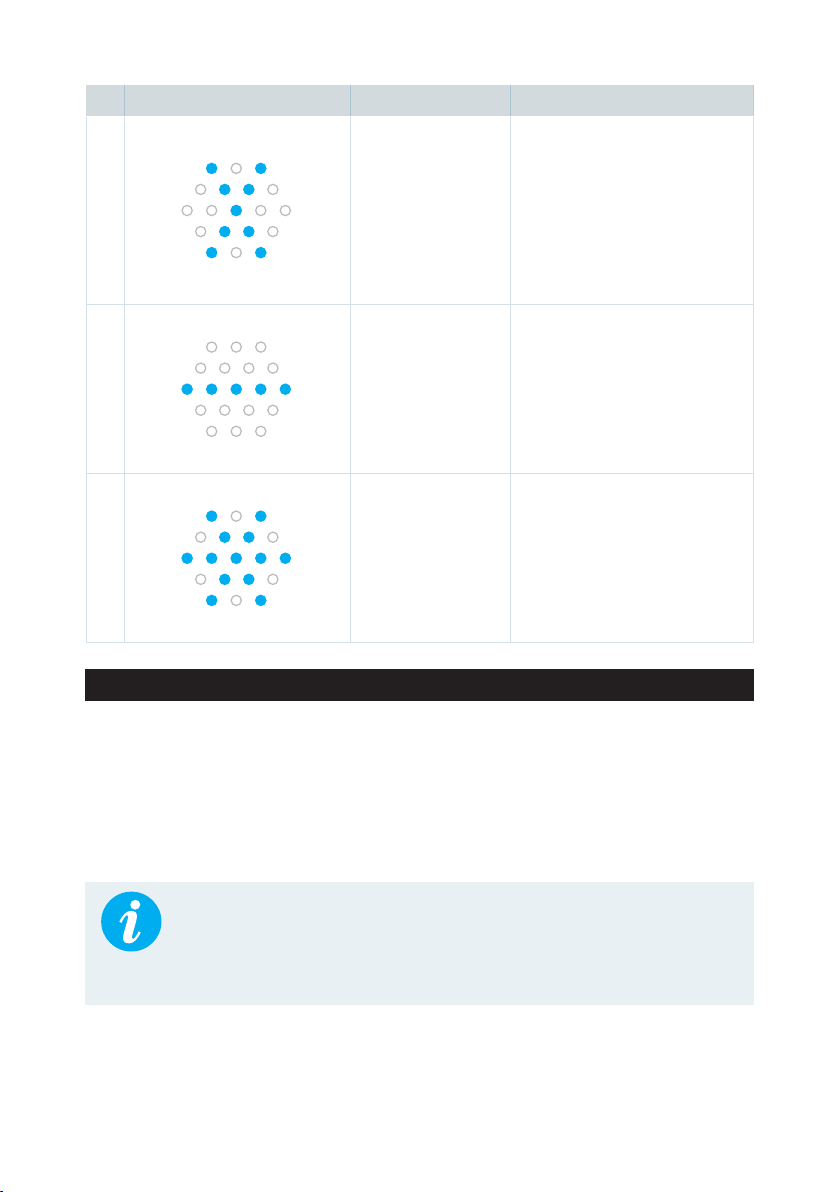

The light indication (Fig. 6.1, p. 2) helps to evaluate the state of connection to the
MagicAir system and the level of CO2concentration in the room.
The brightness of the light indication is automatically adjusted
depending on the illumination of the room. In the daytime, the
brightness level is maximum, and at night it is minimal. You can
turn off the light indication only in the MagicAir application in the
settings of the base station.
The device is equipped with a built-in power cable (Fig. 6.1, p. 3) with a standard USB-A
output. Power supply unit (Fig. 6.1, p. 4), which is included in the delivery package, is
used to connect the base station to a power supply network of 230 V, 50 Hz.
Figure 6.1 — Base station kit
1 — base station (front side); 2 — light indication; 3 — power cable;
4 — power supply unit.

10
User Manual
Figure 6.2 — The bottom side of the base station
1 — setup data; 2 — serial number; 3 — “Reset” button; 4 — “Mode” button.
Necessary information for setup and diagnostics is located on the bottom side of the
base station. Wi-Fi data, Wi-Fi MAC and MAC address of the base station are presented
in the lower left corner (Fig. 6.2, p. 1). Wi-Fi data may be required when connecting the
device to MagicAir system. Wi-Fi MAC is for setting-up on the local network and the
MAC address is for remote diagnostics, carried out by service division.
When contacting an authorized service center or service organization
of the seller, please be ready to tell serial number of the device. It is
located on the bottom side of the base station (Fig. 6.2, p. 2).
“Mode” button (Fig. 6.2, p. 4) is used to activate the base station when connecting to
the MagicAir system, to replace one device with another, or to update Wi-Fi settings via
MagicAir application. Press “Reset” button to return to default settings (Fig. 6.2, p. 3).
6.2 Operating principle
The base station is the center of the Smart Microclimate Control System MagicAir,
to which other devices are connected within accessible radius (Fig. 6.3). It measures
the concentration of CO2, temperature and humidity in the room by means of sensors.
Then the data are transferred to cloud server, where information about the state of the
microclimate in the room and controlled devices is processed and stored.
The devices (breezer, air purifier, infrared module and conditioner
etc.) can be controlled via the MagicAir system after they are
connected to the base station.
Using MagicAir mobile application you can monitor and control microclimate anytime
from anywhere in the world via the Internet.

11
MagicAir Base Station
The base station can run under fixed user settings and automatic control mode. This
mode allows it to control ventilation devices (breezers) depending on the concentration
of CO2in the room. So comfortable microclimate based on your settings is constantly
maintained in the house.
Figure 6.3 — Smart Microclimate Control System MagicAir
Automatic calibration of CO2sensor
Every 1-2 weeks4sensor detects the lowest level of CO2over the past period. It
determines this level as the baseline and assigns a concentration of 400 ppm, which is
the equivalent of fresh air in the street. To obtain the correct CO2data, it is necessary
to ventilate the room at least once during the period.
This function allows you to adjust the CO2level after transportation, as well as during
long-term operation of the base station.
4The range of period varies depending on type of built-in sensor and batch of devices.

12
User Manual
№Indication type Description Meaning
Connection / replacement / Wi-Fi settings
1One central LED
is on
Base station is reloading to
prepare for work.
2One central LED
blinks
Base station has already reload-
ed and is ready for setup.
3The rst sector
blinks Base station is providing Wi-Fi.
4
The rst sector is
on, the second one
blinks
Base station is connected to
smartphone via Wi-Fi.
5
The rst three
sectors are on, the
fourth one blinks
Base station accessed the
Internet and is searching for
MagicAir server.
6
The rst three
sectors are on, the
fourth one blinks
Base station accessed the
Internet and is searching for
MagicAir server.
7
The rst four sectors
are on, the fth one
blinks
Basic station is registering with
server.
Light indication
All types of base station light indication and their values are shown in Table 6.1.
Table 6.1 — Indication of base station

13
MagicAir Base Station
№Indication type Description Meaning
8
LEDs are on and
off alternatively in
random order
Base station has already regis-
tered with server and is ready to
operation.
9
LEDs are on at the
corners of internal
hexagon
Base station is in the process
of formatting. This will result in
complete reset of its settings.
The procedure is necessary in
case of repeated unsuccessful
connection.
If such a reset is required, press
on the bottom side “Reset” but-
ton 2 times with a thin tool.
Operation in MagicAir system
10
One central LED is
on and the second
one blinks
Carbon dioxide concentration
is exceeded in the room (more
than 2000 ppm).
11 One LED is on while
the other one is off
The base station steadily works
and displays air quality.
The more LEDs are on, the high-
er the air quality.
12
LEDs diverge wave
from the center and
go back
The base station is searching for
a device to connect.
This indication takes place when
a new device is connecting to
the system.

14
User Manual
№Indication type Description Meaning
13
LEDs are on one
after another from
the corner
Update of base station software.
The process occurs automatical-
ly when accessing the Internet. It
may take several minutes.
14
LEDs are on one af-
ter another from the
center in a circle
The CO2sensor is under prepa-
ration process.
The process occurs automati-
cally after successfully setting
up the base station. It may take
several minutes.
15 All LEDs blink simul-
taneously
Base station is searching for free
channel to connect.
Indication occurs if several
base stations are located close
to each other. The process
ends automatically after a few
minutes.
Connection problems
16
LEDs are on at the
corners of external
hexagon
Error in the operation of temper-
ature, humidity or CO2sensors.
Try to turn base station power
off and reconnect it. If the error
repeats, please contact the
service department.

15
MagicAir Base Station
№Indication type Description Meaning
17 LEDs are on
X-shaped
No Wi-Fi connection.
Make sure the base station is
connected to an available Wi-Fi
network 2.4 GHz, and that the
network name and password are
entered correctly. Important: 5
GHz networks are not support-
ed.
18 LEDs are on in one
row in the center
No Internet connection.
Verify the base station is
connected to a Wi-Fi network
with Internet access. For this
purpose, perform any search
request in the browser on your
smartphone.
19 LEDs are on snow-
ake shaped
No connection to the server.
This situation occurs when there
is no connection with the server
during replacing the base station
or removing the house. Wait for
the connection to the server or
connect later.
7. MAINTENANCE
The base station does not require special service.
Periodically clean the surface only with a dry cloth.
The device does not contain parts available for self-replacement or repair by the
user. In case of malfunction, contact only authorized service centers or the service
organization of the seller.
When contacting an authorized service center or service
organization of the seller, please be ready to tell serial number of
the device. It is located on the bottom side of the base station (Fig.
6.2, p. 2).

16
User Manual
8. STORAGE, TRANSPORTATION AND DECOMMISSIONING
Before being decommissioned, the device and all items from the package contents
should be stored and transported in the factory packaging. Storage conditions:
• air temperature: -25°С min, +50°С max;
• relative air humidity: 80% max;
• no possibility of packing being exposed to direct sunlight;
• distance away from heaters and other sources of heat: at least 1 m;
• no substances and materials with intense adverse odors present
in the premises.
The shelf life of the device is at least 1 year provided the above requirements are met.
During transportation, the device should be protected against sharp shocks, falls and
the impact of climatic factors.
Upon expiration of the planned service life, please discontinue using the device and
contact the Vendor’s Service Center regarding further operation of the device or its
disposal.
The device may not be disposed of as common waste but must be taken to an
appropriate disposal site for electric and electronic equipment for subsequent recycling
or disposal according to federal or local legislation. Most of the elements used in the
device and package contents are marked with an appropriate recycling code and are
subject to recycling.
Figure 8.1 — Recycling codes of device and package contents
Detailed information about disposal sites for this product can be obtained from local
authorities or sanitation enterprises.

17
MagicAir Base Station
9. WARRANTY
Tion Smart microclimate JSC expresses gratitude for your choice.
Tion Smart microclimate JSC establishes the fixed 10-year service life for the device, in
case of observing the installation and operation conditions set forth in this document.
Tion Smart microclimate JSC establishes a 1-year warranty period for the operation
of the device. These periods are valid in case of observance of the installation and
operation rules set forth in this document.
Before using the device, read thoroughly the User Manual, warranty conditions, as well
as completeness and appearance of the device.
All claims as regards appearance and completeness of the device shall be presented
to the seller when purchasing.
In case of damage to the packaging during the transportation, unpack immediately the
device and check for visual defects. Damage to the device shall be confirmed in writing
by the carrier, otherwise compensation claims may not be satisfied.
Warranty conditions
In order to quickly enable the seller to fulfill his warranty obligations, the buyer shall
present either a completed warranty card, or a sales receipt or a cash receipt, or
another document certifying the fact and date of purchase of the device.
Warranty is not provided in the following cases:
• there are traces of repair, disassembly, assembly, modification or
repair of the device not at the authorized service centers;
• it is impossible to identify the date of manufacture / sale of
the device as a result of absence, destruction or damage of
identification information;
• the device has been damaged as a result of events or as a result
of actions of third parties that the seller (manufacturer) cannot
influence, including: natural disasters, actions of utility service
providers (including voltage jumps) and others;
• there are mechanical damages on the device (chips, cracks, etc.)
that have appeared as a result of exposure to excessive force,
chemically aggressive substances, or temperatures exceeding the
permissible values that entailed malfunction of the device;

18
User Manual
• malfunction has occurred while connecting the device to the
electric network in violation of the rules set forth in this document;
• malfunction and defects have appeared as a result of ingress
into the device of foreign objects, liquids, insects and their waste
products, etc.;
• storage and transportation rules of the device set forth in this
document have been violated.
Dear Customers!
As regards issues related to the fulfillment of warranty obligations, please contact the
company in which the device has been purchased.
Contacts of Tion Service Department
e-mail: [email protected]
tion.global
Version 1.5.1

19
MagicAir Base Station
