Tippkemper CNS-506D User manual

Capacitance Level Sensor
CNS-506D
Level control for:
•waxes
•granulates
•paints
•hot-melt adhesives
•chemicals
Type
Technical data sensor amplifier
CNS-506D
Connectable probes Type row: S...
Operating voltage (UB)15-30V/DC
Nominal current (I0)30 mA
Frequency of operating cycles f ≤0.5 Hz
Output voltage ≤60V/DC
Output current ≤200 mA
Connecting cables 4 X 0,25 mm² + screen / L = 5 m
Pin arrangement
BN - brown
GN - green
YE - yellow
WH - white
Screen and enclosure - ground
BN
GN
Y
E
WH
L-
L+
SCREEN
Enclosure material Aluminium
Permitted ambient temperature +10°C… +50°C
Enclosure rating EN 60529 IP 65
Output
LED-display red LED on green LED on
C
NO
C
NO

CNS-506D_E.DOC 04/09

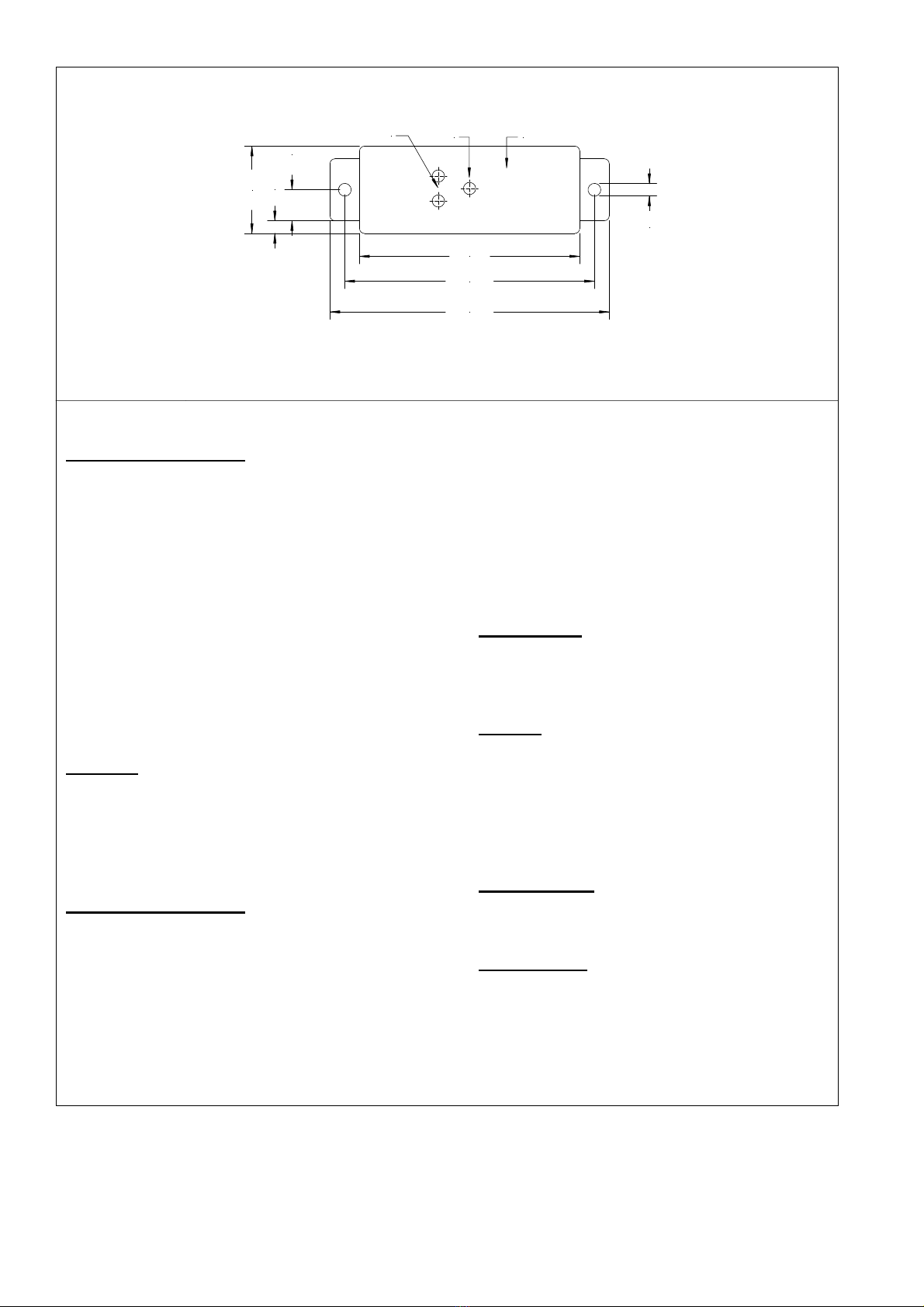

Dimensions:
113 mm
101 mm
89 mm
5 mm13 mm
5 mm
36 mm
LED's Poti t = 30 mm
Operating Manual
Mounting Instructions
The pin configuration is to be strictly observed.
The appliance is only to be operated with the
voltage entered on the rating plate. The metal
tank and the screening of the connection lines
are to be safety grounded. The probe- and
connection lines are not to be laid parallel to
the drive connections. The amplifier is not to
be installed on machine components which are
hot and subjected to strong temperature
fluctuations. The probe distance to the vessel
wall must amount at least 30mm. The influence
of strong suction effect by for example cooling
glue, can conduct to material fatigue and in
extreme cases to probe destruction.
Function
The capacitive level sensor is provided for the
detection of insulant, solid and non-conducting
substances. The appliance evaluates the
capacity modifications ΔC of the probe base
capacity.
Adjustment/Operation
The adjustment of the appliance is simply to be
seen as a tolerance compensation. Resulting
from installation, filling media and the
fabrication, tolerances are given, which are so
compensated. The adjustment occurs, with the
potentiometer, over the probe sensitivity, and
must always be made with the effectively used
filling media.
In direction of rotation to the right, the level
increases. In direction of rotation to the left, the
level decreases. In the case of a possible
defect of the appliance, the exit can take any
condition on.
Maintenance
The appliance is maintenance free. Appliances
are only to be repaired or touched up by the
manufacturer.
General
With installation and operation of the capacitive
level sensor, CNS 506D, the EU- and national
regulations must be considered. Our
appliances are on a high technical level.
Modifications, which serve the technical
progress, are reserved.
Met standards
EN 61000-6-2
EN 61000-6-4
EU-directives
89/336/EWG
Tippkemper Elektronik GmbH & Co KG
Zum Kreuzweg 12, D-59302 Oelde, Germany, Tel. [phone] / 93 01-50, Fax. [phone] / 93 01-49
E-mail: [email protected]
