Titan XL255 User manual

Owner’s Manual
Read this manual for complete instructions
Table of Contents
Safety................................................................................2-3
Components and Description ........................................4-5
Assembly.............................................................................6
Before You Begin ...............................................................7
Locking the Spray Gun.................................................7
Pressure Relief Procedure ...........................................7
Grounding the Spray Gun ............................................7
Preparing the Sprayer........................................................8
Preparing the Spray Hose..................................................9
Practice / Spraying Technique ........................................10
Spraying Troubleshooting..........................................11-12
Unclogging the Spray Tip...........................................11
Cleaning the Spray Gun Filter....................................12
Cleaning the Inlet Filter ..............................................12
Cleanup ........................................................................13-17
Cleanup for Latex materials ..................................13-14
Cleanup for Oil-based materials.................................15
Cleaning the Suction Set............................................16
Cleaning the Spray Gun Components........................17
Short-Term Storage..........................................................18
Long-Term Storage ..........................................................19
Cleaning the Inlet Valve ...................................................20
Fluid Section.....................................................................21
Troubleshooting / Maintenance ......................................22
Français.............................................................................23
Español..............................................................................45
Parts List ......................................................................67-70
Accessories ......................................................................71
Warranty............................................................................72
English
1-866-848-2698
Titan Technical Service
1770 Fernbrook Lane, Plymouth, MN 55447
Need Help? Call us rst for answers
fast. Call Titan toll-free if you have any comments or
problems with this product.
Technical service hours: Monday through Friday, 8:00 am to 7:00 pm Central Time
Saturday, 9:00 am to 3:30 Central Time
0109 • Form No. 0523867A
High Performance
Airless Sprayer
Models: XL255
XL295
XL335
This pump is available in a stand model (XL255) and cart models (XL295
and XL335). All information given for the stand model applies to the cart
models except where indicated.

This symbol indicates a hazardous situation, which, if
not not avoided could result in death or serious injury.
HAZARD: INJECTION INJURY
A high pressure paint stream produced by this equipment
can pierce the skin and underlying tissues, leading to
serious injury and possible amputation. See a physician
immediately.
DO NOT TREAT AN INJECTION INJURY AS A SIMPLE CUT!
Injection can lead to amputation. See a physician immediately.
The maximum operating range of the gun is 3000 PSI/207 BAR uid
pressure.
PREVENTION:
• NEVER aim the gun at any part of the body.
• Do not aim the gun at, or spray any person or animal.
• NEVER allow any part of the body to touch the uid stream. DO
NOT allow body to touch a leak in the uid hose.
• NEVER put your hand in front of the gun. Gloves will not
provide protection against an injection injury.
• ALWAYS lock the gun trigger, shut the pump off, and release all
pressure before servicing, cleaning the tip or guard, changing
tip, or leaving unattended. Pressure will not be released by
turning off the motor. The PRIME/SPRAY knob must be turned
to PRIME to relieve the pressure. Refer to the Pressure Relief
Procedure (page 7) described in the pump manual.
• ALWAYS keep the tip guard in place while spraying. The tip
guard provides some protection but is mainly a warning device.
• ALWAYS remove the spray tip before ushing or cleaning the
system.
• Paint hose can develop leaks from wear, kinking and abuse. A
leak can inject material into the skin. Inspect the hose before
each use. Do not use hose to lift or pull equipment.
• NEVER use a spray gun without a working trigger lock and
trigger guard in place.
• All accessories must be rated at or above 3000 PSI/207 BAR.
This includes spray tips, guns, extensions, and hose.
NOTE TO PHYSICIAN:
Injection into the skin is a traumatic injury. It is important to
treat the injury as soon as possible. DO NOT delay treatment
to research toxicity. Toxicity is a concern with some coatings
injected directly into the blood stream. Consultation with
a plastic surgeon or reconstructive hand surgeon may be
advisable.
HAZARD: HAZARDOUS VAPORS
Paints, solvents, insecticides, and other materials can
be harmful if inhaled or come in contact with the body.
Vapors can cause severe nausea, fainting, or poisoning.
PREVENTION:
• Use a respirator or mask if vapors can be inhaled.
Read all instructions supplied with the mask to be
sure it will provide the necessary protection.
• Wear protective eyewear.
• Wear protective clothing as required by coating
manufacturer.
English
2
Important Safety Information · Read all safety information before operating
the equipment. SAVE THESE INSTRUCTIONS.
To reduce the risks of re or explosion, electrical shock and the injury to persons, read and understand all instructions included in
this manual. Be familiar with the controls and proper usage of the equipment.
HAZARD: EXPLOSION OR FIRE
Solvent and paint fumes can explode or ignite. Property
damage and/or severe injury can occur.
PREVENTION:
• Provide extensive exhaust and fresh air introduction to keep the
air within the spray area free from accumulation of ammable
vapors. Solvent and paint fumes can explode or ignite.
• Do not spray in a conned area.
• Avoid all ignition sources such as static electric
sparks, open ames, pilot lights, electrical
appliances, and hot objects. Connecting or
disconnecting power cords or working light
switches can make sparks. Paint or solvent
owing through the equipment is able to result in
static electricity.
• Do not smoke in spray area.
• Fire extinguisher must be present and in good working order.
• Place pump at least 20 feet (6.1 meters) from the spray object in
a well ventilated area (add more hose if necessary). Flammable
vapors are often heavier than air. Floor area must be extremely
well ventilated. The pump contains arcing parts that emit sparks
and can ignite vapors.
• The equipment and objects in and around the spray area must
be properly grounded to prevent static sparks.
• Keep area clean and free of paint or solvent containers, rags
and other ammable materials.
• Use only conductive or grounded high pressure uid hose. Gun
must be grounded through hose connections.
• Power cord must be connected to a grounded circuit.
• Always ush unit into a separate metal container, at low pump
pressure, with spray tip removed. Hold gun rmly against side
of container to ground container and prevent static sparks.
• Follow the material and solvent manufacturer’s warnings and
instructions. Know the contents of the paints and solvents being
sprayed. Read all Material Safety Data Sheets (MSDS) and
container labels provided with the paints and solvents. Follow
the paint and solvent manufacturer’s safety instructions.
• Use extreme caution when using materials with a ashpoint
below 70ºF (21ºC). Flashpoint is the temperature that a uid
can produce enough vapors to ignite.
• Plastic can cause static sparks. Never hang plastic to enclose
a spray area. Do not use plastic drop cloths when spraying
ammable materials.
• Use lowest possible pressure to ush equipment.
• Do not spray onto pump assembly.
HAZARD: EXPLOSION HAZARD DUE TO
INCOMPATIBLE MATERIALS
Will cause property damage or severe injury.
PREVENTION:
• Do not use materials containing bleach or chlorine.
• Do not use halogenated hydrocarbon solvents such as bleach,
mildewcide, methylene chloride and 1,1,1 - trichloroethane. They
are not compatible with aluminum.
• Contact your coating supplier about the compatibility of material with
aluminum.

3
English
Important Safety Information · Read all safety information before operating
the equipment. SAVE THESE INSTRUCTIONS.
HAZARD: GENERAL
Can cause severe injury or property damage.
PREVENTION:
• Read all instructions and safety precautions before operating
equipment.
• Follow all appropriate local, state, and national codes governing
ventilation, re prevention, and operation.
• The United States Government Safety Standards have been
adopted under the Occupational Safety and Health Act
(OSHA). These standards, particularly part 1910 of the General
Standards and part 1926 of the Construction Standards should
be consulted.
• Use only manufacturer authorized parts. User assumes all
risks and liabilities when using parts that do not meet the
minimum specications and safety requirements of the pump
manufacturer.
• Before each use, check all hoses for cuts, leaks, abrasion or
bulging of cover. Check for damage or movement of couplings.
Immediately replace the hose if any of these conditions exist.
Never repair a paint hose. Replace it with another grounded
high-pressure hose.
• All hoses and ttings must be secured before operating spray
pump. Unsecured parts can eject at great force or leak a high
pressure uid stream causing severe injury.
• All hoses, swivels, guns, and accessories must be pressure
rated at or above 3000 PSI/207 BAR.
• Do not spray outdoors on windy days.
• Wear clothing to keep paint off skin and hair.
• Do not operate or spray near children. Keep children away from
the equipment at all times.
• Do not overreach or stand on an unstable support. Keep
effective footing and balance at all times.
• Stay alert and watch what you are doing.
• Do not operate the unit when fatigued or under the inuence of
drugs or alcohol.

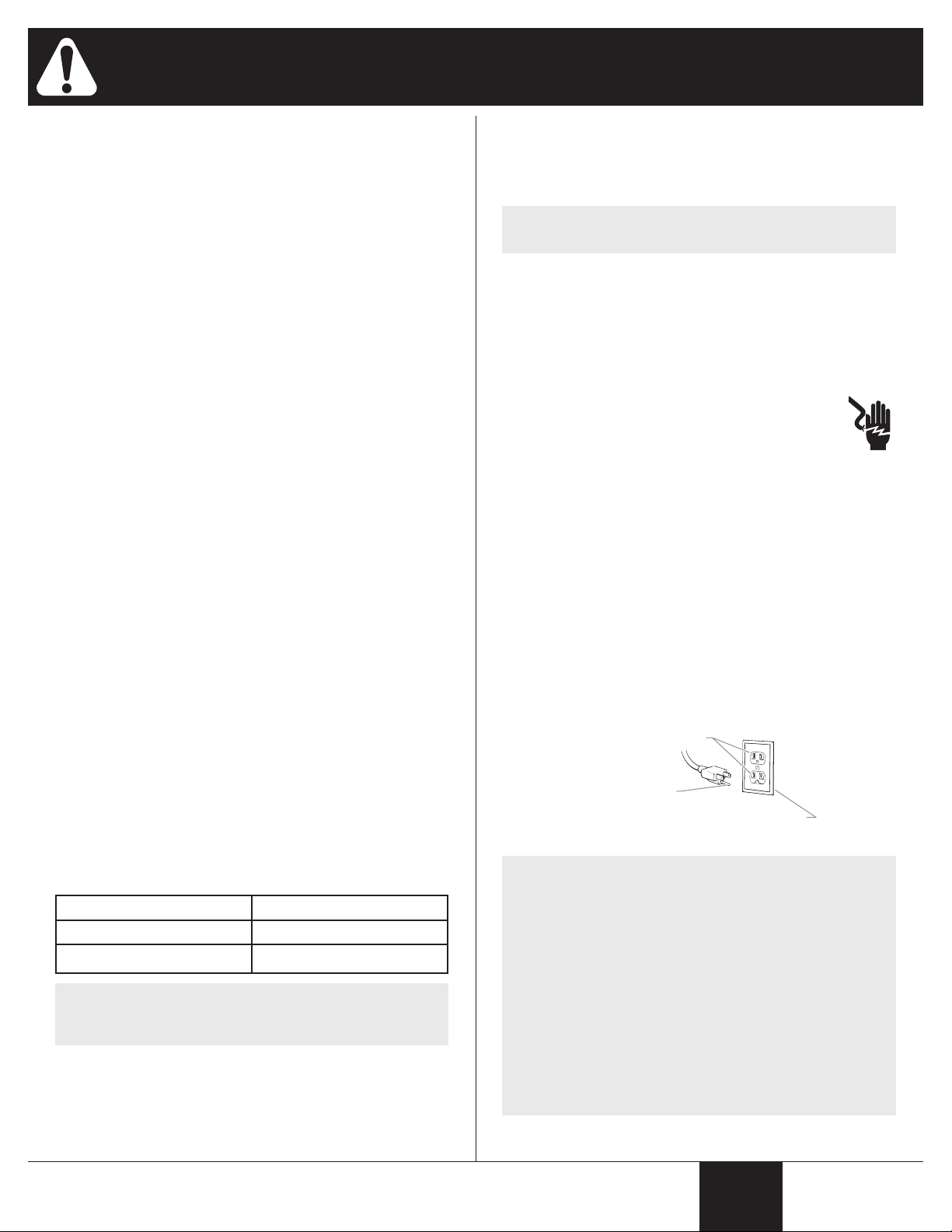

Important Electrical Information
NOTICE - Use only a 3-wire extension cord that has a 3-blade
grounding plug and a 3-slot receptacle that will accept the plug on the
product. Make sure your extension cord is in good condition. When
using an extension cord, be sure to use one heavy enough to carry the
current your product will draw. An undersized cord will cause a drop
in line voltage resulting in loss of power and overheating. A 14 or 12
gauge cord is recommended (see chart below). If an extension cord
is to be used outdoors, it must be marked with the sufx W-A after the
cord type designation. For example, a designation of SJTW-A would
indicate that the cord would be appropriate for outdoor use.
Cord gauge Maximum cord length
12 150 feet
14 100 feet
Do not use more than 100 feet of spray hose. If you need to
spray further than 100 feet from your power source, use more
extension cord, not more spray hose.
NOTE - THE XL255 AND XL295 SERIES UNITS ARE PROVIDED
WITH A NON-RESETABLE THERMAL OVERLOAD. THE XL335
SERIES UNIT IS PROVIDED WITH A REPLACEABLE FUSE.
• Always disconnect the motor from the power supply before
working on the equipment.
The cause of the overload should be corrected before
restarting. Take to Service Center.
Grounding Instructions
This product must be grounded. In the event of an electrical short
circuit, grounding reduces the risk of electric shock by providing an
escape wire for the electric current. This product is equipped with a
cord having a grounding wire with an appropriate grounding plug.
The plug must be plugged into an outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
WARNING - Improper installation of the grounding plug
can result in a risk of electric shock.
If repair or replacement of the cord or plug is necessary, do not connect
the green grounding wire to either at blade terminal. The wire with
insulation having a green outer surface with or without yellow stripes is
the grounding wire and must be connected to the grounding pin.
Check with a qualied electrician or serviceman if the grounding
instructions are not completely understood, or if you are in doubt
as to whether the product is properly grounded. Do not modify the
plug provided. If the plug will not t the outlet, have the proper outlet
installed by a qualied electrician.
This product is for use on a nominal 120 volt circuit and has a
grounding plug that looks like the plug illustrated below. Make sure that
the product is connected to an outlet having the same conguration as
the plug. No adapter should be used with this product.
Grounded Outlet
Grounding Pin
Cover for grounded outlet box
If you experience problems with your
sprayer at any time during assembly,
operation, or cleanup, please refer to
the Troubleshooting section of this
manual (page 22), or call customer
service at:
1-866-248-2698

English
4
Components and Description
Components Tools Needed for Assembly
The shipping carton for your painting system contains the
following:
• Suction tube and return tube
• Pump cleaning adapter
• Spray gun with lter
• Spray tip assembly (see chart on next page)
• 25’ (XL255, XL295) or 50’ (XL335), 1/4” diameter pressure
hose
• Instruction manual
• Two adjustable wrenches
• Extension cord (refer to Important Electrical
Information, page 3).
Controls and Functions
ON/OFF Switch .............................. The ON/OFF switch turns the power to the sprayer on and off (O=OFF, l=ON).
Suction tube................................... Fluid is drawn through the suction tube into the pump.
Fluid Section.................................. A piston in the uid section moves up and down to create the suction that draws uid through the
suction tube.
Spray Gun ...................................... The spray gun controls the delivery of the uid being pumped. The gun model you have depends
on your sprayer model (refer to Spray Gun/Tip Chart, next page).
Spray Hose..................................... The spray hose connects the gun to the pump.
Return Tube ................................... Fluid is sent back out through the return tube to the original container when PRIME/SPRAY knob is
in PRIME position.
Pump Cleaning Adapter................ The adapter allows you to attach a garden hose to the suction tube for easy cleanup (latex
materials only).
PRIME/SPRAY Knob...................... The PRIME/SPRAY knob directs uid to the spray hose when set to SPRAY or the return tube
when set to PRIME. The arrows on the PRIME/SPRAY knob shows the rotation directions for
PRIME and SPRAY.
The PRIME/SPRAY knob is also used to relieve pressure built up in the spray hose (see Pressure
Relief Procedure, page 7).
PressureTrac™ ............................. The PressureTrac™ regulates the amount of force the pump uses to push the uid.
Quicko™ valve............................. The Quicko™ valve is designed to keep the inlet valve open and from sticking to dried materials.
The Quicko™ valve is activated manually by the user.
Specications
Capacity:
XL255............Up to .25 gallon (0.95 liter) / minute
XL295............Up to .32 gallon (1.21 liters) / minute
XL335 ...........Up to .35 gallon (1.32 liters) / minute
Power source:
XL255 ...........1/2 Hp universal motor
XL295 ...........5/8 Hp universal motor
XL335 ...........3/4 Hp permanent magnet DC motor
Power requirement:
15 amp minimum circuit on 115 VAC, 60 Hz current
Generator power requirement:
8000 Watt
Safety features:
Spray gun trigger lock and pressure diffuser; built-in tip
safety guard; PRIME/SPRAY knob for safe pressure
release.
Capability:
Sprays a variety of paints, primers, stains, preservatives
and other nonabrasive materials, including pesticides and
liquid fertilizers.
This pump should not be used with textured materials,
block ller, or asphalt sealer.

5
English

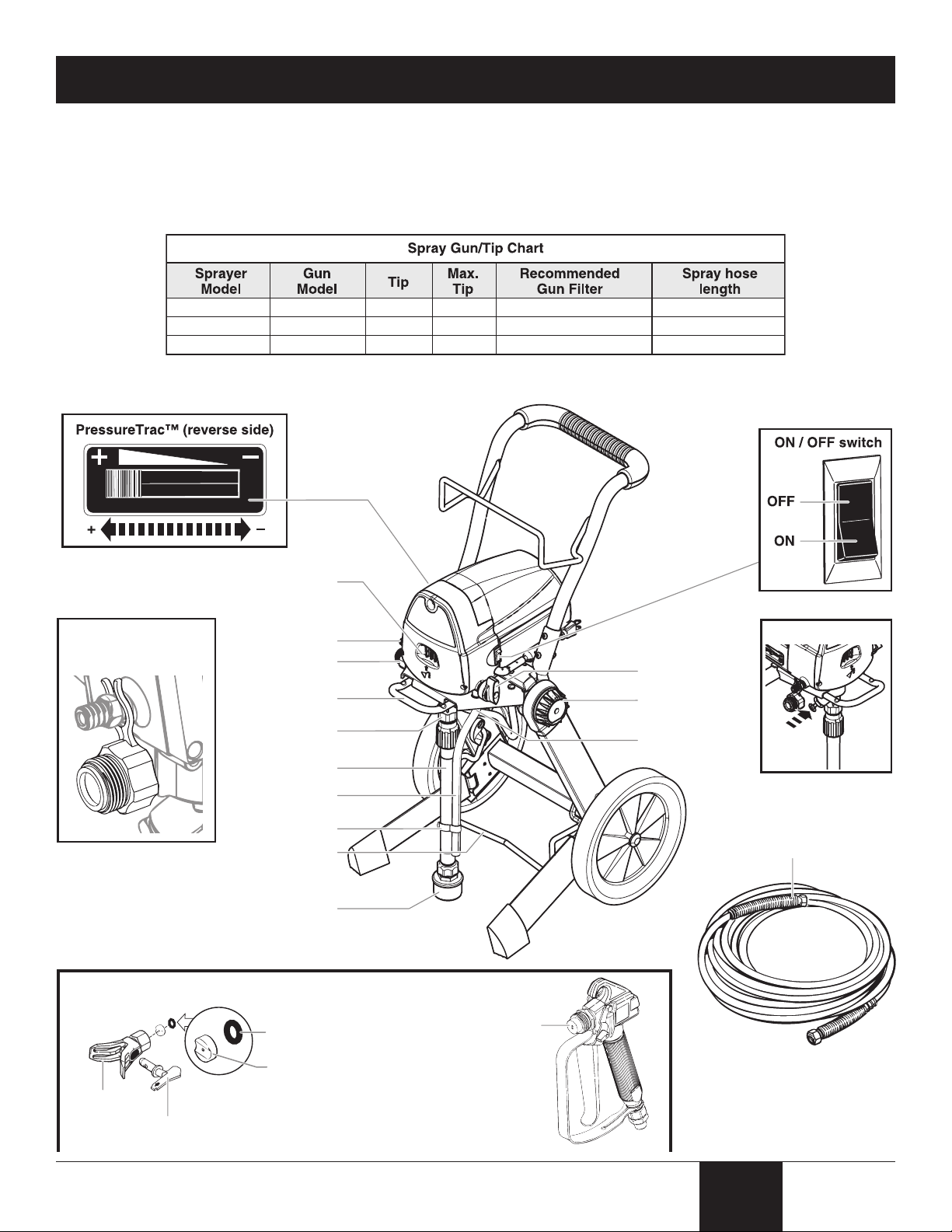

Components and Description
*The pump cleaning
adapter can be clipped
to the spray hose port
Spray Gun Assembly
**Quickflo™ Valve
Lubricating area
Spray hose port
*Pump cleaning
adapter
Pail bracket
**Quickflo™
valve
Inlet filter
Suction tube
Return tube
Clip
Leg lock (cart
models only)
PRIME/SPRAY
knob
Knob (cart
models only)
Return tube
fitting
Spray hose
Spray gun (see chart
above for models)
(LX60 shown)
O
l
Spray
guard Spray tip (see chart
above for models)
Saddle seat**
Washer**
Saddle seat and washer come
pre-assembled inside spray guard
**
This pump is available in a stand model (XL255) and cart models (XL295 shown below, and XL335). All information given for
the stand model applies to the cart models except where indicated.
NOTICE
Some of the graphics in this manual may not exactly match your sprayer and spray gun. All information and instructions
given in this manual applies to all models except where noted.
XL295
XL335
LX05
LX60
415
517
415
519
Yellow (fine)
XL255LX05 415 415 Yellow (fine)
White (medium)
25 feet
25 feet
50 feet

English
6

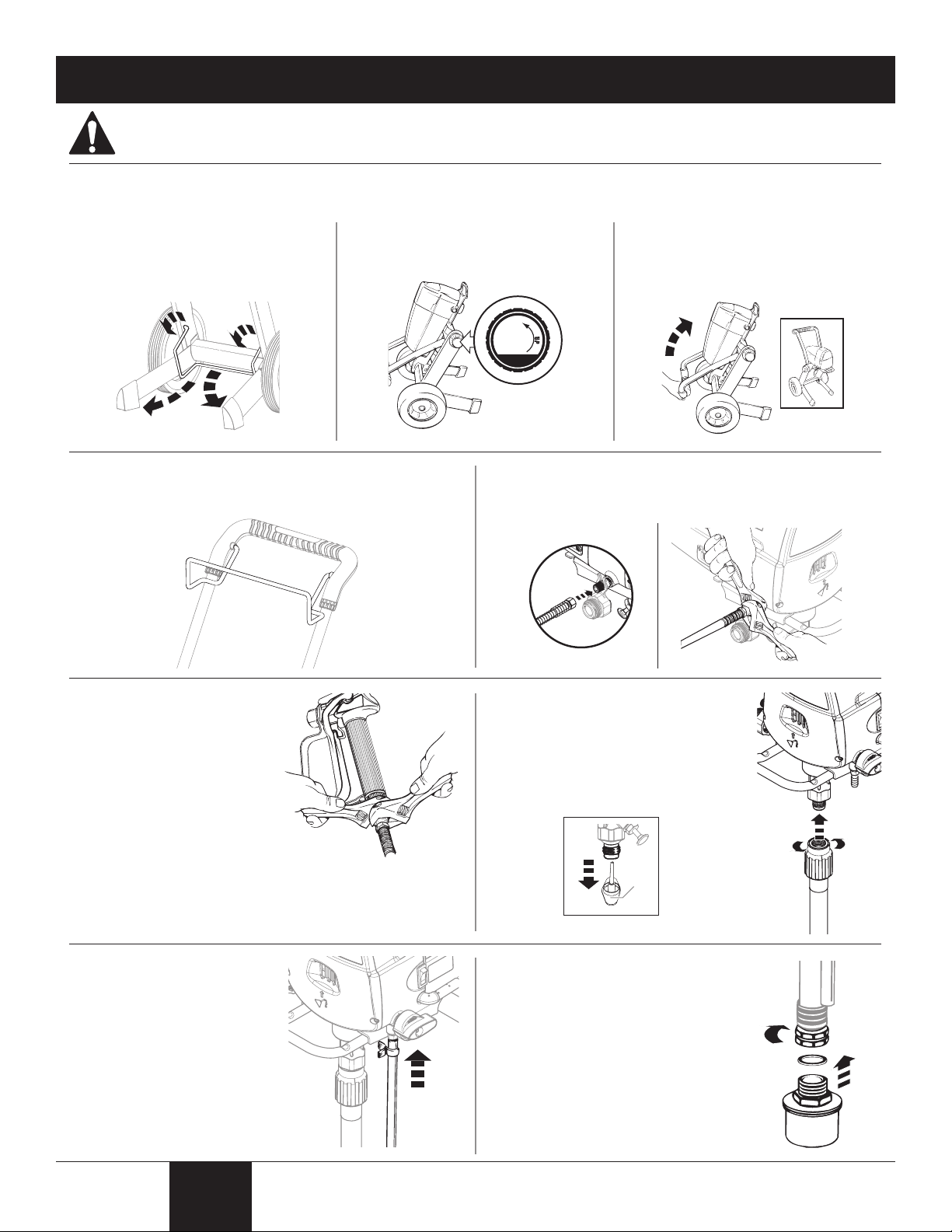

Assembly
Do not plug in the power cord until assembly is complete.
If you have one of the cart models (XL295 or XL335) you will need to unfold the cart before using. Follow steps 1-4,
below. If you have the model XL255 sprayer, skip to item 5, below.
1. Grab the pail bracket to lift up
the sprayer. Lift the leg lock and
unfold the legs. Move leg lock
down to lock into place.
4. Insert the ends of the hose bracket into the holes of the
handle as shown.
5. Thread one end of the high pressure spray hose to
the spray hose port. Hold the port with an adjustable
wrench, and tighten the hose with the other.
6. Thread the other end of
the hose to the spray gun.
Hold the gun with one
adjustable wrench, and
tighten the hose nut with
the other.
(a)
7. Remove cap from inlet valve
(a). Thread the suction tube
onto the inlet valve and tighten
rmly by hand. Be sure that the
threads are straight so that the
tting turns freely.
9. Verify that the seal is
present inside the suction
tube. Thread the inlet lter
into the end of the suction
tube.
8. Press the return tube
onto the return tube
tting. Squeeze clip over
the return tube tting to
secure the return tube.
The spray tip should not
be attached until after the
sprayer and spray hose have
been purged and primed.
2. Twist the knob on either side of
the cart toward the “UP” arrow
until it stops.
3. Lift the handle until the motor
housing and handle locks into
place. Be careful not to pinch the
power cord with the cart.

7
English
Before you Begin - This section contains instructions that
will be repeated throughout this manual.

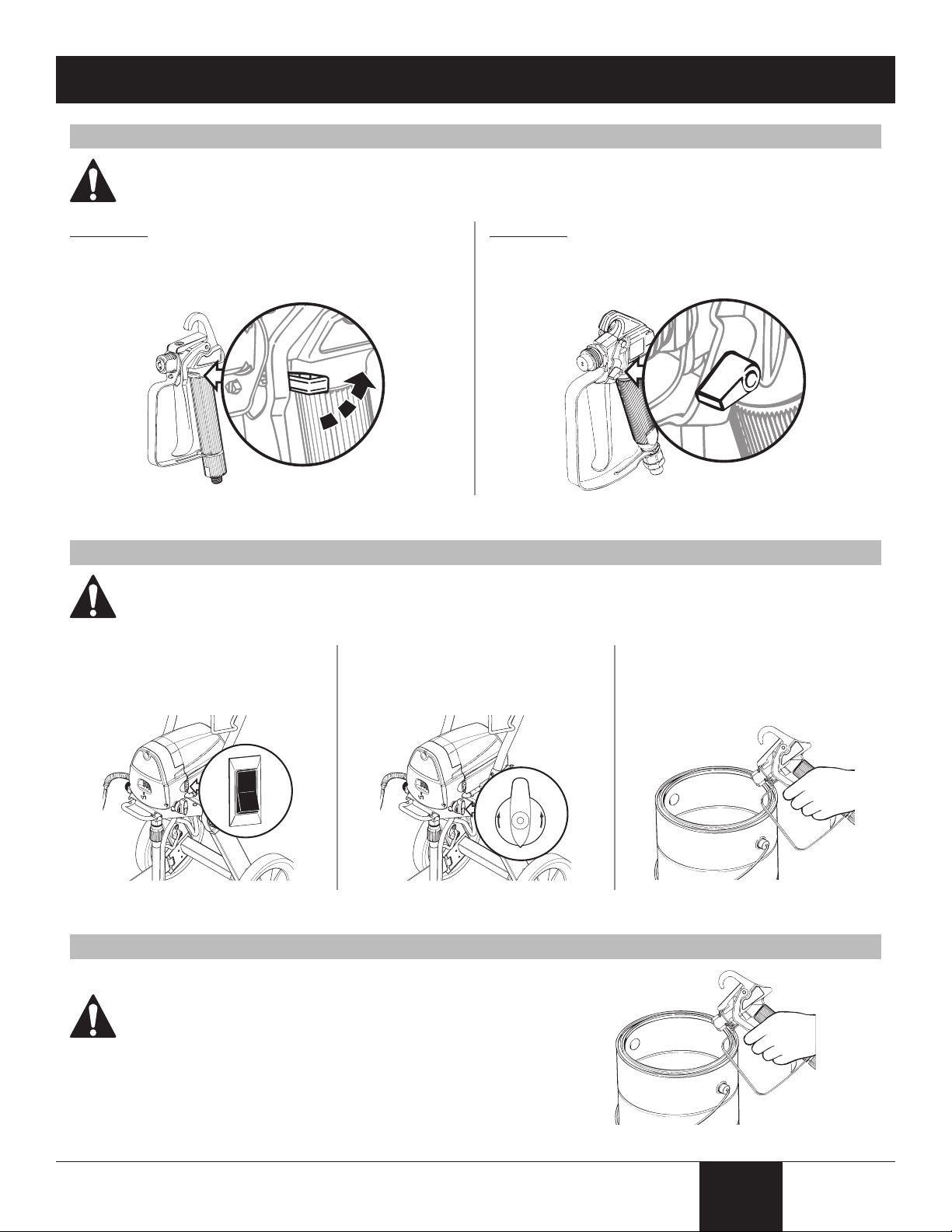

Locking the Spray Gun
Always lock the trigger off when attaching the spray
tip or when the spray gun is not in use.
Model LX05
The gun is locked when the trigger lock is at a 90º angle
(perpendicular to the trigger in either direction).
Model LX60
To lock the gun, turn the trigger lock forward and slightly down
until it stops.
Pressure Relief Procedure
Be sure to follow the Pressure Relief Procedure when shutting the unit off for
any purpose. This procedure is used to relieve pressure from the spray hose.
1. Lock the spray gun off (see
directions above). Flip the ON/
OFF switch to the OFF position.
2. Turn the PRIME/SPRAY knob to
PRIME.
3. Unlock the spray gun and trigger
spray gun into the side of the
material bucket. Lock the spray
gun.
Grounding the Spray Gun (oil-based materials only)
If spraying or cleaning with with oil-based materials, the
spray gun must be grounded while preparing the spray
hose or cleaning.
Ground the gun by holding it against the edge of a metal
container while purging. Failure to do so may lead to a
static electric discharge which may cause a fire.
Keep hands clear of the fluid stream.
O
SPRAY
PRIME

English
8
Preparing the Sprayer
All new units are performance-tested at the factory and are shipped with test uid in the uid section to prevent corrosion
during shipment and storage. If you have already used your pump, some water or solvent used in cleaning may remain
in the uid section. Whether your sprayer is new or if you have already used it, this uid must be purged and thoroughly
cleaned out of the system prior to use. Follow the steps below.
1. Before priming, squirt a teaspoon of separating oil (P/N
0516444, sold separately) into the indicated area. Light
household oil can be substituted if necessary.
3. Place a full container of spraying material underneath
the suction tube (a). Secure the return tube (b) into a
waste container.
5. Plug in the sprayer and move the ON/OFF switch to the
ON (l) position.
2. Fully insert the Quicko™ valve to make sure the inlet
ball is free.
4. Slide the PressureTrac™ to maximum pressure (+).
Turn the PRIME/SPRAY knob to PRIME.
6. Switch the pump OFF (O). Remove the return tube from
the waste container and place it in its operating position
above the container of spraying material. Use the metal
clip to bind the two hoses together.
(a)
(b)
l
+
SPRAY
PRIME
The unit will begin to draw material up the suction tube,
into the pump, and out the return tube. Let the unit cycle
long enough to remove test uid from the pump, or until
spray material is coming from the return tube.

9
English

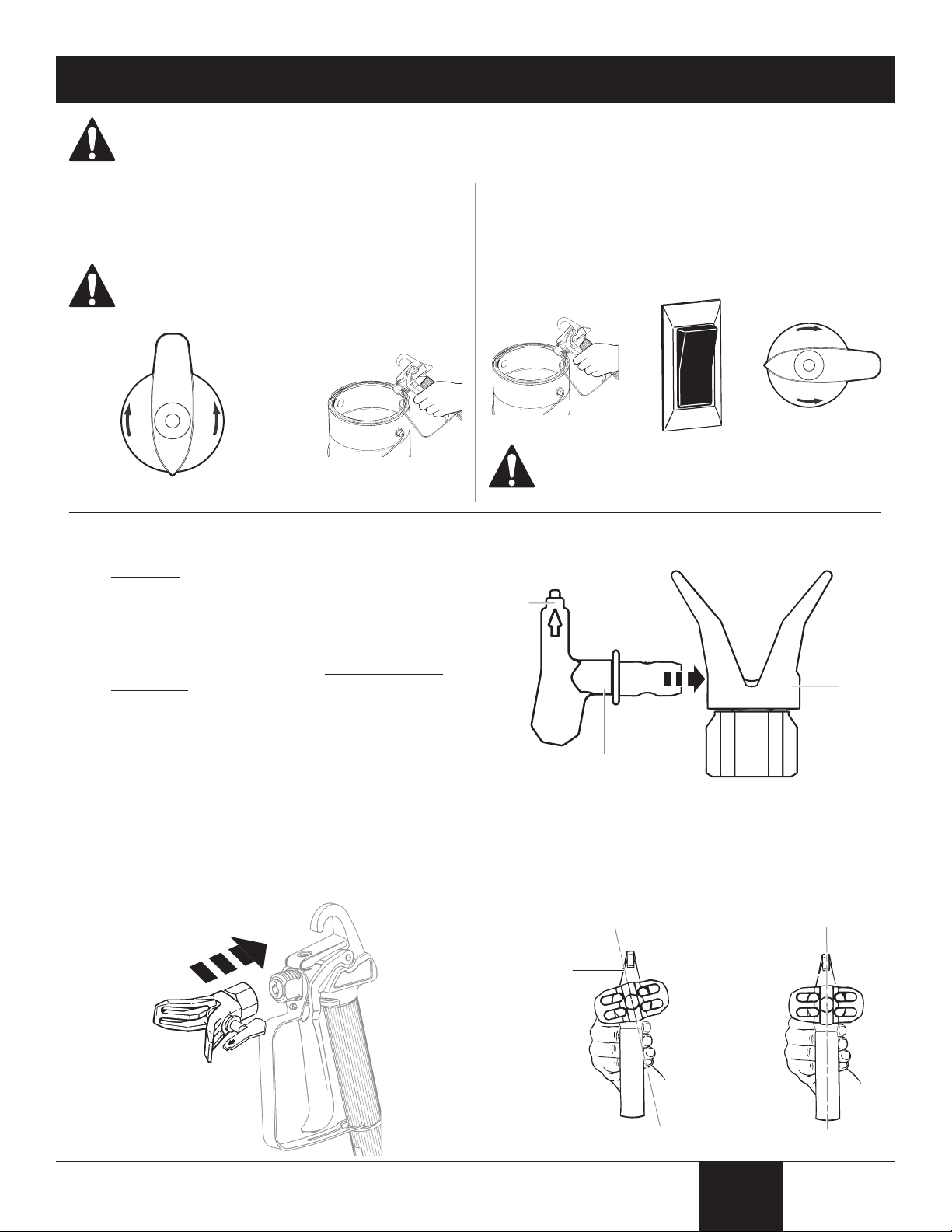

Preparing the Spray Hose and Spray Gun
The spray tip assembly should not be attached to the spray gun when purging the spray hose. Failure to comply
could result in an injection injury.
1. Unlock the spray gun and turn the PRIME/SPRAY knob
to PRIME.
2. PULL the trigger and aim the spray gun at the side wall
of a waste container.
3. While pulling the trigger, switch the pump ON (l), and
turn the PRIME/SPRAY knob to SPRAY. Hold the
trigger until all air, water, or solvent is purged from the
spray hose and material is owing freely.
4. Release trigger and perform the Pressure Relief
Procedure, page 7).
5. Lock the spray gun trigger.
6. Make sure the saddle seat and black seal are in
place inside the tip guard nut (see Components and
Description, page 5).
7. Insert spray tip (a) into the side of the spray guard (b).
The pointed end (c) of the spray tip should be facing
forward as shown.
(a)
(c)
(b)
8. Thread the spray tip guard assembly onto the gun.
Tighten by hand.
SPRAY
PRIME
If using oil-based materials, the spray gun must be
grounded (see Grounding the Spray Gun, page 7).
SPRAY
PRIME
+ +
l
Whenever the PRIME/SPRAY knob is still on
SPRAY, there will be high pressure in the hose
and spray gun until the PRIME/SPRAY knob is
turned to PRIME.
Begin
tightening
the tip at
this angle
. . .to achieve
the desired
spray angle
when tight.

English
10

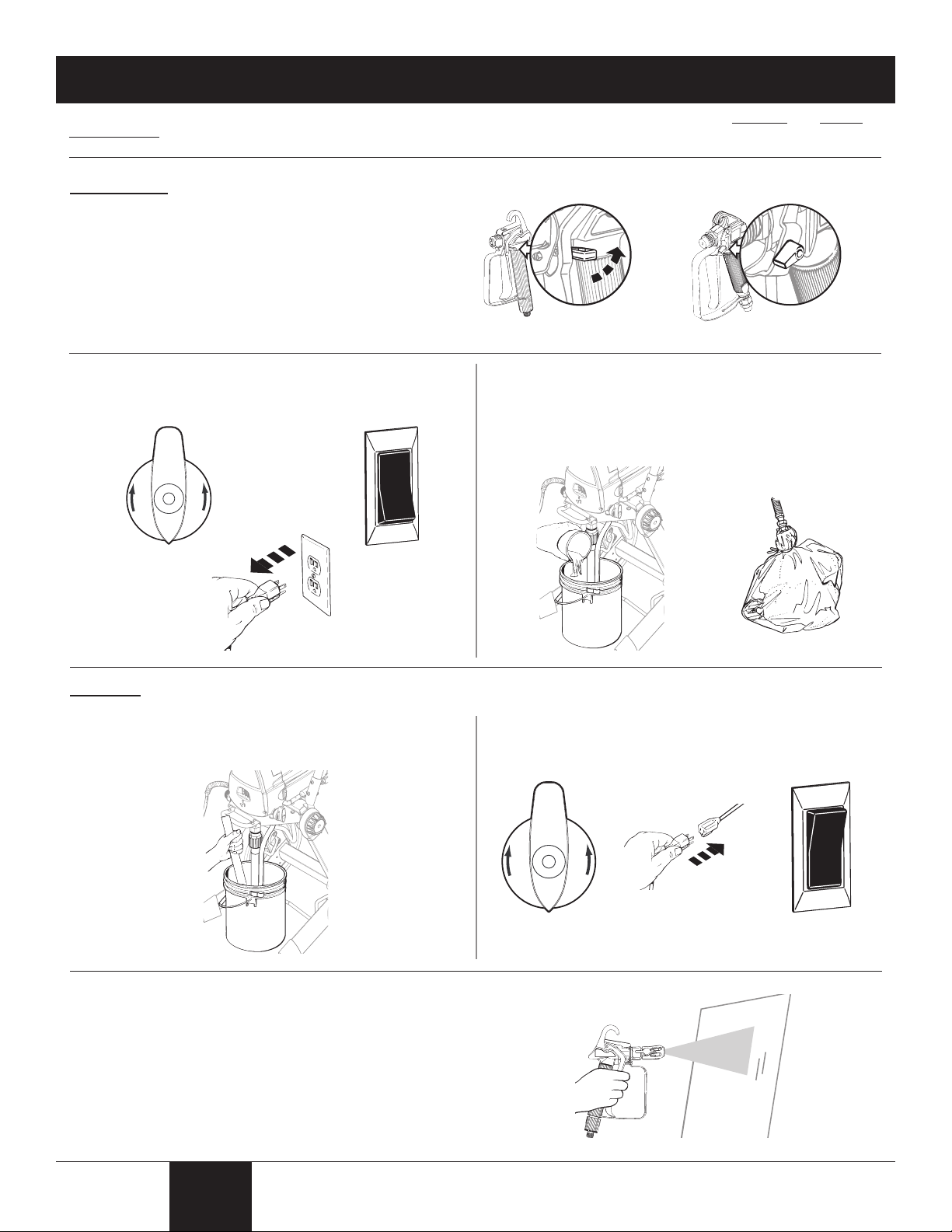

Practice / Spraying Technique
IMPORTANT: Be sure that the paint hose is free of kinks and clear of objects with sharp cutting edges.
1. Switch the pump ON (l). Turn the PRIME/SPRAY knob
to SPRAY. Slide the PressureTrac™ to maximum
pressure (+). The spray hose should stiffen as paint
begins to ow through it.
2. When motor shuts off, unlock the spray gun and spray a
test area to check the spray pattern.
The motor will cycle on and off automatically as it needs
pressure.
The PressureTrac™ can be adjusted left (increase) or right
(decrease) to achieve the desired spray pattern.
Good spray pattern
Paint tailing pattern
(pressure too low,
clogged tip)
The key to a good job is an even coating over the entire surface.
This is done by using even strokes. Follow the TIPS, below.
Tip: Keep the spray gun at right angles to the
surface. This means moving your entire
arm back and forth rather than just exing
your wrist.
Heavy CoatLight Coat Light Coat
Tip: Keep the spray gun perpendicular to the
surface, otherwise one end of the pattern
will be thicker than the other.
Approximately
10 to 12 inches
Right way
Wrong way
Tip: Trigger gun after starting the stroke.
Release the trigger before ending the
stroke. The spray gun should be moving
when the trigger is pulled and released.
Overlap each stroke by about 30%. This
will ensure an even coating.
Approximately
10 to 12 inches
Keep stroke
even
Start
stroke
End
stroke
Pull
trigger
Release
trigger
Move
steadily
If you expect to be away from your sprayer for
more than one hour, follow the Short-Term Storage
instructions (page 18).
l
SPRAY
PRIME
+

LX05
LX60
CLEAN
11 English
Spraying Troubleshooting - Unclogging the Spray Tip
If the spray pattern becomes distorted or stops completely while the gun is triggered, follow these steps.
Do not attempt to unclog or clean the tip with your
finger. High pressure fluid can cause injection injury.
IMPORTANT: Do not use a needle or other sharp pointed
instrument to clean the tip. The hard tungsten carbide can chip.
1. Release the trigger and lock the trigger off (see
page 7). Rotate the reversible tip arrow 180º so
that the point of the arrow is toward the rear of
the gun (CLEAN position).
Under pressure, the spray tip may be very
difcult to turn. Turn the PRIME/SPRAY knob
to PRIME and trigger the gun. This will relieve
pressure and the tip will turn more easily.
Trigger locked
(see page 7)
SPRAY
LX05
LX60
Trigger locked
(see page 7)
2. Turn the PRIME/SPRAY knob to SPRAY.
3. Unlock the trigger and squeeze the trigger, pointing the
gun at a scrap piece of wood or cardboard. This allows
pressure in the spray hose to blow out the obstruction.
When the nozzle is clean, material will come out in a
straight, high pressure stream.
If material still will not spray from the spray tip,
follow the Cleaning the spray gun lter instructions,
page 12.
4. Release the trigger and lock the trigger off (see
page 7). Reverse the tip so the arrow points
forward again (SPRAY position). Unlock the gun
and resume spraying.
SPRAY
PRIME

English
12
Spraying Troubleshooting - Cleaning the Spray Gun Filter
The screen at the bottom of the suction tube may also need cleaning. Check it every time you change spray containers.
The lter must be cleaned every time you use your sprayer. When using thicker spray materials, the lter might need to
be cleaned more often.
NOTE - the LX60 threads are left-handed. Turn the lter
clockwise to remove, and counterclockwise to replace.
1. Perform Pressure Relief Procedure, page 7.
2. Unclip the trigger guard from the lter housing by pulling
outward from the lter housing. Unscrew the lter
housing.
3. Remove the lter from the spray gun housing and clean
with the appropriate cleaning solution (warm, soapy
water for latex paints, mineral spirits for oil-based
materials). For spray gun model LX60, the lter will
need to be unscrewed from the gun housing (turn
clockwise).
4. Inspect the lter for holes (see inset, right). Replace if
holes are found.
NOTE - NEVER POKE THE FILTER WITH A SHARP
INSTRUMENT!
5a. Model LX05 - Replace the cleaned lter, tapered
end rst, into the gun housing. The tapered end of
the lter must be loaded properly into the gun.
Improper assembly will result in a plugged tip or no
ow from the gun.
5b. Model LX60 - Screw the tapered end of the lter into the
gun housing (turn counterclockwise to tigthen).
6. Reassemble the spray gun.
Tapered
end
(filter top)
Hole
Spray gun
model LX05
Spray gun
model LX60
Filter
housing
Trigger
guard Filter
Threaded
end
(filter top)
Hole
Trigger
guard
Filter
Filter
housing
Spraying Troubleshooting - Cleaning the Inlet Filter
1. Remove the lter by unscrewing it from the suction tube.
Clean the lter with the appropriate cleaning solution
(warm, soapy water for latex materials, mineral spirits for
oil-based materials).
2. Thread the lter back into place.
If after completing all of the steps in Spraying
Troubleshooting you are still experiencing problems
spraying, refer to the Troubleshooting section (page 22).

13 English
Cleanup
Important Cleaning Notes - Read before cleaning
• When using latex materials, clean your sprayer and
components with water. When using oil-based materials, use
mineral spirits. DO NOT use gasoline to clean your sprayer.
• Do not use mineral spirits on latex materials, or the mixture
will turn into a jelly-like substance which is difcult to remove.
• No matter which cleaning solution you use, make sure to
dispose of it properly when nished cleaning your sprayer.
• Thorough cleaning and lubrication of the sprayer is the most
important step you can take to ensure proper operation after
storage.
Follow these steps whenever cleaning with
mineral spirits:
• Always ush spray gun at least one hose
length away from spray pump.
• If collecting ushed solvents in one gallon
metal container, place it into an empty ve
gallon container, then ush.
• Area must be free from vapors.
• Follow all cleanup instructions.
• DO NOT use gasoline to clean your sprayer.

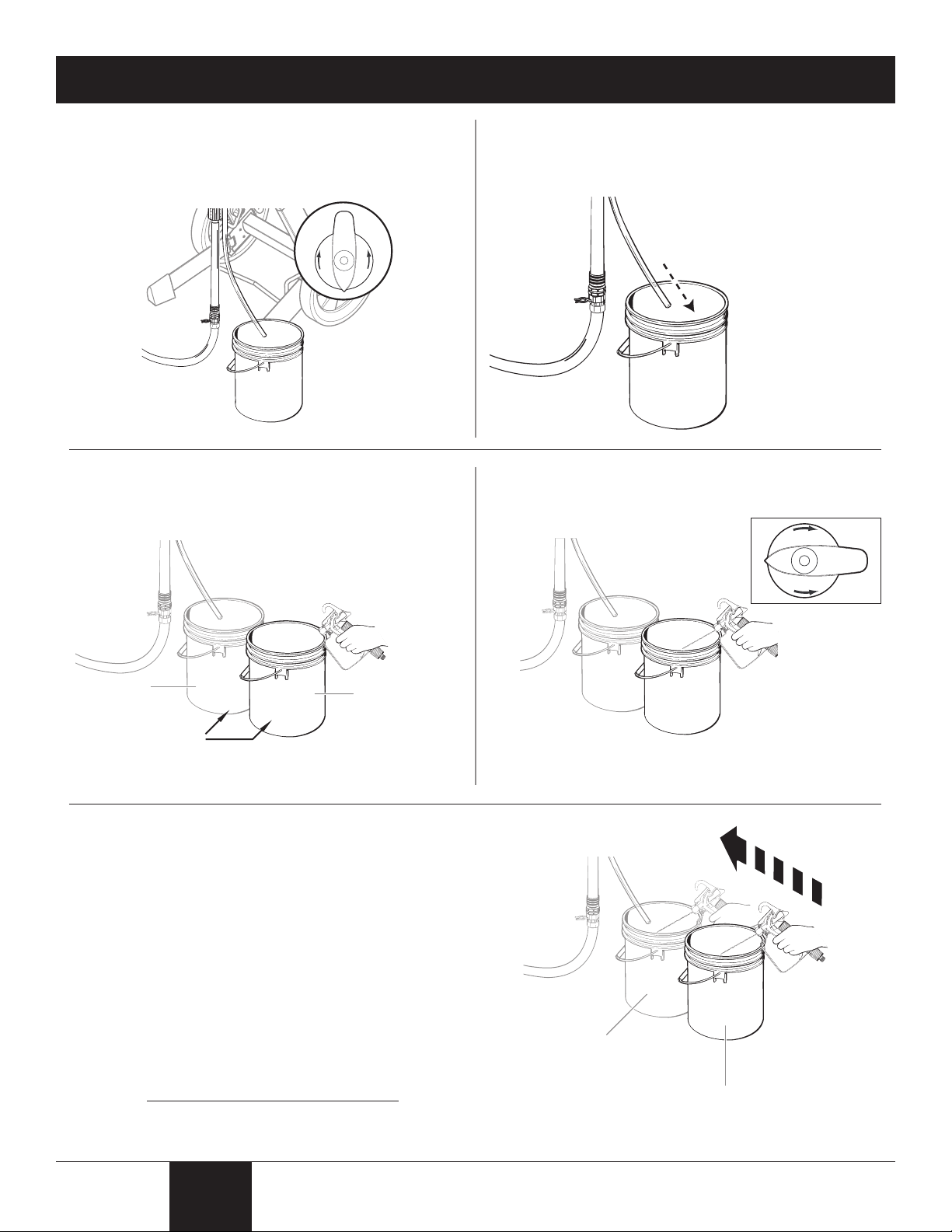

1. Lock the gun and remove the spray tip assembly. Place
the suction tube and return tube into an empty waste
container.
3. Remove the inlet lter from the suction tube and place
into the waste container.
2. Using a garden hose, rinse off the suction tube, return
tube and inlet lter. Empty the waste container.
4. Verify that the seals
are present inside the
adapter and suction
tube (a). Thread the
pump cleaning adapter
(b) onto a garden hose
(c). Connect hose and
adapter to the tting on
the end of the suction
tube (d).
(b)
(c)
(d)
(a)
Empty waste
container
Call 1-866-248-2698 if you have any problems or questions regarding the cleaning of your sprayer.
Follow these steps if you used latex materials and if you have a garden hose available. If you do not have a garden hose
available, follow the Cleanup - Oil-Based Materials instructions.
Continued on next page.

English
14
Cleanup - Latex materials (continued)
5. Unclip the return tube from the suction tube and place it
into the waste container. Turn the PRIME/SPRAY knob
to PRIME.
7. Place the original material container next to the waste
container. Aim the spray gun into the side of the
original material container and hold the trigger.
9. When cleaning solution ows from the spray gun, keep
holding the trigger and aim the spray gun into the side of
the waste container.
10. Trigger the gun until the uid owing out of the gun is
clear. You may need to empty the waste container and
continue ushing.
11. Turn the PRIME/SPRAY knob to PRIME and trigger gun
to relieve pressure.
Move on to Cleaning the Spray Gun Components.
6. Turn water supply on. Turn pump ON (l). Water will go
into the suction tube and out through the return tube.
Let pump run for a few minutes to allow the return tube
to be ushed.
8. While pulling the trigger, turn the PRIME/SPRAY knob
to SPRAY to purge material from the hose back into the
original container.
SPRAY
PRIME
Waste
container
Containers should
be touching
Original
material
container
Hold trigger
Hold trigger
Spray material
into original container
Spray water into
waste container
Leave pump running
through steps 7 and 8.
Keep holding trigger through next steps.
SPRAY
PRIME

15 English
Cleanup - oil-based materials

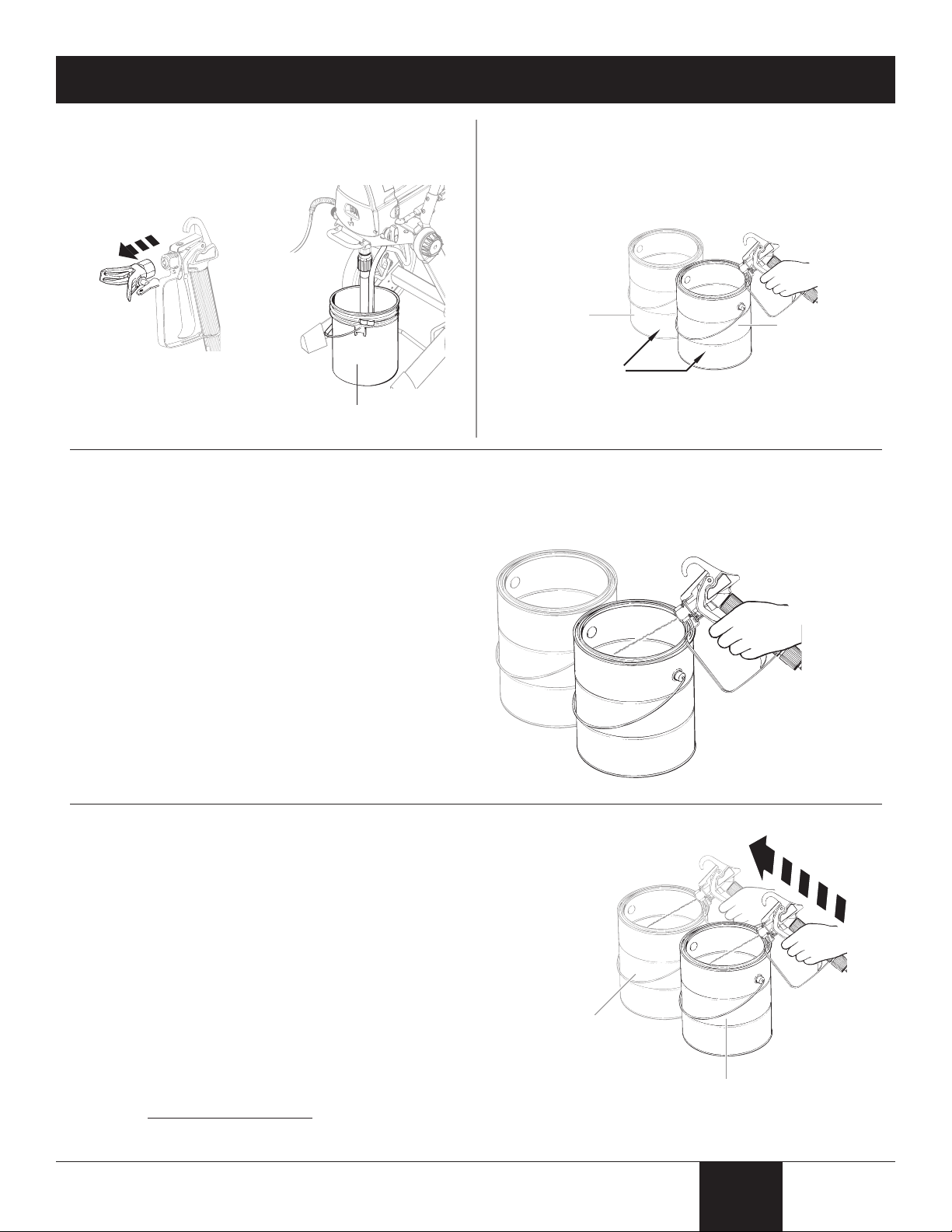

1. Lock the gun and remove spray tip assembly.
Submerge suction set into a bucket with appropriate
cleaning solution.
3. While pulling the gun trigger, turn the pump ON (l),
and turn the PRIME/SPRAY knob to SPRAY to purge
material from the hose back into the original container.
4. When cleaning solution ows from the spray gun, keep
holding the trigger and aim the spray gun into the side
of the waste container (ground gun with a metal
container if ushing with ammable solvent).
5. Trigger the gun until the uid owing out of the gun
is clear. You may need to dispose and obtain new
cleaning solution.
6. Turn the PRIME/SPRAY knob to PRIME and trigger gun
once to relieve pressure.
Move on to Cleaning the Suction Set.
2. Place a waste container next to the original material
container. Aim the spray gun into the side of the
original material container and hold the trigger.
Spray material into
original container
Hold trigger
Spray cleaning
solution into
waste container
Containers should
be touching
Original
material
container
Hold trigger
Waste
container
• Hold trigger
• Turn pump ON (l)
• Turn PRIME/SPRAY knob to SPRAY
Keep holding trigger through next steps.
Bucket with
cleaning solution

English
16
Cleaning the Suction Set
1. Lock the gun and turn the pump OFF (O).
3. When suction set is clean, thread the suction tube back
into the inlet valve, and replace the return tube onto the
return tube tting. Replace clip.
5. Turn the PRIME/SPRAY knob to PRIME. Turn the pump
ON (l), and trigger the gun once into a waste container
to relieve pressure.
6. Let the pump circlulate cleaning solution through the
suction set for 2-3 minutes. Turn the pump OFF.
2. Remove the suction hose and return tube and clean it
using the appropriate cleaning solution. You should also
wipe the threads of the inlet nut (a) and remove and
clean the inlet lter.
4. Submerge the suction set into a bucket of new cleaning
solution.
SPRAY
PRIME
LX05
LX60
l
O
(a)
IMPORTANT!
If you used oil-based materials, you must ush the pump
again using water to prepare it for storage. Repeat #1 -
#11 in Cleanup- Latex materials, instructions.
Move on to Cleaning the Spray Gun Components.
2 to 3 minutes

17 English
Cleaning the Spray Gun Components

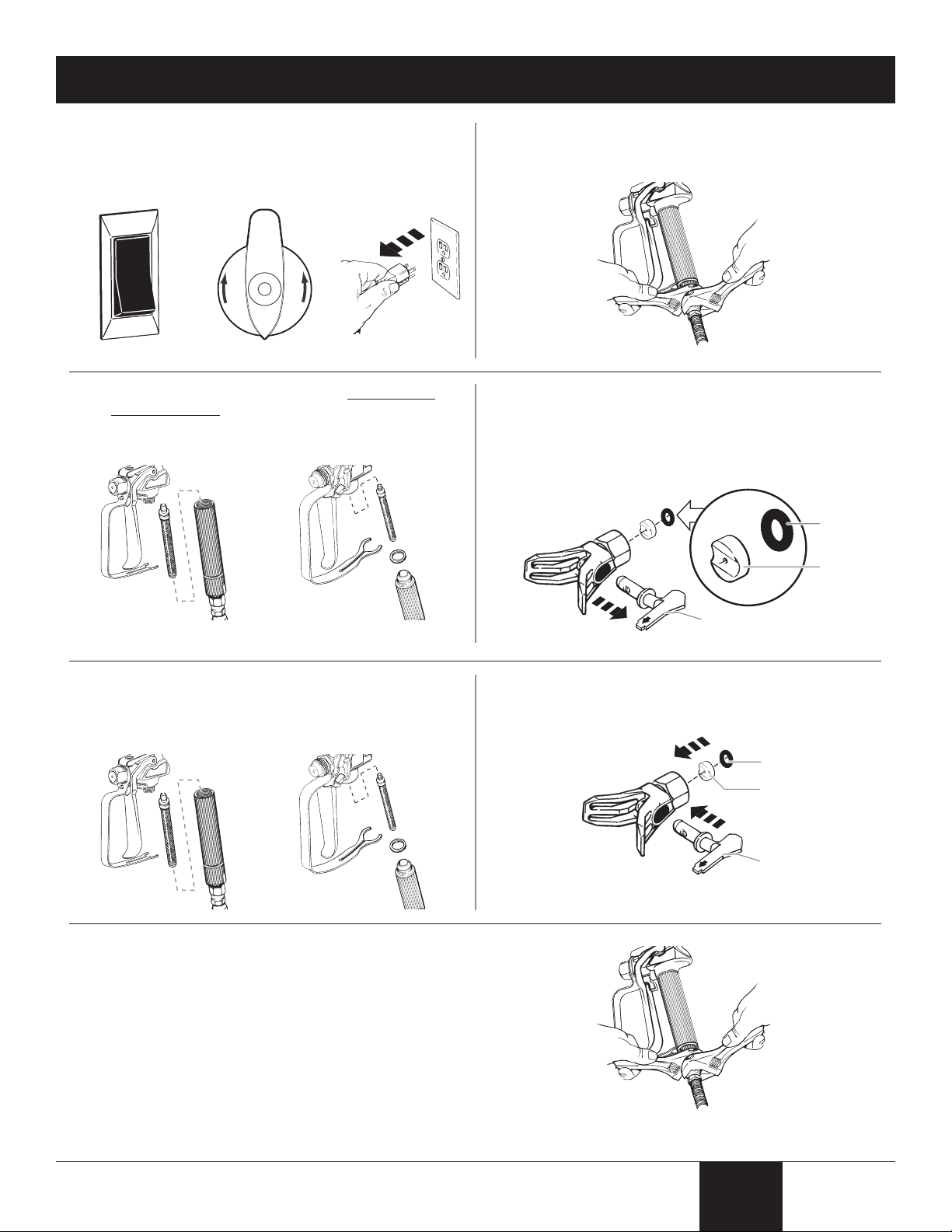

1. Make sure the pump is switched OFF (O). Make sure
the PRIME/SPRAY knob is turned to PRIME. Unplug
the sprayer.
3. Remove lter from spray gun (refer to Cleaning the
Spray Gun Filter, page 12).
5. Install gun lter tapered-end rst. Reassemble spray
gun.
7. Thread the spray gun back onto the paint hose. Tighten
with a wrench.
2. Remove spray gun from the paint hose using adjustable
wrenches.
4. Remove spray tip (a) from spray guard assembly. Clean
spray tip with a soft-bristled brush and the appropriate
cleaning solution. Be sure to remove and clean the
washer (b) and saddle seat (c) located in the rear of the
spray tip assembly.
6. Install spray tip (a), saddle seat (c) and washer (b), and
replace spray guard assembly.
O
SPRAY
PRIME
LX05 LX60
LX05 LX60
(b)
(c)
(a)
(b)
(c)
(a)

English
18
Title
Short-Term Storage (up to 16 hours)
Follow these steps when using latex materials only. If using materials that are oil-based, follow the Cleanup and Long-
Term Storage steps.
Shutdown
1. Lock the spray gun off.
2. Turn the PRIME/SPRAY knob to PRIME. Switch the
pump OFF (O). Unplug the sprayer.
1. Remove the gun from the plastic bag. Stir the water into
the paint.
3. Turn the PRIME/SPRAY knob to SPRAY. Test the
sprayer on a practice piece and begin spraying.
3. Pour 1/2 cup water slowly on the top of the paint to
prevent the paint from drying. Wrap the spray gun
assembly in a damp cloth and place it in a plastic bag.
Seal the bag shut. Place the sprayer in a safe place out
of the sun for short-term storage.
2. Turn the PRIME/SPRAY knob to PRIME. Plug sprayer
in. Turn the switch to ON (I).
Startup
SPRAY
PRIME
SPRAY
PRIME
O
l
LX05
LX60

19 English
Long-Term Storage
Follow these instructions only after all cleanup steps have been performed.
If you have a cart model (XL295 or XL335), you can collapse the cart for easier storage.
1. Fill a cup or other container with two ounces of
separating oil (P/N 0516444, sold separately) and
submerge the inlet valve into the oil. Light household oil
can be substituted.
2. Place a rag over the spray hose port, and turn the switch
ON (l). When the oil has been pumped from the cup,
turn the pump OFF (O).
3. Fully insert the Quicko™ valve. 4. Wipe the entire unit, hose and gun with a damp cloth to
remove accumulated paint. Replace the high pressure
hose to the paint hose port.
Separating oil
1. With one hand on the handle, twist
the knob on either side of the cart
toward the “DOWN” arrow.
2. When the knob is fully “DOWN”, this
will release the handle and it can
be folded down until it is locked into
place. Be careful not to pinch the
power cord with the cart.
3. Lift the leg lock, and fold the legs in.
Replace the leg lock to hold the legs
into place.

English
20
Cleaning the Quicko™ Valve
Cleaning or servicing the Quicko™ valve may be required if the unit has priming problems. Priming problems may be
prevented by properly cleaning the sprayer and following the long-term storage steps.
1. Remove the suction set.
3. Replace Quicko™ valve assembly by screwing it into
the sprayer.
2. Unscrew the Quicko™ valve assembly (b) from the
sprayer. Visually inspect the inside and outside of the
inlet valve assembly. Clean any paint residue with the
appropriate cleaning solution.
4. Replace suction set and hand-tighten.
(b)
If priming problems persist, you may need to replace the
inlet valve assembly. Call Technical Service (1-866-248-
2698) to order new inlet valve assembly.
