Titan TTB427GTM Installation manual

SAFETY AND OPERATING MANUAL
Original Instructions
v
24month
Manufacturer's
Warranty
POLE HEDGE TRIMMER 400W TTB427GTM
400w 高枝.indd 1 12-3-2 上午11:36

POLE HEDGE TRIMMER 400W TTB427GTM
Congratulations on your purchase of a TITAN® product from Titan Power Tool
(UK) Ltd. We want you to continue getting the best performance from it so this
handbook includes information on safety, handling and care. Please retain this
handbook in case you need to refer to any of the information in the future.
Your TITAN® product comes with a 24-month guarantee, so should it develop a
fault within this period contact your retailer.
GUARANTEE
This TITAN® product carries a guarantee of 24 months. If your product develops a fault
within this period, you should, in the first instance contact the retailer where the item was
purchased.
This guarantee specifically excludes losses caused due to:
- Fair wear and tear
- Misuse or abuse
- Lack of routine maintenance
- Failure of consumable items (such as batteries)
- Accidental damage
- Cosmetic damage
- Failure to follow manufacturer’s guidelines
- Loss of use of the goods
This guarantee does not affect your statutory rights. This guarantee is only valid in the UK.
For any enquiries relating to the guarantee please refer to your retailer.
400w 高枝.indd 2 12-3-2 上午11:36

POLE HEDGE TRIMMER 400W TTB427GTM
SAFETY INSTRUCTIONS
Warnings! Read this instruction carefully before operating this pole hedge
trimmer. Make sure that you are familiar with the controls and properly operate the
machine. Following this instructions, you can reduce the risk of fire, electric shock
and personal injury.
GENERAL SAFETY INSTRUCTIONS
Read all safety warnings and all instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury! Save all warnings and instructions
for future reference. The term "garden power tool" in the warnings refers to your mains-
operated (corded) garden power tool or battery-operated (cordless) garden power tool!
1. This product is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the product by a person responsible for
their safety.
2. Children should be supervised to ensure that they do not play with the product.
3. The garden power tool must be kept out of reach of children.
4. Store the instruction manual in a location accessible to all users of the garden power tool
and always include the instruction manual when passing it on to other users.
5. Instruct inexperienced persons on the safe use of this garden power tool using this
instruction manual.
Work area safety
1.Keep work area clean and well lit. Cluttered or dark areas invite accidents.
2.Do not operate power tools in explosive atmospheres, such as in the presence
of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust
or fumes.
3.Keep children and bystanders away while operating a power tool. Distractions can
cause you to lose control.
Electrical safety
1.Power tool plugs must match the outlet. Never modify the plug in any way. Do
not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric shock.
2.Avoid body contact with earthed or grounded surfaces, such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is
earthed or grounded.
3.Do not expose power tools to rain or wet conditions. Water entering a power tool
will increase the risk of electric shock.
400w 高枝.indd 3 12-3-2 上午11:36

POLE HEDGE TRIMMER 400W TTB427GTM
4.Do not abuse the cord. Never use the cord for carrying, pulling or unplugging
the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
5.When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
6.If operating a power tool in a damp location is unavoidable, use a residual
current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
Personal safety
1.Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention while operating power tools may
result in serious personal injury.
2.Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used
for appropriate conditions will reduce personal injuries.
3.Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising power tools that have the
switch on invites accidents.
4.Remove any adjusting key or wrench before turning the power tool on. A wrench
or a key left attached to a rotating part of the power tool may result in personal injury.
5.Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
6.Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught
in moving parts.
7.If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust collection can
reduce dust-related hazards.
Garden power tool use and care
1. Do not force the garden power tool. Use the correct garden power tool for your
application. The correct garden power tool will do the job better and safer at the rate for
which it was designed
2. Do not use the garden power tool if the switch does not turn it on and off.
Any garden power tool that cannot be controlled with the switch is dangerous and must be
repaired.
3. Disconnect the plug from the power source and/or the battery pack from the
400w 高枝.indd 4 12-3-2 上午11:36

POLE HEDGE TRIMMER 400W TTB427GTM
garden power tool before making any adjustments, changing accessories, or
storing garden power tools. Such preventive safety measures reduce the risk of starting
the power tool accidentally.
4. Store idle garden power tools out of the reach of children and do not allow
persons unfamiliar with the garden power tool or these instructions to operate
the garden power tool. Garden power tools are dangerous in the hands of untrained
users.
5. Maintain garden power tools. Check for misalignment or binding of moving
parts, breakage of parts and any other condition that may affect the garden
power tool’s operation. If damaged, have the garden power tool repaired before
use. Many accidents are caused by poorly maintained garden power tools.
6. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
7. Use the garden power tool, accessories and tool bits etc. in accordance with
these instructions, taking into account the working conditions and the work to
be performed. Use of the garden power tool for operations different from those intended
could result in a hazardous situation.
Service
Have your garden power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the garden power tool is
maintained.
POLE HEDGE TRIMMER SAFETY WARNINGS
1.Keep all parts of the body away from the cutter blade. Do not remove cut
material or hold material to be cut when blades are moving. Make sure the
product is switched off when clearing jammed material. A moment of inattention
while operating the product may result in serious personal injury.
2.Carry the product by the handle with the cutter blade stopped. When
transporting or storing the product always fit the cutting device cover. Proper
handling of the product will reduce possible personal injury from the cutter blades.
3.Hold the product by insulated gripping surfaces only, because the cutter blade
may contact hidden wiring or its own cord. Cutter blades contacting a "live" wire may
make exposed metal parts of the product "live" and could give the operator an electric shock.
4.Keep cable away from cutting area. During operation the cable may be hidden in
shrubs and can be accidentally cut by the blade.
5.Check the hedge for foreign objects before operation, e.g. wire fences.
6.Hold the product properly, e.g. with both hands if two handles are provided. Loss of
control can cause personal injury.
400w 高枝.indd 5 12-3-2 上午11:36

POLE HEDGE TRIMMER 400W TTB427GTM
ADDITIONAL SAFETY WARNINGS
IMPORTANT
Read carefully before use
Keep for future reference
Training
1.Become familiar with the instruction manual before attempting to operate the product.
Preparation
1.This product can cause serious injuries. Read the instructions carefully for the correct
handling, preparation, maintenance, starting and stopping of the product. Become familiar
with all controls and the proper use of the product.
2.Never allow children to use the product.
3.Beware of overhead power lines. Do not use the product in any position that causes any
part to come within 10 m of overhead electrical lines.
4.Avoid operating while people, especially children, are nearby.
5.Dress properly! Do not wear loose clothing or jewellery, which can be caught in moving
parts. Use of sturdy gloves, non-skid footwear and safety glasses is recommended.
6.If the cutting mechanism strikes any foreign object or the product starts making any
unusual noise or vibration, switch the product off, allow the product to stop, disconnect it
from the power supply and let it cool down. Take the following steps:
• inspect for damage,
• check for, and tighten, any loose parts,
• have any damaged parts replaced or repaired with parts having equivalent specifications.
Operation
1. Provide instructions for correct use and an indication that the hedge trimmer should not
be used for any other purpose, as well as the following instructions.
2. Stop the motor before
• cleaning or when clearing a blockage,
• checking, carrying out maintenance or working on the product,
• adjusting the working position of the cutting device,
• leaving the product unattended.
3. Ensure that the product is correctly located in a designated working position before
starting the motor.
4. While operating the product, always ensure that the operating position is safe and secure.
Do not use this product on steps or a ladder.
5. Do not operate the product with a damaged or excessively worn cutting device.
400w 高枝.indd 6 12-3-2 上午11:36

POLE HEDGE TRIMMER 400W TTB427GTM
6. Always ensure that all handles and guards are fitted when using the product. Never
attempt to use an incomplete product or one fitted with an unauthorised modification.
7. Always use two hands to operate a product fitted with two handles.
8. Always be aware of your surroundings and stay alert for possible hazards of which you
may not be aware due to the noise of the product.
Maintenance and storage
1. When the product is stopped for servicing, inspection or storage, shut off the power
source, disconnect the product from the power supply and make sure all moving parts have
come to a stop. Allow the product to cool before making any inspections, adjustments, etc.
2. Always allow the product to cool down before storing.
3. When transporting or storing the product, always fit the cutting device transport guard.
VIBRATION AND NOISE REDUCTION
To reduce the impact of noise and vibration emission, limit the time of operation, use low-
vibration and low-noise operating modes as well as wear personal protective equipment.
Take the following points into account to minimise the vibration and noise exposure risks:
1. Only use the product as intended by its design and these instructions.
2. Ensure that the product is in good condition and well maintained.
3. Use correct application tools for the product and ensure they in good condition.
4. Keep tight grip on the handles/grip surface.
5. Maintain this product in accordance with these instructions and keep it well lubricated
(where appropriate).
6. Plan your work schedule to spread any high vibration tool use across a number of days.
The European Physical Agents (Vibration) Directive has been brought in to help reduce hand
arm vibration syndrome injuries to users of product’s with vibration emission. The directive
requires manufacturers and suppliers to provide indicative vibration test results to enable
users to make informed decisions as to the period of time a product can be used safely on a
daily basis and the choice of tool. Further Advice can be found at www.hse.gov.uk
400w 高枝.indd 7 12-3-2 上午11:36

POLE HEDGE TRIMMER 400W TTB427GTM
EMERGENCY
Familiarise yourself with the use of this product by means of this instruction
manual. Memorise the safety directions and follow them to the letter. This will
help to prevent risks and hazards.
1. Always be alert when using this product, so that you can recognise and handle
risks early. Fast intervention can prevent serious injury and damage to property.
2. Switch off and disconnect from the power supply if there is any malfunction.
Have the product checked by a qualified specialist and repaired, if necessary, before you put
it into operation again.
400w 高枝.indd 8 12-3-2 上午11:36

POLE HEDGE TRIMMER 400W TTB427GTM
VIBRATION
The European Physical Agents (Vibration) Directive has been brought in to help reduce
hand arm vibration syndrome injuries to power tool users. The directive requires power tool
manufacturers and suppliers to provide indicative vibration test results to enable users to
make informed decisions as to the period of time a power tool can be used safely on a daily
basis and the choice of tool.
Further Advice can be found at www.hse.gov.uk
Vibration total values (triax vector sum) determined according to EN ISO 10517 and
EN60745:
Vibration level for operation
Vibration emission value ah = 1.656 m/s²
Uncertainty K = 1.5 m/s²
The declared vibration emission value should be used as a minimum level and should be
used with the current guidance on vibration.
Calculating the actual period of the actual period off use can be difficult and the HSE website
has further information.
The declared vibration emission been measured in accordance with a standard listed test
stated above and may be used to compare one tool with another. The declared vibration
emission value may also be used in a preliminary assessment of exposure.
WARNING! The vibration emission value during actual use of the power tool
can differ from the declared value depending on the ways in which the tool is
used dependant on the following examples and other variations on how the tool
is used:
How the tool is used and the materials being ground or cut.
The tool being in good condition and well maintained.
The use the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately
managed.
WARNING! identify safety measures to protect the operator that are based on an
estimation of exposure in the actual conditions of use (taking account of all parts
of the operating cycle such as the times when the tool is switched off and when it
is running idle in addition to the trigger time). Note The use of other tools will
reduce the users’ total working period on this tool.
Helping to minimise your vibration exposure risk.
Maintain this tool in accordance with these instructions and keep well lubricated (where
appropriate).
Avoid using tools in temperatures of 10°C or less.
Plan your work schedule to spread any high vibration tool use across a number of days.
Health Surveillance.
400w 高枝.indd 9 12-3-2 上午11:36

POLE HEDGE TRIMMER 400W TTB427GTM
Health Surveillance.
All employees should be part of an employer’s health surveillance scheme to help identity
any vibration related diseases at an early stage, prevent disease progression and help
employees stay in work.
Double insulation:
The tool is double insulated. This means that all the external metal parts are electrically
insulated from the mains power supply. This is done by placing insulation barriers between
the electrical and mechanical components making it unnecessary for the tool to be earthed.
Important note:
Be sure the supply is the same as the voltage given on the rating plate. The tool is fitted
with a two-core cable and plug. Remove the mains plug from socket before carrying out any
adjustment or servicing.
400w 高枝.indd 10 12-3-2 上午11:36

POLE HEDGE TRIMMER 400W TTB427GTM
SYMBOLS
Warning
Read the instruction manual
Double insulation
Compliance with relevant safety standards
Wear ear protection
Wear eye protection
Wear helmet protection
Wear safety helmet!
Wear face protection!
Gloves with saw protection
Boots with saw protection, steel toecap and non-slip sole
Wear protective clothing
To avoid potential electric shock, do not use the unit in humid or wet
Switch off! Remove plug from mains before cleaning or maintenance
Switch off! Remove plug from the mains immediately if the cable is
damaged or cut.
400w 高枝.indd 11 12-3-2 上午11:36

POLE HEDGE TRIMMER 400W TTB427GTM
>15m
Objects thrown by the product could hit the user or other bystanders.
Always ensure that other people and pets remain at a safe distance from the
product when it is in operation. In general, children must not come near the
area where the product is. Minimum distance 15 m.
Always beware of the danger from overhead electric-power line, keep a safe
distance at least 10M from the power line.
Waste electrical products should not be disposed of with household waste, please
recycle where facilities exist. Check with your local authority or retailer for recycling
advice.
Guaranteed sound power level
400w 高枝.indd 12 12-3-2 上午11:36

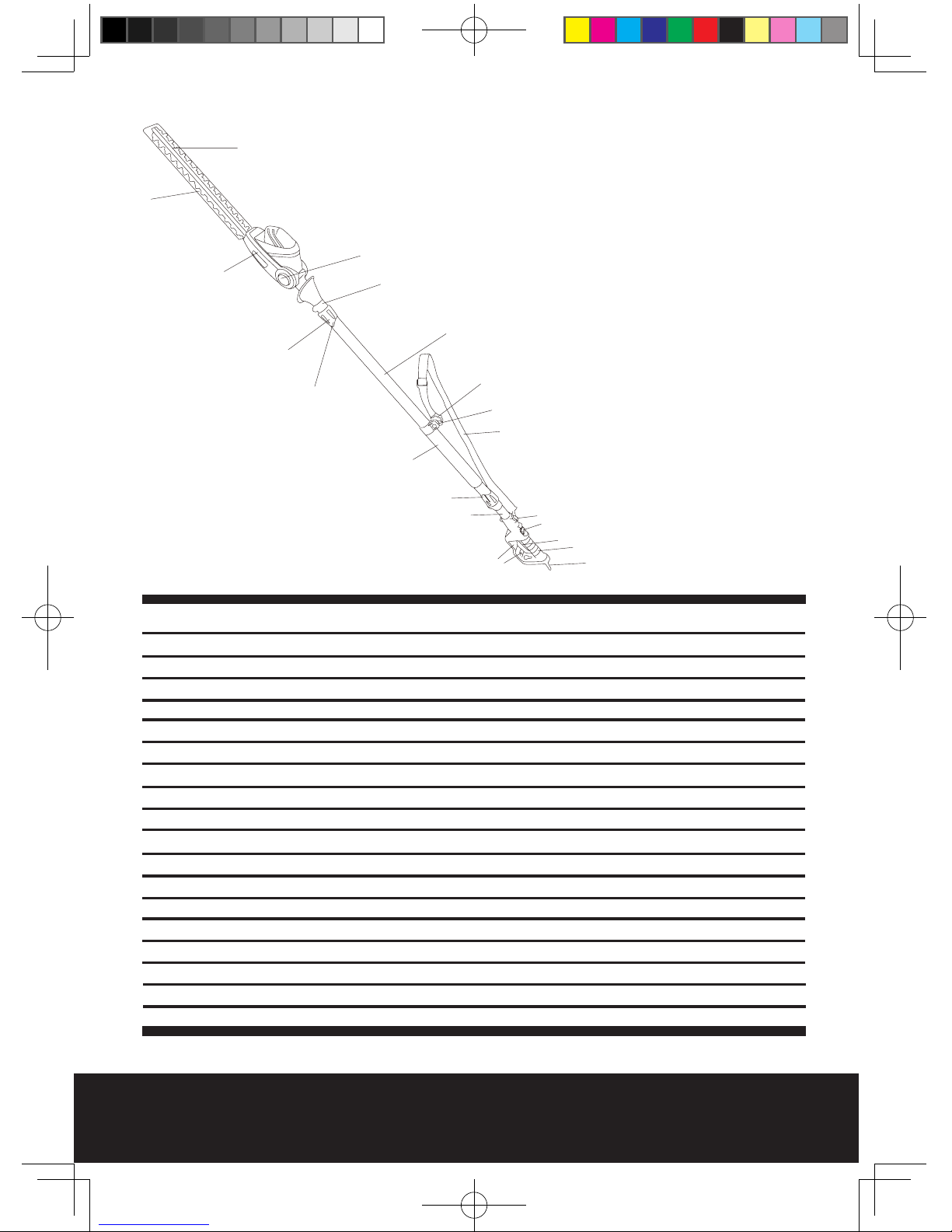

POLE HEDGE TRIMMER 400W TTB427GTM
1
2
3
4
5
6
7
6
8
910
11
12
13
14
19
15
14
18
16
17
1. Cutting blade
2. Lock-off button for cutting angle adjustment
3. Upper shaft
4. Middle shaft
5. Fixation knob
6. Securing clip (upper/lower)
7. Harness
8. Lock-off button
9. Switch trigger
10. Main handle
11. Power cord with plug
12. Cord strain relief
13. Rear safe guard
14. Bolt
15. Soft grip
16. Cooling air vents
17. Blade protection sheath
18. Locking pin
19. Lower shaft
400w 高枝.indd 13 12-3-2 上午11:36

POLE HEDGE TRIMMER 400W TTB427GTM
TECHNICAL DATA
Rated voltage 230-240VAC 50Hz
Rated power 400W
No-load speed 1850/min
Cutting blade length 450mm
Max. cutting length 410mm
Max. cutting capability 16mm
Net weight 4 kg
Cable length 10m
NOISE AND VIBRATION DATA
Measured sound pressure level 83.7 dB(A), K=1.051 dB(A)
Measured sound power level 95.8 dB(A), K=1.051 dB(A)
Guaranteed sound power level 97 dB(A)
Vibration 1.656 m/s², K=1.5m/s2
The declared vibration value has been measured in accordance with a standard test method
and may be used for comparing one tool with another.
The declared vibration value may also be used in a preliminary assessment of exposure.
WARNING! The vibration emission value during actual use of the tool can differ from the
declared value depending on the ways in which the tool is used. Identify safety measures
to protect the operator that are based on an estimation of exposure in the actual conditions
of use (taking account of all parts of the operating cycle such as the times when the tool is
switched off and when it is running idle in addition to the trigger time).
The sound intensity level for the operator may exceed 85dB(A) and ear protection measures
are necessary.
ACCESSORIES
HARNESS 1PC
HEX KEY 1PC
400w 高枝.indd 14 12-3-2 上午11:36

POLE HEDGE TRIMMER 400W TTB427GTM
OPERATION INSTRUCTIONS
WARNING! Read all instructions carefully. Do
not connect the pole hedge trimmer to mains
supply power before it is completely
assembled. Always use glove s during assembly.
1.INTENDED USE
1). This pole hedge trimmer TTB427GTM is designated with a
rated power of 400Watts. This product is intended for cutting
and trimming of high and wide hedges, bushes and shrubs
in domestic gardens.
The maximum cutting capacity must be observed. Do not cut
branches exceeding the stated maximum capacity.
2). The use of this product in case of rain or humid
environment is prohibited.
3). This product is intended for private domestic use only, not
for any trade use. It must not be used for any purposes other
than those described.
2. ASSEMBLY INSTRUCTIONS
1). UNPACK
a). Unpack all parts and lay them on a flat, stable surface.
b). Remove all packing materials and shipping devices if
applicable.
c). Make sure the delivery contents are complete and free
of any damage. If you find that parts are missing or show
damage do not use the product but contact your dealer.
Using an incomplete or damaged product represents a
hazard to people and property.
d). Ensure that you have all the accessories and tools needed
for assembly and operation. This also includes proper
personal protective equipment.
2). ASSEMBLY
WARNING! Once assembled the product, the
telescopic shaft can be disassembled to
replace inner cable during maintenance.(See
"MAINTENANCE" description)
After unpacking, assembly is required.
a). Loosen the bolts (14) with a supplied hex key,
b). Align the middle shaft (4) with the lower shaft (19) and
insert it until nipple snaps into place audibly. (See Fig. 1).
c). Repeat in the same way for middle shaft (4) and upper
shaft (3).
Fig. 1
"14"
400w 高枝.indd 15 12-3-2 上午11:36

POLE HEDGE TRIMMER 400W TTB427GTM
3). HARNESS
WARNING! Always operate using the harness
provided. Failure to do so could result in loss of
balance and result in personal injury.
a). Open the securing clip (6) to remove the harness from the
loop.
b). Place the harness so that it runs over the left shoulder,
crossing the chest and back. (See Fig. 2a)
c). Locate the product to the harness by using the securing
clip.
d). Adjust the position of the upper securing clip loosening
the fixation knob anticlockwise and sliding it into required
position. (See Fig. 2b)
e). To allow safe and comfortable use, the lower shaft should
be adjusted so that the upper and lower Harness Securing
Clips (6) are approximately the same width as the user’s
shoulders.
NOTE: The lower adjustable section is NOT to increase the
cutting length but to alter the harness positions.
3. CABLE ROUTING
1). Always route the electric main cable away from the work
area to prevent it from coming into contact with the blade.
Plan your route before starting work. Start your work at the
nearest point to the electrical outlet, and work away from it.
This will keep the cable away from the tool and avoid it being
accidentally cut. Keep the cable over your shoulder for added
safety.
2). For tension relief of the cable, form a loop of the end of the
main cable and bring this through the opening at the handle
and insert it into the cord strain relief (12). (See Fig.3)
4. POWER CONNECTION
WARNING! Before operating the pole hedge
trimmer, ensure that the fastening elements are
undamaged. In order to prevent risk, always
switch off the motor and pull out the mains plug before
starting this task.
Fig. 2a
Fig. 2b
Fig. 3
400w 高枝.indd 16 12-3-2 上午11:36

POLE HEDGE TRIMMER 400W TTB427GTM
The pole hedge trimmer can be connected to any socket (with
230-240V alternating current).
Always use the appliance via a Residual Current Device (RCD)
with a tripping current of max. 30mA.
1). Use only rubber-insulation-sheath extension cables
suitable for outdoor use. The recommended size of
extension cord is not lighter than 1.5mm2 and a maximum
of 10meters in length.
2). Mains leads on pole hedge trimmer are particularly
susceptible to insulation damage. The causes of this include
the following:
- Cut the cable by passing over it with the pole hedge
trimmer.
- Damage through crushing if the mains lead is routed
under doors or windows.
- Cracks caused by ageing of the insulation sheath.
- Kinks caused by incorrect fastening or routing of the
mains lead.
3). Such damaged mains leads should not be used under
any circumstances as they may cause fatal injuries due to
their damaged insulation sheath.
4). Always check the plug and cable and make sure they are
in good condition before operation.
5. CUTTING LENGTH ADJUSTMENT
WARNING! Always switch the motor off and
pull the mains plug from power supply before
any adjustment.
WARNING! The length of the shaft is limited!
Stop pushing/pulling as soon as you feel a
resistance! Extend the shaft only to the
length required to reach the hedges being trimmed!
Do not attempt to use the product at a length which
does not allow you to achieve proper footing and
balance at all times!
The cutting length of the pole hedge trimmer can be
adjusted continuously according to required cutting height.
1). Unscrew the bolt (14) with a supplied hex key(See
Fig.1a).
2). Push the shafts (3, 4) towards each other to shorten or
pull away from each other to lengthen the shaft.
3). Tighten the bolts (14) once the desired length is adjusted.
400w 高枝.indd 17 12-3-2 上午11:36

POLE HEDGE TRIMMER 400W TTB427GTM
NOTE: The lower adjustable section is NOT to increase the
cutting length but to alter the harness positions.
6. CUTTING ANGLE ADJUSTMENT
WARNING! Always switch the motor off and
pull the mains plug from power supply before
any adjustment.
This pole hedge trimmer supplied 4 cutting position for
different cutting status, adjust the cutting head angle to fit the
growth of the plant.
1). Push lock-off buttons (2) on the left and right of the
trimming head. (See Fig. 4a).
2). Adjust the head until it snaps securely into place at one of
the four positions indicated by the notches. (See Fig. 4b).
7. STARTING AND STOPPING
1). STARTING
The pole hedge trimmer is fitted with a lock-off button feature.
To start the pole hedge trimmer, simply pull the lock-off button
(8) and hold it in position then fully press and hold the switch
trigger (9) to switch the product on. (See Fig.5a)
NOTE: It is not necessary to maintain pressure on the lock-
off button once the switch trigger is squeezed and the motor
is running. The lock-off button is a safety device to avoid
accidental start-up of the device.
Fig. 4a
0º
-45
º
45
º
90º
PIVOT
BUTTON
Fig. 4b
Fig. 5a
STEP 1
STEP 2
400w 高枝.indd 18 12-3-2 上午11:36

POLE HEDGE TRIMMER 400W TTB427GTM
2). STOPPING
a).The pole hedge trimmer will automatically stop once the
switch trigger (9) is released. The lock-off button will have to
be depressed and the switch trigger squeezed to restart the
tool.
b). When the blade has come to a complete stop, remove
plug from power source and replace the blade protection
sheath.
3). REMOVE BLADE PROTECTION SHEATH
a). Remove the blade protection sheath from the blade
before operation. (See Fig. 5b)
b). Refit the blade protection sheath when the product is not
in use, for storage or transportation.
8. GENERAL BEHAVIOUR
1). Check the product as well as accessories for damage
before each use. Do not use the product if it is damaged or
shows wear.
2). Double check that accessories and blade are properly
fixed.
3). Always hold the product the product by its handle and
gripping surface. Keep them dry to ensure safe support.
4). Ensure that the air vents are always unobstructed and
clean. Clean them if necessary with a soft brush. Blocked air
vents may lead to overheating and damage the product.
5). Switch the product off immediately if you are disturbed
while working with it and when other people enter the
working area. Always let the product come to complete stop
before putting it down.
6). Do not overwork yourself. Take regular breaks to ensure
you can concentrate on the work and have full control over
the product.
9. HEDGE TRIMMING
1). Adjust the shaft to required length as described above.
2). Cut and remove branches exceeding the cutting capacity
of this product using a proper pruner before operation.
3). Always hold the product firmly with both hands on soft
grip (15) and main handle (10). Never operate this product
using only one hand.
4). Cut both sides from the bottom cutting upwards to the
top. This will prevent any of the cuttings falling into the path
of the area still to be cut. (See Fig. 6a).
5). After cutting the sides proceed to the top.
Fig. 6a
Fig. 6b
Fig. 5b
400w 高枝.indd 19 12-3-2 上午11:36

POLE HEDGE TRIMMER 400W TTB427GTM
6). When cutting wide hedges with the cutting area in sight
move the cutting blade lightly through the cutting surface
in a sweeping motion following the shape of the hedge or
shrub. A slight tilt downwards of the cutting blade in the
direction of motion is recommended for optimum cutting
performance.
(See Fig. 6b).
7). Move the product with slow motion forward when
cutting higher hedge and the cutting area out of sight. (See
Fig. 6c).
8). Do not to rush and do not attempt to cut too much with
one stroke of the cutting blade.
NOTE: Try to keep the cutting blade angled at approximately
15° to the cutting surface.
9). Cut in a number of stages if the area being cut is
particularly long to achieve a better result; smaller cuttings
will allow for easy composting.
NOTE: When shaping it is advisable to achieve a
trapezoidal shape (See Fig. 6d). A trapezoidal cut
corresponds to the natural growth of plants and
results in optimal hedge growth, as it will expose
more light to the bottom of the hedge.

Fig. 6c
Fig. 6d
400w 高枝.indd 20 12-3-2 上午11:36
