Titan LCF55 User manual

Lift-Rite, 5975 Falbourne Street, Mississauga, Ontario L5R3L8 Tel: Toll Free from USA: 1-800-558-6012; Tel: [phone] (Canada and International)
Fax: [phone] Owners Manual, Operating Instructions, and Replacement Parts Manual, Publications Number 1156119A ©2012 Dated 14 Aug 2012
Owners Manual, Operating
Instructions Manual, and
Replacement Parts Manual
Lift-Rite Titan Series Hand Pallet Trucks
Model LCF55 - Freezer Special

Lift-Rite, 5975 Falbourne Street, Mississauga, Ontario L5R3L8 Tel: Toll Free from USA: 1-800-558-6012; Tel: [phone] (Canada and International)
Fax: [phone] Owners Manual, Operating Instructions, and Replacement Parts Manual, Publications Number 1156119A ©2012 Dated 14 Aug 2012
This publication, 1156119A, applies to the Lift-Rite Titan Series Hand Pallet Trucks, Model LCF55 version,
and to all subsequent releases of this product until otherwise indicated in new editions. Changes occur
periodically to the information in this publication.
To order additional copies of this manual, part number 1156119A, contact your local authorized Lift-Rite
Sales and Service Center.
If you need assistance with your lift truck, contact your local authorized Lift-Rite Sales and Service Center.
To locate your Sales and Service Center, go to www.liftrite.com
©2012

1
Lift-Rite, 5975 Falbourne Street, Mississauga, Ontario L5R3L8 Tel: Toll Free from USA: 1-800-558-6012; Tel: [phone] (Canada and International)
Fax: [phone] Owners Manual, Operating Instructions, and Replacement Parts Manual, Publications Number 1156119A ©2012 Dated 14 Aug 2012
TA B L E OF CONTENTS
DELIVERY INSPECTION 2
OPERATING INSTRUCTIONS 2
SAFETY PROCEDURES 3
DAILY INSPECTION 3
MAINTENANCE 4-5
TROUBLESHOOTING 6
PARTS 7-9
Hydraulic Assembly 7
LCF55 Chassis 8
Recycling Old Parts 9
WARRANTY 10

2
Lift-Rite, 5975 Falbourne Street, Mississauga, Ontario L5R3L8 Tel: Toll Free from USA: 1-800-558-6012; Tel: [phone] (Canada and International)
Fax: [phone] Owners Manual, Operating Instructions, and Replacement Parts Manual, Publications Number 1156119A ©2012 Dated 14 Aug 2012
Visually inspect hand pallet truck frame components and hydraulic unit for damage during
shipment by carrier. If damage is evident, notify delivering carrier immediately and file necessary
claims. Test the hand pallet truck pump for proper operation. If the hydraulic pump does not
respond to movement of the handle, an air lock may have developed during shipping. To
remedy this, go to the user friendly TROUBLESHOOTING guide in this manual.
DELIVERY INSPECTION
OPERATING INSTRUCTIONS
(Read and understand prior to using this product)
To raise the load, push down on
the fingertip control. Pump the
handle to raise the load from the
floor.
To lower the load, pull up on the
fingertip control.
For free handle movement, place
the fingertip control in the neutral
position.
NOTE:
The neutral position disengages
the pump from the lifting
mechanism. This frees the handle,
which makes pulling loads easier.
In addition, the pump is not
subject to shock pressures while
the truck is in motion.
SAFETY SHOES
Alwayswear safety shoes when working with hand pallet trucks.
PROTECTIVE GLASSES
When assembling or dismantling a hand pallet truck, protective
glasses must be worn to avoid personal injury.
OPERATOR’S RESPONSIBILITY
While operating a hand pallet truck, alwayswear safety equipment
and operate in a responsible manner to ensure a safe work area.

3
Lift-Rite, 5975 Falbourne Street, Mississauga, Ontario L5R3L8 Tel: Toll Free from USA: 1-800-558-6012; Tel: [phone] (Canada and International)
Fax: [phone] Owners Manual, Operating Instructions, and Replacement Parts Manual, Publications Number 1156119A ©2012 Dated 14 Aug 2012
• Read and obey all labels on this product. If you have any questions about these, ask your
supervisor.
•Donot operate this hand pallet truck unless you are authorized and trained to do so.
•Never overload your hand pallet truck. Stay within its rated capacity.
•Donot operate this truck if damaged or not in proper working order.
• Distribute the load evenly on the forks. Do not concentrate loads at one point or load one fork
more than the other.
• When the load impairs visibility, the hand pallet lift truck should be pulled and not pushed.
•Always look where you are operating. Keep a clear view.
• Only handle loads on flat level surfaces. Do not use a loaded truck on inclines or declines.
•Never carry passengers.
•Never put your feet, hands, or any other body part under the frame assembly.
•Always yield right of way to pedestrians.
•Donot allow your hand pallet truck to drop from one level to another. Even a drop of 1 in.
(25 mm) more than doubles the effective load momentarily and results in a loading that can bend
or break components.
• Move loads only with the hand pallet truck in its lowest position.
•Always make sure that the load is stable before moving to eliminate the opportunity for load
shift.
• Use extreme care when rounding corners. Too fast a speed could cause a hand pallet lift truck to
tip. If loaded, the load could shift and fall.
• When not in use, fully lower the forks.
At the start of your shift, check the items listed below. Report any malfunction or unsafe conditions
to your supervisor. Do not use this product until it is repaired.
CHECK
POINTS Steering
Hydraulic
System Wheels
Chassis/
Handle
Lifting/
Lowering Labels
ACTION Check full
rotation
Check for
excessive oil
on exterior
and check for
function
Check for wear,
damage, and
remove debris
Check for
damage and
remove debris
Check for
function
Check for
readability
SAFETY PROCEDURES
(Read and understand prior to using this product)
DAILY INSPECTION

4
Lift-Rite, 5975 Falbourne Street, Mississauga, Ontario L5R3L8 Tel: Toll Free from USA: 1-800-558-6012; Tel: [phone] (Canada and International)
Fax: [phone] Owners Manual, Operating Instructions, and Replacement Parts Manual, Publications Number 1156119A ©2012 Dated 14 Aug 2012
LUBRICATION
All pivot points are equipped with permanently lubricated bushings and bearings. To increase
bearing life, it is recommended that a few drops of light machine oil be applied at each pivot point
every 3 months. The thrust plate is equipped with three grease fittings. Apply grease under normal
conditions every 3 months.
PUSH BAR LINKAGE ADJUSTMENT
If the forks do not rise evenly at the tips, or the roller levers begin to drag on the floor, the following
adjustment is necessary:
LCF55 MODEL
• Turn the hand pallet truck over so that the underside of the forks are accessible.
• Remove one split pin (PN-20269B) with 3/16 in. punch.
• Remove pin (PN-20227) from bracket.
• Adjust eyebolts (PN-20226). Turn counterclockwise to raise fork tips and clockwise to lower
fork tips.
• Replace pin (PN-20227) through eyebolt and replace split pin (PN-20269B).
• When adjusted properly, the forks should be 3 in. low height from ground level in the
lowered position.
MAINTENANCE

5
Lift-Rite, 5975 Falbourne Street, Mississauga, Ontario L5R3L8 Tel: Toll Free from USA: 1-800-558-6012; Tel: [phone] (Canada and International)
Fax: [phone] Owners Manual, Operating Instructions, and Replacement Parts Manual, Publications Number 1156119A ©2012 Dated 14 Aug 2012
HYDRAULIC SYSTEM
Your hydraulic system is maintenance free. Do not add hydraulic oil unless there is, or has been, a
leak. Use ISO VG 15 grade hydraulic oil or equal for LCF55 model trucks. Other oils, fluids, or
solvents may damage your hydraulic system. If you suspect additional oil is required, follow these
steps:
1. Check for and fix any possible oil leaks.
2. Lower the truck and load with 600 lbs. (approximate).
3. Pump the truck to its maximum lift height.
4. Measure the vertical height of the exposed piston (215030) and refer to the chart below.
ADDING OIL (IF REQUIRED)
1. Place and secure the truck on its right side (release valve facing the floor).
2. Pull up on the release lever (173765) and extend the lift piston fully.
3. Remove screw (221586) and add the amount of oil determined by the chart in step 4.
4. Reinstall screw (221586) but do not tighten. Leave a 1/32 in. gap.
5. Pull up on the release lever (173765) and collapse the lift piston until oil starts to
ooze from the screw.
6. Tighten the screw (221586) fully and return the truck upright.
Distance (inches) 5-1/8 in. 4-3/4 in. 4-3/8 in. 4 in. 3-1/2 in. 3-1/8 in. 2-3/4 in. 2-3/8 in.
Oil to add (Fl. Oz.) 0 2.7 3.0 3.4 3.7 4.0 4.4 4.7
MAINTENANCE (CONT.)
CAUTION! - It is extremely important that step 5 is performed. Otherwise, air in
the pump can force out the wiper seal (20066). Take care when adding oil not to
introduce impurities into the hydraulic system.

6
Lift-Rite, 5975 Falbourne Street, Mississauga, Ontario L5R3L8 Tel: Toll Free from USA: 1-800-558-6012; Tel: [phone] (Canada and International)
Fax: [phone] Owners Manual, Operating Instructions, and Replacement Parts Manual, Publications Number 1156119A ©2012 Dated 14 Aug 2012
CONDITION POSSIBLE CAUSE ACTION
Pump does not lift load. An air lock in the hydraulic
system.
Pull up on fingertip control and hold
while pumping the handle 8 to 10 times
to bleed air from the system.
Lifting, neutral, and lowering
do not function properly.
Chain anchor out of adjustment. Turn nut (158452) on chain anchor
clockwise until pumping action, while in
neutral, does not raise forks.
Forks raise and sink with
pump action.
Dirt or foreign particle caught in
cone valve seat.
Pull up on fingertip control and hold
while pumping the handle 8 to 10 times
to purge the valve system.
Pump does not lift load to
complete raised height.
Pump is low on oil. Check for and fix any leaks. Then add oil
as instructed in the MAINTENANCE
section.
Forks are not lowering
completely.
Push jam nut loose. Push bars
require adjustment.
Refer to Push Bar Linkage Adjustment
in the MAINTENANCE section.
TROUBLESHOOTING

7
Lift-Rite, 5975 Falbourne Street, Mississauga, Ontario L5R3L8 Tel: Toll Free from USA: 1-800-558-6012; Tel: [phone] (Canada and International)

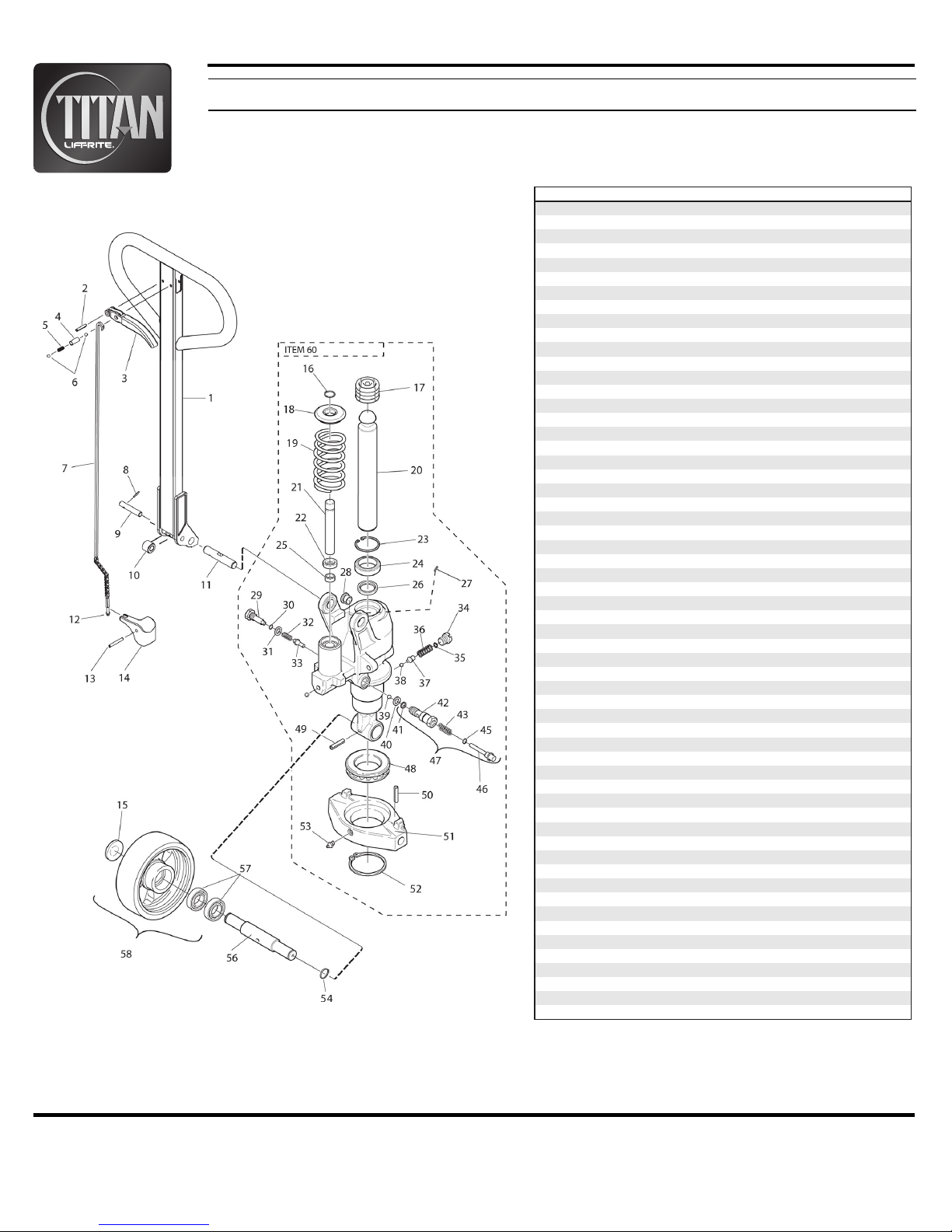

Fax: [phone] Owners Manual, Operating Instructions, and Replacement Parts Manual, Publications Number 1156119A ©2012 Dated 14 Aug 2012
ITEM DESCRIPTION QTY PART NO.
1COMPLETE HANDLE (ITEMS 2-10) 11154730/001
2 SPLIT PIN 1 20105
3CONTROL LEVER 1173765
4 CONTROL LEVER SLEEVE 1 54140BT
5CONTROL LEVER SPRING 1218182
6 CHROME BALL 2 20065
7CONTROL ROD ASSEMBLY 1253089
8 SPLIT PIN 1 20461
9AXLE 147930
10 ROLLER WITH BUSHING 1 165196
11 AXLE 17500087
12 ADJUSTING NUT 1 158452
13 LOCKING PIN 1220312
14 LOWERING ARM 1 215128
15 COVER 2156623BT
16 LOCKING RING 1 7500035
17 SLEEVE 1215803
18 WASHER 1 215282
19 SPRING 17500037
20 PISTON 1 215030
21 PISTON 1215286
22 SEALING RING 1 21060
23 LOCKING RING 17500036
24 SEALING 1 20066
25 SEALING 1215866
26 SEALING 1 215867
27 LOCKING PIN 120014
28 BUSHING 2 215913
29 SCREW 1221586
30 O-RING 1 24213
31 WASHER 1219201
32 SPRING 1 39106
33 VALVE CONE 1223935
34 SCREW (OVERLOAD) 1 221232
35 O-RING (OVERLOAD) 122032
36 SPRING (OVERLOAD) 1 221227
37 GUIDE PIN (OVERLOAD) 1221231
38 BALL (OVERLOAD) 1 22055
39 BALL 120065
40 WASHER 1 215288
41 O-RING 122032
42 VALVE BODY 1 7500112
43 SPRING 147071
45 U-RING 1 7500100
46 PISTON 17500116
47 LOWERING VALVE COMPLETE 1 7518604
48 BALL BEARING 1228275
49 LOCKING PIN 1 220312
50 LOCKING PIN 220001
51 THRUST PLATE 1 7500028
52 LOCKING RING 1220312
53 GREASE NIPPLE 1 27662
54 LOCKING RING 220019
56 AXLE 1 227907
57 BEARING 4210062
58 WHEEL COMPLETE - NYLON 2 160421BT
60 HYDRAULIC UNIT 17500028
REBUILD KIT 1 7514681
COMPLETE HYDRAULIC ASSEMBLY (1151454/001)

8
Lift-Rite, 5975 Falbourne Street, Mississauga, Ontario L5R3L8 Tel: Toll Free from USA: 1-800-558-6012; Tel: [phone] (Canada and International)
Fax: [phone] Owners Manual, Operating Instructions, and Replacement Parts Manual, Publications Number 1156119A ©2012 Dated 14 Aug 2012
ITEM DESCRIPTION QTY PART NO.
1CHASSIS 11154178/001
2 TORSION BAR - 27 IN. WIDE TRUCK 1 1156049
3BUSHING 6PN-20203A
4 BULKHEAD PIN 2 PN-20204
5SPRING PIN 2PN-20269A
6 EYE BOLT PIN 2 PN-20227
7SPRING PIN 2PN-20269B
8 THRUST PLATE PIN 2 179328
9BUSHING 2PL-30206
10 GREASE FITTING 2 27662
11 EYE BOLT 2PN-20226
12 JAM NUT 2 PN-10224AF
13 BUSHING 2PN-20226A
14 PUSH BAR - 48 IN. FORK 2 1156048/001
15 EXIT ROLLER 2PN-20220
16 BUSHING 4 PL-20206
17 BUSHING 4PN-20203
18 LEFT LEVER ARM WITH BUSHING 2 1155938
RIGHT LEVER ARM WITH BUSHING 21156047
19 SPRING PIN 4 PN-20269
20 FORK PIN 2PN-20219
21 LOAD ROLLER WITH BEARINGS (NYLON) 2 PL-20210N-B
22 BALL BEARING 4PL-20214
23 AXLE ASSEMBLY 2 PL-20215
24 LOCK NUT 2PL-10218
MODEL LCF55 CHASSIS DIAGRAM

9
Lift-Rite, 5975 Falbourne Street, Mississauga, Ontario L5R3L8 Tel: Toll Free from USA: 1-800-558-6012; Tel: [phone] (Canada and International)
Fax: [phone] Owners Manual, Operating Instructions, and Replacement Parts Manual, Publications Number 1156119A ©2012 Dated 14 Aug 2012
Chassis Steel, zinc
Roller suspension Steel, cast iron, zinc
Bushings Brass
Grease fittings Steel
Rollers Nylon, steel
Hydraulic body Cast iron, zinc
Thrust plate Cast iron, zinc
Handle Steel, zinc
Wheel Nylon, steel
Bushings Brass
Hydraulic oil Disposal in accordance with local regulations
Assembly parts Steel, brass, nylon
RECYCLING YOUR OLD LIFT-RITE PARTS

10
Lift-Rite, 5975 Falbourne Street, Mississauga, Ontario L5R3L8 Tel: Toll Free from USA: 1-800-558-6012; Tel: [phone] (Canada and International)
Fax: [phone] Owners Manual, Operating Instructions, and Replacement Parts Manual, Publications Number 1156119A ©2012 Dated 14 Aug 2012
The Lift-Rite Titan Series Hand Pallet Trucks, Model LCF55 version, are warranted against defects in materials
and workmanship for a period of six (6) months from date of installation.
Components found to be defective by an authorized Lift-Rite Sales and Service Center during the warranty
period will be replaced or repaired as indicated above. Replacement components installed during the defined
period set forth above, are warranted for the balance of the applicable truck warranty period, or 90 days,
whichever is longer. Additionally, freight charges for parts involved in the replacement or repair of a defective
component will be paid by Lift-Rite, provided that the replacement or repair is made by an authorized Lift-Rite
Sales and Service Center. Labor or miscellaneous costs involved in the replacement of any components
determined to be defective are not covered. Local taxes, if any, are excluded.
This warranty is void in the event of defects or damage caused by misuse, abuse, or accident. Any truck used in
an application where the unit is operating in water or subjected to fluid or chemicals is NOT covered under any
warranty.
This warranty does not cover oil leaks, adjustments, or loose hardware.
Lift-Rite reserves the right to make changes and improvements in design without making changes to
previously manufactured vehicles.
Notwithstanding any other language contained herein, this warranty is expressly voided without any further
notice if any modification is made to the Lift-Rite equipment, or if additional components or devices are added
to the Lift-Rite equipment, without prior approval having been granted in writing by Lift-Rite.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY.
THERE ARE NO WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
In no event shall Lift-Rite be liable for incidental, special, or consequential damages.
HAND PALLET TRUCK WARRANTY

Lift-Rite, 5975 Falbourne Street, Mississauga, Ontario L5R3L8 Tel: Toll Free from USA: 1-800-558-6012; Tel: [phone] (Canada and International)
Fax: [phone] Owners Manual, Operating Instructions, and Replacement Parts Manual, Publications Number 1156119A ©2012 Dated 14 Aug 2012
