Titan T500 User manual

Model T500
Owner’s Manual

1
Getting Started
Important Safety Instructions 2
Polarization Instructions 3
Description of the Vacuum 4
Assembling the Vacuum 5
Operation
Battery Charging 6
Battery Life Display 6
Reclining the Handle 6
On/Off Switch 7
Edge Cleaning 7
Automatic Carpet Height Adjustment 7
Bare Floor Cleaning 8
Vacuuming Under Furniture 8
Maintenance and Care
Replacing the Vacuum Bag 9
Removing and Reinstalling the Battery 10
Recycling the Battery 10
Removing and Reinstalling the Bottom Plate 11
Replacing the Vacuum Belt 12
Replacing the Squeegee 13
Annual Checkup 13
Problem Solving Guide
Troubleshooting 14
For Best Performance 14
Warranty 15
CONTENTS

2SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions
should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS
APPLIANCE. FOR HOUSEHOLD USE ONLY.
IMPORTANT: The manufacturer cannot accept responsibility for damage
caused when the appliance is not used according to the instructions, or for uses other
than those for which it was intended.
WARNING: To reduce the risk of fire, electric shock, damage or injury:
• Fully assemble vacuum before operating.
• Use and store in a dry location.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close
attention is necessary when used by or
near children.
• Use only as described in this manual.
• Do not use charger with damaged cord
or plug. If appliance or charger is not
working as it should, has been dropped,
damaged, left outdoors, or dropped
into water, return it to your Authorized
Simplicity Retailer for service.
• Do not pull or carry charger by cord,
use cord as a handle, close a door on
the cord, or pull cord around sharp
edges or corners. Do not run appliance
over cord. Keep cord away from
heatedsurfaces.
• Do not unplug charger by pulling on
cord. To unplug charger, grasp the plug,
not the cord.
• Do not handle charger, including
charger plug, and charger terminals
with wet hands.
• Do not put any object into openings.
Do not use with any opening blocked;
keep free of dust, lint, hair and anything
that may reduce air flow.
• Keep hair, loose clothing, fingers and all
parts of the body away from openings
and movingparts.
• Do not pick up anything that is burning
or smoking, such as cigarettes, matches
or hot ashes.
• Do not use without vacuum bag inplace.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or
combustible liquids such as gasoline or
use in areas where they may bepresent.
• Do not attempt to service the unit while
charger is plugged in.
• Do not charge the unit outdoors.
• Only charge in temperatures between
0-45ºC (32-113ºF).
• Do not open, crush, expose to heat
above 100ºC (212ºF) or incinerate the
battery even if it is severely damaged.
The battery can explode in a fire.
• Use only with the Cordless Battery
Vacuum Charger supplied - P/N
10201026 Winkind. (C223-2000)
• Batteries must be disposed of
responsibly. Contact a Titan Service
Center for information on battery
disposal. To find battery recycle
pickup sites near you, please visit
www.call2recycle.org.
• Remove the battery before performing
any service on the vacuum.
• Under abusive conditions, liquid may be
ejected from the battery; avoid contact.
If contact accidentally occurs, flush
with water. If liquid contacts eyes, seek
medical help. Liquid ejected from the
battery may cause irritation or burns.

3
POLARIZATION INSTRUCTIONS
Power Cord, 2-Wire Polarized Cord
To reduce the risk of electric shock, the charger is equipped with a polarized
alternating current line plug (a plug having one blade wider than the other). This
plug will fit into the power outlet only one way. This is a safety feature. If you are
unable to insert the plug fully into the outlet, try reversing the plug. If the plug
should still fail to fit, contact a qualified electrician to replace the obsolete outlet.
Do not defeat the safety purpose of the polarized plug.

4
1 Ergonomic Handle
2 On/Off Power Switch
3 Bag Compartment
4 Vacuum Nozzle
5 Headlight
6 Furniture Guard
7 Handle Release Pedal
8 Battery Pack
9 Charge Point
10 Battery Life Display
11 Battery Release Button
12 Carry Handle
13 Charger
MATERIAL
DRAWN
ISSUED
SCALE
FINISH
DATE
DATE
DO NOT SCALE
UNLESS OTHERWISE SPECIFIED
DESCRIPTION
DRAWING SIZE:C
PART NUMBER
SHEET 1 OF 4
TACONY CORPORATION CLAIMS PROPRIETARY
RIGHTS IN THE MATERIAL DISCLOSED HERE IN.
THIS DRAWING IS ISSUED FOR ENGINEERING
INFORMATION ONLY. IT MAY NOT BE REPRO-
DUCED, NOR MAY THE INFORMATION HERE IN
BE USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM TACONY
CORPORATION.
0.250
TACONY CORPORATION
1760 Gilsinn Lane, Fenton, MO 63026
DESCRIPTION OF CHANGE
REV
PART NUMBER
SHEET
1 OF 4
X.X .5 mm RADII X.X .5mm
X.XX .25mm X.XX .25mm
X.XXX .12mm MACHINE SURFACE
X.XXXX .012mm BREAK SHARP CORNERS TO .25mm MAX
0 30" COMMON TO BE CONCETRIC TO .05mm
BYECN NODATEREV
MATERIAL
DRAWN
ISSUED
SCALE
FINISH
DATE
DATE
DO NOT SCALE
UNLESS OTHERWISE SPECIFIED
DESCRIPTION
DRAWING SIZE:C
PART NUMBER
SHEET 1 OF 1
TACONY CORPORATION CLAIMS PROPRIETARY
RIGHTS IN THE MATERIAL DISCLOSED HERE IN.
THIS DRAWING IS ISSUED FOR ENGINEERING
INFORMATION ONLY. IT MAY NOT BE REPRO-
DUCED, NOR MAY THE INFORMATION HERE IN
BE USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM TACONY
CORPORATION.
1.000
TACONY CORPORATION
1760 Gilsinn Lane, Fenton, MO 63026
DESCRIPTION OF CHANGE
REV
PART NUMBER
SHEET
1 OF 1
X.X .5 mm RADII X.X .5mm
X.XX .25mm X.XX .25mm
X.XXX .12mm MACHINESURFACE
X.XXXX .012mm BREAK SHARP CORNERS TO .25mm MAX
0 30" COMMON TO BE CONCETRIC TO .05mm
BYECN NODATEREV
AS 20MAY15
SEE NOTES SEE NOTES
C223-2000
C223-2000
BATTERY CHARGER 50.4V DC
NOTES:
1. OUTPUT 50.4V DC, 1.5A
2. DC POWER CONNECTOR PLUG 2.5MM AND CABLE 47" LONG.
3 INPUT = AC 100-240V, 50/60Hz, 100VA.
4. AC CABLE 71" LONG W/ 2 PIN POLARIZED AMERICAN PLUG
5. PLUGS AND CABLES UL CERTIFIED.
6. CHARGER - UL1310 CERTIFIED
2
3
4
5
6
7
8
9
10
11
12
13
1
DESCRIPTION OF THE VACUUM

5

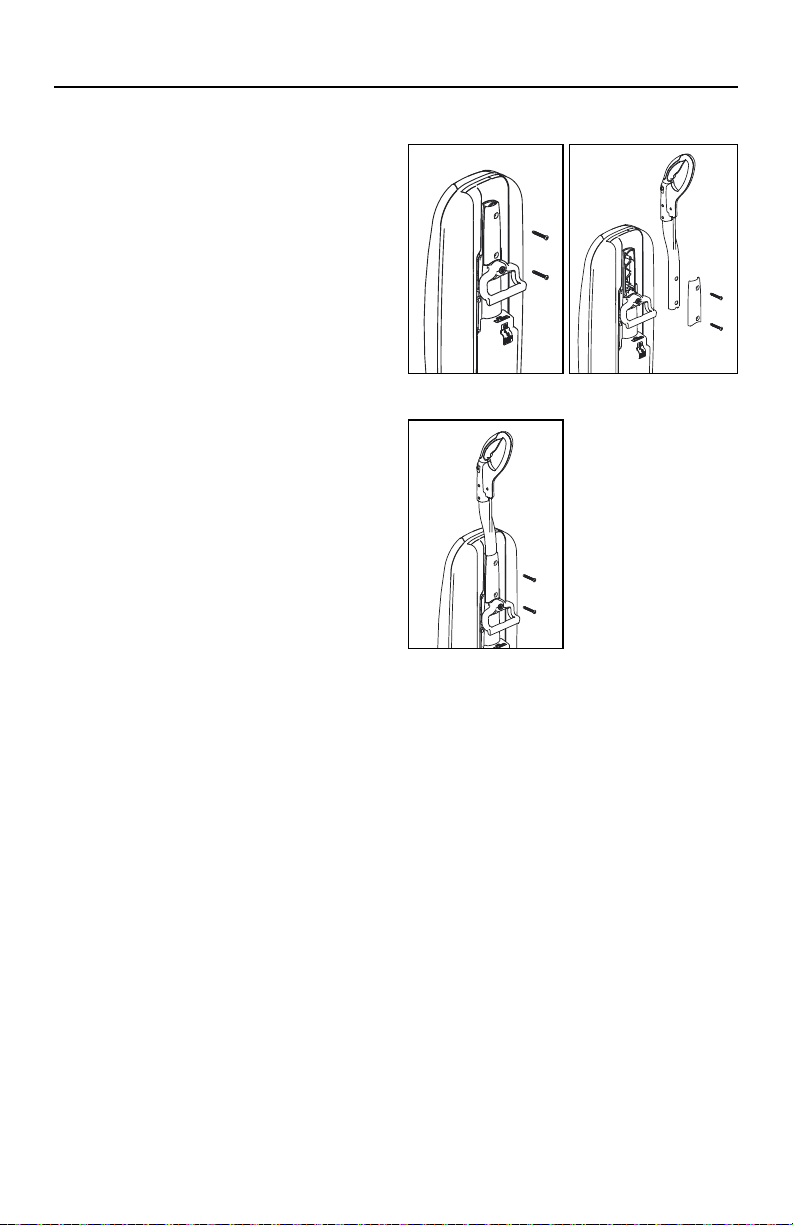

Attaching the Handle
to theVacuum
NOTE: Do not turn on the vacuum until
it is completely assembled.
The vacuum cleaner and the handle are
packed separately and require assembly.
• Remove the handle bracket by
removing the two screws (Fig. 1).
• Place handle onto the back of the
vacuum, aligning holes with pegs
(Fig.2).
• Place the handle bracket back into
position (Fig. 3).
• Secure with two screws removed in
Fig.1. Tuck the cord into the space to
the left of the handle.
• Open the bag compartment to ensure
a vacuum bag is in place.
• Your vacuum is now ready for use.
Fig. 1 Fig. 2
Fig. 3
ASSEMBLING THE VACUUM

6
OPERATION
Battery Charging
• The battery is partially charged and will
run for a short time.
• The battery is located on the back of
the vacuum. It can be charged while
installed on the vacuum, or the battery
can be removed from the vacuum and
charged independently (see Removing
and Reinstalling the Battery, page 10).
• Plug the AC cable into the charger and
into a wall socket (Fig. 1).
• Plug the charger DC cable into the
Charge Point on the battery. (Fig. 2).
• The charger LED light will be red during
charging and will turn green when the
battery pack is fully charged.
Battery Life Display
• Press the button on the battery to
illuminate the LED lights.
• When the battery is fully charged there
will be four (4) green lights and one (1)
red light showing (Fig. 3).
• As the battery is discharged during use,
the number of green lights showing will
reduce from four (4) to none (0).
• When all of the green lights are off and
only the red light is showing there is a
small amount of time remaining before
the battery will be fully discharged and
will require recharging.
Reclining the Handle
• Press the Handle Release Pedal located
on the back of the vacuum with your
foot to recline the handle (Fig. 4).
Fig. 2
Fig. 1
Fig. 4
This vacuum is intended for household use only.
MATERIAL
DRAWN
ISSUED
SCALE
FINISH
DATE
DATE
DO NOT SCALE
UNLESS OTHERWISE SPECIFIED
DESCRIPTION
DRAWING SIZE:C
PART NUMBER
SHEET 3 OF 8
TACONY CORPORATION CLAIMS PROPRIETARY
RIGHTS IN THE MATERIAL DISCLOSED HERE IN.
THIS DRAWING IS ISSUED FOR ENGINEERING
INFORMATION ONLY. IT MAY NOT BE REPRO-
DUCED, NOR MAY THE INFORMATION HERE IN
BE USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM TACONY
CORPORATION.
0.250
TACONY CORPORATION
1760 Gilsinn Lane, Fenton, MO 63026
DESCRIPTION OF CHANGE
REV
PART NUMBER
SHEET
3 OF 8
X.X .5 mm RADII X.X .5mm
X.XX .25mm X.XX .25mm
X.XXX .12mm MACHINE SURFACE
X.XXXX .012mm BREAK SHARP CORNERS TO .25mm MAX
0 30" COMMON TO BE CONCETRIC TO .05mm
BYECN NODATEREV
Fig. 3

7
On/Off Switch
• Turn the switch on to use the vacuum.
If the vacuum doesn’t turn on, check that
the battery is charged (see page 6).
• Always unplug the charger from the
charge point before use.
Edge Cleaning
The edge cleaning feature provides
improved cleaning near walls and
stationary furniture. For maximum
edge cleaning, place the left side of
the nozzle, from the user’s perspective,
against the wall or stationary furniture
(Fig 2).
Automatic Carpet
Height Adjustment
Your vacuum is designed with an
automatic self-adjusting nozzle.
No manual adjustments are required.
The height of the nozzle automatically
adjusts to the flooring surface. This
self-adjusting feature allows the nozzle
to float evenly over all flooring surfaces.
OPERATION
Fig. 1
Fig. 2
MATERIAL
DRAWN
ISSUED
SCALE
FINISH
DATE
DATE
DO NOT SCALE
UNLESS OTHERWISE SPECIFIED
DESCRIPTION
DRAWING SIZE:C
PART NUMBER
SHEET 2 OF 8
TACONY CORPORATION CLAIMS PROPRIETARY
RIGHTS IN THE MATERIAL DISCLOSED HERE IN.
THIS DRAWING IS ISSUED FOR ENGINEERING
INFORMATION ONLY. IT MAY NOT BE REPRO-
DUCED, NOR MAY THE INFORMATION HERE IN
BE USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM TACONY
CORPORATION.
0.250
TACONY CORPORATION
1760 Gilsinn Lane, Fenton, MO 63026
DESCRIPTION OF CHANGE
REV
PART NUMBER
SHEET
2 OF 8
X.X .5 mm RADII X.X .5mm
X.XX .25mm X.XX .25mm
X.XXX .12mm MACHINE SURFACE
X.XXXX .012mm BREAK SHARP CORNERS TO .25mm MAX
0 30" COMMON TO BE CONCETRIC TO .05mm
BYECN NODATEREV
SEE DETAIL A
SCALE 0.500
DETAIL A

8
OPERATION
Fig. 3

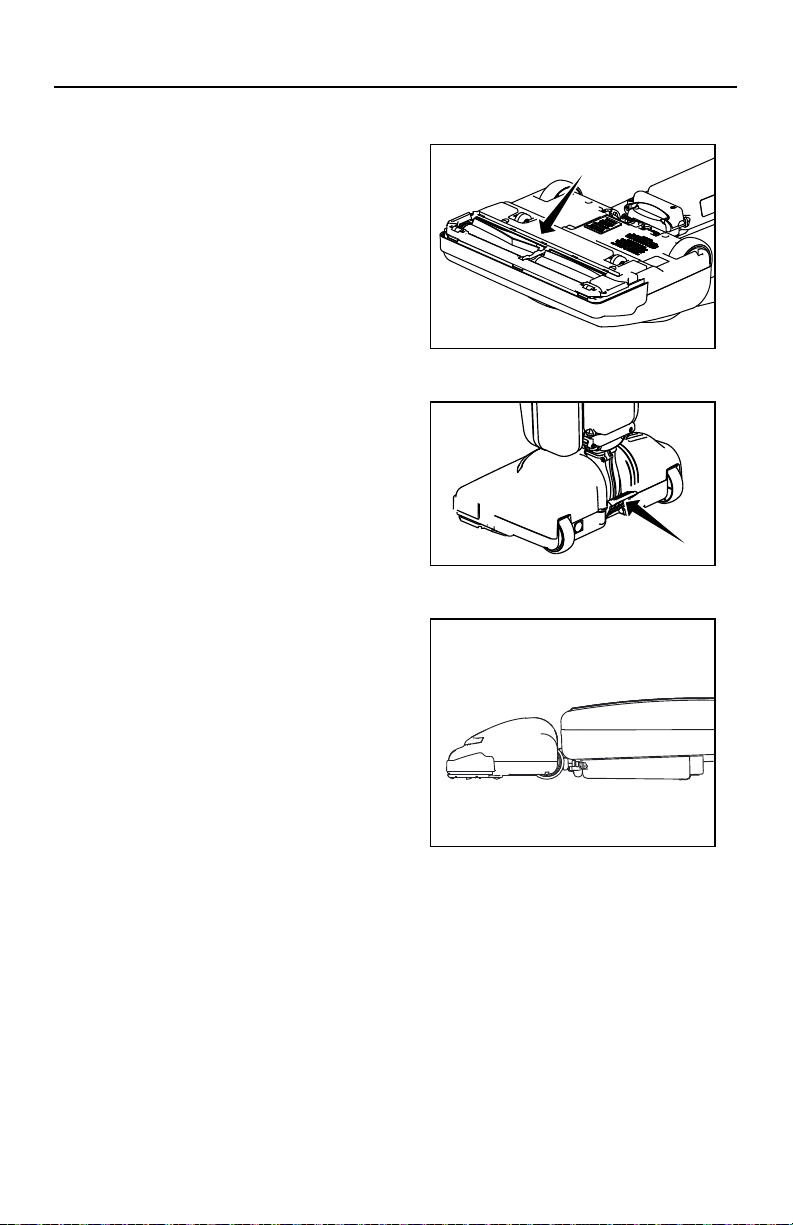

Bare Floor Cleaning
Your vacuum is equipped with a
squeegee on the bottom of the vacuum
to improve its effectiveness in cleaning
bare floors (Fig. 1).
Vacuuming Under Furniture
Your vacuum will lay flat on the floor for
effective cleaning under beds and tables.
• Press the Handle Release Pedal once
for normal vacuum cleaning (Fig. 2).
• Continue to lower the handle to enable
the vacuum to lay flat on the floor
(Fig.3).
Fig. 1
Fig. 2
MATERIAL
DRAWN
ISSUED
SCALE
FINISH
DATE
DATE
DO NOT SCALE
UNLESS OTHERWISE SPECIFIED
DESCRIPTION
DRAWING SIZE:C
PART NUMBER
SHEET 3 OF 8
TACONY CORPORATION CLAIMS PROPRIETARY
RIGHTS IN THE MATERIAL DISCLOSED HERE IN.
THIS DRAWING IS ISSUED FOR ENGINEERING
INFORMATION ONLY. IT MAY NOT BE REPRO-
DUCED, NOR MAY THE INFORMATION HERE IN
BE USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM TACONY
CORPORATION.
0.250
TACONY CORPORATION
1760 Gilsinn Lane, Fenton, MO 63026
DESCRIPTION OF CHANGE
REV
PART NUMBER
SHEET
3 OF 8
X.X .5 mm RADII X.X .5mm
X.XX .25mm X.XX .25mm
X.XXX .12mm MACHINE SURFACE
X.XXXX .012mm BREAK SHARP CORNERS TO .25mm MAX
0 30" COMMON TO BE CONCETRIC TO .05mm
BYECN NODATEREV

9
MAINTENANCE AND CARE

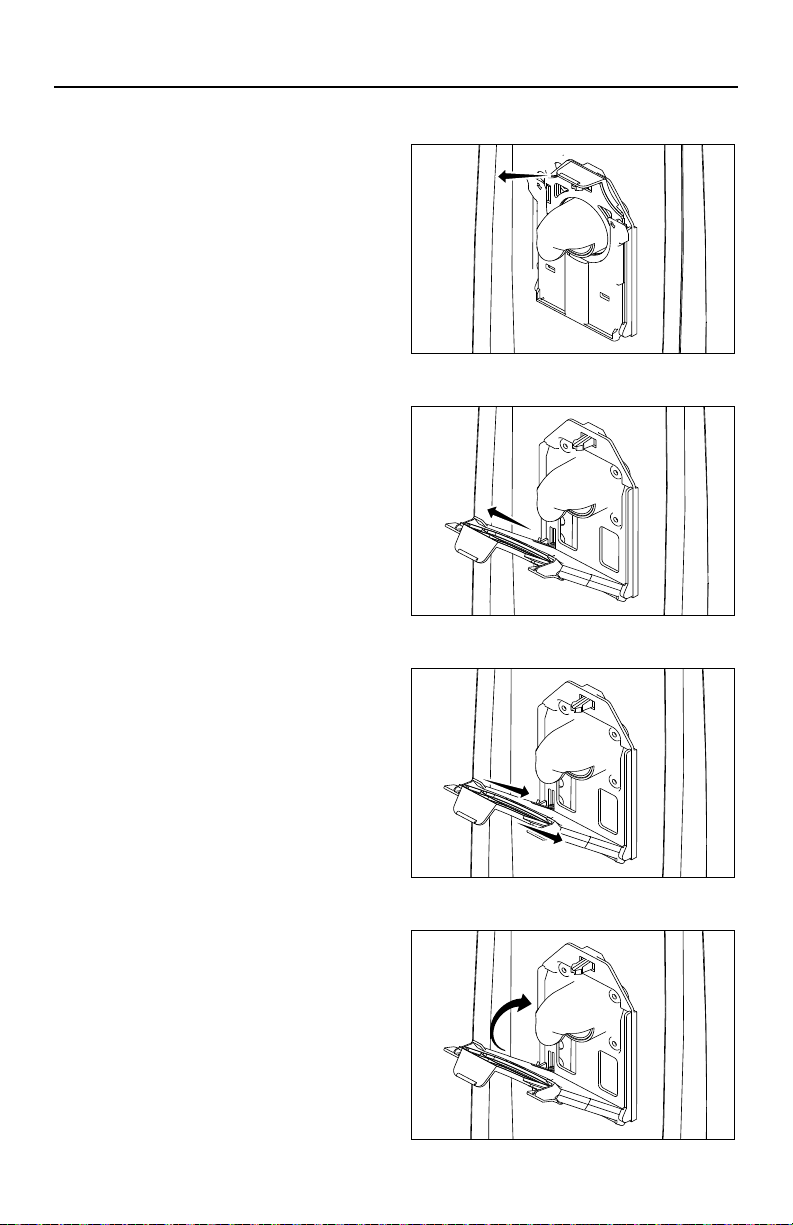

Replacing the Vacuum Bag
NOTE: Turn the vacuum off and unplug
the charger from the charge point before
changing the bag.
• Unzip the bag compartment.
• Remove the used vacuum bag by
pulling the green bag collar tab away
from the vacuum (Fig. 1). Slide the
used bag out of the bag holder which
automatically seals the bag opening
(Fig. 2). Discard the used bag.
• To install a new bag, slide the bottom of
the green bag collar into the bag holder
until it “snaps” into place (Fig. 3).
• Push the top of the bag collar upward
until the collar “snaps” into place on the
vacuum (Fig. 4).
• Tuck the bag corners into the bag
compartment then zip the bag
compartment closed.
Fig. 1
Fig. 2
MATERIAL
DRAWN
ISSUED
SCALE
FINISH
DATE
DATE
DESCRIPTION
DRAWING SIZE:D
PART NUMBER
SHEET 1 OF 1
.02 IN RADII X.X ± .02
.01 IN X,XX ± .01
.005 IN MACHINE SURFACE
.0005 IN BREAK SHARP CORNERS TO .010 MAX
0 ° 30" COMMON TO BE CONCETRIC TO .002
TACONY CORPORATION CLAIMS PROPRIETARY
RIGHTS IN THE MATERIAL DISCLOSED HERE IN.
THIS DRAWING IS ISSUED FOR ENGINEERING
INFORMATION ONLY. IT MAY NOT BE REPRO-
DUCED, NOR MAY THE INFORMATION HERE IN
BE USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM TACONY
CORPORATION.
1.000
A
678
MATERIAL
DRAWN
ISSUED
SCALE
FINISH
DATE
DATE
DESCRIPTION
DRAWING SIZE:D
PART NUMBER
SHEET 1 OF 1
.02 IN RADII X.X ± .02
.01 IN X,XX ± .01
.005 IN MACHINE SURFACE
.0005 IN BREAK SHARP CORNERS TO .010 MAX
0 ° 30" COMMON TOBE CONCETRIC TO .002
TACONY CORPORATION CLAIMS PROPRIETARY
RIGHTS IN THE MATERIAL DISCLOSED HERE IN.
THIS DRAWING IS ISSUED FOR ENGINEERING
INFORMATION ONLY. IT MAY NOT BE REPRO-
DUCED, NOR MAY THE INFORMATION HERE IN
BE USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM TACONY
CORPORATION.
1.000
A
678
Fig. 3
MATERIAL
DRAWN
ISSUED
SCALE
FINISH
DATE
DATE
DESCRIPTION
DRAWING SIZE:D
PART NUMBER
SHEET 1 OF 1
.02 IN RADII X.X ± .02
.01 IN X,XX ± .01
.005 IN MACHINE SURFACE
.0005 IN BREAK SHARP CORNERS TO .010 MAX
0 ° 30" COMMON TOBE CONCETRIC TO .002
TACONY CORPORATION CLAIMS PROPRIETARY
RIGHTS IN THE MATERIAL DISCLOSED HERE IN.
THIS DRAWING IS ISSUED FOR ENGINEERING
INFORMATION ONLY. IT MAY NOT BE REPRO-
DUCED, NOR MAY THE INFORMATION HERE IN
BE USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM TACONY
CORPORATION.
1.000
A
678
Fig. 4
MATERIAL
DRAWN
ISSUED
SCALE
FINISH
DATE
DATE
DESCRIPTION
DRAWING SIZE:D
PART NUMBER
SHEET 1 OF 1
.02 IN RADII X.X ± .02
.01 IN X,XX ± .01
.005 IN MACHINE SURFACE
.0005 IN BREAK SHARP CORNERS TO .010 MAX
0 ° 30" COMMON TOBE CONCETRIC TO .002
TACONY CORPORATION CLAIMS PROPRIETARY
RIGHTS IN THE MATERIAL DISCLOSED HERE IN.
THIS DRAWING IS ISSUED FOR ENGINEERING
INFORMATION ONLY. IT MAY NOT BE REPRO-
DUCED, NOR MAY THE INFORMATION HERE IN
BE USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM TACONY
CORPORATION.
1.000
A
678

10
MAINTENANCE AND CARE

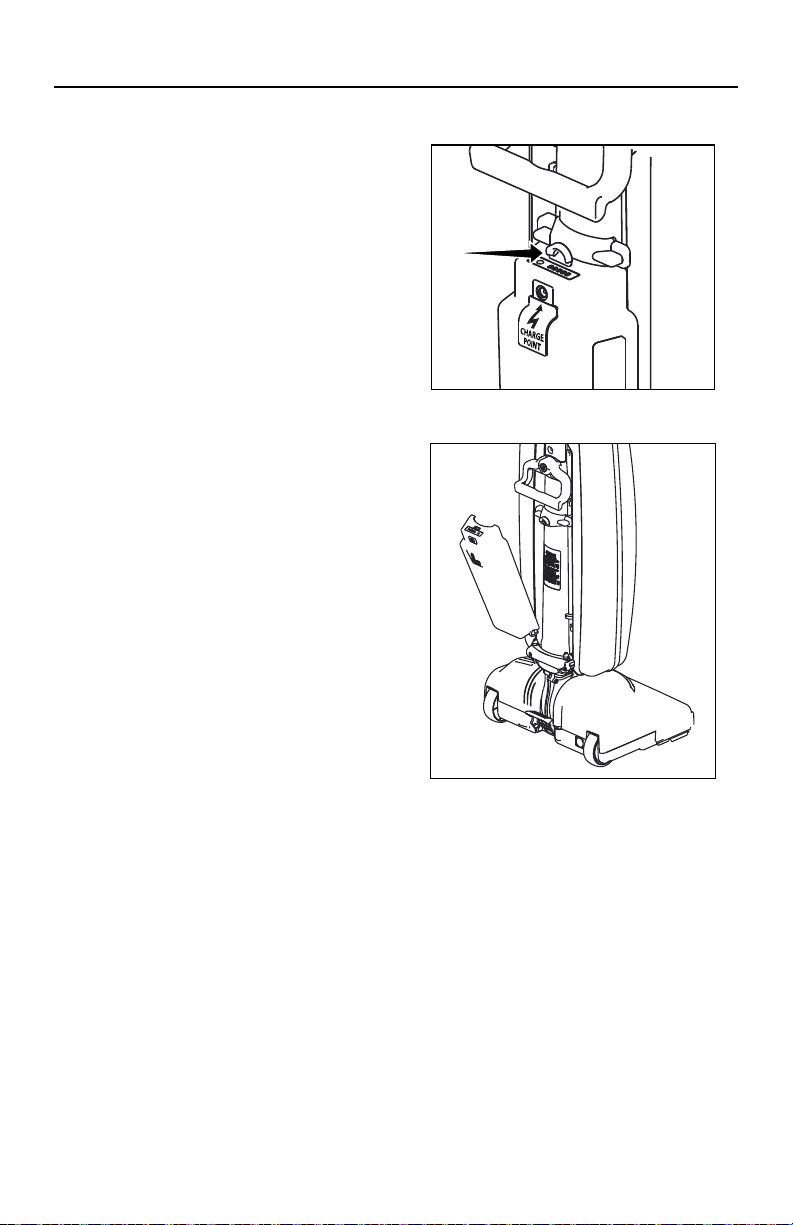

Removing and Reinstalling
the Battery
NOTE: Turn the vacuum off. If the battery
charger is plugged into the charge point
on the vacuum, remove the charger
from the charge point before removing
thebattery.
The battery can be removed and charged
independently from the vacuum.
• To remove the battery push up on the
release button, and lift the battery off
(Fig. 1).
• To replace the battery, line up the
bottom of the battery with the posts
at the base of the battery mount. Push
the battery in until it clicks (Fig. 2).
Recycling the Battery
Contact a Titan Service Center for
information on battery disposal. To find
battery recycle pickup sites near you, please
visit www.call2recycle.org.
Fig. 1
Fig. 2
MATERIAL
DRAWN
ISSUED
SCALE
FINISH
DATE
DATE
DO NOT SCALE
UNLESS OTHERWISE SPECIFIED
DESCRIPTION
DRAWING SIZE:C
PART NUMBER
SHEET 9 OF 9
TACONY CORPORATION CLAIMS PROPRIETARY
RIGHTS IN THE MATERIAL DISCLOSED HERE IN.
THIS DRAWING IS ISSUED FOR ENGINEERING
INFORMATION ONLY. IT MAY NOT BE REPRO-
DUCED, NOR MAY THE INFORMATION HERE IN
BE USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM TACONY
CORPORATION.
0.250
TACONY CORPORATION
1760 Gilsinn Lane, Fenton, MO 63026
DESCRIPTION OF CHANGE
REV
PART NUMBER
SHEET
9 OF 9
X.X .5 mm RADII X.X .5mm
X.XX .25mm X.XX .25mm
X.XXX .12mm MACHINE SURFACE
X.XXXX .012mm BREAK SHARP CORNERS TO .25mm MAX
0 30" COMMON TO BE CONCENTRIC TO .05mm
BYECN NODATEREV

11
MAINTENANCE AND CARE
MATERIAL
DRAWN
ISSUED
SCALE
FINISH
DATE
DATE
DO NOT SCALE
UNLESS OTHERWISE SPECIFIED
DESCRIPTION
DRAWING SIZE:C
PART NUMBER
SHEET 6 OF 8
TACONY CORPORATION CLAIMS PROPRIETARY
RIGHTS IN THE MATERIAL DISCLOSED HERE IN.
THIS DRAWING IS ISSUED FOR ENGINEERING
INFORMATION ONLY. IT MAY NOT BE REPRO-
DUCED, NOR MAY THE INFORMATION HERE IN
BE USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM TACONY
CORPORATION.
0.250
TACONY CORPORATION
1760 Gilsinn Lane, Fenton, MO 63026
DESCRIPTION OF CHANGE
REV
PART NUMBER
SHEET
6 OF 8
X.X .5 mm RADII X.X .5mm
X.XX .25mm X.XX .25mm
X.XXX .12mm MACHINE SURFACE
X.XXXX .012mm BREAK SHARP CORNERS TO .25mm MAX
0 30" COMMON TO BE CONCETRIC TO .05mm
BYECN NODATEREV
Fig. 1
Fig. 2
Removing and Reinstalling
the Bottom Plate
WARNING! To reduce the risk of
electrical shock or injury from moving
parts, turn the vacuum off and unplug
the charger from the charge point before
servicing or cleaning the vacuum.
To Remove the Bottom Plate:
• Make sure the vacuum is turned off.
• Remove the battery (see Removing and
Reinstalling the Battery, page 10).
• Press the handle release pedal to place
the vacuum cleaner in the flat position.
• Turn the vacuum cleaner over, exposing
the bottom plate.
• Turn the two screws a quarter turn
to release the bottom plate (Fig. 1).
Remove the bottom plate.
• To reinstall the bottom plate: Align the
front edge of the bottom plate into the
notches inside the nozzle (Fig. 2).
• Press the bottom plate into position
until the plate “clicks” on both sides.
Tighten the two screws a quarter turn
to secure the bottom plate.
• Replace the battery (see see Removing
and Reinstalling the Battery, page 10).

12
Fig. 1
Fig. 2

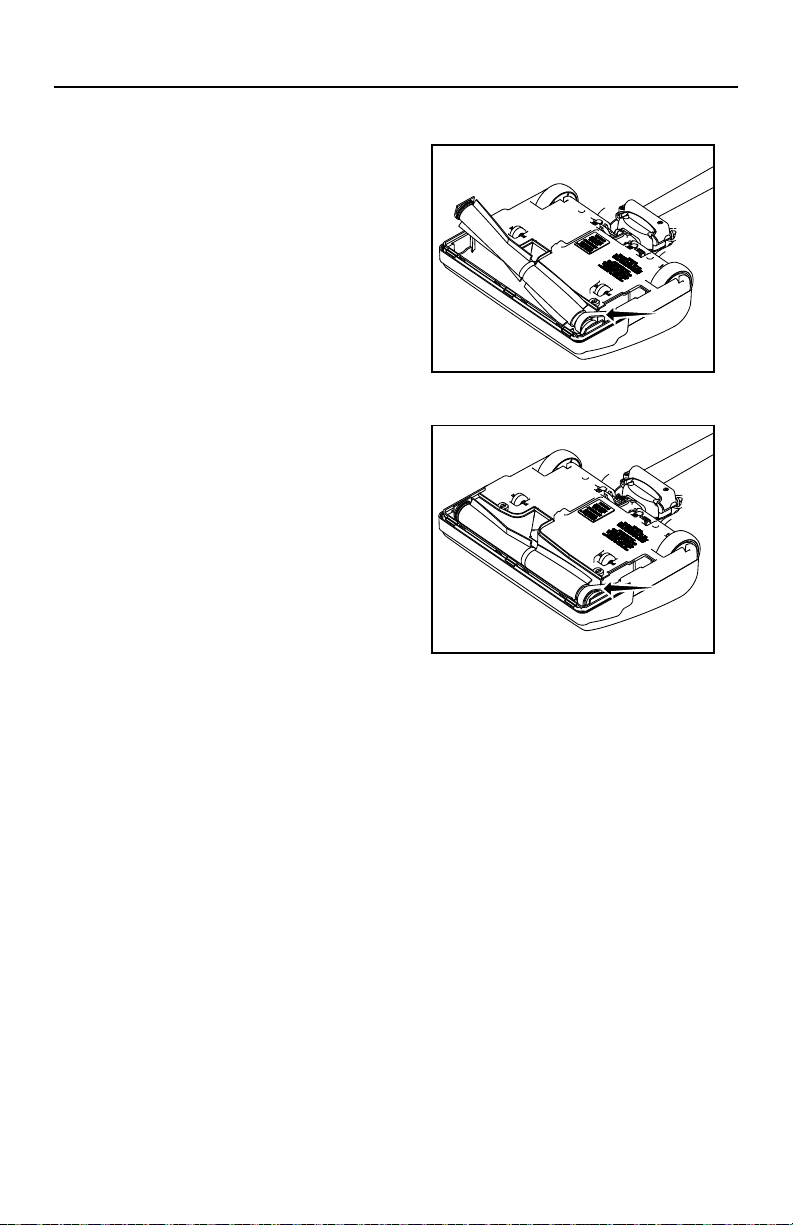

Replacing the Vacuum Belt
WARNING! To reduce the risk of
electrical shock or injury from moving
parts, turn the vacuum off and unplug
the charger from the charge point before
servicing or cleaning the vacuum.
NOTE: To ensure maximum cleaning
efficiency, the belt should be checked
regularly to be sure it is in good
condition. Check to see if the belt
is stretched, cracked, or if excessive
slipping is occurring. Replace if needed.
• Turn the vacuum off and unplug the
charger from the charge point before
changing the belt.
• Remove the battery (see Removing and
Reinstalling the Battery, page 10).
• Remove the bottom plate (see
Removing and Reinstalling the Bottom
Plate, page 11).
• Remove the brushroll and the worn or
broken belt from the brushroll pulley
and the motor drive shaft.
• Loop the new belt around the motor
drive shaft and the brushroll (Fig. 1).
• Reinstall the brushroll into the nozzle.
Turn the brushroll by hand, making sure
the belt is not twisted and all rotating
parts move smoothly (Fig. 2).
• Reinstall the bottom plate (see
Removing and Reinstalling the Bottom
Plate, page 11).
• Replace the battery (see Removing and
Reinstalling the Battery, page 10).
MAINTENANCE AND CARE

13
Replacing the Squeegee
WARNING! To reduce the risk of
electrical shock or injury from moving
parts, turn the vacuum off and unplug
the charger from the charge point before
servicing or cleaning thevacuum.
If your squeegee splits or begins to look
worn, simply slide the worn squeegee
from its track and slide a new one into
the track. If you have trouble installing
the new squeegee, please visit a Titan
Service Center for help.
Annual Checkup
To keep your vacuum in peak operating
condition, it is recommended you
bring it to a Titan Service Center for an
annual checkup. They will conduct a
comprehensive examination
to ensure your vacuum is in top
operating condition.
MAINTENANCE AND CARE

14
PROBLEM SOLVING GUIDE
Troubleshooting
WARNING! To reduce the risk of electrical shock or injury from moving parts, unplug
the charger from the charge point and remove the battery before
servicing or cleaning the vacuum.
CAUTION! To reduce the risk of electric shock, do not handle charger plug or
appliance with wethands.
PROBLEM CHECK POINT POSSIBLE SOLUTION
Vacuum won’t
turn on
Battery is fully discharged Charge battery (page 6)
Needs service Take to a Titan Service Center
Vacuum won’t
pick up or low
suction
Vacuum bag full Install new bag (page 9)
Broken belt Replace belt (page 12)
Worn brushroll Replace brushroll (page 12)
Dust escaping
from vacuum
Vacuum bag not installed
properly
Install bag properly.
Review bag installation (page 9)
For more information, please contact your retailer or
Titan Vacuums at titanvacs.com or 1-844-202-9924
Key Replacement Parts
• Genuine HEPA Media Vacuum Bags: SLH-6
• Genuine Vacuum Belts: ULW-B2
For Best Performance
• Keep your vacuum clean and in good operating condition.
• Change the vacuum bag once a month or when the bag is 2/3 full to maximize
cleaning performance.
• Always use genuine vacuum bags and replacement parts. Use of other products
may result in poor cleaning performance, potential vacuum cleaner damage
and may void vacuum warranty. Genuine products are designed for maximum
cleaningperformance.
• Store your vacuum carefully in a dry area.
• For optimum cleaning performance and safety, follow these owner’s
manualinstructions.

15
WARRANTY
What is Covered:
This warranty covers any defects in material and workmanship in your new vacuum.
How Long Coverage Lasts:
Warranty coverage for this vacuum lasts one year EXCEPT for the battery which has
a warranty that lasts two years.
What is Not Covered:
• Damage to the vacuum which occurs from neglect, abuse, alterations, accident,
misuse or improper maintenance.
• Normal replacement items: disposable bags.
What We Will Do:
This warranty provides, at no cost to you, all labor and parts to keep this vacuum in
correct operating condition during the warranted period.
How to Get Service:
Warranty service can only be obtained by presenting the vacuum to a Titan Service
Center. A proof of purchase and product serial number will be required before service
is rendered. To locate your nearest service center, please call 1-844-202-9924 or visit
www.titanvacs.com.
THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY AND ALL OTHER
WARRANTIES WHETHER WRITTEN, ORAL, EXPRESSED OR IMPLIED, (INCLUDING
ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE). THIS WARRANTY DISCLAIMS LIABILITY FOR INCIDENTAL, OR
CONSEQUENTIAL DAMAGES.
How State Law Applies:
This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
Owner’s Warranty Information (keep this for your records.)
Store name
Store Address City State Zip
Telephone Date of purchase
Serial number Model number
Register your warranty online at titanvacs.com

©2020 Tacony Corporation B503-3201 1.20
