Titan TTB059VAC Installation manual

15L WET/DRY VACUUM TTB059VAC
SAFETY AND OPERATING MANUAL
TVC100P-M-070924.indd 1 2007-9-24 19:30:02

TVC100P-M-070924.indd 2 2007-9-24 19:30:02

15L WET/DRY VACUUM TTB059VAC
GUARANTEE
This product carries a guarantee of 12 months. If your product develops a fault
within this period, you should, in the first instance contact the retailer where the item
was purchased.
This guarantee specifically excludes losses caused due to:
- Fair wear and tear
- Misuse or abuse
- Lack of routine maintenance
- Failure of consumable items (such as batteries)
- Accidental damage
- Cosmetic damage
- Failure to follow manufacturer’s guidelines
- Loss of use of the goods
This guarantee does not affect your statutory rights. This guarantee is only valid in the UK.
For further technical advice, spare parts or repair service (outside of guarantee) please
contact the customer helpline number on 0845 607 6380.
Congratulations on your purchase of a power tool from Titan Power
Tools (UK) Ltd. We want you to continue getting the best performance from
it so this handbook includes information on safety, handling and care. Please
retain this handbook in case you need to refer to any of the information in
the future.
Your power tool comes with a 12-month guarantee,so should it develop
a fault within this period contact your retailer.
TVC100P-M-070924.indd 3 2007-9-24 19:30:02

SAFETY INSTRUCTIONS
Warning: Read all instructions. Failure to follow all instructions listed
below may result in serious injury. This product should never be left
unattended when connected to the mains supply.
SAVE THESE INSTRUCTIONS
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
ELECTRICAL SAFETY
Before switching the product on, make sure that the voltage of your electricity supply
is the same as that indicated on the rating plate. This product is designed to operate on
230V AC 50Hz. Connecting it to any other power source may cause damage.
Important notes
• Attention: Before assembly and starting operation, read the operating instructions
carefully.
• Check that the mains voltage corresponds to the details on the type plate.
• Pull the mains plug out of the socket when: the unit is not in use, before opening the
unit, before cleaning and maintenance.
• Never clean with solvents.
• Do not use the cable to pull the plug out of the socket. When unit is ready for use, do
not leave unattended.
• Safeguard from children.
• Care must be taken that the mains connection lead is not damaged by being driven
over, crushed, stretched, etc.
• The unit must not be operated if the mains connection lead is not in perfect
condition.
• Replacement mains connection leads must not differ from the versions indicated by
the manufacturer.
• On no account vacuum: burning matches, glowing ashes and cigarette ends,
inflammable, corrosive, fire hazard or explosive substances, vapours and liquids.
• This unit is not suitable for vacuuming dust which is damaging to health.
• Store the unit in a dry place.
• Do not operate a defective unit.
• Servicing only by an authorised service point.
• Use only for operations for which the unit is intended.
• Take great care when cleaning stairs.
• Use only manufacturer’s attachments and spare parts.
TVC100P-M-070924.indd 4 2007-9-24 19:30:02

15L WET/DRY VACUUM TTB059VAC
HEALTH ADVICE
Warning! When drilling, sanding, sawing or grinding, dust particles will be
produced. In some instances, depending on the materials you are working with,
this dust can be particularly harmful to you (e.g. lead from old gloss paint).
You are advised to consider the risks associated with the materials you are working
with and to reduce the risk of exposure. You should:
- Work in a well-ventilated area.
- Work with approved safety equipment, such as those dust masks that are specially
designed to filter microscopic particles.

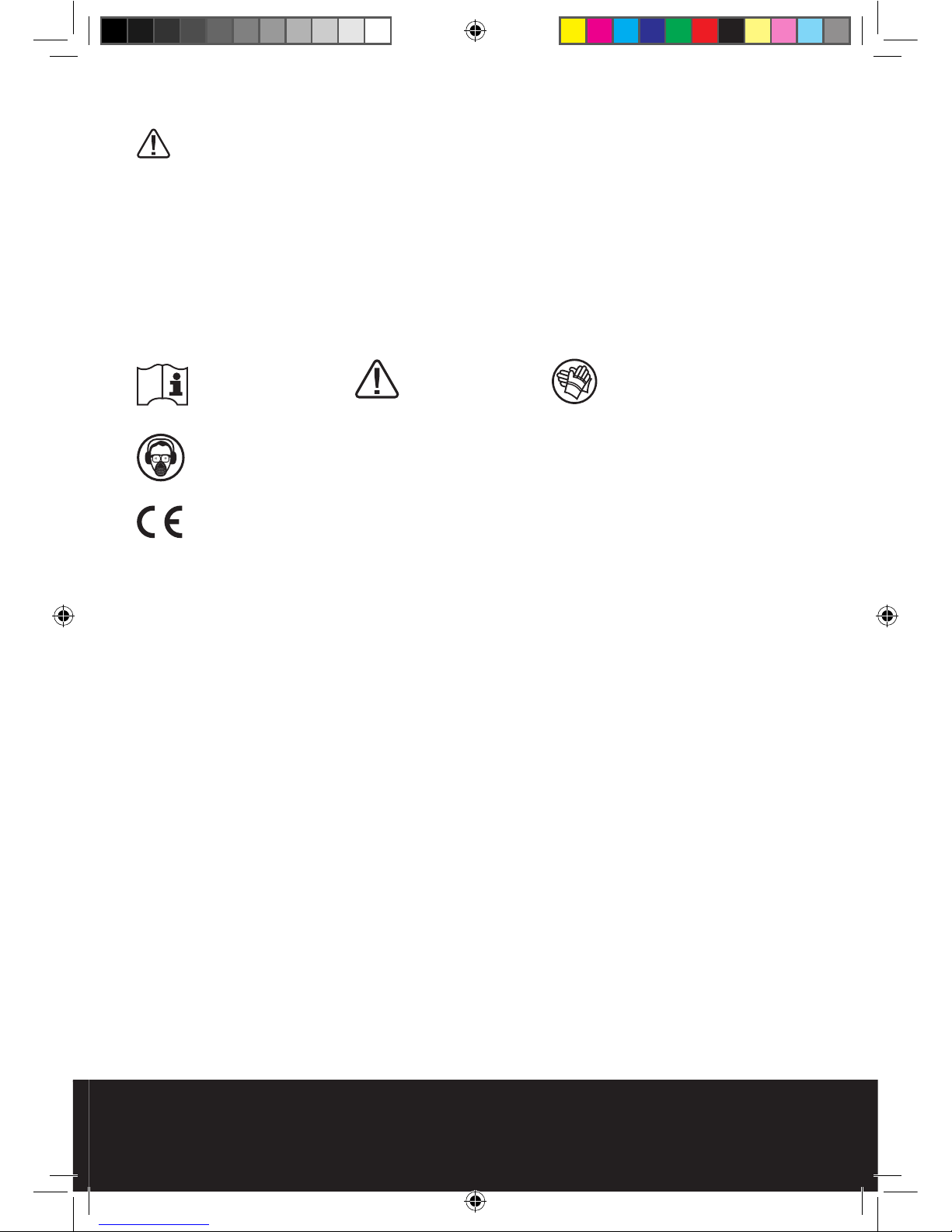

SYMBOLS
Read the manual Warning Wear gloves
Wear dust mask,eye & ear protection
Conforms to relevant safety standards
TVC100P-M-070924.indd 5 2007-9-24 19:30:02

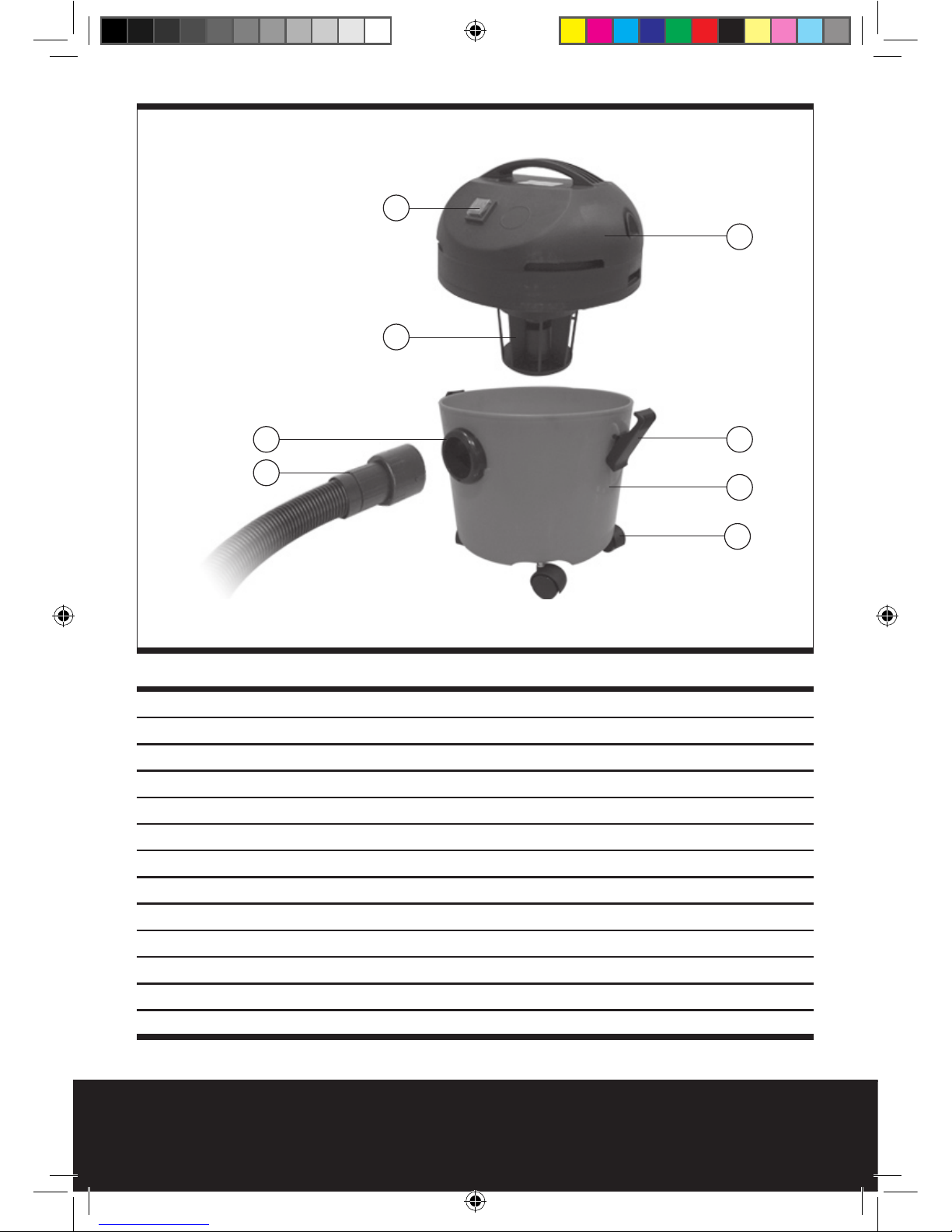

1. BLOWER HEAD
2. LATCH
3. CONTAINER
4. WHEEL
5. VACUUM HOSE
6. HOSE CONNECTION PIECE
7. FILTER BASKET
8. ON/OFF SWITCH/OPERATING MODE SWITCH BLOWER HEAD
9. COMBI NOZZLE (SEE FIG 5)
10. DUST BAG (SEE FIG 8)
11. FOAM FILTER (SEE FIG 7)
12. CREVICE NOZZLE (SEE FIG 6)
13. VACUUM TUBE (SEE FIG 5)
1
2
53
4
6
7
8
TVC100P-M-070924.indd 6 2007-9-24 19:30:02

15L WET/DRY VACUUM TTB059VAC
TECHNICAL DATA
Volts: 230V~50Hz
Power input: 1000W
Collection capacity: 15L
Protection class: / II
Protection against ingress of water: IPX4
Machine weight: 4.8kg
ACCESSORIES
Vacuum hose 1pc
Vacuum tube 2pcs
Combi nozzle 1pc
Crevice nozzle 1pc
Wheel 4pcs
Foam filter 1pc
Dust bag 1pc
TVC100P-M-070924.indd 7 2007-9-24 19:30:03

Note: Before using the tool, read the
instruction book carefully.
MOUNTING
1. Assemble the wheels (See Fig 1, 2)
Push each wheel into the base of the container
ensuring correct orientation. The wheels are
friction fit.
2. Assemble the hose
Caution: This hose contains electrical
connections:
- do not use to suck up water (for vacuum cleaners
only);
- do not immerse in water for cleaning;
- the hose should be checked regularly and must
not be used if damaged.
Push the flexible hose into the hose connection
piece firmly. (See Fig 3)
Connect one end of the two vacuum tube firmly.
(See Fig 4)
Fig 1
Fig 4
Fig 2
Fig 3
TVC100P-M-070924.indd 8 2007-9-24 19:30:03

15L WET/DRY VACUUM TTB059VAC

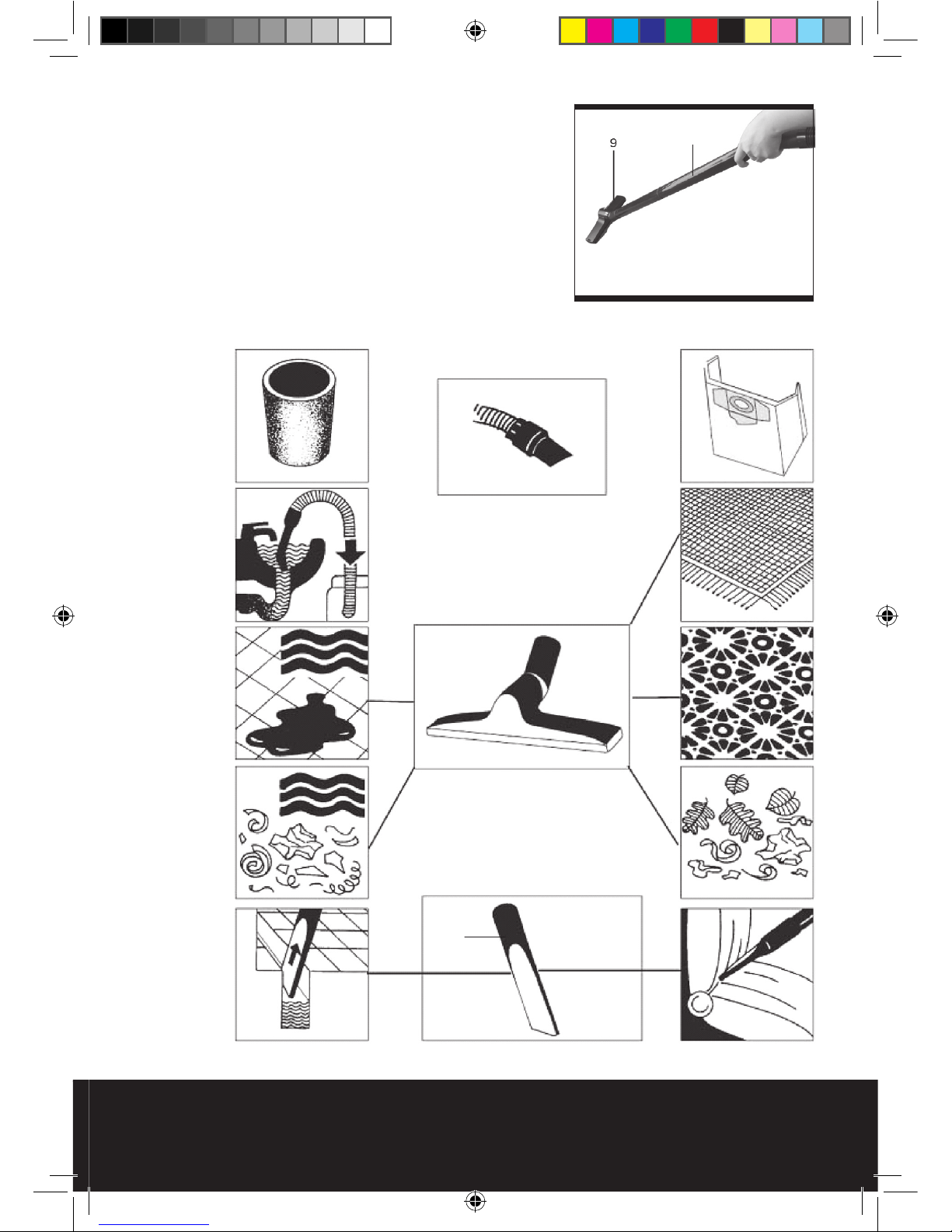

Push the combi nozzle (9) to the other end of the
vacuum tube. (See Fig 5)
3. The function of the nozzle(See Fig 6)
Fig 5
Fig 6
13
12
TVC100P-M-070924.indd 9 2007-9-24 19:30:04

OPERATION
Observe correct mains voltage: The voltage
of the power source must agree with the voltage
specified on the nameplate of the machine.
Equipment marked with 230 V can also be
connected to 220V.
WET VACUUMING
Danger of explosion and fire! Do not
vacuum inflammable or explosive fluids;
for example, petrol, oil, alcohol, solvents.
Do not vacuum hot or burning dust. Do not
operate the machine in rooms where the
danger of an explosion exists.
The machine is intended for vacuuming air
and water mixtures. The machine is not to
be used as a water pump.
1. The dust bag (10) must be removed before wet
vacuuming.

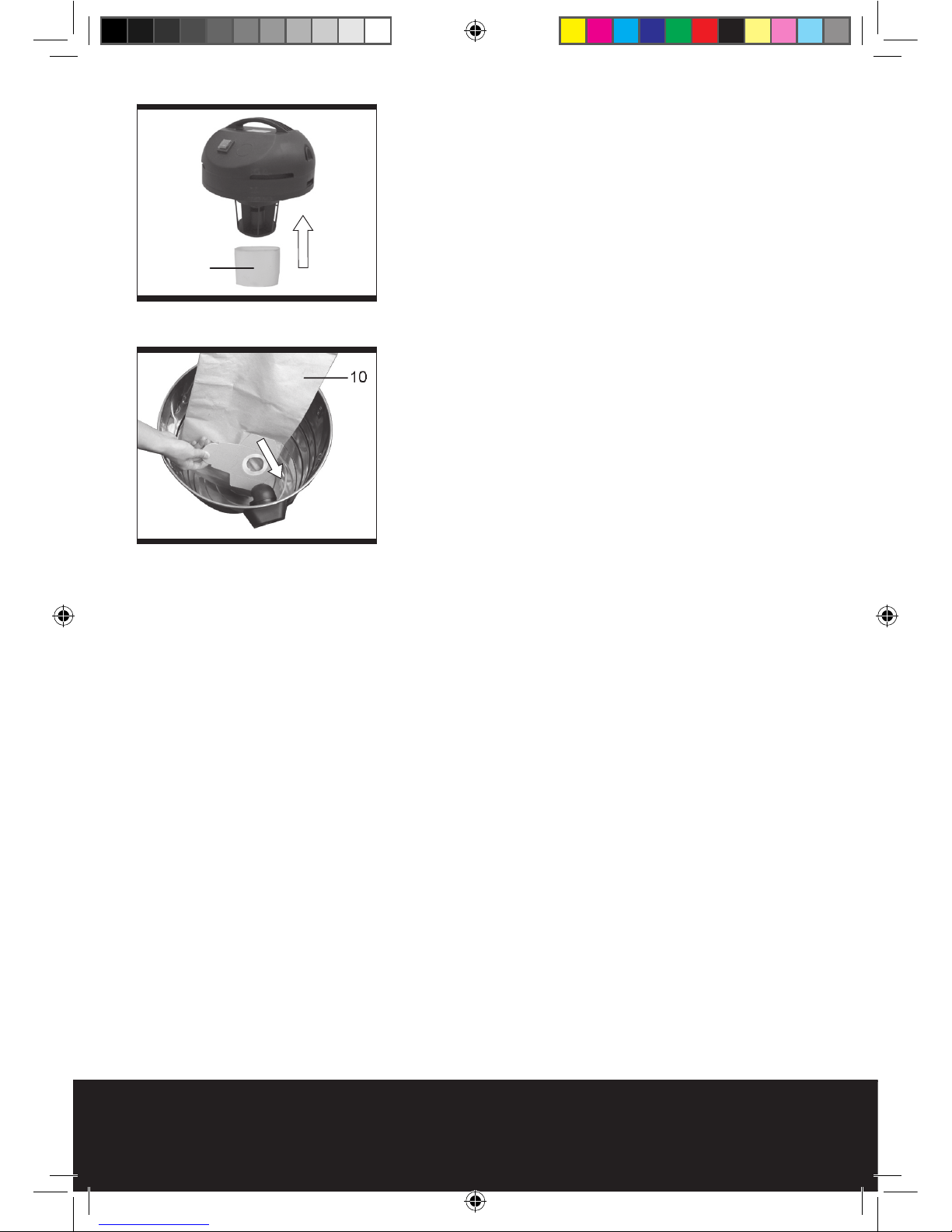

2. Pull the supplied foamed plastic filter over the
filter basket for wet vacuum-cleaning. (Fig 7)
Attach the blower head.
3. Switching On and Off
To start the machine, set the On/Off switch to I.
To switch off the machine, set the On/Off switch
to 0.
Note: When the maximum filling height is
reached, switch off the machine immediately.
Before opening and emptying, always pull the
plug from the socket outlet.
DRY VACUUMING
1. Slip the dust bag onto the socket for dry
vacuum-cleaning. The dust bag is suitable only
for dry vacuum-cleaning.
2. To insert the dust bag, slide the cardboard
frame fully onto the connection piece inside of
the container. Attach the blower head. (Fig 8)
3. Switching On and Off
To start the machine, set the On/Off switch to I.
To switch off the machine, set the On/Off switch
to 0.
Fig 7
Fig 8
11
TVC100P-M-070924.indd 10 2007-9-24 19:30:04

15L WET/DRY VACUUM TTB059VAC
MAINTENANCE AND CLEANING
Remove the plug from the socket before
carrying out any adjustment, servicing or
maintenance.
Always keep the machine clean.
To maintain the optimum performance of
the machine, we recommended cleaning the
permanent filter after each use. For this purpose,
clean the permanent filter with a brush or rinse
with water.
ENVIRONMENTAL PROTECTION
Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. For further
information visit www.recycle-more.co.uk.
TVC100P-M-070924.indd 11 2007-9-24 19:30:04

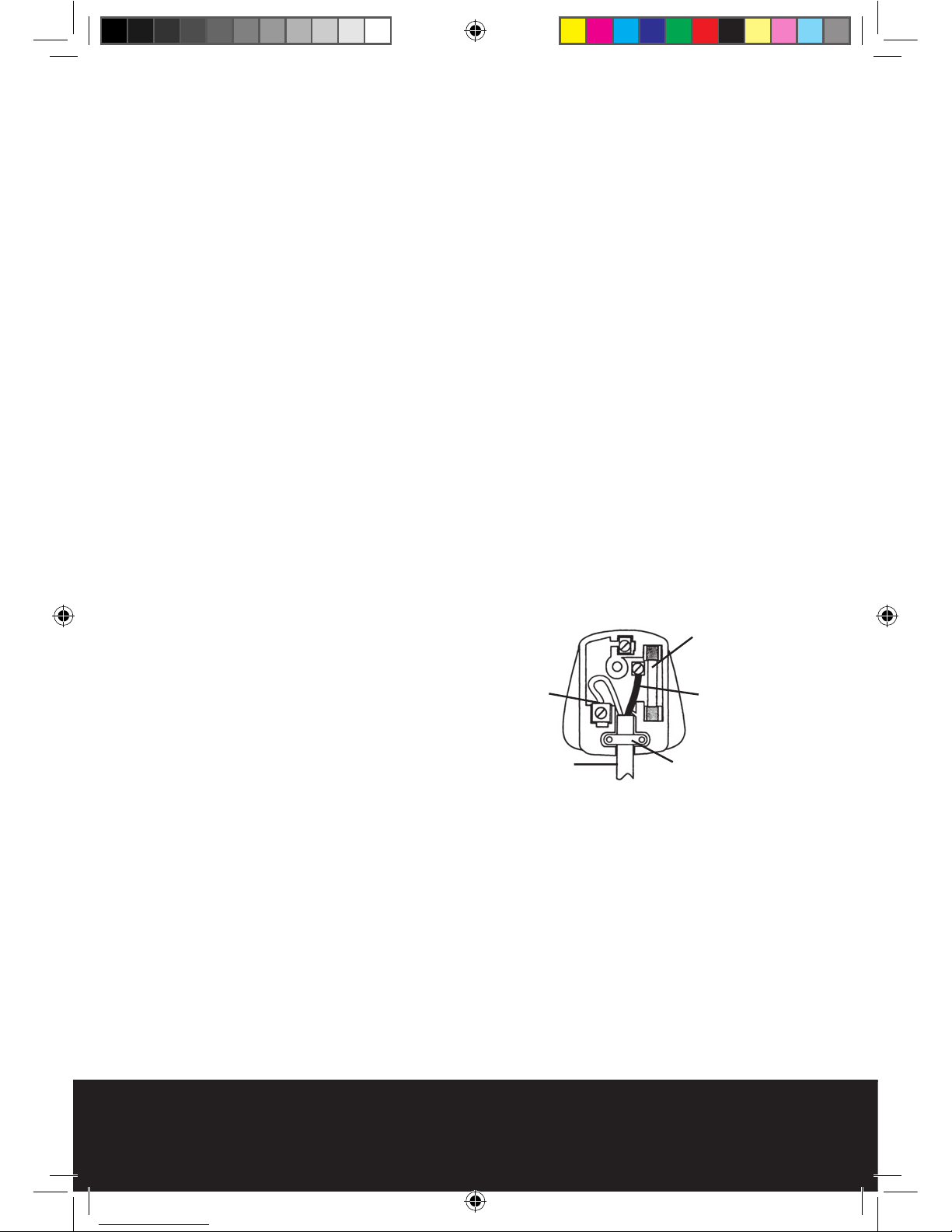

PLUG REPLACEMENT
If you need to replace the fitted plug then follow
the instructions below.
IMPORTANT
The wires in the mains lead are colored in
accordance with the following code:
Blue – Neutral
Brown – Live
As the colors of the wires in the mains lead of this
appliance may not correspond with the coloured
markings identifying the terminals in your plug,
proceed as follows. The wire which is coloured
blue must be connected to the terminal which
is marked with N. The wire which is coloured
brown must be connected to the terminal which
is marked with L.
Warning: Never connect live or neutral wires to
the earth terminal of the plug. Only fit an approved
BS1363/A plug and the correct rated fuse.
Note: If a moulded plug is fitted and has to be
removed take great care in disposing of the
plug and severed cable, it must be destroyed to
prevent engaging into a socket.
13 AMP
FUSE
BROWN
L (LIVE)
BLUE
N (NEUTRAL)
OUTER
SLEEVE CABLE GRIP
TVC100P-M-070924.indd 12 2007-9-24 19:30:05

15L WET/DRY VACUUM TTB059VAC
Declaration of Conformity
We, Importer
Titan Power Tools (UK) Ltd
BA22 8RT
Declare that the product
15L WET/DRY VACUUM
TTB059VAC
Complies with the essential health and safety requirements of the following directive:
EC Low Voltage Directive 2006/95/EC
EC Electromagnetic Compatibility Directive 2004/108/EC
2002/95/EC Restrictions of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment
Standards and technical specifications referred to:
EN 60335-1:2002+A11:2004+A1:2004+A12:2006+A2:2006
EN 60335-2-2:2003+A1:2004+A2:2006
EN 50366:2003+A1:2006
EN 55014-1:2000+A1:2001+A2:2002
EN 55014-2:1997+A1:2001
EN 61000-3-2:2000+A2:2005
EN 61000-3-3:1995+A1:2001 +A2:2005
2007
Authorised Signatory
Date: 01/01/07
Signature:
Name: Peter Harries
Titan Power Tools (UK) Ltd
Quality Manager
