Titan T9200 User manual

User's Manual
DELUXE CANISTER VACUUM
TITAN T9200

-2-
SECTION
Before Using Your New Vacuum Cleaner............................................................................................... . 2
TITAN Vacuum Cleaner Warranty.............................................................................................................3
Important Safety Instructions. .............................................................................................................4-5
Parts and Features...............................................................................................................................6-9
Assembly Instructions........................................................................................................................9-12
Operating Instructions.......................................................................................................................13-24
Performance Features......................................................................................................................24-25
Removing Clogs................................................................................................................................26-30
Motorized Nozzle Care.....................................................................................................................31-42
Troubleshooting................................................................................................................................43-45
Please read this guide. It will help you assemble and operate your new TITAN vacuum
cleaner in the safest and most effective way.
You will need to register your vacuum by calling us at [phone] or visiting us online at
TitanVacs.com. Please have your model number and serial number available to complete
the registration process.
Your vacuum cleaner’s model and serial numbers are located on the label.
Use the space below to record the model number and serial number of your new TITAN
Vacuum cleaner.
Model No.
Serial No.
Date of Purchase
Keep this book and your sales check (receipt) in a safe place for future reference.
BEFORE USING YOUR NEW VACUUM CLEANER
TABLE OF CONTENTS
PAGE

-3-
TITAN VACUUM CLEANER WARRANTY
TITAN LIMITED WARRANTY
FOR ONE YEAR from the date of sale this appliance is warranted against defects in
material or workmanship when it is correctly installed, operated and maintained according
to all supplied instructions.
WITH PROOF OF SALE, a defective appliance will receive free repair or replacement at
option of seller.
This warranty applies for only 90 DAYS from the sale date if this appliance is ever used for
other than private household purposes.
This warranty covers ONLY defects in material and workmanship, and will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to lters
and belts.
2. A service technician to clean or maintain this appliance, or to instruct the user in correct
appliance installation, operation and maintenance.
3. Service calls to correct appliance installation not performed by Titan Vacuums authorized
service agents, or to repair problems with house fuses, circuit breakers, house wiring,
and plumbing or gas supply systems resulting from such installation.
4. Damage to or failure of this appliance resulting from installation not performed by Titan
Vacuums authorized service agents, including installation that was not in accordance
with electrical, gas or plumbing codes.
5. Damage to or failure of this appliance, including discoloration or surface rust, if it is not
correctly operated and maintained according to all supplied instructions.
6. Damage to or failure of this appliance, including discoloration or surface rust, resulting
from accident, alteration, abuse, misuse or use for other than its intended purpose.
7. Damage to or failure of this appliance, including discoloration or surface rust, caused by
the use of detergents, cleaners, chemicals or utensils other than those recommended in
all instructions supplied with the product.
8. Damage to or failure of parts or systems resulting from unauthorized modications made
to this appliance.
9. Service to an appliance if the model and serial plate is missing, altered, or cannot easily
be determined to have the appropriate certication logo.
Disclaimer of implied warranties; limitation of remedies
Customer’s sole and exclusive remedy under this limited warranty shall be product repair or
replacement as provided herein. Implied warranties, including warranties of merchantability
or tness for a particular purpose, are limited to one year or the shortest period allowed by
law. Seller shall not be liable for incidental or consequential damages. Some states and
provinces do not allow the exclusion or limitation of incidental or consequential damages,
or limitation on the duration of implied warranties of merchantability or tness, so these
exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States.
This warranty gives you specic legal rights, and you may also have other rights which vary
from state to state.

-4-
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions in this guide before assembling or using your vacuum cleaner.
Your safety is important to us. To reduce the risk of re, electrical shock, injury to persons
or damage when using your vacuum cleaner, follow basic safety precautions including the
following:
1. Use your vacuum cleaner only as described in this guide. Use only with Titan Vacuums
recommended attachments.
2. Disconnect electrical supply before servicing or cleaning out the brush area. Failure to
do so could result in the electrical shock or brush suddenly starting.
3. Do not leave vacuum cleaner when plugged in. Unplug from outlet when not in use and
before performing servicing.
4. To reduce the risk of electrical shock - Do not use outdoors or on wet surfaces.
5. Do not allow to be used as a toy. Close attention is necessary when used by or near
children.
6. Do not use with a damaged cord or plug. If vacuum cleaner is not working as it should,
has been dropped, damaged, left outdoors, or dropped in water, return it to a Titan
Vacuums Service Center.
7. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord
around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away
from heated surfaces.
8. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
9. Do not handle plug or vacuum cleaner with wet hands.
10. Do not put any objects into openings.
11. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may
reduce air ow.
12. Keep hair, loose clothing, ngers, and all parts of body away from openings and moving
parts.
13. Turn off all controls before unplugging.
14. Use extra care when cleaning on stairs.
15. Do not put on chairs, tables, etc. Keep on oor.
16. Do not use vacuum cleaner to pick up ammable or combustible liquids (gasoline, cleaning
uid, perfumes, etc.), or use in areas where they may be present. The fumes from these
substances can create a re hazard or explosion.
17. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot
ashes.
18. Do not use vacuum cleaner without dust bag and/or lters in place.
19. Always change the dust bag after vacuuming carpet cleaners or freshener, powders, and
ne dust. These products clog the lters, reduce airow and can cause damage to the
vacuum cleaner. Failure to change the dust bag could cause permanent damage to the
vacuum cleaner.

-5-
20. Do not use the vacuum cleaner to pick up sharp hard objects, small toys, pins, paper clips,
etc. They may damage the vacuum cleaner.
21. Do not operate the vacuum cleaner without the exhaust lter or lter door in place. The
hose contains electrical wires. Do not use when damaged, cut, or punctured. Replace if cut
or worn. Do not pick up sharp objects.
22. Always turn off and unplug before connecting or disconnecting either hose, wand, pet
pickup tool, or motorized nozzle.
23. Hold plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.
24. You are responsible for making sure that your vacuum cleaner is not used by anyone
unable to operate it properly.
Proper assembly and safe use of your vacuum cleaner is your responsibility. Your vacuum
cleaner is intended for Household use. Read this Use & Care Guide carefully for important
use and safety information. This guide contains safety statements under warning and
caution symbols.

-6-
It is important to know your vacuum cleaner’s parts and features to ensure its proper and
safe use. Review these before using your vacuum cleaner.
Upper Wand
Lower Wand

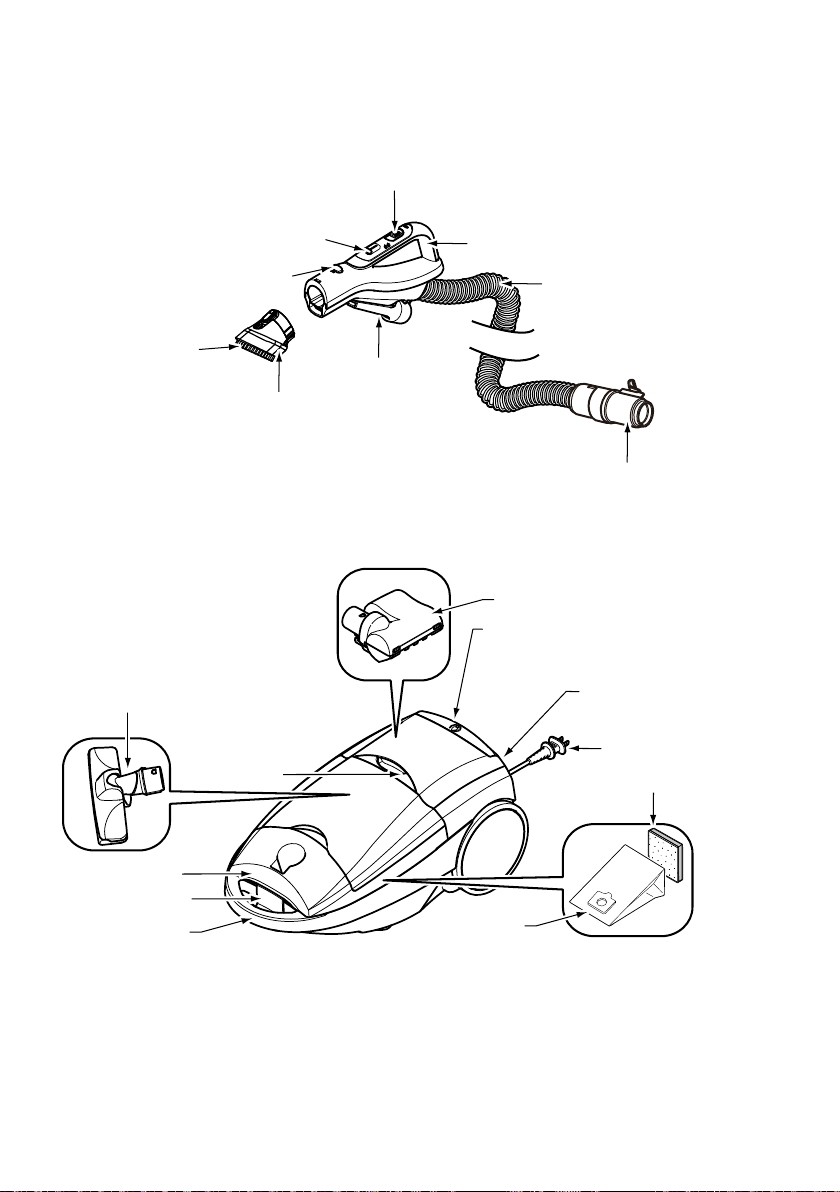

PARTS AND FEATURES
Handle & Hose
Assembly
Canister
Motorized Nozzle

-7-
REPLACEMENT PARTS
MOTORIZED NOZZLE & WANDS
Item Part No.
Belt 571005111
Wood Agitator 591019104
Exhaust Filter 591004783
Motor Safety Filter 591004123
Upper
Wand Lower
Tool Release
Wand
Height Adjustment
Indicator
Wand Quick
Release
Pedal
Headlight
and Lens
Brushroll
Status
Indicator
Edge Cleaner (Not
Shown)
Furniture
Guard
Height Adjustment
Pedal
Handle
Release
Pedal
Wood
Agitator
Belt

-8-
HANDLE & HOSE ASSEMBLY
CANISTER
3-Way On/Off Switch
Off/Floor/Carpet
Electronic
Suction Control
Wand
Release
Brush
Tool
(pre-installed)
Hose Swivel
Crevice Tool
Dusting Brush
Handle
Hose
Exhaust Filter Cover
(Exhaust Filter inside)
Canister Hood
Hood Release
Power Cord
Cord Rewind
Button
Carry Handle
Motor Safety Filter
Dust Bag
Pet Pickup Tool
Check
Bag Indicator
Bare
Floor Brush

-9-
Install the lower wand onto the motorized nozzle until the wand locks into place.
To remove: Press the wand quick release pedal and pull up on the wand.
1. Open the canister hood.
2. Check to see that the dust bag is properly installed. See BAG CHANGING (page 27-28)
for instructions.
3. Check to see that the motor safety lter is properly installed. See MOTOR SAFETY
FILTER CLEANING (page 29) for instructions.
Please pay special attention to these hazard alert boxes, and follow any
instructions given. WARNING statements alert you to such dangers as re,
electric shock, burns and personal injury. CAUTION statements alert you to
such dangers as personal injury and/or property damage.
Electrical Shock Hazard
DO NOT plug into electrical supply until assembly is complete. Failure to do so could
result in electrical shock or injury.
WARNING
MOTORIZED NOZZLE
CANISTER
ASSEMBLY INSTRUCTIONS
Wand Quick
Release Pedal

-10-
It is normal for the canister hood and tool storage cover to come off when opened further
than needed. Line up the hinge slots, insert the hinges into the slots, and close the hood
and tool storage cover to reinstall.

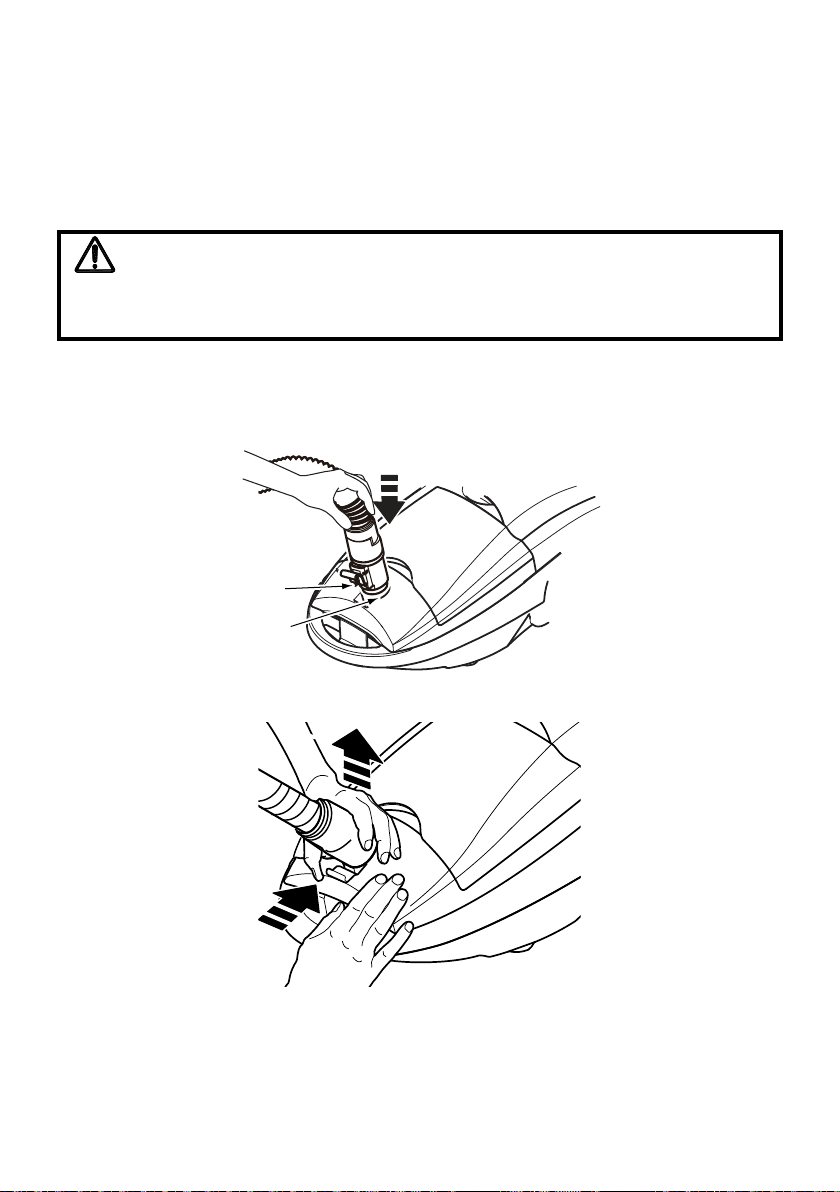

Align the hose latch tab and the notch in canister hood and insert the hose into canister
until it snaps into place.
HOOD AND TOOL STORAGE COVER
HOSE
Never open canister hood with the tool storage cover open. This will help to prevent
damage from occurring to the canister hood and/or tool storage cover.
CAUTION
To remove: Press the hose latch tab inward and pull out on the hose.
Hose
Latch Tab
Notch

-11-

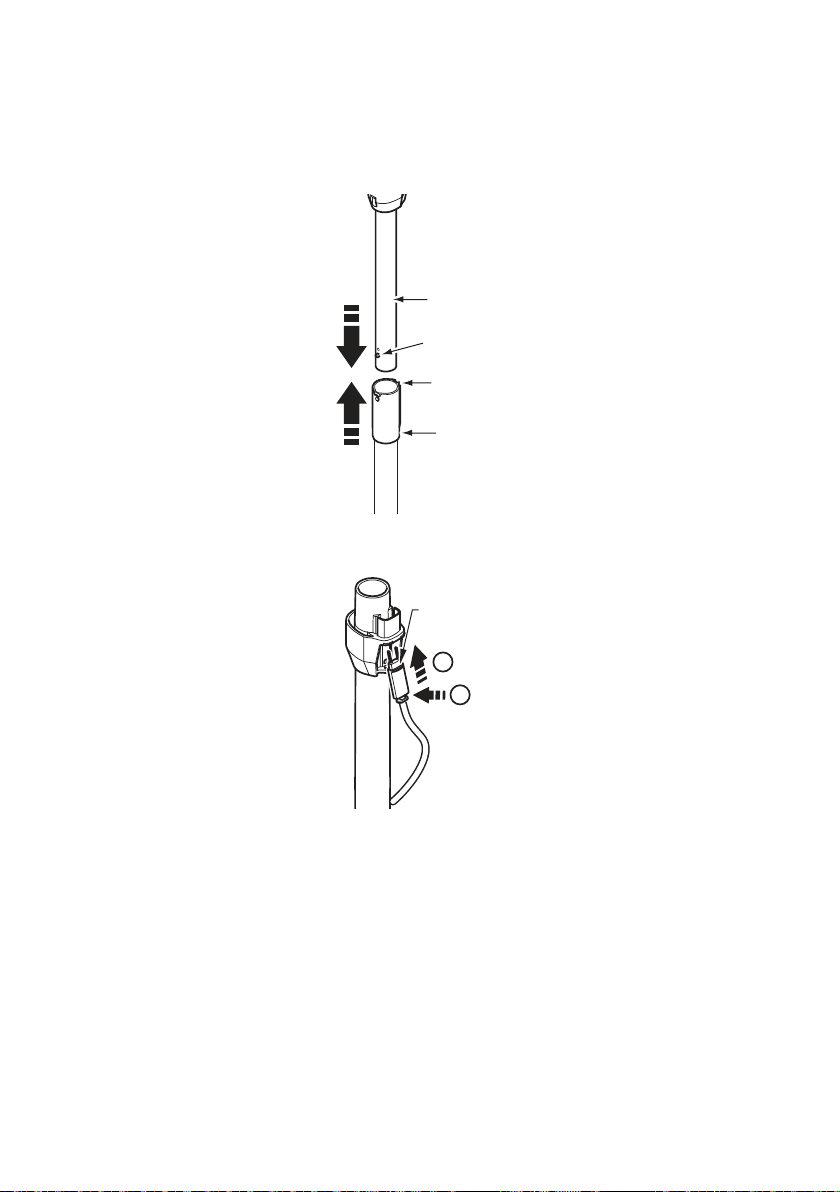

1. Insert the upper wand into the lower wand until the lock button snaps in place.
To remove: Press the lock button and pull wands apart.
2. Insert the plug of the cord into the plug holder as shown. DO NOT force. Raised area of
the plug must be towards hand.
3. Secure the cord into the cord holder on the back of the wand.
WANDS
Lock
Button
Lower
Wand
Cord
Holder
Upper
Wand
Raised
Area
1
2

-12-
Insert the wand into the handle until the wand locks into place. Make sure the hose is not
twisted.
To remove: Press the wand release button and pull up on the handle.
The dusting brush can be stored on the hose handle by placing on hose handle before the
upper wand.
To store: Disconnect the handle from the wand and canister to prevent stress on hose
during storage. Store the hose in a loosely coiled position so the hose covering is not
stressed.
HANDLE
Wand
Release
Dusting Brush
Upper Wand

-13-
OPERATING INSTRUCTIONS
HOW TO START
1. Pull the power cord out of the canister to desired length. The cord will not rewind until
the cord rewind button is pushed.
NOTE: To reduce the risk of electric shock, this vacuum cleaner has a polarized plug;
one blade is wider than the other. This plug will t in a polarized outlet only one way. If the
plug does not t fully in the outlet, reverse the plug. If it still does not t, contact a qualied
electrician to install the proper outlet. Do not change the plug in any way.

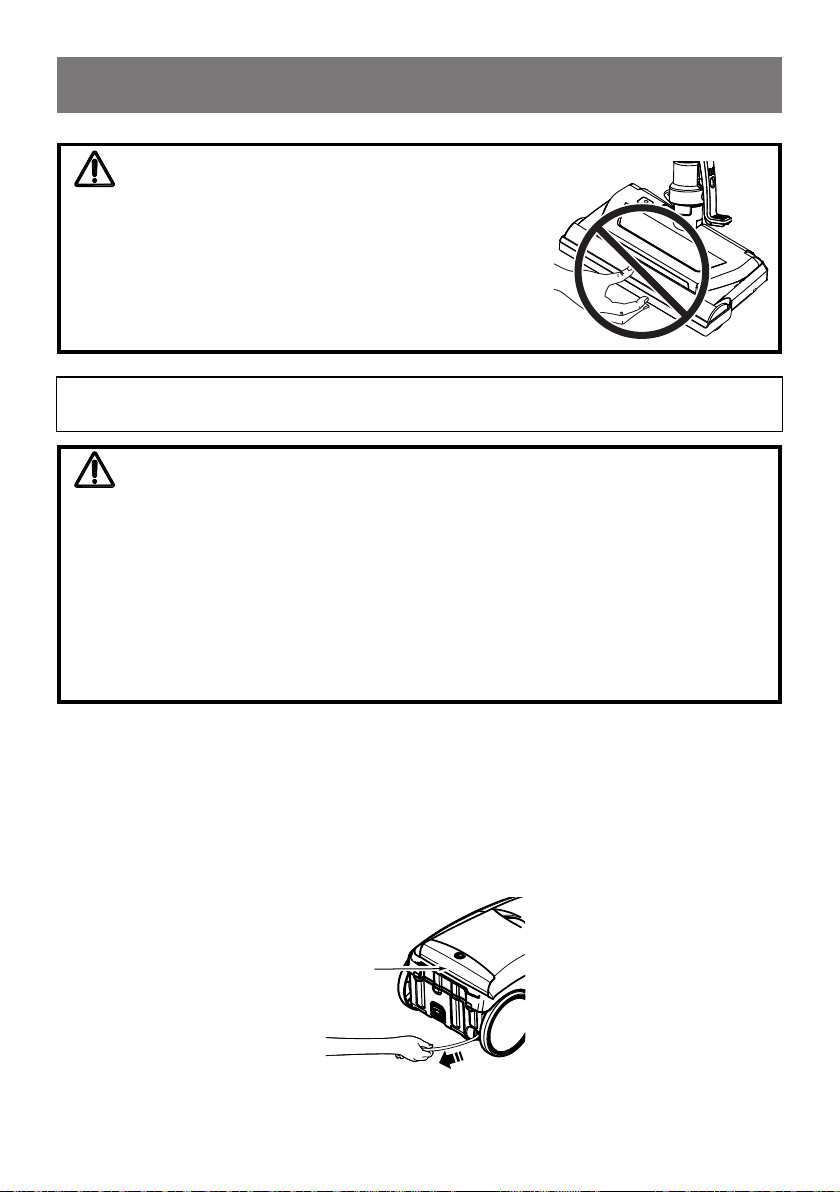

Moving parts! To reduce the risk of personal injury, DO
NOT touch the agitator when vacuum cleaner is on.
Contacting the agitator while it is rotating can cut, bruise
or cause other injuries. Always turn off and unplug from
electrical outlet before servicing. Use caution when
operating near children or pets.
CAUTION
Personal Injury and Product Damage Hazard
• DO NOT plug in if switch is in ON position. Personal injury or property damage could
result.
• The cord moves rapidly when rewinding. Keep children away and provide a clear path
when rewinding the cord to prevent personal injury.
• DO NOT use outlets above counters. Damage from cord to items in surrounding area
could occur.
• When any abnormality/failure occurs, stop using the product immediately and
disconnect the power plug.
WARNING
Cord
Rewind
Button

-14-
2. Plug the polarized power cord into a 120 Volt outlet located near the oor.
To rewind: Turn off and unplug the vacuum cleaner. Hold the plug while rewinding to
prevent damage or injury from the moving cord. Push the cord rewind button.
3. Lower the handle from upright position by pressing on the handle release pedal.
4. Select a pile height setting by pressing the height adjustment pedal on the rear of the
motorized nozzle. The pile height setting shows on the indicator. See SUGGESTED
PILE HEIGHT SETTINGS (page 17).
Attention: Refer to your carpet manufacturers cleaning recommendations. Some more
delicate carpets may require that they be vacuumed with the nozzle agitator turned off to
prevent carpet damage.
5. Select a position on the 3-way On/Off switch on the handle.
CARPET - turns on both the canister and the motorized nozzle.
Headlight and agitator will power on.
HARDFLOOR - turns on the canister motor only.
Headlight and agitator will not power on.
OFF - Turns the vacuum cleaner off.
Handle
Release
Pedal
CARPET

-15-
VACUUMING TIPS
For best cleaning action, the motorized nozzle should be pushed straight away from you
and pulled straight back. At the end of each pull stroke, the direction of the nozzle should
be changed to point into the next section to be cleaned. This nozzle should be continued
across the carpet or oor with slow, gliding motions.
The electronic suction control allows you to change the power of the vacuum cleaner
suction motor.
High Power increases suction for upholsteries and carpets.
Low Power decreases suction for draperies and light weight rugs.
NOTE: Fast, random strokes do not provide complete cleaning.
SUGGESTED SWEEPING PATTERN
ELECTRONIC SUCTION CONTROL
DO NOT leave the motorized nozzle running in one spot for any length of time. Damage
to carpet may occur.
CAUTION
NOTE：When this switch is in the HARDFLOOR position the nozzle headlight DOES NOT
function since no electricity ows to the motorized nozzle.
High Power
Low Power

-16-
Carpeted stairs need to be vacuumed regularly. For best cleaning results, adjust the
electronic suction control to high power position.
For best cleaning results, keep the airow passage open. Check each assembly area in
REMOVING CLOGS (page 26) occasionally for clogs. Turn off and unplug the vacuum
cleaner from outlet before checking.
Product Damage Hazard
Use care if the motorized nozzle and wand is left in the upright position as it may tip
over easily. Property damage can occur if tipped.
Personal Injury and Product Damage Hazard
• DO NOT run over power cord with motorized nozzle. Personal injury or product
damage could result.
• DO NOT pull plug from wall by the power cord. If there is damage to the cord or plug,
personal injury or property damage could result.
CAUTION
WARNING
STAIRS
Personal Injury Hazard
Use care if canister is placed on stairs. It may fall, causing personal injury or property
damage.
Product Damage Hazard
Do not pull on the hose to move the canister from one stair to the next. When nished
cleaning in one area use the handle grip on the canister to move the vacuum cleaner to
a new location for further cleaning.
WARNING
CAUTION
The stair hold located on the bottom of the vacuum will aid in preventing the canister from
slipping when used on stairs. During normal operation while the canister is in the horizontal
position, the caster wheel rotates freely 360°.
In order to prevent the canister from slipping on stairs, be sure the STAIR HOLD feature
STAIR HOLD

-17-
Active brush edge cleaners are on both sides of the motorized nozzle. Guide either side of
the nozzle along the wall or next to furniture to help remove dirt trapped at carpet edges.
The 360° hose swivel allows the hose to turn without moving the canister. This is helpful for
cleaning in small areas. Check the hose for twisting before pulling the canister.
EDGE CLEANER
HOSE SWIVEL
functions and the canister is resting securely on the stairs when the canister is placed on
residential stairs.
SUGGESTED PILE HEIGHT SETTINGS
For best deep down cleaning, use the XLO setting. However, you may need to raise the
height to make some jobs easier, such as scatter rugs and some deep pile carpets, and to
prevent the vacuum cleaner from shutting off. Suggested settings are:
HI – Shag, deep pile, or scatter rugs.
MED – Medium to deep pile.
LO – Low to medium pile.
XLO – Most carpets and bare oors.

-18-
2. Slide attachments rmly on the handle as needed. See ATTACHMENT USE TABLE (page
22).
ATTACHMENTS
DO NOT attach or remove handle or wands while vacuum cleaner is ON. This could
cause sparking and damage the electrical contacts or electronic controls.
CAUTION
NOTE: If the motorized nozzle is attached, turn the vacuum cleaner off before removing the
handle from the wand.
1. Press the wand release button and pull up on handle.

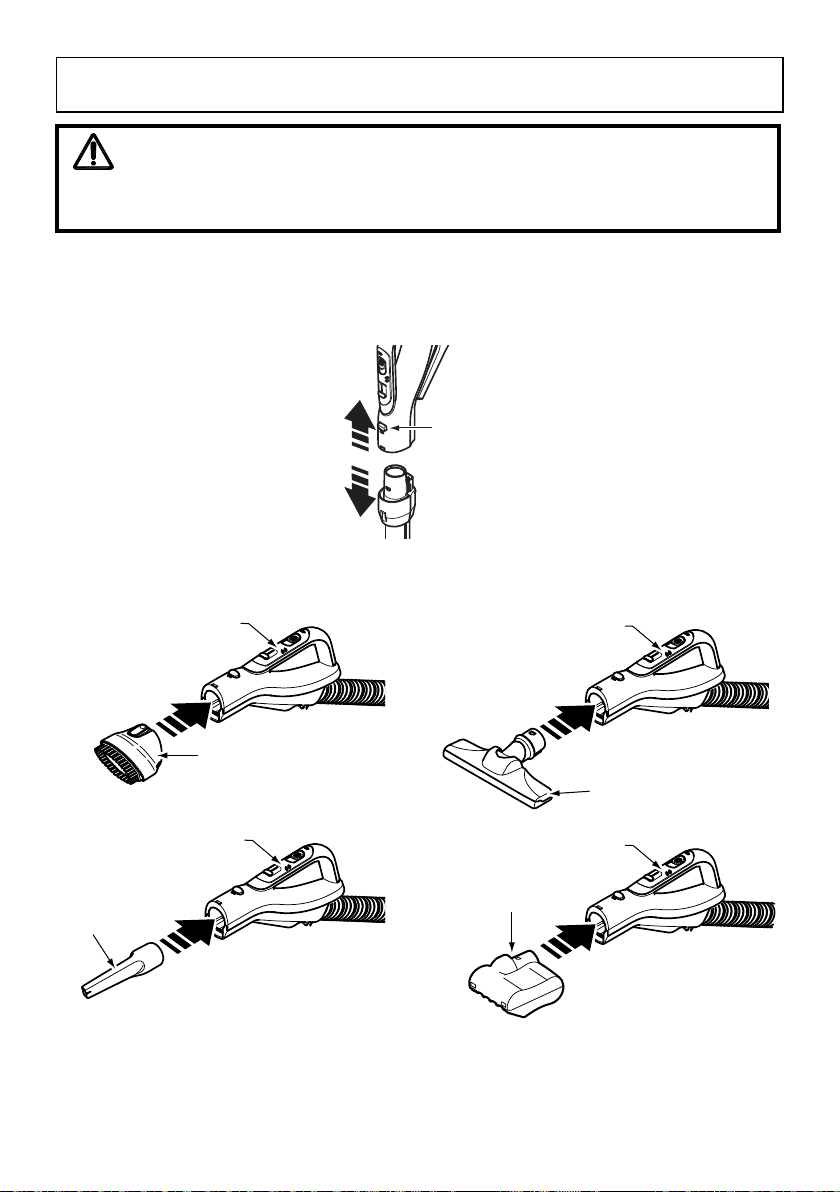

ATTACHMENTS ON HANDLE
Wand
Release
Handle
Dusting Brush
Crevice
Tool
Handle
Pet Pickup Tool
Handle
Handle
Bare Floor Brush

-19-
NOTE: To remove the dusting brush, press the brush release button and slide off.
Brush
Release
NOTE: To remove bare oor brush and/or pet pickup tool, press the wand release button
and slide off.
Wand
Release Wand
Release
1. To remove the wand from the motorized nozzle, lock the wand in straight-up position.
2. Press the wand quick release pedal with foot and pull the wand straight up and out of
nozzle.

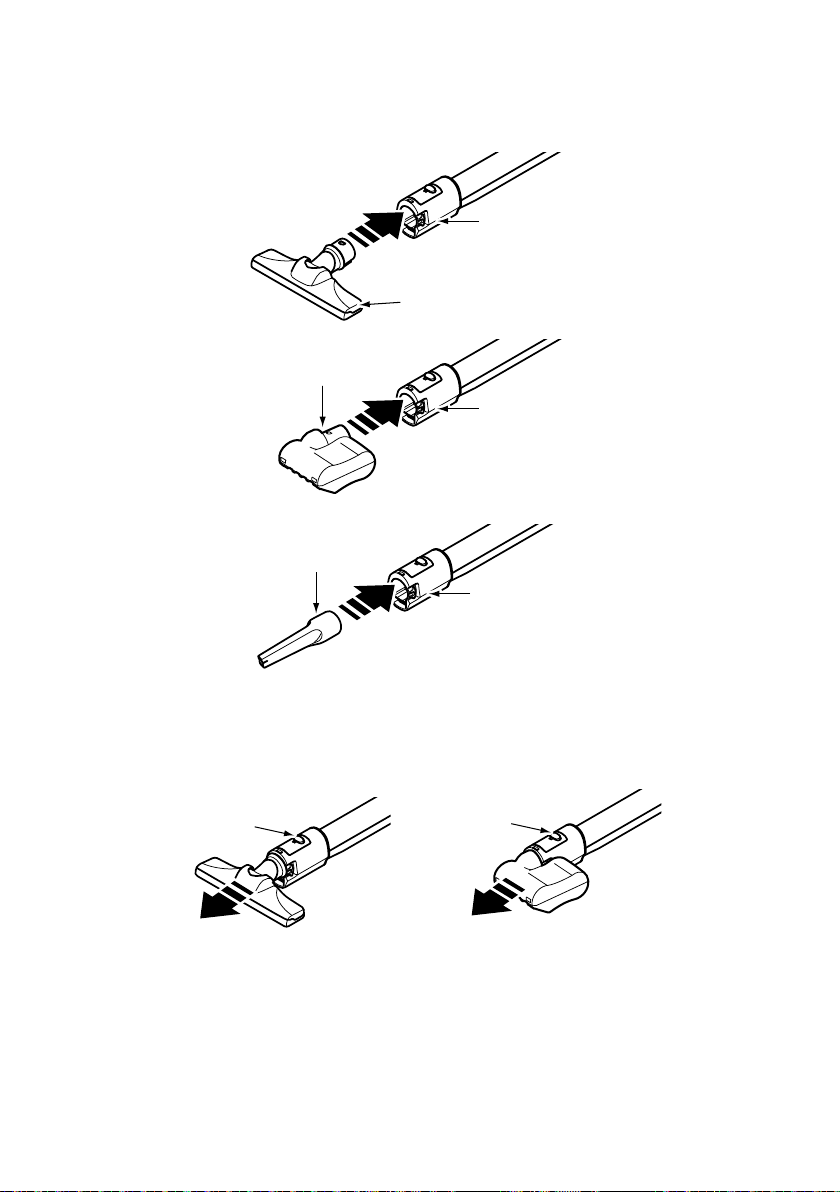

ATTACHMENTS ON WAND
Wand Quick
Release
Pedal

-20-
3. Put attachments on the wand as needed. See ATTACHMENT USE TABLE (page 22).
NOTE: To remove the bare oor brush and/or pet pickup tool, press the tool release button
and slide off.
Dusting Brush
Wand
Wand
Upholstery Brush
Wand
Crevice
Tool
Wand
Bare Floor Brush
Wand
Pet Pickup Tool
Dusting Brush
Wand
Wand
Upholstery Brush
Wand
Crevice
Tool
Wand
Bare Floor Brush
Wand
Pet Pickup Tool
Tool
Release
Tool
Release
