PR Lighting XR 230 Beam User manual

XR 230 Beam
PR-2205
This product manual contains important information about the safe installation and use of this projector.
Please read and follow these instructions carefully and keep this manual in a safe place for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com

2/22
P
INDEX
SAFE USAGE OF THE PROJECTOR 3
INSTALLING THE PROJECTOR 4
FITTING LAMP 4
POWER SUPPLY – MAINS 5
CONTROL CONNECTIONS 5
DMX TERMINATOR 6
SETUP OPTIONS-PROJECTOR CONFIGURATION 6
TO SET THE DMX START ADDRESS 6
STAND-ALONE MODE 7
MASTER/SLAVEMODE 7
OPERATION MENU 8
DMX PROTOCOL 11
INDICATION OF LED DIGITAL TUBE 16
MAINTENANCE 16
LUBRICATION 16
KEEPING THE PROJECTOR CLEAN 16
TROUBLESHOOTING 17
TECHNICAL DATA 18
ELECTRICAL DIAGRAM 20
COMPONENT ORDER CODES 21
Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change without notice. Whilst
every care is taken in the preparation of this manual we reserve the right to change specifications in the course of product improvement. The
publishers cannot be held responsible for the accuracy of the information herein, or any consequence arising from them.
Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the unit are in good condition
before installation and use. Should there be any damage caused by transportation, consult your dealer and do not use the unit. Any damage caused
by improper use will not be assumed by the manufacturer and / or dealer.
ACCESSORIES
These items are packed together with the projector:
Name Quantity Unit Remark
G clamps 2 Pcs
XLR connectors 2 Pc Without cable
Safety cord 2 Pcs
This manual 1 Pc
Ωclamps 2 Pcs Optional

3/22
SAFE USAGE OF THE PROJECTOR
When unpacking and before disposing of the carton check if there is no transportation damage before using the projector. Should there
be any damage caused by transportation, consult your dealer and do not use the apparatus.
The projector is for indoor use only, IP20. Use only in dry locations. Keep this device away from rain and moisture, excessive heat,
humidity and dust. Do not allow contact with water or any other liquids.
The projector is not designed or intended to be mounted directly on to inflammable surfaces.
The projector is only intended for installation, operation and maintenance by qualified personnel.
The projector must be installed in a location with adequate ventilation, at least 50cm from adjacent wall surfaces. Be sure that no
ventilation slots are blocked.
Do not project the beam onto inflammable surfaces, minimum distance is 12m. 12m
Avoid direct exposure to the light from the lamp. The light is harmful to the eye.
Do not attempt to dismantle and/or modify the projector in any way.
Electrical connection must only be carried out by qualified personnel.
Before installation, ensure that the voltage and frequency of power supply match the power requirements of the projector.
It is essential that each projector is correctly earthed and that electrical installation conforms to all relevant standards.
Do not connect this device to any other types of dimmer apparatus.
Make sure that the power-cord is never crimped or damaged by sharp edges. Never let the power-cord come into contact with other cables.
Only handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.
Keep the lamp clean. Do not touch the lamp glass with bare hand.
The projector should always be installed with a secondary safety fixing. A safety cord is supplied for this; it should be attached as
shown in “installing the projector” section.
The lamp used in this projector is a discharge lamp. After switching off don’t attempt to restart the projector until lamp has cooled, this
will require approx 15 minutes. Switching the lamp on and off at short intervals will reduce the life of both the lamp and the projector.
But occasional breaks will prolong the life of the lamp and projector.
Never run the projector without a lamp.
The lamp shall be changed if it has become damaged or thermally deformed or reached its life limit.
Shields and lens shall be changed if they have become visibly damaged to such an extent than their effectiveness is impaired, for
example by cracks or deep scratches.
Exterior surface temperatures of the luminaire after 5 minutes operation is 35℃, when steady state is achieved 55℃,
There is no user serviceable parts inside the projector, do not open the housing and never operate the projector with the covers
removed.
If you have any questions, don’t hesitate to consult your dealer or manufacturer.
Always disconnect from the mains, when the device is not in use or before cleaning it or before
attempting any maintenance work !

4/22
INSTALL THE PROJECTOR
CONTROL
PANEL
CLAMP
HANDLE
SAFETY CORD
106
106
WARNING
To pass 1 SAFETY CORD
through 2 holes for safety
Take 2 clamps and 1 safety cords out from the package and mount 2 clamps on the underside of fixture with 4 retainers attached to
each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the WARNING on the underside of
the base as shown above) Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning.
Always ensure that the structure that you are going to mount the projector is secure and is strong enough to support the weight of the
fixture.
WARNING
1. The projector MUST be lifted or carried by the HANDLES instead of clamps.
2. Forsafety the safety cord should support 10 times of the unit’s weight.
FITTING THE LAMP
Unplug the projector from power before lamp
installation or replacement and wait for it to cool.
Lock the yoke before fitting/replacing the lamp.
Loosen 8 fast-fit screws and remove the back cover,
you can see the structure as shown in the figure 2..
After unplug the power wires, hold the end of the
lamp and push it as directed by the arrow resulting in
the other end of the lamp unblocked ,then pull the
lamp out. Before installing new lamp, plug the power
wires for the lamp tightly. Installation of the lamp is
an reverse sequence to the pull-out.
Fit new lamp and close the back cover by fastening 8
fast-fit screws. Note: don’t touch the bulb of the new
lamp with bare hand so as not to influence the beam
output; Do not harm the sticking out point of the lamp during its installation.
WARNING: Care should always be taken when handling these lamps. Always read the manufacturers "Instructions for
use" enclosed with the lamp.
FAST-FIT SCREWS
LAMP
AB

5/22
POWER SUPPLY-MAINS
Connect the power cord as follows:
L (live) =brown
E (earth) =yellow/green
N (neutral) =blue
Use the plug provided to connect the mains power to the projector paying attention to the voltage and frequency marked on the panel
of the projector. It is recommended that each projector be supplied separately so that they may be individually switched on and off.
IMPORTANT
It is essential that each projector is correctly earthed(yellow/green twin wire) and the electrical installation conforms to all
relevant standards.
CONTROL CONNECTION

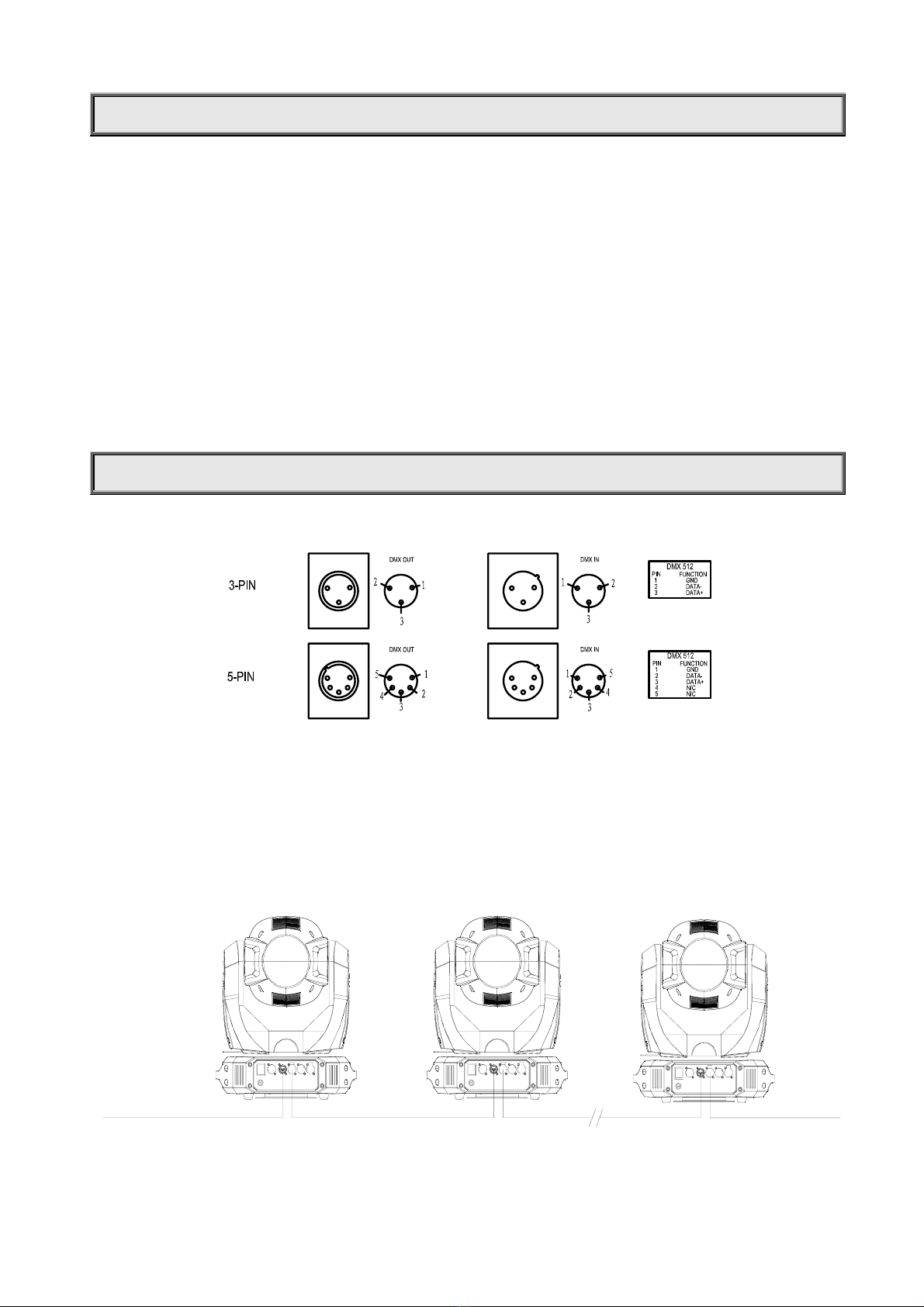

Connection between controller and projector and between one projector and another must be made with a 2 core-screened cable, with
each core having at least a 0.5mm diameter. Connection to and from the projector is via cannon 3 pin (which are included with the
projector) or 5 pin XLR plugs and sockets. The XLR's are connected as shown in the figure above.
Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. The body of the plug is not
connected in any way other than as shown above. The projector accepts digital control signals in protocol DMX512 (1990).
Connect the controller’s output to the first fixture’s input, and connect the first fixture’s output to the second fixture’s input and connect
the rest fixtures in the same way. Eventually connect the last fixture’s output to a DMX terminator as shown in the figure below.
TO CONTROLLER
DMX512 DMX IN DMX OUT
TO TERMINATER
DMX IN DMX OUT DMX IN DMX OUT

6/22

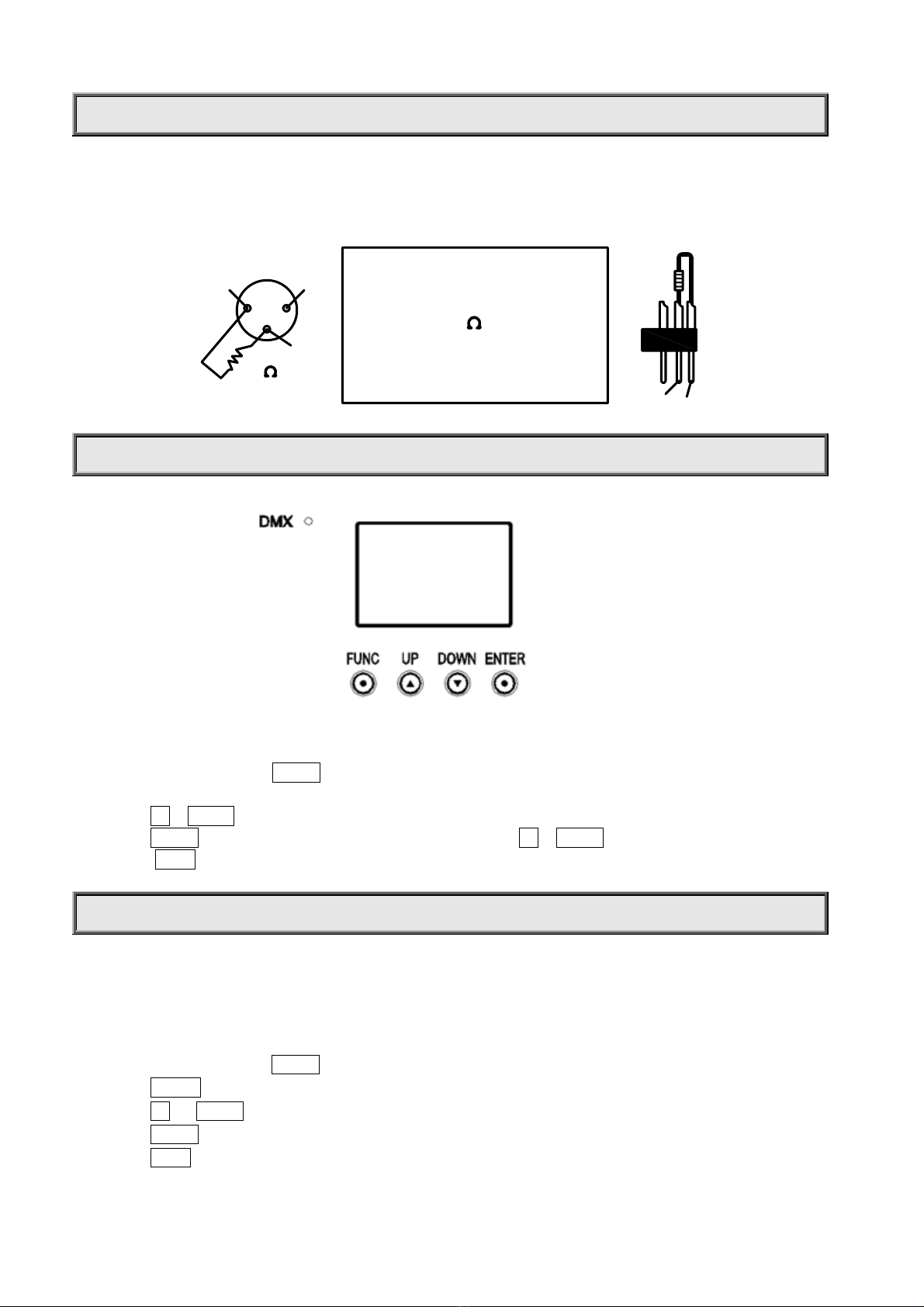

DMX TERMINATOR
In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents
electrical noise from disturbing and corrupting the DMX control signals.
The DMX terminator is simply an XLR connector with a 120Ω(ohm) resistor connected across pins 2 and 3, which is then plugged
into the output socket on the last projector in the chain. The connections are illustrated below.
21
3
120
DMX TERMINATOR
CONNECTION
Connect a 120 (OHM) resistor
across pins 2 and 3 in an XLR plug
and insert into the DMX out socket
on the last unit in the chain.
PIN 3
PIN 2
SETUP OPTIONS-PROJECTOR CONFIGURATION
Projector configuration can be set conveniently via switch button and LCD display. Turn the projector on and the LCD display will
show DMX address you set and save last time and it can be reset and saved again as you please.
Launch the projector. Press button ENTER more than 5 seconds to unlock panel. After this, the display shows the projector’s function
menu and each option has its own sub-menus. Each menu stands for special function, see details as follows.
Press button UP or DOWN if you want to browse through the various Setup Options.
Press button ENTER to save your settings or enter the next menu. Press button UP or DOWN to change the values(plus or minus)
Press button FUNC, it will return to the upper menu one by one. If the button not pressed, defaulted will show display status
automatically.
TO SET THE DMX START ADDRESS
Each projector must be given a DMX start address so that the correct projector responds to the correct control signals. This DMX start
address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the
controller. XR 200 BEAM has 3 DMX modes. There are standard mode ,short mode and extended mode. For example standard
mode have 14 channels, so set the No. 1 projector’s address 001, No. 2 projector’s address 015, No. 3 projector’s address 029, No. 4
projector’s address 043, and so on.
Launch the projector. Press button ENTER more than 5 seconds to unlock panel.
Press button ENTER to display DMX address;
Press button UP and DOWN, you can set the address;
Press button ENTER to confirm; after powered next time, It will display latest values.
Press button FUNC, it will return to the upper menu one by one.

7/22
STAND-ALONE MODE

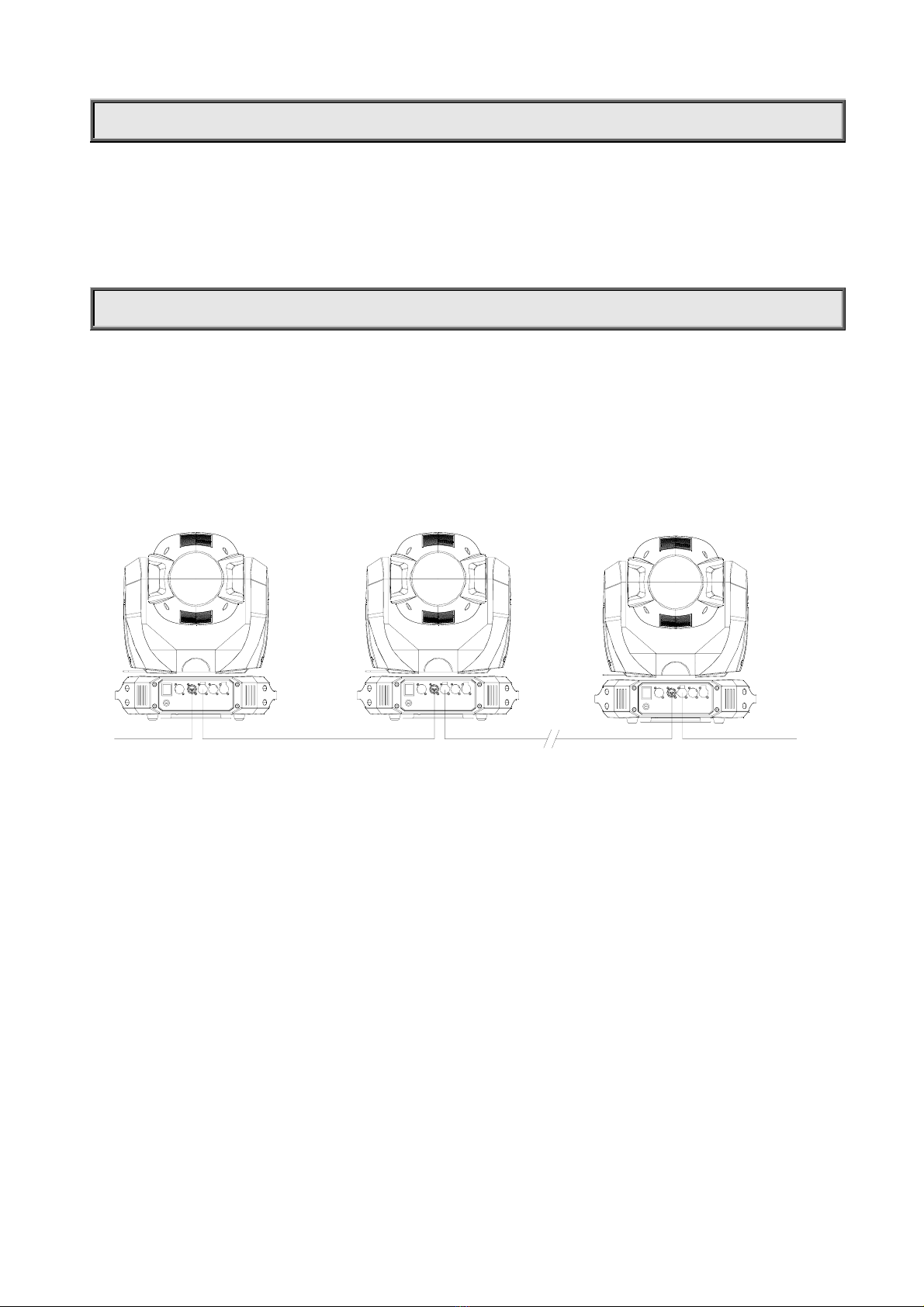

Operate the projector without connecting a controller, enable the master mode in the operation panel, the projector
will run in Stand-Alone mode automatically.
MASTER/SLAVE MODE
Without using a controller, many projectors can run synchronously in the Master/Slave mode by linking them with
each other. Connect the controller’s output to the first fixture’s input, and connect the first fixture’s output to the second fixture’s input
and connect the rest fixtures in the same way. Eventually connect the last fixture’s output to a DMX terminator as shown in the figure
below. Then the first one is the master with setting options as master mode enabled, and others are slaves.
Start Address for all slaves is 001. The Master can run at any mode for the Master and Slaves run at the corresponding
mode compared to the Master.
After powered , the group will run at Master/Slave Mode.
. INPUT OUTPUT
MASTER SLAVE SLAVE
INPUT OUTPUT INPUT DMXTERMINATOR

8/22
OPERATION MENU
1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL
A
dd
R XX
X
(1~499)
Reset Are you sur
e
CNFG
(Config Settings)
d
m
X
(DMX Mode
,Default: STD)
ST
d
14
(DMX Mode Standard)
SHR
T
1
0
(DMX Mode Short)
EX
T
1
6
(DMX Extended Mode)
Lamp Contro
l
Set
(Lamp Control
,Default: CHAN)
ByControlChann
e
(By Control Channel)
ByPowerOn
(By Power)
Pan T
il
t Swap
(Default: OFF) OF
F
ON
Pan T
il
t Invert
(Default: OFF) OF
F
ON
Pan amend 0~127
Ti
l
t amend 0~127
Wireless Mod
e
(Default: XLR First)
Optional
XLR First
XLR Onl
y
Wireless Onl
y
Wireless First
Wireless To XLR
Unlink Wireless Yes
MasterSlaveSelec
Selection of Master/Slave
(Default: Slave)
Slav
e
Maste
r
Reset Lamp Hours
(
Lam
p
hours chan
g
ed into 0
)
Are you Sur
e
FactorySettings
（Factor
y
Default Settin
g
s?）
Yes
ParameterTransm
(Parameters transmitted?)
Yes
Display Options Language Eng
li
s
h/
C
hi
nes
e
Display Mode O
ff
A
f
ter De
l
ay
/
On
Alwa
y
s
Display
I
nvert OFF / ON
Display Contrast 0~18
INFO
(Information) Power On Hours
(Lighting Fixture Use Time)
XXX
X
(Time displayed)
Lamp Hours
(Lamp Use Time)
XXX
X
(Time displayed)
VER
(Version No.) X.X.
X
(Software Version No.)
Hea
d
Senso
r
Head Temp

9/22
TES
T
Se
lf
Test Ye s
(Test Modes)
Manual Test
Stro
be
NO
(Without Strobe)
Mo
d
e 1
Mo
d
e
2
Co
l
or W
h
ee
l
NO
(White)
Cw1
-
CW14
(Color Wheel1-Color
Wheel14
)
FOR
w
(Rotation)
STO
P
(Rotation Stops)
REVE
(reverse Rotation)
F
i
xe
d
Go
b
o W
h
ee
l
NO
(White)_
Go
b
o1
-
Go
b
o17
Rotat
i
on
Reverse Rotation
S
h
a
k
e E
ff
ect 1
-
1
0
E
ff
ect W
h
ee
l
NO
E
ff
ect 1
E
ff
ect
2
E
ff
ect 3
E
ffe
ct W
h
ee
l
Rotat
i
on Stop
Rotat
i
on
Reverse Rotat
i
on
Focus
0
-
255 L
i
near Focus
i
n
g
Pan Locat
i
on
0
-
255
T
il
t Locat
i
on
0
-
255
Pan & T
il
t Spee
d
0
-
255
Fan OFF
/
ON
mENU
(Operating Menu)
DMX Operation
DMX
Preset Memor
y
User’s Memor
y
Static Scene 1～1
6
CH1
(Strobe)
0-255

10/22
CH
2
(Dimming)
0-255
CH3
(Color Wheel)
0-255
CH4
(Fixed Gobo Wheel)
0-255
CH5
(Effect Wheel)
0-255
CH
6
(Effect Wheel Rotation)
0-255
CH7
(Focusing)
0-255
CH8
(Pan Location)
0-255
CH9
(Tilt Location)
0-255
CH1
0
(Pan and Tilt Speeds)
0-255
CH11
Scene hold time
0-25 Seconds
Lamp Manual Control
Turn Lamp On Yes
Turn Lamp Of
f
Yes
Remark:
1. In the synchronous control of multiple projectors parameters can be transmitted from the master including: DMX mode,
display setting, operation mode(user memory);
2. all projectors Accepting parameters will automatically be set to slave mode.
Explanations for Letters on top-right of the display
S:SlaveMode M:MasterMode
D: DMX512 Mode I: Preset Memory
U: User’s Memory T: Test Mode
Lock Logo: buttons locked, press” ENTER” for more than 5 seconds, lock logo disappears and buttons are unlocked
Error information listed as follows:
Warning
Fan Board No Signal
Fan 1 Error
Fan 2 Error
When errors are displayed, the lamp can only be turned on after the three above-mentioned errors have been corrected.

11/22
DMX PROTOCOL
Short
mode Standard mode FUNCTION DMX DESCRIPTION
1 1 Strobe
000-015 Open
016-239 Strobe from Slow to Fast
240-244 Macro 1
245-249 Macro 2
250-255 Macro 3
2 2 Dimmer
000-255 From dark to bright
3
3
Color Wheel
000-011 White
012-015 White+Color 1
016-019 Color 1
020-023 Color 1+Color 2
024-027 Color 2
028-031 Color 2+Color 3
032-035 Color 3
036-039 Color 3+ Color 4
040-043 Color 4
044-047 Color 4+ Color 5
048-051 Color5
052-055 Color5+ Color6
056-059 Color 6
060-063 Color 6+Color 7
064-067 Color7
068-071 Color 7+Color 8
072-075 Color 8
076-079 Color 8+ Color 9
080-083 Color 9
084-087 Color 9+ Color 10
088-091 Color 10
092-095 Color 10+Color 11
096-099 Color 11
100-103 Color 11+ Color 12
104-107 Color 12
108-111 Color 12+Color 13
112-115 Color 13
116-119 Color 13+ Color 14
120-123 Color 14
124-127 Color 14+White
128-159 Rotation （From slow to Fast）
160-223 Stops with White
224-255 Reverse Rotation（From slow to Fast）

12/22
4
4
Fixed Gobo
Wheel
000-007 White
008-015 Gobo 1
016-023 Gobo 2
024-031 Gobo 3
032-039 Gobo 4
040-047 Gobo 5
048-055 Gobo 6
056-063 Gobo 7
064-071 Gobo 8
072-079 Gobo 9
080-087 Gobo 10
088-095 Gobo 11
096-103 Gobo 12
104-111 Gobo 13
112-119 Gobo 14
120-127 Gobo 15
128-135 Gobo 16
136-143 Gobo 17
144-159 Rotation （From slow to Fast）
160-175 Reverse Rotation （From slow to Fast）
176-183 Shake 1（From Fast to slow）
184-191 Shake 2 （From Fast to slow）
192-199 Shake 3（From Fast to slow）
200-207 Shake 4（From Fast to slow）
208-215 Shake 5（From Fast to slow）
216-223 Shake 6（From Fast to slow）
224-231 Shake 7（From Fast to slow）
232-239 Shake 8（From Fast to slow）
240-247 Shake 9（From Fast to slow）
248-255 Shake 10（From Fast to slow）
5 5
Prism Wheel
000-063 White
064-127 Prism
128-191 Frost Filter
192-255 Low CT filter
6 6
Prism Rotation
000-063 Stop
064-127 Rotation （From slow to Fast）
128-191 Stop
192-255 Reverse Rotation （From slow to Fast）
7 7
Focusing 000-255 Linear Focusing
8
Focusing Fine 000-255 Focusing in 16 bit precision
8 9
Pan 000-255 Pan(0°~540°)
10
Pan Fine 000-255 Pan in 16 bit precision
9 11
Tilt 000-255 Tilt(0°~270°)

13/22
12
Tilt Fine 000-255 Tilt in 16 bit precision
13
Pan & Tilt
S
p
eeds 000-255 Pan & Tilt Speed from Fast to Slow
10 14
Control
000-031 Reserved
032-063 Lamp Off (stop in DMX value for 2 s)
064-095 Reserved
096-127 Lamp On ( stop in DMX value for 2 s)
128-159 Reserved
160-191 Reset( stop in DMX value for 2 s)
192-255 Reserved
Extended Mode FUNCTION DMX DESCRIPTION
1 Color Wheel
000-004 White
005-008 White /Color 1
009-012 Color 1
013-017 Color 1/Color 2
018-021 Color 2
022-025 Color 2/Color 3
026-029 Color 3
030-034 Color 3/ Color 4
035-038 Color 4
039-042 Color 4/ Color 5
043-406 Color5
047-051 Color5/ Color6
052-055 Color 6
056-059 Color 6/ Color 7
060-063 Color7
064-068 Color 7/ Color 8
069-072 Color 8
073-076 Color 8/ Color 9
077-081 Color 9
082-085 Color 9/ Color 10
086-089 Color 10
090-093 Color 10/ Color 11
094-098 Color 11
099-102 Color 11/ Color 12
103-106 Color 12
107-110 Color 12/ Color 13
111-115 Color 13
116-119 Color 13/ Color 14

14/22
120-123 Color 14
124-127 Color 14/White
128-255 Rotation （From slow to Fast）
2 Strobe
000-003 Open
004-103 Strobe from Slow to Fast
104-212 Open
213-225 Macro1
226-238 Macro 2
239-251 Macro 3
251-255 Open
3 Dimming 000-255 From dark to Bright
4 Fixed Gobo
Wheel
000-003 White
004-007 Gobo 1
008-011 Gobo 2
012-015 Gobo 3
016-019 Gobo 4
020-023 Gobo 5
024-027 Gobo 6
028-031 Gobo 7
032-035 Gobo 8
036-039 Gobo 9
040-043 Gobo 10
044-047 Gobo 11
048-051 Gobo 12
052-055 Gobo 13
056-059 Gobo 14
060-063 Gobo 15
064-067 Gobo 16
068-071 Gobo 17
072-113 Rotation （From Fast to Slow）
114-117 Stop at White
118-159 Rotation （From slow to Fast）
160-166 Shake 1（From Fast to slow）
167-172 Shake 2 （From Fast to slow）
173-179 Shake 3（From Fast to slow）
180-185 Shake 4（From Fast to slow）
186-191 Shake 5（From Fast to slow）
192-198 Shake 6（From Fast to slow）
199-204 Shake 7（From Fast to slow）
205-211 Shake 8（From Fast to slow）

15/22
212-217 Shake 9（From Fast to slow）
218-223 Shake 10（From Fast to slow）
224-255 Stop at White
5 Effect Wheel
000-127 White
128-255 Eight-facet Prim
6 Prism Rotation
000-127 Stop
128-190 Rotation （From Fast to Slow）
191-192 Stop
193-255 Reverse Rotation （From slow to Fast）
7 Reserved 0-255
8 Frost Filter
0-127 White
128-255 Frost Effect
9 focusing 0-255 Linearly focusing
10 Pan 000-255 Pan(0°~540°)
11 Pan Fine 000-255 Pan in 16 bit precision
12 Tilt 000-255 Tilt(0°~270°)
13 Tilt Fine 000-255 Tilt in 16 bit precision
14 Reserved 000-255
15 Control
000-076 Reserved
077-127 Reset(Stop for 2S)
128-255 Reserved
16 Lamp Control
000-024 Reserved
025-099 Lamp off(for 2S)
100-255 Lamp on(for 2S)
Remarks:
1. For the use of Prism, Frost Filter and CT Filter, Prism, Frost Filter and CT filter are 1st, 2nd and 3rd respectively in priority
sequence.

16/22
INDICATION OF LED DIGITAL TUBE
Decimal point of the first digital tube On DMX signal OK
Off No DMX signal
Decimal point of the third digital tube On Master / slave signal is OK
Off No master / slave signal
Decimal point of the fourth digital tube On When setting master mode
Off When setting slave mode
Parameters that LED digital tubes display Flash Parameters not saved, press “ENTER” to save them
MAINTENANCE
If the projector’s lens becomes damaged or broken it should be replaced. If the lamp becomes damaged or deformed in any way it
must be replaced. If the light from the lamp appears dim this would normally indicate that it is reaching the end of its life and it should
be changed at once, aged lamps run to the extremity of their life might explode. If the projector does not function, check the fuses on
the power socket of the projector, they should only be replaced by fuses of the same specification. Should these be damaged call a
qualified technician before replacement. The projector has thermal protection device that will switch off the projector in case of
overheating, should either of these operate, check that the fans are not blocked, and if they are dirty clean them before switching on the
projector again. Check that the fans are operational, if not call a qualified technician.
Any maintenance work should only be carried out by qualified technicians.
LUBRICATION
To ensure the continuous rotation of the rotating gobos and linear motion of the lens for focusing, it is recommended that the bearings
for the rotating gobos and the 2 shafts for the focusing lens holder be lubricated periodically, preferably every two months. Use only
high quality, high-temperature resistant grease instead of any type of oil. When lubricating the bearings, a syringe with a fine needle is
the easiest way to introduce the grease to the bearings around each gobo.
KEEPING THE PROJECTOR CLEAN
To ensure the reliability of the projector it should be kept clean. It is recommended that the fans should be cleaned every 15 days. The
lens and dichroic colour filters should also be regularly cleaned to maintain an optimum light output. Do NOT use any type of
solvent on dichroic colour filters.
Cleaning frequency depends on the environment in which the fixture operates: damp, smoke or particularly dirty surroundings can
cause greater accumulation of dirt on the unit’s optics. A soft cloth and typical glass cleaning products should be used in cleaning. It is
recommended to clean the external optics at least once every 20 days and clean the internal optics at least once every 30 / 60 days.
Do not use any organic solvent, e.g. alcohol, to clean the reflector mirror, dichroic colour filters or housing of the apparatus.

17/22
TROUBLESHOOTING
PROBLEM ACTION
The projector doesn’t switch on
¾Check the fuse on the power socket.
¾Replace the lamp.
The lamp comes on but the projector doesn’t
respond to the controller
¾Make sure that the fixture’s start address is right
¾Replace or repair the XLR singal cable.
The projector only functions intermittently ¾Make sure the fan is working well or fans and their filters not blocked
Defective projection
¾Make sure the lamp is within its life limit
¾Remove dust or grease from the lenses.
The project image appears to have a halo
¾Make sure the lamp is installed correctly.
¾Carefully clean the optical group lenses and the projector components.
The beam appears dim
¾Check the optics is clean or the lens in good condition(not cracked)
¾Replace with a new lamp of the specified type and rating.

18/22
TECHNICAL DATA
VOLTAGES:
100V/200V/220V/230V/240V AC，50/60Hz
POWER CONSUMPTION:
310W@220V
LAMP:
Osram SIRIUS HRI 230W
Colour Temperature 8000°K
Manufacturers Rated Lamp Life 2000Hours
COLORS:
1 Color Wheel
14 dichroic colour filters plus white
variable speed and bi-directional rainbow effect
linear colour changing is available
GOBOS:
1 Fixed gobo wheel :
17 interchangeable gobos+ white
Shaking and bi-directional wheel scrolling at variable speeds
Gobo changing is available
EFFECTWHEEL
8-facet rotating Prism(bi-directional with variable speeds)+CT filter+ Frost Filter + White
FOCUSING
0-100% linearly adjustable by Dmx
STROBE:
Double shutter blades, 0.3~20 F.P.S
HEAD MOVEMENT:
Pan 540º, Tilt 270º with auto position correction
BEAMANGLE
0°～4°, Linear zoom
CONTROL:
DMX512, 3 pin and 5 pin interfaces

19/22
10 channels in short mode, 14channels in standard mode, 16modes in Extended Mode
Self-test mode
OTHER FUNCTIONS:
Adjustable Pan & Tilt speed
Fixture and lamp usage time display
HOUSING:
Composite plastic, IP20
WEIGHT:
16Kg
SIZES:
LIGHTOUTPUT
(lux) 0 1097600 274400 121956 68600 43904 30489
4.00
DISTANCE（m) 0 5m 10m 15m 20m 25m 30m
DIAMETER(m) 0 0.35 0.71 1.06 1.41 1.77 2.12
7m
3m
3m
1m
1m
0m
2m
4m
2m
4m
7m
6m 5m
6m 5m

1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
D D
C C B B
A A

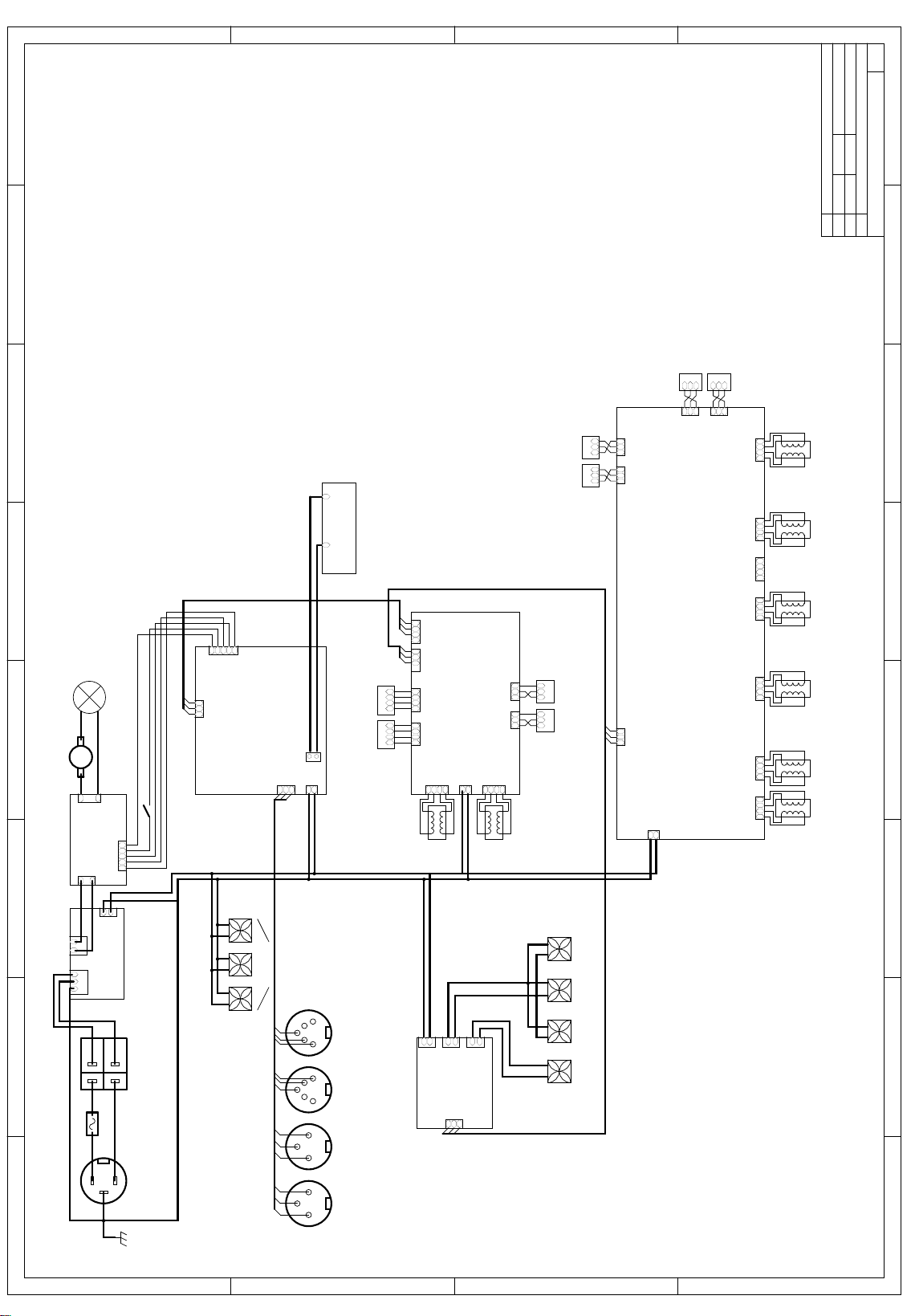

Title
DESIGN
FILE
A 2
PR-2205 PR-2205 .SCH
VER :1.0.0
PR
CHANGE DATA: 2014/05/11 PRINT DATA: 2014/05/11
NO
page 1 of 1
NL
E
X1-1 X1-3
X3-4 X3-1
1
2
3
4
5
Lamp Driver
X1 X3 + -
N
L
+
-
G
-
+
Power Supply
24V
AC-IN
Lamp
B-
A+
RXD
GND
VDD
Flag
SCI
A+ B- GND - +
VDD
Master Control Display
DMXIN POWER
DMXOUT
LAMP1
2 1
3
Male 3XRL
1 2
3
Female 3XRL
1
2
3
Male 5XRL Female 5XRL
4
5 5
4
3
2
1
4 3 2 1 GND +24V 4 3 2 1
Y2
VLED
GND
VLED
X2
X1
GND
Y1
+5V
B
GND
B
GND
A
GND
S
V
GND
S
V
A
X-Y Motor Driver
MY MX POWER
HY HX
SY SX DMXOUT DMXIN
Tilt
Motor
Pan
Motor
V
G
S
Tilt
Hall Sensor
V
G
S
Pan Hall Sensor
S2
S1
G
V
Tilt
Optic Coupling
S2
S1
G
V
Pan Optic Coupling
1
2
3
4
A+
B-
GND
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
+ -
GND
S
+5V
GND
S
+5V
GND
S
+5V
GND
S
+5V
Motor Driver
M10 M9 M7 M5 M4 M3 M1
POWER
IN
Shutter
Two-Motor
Fix-Gobo Motor
Colour Motor
Effect Motor
Zoom Two-Motor
R-Prism Motor
V G S
Colour Hall Sensor
V G S
Fix-Gobo Hall Sensor
V
G
S
Zoom Hall Sensor
V
G
S
Effect
Hall Sensor
S7 S6
S3 S2
Base Fan
Temperature Switch
Housing Power Interface
6.3A250V
Fuse
Switch
BATTERY
V+ V-
V+
V-
BATTERY
V+
V -
+
-
+
-
V - V - V -
Fan Control Board
FAN2 FAN1
DMXIN
380VDC
+-
