TLV VB3 User manual

172-65471MA-06 (VB3/VB3-H) 1 October 2021
Vacuum Breaker
VB3/VB3-H
Copyright © 2021 by TLV CO., LTD.
All rights reserved

172-65471MA-06 (VB3/VB3-H) 1 Oct 2021
1
Contents
Introduction ....................................................................... 1
Safety Considerations....................................................... 2
Features............................................................................ 4
Operation .......................................................................... 4
Specifications.................................................................... 5
Configuration..................................................................... 5
Installation......................................................................... 6
Maintenance...................................................................... 8

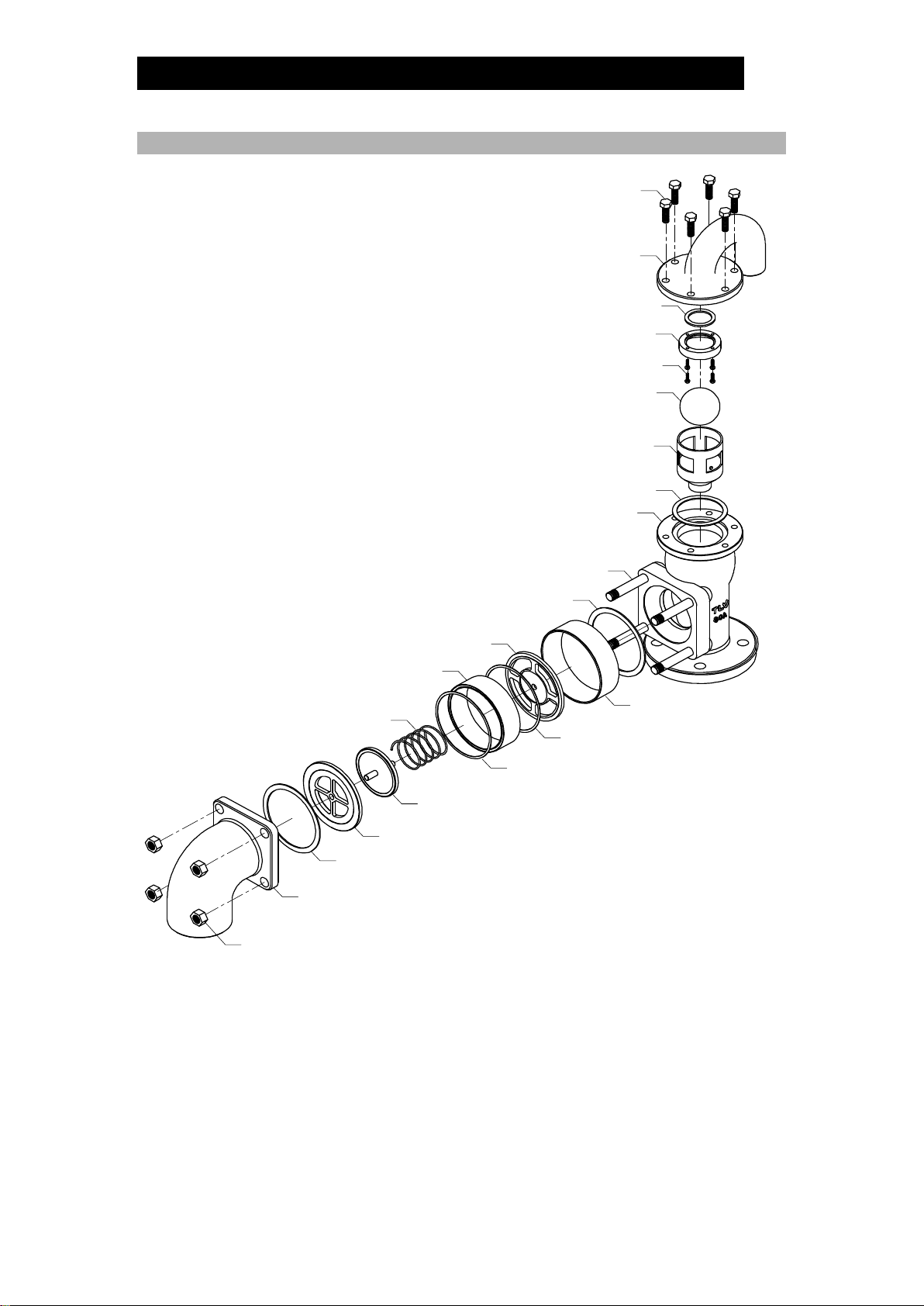

Disassembly/Reassembly................................................. 9
Troubleshooting .............................................................. 12
TLV EXPRESS LIMITED WARRANTY........................... 13
Service ............................................................................ 15
Introduction
Thank you for purchasing the TLV VB3/VB3-H vacuum breaker.
This product has been thoroughly inspected before being shipped from the factory.
When the product is delivered, before doing anything else, check the specifications
and external appearance to make sure nothing is out of the ordinary. Also be sure to
read this manual carefully before use and follow the instructions to be sure of using
the product properly.
The VB3/VB3-H vacuum breaker automatically opens both of its valves to introduce
air when a vacuum begins to form due to a stopped supply pump, protecting piping
and other equipment by preventing a vacuum from forming. On startup, the float of
the VB3/VB3-H allows for rapid air discharge until the water level rises and the float
shuts off the valve.
If detailed instructions for special order specifications or options not contained in this
manual are required, please contact TLV for full details.
This instruction manual is intended for use with the model(s) listed on the front cover.
It is necessary not only for installation but for subsequent maintenance, disassembly/
reassembly and troubleshooting. Please keep it in a safe place for future reference.

172-65471MA-06 (VB3/VB3-H) 1 Oct 2021
2
Safety Considerations
Read this section carefully before use and be sure to follow the instructions.
Installation, inspection, maintenance, repairs, disassembly, adjustment and valve
opening/closing should be carried out only by trained maintenance personnel.
The precautions listed in this manual are designed to ensure safety and prevent
equipment damage and personal injury. For situations that may occur as a result
of erroneous handling, three different types of cautionary items are used to
indicate the degree of urgency and the scale of potential damage and danger:
DANGER, WARNING and CAUTION.
The three types of cautionary items above are very important for safety: be sure
to observe all of them as they relate to installation, use, maintenance, and repair.
Furthermore, TLV accepts no responsibility for any accidents or damage
occurring as a result of failure to observe these precautions.
Symbols
Indicates a DANGER, WARNING or CAUTION item.
DANGER
Indicates an urgent situation which poses a threat of death or
serious injury
WARNING
Indicates that there is a potential threat of death or serious injury
CAUTION
Indicates that there is a possibility of injury or equipment/product
damage
WARNING
DO NOT use for toxic, flammable or otherwise hazardous
fluids.
This product is a vacuum breaker for water piping systems. Use
only for water and/or air. This product is for intended use only.
Improper use may result in such hazards as damage to the product
or malfunctions that may lead to serious accidents.
NEVER apply direct heat to the float.
The float may explode due to increased internal pressure, causing
accidents leading to serious injury or damage to property and
equipment.
CAUTION
Install properly and DO NOT use this product outside the
recommended operating pressure, temperature and other
specification ranges.
Improper use may result in such hazards as damage to the product
or malfunctions that may lead to serious accidents. Local
regulations may restrict the use of this product to below the
conditions quoted.
Use hoisting equipment for heavy objects (weighing
approximately 20 kg (44 lb) or more).
Failure to do so may result in back strain or other injury if the
object should fall.
Continued on the next page

172-65471MA-06 (VB3/VB3-H) 1 Oct 2021
3
CAUTION
Take measures to prevent people from coming into direct
contact with product outlets.
Failure to do so may result in burns or other injury from the
discharge of fluids.
When disassembling or removing the product, wait until the
internal pressure equals atmospheric pressure and the
surface of the product has cooled to room temperature.
Disassembling or removing the product when it is hot or under
pressure may lead to discharge of fluids, causing burns, other
injuries or damage.
Be sure to use only the recommended components when
repairing the product, and NEVER attempt to modify the
product in any way.
Failure to observe these precautions may result in damage to the
product and burns or other injury due to malfunction or the
discharge of fluids.
Do not use excessive force when connecting threaded pipes
to the product.
Over-tightening may cause breakage leading to fluid discharge,
which may cause burns or other injury.
Use only under conditions in which no freeze-up will occur.
Freezing may damage the product, leading to fluid discharge, which
may cause burns or other injury.
Use only under conditions in which no water hammer will
occur.
The impact of water hammer may damage the product, leading to
fluid discharge, which may cause burns or other injury.

172-65471MA-06 (VB3/VB3-H) 1 Oct 2021
4
Features
1. The product has no hinges or levers: the only moving parts are the check valve
disc and the self-leveling grounded free float, which minimize malfunction and
provides long service life.
2. The product is made up of few parts and the construction has been kept simple,
so maintenance checks are also simple.

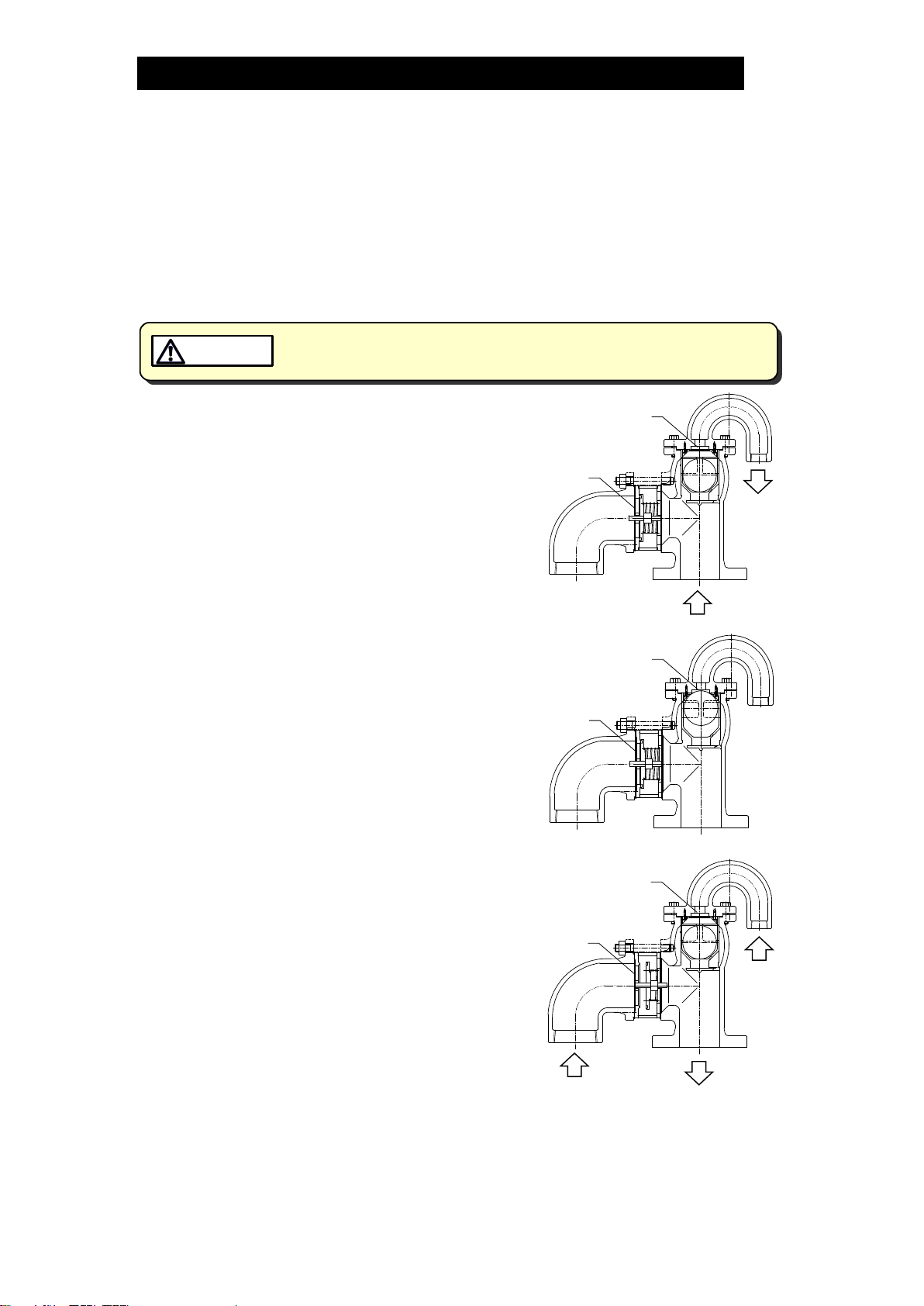

Operation
Take measures to prevent people from coming into direct contact with
product outlets. Failure to do so may result in burns or other injury from
the discharge of fluids.
CAUTION
1. The product also functions as a rapid initial air
vent. As water is initially supplied to the piping,
the air in the piping enters the vacuum
breaker. As the float is in the lowered position
at this time, valve “A” is open fully, and the air
entering the vacuum breaker is rapidly
discharged. At this time check valve disc “B”at
the check valve stays closed.
A
B
2. When the last of the initial air is discharged,
water enters the product, causing the float to
rise, closing valve “A”. If there is a rapid rise in
water level, a small amount of water may leak
with discharged air immediately before valve
“A”closes.
3. Once valve “A” has closed, it remains closed
even if air accumulates inside the vacuum
breaker, so there is no discharge of air during
operation.
Check valve disc “B”remains closed.
A
B
4. When stopping the supply pump and draining
the piping, the pressure inside the piping
becomes near to or less than atmospheric
pressure, and the float falls with the water level
in the vacuum breaker opening valve “A”and
introducing air.
At the same time, check valve disc “B”opens
and introduces air into the piping, which
prevents a vacuum from forming and protects
the piping and other equipment.
A
B

172-65471MA-06 (VB3/VB3-H) 1 Oct 2021
5

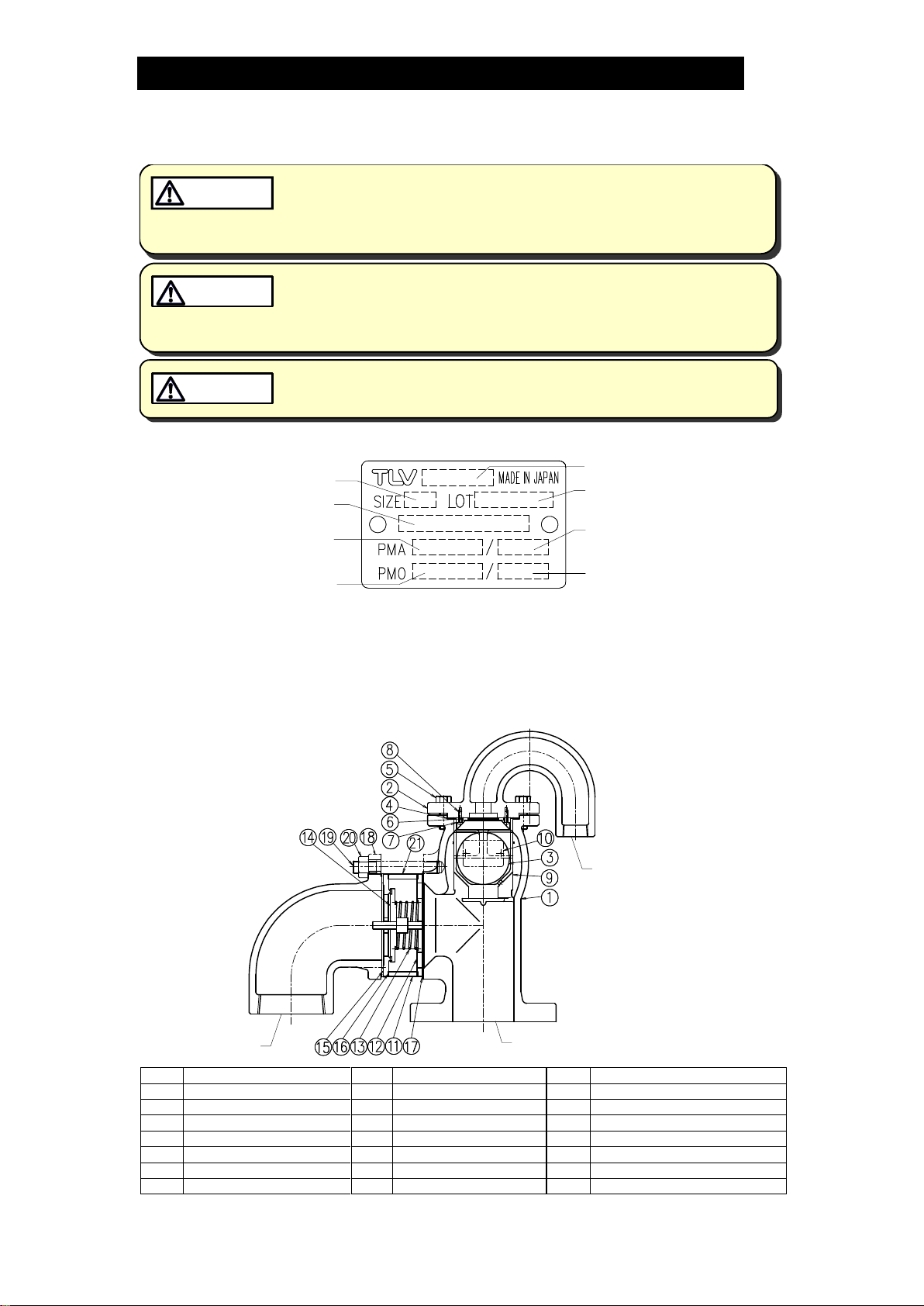

Specifications
DO NOT use for toxic, flammable or otherwise hazardous fluids.
This product is a vacuum breaker for water piping systems. Use only for
water and/or air. This product is for intended use only. Improper use may
result in such hazards as damage to the product or malfunctions that
may lead to serious accidents.
WARNING
Install properly and DO NOT use this product outside the recommended
operating pressure, temperature and other specification ranges.
Improper use may result in such hazards as damage to the product or
malfunctions which may lead to serious accidents. Local regulations
may restrict the use of this product to below the conditions quoted.
CAUTION
Use only under conditions in which no freeze-up will occur. Freezing
may damage the product, leading to fluid discharge, which may cause
burns or other injury.
CAUTION
Refer to the product nameplate for detailed specifications.
Model
Production Lot No.
Maximum Allowable
Temperature (TMA)*
Maximum Operating
Temperature (TMO)
Nominal Diameter
Maximum Allowable
Pressure*
Maximum Operating
Pressure
Valve No.**
* Maximum allowable pressure (PMA) and maximum allowable temperature (TMA) are
PRESSURE SHELL DESIGN CONDITIONS, NOT OPERATING CONDITIONS.
** Valve No. is displayed for products with options. This item is omitted from the nameplate
when there are no options.
Configuration
Air Intake/Discharge Port
Air Intake Port Main Connection
No.
Part Name
No.
Part Name
No.
Part Name
1
Body
8
Set Screw
15
Check Valve Seat
2
Cover
9
Float Guide
16
Check Valve Inner Gasket
3
Float
10
Nameplate
17
Check Valve Outer Gasket
4
Cover Gasket
11
Check Valve Body
18
Intake Pipe
5
Cover Bolt
12
Spring Holder
19
Intake Pipe Bolt
6
Valve Seat
13
Coil Spring
20
Intake Pipe Nut
7
Valve Seat Retainer
14
Check Valve Disc
21
Ring*
* Ring featured only in VB3-H, not in VB3.

172-65471MA-06 (VB3/VB3-H) 1 Oct 2021
6
Installation
DO NOT use for toxic, flammable or otherwise hazardous fluids.
This product is a vacuum breaker for water piping systems. Use only for
water and/or air. This product is for intended use only. Improper use may
result in such hazards as damage to the product or malfunctions that
may lead to serious accidents.
WARNING
Install properly and DO NOT use this product outside the recommended
operating pressure, temperature and other specification ranges.
Improper use may result in such hazards as damage to the product or
malfunctions which may lead to serious accidents. Local regulations
may restrict the use of this product to below the conditions quoted.
CAUTION
Use hoisting equipment for heavy objects (weighing approximately
20 kg (44 lb) or more). Failure to do so may result in back strain or other
injury if the object should fall.
CAUTION
Take measures to prevent people from coming into direct contact with
product outlets. Failure to do so may result in burns or other injury from
the discharge of fluids.
CAUTION
Do not use excessive force when connecting threaded pipes to the
product. Over-tightening may cause breakage leading to fluid
discharge, which may cause burns or other injury.
CAUTION
Installation, inspection, maintenance, repairs, disassembly, adjustment and valve
opening/closing should be carried out only by trained maintenance personnel.
1. Before installation, be sure to remove all protective seals.
2. Before installing the product, blow out the piping connected to the main
connection to remove any piping scraps, dirt, sand or oil, etc.
3. Install the product at a point where air is likely to collect such as a bend in the
piping.
4. This product must be installed vertically with the main connection at the bottom,
and both the air intake/discharge port and air intake port must face downwards.
Also it should be inclined horizontally and front-to-back within the limits shown in
Figure 1.
5. Install piping on both the air intake/discharge port and air intake port leading to a
drainage vessel or ditch. Make sure the ends of the pipes connected to the air
intake port and air intake/discharge port are above the waterline, so that dirt and
water cannot be sucked up by a vacuum when the system shuts down (Figure 2).
Figure 1
Figure 2
Tolerance angles for installation: 5°
Safe installation for air intake/discharge
port and air intake port
Make sure the product is installed with the
raised TLV lettering on the body horizontal
Make sure the end
of pipe is above
the waterline

172-65471MA-06 (VB3/VB3-H) 1 Oct 2021
7
6. For the piping connected to the main connection, piping with no horizontal
portion is recommended for water/air displacement. If there is a horizontal
portion, make the pipe diameter of the horizontal portion larger than the vertical
portion or make the horizontal portion as short as possible.
7. Make sure the main connection piping diameter is at least as large as the
diameter of the main connection.
8. Installation of an isolation valve just before the product’s main connection is
recommended as it enables maintenance during operation. A full-bore ball
valve is recommended.
9. Make sure to take measures to prevent foreign matter from flowing into the
product.
10. This product does not vent air automatically while the supply pump is in
operation. If air venting is necessary during system operation, install an
automatic air vent as well.
If there is a problem, determine the cause using the “Troubleshooting” section in
this manual.

172-65471MA-06 (VB3/VB3-H) 1 Oct 2021
8
Maintenance
Take measures to prevent people from coming into direct contact with
product outlets. Failure to do so may result in burns or other injury from
the discharge of fluids.
CAUTION
Be sure to use only the recommended components when repairing the
product, and NEVER attempt to modify the product in any way. Failure to
observe these precautions may result in damage to the product or burns
or other injury due to malfunction or the discharge of fluids.
CAUTION
Operational Check
A visual inspection of the following items should be done on a daily basis to
determine whether the product is operating properly or has failed.
If the product should fail, it may cause water leakage, hindrance to water flow, or
damage to equipment and piping as a result of vacuum formation.
Normal:
When air flows into the product initially, the air intake/discharge port
opens and the air is discharged.
When water flows into the product, the air intake/discharge port
closes, and no water leaks from either the air intake/discharge port or
the air intake port. When there is a vacuum in the piping, the air
intake/discharge port and air intake port open and air enters the
product.
Leakage:
Water is leaking from the air intake/discharge port or the air intake
port when the ports are in the closed position.
Parts Inspection
When parts have been removed, or during periodic inspections, use the following
table to inspect the parts and replace any that are found to be defective.
Procedure
Gaskets:
Check for warping and damage
Valve Seats:
Check for damage, scratches, or wear on sealing surface
Float:
Check for scratches or dents
Float Guide:
Check for warping
Check Valve Disc:
Check for scratches, dents, or wear
Coil Spring:
Check for scratches, dents, or cracks
Spring Holder:
Check for warping, scratches, or wear

172-65471MA-06 (VB3/VB3-H) 1 Oct 2021
9
Disassembly/Reassembly
NEVER apply direct heat to the float. The float may explode due to
increased internal pressure, causing accidents leading to serious injury
or damage to property and equipment.
WARNING
Use hoisting equipment for heavy objects (weighing approximately
20 kg (44 lb) or more). Failure to do so may result in back strain or other
injury if the object should fall.
CAUTION
When disassembling or removing the product, wait until the internal
pressure equals atmospheric pressure and the surface of the product
has cooled to room temperature. Disassembling or removing the
product when it is hot or under pressure may lead to discharge of fluids,
causing burns, other injuries or damage.
CAUTION
Be sure to use only the recommended components when repairing the
product, and NEVER attempt to modify the product in any way. Failure to
observe these precautions may result in damage to the product or burns
or other injury due to malfunction or the discharge of fluids.
CAUTION
Use the following procedures to remove components. Use the same procedures in
reverse to reassemble.
(Installation, inspection, maintenance, repairs, disassembly, adjustment and valve
opening/closing should be carried out only by trained maintenance personnel.)
Dissassembly/Reassembly Procedure
Part
During Disassembly
During Reassembly
Cover Bolt
Remove with a socket wrench
Consult the table of tightening
torques and tighten to the proper
torque
Cover
Remove by lifting up and off
Make sure there are no pieces of
the old gasket left on the sealing
surfaces and reattach
Cover Gasket
(rubber)
Remove the gasket and clean
sealing surfaces
Replace with a new gasket
Valve Seat Retainer
Loosen set screws and remove
from the cover
Consult the table of tightening
torques for the set screws and
tighten to the proper torque
Valve Seat
Remove from the cover together
with the valve seat retainer
Clean or replace with a new valve
seat if warped or damaged
Float
Remove, being careful not to
scratch the polished surface
Insert, being careful not to scratch
the polished surface
Float Guide
Remove, being careful not to
misshape
Insert, being careful not to
misshape
Intake Pipe Nut
Remove with a wrench
Consult the table of tightening
torques and tighten to the proper
torque
Intake Pipe
Pull out to remove (Be careful, the
check valve sets can be removed
together; do not drop any parts)
Make sure there are no pieces of
the old gasket left on the sealing
surfaces and reattach
Continued on the next page

172-65471MA-06 (VB3/VB3-H) 1 Oct 2021
10
Part
During Disassembly
During Reassembly
Check Valve Body
Remove along with intake pipe,
check valve inner/outer gaskets,
check valve seat, check valve
disc, coil spring, spring holder
and ring*
Make a set with check valve
inner/outer gaskets, check valve
seat, check valve disc coil spring,
spring holder and ring*, and
carefully set in the proper direction
Check Valve Outer
Gasket
(VB3: rubber/2 pcs)
(VB3-H: graphite/2 pcs)
(for check valve and
spring holder)
Remove gaskets and clean
sealing surfaces
Replace with new check valve
outer gaskets and place each in
the proper position
Check Valve Inner
Gaskets
(VB3: PTFE/2 pcs)
(VB3-H: graphite/2 pcs)
(for check valve body)
Do not remove unless damaged
Replace with new check valve
inner gaskets if damaged and
place each in the proper position
Check Valve Seat
Remove, being careful not to
scratch the sealing surface
Clean or replace with a new
check valve seat if sealing
surface is damaged and carefully
set the seat surface protrusion
facing rubber seat side of the
check valve disc
Check Valve Disc
Remove, being careful not to
scratch the inlaid rubber
While holding the coil spring on
the stem of the check valve disc,
face the rubber seat surface
against the check valve seat
Coil Spring
Remove, being careful not to
bend
Place it on the stem of the check
valve disc and fit it onto the
protrusion, the other side of the coil
spring will go into the depressed
side of the spring holder
Spring Holder
Remove, being careful not to
bend
Carefully set it in the proper
direction, the depressed side of
the spring holder will face to the
reverse side of the check valve
disc seating side
*Ring featured only in VB3-H, not in VB3.
Torque Tightening Table
Model
Intake Pipe Bolt
Intake Pipe Nut
Set Screw
Torque
Dist. Across
Flats
Torque
Dist. Across
Flats
Torque
Screw
Head
N۰m
(lbfft)
mm
(in)
N۰m
(lbfft)
mm
(in)
N۰m
(lbfft)
VB3
50
(37)
17
(21/32)
100
(73)
24
(15/16)
0.2
(0.15)
+
VB3-H
19
(3/4)
30
(13/16)
NOTE:
-Coat all threaded portions with anti-seize.
-If drawings or other special documentation were supplied for the
product, any torque given there takes precedence over values
shown here.
(1 Nm 10 kgcm)

172-65471MA-06 (VB3/VB3-H) 1 Oct 2021
11
Exploded View
Cover Bolt
Cover
Valve Seat
Valve Seat Retainer
Set Screw
Float
Float Guide
Cover Gasket
Body
Intake Pipe Bolt
Check Valve Body
Coil Spring Ring*
Check Valve Outer Gasket
Spring Holder
Check Valve Inner Gasket
Check Valve Inner Gasket
Check Valve Disc
Check Valve Outer Gasket
Check Valve Seat
Intake Pipe
Intake Pipe Nut
*Ring featured only in VB3-H, not in VB3.

172-65471MA-06 (VB3/VB3-H) 1 Oct 2021
12
Troubleshooting
NEVER apply direct heat to the float. The float may explode due to
increased internal pressure, causing accidents leading to serious injury
or damage to property and equipment.
WARNING
When disassembling or removing the product, wait until the internal
pressure equals atmospheric pressure and the surface of the product
has cooled to room temperature. Disassembling or removing the
product when it is hot or under pressure may lead to discharge of fluids,
causing burns, other injuries or damage.
CAUTION
When the product fails to operate properly, use the following table to locate the
cause and remedy.
Problem
Cause
Remedy
Air is leaking from places
other than the air
intake/discharge port or
the air intake port
Gaskets are warped or damaged
Replace with new gaskets
Improper tightening torques were
used (Cover bolts or intake pipe
nuts are loose)
Tighten to the proper torque
No air is discharged
(blocked)* or discharge
is poor
The trapped air cannot displace the
water in the piping
Correct the main connection
piping
The valve seat is clogged with dirt
or foreign matter
Clean or replace with a new
valve seat
The main connection piping, air
intake/discharge port piping or air
intake port piping is clogged
Clean the piping
Abnormal flow sounds
during normal operation
The check valve disc is catching
due to wear, dirt, rust, etc.
Clean or replace with a new
valve seat/check valve seat
There is a build-up of rust or scale
on the valve seat or the valve seat
is damaged
Clean or replace with a new
valve seat
Coil spring is dislodged or broken
Replace with a new coil spring
Water leaks when the
valve seat or check valve
seat are closed
The float is misshapen, dirty or has
a film build-up
Clean or replace with a new
float
The check valve disc is catching
due to wear, dirt, rust, etc.
Clean or replace with new
parts related to this
phenomenon
There is a build-up of rust or scale
on the valve seat/check valve seat
or the valve seat/check valve seat is
damaged
Clean or replace with a new
valve seat/check valve seat
The installation angle of inclination
is incorrect
Correct the installation
The valve seat or check
valve seat does not
close and water is
blowing
The float is damaged or filled with
water
Replace with a new float
The check valve disc is catching
due to wear, dirt, rust, etc.
Clean or replace with a new
check valve disc
There is a build-up of rust or scale
on the valve seat/check valve seat
or the valve seat/check valve seat is
damaged
Clean or replace with a new
valve seat/check valve seat
*NOTE: Once the air intake/discharge port closes, it will remain closed until internal pressure
drops to near or below atmospheric pressure. This condition may be confused with a
malfunction (blocked). If air is expected to accumulate in the piping during operation,
use together with an automatic air vent.

172-65471MA-06 (VB3/VB3-H) 1 Oct 2021
13
TLV EXPRESS LIMITED WARRANTY
Subject to the limitations set forth below, TLV CO., LTD., a Japanese corporation
(“TLV”), warrants that products which are sold by it, TLV International Inc. (“TII”) or one of
its group companies excluding TLV Corporation (a corporation of the United States of
America), (hereinafter the “Products”) are designed and manufactured by TLV, conform
to the specifications published by TLV for the corresponding part numbers (the
“Specifications”) and are free from defective workmanship and materials. The party
from whom the Products were purchased shall be known hereinafter as the “Seller”. With
regard to products or components manufactured by unrelated third parties (the
“Components”), TLV provides no warranty other than the warranty from the third party
manufacturer(s), if any.
Exceptions to Warranty
This warranty does not cover defects or failures caused by:
1. improper shipping, installation, use, handling, etc., by persons other than TLV,
TII or TLV group company personnel, or service representatives authorized by
TLV; or
2. dirt, scale or rust, etc.; or
3. improper disassembly and reassembly, or inadequate inspection and
maintenance by persons other than TLV or TLV group company personnel, or
service representatives authorized by TLV; or
4. disasters or forces of nature or Acts of God; or
5. abuse, abnormal use, accidents or any other cause beyond the control of TLV,
TII or TLV group companies; or
6. improper storage, maintenance or repair; or
7. operation of the Products not in accordance with instructions issued with the
Products or with accepted industry practices; or
8. use for a purpose or in a manner for which the Products were not intended; or
9. use of the Products in a manner inconsistent with the Specifications; or
10. use of the Products with Hazardous Fluids (fluids other than steam, air, water,
nitrogen, carbon dioxide and inert gases (helium, neon, argon, krypton, xenon
and radon)); or
11. failure to follow the instructions contained in the TLV Instruction Manual for the
Product.
Duration of Warranty
This warranty is effective for a period of one (1) year after delivery of Products to the
first end user. Notwithstanding the foregoing, asserting a claim under this warranty
must be brought within three (3) years after the date of delivery to the initial buyer if
not sold initially to the first end user.
ANY IMPLIED WARRANTIES NOT NEGATED HEREBY WHICH MAY ARISE BY
OPERATION OF LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE AND ANY EXPRESS WARRANTIES NOT
NEGATED HEREBY, ARE GIVEN SOLELY TO THE INITIAL BUYER AND ARE LIMITED IN
DURATION TO ONE (1) YEAR FROM THE DATE OF SHIPMENT BY THE SELLER.
Exclusive Remedy
THE EXCLUSIVE REMEDY UNDER THIS WARRANTY, UNDER ANY EXPRESS WARRANTY
OR UNDER ANY IMPLIED WARRANTIES NOT NEGATED HEREBY (INCLUDING THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE), IS REPLACEMENT; PROVIDED: (a) THE CLAIMED DEFECT IS REPORTED TO
THE SELLER IN WRITING WITHIN THE WARRANTY PERIOD, INCLUDING A DETAILED

172-65471MA-06 (VB3/VB3-H) 1 Oct 2021
14
WRITTEN DESCRIPTION OF THE CLAIMED DEFECT AND HOW AND WHEN THE
CLAIMED DEFECTIVE PRODUCT WAS USED; AND (b) THE CLAIMED DEFECTIVE
PRODUCT AND A COPY OF THE PURCHASE INVOICE IS RETURNED TO THE SELLER,
FREIGHT AND TRANSPORTATION COSTS PREPAID, UNDER A RETURN MATERIAL
AUTHORIZATION AND TRACKING NUMBER ISSUED BY THE SELLER. ALL LABOR
COSTS, SHIPPING COSTS, AND TRANSPORTATION COSTS ASSOCIATED WITH THE
RETURN OR REPLACEMENT OF THE CLAIMED DEFECTIVE PRODUCT ARE SOLELY THE
RESPONSIBILITY OF BUYER OR THE FIRST END USER. THE SELLER RESERVES THE
RIGHT TO INSPECT ON THE FIRST END USER’S SITE ANY PRODUCTS CLAIMED TO BE
DEFECTIVE BEFORE ISSUING A RETURN MATERIAL AUTHORIZATION. SHOULD SUCH
INSPECTION REVEAL, IN THE SELLER’S REASONABLE DISCRETION, THAT THE
CLAIMED DEFECT IS NOT COVERED BY THIS WARRANTY, THE PARTY ASSERTING THIS
WARRANTY SHALL PAY THE SELLER FOR THE TIME AND EXPENSES RELATED TO
SUCH ON-SITE INSPECTION.
Exclusion of Consequential and Incidental Damages
IT IS SPECIFICALLY ACKNOWLEDGED THAT THIS WARRANTY, ANY OTHER EXPRESS
WARRANTY NOT NEGATED HEREBY, AND ANY IMPLIED WARRANTY NOT NEGATED
HEREBY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, DO NOT COVER, AND NEITHER TLV, TII NOR ITS TLV
GROUP COMPANIES WILL IN ANY EVENT BE LIABLE FOR, INCIDENTAL OR
CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO LOST PROFITS, THE
COST OF DISASSEMBLY AND SHIPMENT OF THE DEFECTIVE PRODUCT, INJURY TO
OTHER PROPERTY, DAMAGE TO BUYER’S OR THE FIRST END USER’S PRODUCT,
DAMAGE TO BUYER’S OR THE FIRST END USER’S PROCESSES, LOSS OF USE, OR
OTHER COMMERCIAL LOSSES. WHERE, DUE TO OPERATION OF LAW,
CONSEQUENTIAL AND INCIDENTAL DAMAGES UNDER THIS WARRANTY, UNDER ANY
OTHER EXPRESS WARRANTY NOT NEGATED HEREBY OR UNDER ANY IMPLIED
WARRANTY NOT NEGATED HEREBY (INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) CANNOT BE
EXCLUDED, SUCH DAMAGES ARE EXPRESSLY LIMITED IN AMOUNT TO THE PURCHASE
PRICE OF THE DEFECTIVE PRODUCT. THIS EXCLUSION OF CONSEQUENTIAL AND
INCIDENTAL DAMAGES, AND THE PROVISION OF THIS WARRANTY LIMITING REMEDIES
HEREUNDER TO REPLACEMENT, ARE INDEPENDENT PROVISIONS, AND ANY
DETERMINATION THAT THE LIMITATION OF REMEDIES FAILS OF ITS ESSENTIAL
PURPOSE OR ANY OTHER DETERMINATION THAT EITHER OF THE ABOVE REMEDIES IS
UNENFORCEABLE, SHALL NOT BE CONSTRUED TO MAKE THE OTHER PROVISIONS
UNENFORCEABLE.
Exclusion of Other Warranties
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
AND ALL OTHER WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
ARE EXPRESSLY DISCLAIMED.
Severability
Any provision of this warranty which is invalid, prohibited or unenforceable in any
jurisdiction shall, as to such jurisdiction, be ineffective to the extent of such invalidity,
prohibition or unenforceability without invalidating the remaining provisions hereof,
and any such invalidity, prohibition or unenforceability in any such jurisdiction shall
not invalidate or render unenforceable such provision in any other jurisdiction.

172-65471MA-06 (VB3/VB3-H) 1 Oct 2021
15
Service
For Service or Technical Assistance: Contact your TLV representative or your regional TLV
office.
In Europe:
Daimler-Benz-Straße 16-18, 74915 Waibstadt, Germany
Tel:
Fax:
[49]-(0)7263-9150-0
[49]-(0)7263-9150-50
Units 7 & 8, Furlong Business Park, Bishops Cleeve, Gloucestershire GL52
8TW, U.K.
Tel:
Fax:
[44]-(0)1242-227223
[44]-(0)1242-223077
Parc d’Ariane 2, bât. C, 290 rue Ferdinand Perrier, 69800 Saint Priest,
France
Tel:
Fax:
[33]–(0)4-72482222
[33]-(0)4-72482220
In North America:
13901 South Lakes Drive, Charlotte, NC 28273-6790, U.S.A.
Tel:
Fax:
[1]-704-597-9070
[1]-704-583-1610
In Mexico and Latin America:
Av. Jesús del Monte 39-B-1001, Col. Hda. de las Palmas, Huixquilucan,
Edo. de México, 52763, Mexico
Tel:
Fax:
[52]-55-5359-7949
[52]-55-5359-7585
In Oceania:
Unit 8, 137-145 Rooks Road, Nunawading, Victoria 3131, Australia
Tel:
Fax:
[61]-(0)3-9873 5610
[61]-(0)3-9873 5010
In East Asia:
36 Kaki Bukit Place, #02-01/02, Singapore 416214
Tel:
Fax:
[65]-6747 4600
[65]-6742 0345
Room 5406, No. 103 Cao Bao Road, Shanghai, China 200233
Tel:
Fax:
[86]-(0)21-6482-8622
[86]-(0)21-6482-8623
No.16, Jalan MJ14, Taman Industri Meranti Jaya, 47120 Puchong,
Selangor, Malaysia
Tel:
Fax:
[60]-3-8065-2928
[60]-3-8065-2923
252/94 (K-L) 17th Floor, Muang Thai-Phatra Complex Tower B,
Rachadaphisek Road, Huaykwang, Bangkok 10310, Thailand
Tel:
Fax:
[66]-2-693-3799
[66]-2-693-3979
#302-1 Bundang Technopark B, 723 Pangyo-ro, Bundang, Seongnam,
Gyeonggi, 13511, Korea
Tel:
Fax:
[82]-(0)31-726-2105
[82]-(0)31-726-2195
In the Middle East:
Building 2W, No.M002,PO Box371684,Dubai Airport FreeZone, Dubai,UAE
Email:
sales-m[email protected]
In Other Countries:
881 Nagasuna, Noguchi, Kakogawa, Hyogo 675-8511, Japan
Tel:
Fax:
[81]-(0)79-427-1818
[81]-(0)79-425-1167
Manufacturer:
881 Nagasuna, Noguchi, Kakogawa, Hyogo 675-8511, Japan
Tel:
Fax:
[81]-(0)79-422-1122
[81]-(0)79-422-0112
