TLV JX Series User manual

J3X / J5X
J7X
J7.2X / J7.5X / J8X
INSTRUCTION MANUAL
Keep this manual in a safe place for future reference
FREE FLOAT TYPE STEAM TRAPS
JX SERIES
Copyright (C) 2018 by TLV CO., LTD. All rights reserved.
881 Nagasuna, Noguchi, Kakogawa, Hyogo 675-8511, Japan
Manufacturer
Tel: [81]-(0)79-422-1122 Fax: [81]-(0)79-422-0112

Introduction
Before you begin, please read this manual to ensure correct usage of the product, and keep it in
a safe place for future reference.
The JX Series steam traps with thermostatic air vent (X-element) are suitable for a wide range of
applications up to 2.1 MPaG (300 psig), such as tracer lines, unit and process heaters, heating
coils, heat exchangers, etc. The traps discharge condensate continuously and automatically, at a
temperature slightly lower than saturation temperature.
1 MPa = 10.197 kg/cm2, 1 bar = 0.1 MPa
For products with special specifications or with options not included in this manual, contact TLV
for instructions.
The contents of this manual are subject to change without notice.
1. Safety Considerations
• Read this section carefully before use and be sure to follow the instructions.
• Installation, inspection, maintenance, repairs, disassembly, adjustment and valve
opening/closing should be carried out only by trained maintenance personnel.
• The precautions listed in this manual are designed to ensure safety and prevent equipment
damage and personal injury. For situations that may occur as a result of erroneous handling,
three different types of cautionary items are used to indicate the degree of urgency and the
scale of potential damage and danger: DANGER, WARNING and CAUTION.
• The three types of cautionary items above are very important for safety; be sure to observe
all of them, as they relate to installation, use, maintenance, and repair. Furthermore, TLV
accepts no responsibility for any accidents or damage occurring as a result of failure to
observe these precautions.
Indicates an urgent situation
which poses a threat of
death or serious injury.
Indicates that there is a
potential threat of death
or serious injury.
WARNING
CAUTION
WARNING
DANGER CAUTION
Indicates that there is a
possibility of injury or equip-
ment/product damage.
NEVER apply direct heat to the float. The float may explode due to
increased internal pressure, causing accidents leading to serious injury
or damage to property and equipment.
Install properly and DO NOT use this product outside the recommended
operating pressure, temperature and other specification ranges.
Improper use may result in such hazards as damage to the product or
malfunctions, which may lead to serious accidents. Local regulations may
restrict the use of this product to below the conditions quoted.
Take measures to prevent people from coming into direct contact
with product outlets. Failure to do so may result in burns or other injury
from the discharge of fluids.
Use hoisting equipment for heavy objects (weighing approximately
20 kg (44 lb) or more). Failure to do so may result in back strain or other
injury if the object should fall.
DO NOT use this product in excess of the maximum operating
pressure differential. Such use could make discharge impossible.
DO NOT subject this product to condensate loads that exceed its
dischargecapacity. Failure to observe this precaution may lead to
condensate accumulation upstream of the trap, resulting in reduced
equipment performance or damage to the equipment.
Continued on next page
1

CAUTION
When disassembling or removing the product, wait until the internal
pressure equals atmospheric pressure and the surface of the
product has cooled to room temperature. Disassembling or removing
the product when it is hot or under pressure may lead to discharge of
fluids, causing burns, other injuries or damage.
Be sure to use only the recommended components when repairing
the product, and NEVER attempt to modify the product in any way.
Failure to observe these precautions may result in damage to the product
or burns or other injury due to malfunction or the discharge of fluids.
Use only under conditions in which no freeze-up will occur. Freezing
may damage the product, leading to fluid discharge, which may cause
burns or other injury.
Use under conditions in which no water hammer will occur. The
impact of water hammer may damage the product, leading to fluid
discharge, which may cause burns or other injury.
Do not use excessive force when connecting threaded pipes to the
product. Overtightening may cause breakage leading to fluid discharge,
which may cause burns or other injury.
2. Specifications
To avoid malfunctions, product damage, accidents or serious injury, install
properly and DO NOT use this product outside the specification range. Local
regulations may restrict the use of this product to below the conditions quoted.
CAUTION
Refer to the product nameplate for detailed specifications.
* Maximum allowable pressure (PMA) and maximum allowable temperature (TMA) are
PRESSURE SHELL DESIGN CONDITIONS, NOT OPERATING CONDITIONS.
** "Valve No." is displayed for products with options. This item is omitted from the
nameplate when there are no options.
A Model
B Nominal Diameter
C Maximum Allowable Pressure*
D Maximum Allowable Temperature* TMA
E Maximum Differential Pressure
F Maximum Operating Temperature
G
Production Lot No.
H
Valve No.**
B
A
G
D
E
A
D
C
E
F
H
H
C
F
B
G
2

3. Configuration Aufbau Configuration
J3X / J5X
J7X / J7.5X / J8X
J7.2X
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
No.
Body
Cover
Cover Gasket
Float
Orifice
Orifice O-Ring
Orifice Holder Plug
Orifice Plug Gasket
Screen
Screen Holder
Screen Holder Retainer
Float Cover
Snap-Ring
X-element
X-element Guide
Spring Clip
X-element Cover
Snap-Ring
Drain Plug*
Drain Plug Gasket*
Air Vent Valve Seat
Connector
Cover Bolt
Plug
Plug Gasket
Flange** (JF5X: 20, 25 mm)
(JF5X: ,1 )
Pipe** (JF5X: 20, 25 mm)
(JF5X: ,1 )
Nameplate
Description
!2
@3 e
o
@0
!9
!6 w @5 @4 @1 @8 !5 !4
@2
y t i urq
@3 @8 e w !8!7!6 @4@1!5!4@2
yti urq
!0
!9
o
!1
!3
@3 @8e w !8!7!6 @4@1!5!4@2
o
!0
!9
qryti u
* Option for J3X, J5X ** See page 4
Note: All replacement parts are available only in their respective kits.
M = Maintenance Kit R = Repair Kit F = Float
4
3
/
””
4
3
/
””
J3X, J5X J7X, J7.2X,
J7.5X, J8X,
MR FMRF
3

4. Exploded View
J3X / J5X
J7X / J7.2X / J7.5X / J8X
* JF5X 20, 25 mm ( , ) only. JF5X 32 - 50 mm ( ) and all other models have cast-in flanges.
See also: Lock release
valve, page 9.
21 Air Vent Valve Seat
14 X-element
16 Spring Clip
17 X-element Cover
9 Screen
13 Snap-Ring
11 Screen Holder Retainer
10 Screen Holder
26* Flange
24 Plug
25 Plug Gasket
23 Cover Bolt
2 Cover
22 Connector
3 Cover Gasket
9 Screen
7 Orifice Holder Plug
8 Orifice Plug Gasket
5 Orifice
6 Orifice O-Ring
20 Drain Plug Gasket
19 Drain Plug
12 Float Cover
4 Float
15 X-element Guide
21
Air Vent Valve Seat
14 X-element
16 Spring Clip
1 Body
27* Pipe
18 Snap-Ring
4
3
/
1” 4
1
/
- 2””” 1
4

6. Piping Arrangement
Requirement
Install a catchpot with the
proper diameter. Diameter is too
small.
Diameter is too
small and inlet
protrudes into pipe.
Rust and scale
flow into the trap
with the
condensate.
Condensate
collects in the
pipe.
Make sure the flow of
condensate is not
obstructed.
To prevent rust and scale
from flowing into the trap,
connect the inlet pipe 25-
50 mm (1-2 in.) above
the base of the T - pipe.
When installing on the
blind end, make sure
nothing obstructs the flow
of condensate.
Correct Incorrect
5˚
5˚
5˚
5˚
5. Proper Installation
• Installation, inspection, maintenance, repairs, disassembly, adjustment
and valve opening/closing should be carried out only by trained
maintenance personnel.
• Take measures to prevent people from coming into direct contact with product outlets.
• Do not use excessive force when connecting threaded pipes.
• Install for use under conditions in which no freeze-up will occur.
• Install for use under conditions in which no water hammer will occur.
CAUTION
Allowable Inclination
1.
Before installation, be sure to remove all protective seals.
2. Before installing the trap, blow out the inlet piping to remove all dirt and oil.
3. When hoisting the product, hang the rope around the inlet/outlet as close to the body as
possible.
4. Install the steam trap within the allowable inclination, as shown below. Also make sure that
the arrow mark on the body corresponds with the direction of flow.
5.
Install the trap in the lowest part of the pipeline or equipment so the condensate flows naturally
into the trap by gravity. The inlet pipe should be as short and have as few bends as possible.
6. Support the pipes properly within 800 mm (2.5 ft) on either side of the trap.
7. Install a bypass valve to discharge condensate, and inlet and outlet valves to isolate the trap in
the event of trap failure or when performing maintenance.
8. Install a check valve at the trap outlet whenever more than one trap is connected to the
condensate collection pipeline.
9. The use of unions is recommended to facilitate connection and disconnection of screwed
models.
Continued on next page
5

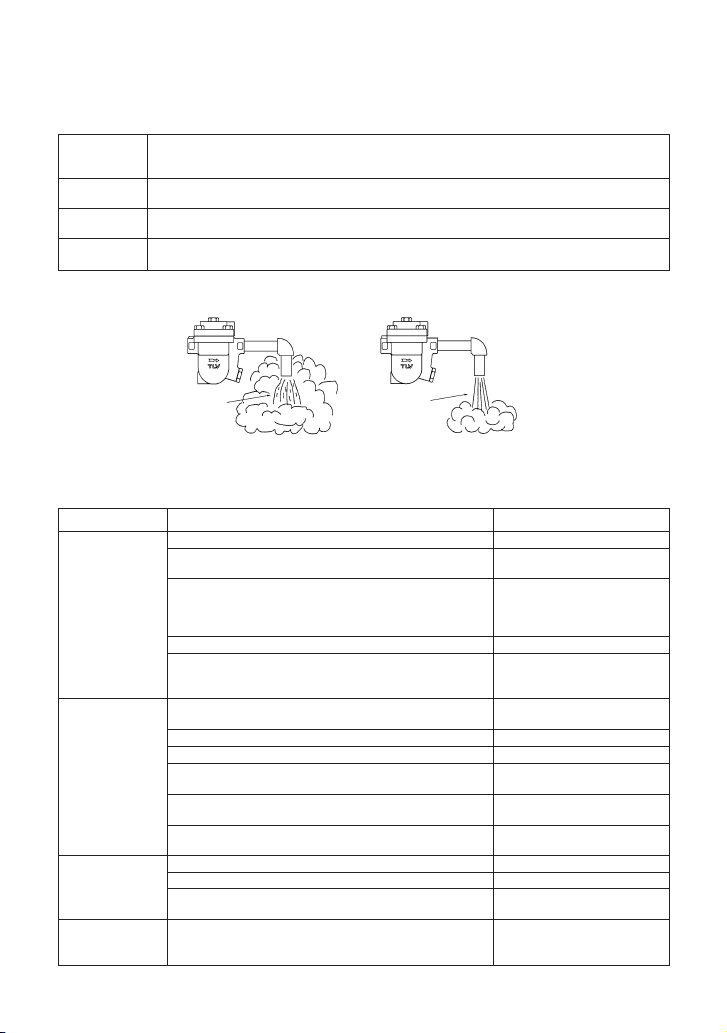

7. Inspection and Maintenance
1. Is the pipe diameter suitable?
2. Has the trap been installed within the allowable inclination and with the arrow on the body
pointing in the direction of flow?
3. Has sufficient space been secured for maintenance?
4. Have maintenance valves been installed at inlet and outlet? If the outlet is subject to back
pressure, has a check valve been installed?
5. Is the inlet pipe as short as possible, with as few bends as possible, and installed so that the
condensate will flow naturally down into the trap?
6. Has the piping work been done with the proper methods as shown in the table on page 5?
Check to make sure that the pipes connected to the trap have been installed properly.
Operational inspections should be performed at least twice per year, or as called for by trap
operating conditions. Steam trap failure may result in a temperature drop in the equipment, poor
product quality or losses due to steam leakage.
If drawings or other special documentation were supplied for the product, any torque given there
takes precedence over values shown here.
WARNING
NEVER apply direct heat to the float. The float may explode due to
increased internal pressure, causing accidents leading to serious injury or
property and equipment damage.
• Installation, inspection, maintenance, repairs, disassembly, adjustment
and valve opening/closing should be carried out only by trained
maintenance personnel.
• Before attempting to open the trap, close the inlet and outlet isolation valves and wait until the
trap has cooled completely. Failure to do so may result in burns.
• Be sure to use the proper components and NEVER attempt to modify the product.
CAUTION
Cover Bolt (23) Air Vent Valve
Seat (21)
Tightening Torque and Distance Across Flats
Model
J3X
J5X
J7X
J7.2X
J7.5X
J8X
N•m
(Ibf•ft)
N•m
(Ibf•ft)
N•m
(Ibf•ft)
N•m
(Ibf•ft)
N•m
(Ibf•ft)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
50
(37)
80
(59)
70
(51)
110
(81)
160
(115)
250
(185)
35
(26)
35
(26)
35
(26)
35
(26)
35
(26)
35
(26)
22
( )
8
7
( )
8
7
22
(1 )
4
1
32
19
( )
4
3
19
( )
4
3
19
( )
4
3
19
( )
4
3
19
( )
4
3
17
( )
32
21
( )
4
3
19
30
(22)
30
(22)
30*
(22)*
30*
(22)*
30*
(22)*
30*
(22)*
50
(37)
120
(88)
80
(59)
600
(440)
400
(290)
800
(590)
35
(26)
30*
(22)*
35
(26)
40*
(29)*
30*
(22)*
40*
(29)*
Plug (24) Drain Plug (19)
Orifice Holder
Plug (7)
24
( )
16
15
(1 )
4
1
(2 )
4
3
32
(1 )
13
36
70
(3 )
32
11
85
(4 )
8
1
105
21
( )
16
13
21
( )
16
13
12
( )
32
15
12
32
14
14
( )
16
9
24
( )
16
15
19
( )
4
3
19
( )
4
3
12
( )
32
15
12
( )
32
15
12
( )
32
15
12
( )
32
15
* Indicates torque values with a sealing tape wrapped 3 – 3.5 times around the threads of the plug or drain plug
Body, Cover
Gaskets
X-element
Screen
Float
Air Vent Valve Seat, Orifice
Check inside for damage, dirt, grease, oil film, rust or scale
Check for warping or damage
Check for damage
Check for clogging, corrosion or damage
Check for deformation, damage, oil film or water inside
Check for rust, scale, oil film, wear or damage
Parts Inspection Procedure
17
( )
32
21
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
( )
32
15
/
/
( )
16
9
/
1 N
・
m 〜
〜10 kg
・
cm
6

Figure A
Hole for
connector
During Disassembly During Reassembly
J3X
J5X
J7X
J7.5X
J8X
Part & No.
* Tighten to the proper torque (see table Tightening Torque and Distance Across Flats)
“ ” indicates which models contain which parts
X-element
Valve seat
Guide
Figure B Figure C Figure D
Arrow
Tab Flat surface facing
straight up
Condensate
discharge hole
Plug 24
Plug Gasket 25
Cover Bolt 23
Cover 2
Connector 22
Cover Gasket 3
Drain Plug 19
Drain Plug Gasket 20
Snap Ring 18
(X-element cover)
X-element Cover 17
Spring Clip 16
(X-element)
X-element 14
Air Vent Valve Seat 21
X-element Guide 15
Snap Ring 13 (Screen)
Screen 9 &
Float Cover 12
Screen 9
Screen Holder
Retainer 11
Screen Holder 10
Float 4
Orifice Holder Plug 7
Orifice Plug Gasket 8
Orifice 5
Orifice O-Ring 6
Remove only if necessary,
use a wrench to remove
Remove gasket only if
worn or damaged
Use a wrench to remove
Lift up the cover
Remove the connector
Remove gasket only if
worn or damaged
Remove gasket and
clean sealing surfaces
Use a wrench to remove
Remove and clean sealing
surfaces
Use appropriate pliers to
squeeze and remove
Lift up the cover
Squeeze the spring clip to
remove it from the guide
Remove from the
X-element guide
Use a wrench to remove
Remove without bending
Use appropriate pliers
Lift straight up
Lift straight up
Remove without bending
Remove, being careful not
to scratch its polished surface
Use a wrench to remove
Remove gasket only if
worn or damaged
Push out from inside the
body toward the plug
holder
Remove the rubber O-ring
and clean sealing surfaces
Wrap threads with sealing tape*
Coat threads with anti-seize*
Replace with a new gasket only
if worn or damaged
Coat threads with anti-seize*
Align the cover with the connector
to attach the cover (figure A)
Insert the connector
Replace with a new gasket only
if worn or damaged
Replace with a new gasket, do
not appy anti-seize
Wrap threads with sealing tape*
Coat threads with anti-seize*
Replace with a new gasket, coat
surfaces with anti-seize
Squeeze and insert securely into
the groove
The mesh should face the float
Squeeze the spring clip and insert
it into the X-element guide
Make sure the X-element is not
upside down (figure B)
Coat threads with anti-seize*
Make certain the X-element fits in
securely
Insert securely into groove
Align arrows and insert, insert tab
on bottom into guide on body and
push in until top is flush (figure C)
Place screen holder on ledge
inside body, round side up; place
screen holder retainer next (if
applicable), followed by screen
Insert into body, being careful not
to scratch its polished surface
Coat threads with anti-seize*
Replace with a new gasket only
if worn or damaged
With flat surface of the orifice
facing up, push from outside until
it contacts interior stop (figure D)
Replace with a new O-ring, coat
with heat-resistant grease
J7.2X
7

9. Troubleshooting
If the expected performance is unachievable after installation of the steam trap, read chapters 5
and 6 again and check the following points to take appropriate corrective measures.
For maintenance parts and repair parts see page 3
Flash Steam
White jet
containing
water droplets
Live Steam Leakage
Clear, slightly
bluish jet
8. Operational Check
Normal: Condensate is discharged continuously with flash steam and the sound of
flow can be heard. If there is very little condensate, there is almost no
sound of flow.
Blocked: No condensate is discharged. The trap is quiet and makes no noise,
and the surface temperature of the trap is low.
Blowing: Live steam continually flows from the outlet and there is a continuous
metallic sound.
Live steam is discharged through the trap outlet together with the
condensate and there is a high-pitched sound.
A visual inspection can be carried out to aid in determining the necessity for immediate
maintenance or repair, if the trap is open to atmosphere. If the trap does not discharge to
atmosphere, use diagnostic equipment such as TLV TrapMan or TLV Pocket TrapMan (within
its pressure and temperature measuring range).
(When conducting a visual inspection, flash steam is sometimes mistaken for steam leakage. For
this reason, the use of a steam trap diagnostic instrument such as TLV TrapMan is highly
recommended.)
Steam
Leakage:
Replace the float
Clean
Blowdown through the
bypass or close the trap
inlet valve and allow the
trap to cool
Replace the X-element
Compare specifications
and actual operating
conditions
Clean
Replace the orifice
Clean or replace the float
Correct the installation
Lengthen inlet piping, then
fasten it securely
Clean or replace the
X-element
Replace with new gaskets
Replace the trap
Tighten to the proper
torque
Examine the piping for
problems that can cause
water hammer
No condensate
is discharged
(blocked) or
discharge is
poor
Float is
frequently
damaged
Steam leaks
from a place
other than
the trap outlet
Steam is
discharged or
leaks from the
trap outlet
(blowing)
(steam leakage)
Float is damaged or filled with condensate
The trap operating pressure exceeds the maximum
specified pressure, or there is insufficient pressure
differential between the trap inlet and outlet
X-element is damaged
Steam-locking has occurred
Orifice, screen or piping is clogged with rust or
scale
Rust and scale have accumulated around the
orifice or under the float
Orifice is damaged
Float is deformed or coated with scale
Trap is installed above the maximum allowable
inclination angle
Vibration of trap occurs
The X-element is damaged, or clogged with rust
or scale
Deterioration of or damage to gaskets
Leakage from eroded cavities of body or cover
Improper tightening torque for cover was used
Water hammer occurs
Problem Cause Remedy
8

10. Lock Release Valve (Option for J(F)3X and J(F)5X)
Operation
When shipped from the factory, the element retainer is in its maximum position. Use a flat-head
screwdriver to adjust the amount of steam released. When not in use, the element retainer should
be returned to its maximum position. If steam should leak from the gland case or gland retainer, it
can be stopped by further tightening the gland retainer.
Inspection and Maintenance
Unscrew the gland retainer nut and the gland case and take off all parts. Check for dirt, oil and
damage. Replace damaged parts. Before reassembling replace the gland packing. Replace the
gasket only if necessary.
Gland Retainer Nut
Stamped 3 or 5
3 = J(F)3X
5 = J(F)5X
Distance across flats :
22 mm ( )
Torque:
30 N
・
m (22 lbf
・
ft)
1 N
・
m
Gland Packing
Gland Case
Gasket
Element Retainer
Spring Pin
8
7
/
Distance across flats :
19 mm ( )
4
3
/
10 kg
・
cm
”
”
9

11. Express Limited Warranty
Subject to the limitations set forth below, TLV Corporation, a North Carolina corporation (“TLV”)
warrants that products which are sold by it or TLV International, Inc., a Japanese corporation
(“TII”), which products (the “Products”) are designed and manufactured by TLV Co., Ltd., a
Japanese corporation (“TLVJ”), conform to the specifications published by TLV for the
corresponding part numbers (the “Specifications”) and are free from defective workmanship
and materials. With regard to products or components manufactured by unrelated third parties
(the “Components”), TLV provides no warranty other than the warranty from the third party
manufacturer(s).
Duration Of Warranty
This warranty is effective for a period of the earlier of: (i) three (3) years after delivery of Products
to the first end user in the case of sealed SST-Series Products for use in steam pressure service
up to 650 psig; (ii) two (2) years after delivery of Products to the first end user in the case of
PowerTrap®units; or (iii) one (1) year afterdelivery of Products to the first end user in the case of
all other Products. Notwithstanding the foregoing, asserting a claim under this warranty must be
brought by the earlier of one of the foregoing periods, as applicable, or within five (5) years after
the date of delivery to the initial buyer if not sold initially to the first end user.
ANY IMPLIED WARRANTIES NOT NEGATED HEREBY WHICH MAY ARISE BY OPERATION OF
LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE AND ANY EXPRESS WARRANTIES NOT NEGATED HEREBY, ARE
GIVEN SOLELY TO THE INITIAL BUYER AND ARE LIMITED IN DURATION TO ONE (1) YEAR
FROM THE DATE OF SHIPMENT BY TLV.
Exclusive Remedy
THE EXCLUSIVE REMEDY UNDER THIS WARRANTY, UNDER ANY EXPRESS WARRANTY OR
UNDER ANY IMPLIED WARRANTIES NOT NEGATED HEREBY (INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE), IS
REPLACEMENT; PROVIDED: (a) THE CLAIMED DEFECT IS REPORTED TO TLV IN WRITING
WITHIN THE APPLICABLE WARRANTY PERIOD, INCLUDING A DETAILED WRITTEN
DESCRIPTION OF THE CLAIMED DEFECT AND HOW AND WHEN THE CLAIMED DEFECTIVE
PRODUCT WAS USED; AND (b) THE CLAIMED DEFECTIVE PRODUCT AND A COPY OF THE
PURCHASE INVOICE IS RETURNED TO TLV, FREIGHT AND TRANSPORTATION COSTS
PREPAID, UNDER A RETURN MATERIAL AUTHORIZATION AND TRACKING NUMBER ISSUED
BY TLV. ALL LABOR COSTS, SHIPPING COSTS, AND TRANSPORTATION COSTS
ASSOCIATED WITH THE RETURN OR REPLACEMENT OF THE CLAIMED DEFECTIVE
PRODUCT ARE SOLELY THE RESPONSIBILITY OF BUYER OR THE FIRST END USER. TLV
RESERVES THE RIGHT TO INSPECT ON THE FIRST END USER'S SITE ANY PRODUCTS
Exceptions To Warranty
This warranty does not cover defects or failures caused by:
1. improper shipping, installation, use, handling, etc., by other than TLV or service
representatives authorized by TLV; or
2. dirt, scale or rust, etc.; or
3. improper disassembly and reassembly, or inadequate inspection and maintenance by other
than TLV or service representatives authorized by TLV; or
4. disasters or forces of nature; or
5. abuse, abnormal use, accidents or any other cause beyond the control of TLV; or
6. improper storage, maintenance or repair; or
7. operation of the Products not in accordance with instructions issued with the Products or
with accepted industry practices; or
8. use for a purpose or in a manner for which the Products were not intended; or
9. use of the Products in a manner inconsistent with the Specifications; or
10. failure to follow the instructions contained in the TLV Instruction Manual for the Product.
10

CLAIMED TO BE DEFECTIVE BEFORE ISSUING A RETURN MATERIAL AUTHORIZATION.
SHOULD SUCH INSPECTION REVEAL, IN TLV’S REASONABLE DISCRETION, THAT THE
CLAIMED DEFECT IS NOT COVERED BY THIS WARRANTY, THE PARTY ASSERTING THIS
WARRANTY SHALL PAY TLV FOR THE TIME AND EXPENSES RELATED TO SUCH ON-SITE
INSPECTION.
Exclusion Of Consequential And Incidental Damages
IT IS SPECIFICALLY ACKNOWLEDGED THAT THIS WARRANTY, ANY OTHER EXPRESS
WARRANTY NOT NEGATED HEREBY, AND ANY IMPLIED WARRANTY NOT NEGATED
HEREBY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, DO NOT COVER, AND NEITHER TLV, TII NOR TLVJ WILL IN
ANY EVENT BE LIABLE FOR, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING,
BUT NOT LIMITED TO LOST PROFITS, THE COST OF DISASSEMBLY AND SHIPMENT OF
THE DEFECTIVE PRODUCT, INJURY TO OTHER PROPERTY, DAMAGE TO BUYER’S OR THE
FIRST END USER’S PRODUCT, DAMAGE TO BUYER’S OR THE FIRST END USER’S
PROCESSES, LOSS OF USE, OR OTHER COMMERCIAL LOSSES. WHERE, DUE TO
OPERATION OF LAW, CONSEQUENTIAL AND INCIDENTAL DAMAGES UNDER THIS
WARRANTY, UNDER ANY OTHER EXPRESS WARRANTY NOT NEGATED HEREBY OR
UNDER ANY IMPLIED WARRANTY NOT NEGATED HEREBY (INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE)
CANNOT BE EXCLUDED, SUCH DAMAGES ARE EXPRESSLY LIMITED IN AMOUNT TO THE
PURCHASE PRICE OF THE DEFECTIVE PRODUCT. THIS EXCLUSION OF CONSEQUENTIAL
AND INCIDENTAL DAMAGES, AND THE PROVISION OF THIS WARRANTY LIMITING
REMEDIES HEREUNDER TO REPLACEMENT, ARE INDEPENDENT PROVISIONS, AND ANY
DETERMINATION THAT THE LIMITATION OF REMEDIES FAILS OF ITS ESSENTIAL
PURPOSE OR ANY OTHER DETERMINATION THAT EITHER OF THE ABOVE REMEDIES IS
UNENFORCEABLE, SHALL NOT BE CONSTRUED TO MAKE THE OTHER PROVISIONS
UNENFORCEABLE.
Exclusion Of Other Warranties
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND ALL
OTHER WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSLY
DISCLAIMED.
Severability
Any provision of this warranty which is invalid, prohibited or unenforceable in any jurisdiction
shall, as to such jurisdiction, be ineffective to the extent of such invalidity, prohibition or
unenforceability without invalidating the remaining provisions hereof, and any such invalidity,
prohibition or unenforceability in any such jurisdiction shall not invalidate or render
unenforceable such provision in any other jurisdiction.
13901 South Lakes Drive, Charlotte, NC 28273-6790, U.S.A.
Tel: [1]-704-597-9070 Fax: [1]-704-583-1610
Printed on recycled paper.
Rev. 7/2018 (M)PAC-65340-a
