TLV JH7RH-P User manual

172-65427MA-05 (JH7RH-P/JH7RHT-P) 29 September 2016
Free Float Steam Trap
JH7RH-P
JH7RHT-P
(Optional Models)
JH7RH-W / JH7RH-F / JH7RH-V
JH7RHT-V
Copyright © 2016 by TLV CO., LTD.
All rights reserved
ISO 9001/ ISO 14001
Manufacturer
Kakogawa, Japan
is approved by LRQA LTD. to ISO 9001/14001

172-65427MA-05 (JH7RH-P/JH7RHT-P) 29 Sep 2016
1
Contents
Introduction..........................................................................1
Safety Considerations..........................................................2
Checking the Piping.............................................................4
Operation.............................................................................5
Specifications.......................................................................6
Configuration .......................................................................6
Installation............................................................................7
Maintenance........................................................................8
Disassembly / Reassembly..................................................9
Instructions for Plug / Holder Disassembly and Reassembly ..13
Troubleshooting.................................................................14
Product Warranty...............................................................15
Options ..............................................................................16
Introduction
Thank you for purchasing the Free Float Steam Trap.
This product has been thoroughly inspected before being shipped from the factory.
When the product is delivered, before doing anything else, check the specifications
and external appearance to make sure nothing is out of the ordinary. Also be sure to
read this manual carefully before use and follow the instructions to be sure of using
the product properly.
This instruction manual is edited based on the JH-P Series (with cover plug). The
JH-W Series (with socket welded cover connection), JH-F Series (with flanged cover
connection) and JH-V Series (with manual air vent valve) are described at the end of
this manual in the 'Option’ section.
Both JH7RH-P and JH7RHT-P free float steam traps employ a hinge-less and lever-
less free float to rapidly, automatically and continuously discharge the inflowing
condensate that is continuously generated inside the equipment, thus preventing the
accumulation of condensate and thereby improving the heat transfer efficiency of the
equipment.
In particular, JH7RHT-P/JH7RHT-V (option) possess the highest heat resistance of
the TLV steam trap product range, and are of a specification that is suitable for use on
thermal power plant steam mains, which operate at increasingly high temperatures in
recent years.
This steam trap also employs a precision-ground float and three-point seating that
supports the float securely at three points and ensures a high degree of sealing
when even only minute quantities of condensate are present.
This free float steam trap is suitable for locations at which extremely small amounts
of condensate are generated, such as superheated and saturated steam mains and
branches, and for applications under long continuous operation with the introduction
of almost no air.
If detailed instructions for special order specifications or options not contained in this
manual are required, please contact for full details.
This instruction manual is intended for use with the model(s) listed on the front cover.
It is necessary not only for installation but for subsequent maintenance,
disassembly/reassembly and troubleshooting. Please keep it in a safe place for
future reference.

172-65427MA-05 (JH7RH-P/JH7RHT-P) 29 Sep 2016
2
Safety Considerations
•Read this section carefully before use and be sure to follow the instructions.
•Installation, inspection, maintenance, repairs, disassembly, adjustment and valve
opening/closing should be carried out only by trained maintenance personnel.
•The precautions listed in this manual are designed to ensure safety and prevent
equipment damage and personal injury. For situations that may occur as a result of
erroneous handling, three different types of cautionary items are used to indicate
the degree of urgency and the scale of potential damage and danger: DANGER,
WARNING and CAUTION.
•The three types of cautionary items above are very important for safety: be sure to
observe all of them as they relate to installation, use, maintenance, and repair.
Furthermore, TLV accepts no responsibility for any accidents or damage occurring
as a result of failure to observe these precautions.
Symbols
Indicates a DANGER, WARNING or CAUTION item.
Indicates an urgent situation which poses a threat of death or
serious injury
Indicates that there is a potential threat of death or serious injury
Indicates that there is a possibility of injury or equipment / product
damage
NEVER apply direct heat to the float.
The float may explode due to increased internal pressure, causing
accidents leading to serious injury or damage to property and
equipment.
Install properly and DO NOT use this product outside the
recommended operating pressure, temperature and other
specification ranges.
Improper use may result in such hazards as damage to the product
or malfunctions that may lead to serious accidents. Local regulations
may restrict the use of this product to below the conditions quoted.
DO NOT use this product in excess of the maximum operating
pressure differential.
Such use could make discharge impossible (blocked).
Use hoisting equipment for heavy objects (weighing
approximately 20 kg (44 lb) or more).
Failure to do so may result in back strain or other injury if the object
should fall.
Take measures to prevent people from coming into direct
contact with product outlets.
Failure to do so may result in burns or other injury from the
discharge of fluids.
Safety considerations continued on next page.
DANGER
WARNING
CAUTION
WARNING
CAUTION

172-65427MA-05 (JH7RH-P/JH7RHT-P) 29 Sep 2016
3
When disassembling or removing the product, wait until the
internal pressure equals atmospheric pressure and the surface
of the product has cooled to room temperature.
Disassembling or removing the product when it is hot or under
pressure may lead to discharge of fluids, causing burns, other
injuries or damage.
Be sure to use only the recommended components when
repairing the product, and NEVER attempt to modify the
product in any way.
Failure to observe these precautions may result in damage to the
product and burns or other injury due to malfunction or the
discharge of fluids.
Use only under conditions in which no freeze-up will occur.
Freezing may damage the product, leading to fluid discharge, which
may cause burns or other injury.
Use only under conditions in which no water hammer will
occur.
The impact of water hamme
r may damage the product, leading to
fluid discharge, which may cause burns or other injury.

172-65427MA-05 (JH7RH-P/JH7RHT-P) 29 Sep 2016
4
Checking the Piping
Use only under conditions in which no water hammer will occur. The
impact of water hammer may damage the product, leading to fluid
discharge, which may cause burns or other injury.
CAUTION
Check to make sure that the pipes to be connected to the trap have been installed
properly.
1. Is the pipe diameter suitable?
2. Is the piping where the trap is to be installed horizontal?
3. Has sufficient space been secured for maintenance?
4. Have maintenance valves been installed at the inlet and outlet? If the outlet is
subject to back pressure, has a check valve (TLV-CK) been installed?
5. Is a bypass valve installed?
6. Is the inlet pipe as short as possible, with as few bends as possible, and installed
so the liquid will flow naturally down into the trap?

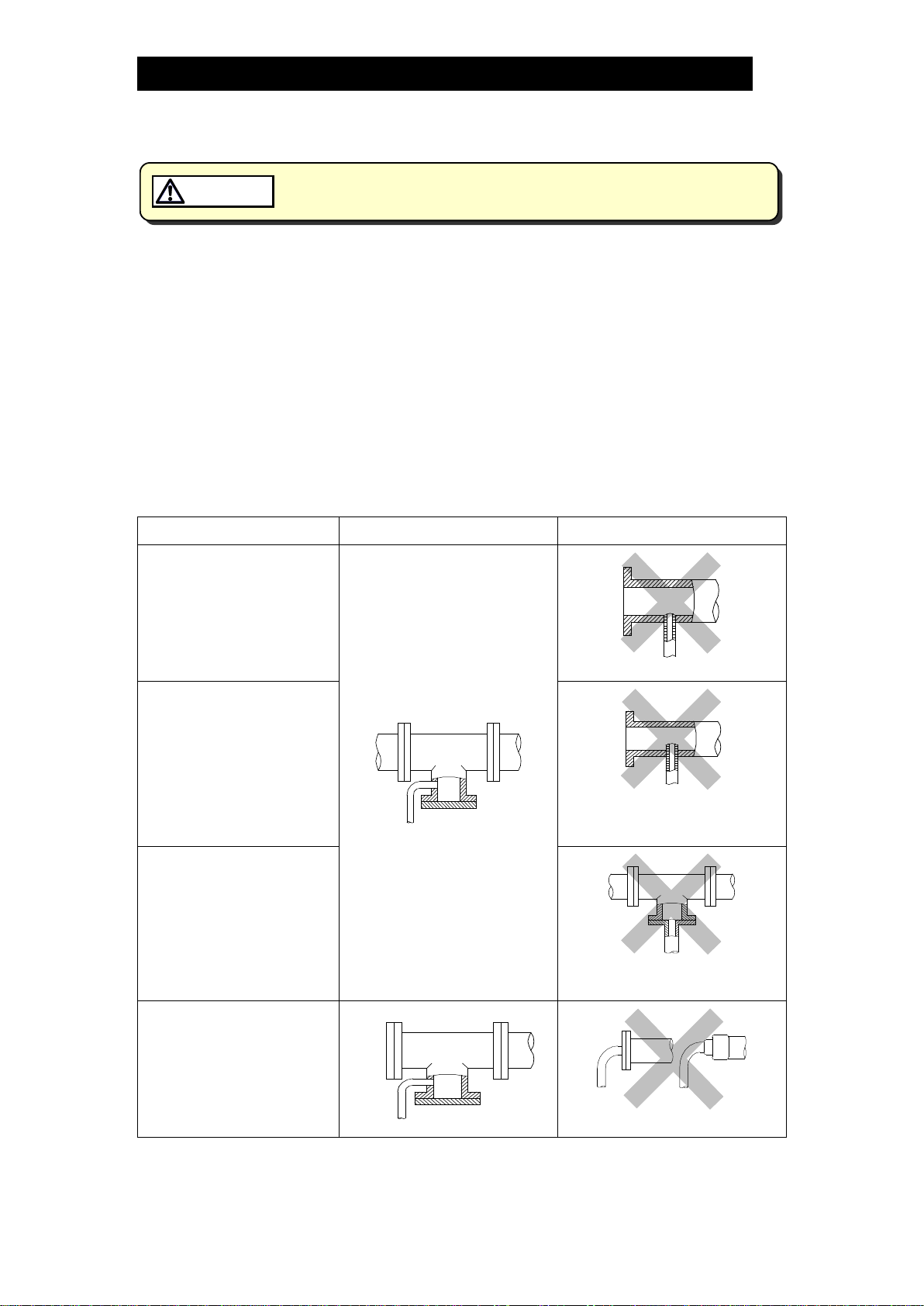

7. Has the piping work been done correctly, as shown in the figures below?
Requirement
Correct
Incorrect
Install catchpot with the
proper diameter.
Diameter is too small.
Make sure the flow of
condensate is not
obstructed.
Diameter is too small and inlet
protrudes into pipe interior.
To prevent rust and scale
from flowing into the trap,
the inlet pipe should be
connected 25 – 50 mm (1 –
2 in) above the base of the
T-pipe.
Rust and scale flow into the
trap with the condensate.
When installing on the blind
end, make sure the flow of
condensate is not
obstructed.
Condensate collects in the pipe.

172-65427MA-05 (JH7RH-P/JH7RHT-P) 29 Sep 2016
5
Operation
Principles of condensate discharge:
As much air as possible should be eliminated at start-up using a bypass valve or
blowdown line.

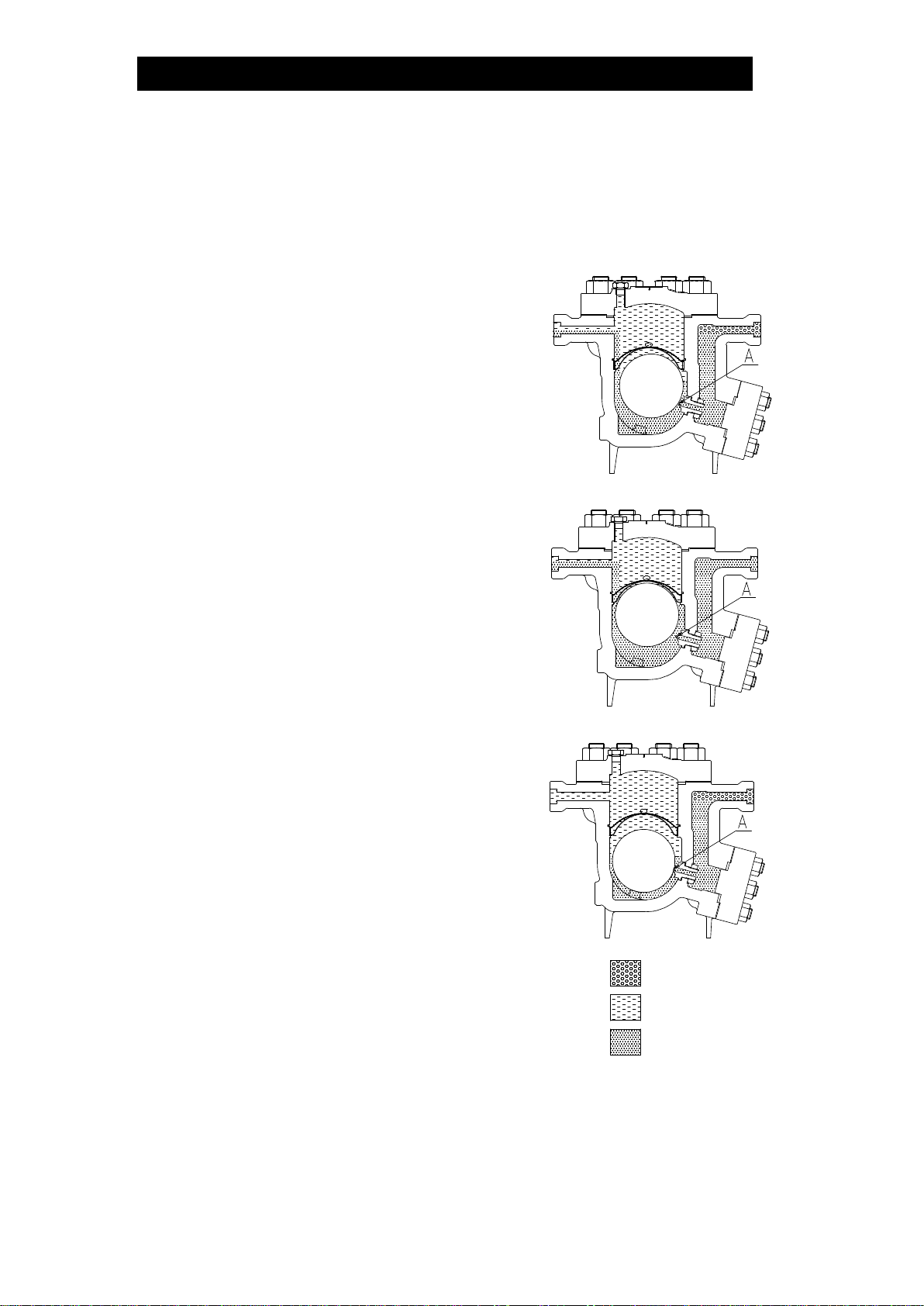

1. Condensate Discharge
As steam is supplied, condensate flow begins.
The rising condensate level causes the float to
rise due to buoyancy, opening the orifice (A) and
allowing condensate to be discharged.
2. Discharge of Large Quantities of Condensate
Increases in the condensate inflow rate cause the
condensate level in the trap to rise. The float
consequently rises and enlarges the opening of the
orifice (A), allowing more condensate to be
discharged. In this manner, continuous condensate
discharge occurs while the opening size of the
orifice varies depending on the condensate flow
rate.
3. Closed Position
When the condensate flow rate decreases, the float
falls, closing off the orifice (A) opening. A water seal
is maintained at all times over the orifice (A) to
prevent steam loss.
Air
Steam
Condensate

172-65427MA-05 (JH7RH-P/JH7RHT-P) 29 Sep 2016
6
Specifications
Install properly and DO NOT use this product outside the recommended
operating pressure, temperature and other specification ranges.
Improper use may result in such hazards as damage to the product or
malfunctions which may lead to serious accidents. Local regulations
may restrict the use of this product to below the conditions quoted.
CAUTION
DO NOT use this product in excess of the maximum operating pressure
differential; such use could make discharge impossible (blocked).
CAUTION
Use only under conditions in which no freeze-up will occur. Freezing
may damage the product, leading to fluid discharge, which may cause
burns or other injury.
CAUTION
Refer to the product nameplate for detailed specifications.
*
Maximum allowable pressure (PMA) and maximum allowable temperature (TMA) are PRESSURE
SHELL DESIGN CONDITIONS, NOT OPERATING CONDITIONS.
** Valve No. is displayed for products with options. This item is omitted from the nameplate when there
are no options.

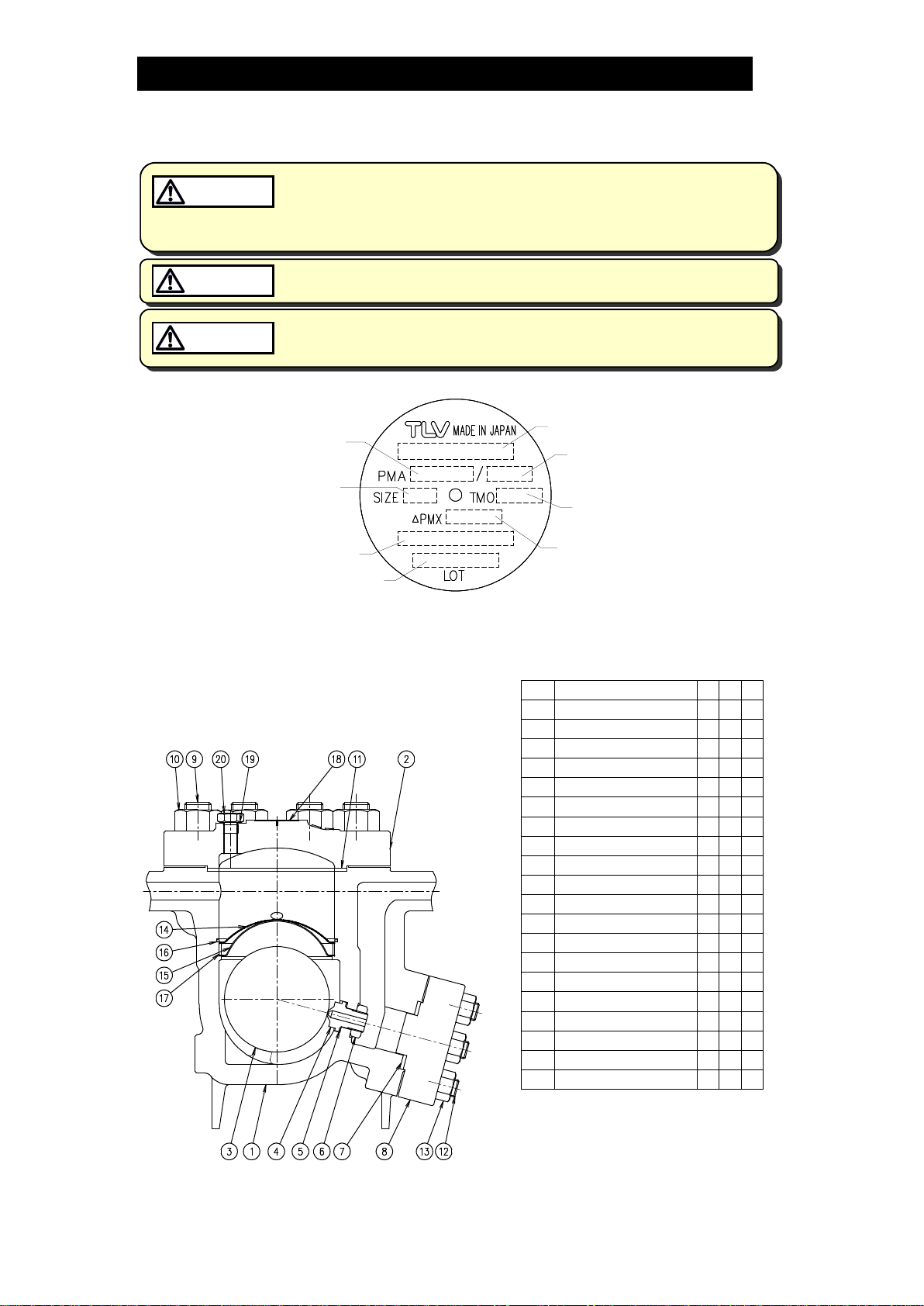

Configuration
Model
Maximum Allowable
Temperature (TMA)*
Maximum Allowable
Pressure*
Maximum Operating
Temperature
Nominal Diameter
Maximum Differential
Pressure
Valve No.**
Production Lot No.
No.
Name
M*
R*
F*
1
Body
2
Cover
3
Float

4
Orifice

5
Orifice Gasket


6
Orifice Locknut

7
Outlet Cover Gasket


8
Outlet Cover
9
Cover Bolt
10
Cover Nut
11
Cover Gasket


12
Outlet Cover Bolt
13
Outlet Cover Nut
14
Screen

15
Screen Holder
16
Snap Ring
17
Screen Holder Retainer
18
Nameplate
19
Cover Plug Gasket


20
Cover Plug
* Replacement parts are available
only in the following kits:
M = Maintenance Kit
R = Repair Kit
F = Float

172-65427MA-05 (JH7RH-P/JH7RHT-P) 29 Sep 2016
7
Installation
Install properly and DO NOT use this product outside the recommended
operating pressure, temperature and other specification ranges.
Improper use may result in such hazards as damage to the product or
malfunctions which may lead to serious accidents. Local regulations
may restrict the use of this product to below the conditions quoted.
CAUTION
Use hoisting equipment for heavy objects (weighing approximately
20 kg (44 lb) or more). Failure to do so may result in back strain or other
injury if the object should fall.
CAUTION
Take measures to prevent people from coming into direct contact with
product outlets. Failure to do so may result in burns or other injury from
the discharge of fluids.
CAUTION
Installation, inspection, maintenance, repairs, disassembly, adjustment and valve
opening/closing should be carried out only by trained maintenance personnel.

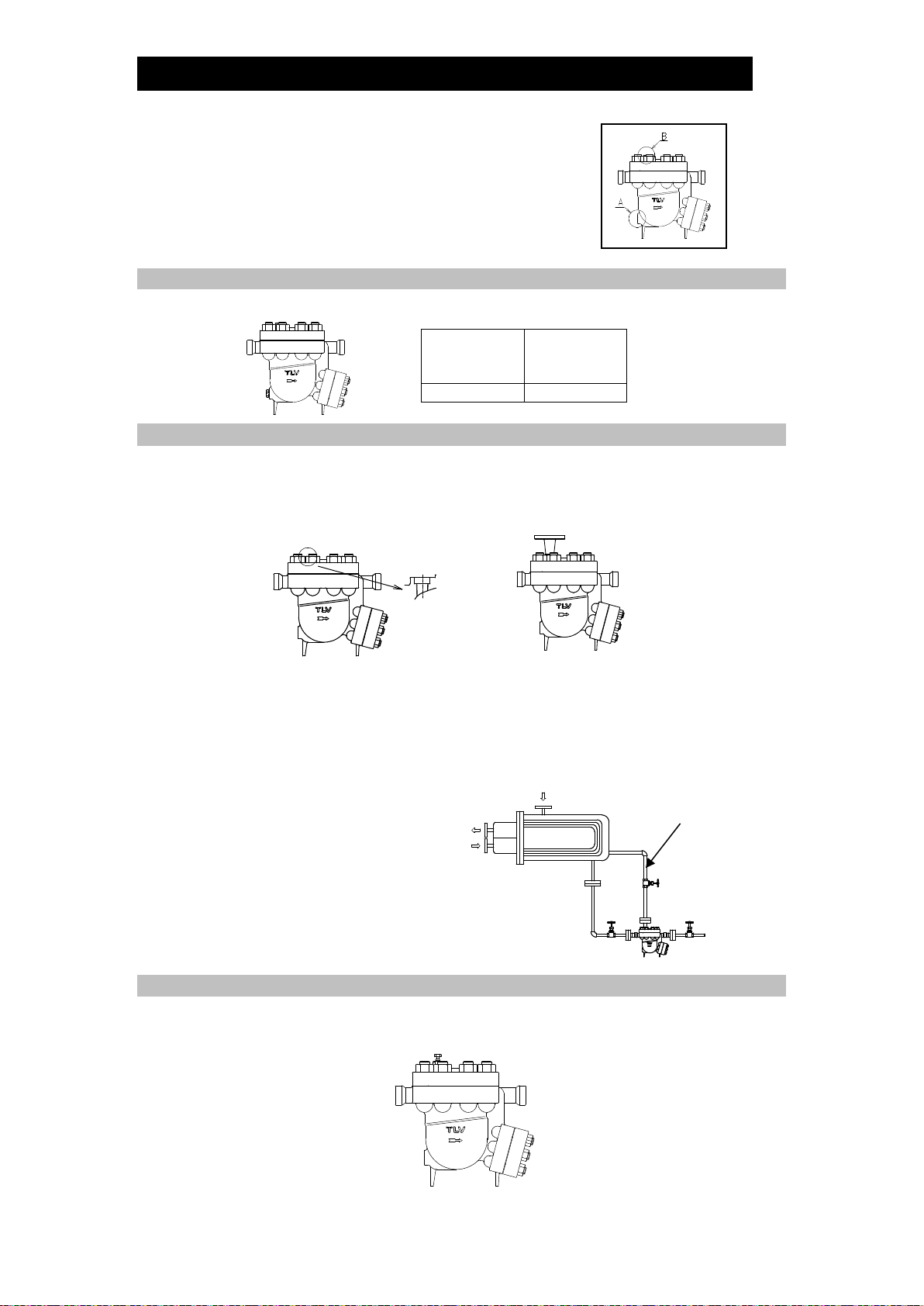

1. Before installation, be sure to remove all protective seals.
2. Before installing the product, open the inlet valve and blow out the piping to
remove any piping scraps, dirt and oil. Close the inlet valve after blowdown.
3. Install the product so the arrow on the body is pointing in the direction of flow.
4. The trap should be inclined no more than 5° horizontally and front-to-back.
5. Install a condensate outlet valve and outlet piping.
6. Air in the system at start-up should be discharged using a bypass valve or
blowdown line.
7. Open the inlet and outlet valves and ensure that the product functions properly.
If there is a problem, determine the cause using the “Troubleshooting” section in this
manual.
Tolerance Angle for Installation - 5°
Make sure the trap is installed with the raised lettering on the body horizontal.

172-65427MA-05 (JH7RH-P/JH7RHT-P) 29 Sep 2016
8
Maintenance
Take measures to prevent people from coming into direct contact with
product outlets. Failure to do so may result in burns or other injury from
the discharge of fluids.
CAUTION
Be sure to use only the recommended components when repairing the
product, and NEVER attempt to modify the product in any way. Failure to
observe these precautions may result in damage to the product or burns
or other injury due to malfunction or the discharge of fluids.
CAUTION
Operational Check
A visual inspection of the following items should be done on a daily basis to
determine whether the trap is operating properly or has failed. Periodically (at least
biannually) the operation should also be checked by using diagnostic equipment,
such as a stethoscope or thermometer.
If the trap should fail, it may cause damage to piping and equipment, resulting in
faulty or low quality products or losses due to steam leakage.
Normal:
Condensate is discharged continuously, together with flash
steam, and the sound of flow can be heard. If there is very little
condensate, there is almost no sound of flow.
Blocked:
(Discharge Impossible)
No condensate is discharged. The trap is quiet and makes no
noise, and the surface temperature of the trap is low.
Blowing:
Live steam continually flows from the outlet and there is a
continuous metallic sound.
Steam Leakage:
Live steam is discharged through the trap outlet together with
condensate, accompanied by a high-pitched sound.
Parts Inspection
When parts have been removed, or during periodic inspections, use the following
table to inspect the parts and replace any that are found to be defective.
Procedure
Gaskets:
check for warping or scratches
Screen:
check for clogging or corrosion
Float:
check for scratches or dents
Body Interior:
check for build-up
Orifice Opening:
check for dirt, oil film, wear or scratches
White jet
containing
water droplets
Flash Steam
Clear, slightly
bluish jet
Live Steam Leakage

172-65427MA-05 (JH7RH-P/JH7RHT-P) 29 Sep 2016
9
Disassembly/Reassembly
NEVER apply direct heat to the float. The float may explode due to
increased internal pressure, causing accidents leading to serious injury
or damage to property and equipment.
WARNING
Use hoisting equipment for heavy objects (weighing approximately
20 kg (44 lb) or more). Failure to do so may result in back strain or other
injury if the object should fall.
CAUTION
When disassembling or removing the product, wait until the internal
pressure equals atmospheric pressure and the surface of the product
has cooled to room temperature. Disassembling or removing the
product when it is hot or under pressure may lead to discharge of fluids,
causing burns, other injuries or damage.
CAUTION
Use the following procedures to remove components. Use the same procedures in
reverse to reassemble. (Installation, inspection, maintenance, repairs, disassembly,
adjustment and valve opening/closing should be carried out only by trained
maintenance personnel.)
Detaching / Reattaching the Cover
Part
During Disassembly
During Reassembly
Cover Nut
Remove with a socket wrench
Consult the table of tightening torques
and tighten to the proper torque
Cover
Remove, being careful not to
scratch the gasket sealing
surfaces
Make sure there are no pieces of the
old gasket left on the sealing surfaces
of the body and cover,
align the arrows
on the body and cover and reattach
Cover Gasket
Remove the gasket and clean the
sealing surface
Replace with a new gasket
Cover Plug
Remove with a socket wrench
Consult the table of tightening torques
and tighten to the proper torque
Cover Plug
Gasket
Remove the gasket and clean the
sealing surface
Replace with a new gasket; coat
surfaces with anti-seize

172-65427MA-05 (JH7RH-P/JH7RHT-P) 29 Sep 2016
10
Detaching/Reattaching Components Inside the Body
Part
During Disassembly
During Reassembly
Snap Ring
Pinch the insides together and
remove from the body
Insert securely into the slot in the
body
Screen
Remove by grasping the wire ring
and lifting straight up and out
Set the screen on the screen holder
and screen holder retainer and insert
as far as the snap ring groove
Screen Holder
Retainer
Remove without bending
Set on the screen holder without
tilting
Screen Holder
Remove without bending
Place on the ledge inside the body,
making sure that the rounded side is
on top
Float
Remove, being careful not to
scratch the polished surface
Insert, being careful not to scratch the
polished surface
Outlet Cover
Nut
Remove with a socket wrench
Consult the table of tightening torques
and tighten to the proper torque
Outlet Cover
Remove, being careful not to
scratch the gasket sealing
surfaces
Make sure there are no pieces of the
old gasket left on the sealing surfaces
and reattach
Outlet Cover
Gasket
Remove the gasket and clean the
sealing surfaces
Replace with a new gasket
Orifice Locknut
Remove with a socket wrench
Consult the table of tightening torques
and tighten to the proper torque –
see NOTE below
Orifice
Pull out from inside the trap body
Fix with the orifice locknut – see
NOTE below
Orifice Gasket
Remove, being careful not to scratch
the orifice
Replace with a new gasket; clean the
sealing surface on the orifice –
see NOTE below
NOTE: Special points pertaining to orifice and orifice gasket reassembly
Follow the steps below when inserting the orifice into the body in order to ensure that
the gasket does not fall off and is inserted correctly without protruding from the groove.
1. First, insert the orifice alone into the orifice-housing section of the body, in order
to ascertain how much of it should be sticking out.
2. Take the orifice out again, and then fill the groove in the orifice with water and
insert the gasket. The surface tension of the water will now hold the gasket in
place, and it will not fall out even if the orifice is pointed downwards.
3. Without altering anything, insert it into the orifice-housing section of the body and
check to make sure that the amount of orifice sticking out of the body is the same
as the amount that was sticking out when only the orifice was inserted in step 1.
4. Hold it in that position by hand and, after hand-tightening the orifice locknut from
the outlet side, hold the orifice in place from the body float chamber side using a
drive wrench and then tighten the orifice locknut to the proper torque using a
torque wrench.

172-65427MA-05 (JH7RH-P/JH7RHT-P) 29 Sep 2016
11
Table of Tightening Torques
Part Name
Torque
Distance Across Flats
N⋅m
(lbf⋅ft)
mm
(in)
Cover Plug (JH7RH-P/JH7RHT-P)
100
(73)
26
(1)
Cover Nut
700
(510)
46
(113/16)
Orifice Locknut
250
(185)
32
(11/4)
Outlet Cover Nut
200
(150)
30
(13/16)
NOTE: - Coat all threaded portions with anti-seize. (1 N⋅m ≈10 kg⋅cm)
-If drawings or other special documentation were supplied for the
product, any torque given there takes precedence over values shown
here.
Special Notes
1. After operation following disassembly and reassembly, it is recommended that
the trap be let to sit for a day and then receive additional tightening.
2. Using the tightening torques for the
cover nuts and outlet cover nuts as a
reference, tighten until the cover and
outlet cover gaps are uniform. The gaps
should be 1.5 mm (1/16 in) or less.
Cover or Outlet Cover


1.5 mm (1/16 in)
Body

172-65427MA-05 (JH7RH-P/JH7RHT-P) 29 Sep 2016
12
Exploded View
Cover Plug
Cover Plug Gasket
Cover Nut
Cover
Cover Gasket
Screen
Screen Holder
Float
Cover Bolt
Orifice Locknut
Outlet Cover Gasket
Outlet Cover Nut
Snap Ring
Screen Holder Retainer
Orifice
Orifice
Gasket
Outlet Cover
Outlet
Cover Bolt
Body

172-65427MA-05 (JH7RH-P/JH7RHT-P) 29 Sep 2016
13
Instructions for Plug/Holder Disassembly and Reassembly
The seal on the threaded plugs/holders found on TLV products is formed by a flat
metal gasket. There are various installation orientations for the gaskets, such as
horizontal, diagonal and downward, and the gasket may be pinched in the thread
recesses during assembly.
Instructions for Disassembly and Reassembly
1) Remove the plug/holder using a
tool of the specified size (distance
across flats).
2) The gasket should not be reused.
Be sure to replace it with a new
gasket.
3) Clean the gasket surfaces of the
plug/holder and the product body
using a rag and/or cleaning agents,
then check to make sure the
surfaces are not scratched or
deformed.
4) Coat both the gasket surface of the
plug/holder and the threads of the
plug/holder with anti-seize, then
press the gasket onto the center of
the gasket surface of the
plug/holder, making sure the anti-
seize affixes the gasket tightly to
the plug/holder. Check to make
sure the gasket is not caught in the
recesses of the threads.
5) Hold the plug/holder upside down
to make sure that the anti-seize makes the gasket stick to the plug/holder even
when the plug/holder is held upside down.
6) Screw the plug/holder by hand into the product body while making sure that the
gasket remains tightly affixed to the center of the gasket surface of the
plug/holder. Make sure the entire gasket is making contact with the gasket
surface of the product body. It is important at this point to make sure the gasket
is not pinched in the thread recesses of the plug/holder.
7) Tighten the plug/holder to the proper torque.
8) Next, begin the supply of steam and check to make sure there is no leakage
from the part just tightened. If there is leakage, immediately close the inlet valve
and, if there is a bypass valve, take the necessary steps to release any residual
pressure. After the surface of the product cools to room temperature, repeat the
procedure beginning from step 1).
Gasket
Do not pinch gasket in
threaded recesses
Coat with
anti-seize Gasket Surface
3)
4)
5)
6)

172-65427MA-05 (JH7RH-P/JH7RHT-P) 29 Sep 2016
14
Troubleshooting
NEVER apply direct heat to the float. The float may explode due to
increased internal pressure, causing accidents leading to serious injury
or damage to property and equipment.
WARNING
When disassembling or removing the product, wait until the internal
pressure equals atmospheric pressure and the surface of the product
has cooled to room temperature. Disassembling or removing the
product when it is hot or under pressure may lead to discharge of fluids,
causing burns, other injuries or damage.
CAUTION
When the product fails to operate properly, use the following table to locate and
remedy the cause.
Problem
Cause
Remedy
No condensate is
discharged
(blocked) or
discharge is poor
The float is damaged or filled with
condensate
Replace with a new float
The orifice opening, screen or piping are
clogged with rust and scale
Clean parts
The trap operating pressure exceeds the
maximum specified pressure, or there is
insufficient pressure differential between
the trap inlet and outlet
Compare specifications and
actual operating conditions
Steam-locking has occurred
Perform a bypass blowdown
or close the trap inlet valve
and allow the trap to cool
Air binding has occurred
Perform a bypass blowdown
or consider switching to a
product with a built-
in air vent
or air vent valve
Steam is
discharged or leaks
from the outlet
(blowing)
(steam leakage)
Clogged orifice opening or rust and scale
build-up beneath the float
Clean parts
Scratches on the orifice
Replace with a new orifice
The float is misshapen or has a scale
build-up
Clean or replace with a new
float
Improper installation orientation
Correct the installation
Trap vibration
Lengthen the inlet piping and
fasten it securely
Steam is leaking
from a place other
than the outlet
Check for gasket deterioration or damage
Replace with new gasket(s)
Check to make sure that the proper
tightening torques were used
Tighten to the proper torque
Float frequently
becomes damaged
Check to see if water hammer has
occurred
Study and correct the piping
NOTE: When replacing parts with new, use the parts list for reference, and replace with parts
from the Maintenance Kit, Repair Kit, etc. Please note that replacement parts are only
available as part of a replacement parts kit.

172-65427MA-05 (JH7RH-P/JH7RHT-P) 29 Sep 2016
15
Product Warranty
1. Warranty Period
One year following product delivery.
2. Warranty Coverage
TLV CO., LTD. warrants this product to the original purchaser to be free
from defective materials and workmanship. Under this warranty, the
product will be repaired or replaced at our option, without charge for parts
or labor.
3. This product warranty will not apply to cosmetic defects, nor to any product
whose exterior has been damaged or defaced; nor does it apply in the
following cases:
1) Malfunctions due to improper installation, use, handling, etc., by other
than TLV CO., LTD. authorized service representatives.
2) Malfunctions due to dirt, scale, rust, etc.
3) Malfunctions due to improper disassembly and reassembly, or
inadequate inspection and maintenance by other than TLV CO., LTD.
authorized service representatives.
4) Malfunctions due to disasters or forces of nature.
5) Accidents or malfunctions due to any other cause beyond the control of
TLV CO., LTD.
4. Under no circumstances will TLV CO., LTD. be liable for consequential
economic loss damage or consequential damage to property.
* * * * * * *
For Service or Technical Assistance:
Contact your representative or your regional office.
Manufacturer
CO., LTD.
881 Nagasuna, Noguchi
Kakogawa, Hyogo 675-8511 JAPAN
Tel: 81-(0)79 - 427 - 1800

172-65427MA-05 (JH7RH-P/JH7RHT-P) 29 Sep 2016
16
Options
The options shown below are available for this product on
request. Please compare with the product you received.
Options for Area A (standard: without drain plug)
With Drain Plug
Options for Area B (standard: with cover plug)
A pressure-balancing line connector can be attached to the place where the standard
product has the cover plug.
Socket Type
(Model: JH7RH-W)
Flange Type
(Model: JH7RH-F)
•In principle, steam traps automatically discharge inflowing condensate. However, if
low-temperature condensate in the piping blocks the trap inlet passage,
displacement inside the piping of steam by condensate is obstructed and
condensate can no longer flow into the trap (steam locking). Traps only function in
the presence of condensate inflow. A pressure-balancing line prevents the
occurrence of steam locking.
Install the pressure-balancing line in the
following manner:
Example: Heat Exchanger
Attach the pressure-balancing line to
the trap and to either the equipment or
to an area with a steam space.
Options for Area B (standard: with cover plug)
With Air Vent Valve
(Model: JH7RH-V / JH7RHT-V)
Pressure-balancing Line
Torque
N⋅m (lbf·ft)
Distance
Across Flats
mm (in)
100 (73)
26 (1)
(1 N⋅m ≈10 kg⋅cm)
Steam

172-65427MA-05 (JH7RH-P/JH7RHT-P) 29 Sep 2016
17
Operating the Air Vent Valve
Be sure to use only the recommended components when repairing the
product, and NEVER attempt to modify the product in any way. Failure to
observe these precautions may result in damage to the product or burns
or other injury due to malfunction or the discharge of fluids.
CAUTION
Installation, inspection, maintenance, repairs, disassembly, adjustment and valve
opening/closing should be carried out only by trained maintenance personnel.

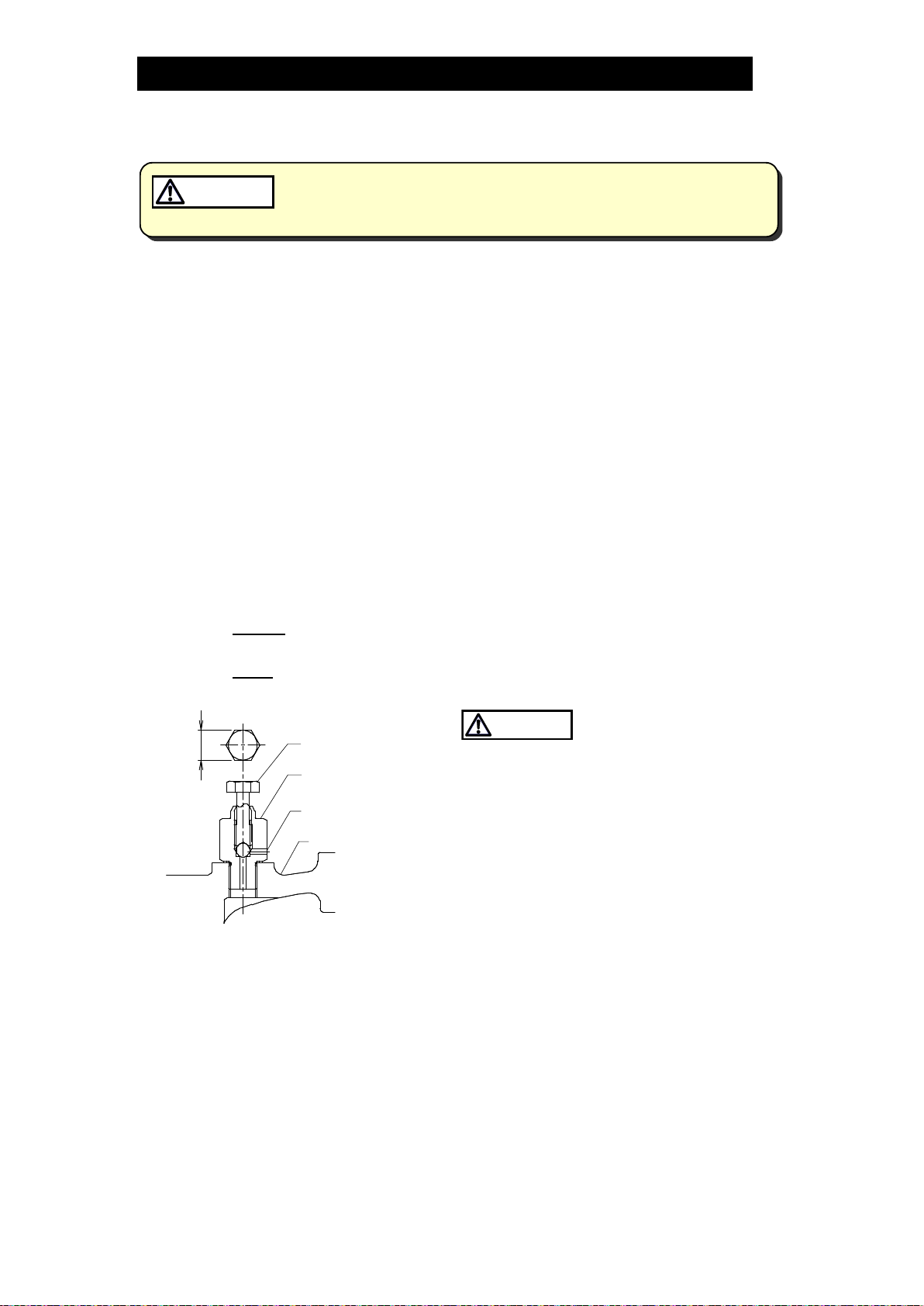

1. Locate the air vent valve exhaust port before operating the air vent valve, in order
to avoid being burned by hot air or steam blowing from the air vent valve. The
exhaust port is a 2 mm (1/16 in) diameter hole on the side of the air vent valve
body.
DO NOT under any circumstances allow any unprotected part of your body to
come in front of this hole.
2. Never leave an open air vent valve unattended.
Tools required: 1) open-end wrench (distance across flats 17mm (21/32 in))
2) long-handled mirror to check for steam leakage after closing
the exhaust port (leaking steam cloud the mirror)
•Using the open-end wrench, slowly turn the hexagonal head of the valve stem
counterclockwise.
•Watch the exhaust port to determine the condition of the fluid discharged.
General guidelines:
Cloudy-water droplets and mist spraying out, indicating
that air and condensate are being discharged
Clear---indicating that steam is being discharged; the
valve port may now be closed
The air vent valve stem cannot be
removed from the air vent valve body.
Attempting to remove the valve stem by
pulling it upward may damage it and
cause burns or other injury due to
malfunction or the discharge of steam or
condensate.
3. Use the following procedure to close the valve and check for leaks:
•Using the open-end wrench, close by slowly turning the hexagonal head of the
valve stem clockwise until contact with the valve seat is felt.
•Apply a little more pressure to tighten securely.
Note: Using an ordinary open-end wrench (handle length about 160 mm (6¼
in)), the valve will close with only a light turn pressure. Tightening with too
much force may result in seizure or damage to the seat.
•After tightening, place the mirror close to the front of the exhaust port. If the
mirror clouds, the valve is not fully closed; tighten a bit more.
4. When air enters the piping at start-up, it may accumulate inside the trap and
hinder the flow of condensate (air binding). Air binding may also occur during the
normal course of trap operation, due to the slow accumulation of air inside the
CAUTION
Air Vent Valve Stem
Air Vent Valve Body
Exhaust Port
Cover
17 mm
(
21
/
32
in)

172-65427MA-05 (JH7RH-P/JH7RHT-P) 29 Sep 2016
18
trap. The air vent valve on the top of this trap is to be operated only when air
binding has occurred. Follow the instructions in the earlier part of this section to
operate the air vent valve and release the air accumulated inside the trap. (The
air vent valve is to be open only for as long as is necessary to release the
accumulated air. If left open, it is extremely dangerous, so be sure to close tightly
after operation.)
Disassembly / Reassembly of Air Vent Valve
Air Vent
Valve Unit
Remove with a wrench
Consult the table of tightening torques
and tighten to the proper torque
Air Vent
Valve Gasket
Remove the gasket and clean the
sealing surface
Replace with a new gasket; coat surfaces
with anti-seize
Table of Tightening Torques
Part Name
Torque
Distance Across Flats
N⋅m
(lbf∙ft)
mm
(in)
Air Vent Valve Body
JH7RH-V
100 (73)
24
(15/16)
JH7RHT-V
27
(11/16)
(1 N⋅m ≈10 kg⋅cm)
NOTE: -Coat all threaded portions with anti-seize.
-If drawings or other special documentation were supplied for the product,
any torque given there takes precedence over values shown here.
