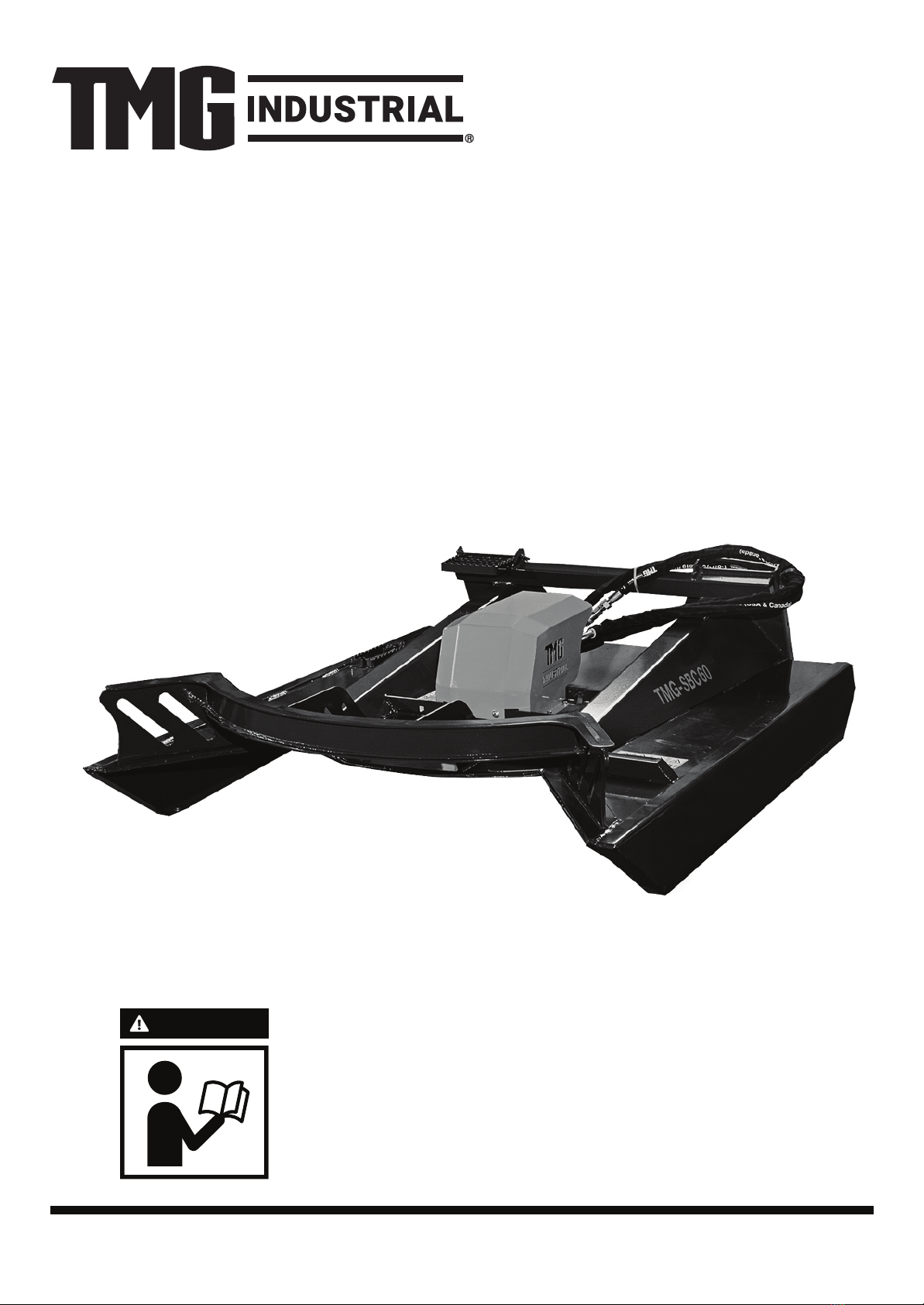

60” HEAVY-DUTY SKID STEER
BRUSH CUTTER
PRODUCT MANUAL
v.2022.10.14
TMG-SBC60

WWW.TMGINDUSTRIAL.COM 1 / 12 Toll Free:1-887-761-2819
IMPORTANT SAFETY INFORMATION
Your Safety
YOU are responsible for the SAFE operation and maintenance of your TMG Skid Steer Brush Cutter. YOU
must ensure that you and anyone else who is going to use, maintain or work around the Skid Steer Brush
Cutter be familiar with the using and maintenance procedures and related SAFETY information contained in
this manual. This manual will take you step-by-step through your working day and alerts you to all good safety
practices that should be used while using the Skid Steer Brush Cutter.
Remember, YOU are the key to safety. Good safety practices not only protect you but also the people around
you. Make these practices a working part of your safety program. Be certain that EVERYONE using this
equipment is familiar with the recommended using and maintenance procedures and follows all the safety
precautions. Most accidents can be prevented. Do not risk injury or death by ignoring good safety practices.
•Skid Steer Brush Cutter owners must give operating instructions to operators or employees before allowing
them to operate the machine, and at least annually thereafter.
•The most important safety device on this equipment is a SAFE operator. It is the operator’s responsibility to
read and understand ALL Safety and Operating instructions in the manual and to follow these. Most accidents
can be avoided.
•A person who has not read and understood all using and safety instructions is not qualified to use the
machine. An untrained operator exposes himself and bystanders to possible serious injury or death.
•Do not modify the equipment in any way. Unauthorized modification may impair the function and/or safety and
could affect the life of the equipment.
•Think SAFETY! Work SAFELY!

WWW.TMGINDUSTRIAL.COM 2 / 12 Toll Free:1-887-761-2819
IMPORTANT SAFETY INFORMATION
General Safety
1. Read and understand the Operator’s Manual and all safety signs before using, maintaining, adjusting or
cleaning the Skid Steer Brush Cutter.
2. Have a first-aid kit available for use should the need arise and know how to use it.
3. Have a fire extinguisher available for use should the need arise and know how to use it.
4. Do not allow riders.
6. Install and secure all guards before starting.
7. Wear suitable ear protection for prolonged exposure to excessive noise.
8. Turn machine off, stop and disable engine, remove ignition key and place in your pocket, set park brake
and wait for all moving parts to stop before servicing, adjusting, repairing, or unplugging.
9. Clear the area of people, especially small children, before using the unit.
10. Review safety related items annually with all personnel who will operating or maintaining the Skid Steer
Brush Cutter.
Equipment Safety Guidelines
1. Safety of the operator and bystanders is one of the main concerns in designing and developing equipment.
However, every year many accidents occur which could have been avoided by a few seconds of thought and
a more careful approach to handling equipment. You, the operator, can avoid many accidents by observing
the following precautions in this section. To avoid personal injury or death, study the following precautions and
insist those working with you, or for you to follow them.
2. In order to provide a better view, certain photographs or illustrations in this manual may show an assembly
with a safety shield removed. However, equipment should never be used in this condition. Keep all shields in
place. If shield removal becomes necessary for repairs, replace the shield prior to use.
3. Replace any safety sign or instruction sign that is not readable or is missing. Location of such safety signs is
indicated in this manual.
4. Never use alcoholic beverages or drugs which can hinder alertness or coordination while using this
equipment. Consult your doctor about using this machine while taking prescription medications.
5. Under no circumstances should young children be allowed to work with this equipment. Do not allow persons
to use or assemble this unit until they have read this manual and have developed a thorough understanding of
the safety precautions and of how it works. Review the safety instructions with all users annually.

WWW.TMGINDUSTRIAL.COM 3 / 12 Toll Free:1-887-761-2819
IMPORTANT SAFETY INFORMATION
6. This equipment is dangerous to children and persons unfamiliar with its operation. The operator should be a
responsible, properly trained and physically able person familiar with machinery and trained in this
equipment's operations. If the elderly are assisting with work, their physical limitations need to be recognized
and accommodated.
7. Never exceed the limits of a piece of machinery.
If its ability to do a job, or to do so safely, is in question - DON'T TRY IT.
8. Do not modify the equipment in any way. Unauthorized modification may result in serious injury or death and
may impair the function and life of the equipment.
9. In addition to the design and configuration of this implement, including Safety Signs and Safety Equipment,
hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper
training of personnel involved in the operation, transport, maintenance, and storage of the machine. Refer also
to Safety Messages and operation instruction in each of the appropriate sections of the skid steer and
machine manuals. Pay close attention to the Safety Signs affixed to the skid steer and the machine.
Safety Training
1. Safety is a primary concern in the design and manufacture of our products. Unfortunately, our efforts to
provide safe equipment can be wiped out by a single careless act of an operator or bystander.
2. In addition to the design and configuration of equipment, hazard control and accident prevention are
dependent upon the awareness, concern, prudence, and proper training of personnel involved in the
operation, transport, maintenance, and storage of this equipment.
3. It has been said, "The best safety feature is an informed, careful operator." We ask you to be that kind of an
operator. It is the operator's responsibility to read and understand ALL Safety and Using instructions in the
manual and to follow these. Accidents can be avoided.
4. the machine. If this machine is used by any person other than yourself, or is loaned or rented, it is the machine
owner's responsibility to make certain that the operator, prior to using:
a. Reads and understands the operator's manuals.
b. Is instructed in safe and proper use.
5. Know your controls and how to stop the skid steer tractor and machine quickly in an emergency. Read this
manual and the one provided with skid steer tractor.

WWW.TMGINDUSTRIAL.COM 4 / 12 Toll Free:1-887-761-2819
IMPORTAN SAFETY INFORMATION
6. Train all new personnel and review instructions frequently with existing workers. Be certain only a properly
trained and physically able person will use the machinery. A person who has not read and understood all
using and safety instructions is not qualified to use the machine. An untrained operator exposes himself and
bystanders to possible serious injury or death. If the elderly are assisting with the work, their physical
limitations need to be recognized and accommodated.
Preparation
1. Never use the machine until you have read and completely understand this manual, the skid steer tractor
Operator's Manual and each of the Safety Messages found on the safety signs on the skid steer tractor
and machine.
2. Personal protection equipment including hard hat, safety glasses, safety shoes, and gloves are
recommended during assembly, installation, operation, adjustment, maintaining, repairing, removal,
cleaning, or moving the unit. Do not allow long hair, loose fitting clothing or jewelry to be around
equipment.
3. PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE PERMANENT HEARING LOSS!
Power equipment with or without equipment attached can often be noisy enough to cause permanent,
partial hearing loss. We recommend that you wear hearing protection on a full-time basis if the noise in the
Operator's position exceeds 80db. Noise over 85db on a long-term basis can cause severe hearing loss.
Noise over 90db adjacent to the Operator over a long-term basis may cause permanent, total hearing loss.
NOTE: Hearing loss from loud noise (from tractors, chain saws, radios, and other such sources close to
the ear) is cumulative over a lifetime without hope of natural recovery.
4. Clear working area of stones, branches or hidden obstacles that might be hooked or snagged, causing
injury or damage.
5. Use only in daylight or good artificial light.
6. Be sure machine is properly mounted, adjusted and in good operating condition.
7. Ensure that all safety shielding, and safety signs are properly installed and in good condition.

WWW.TMGINDUSTRIAL.COM 5 / 12 Toll Free:1-887-761-2819
IMPORTAN SAFETY INFORMATION
Maintenance Safety
1. Good maintenance is your responsibility. Poor maintenance is an invitation to trouble.
2. Follow good shop practices.
- Keep service area clean and dry.
- Be sure electrical outlets and tools are properly grounded.
- Use adequate light for the job at hand.
3. Make sure there is plenty of ventilation. Never operate the engine of the towing
vehicle in a closed building. The exhaust fumes may cause asphyxiation.
4. Before working on this machine, shut off the engine, set the brake, and turn fuel valve off.
5. Never work under equipment unless itis blocked securely.
6. Always use personal protection devices such as eye, hand and hearing protectors, when performing any
service or maintenance work. Use heavy or leather gloves when handling blades.
7. Where replacement parts are necessary for periodic maintenance and servicing, genuine factory
replacement parts must be used to restore your equipment to original specifications. The manufacturer will
not be responsible for injuries or damages caused by use of unapproved parts and/or accessories.
8. A fire extinguisher and first aid kit should be kept readily accessible while performing maintenance on this
equipment.
9. Periodically tighten all bolts, nuts and screws and check that all electrical and fuel connections are
properly secured to ensure unit is in a safe condition.
10. When completing a maintenance or service function, make sure all safety shields and devices are installed
before placing unit in service.

WWW.TMGINDUSTRIAL.COM 6 / 12 Toll Free:1-887-761-2819
IMPORTANT SAFETY INFORMATION
Hydraulic Safety
1. Make sure that all the components in the hydraulic system are kept in good condition and are clean.
2. Before applying pressure to the system, make sure all components are tight, and that lines, hoses and
couplings are not damaged.
3. Do not attempt any makeshift repairs to the hydraulic lines, fittings, or hoses by using tapes, clamps or
cements. The hydraulic system operates under extremely high pressure. Such repairs will fail suddenly and
create a hazardous and unsafe condition.
4. Wear proper hand and eye protection when searching for a high-pressure hydraulic leak. Use a piece of wood
or cardboard as a backstop instead of hands to isolate and identify a leak.
5. If injured by a concentrated high-pressure stream of hydraulic fluid, seek medical attention immediately.
Serious infection or toxic reaction can develop from hydraulic fluid piercing the skin surface.
6. Relieve pressure on hydraulic system before maintaining or working on system.

WWW.TMGINDUSTRIAL.COM 7 / 12 Toll Free:1-887-761-2819
IMPORTANT SAFETY INFORMATION
Transport Safety
1. Comply with state and local laws governing safety and transporting of machinery on public roads.
2. Check that all the lights, reflectors and other lighting requirements are installed and in good working condition.
3. Do not exceed a safe travel speed. Slow down for rough terrain and cornering.
4. Do not drink and drive.
5. Be a safe and courteous driver. Always yield to oncoming traffic in all situations, including narrow bridges,
intersections, etc. Watch for traffic when operating near or crossing roadways.
To the New Operator or Owner
Follow all safety instructions exactly. Safety is everyone's business. By following recommended procedures, a
safe working environment is provided for the operator, bystanders, and the area around the worksite.
Untrained operators are not qualified to operate the machine.
Many features incorporated into this machine are the result of suggestions made by customers like you. Read
this manual carefully to learn how to use the chipper safely and how to set it to provide maximum field
efficiency. By following the using instructions in conjunction with a good maintenance program, your Skid
Steer Brush Cutter will provide many years of trouble- free service.

WWW.TMGINDUSTRIAL.COM 8 / 12 Toll Free:1-887-761-2819
OPERATION
Bolt Torque
CHECKING BOLT TORQUE
The tables shown below give correct torque values for various bolts and cap screws. Tighten all bolts to the
torques specified in chart unless otherwise noted. Check tightness of bolts periodically, using bolt torque chart
as a guide. Replace hardware with the same strength bolt.
Torque figures indicated above are valid for non-greased or non-oiled threads and heads unless otherwise
specified. Therefore, do not grease or oil bolts or cap screws unless otherwise specified in this manual. When
using locking elements, increase torque values by 5%.
* Torque value for bolts and cap screws are identified by their head markings

WWW.TMGINDUSTRIAL.COM 9 / 12 Toll Free:1-887-761-2819
SPECIFICATION
Specifications & Capacities
• Universal skid steer mount
• Maximum cutting capacity: 2"
• Max hydraulic pressure: 2900 psi
• Hydraulic flow rate: 15-25GPM
• Total width: 62"
• Cut width:60”
• Cutting blades: 2
• Shipping weight: 960lbs

WWW.TMGINDUSTRIAL.COM 10 / 12 Toll Free:1-887-761-2819
PARTS LIST

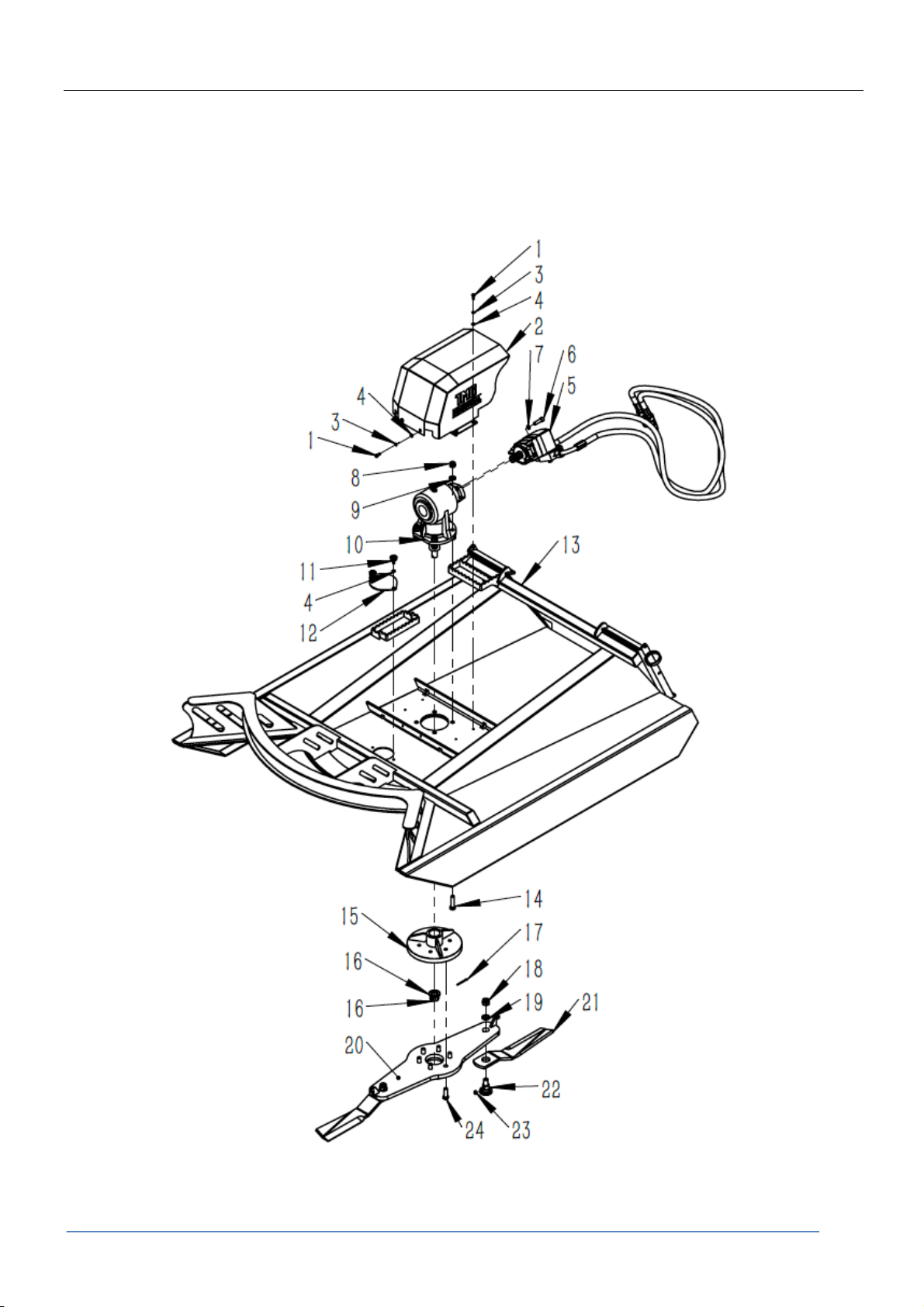

SBC60 Brush Cutter Assembly

WWW.TMGINDUSTRIAL.COM 11 / 12 Toll Free:1-887-761-2819
PARTS LIST
Part No.
Ref.
Part Description
QTY
1
GB/T 5783
Bolt M8*20
6
2
JSSL60.12TMG
Protective cover Weldment
1
3
GB/T 93
Spring Washer 8
6
4
GB/T 97.1
Washer 8
8
5
SBC60.5
Hydraulic components
1
6
ASME B 18.3
Hex Bolt 1/2-13*1-3/4
4
7
GB/T 93
Washer 12
4
8
GB/T 889.1
Nut M16
4
9
GB/T 97.1
Washer 16
8
10
RC51-193DM
50hp Gearbox
1
11
PTK680.2-2
Plum blossom handle M8*20
2
12
SBC60.7
Platen
1
13
SBC60.2
Deck
1
14
GB/T 5783
Bolt M16*60
4
15
SBC60.3
Connecting Flange Weldment
1
16
RC-30-120050
Slotted Hex Nut 1"-14 UNC
1
17
GB/T 91
Cotter pin 5×50
1
18
GB/T 889.1
Nut M20
2
19
GB/T 97.1
Washer 20
2
20
SBC60.6
Blade Seat Weldment
1
21
SBC60.1
Blade
2
22
SBC60.4
Blade Bolt
2
23
GB/T 1096
Key 8*18
2
24
GB/T 5783
Bolt M16*45
6

WWW.TMGINDUSTRIAL.COM 12 / 12 Toll Free:1-887-761-2819
PARTS LIST
SBC60 Hydraulic components
Part No.
Ref.
Part Description
QTY
A1
BMS-160-F6-F-D-B
Motor
1
A2
MD/YLF-133/35
Overflow valve block
1
A3
W-05-GE18L1/2NPT
End Straight Joint NPT1/2"-M27*1.5
2
A4
W-05-KIS-PT-N04PF
Flat Faced Couplers NPT1/2 Male
1
A5
GB/T 97.1
Washer 10
2
A6
GB/T 93
Washer 10
2
A7
GB/T 5783
Bolt M12*50
2
A8
SBC60.5-1
Hydraulic Hose: Length:1800mm
2
A9
W-05-KIS-PT-N04SF
Flat Faced Couplers NPT1/2 Female
1
A10
GE18LREDOMD
End Straight Joint G1/2"-M27*1.5
2
