Toa ER-1203 User manual

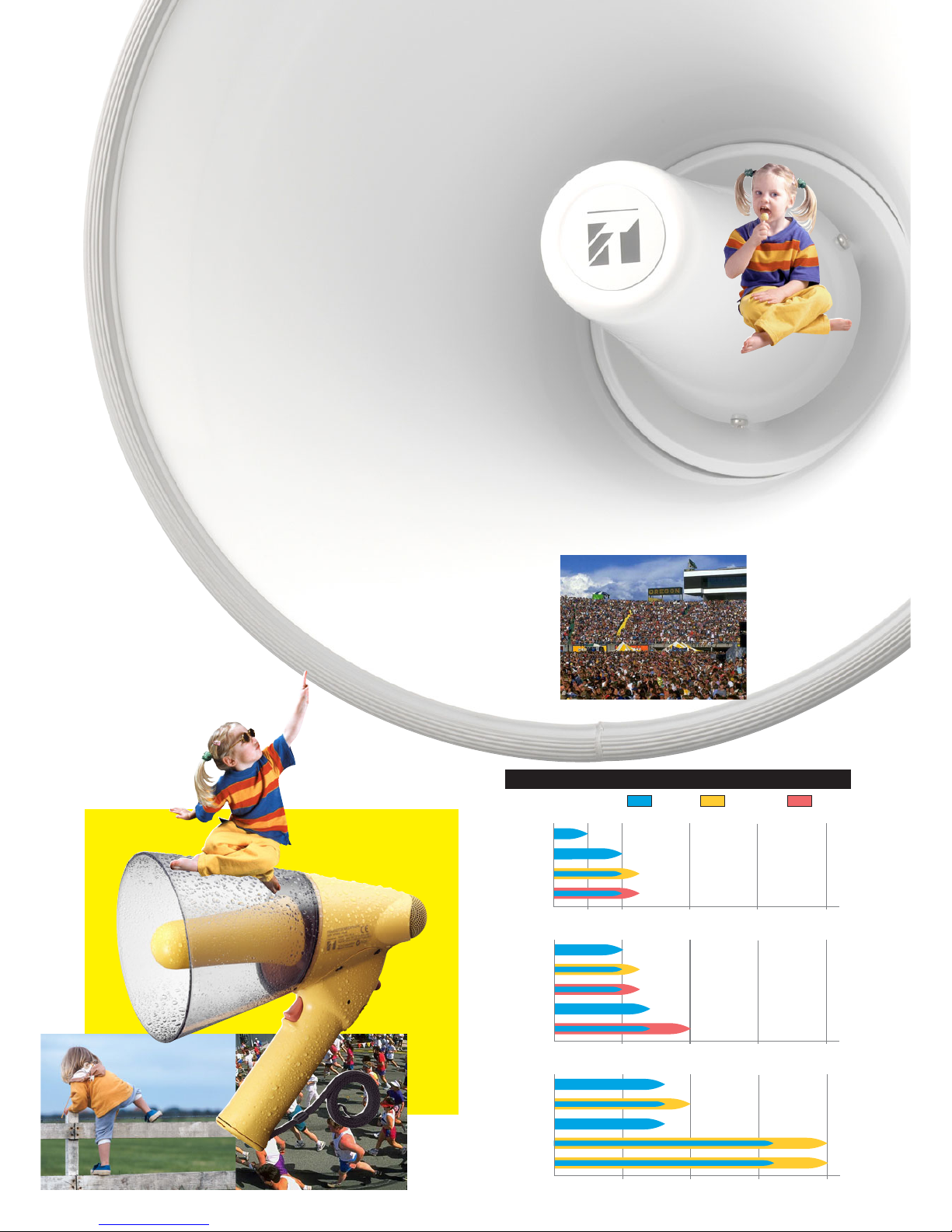

POWER
MEGAPHONE
Anti-bacteria-treated
Effective communications for any situation.

Ideal for any reinforcement
requirements.
Voice Whistle Siren
ER-520
ER-520W
ER-520S
ER-1215
ER-1215S
0 250 500 750 1000m
ER-2215
ER-2215W
ER-3215
ER-2930W
ER-2230W
0 250 500 750 1000m
ER-1203
ER-1206
ER-1206W
ER-1206S
0 125 250 500 750 1000m
TOA offers an extensive range of portable
power megaphones that provide optimal
reinforcement for various applications in
different environments such as schools,
government organization facilities, and
factories and many others.
All models incorporate anti-bacterial
treatment to cope with multi-user
environments.
Featuring compact and stylish designs
with powerful outputs, TOA megaphones
also offer splash-resistant megaphones
as well as high-performance shoulder
types that provide a separate auxiliary
input and even wireless microphone
capability (ER-2930W). Other features
such as siren (S) and whistle (W) are
available on some models.
The wide range of types makes it easier
than ever for the user to select
he ideal megaphone for his or
her use. Sizes and
weights range from
powerful shoulder type
megaphones with a
maximum 45W output to
light, compact models. The speaker
features rugged polyimide (PI) materials
for the diaphragms and neodymium
magnets to achieve exceptional acoustic
performance. Excellent battery life from
AA, C or D batteries (depending on
megaphone model) provides significantly
longer performance. Fixed stand options
are also available.
Audible Range

Splash-proof Hand Grip Type Megaphone
Compact Hand Grip Type Megaphone
Hand Grip Type Megaphone
Shoulder Type Megaphone
Control Panel
(ER-2930W/ER-2230W)
ER-1203
4W max.
IPX5*
ER-1206
10W max.
IPX5*
ER-1206W
10W max.
IPX5*
with Whistle
ER-1206S
10W max.
IPX5*
with Siren
ER-520
10W max.
ER-520W
10W max.
with Whistle
ER-520S
10W max.
with Siren
ER-1215
23W max.
ER-1215S
23W max.
with Siren
ER-3215
23W max.
ER-604W (10W max.)
ER-2215
23W max.
ER-2215W
23W max.
with Whistle ER-2930W
45W max.
with Whistle
with Wireless Function
ER-2230W
45W max.
with Whistle
Related Equipment
* Protected against heavy seas or water protected in powerfull jets shall not enter the enclosure.
MEGA TALK
The ER-604W is a versatile and
compact shoulder type megaphone with
many convenient functions and features
such as a whistle function, mic-located
volume control and press-to-talk switch.
It can be used with a dynamic mic,
electret condenser mic as on convenient
headset microphones for hands-free
operation and also provides an auxiliary
input for another program source. The
ER-604W is battery powered and can
also be externally powered.

Specifications are subject to change without notice.
Printed in Japan (0504)
TOA Corporation
www.toa.jp
Power Source
Rated Output
Maximum Output
Battery Life
Audible Range
Signal Sound
Frequency Response
Magnetic Circuit
Diaphragm
Anti-bacteria Treatment
Water Protection
Operating Temperature
Finish
Dimensions
Weight
Accessory
Option
ER-1203 ER-1206 ER-1206W ER-1206S
R6P (AA) ×4 (6V DC) R6P (AA) ×6 (9V DC) or R6P (AA) ×4 with battery spacer (6V DC)
3W 6W
4W 10W
Approx. 8 hours When using six R6P batteries (JEITA)*
2
When using six R6P batteries (JEITA)*
2
When using six R6P batteries (JEITA)*
2
Voice: Approx. 8 hours Voice: Approx. 8 hours, Voice: Approx. 8 hours,
—Whistle: Approx. 20 minutes Siren: Approx. 20 minutes
When using four R6P batteries (JEITA)*
2
When using four R6P batteries (JEITA)*
2
When using four R6P batteries (JEITA)*
2
Voice: Approx. 5 hours Voice: Approx. 5 hours, Voice: Approx. 5 hours,
—Whistle: Approx. 10 minutes Siren: Approx. 10 minutes
Voice: Approx. 125m (JEITA)*
2
Voice: Approx. 250m (JEITA)*
2
Voice: Approx. 250m (JEITA)*
2
Voice: Approx. 250m (JEITA)*
2
——Whistle: Approx. 315m (JEITA)*
2
Siren: Approx. 315m (JEITA)*
2
——Whistle Siren (sounds of 5 seconds intervals)
500 – 6,000Hz (SPL –20dB) 450 – 6,000Hz (SPL –20dB)
Neodymium magnet, inner magnet type
Polyimide film (voice coil, bobbin)
Mouth and handle
IPX5
–10°C to +40°C
Horn: ASA resin, clear dark gray Horn: ASA resin, clear dark gray Horn: ASA resin, clear dark gray Horn: ASA resin, clear red
Other: ASA resin, dark gray Other: ASA resin,dark gray Other: ASA resin, yellow Other: ASA resin, red
Strap: Nylon, black Strap: Nylon, black Strap: Nylon, black Strap: Nylon, black
137 (W) ×257,8 (H) ×210 (D)mm 153 (W) ×266 (H) ×250 (D)mm
610g (without batteries) 660g (without batteries) 680g (without batteries) 680g (without batteries)
—Battery spacer ×1
Wall mounting bracket for megaphone : SP-1100
Note: Batteries are option
*
1
0dB = 1V
*
2
JEITA: Japan electronics and information technology industries association. (EIAJ TT-4501A)
*
3
Do not use the unit in the unit in heavy rains or strong winds, or in locations where the unit is directly
exposed to water even using with the supplied splash-proof cover.
Power Source
Rated Output
Maximum Output
Battery Life
Audible Range
Signal Sound
Diaphragm
Anti-bacteria Treatment
Operating Temperature
Finish
Dimensions
Weight
ER-520 ER-520W ER-520S ER-1215 ER-1215S
R6P (AA) ×8 (12V DC) R14P (C) ×6 (9V DC)
6W 15W
10W 23W
Approx. 10 hours (JEITA)* Voice: Approx. 10 hours (JEITA)*
2
Voice: Approx. 10 hours (JEITA)*
2
, Voice: Approx. 14 hours (JEITA)*
2
Voice: Approx. 14 hours (JEITA)*
2
,
—Whistle: Approx. 30 min (JEITA)*
2
Siren: Approx. 40 min (JEITA)*
2
—Siren: Approx. 20 min (JEITA)*
2
Voice: Approx. 250m (JEITA)* Voice: Approx. 250m (JEITA)*
2
, Voice: Approx. 250m (JEITA)*
2
Voice: Approx. 315m (JEITA)*
2
Voice: Approx. 315m (JEITA)*
2
,
—Whistle: Approx. 315m (JEITA)*
2
Siren: Approx. 315m (JEITA)*
2
—Siren: Approx. 500m (JEITA)*
2
—Whistle Siren — Siren
Polyimide film (voice coil, bobbin)
Mouth and handle
–10°C to +40°C
Horn: ABS resin, light gray Horn: ABS resin, light gray Horn: ABS resin, red Horn: ABS resin, light gray Horn: ABS resin, red
Others: ABS resin, gray Others: ABS resin, gray Others: ABS resin, red Others: ABS resin, gray Others: ABS resin, red
Strap: Nylon, black Strap: Nylon, black Strap: Nylon, black Strap: Nylon, black Strap: Nylon, black
160 (W) ×256 (H) ×260 (D)mm 210 (W) ×291 (H) ×346 (D)mm
620g (without batteries) 650g (without batteries) 650g (without batteries) 1.1kg (without batteries) 1.2kg (without batteries)
Power Source
Rated Output
Maximum Output
Battery Life
Audible Range
Signal Sound
AUX Input Sensitivity
EXT Mic Input
Receiving Frequency
Antenna
Diaphragm
Anti-bacteria Treatment
Remaining
Battery Indication
Operating Temperature
Finish
Dimensions
Weight
Accessories
Option
ER-2215 ER-2215W ER-3215 ER-2230W ER-2930W
R14P (C) ×6 (9V DC) Battery: R20P (D) x 10 (15V DC)
External Power: 12V DC Battery
15W 30W
23W 45W
Approx. 9 hours (JEITA)*
2
Voice: Approx. 9 hours (JEITA)*
2
Voice: Approx. 9 hours (JEITA)*
2
Voice: Approx. 17 hours (JEITA)*
2
—Whistle: Approx. 20 min (JEITA)*
2
—Whistle: Approx. 90 min (JEITA)*
2
Voice: Approx. 400m (JEITA)*
2
Voice: Approx. 400m (JEITA)*
2
, Voice: Approx. 400m (JEITA)*
2
Voice: Approx. 800m (JEITA)*
2
,
—Whistle: Approx. 500m (JEITA)*
2
—Whistle: Approx. 1000m (JEITA)*
2
—Whistle (1,600Hz to 2,400Hz) — Whistle (1,600Hz to 2,400Hz)
——— –10dB*
1
(300mV), 10kΩ(ø3.5 mini jack, stereo plug acceptable), volume control
——— 600Ω, unbalanced, ø6.3 phone jack, volume control
————UHF (800MHz band) and VHF (200MHz band)
————Fold-down flexible antenna
Polyimide film (voice coil, bobbin)
Microphone Mouth and handle Microphone
——— LED (also serves as a power indicator)
Stereo ON: Normal use, Flashing: Batteries need replacement
–10°C to +40°C
Horn: ABS resin, light gray Horn ring: Vinyl chloride, gray
Microphone and others: ABS resin, gray Horn: Aluminum, light gray, paint
Strap: Nylon, black Case top: Die-cast aluminum, gray, paint
Strap: Nylon, black, Others: ABS resin, gray
ø210 ×336mm 210 (W) x 219 (H) x 381 (D)mm ø351 x 512mm
(when attaching the microphone)
Body: 1.1kg Body: 1.2kg Body: 1.15kg 3.6kg (without microphone and batteries) 3.8kg (without microphone and batteries)
(without microphone and batteries) (without microphone and batteries) (without microphone and batteries) Microphone: 150g Microphone: 150g
Microphone: 150g Microphone: 150g Microphone: 150g
——— ø3.5 mini plug (AUX input x 1, External power supply cord (1m) x1,
Splash-proof cover x 1*
3
Speaker stand: ST-16 — Speaker stand: ST-16, Speaker stand: ST-16,
Microphone: DM series Microphone: DM series
Wireless Microphone: WM-3220 series,
WM-3310 series, WM-4200 series,
WM-4300 series
Wireless tuner: WTU-3800 series,
WTU-4800 series
SPECIFICATIONS OPTIONS
SP-1100
Wall Mounting Bracket
for ER-1203,
ER-1206,ER-1206W
ER-1206S.
ST-16
Microphone Stand
for ER-2215, ER-2215W,
ER-2230W, ER-2930W,
ER-604W.
Note on the audible range and battery life
1. The indications of the audible range and battery life are based on the JEITA Standard*
2
.
2. Audible Range presumes that the megaphone employs new batteries and is used on a quiet street.
It varies depending on such conditions as battery consumption, ambient noise, wind direction and obstacles.
3. Battery Life assumes that megaphone is used for 30 minutes a day.
