Toa C-CC774 User manual

NTSC
C-CC774
C-CC764
multi-function type
C-CC714
standard type
C-CC574
C-CC564
multi-function type
C-CC514
standard type
C-BC511A
Ceiling Mounting
Bracket
C-BC511U-S
Flush Ceiling Mounting
Bracket (Smoked)
C-BC511W
Wall Mounting
Bracket
C-BC511C-S
Ceiling Mount
Cover (Smoked)
C-A711DM
Smoked Dome
Cover
C-BC711W
Wall Mounting
Bracket
C-BC511U
Flush Ceiling
Mounting Bracket
C-BC511C
Ceiling Mount
Cover
C-BC711PM
Pole Mounting
Bracket
C-BC711P
Ceiling Suspension
Bracket
C-BC511P
Ceiling Suspension
Bracket
Brackets and Covers
For Outdoor Use For Indoor Use
with Ceiling Mount
Cover C-BC511C
C-RM500
Remote Controller
for Camera and Multiplexer
C-RM1000
Remote Controller
for Camera and Digital Video Recorder
Remote Controllers
Combination Dome Cameras
For Outdoor Use For Indoor Use
COMBINATION
DOME CAMERA SYSTEMS

Configuring a perfect surveillance system.
■ Higher resolution delivers better images.
TOA cameras now feature a higher horizontal resolution of
540*
1lines to deliver images of enhanced quality.
■ All points coverage at high speed.
TOA's new combination dome cameras help to improve
monitoring environments with an ideal coverage area that is
made possible with a 360°rotation range to cover any possible
position. Capable of a maximum
rotating speed (panning/tilting) of
360°/second, these versatile
cameras allow rotation speed to be
slowed down as desired.
■ Expanded zooming
ability.
TOA cameras are capably equipped for zooming as needed.
C-CC574 and C-CC774 incorporate a 35X ultra wide-angle
zoom lens for better coverage of a desired image. If even more
zooming is required, 12X digital zooming can be activated,
resulting in an extraordinary combined zoom factor of up to
420X*.
*C-CC574 and C-CC774 cameras are equipped with a high-speed,
wide-angle lens having a 35X zoom while C-CC564 and C-CC764
cameras are equipped with a high-speed, wide-angle lens having a
23X zoom (C-CC514 and C-CC714 having a 22X zoom). With the 12X
digital zoom activated, a total 420X zoom is possible for C-CC574, 276X
zoom for C-CC564 and C-CC764 cameras and 264X zoom for C-
CC514 and C-CC714 cameras.
■ Electronic Image Stabilizer.*1
Using the camera at high zoom settings makes it very
susceptible to wind. Even if the camera shakes slightly, images
blur. TOA incorporates an image stabilization feature in the
camera that minimizes movement-induced blurring to maintain
stable images. In addition, the camera is also equipped with an
angle-speed sensor that can maintain stable images even if
monitoring low-light locations.
■ Sophisticated autofocus modes add
versatility.
TOA cameras are equipped with advanced auto-focusing. Three
independent modes are offered: Auto focus for normal operation
is activated with a single push. Stop Auto Focus activates if the
camera view or viewing angle changes. To keep auto focus
working continuously, the Continuous auto focus can be
engaged.
■ Intelligent image optimizing using the Wide
Dynamic Range function.*2
If the area of coverage exhibits varying brightness levels, it
causes various problems that prevent achieving superb image
quality. These problems pose severe difficulties for cameras that
utilize conventional technology for dealing with brightness
variations. The following two examples illustrate the problem.
However, setting the
focus on the indoors
now "whites out" the
outdoor area.
(Photo B)
Placing the focus on
the outdoors results
in the indoors being
too dark to see well.
(Photo A)
TOA Combination Dome Cameras
incorporate a special Digital Signal
Processor (DSP) that works to optimize
image, producing a single image of
exceptional clarity that is comparable to
the same image when viewed with
human eyes.
■ Motion detection function initiates
operation.*2
When a moving object enters a camera's field
of view, the camera will initiate a preprogrammed operation or a
series of operations. The camera's
view can be monitored onscreen
with a window that is divided into
64 segments and from these,
8 areas can be selected
as motion detection zones.
■ Color image clarity maintained with
sensitivity boost.
In night or dark lighting conditions, the camera's shutter
speed is automatically reduced so that more light can enter.
This function effectively increases the camera's sensitivity so
that dark areas can be made up to 32 times brighter.
Combination Dome Cameras

■ Day/Night operation improves low light
performance.*2
Combination dome cameras also incorporate a separate B/W
mode. At night, as light intensity decreases, this mode
automatically activates, boosting camera sensitivity and making it
possible to capture clear images even in unsatisfactory light
conditions. When light conditions are satisfactory, the camera will
revert to its primary function as a color camera. Used together,
the sensitivity boost and B/W modes allow TOA combination
dome cameras to efficiently function for 24-hour monitoring.
Note: B/W mode allows monitoring target areas that are not possible
in normal light conditions.
■ Protecting privacy.
a) Privacy Masking function.*
2
Depending on system use requirements, there may be
several areas that the system administrator decides does not
require surveillance for whatever reason. Users are allowed to
select in advance the locations they wish to be excluded from
surveillance in a camera's field of view.
Onscreen selected areas can be masked with a rectangle
and a maximum of 8 areas can be masked for privacy.
*C-CC564/C-CC764: 2 masked area/screen
*C-CC574/C-CC774: 4 masked area/screen
b) Restricting camera movement.
In addition to masking areas for privacy, a hardware-oriented
method is also available. A camera's rotation range in both
horizontal and vertical directions can be restricted to exclude
areas from surveillance.
■ Outdoor installation ready.
(meets IP66 standards)
C-CC714, C-CC764 and C-CC774 utilize a waterproof and
dustproof design that fully conforms to IP66 standards and can be
safely installed outdoors. Cameras are cased in a special housing
that withstands outdoor conditions, allowing them to be installed
outdoors, even if the location is directly exposed to rain.
■ Withstands cold weather conditions.
C-CC714, C-CC764 and C-CC774 incorporate a heating circuit
that allows operation in severe temperatures down to –40°C
(–40°F). Heating is automatically turned on when ambient
temperatures go below 0°C (32°F) and will automatically switch off
when the temperatures rise.
Note: Turning the camera on when the camera interior is below 0°C (32°F)
may not result in producing an immediately viewable image. Once the
camera interior temperature rises above 0°C (32°F), images will be viewable.
■ Route tracing facilitates subject monitoring.
In order to make it easy to follow a subject
along a route, the camera can be set to
automatically monitor preset points for
up to 60 seconds. Two different routes
can be programmed.
■ Configuring programmable tours.
Through combinations of the 255 preset positions and trace
function, a camera can be programmed to automatically and
continuously repeat a travel pattern as a tour. Up to 16 tour
patterns can be programmed. Any tour program is able to have
a different travel pattern that can be activated by an alarm input
or timer.
■ Programmable camera operation initiated
by alarm input.
A useful Alarm function allows programming camera operation that
can be activated by an alarm input. Desired camera operations
such as position replay, touring, tracing, and control of the auxiliary
terminal can be programmed to activate when the camera receives
an alarm input. Each camera is equipped with three (C-CC564 and
C-CC574 have eight) alarm inputs and each alarm input can be set
to respond with different preprogrammed operation.
■ Preset operation start with Timer program
function.
A camera can conveniently be set to begin operation at a preset
time with a built-in timer. Each camera has a clock function that
can be set to initiate operation at a preset time. The timer can be
set for a specific date, day of the week, or daily. Up to 16 different
timer programs can be set.
*1C-CC574/C-CC774 only.
*2C-CC564/C-CC574/C-CC764/C-CC774 only.
B/W mode.
(color image)
(B/W image)
Sensitivity boost allows
cameras to provide good
color image quality for
dark areas.
FEATURES

Combination Dome Cameras
FEATURES
■ Titling options.
To facilitate camera use, various titles can be input and displayed
on the monitor. In addition to camera and position titles, other titles
for display include trace title, displayed while the trace function is
on, tour title, displayed when tour function is activated, and alarm
title displayed when an alarm input is received.
■ Flexible installation options.
TOA cameras can easily be installed on ceilings, walls or on poles
thanks to the wide range of mounting brackets available.
■ Software for maintenance.
TOA cameras include dedicated software that allows easy titles
to be set and to create a backup of parameters with a PC.
• Confirmation of camera operation
• Menu-based settings and backup of settings data
• Create title data settings in advance
• Upload camera firmware
■ Freeze preset function*2
Displays the still image during camera movement between preset
positions.
■ Multi-language
• Menu: 4 languages
• Camera ID: 8 languages
■ Auto positional deviation correction
When the camera has rotated to some degree of deviation.
■ Auto Refresh Function
Cleans horizontal rotation contacts periodically.
■ Other functions.
•Tilt (vertical) range: +5°to –185°.*
2
•Auto flip function*
2
•Rotation speed can be varied to match lens zooming ratio
in manual operation mode.
•Flicker-free operation
•Alarm inputs and auxiliary contact output.
•RS-485 protocol control.
*
2
C-CC564/C-CC574/C-CC764/C-CC774 only.
Combination Dome Camera Comparison Table
Function/Specification
C-CC774 C-CC764 C-CC714 C-CC574 C-CC564 C-CC514
Application Outdoor Outdoor Outdoor Indoor Indoor Indoor
Water Dust Protection IP66 IP66 IP66 — — —
Operating Temperature –40°F to +122°F–40°F to +122°F–40°F to +122°F14°F to +122°F14°F to +122°F14°F to +122°F
–40°C to +50°C–40°C to +50°C–40°C to +50°C–10°C to +50°C–10°C to +50°C–10°C to +50°C
Auto Iris Lens Zoom Ratio 35X 23X 22X 35X 23X 22X
Focal Length (f =) 3.4 – 119.0 mm 3.6 – 82.8 mm 4.0 – 88.0 mm 3.4 – 119.0 mm 3.6 – 82.8 mm 4.0 – 88.0 mm
Electronic Zoom Ratio 12X 12X 12X 12X 12X 12X
Image Device 1/4 CCD 1/4 CCD 1/4 CCD 1/4 CCD 1/4 CCD 1/4 CCD
Horizontal Resolution (at Center) 540 line 480 line 480 line 540 line 480 line 480 line
Minimum Required Illumination
50IRE 1 lx 3 lx 1 lx 1 lx 3 lx 1 lx
20IRE 0.3 lx 1 lx 0.3 lx 0.3 lx 1 lx 0.3 lx
High Sensitivity ON 50IRE 0.005 lx 0.03 lx 0.03 lx 0.005 lx 0.03 lx 0.03 lx
High Sensitivity ON 20IRE 0.0015 lx 0.01 lx 0.01 lx 0.0015 lx 0.01 lx 0.01 lx
Number of Preset Positions 255+Home 255+Home 255+Home 255+Home 255+Home 255+Home
Zoom Speed (WIDE end to TELE end)
Preset Operaition 2.0 sec. 1.5 sec. 1.3 sec. 2.0 sec. 1.5 sec. 1.3 sec.
Manual Operation 3.2 sec. 2.9 sec. 2.4 sec. 3.2 sec. 2.9 sec. 2.4 sec.
Rotating Range Panning 360°endless 360°endless 360°endless 360°endless 360°endless 360°endless
Tilting +5°to –185°+5°to –185°+5°to –90°+5°to –185°+5°to –185°+5°to –90°
Rotating Speed 360°/sec. 360°/sec. 360°/sec. 360°/sec. 360°/sec. 360°/sec.
Electronic Image Stabilizer ●——●——
Wide Dynamic Range ●●—●● —
Back Light Compensation ●●●●●●
White Balance ATW/AWB ATW/AWB ATW/AWB ATW/AWB ATW/AWB ATW/AWB
Sensitivity Up (Color mode) Max. 32 times Max. 32 times Max. 32 times Max. 32 times Max. 32 times Max. 32 times
Day/Night operation (B/W mode) ●●—●● —
Motion Detection ●●—●● —
Privacy Masking ●Max 8 area ●Max 8 area — ●Max 8 area ●Max 8 area —
Up to 4/Screen Up to 2/Screen — Up to 4/Screen Up to 2/Screen —
Alarm Input 333883
Contact Output 111221
Power Source 24V AC 24V AC 24V AC 24V AC 24V AC 24V AC

SETTING GUIDE
Switches sync. system and adjusts phase.
SETTING GUIDE
The camera menu screens are comprised of the following
setting item screens.
PRESET SETTING
CAMERA MENU
PRESET
ID SETTING
CAMERA SETTING
AUTO MODE
ALARM
AUX
TIMER
MANUAL
MAINTENANCE
LANGUAGE
Setting Item
Programs the camera position (camera orientation),
displays setting status, and performs reset.
ID SETTINGS
MEMORY*
1
Programs the camera position.
MEMORY RESET
READJUST ALL POS
Resets preset camera position.
DISPLAY
Sets the title.
ID SETTING Sets ID.
Sets the origin point of the angle display.
Sets to display or hides the title.
LOCATION*
2
CAMERA SETTING
Sets camera properties.
WHITE BALANCE*
2
Sets the camera's white balance.
BACKLIGHT*
2
Sets the backlight compensation.
BRIGHTNESS*
2
Adjusts the camera's brightness.
DAY/NIGHT*
2
*
3
FRAME ADJUST
Sets title display position and its length.
ZERO POINT
Sets the character display position.
TRACE 2 PAUSE TIME
TOUR Sets the operation to be programmed.
AUTO MODE
Sets automatic operation of Auto-Pan, Preset
sequence, Trace and Tour.
AUTO KEY Assigns automatic functions to the
Auto key.
AUTO PAN Sets the Auto-Pan operations.
Sets the preset sequence order.
SEQUENCE
TRACE Stores trace movements.
TRACE 1 PAUSE TIME Sets the stop duration of trace movements.
Sets the stop duration of trace movements.
ALARM
Sets alarm operations.
INPUT Sets input number of alarm input.
REPORT Sets the terminal that transmits the alarm
information.
Selects whether to activate the alarm input
with make or break contacts.
ACTIVE STATE
Corrects all preset camera positions.
MEMORY ALL RESET Resets all preset camera positions.
AUTO RETURN
HOME Designates the program the camera
automatically returns to.
FREEZE PRESET*
3
AUTO FOCUS Sets Auto Focus mode.
AGC*
2
Sets AGC.
SLOW SHUTTER*
2
Sets slow shutter.
SHUTTER SPEED*
2
Sets shutter speed.
E- ZOOM Sets a maximum enlargement of
electronic zoom.
ENHANCER*
2
EIS*
5
Electronic Image Stabilization settings.
RESET (CAM SETTING)
Sets whether to forcibly execute action or to
set priority order to operation.
PRIORITY
Sets camera operation when alarm signal
is received.
ACTION
Sets camera operation when the alarm
conditions are released.
RESET ACTION
Sets the period of time that alarm conditions
are maintained.
INTERVAL
Verify alarm logs.
ALARM DATA
SENSITIVITY*
5
Sensitivity-Up selection.
Sets contour enhancement.
CHROMA*
2
Adjusts the chroma.
SYNC
The camera returns to the preset position
automatically when the preset period of
time elapses by external control.
Displays the still image during camera
movement between preset positions.
Sets to give operation priority to black &
white mode or slow shutter mode
depending on the subject’s brightness.
Return each item on the camera setting
screen to the factory default status.
TIMER
Sets the timer.
PROGRAM Sets predetermined operations to be
performed at preset times.
TIME DISPLAY Sets time display to 12-hour or 24-hour
display formats.
DATE DISPLAY Sets date display.
ENTER DATE Sets the date.
ENTER TIMER Sets the time.
SUMMER TIME Sets the summer time (Daylight saving time).
AUX
Sets contact output.
AUX1 Sets contact output.
Sets contact output.
AUX2*
4
MANUAL
Individual settings.
ZOOM SCALABLE P/T Resets zoom interlocking.
P/T LIMIT Designate the pan and tilt rotation limits.
P/T LIMIT SETTING Sets the pan and tilt rotation limits.
MAX P/T SPEED Sets the maximum speed of pan and tilt
operation.
FLIP Sets whether to set the tilt rotation range to
90 or over.
UP LIMIT Sets the tilt angle limit.
MAINTENANCE
Sets functions during maintenance.
LANGUAGE
Selecting the language.
INITIALIZE Corrects deviation of stepping motor.
Corrects deviation of position.
REFRESH
PASSWORD Sets the password required when activating
maintenance menu screen.
MOTOR POWER Improves deviation of preset position.
FACTORY PRESET Returns all setting to initial status set by
the factory.
AUTO ADJUST Automatically corrects deviation of position.
DATA BACKUP Sets data writing and reading.
MOTION DETECTION*
3
Sets motion detection.
PRIVACY MASK*
3
Sets privacy masking area.
*
1
Setting for this item can be entered by the Main Menu screen not by the Camera Menu screen
when the equipments other than the C-RM500 are connected.
*
2
Can also be changed for individual positions at the Camera setting screen for individual positions.
*
3
Can be only set for the C-CC564, C-CC574, C-CC764 and C-CC774.
*
4
Can be only set for the C-CC564 and C-CC574.
*
5
Can be only set for the C-CC574 and C-CC774.

C-CC774 SPECIFICATIONS
Power source 24V AC 50/60Hz (2P loose end)
Power consumption 10W (normal operation), 80W max. (2.8A max.)
Control RS-485 communications system (new protocol compatible)
Video Output VBS 1.0V(p-p), 75Ω, BNC-R jack
Camera Control Terminal RS-485 camera control connector, multi-pair cable 8P, loose end (3P of 8P)
Alarm Input 3 channels, no-voltage make contact input, open voltage: 18V DC,
short-circuit current; Under 2mA (settable alarm action),
multi-pair cable 8P, loose end (3P of 8P)
Auxiliary Contact Output 1 channel, open collector output, withstand voltage: 20V DC,
permissible current: Under 100mA, multi-pair cable 8P, loose end (1P of 8P)
Synchronization Internal synchronization/power synchronization
(phase adjustable when in power synchronization mode)
ID 8 characters (alphanumeric and symbols)
Camera, Position, Trace, Auto-pan, Tour, Home, Alarm, Sector, AUX
No. of Preset Positions 255 Positions + Home
Automatic Operation Auto-pan, Preset sequence, Auto-trace (2 preset patterns (60s)), Tour (16 preset patterns)
Timer Refresh: Starts at the preset time every day or every week by timer settings
Program: Settable 16 actions
Language Menu: English, German, French, Italian
ID: English, German, French, Italian, Russian, Polish, Spanish, Portuguese
Camera
Image device 1/4 type CCD
Resolution Horizontal: 540 lines typ. (at center), 520 lines min
S/N ratio 50dB
Minimum Illumination High-sensitivity function 0FF: 1 lx (50 IRE), 0.3 lx (20 IRE)
High-sensitivity function 0N: 0.005 lx (50 IRE), 0.0015 lx (20 IRE)
(Sensitivity-UP)
High-sensitivity function 0FF: 0.5 lx (50 IRE), 0.15 lx (20 IRE)
High-sensitivity function 0N: 0.0025 lx (50 IRE), 0.00075 lx (20 IRE)
Backlight Compensation WIDE DYNAMIC/WIDE DYNAMIC 2/Pattern 1/Pattern 2/Pattern 3/OFF
Dynamic Range 52dB (backlight compensation: WIDE DYNAMIC operation)
High-Sensitivity Function B/W mode and slow shutter mode (32 times max.)
White Balance ATW/AWB
Iris Automatic
Flicker Reduction Automatic correction
Electronic Zooming 12x zooming
Auto-Focus One push/stop AF/continuous
Lens
Zooming 35x
Effective Focal Length f = 3.4 – 119mm (35X)
Effective Angle of View Horizontal: 55.8°(W) – 1.7°(T), Vertical: 43.3°(W) – 1.3°(T)
Maximum Aperture F 1.4 (W) – F 4.2 (T)
Zoom Speed WIDE end to TELE end Approx. 2s (preset operation), Approx. 3.2s (manual operation)
Pan/Tilt Head
Rotating Range Panning: Endless 360°rotation, Tilting: +5°to –185°
Rotating Speed Panning/Tilting: 360°/s max. (preset operation), 360°/s max. (manual operation)
Other Function Auto-Pan, Freeze Preset, Manual Limit, Privacy Masking (up to 8),
Motion Detection (each 8 presets at each 4 positions), EIS
Operating Temperature –40°F to 122°F (–40˚C to +50˚C)
Operating Humidity Under 90% RH (no condensation)
Application Indoors and outdoors (except seaside, industrial districts and locations exposed to fine particles,
where the unit is subject to corrosion, and heights that expose the unit to strong wind pressure)
Dust/Water Protection IP66
Finish Case, top cover and decorative frame: PC resin, light gray,
Sunshade: Aluminum, light gray, paint, Dome cover: PC resin (transparent)
Dimensions Camera section external diameter: ø9.06
× 13.39 (H)inch (ø230 × 340 (H)mm)
Dome external diameter: ø 5.91inch (ø150mm)
Weight 9.70 lb. (4.4kg)
Accessory
Top cover mounting screw (Hexagon socket screw M4 ×8) ×3,
CD-R (Camera controller software, manual (PDF)) ×1
Option Wall mounting bracket: C-BC711W, Suspension bracket: C-BC711P,
Pole mounting bracket: C-BC711PM, Smoked dome cover: C-A 711DM
C-CC764 SPECIFICATIONS
Power source 24V AC 50/60Hz (2P loose end)
Power consumption 10W (normal operation), 80W max. (2.8A max.)
Control RS-485 communications system (new protocol compatible)
Video Output VBS 1.0V(p-p), 75Ω, BNC-R jack
Camera Control Terminal RS-485 camera control connector, multi-pair cable 8P, loose end (3P of 8P)
Alarm Input 3 channels, no-voltage make contact input, open voltage: 18V DC,
short-circuit current; Under 2mA (settable alarm action),
multi-pair cable 8P, loose end (3P of 8P)
Auxiliary Contact Output 1 channel, open collector output, withstand voltage: 20V DC,
permissible current: Under 100mA, multi-pair cable 8P, loose end (1P of 8P)
Synchronization Internal synchronization/power synchronization
(phase adjustable when in power synchronization mode)
ID 8 characters (alphanumeric and symbols)
Camera, Position, Trace, Auto-pan, Tour, Home, Alarm, Sector, AUX
No. of Preset Positions 255 Positions + Home
Automatic Operation Auto-pan, Preset sequence, Auto-trace (2 preset patterns (60s)), Tour (16 preset patterns)
Timer Refresh: Starts at the preset time every day or every week by timer settings
Program: Settable 16 actions
Language Menu: English, German, French, Italian
ID: English, German, French, Italian, Russian, Polish, Spanish, Portuguese
Camera
Image device 1/4 type CCD
Resolution Horizontal: 480 lines (at center)
S/N ratio 50dB
Minimum Illumination High-sensitivity function 0FF: 3 lx (50 IRE), 1 lx (20 IRE)
High-sensitivity function 0N: 0.03 lx (50 IRE), 0.01 lx (20 IRE)
Backlight Compensation WIDE DYNAMIC/Pattern 1/Pattern 2/Pattern 3/OFF
Dynamic Range 46dB (backlight compensation: WIDE DYNAMIC operation)
High-Sensitivity Function B/W mode and slow shutter mode (32 times max.)
White Balance ATW/AWB
Iris Automatic
Flicker Reduction Automatic correction
Electronic Zooming 12x zooming
Auto-Focus One push/stop AF/continuous
Lens
Zooming 23x
Effective Focal Length f = 3.6 – 82.8mm (23X)
Effective Angle of View Horizontal: 54°(W) – 2.5°(T), Vertical: 41.6°(W) – 1.9°(T)
Maximum Aperture F 1.6 (W) – F 3.7 (T)
Zoom Speed WIDE end to TELE end
Approx. 1.5s (preset operation), Approx. 2.9s (manual operation)
Pan/Tilt Head
Rotating Range Panning: Endless 360°rotation, Tilting: +5°to –185°
Rotating Speed Panning/Tilting: 360°/s max. (preset operation), 360°/s max. (manual operation)
Other Function Auto-Pan, Freeze Preset, Manual Limit, Privacy Masking (up to 8),
Motion Detection (each 8 presets at each 4 positions)
Operating Temperature –40°F to 122°F (–40˚C to +50˚C)
Operating Humidity Under 90% RH (no due condensation)
Application Indoors and outdoors (except seaside, industrial districts and locations exposed to fine particles,
where the unit is subject to corrosion, and heights that expose the unit to strong wind pressure)
Dust/Water Protection IP66
Finish Case, top cover and decorative frame: PC resin, light gray
Sunshade: Aluminum, light gray, paint
Dome cover: PC resin (transparent)
Dimensions Camera section external diameter: ø9.06
× 13.01 (H)inch (ø230 × 330.5 (H)mm )
Dome external diameter: ø 5.91inch (ø150mm)
Weight 9.70 lb. (4.4kg)
Accessory
Top cover mounting screw (Hexagon socket screw M4 ×8) ×3,
CD-R (Camera controller software, manual (PDF)) ×1
Option Wall mounting bracket: C-BC711W, Suspension bracket: C-BC711P,
Pole mounting bracket: C-BC711PM, Smoked dome cover: C-A 711DM
•255 preset positions + Home position
•420X zoom (optical 35X, electronic 12X)
•Electronic Image Stabilizer
•Tilt rotation range +5°to -185°(using Auto-Flip function)
•Pan rotation range continuous 360°
• Pan/tilt maximum rotating speed is 360°/sec
• 1/4 type CCD image device
•540 lines high resolution
•Wide dynamic range
•Autofocus
•High-sensitivity function (color and B/W modes)
•Preset sequency function
•Privacy masking function
•Restricting camera movement
•Auto-trace function
•Auto-tour function
•Motion detection function
•Auto-pan function
•Preset image freeze function
•Dust/Water Protection: IP66
•RS-485 protocol compatible
C-CC774 FEATURES
•255 preset positions + Home position
•276X zoom (optical 23X, electronic 12X)
•Tilt rotation range +5°to -185°(using Auto-Flip function)
•Pan rotation range continuous 360°
• Pan/tilt maximum rotating speed is 360°/sec
• 1/4 type CCD image device
•480 lines high resolution
•Wide dynamic range
•Autofocus
•High-sensitivity function (color and B/W modes)
•Preset sequency function
•Privacy masking function
•Restricting camera movement
•Auto-trace function
•Auto-tour function
•Motion detection function
•Auto-pan function
•Preset image freeze function
•Dust/Water Protection: IP66
•RS-485 protocol compatible
C-CC764 FEATURES
C-CC774/C-CC764/C-CC714
COMBINATION DOME CAMERA (OUTDOOR USE)

C-CC714 SPECIFICATIONS
Power source 24V AC 50/60Hz (2P loose end)
Power consumption 10W (normal operation), 80W max. (2.8A max.)
Control RS-485 communications system (new protocol compatible)
Video Output VBS 1.0V(p-p), 75Ω, BNC-R jack
Camera Control Terminal RS-485 camera control connector, multi-pair cable 8P, loose end (3P of 8P)
Alarm Input 3 channels, no-voltage make contact input, open voltage: 18V DC,
short-circuit current; Under 2mA (settable alarm action),
multi-pair cable 8P, loose end (3P of 8P)
Auxiliary Contact Output 1 channel, open collector output, withstand voltage: 20V DC,
permissible current: Under 100mA, multi-pair cable 8P, loose end (1P of 8P)
Synchronization Internal synchronization/power synchronization
(phase adjustable when in power synchronization mode)
ID 8 characters (alphanumeric and symbols)
Camera, Position, Trace, Auto-pan, Tour, Home, Alarm, Sector, AUX
No. of Preset Positions 255 Positions + Home
Automatic Operation Auto-pan, Preset sequence, Auto-trace (2 preset patterns (60s)), Tour (16 preset patterns)
Timer Refresh: Starts at the preset time every day or every week by timer settings
Program: Settable 16 actions
Language Menu: English, German, French, Italian
ID: English, German, French, Italian, Russian, Polish, Spanish, Portuguese
Camera
Image device 1/4 type CCD
Resolution Horizontal: 480 lines (at center)
S/N ratio 50dB
Minimum Illumination High-sensitivity function 0FF: 1 lx (50 IRE), 0.3 lx (20 IRE)
High-sensitivity function 0N: 0.03 lx (50 IRE), 0.01 lx (20 IRE)
Backlight Compensation Pattern 1/Pattern 2/Pattern 3/OFF
High-Sensitivity Function Slow shutter mode (32 times max.)
White Balance ATW/AWB
Iris Automatic
Flicker Reduction Automatic correction
Electronic Zooming 12x zooming
Auto-Focus One push/stop AF/continuous
Lens
Zooming 22x
Effective Focal Length f = 4.0 – 88mm (22X)
Effective Angle of View Horizontal: 47.3°(W) – 2.2°(T), Vertical: 36.5°(W) – 1.7°(T)
Maximum Aperture F 1.6 (W) – F 3.8 (T)
Zoom Speed WIDE end to TELE end
Approx. 1.3s (preset operation), Approx. 2.4s (manual operation)
Pan/Tilt Head
Rotating Range Panning: Endless 360°rotation, Tilting: +5°to –90°
Rotating Speed Panning/Tilting: 360°/s max. (preset operation), 360°/s max. (manual operation)
Other Function Manual Limit
Operating Temperature –40°F to 122°F (–40˚C to +50˚C)
Operating Humidity Under 90% RH (no due condensation)
Application
Indoors and outdoors (except seaside, industrial districts and locations exposed to fine particles,
where the unit is subject to corrosion, and heights that expose the unit to strong wind pressure)
Dust/Water Protection IP66
Finish Case, top cover and decorative frame: PC resin, light gray
Sunshade: Aluminum, light gray, paint
Dome cover: PC resin (transparent)
Dimensions Camera section external diameter: ø9.06
× 13.01 (H)inch (ø230 × 330.5 (H)mm )
Dome external diameter: ø 5.91inch (ø150mm)
Weight 9.70 lb. (4.4kg)
Accessory
Top cover mounting screw (Hexagon socket screw M4 ×8) ×3,
CD-R (Camera controller software, manual (PDF)) ×1
Option Wall mounting bracket: C-BC711W, Suspension bracket: C-BC711P,
Pole mounting bracket: C-BC711PM, Smoked dome cover: C-A 711DM
•255 preset positions + Home position
•264X zoom (optical 22X, electronic 12X)
•Tilt rotation range +5°to -90°
•Pan rotation range continuous 360°
• Pan/tilt maximum rotating speed is 360°/sec
• 1/4 type CCD image device
•480 lines high resolution
•Autofocus
•High-sensitivity function (color mode)
•Preset sequency function
•Restricting camera movement
•Auto-trace function
•Auto-tour function
•Auto-pan function
•Dust/Water Protection: IP66
•RS-485 protocol compatible
C-CC714 FEATURES
C-BC711P
Suspension Bracket
The C-BC711P is exclusively designed to be used to suspend TOA's outdoor
combination camera from a ceiling or eaves.
The C-BC711W is designed to be used to mount TOA's outdoor combination
camera on a wall.
Finish Base: Aluminum, light gray, paint
Pipe: Stainless steel (SUS304)
Dimensions 5.51 (W) ×6.46 (H) ×7.87 (D)inch (140 (W) ×164 (H) ×200 (D)mm)
Weight 2.21 lb. (1kg)
Accessory Camera mounting screw (M5×12, with washer) ×3
Note: pay attention to the strength of the attaching portion.
Finish Base: Aluminum, light gray, paint
Pipe: Stainless steel (SUS304)
Dimensions 5.51 (W) ×9.45 (H) ×7.41 (D)inch (140 (W) ×240 (H) ×188.1 (D)mm)
Weight 2.87 lb. (1.3kg)
Accessory Camera mounting screw (M5×12, with washer) ×3
Note: pay attention to the strength of wall surface.
Transmissivity Approx. 30%*
Finish Dome: PC resin, smoked
Frame: PC resin, light gray
Dimensions ø8.65 ×5.04 (H)inch (ø219.8 ×128 (H)mm)
(Dome external diameter: ø5.91inch (ø150mm)
Weight 0.88 lb. (400g)
*As a general guideline, the minimum object illumination of the camera equipped with the Smoked Dome Cover is approximately 3.3 times
that of the camera without the cover.
Note: Be careful when installing the camera with this cover in low illumination location as the cover may cause camera sensitivity to decrease.
C-BC711W
Wall Mounting Bracket
Finish Stainless steel (SUS304)
Dimensions 5.51 (W) ×7.87 (H) ×2.36 (D)inch (140 (W) ×200 (H) ×60 (D)mm)
Weight 1.54 lb. (700g)
Note: Reinforce the pole mounting bracket and mounting band separately for security when installing the camera in locations exposed to vibration or
strong winds.
Maintenance the unit, mounting bracket and mounting band periodically to ensure that there are no loose joint nor rickety parts.
C-BC711PM
Pole Mounting Bracket
Using the optional YS-60B and C-BC711W, the C-BC711PM can mount the
outdoor combination camera on a pole.
C-A711DM
Smoked Dome Cover
The C-A711DM Smoked Dome Cover is specially designed to be used in
conjunction with TOA's Combination Cameras.
The Dome Cover is used to make it difficult for individuals to see the
camera's orientation.
Brackets and Dome Cover

•255 preset positions + Home position
•420X zoom (optical 35X, electronic 12X)
•Electronic Image Stabilizer
•Tilt rotation range +5°to -185°(using Auto-Flip function)
•Pan rotation range continuous 360°
• Pan/tilt maximum rotating speed is 360°/sec
• 1/4 type CCD image device
•540 lines high resolution
•Wide dynamic range
•Autofocus
•High-sensitivity function (color and B/W modes)
•Preset sequency function
•Privacy masking function
•Restricting camera movement
•Auto-trace function
•Auto-tour function
•Motion detection function
•Auto-pan function
•Preset image freeze function
•RS-485 protocol compatible
C-CC574 FEATURES
•255 preset positions + Home position
•276X zoom (optical 23X, electronic 12X)
•Tilt rotation range +5°to -185°(using Auto-Flip function)
•Pan rotation range continuous 360°
• Pan/tilt maximum rotating speed is 360°/sec
• 1/4 type CCD image device
•480 lines high resolution
•Wide dynamic range
•Autofocus
•High-sensitivity function (color and B/W modes)
•Preset sequency function
•Privacy masking function
•Restricting camera movement
•Auto-trace function
•Auto-tour function
•Motion detection function
•Auto-pan function
•Preset image freeze function
•RS-485 protocol compatible
C-CC564 FEATURES
C-CC574/C-CC564/C-CC514
COMBINATION DOME CAMERA (INDOOR USE)
C-CC564 SPECIFICATIONS
Power source 24V AC 50/60Hz
Power consumption 9W (normal operation), 19W max. (1.3A max.)
Control RS-485 communications system (new protocol compatible)
Video Output VBS 1.0V(p-p), 75Ω, BNC-R jack
Camera Control Terminal RS-485 camera control connector
Alarm Input 8 channels, no-voltage make contact input, open voltage: 18V DC,
short-circuit current; Under 2mA (settable alarm action)
Auxiliary Contact Output 2 channels, open collector output, withstand voltage: 20V DC,
permissible current: Under 100mA,
relay contact output, permissible voltage: 20V DC,
permissible current: Under 1A
Synchronization Internal synchronization/Power synchronization
(phase adjustable when in power synchronization mode)
ID 8 characters (alphanumeric and symbols)
Camera, Position, Trace, Auto-pan, Tour, Home, Alarm, Sector, AUX
No. of Preset Positions 255 Positions + Home
Automatic Operation Auto-pan, Preset sequence, Auto-trace (2 preset patterns (60s)), Tour (16 preset patterns)
Timer Refresh: Starts at the preset time every day or every week by timer settings
Program: Settable 16 actions
Language Menu: English, German, French, Italian
ID: English, German, French, Italian, Russian, Polish, Spanish, Portuguese
Camera
Image device 1/4 type CCD
Resolution Horizontal: 480 lines (at center)
S/N ratio 50dB
Minimum Illumination High-sensitivity function 0FF: 3 lx (50 IRE), 1 lx (20 IRE)
High-sensitivity function 0N: 0.03 lx (50 IRE), 0.01 lx (20 IRE)
Backlight Compensation WIDE DYNAMIC/Pattern 1/Pattern 2/Pattern 3/OFF
Dynamic Range 46dB (backlight compensation: WIDE DYNAMIC operation)
High-Sensitivity Function B/W mode and slow shutter mode (32 times max.)
White Balance ATW/AWB
Iris Automatic
Flicker Reduction Automatic correction
Electronic Zooming 12x zooming
Auto-Focus One push/stop AF/continuous
Lens
Zooming 23x
Effective Focal Length f = 3.6 – 82.8mm (23X)
Effective Angle of View Horizontal: 54°(W) – 2.5°(T), Vertical: 41.6°(W) – 1.9°(T)
Maximum Aperture F 1.6 (W) – F 3.7 (T)
Zoom Speed WIDE end to TELE end
Approx. 1.5s (preset operation), Approx. 2.9s (manual operation)
Pan/Tilt Head
Rotating Range Panning: Endless 360°rotation, Tilting: +5°to –185°
Rotating Speed Panning/Tilting: 360°/s max. (preset operation), 360°/s max. (manual operation)
Other Function Auto-Pan, Freeze Preset, Manual Limit, Privacy Masking (up to 8),
Motion Detection (each 8 presets at each 4 positions)
Operating Temperature 14˚F to 122˚C (continuously active for operation at temperature below 32°F)
(–10˚C to +50˚C (continuously active for operation at temperature below 0°C))
Operating Humidity Under 90% RH (no condensation)
Application Indoor used
Finish Base: PC/ABS resin, cool gray,
Camera: PC/ABS resin, black
Dimensions ø6.61
× 9.21 (H)inch (ø168 × 234 (H)mm)
Weight 3.75 lb. (1.7kg)
Accessory
Camera mounting screw ×4, Safety wire ×1,
CD-R (Camera controller software, manual (PDF)) ×1
Option Ceiling mount cover: C-BC511C, C-BC511C-S
Flush ceiling mounting bracket: C-BC511U, C-BC511U-S
Ceiling suspension bracket: C-BC511P
Wall mounting bracket: C-BC511W, Ceiling mounting bracket: C-BC511A
C-CC574 SPECIFICATIONS
Power source 24V AC 50/60Hz
Power consumption 9W (normal operation), 19W max. (1.3A max.)
Control RS-485 communications system (new protocol compatible)
Video Output VBS 1.0V(p-p), 75Ω, BNC-R jack
Camera Control Terminal RS-485 camera control connector
Alarm Input 8 channels, no-voltage make contact input, open voltage: 18V DC,
short-circuit current; Under 2mA (settable alarm action)
Auxiliary Contact Output 2 channels, open collector output, withstand voltage: 20V DC,
permissible current: Under 100mA,
relay contact output, permissible voltage: 20V DC, permissible current: Under 1A
Synchronization Internal synchronization/Power synchronization
(phase adjustable when in power synchronization mode)
ID 8 characters (alphanumeric and symbols)
Camera, Position, Trace, Auto-pan, Tour, Home, Alarm, Sector, AUX
No. of Preset Positions 255 Positions + Home
Automatic Operation Auto-pan, Preset sequence, Auto-trace (2 preset patterns (60s)), Tour (16 preset patterns)
Timer Refresh: Starts at the preset time every day or every week by timer settings
Program: Settable 16 actions
Language Menu: English, German, French, Italian
ID: English, German, French, Italian, Russian, Polish, Spanish, Portuguese
Camera
Image device 1/4 type CCD
Resolution Horizontal: 540 lines typ. (at center), 520 lines min.
S/N ratio 50dB
Minimum Illumination High-sensitivity function 0FF: 1 lx (50 IRE), 0.3 lx (20 IRE)
High-sensitivity function 0N: 0.005 lx (50 IRE), 0.0015 lx (20 IRE)
(Sensitivity-UP)
High-sensitivity function 0FF: 0.5 lx (50 IRE), 0.15 lx (20 IRE)
High-sensitivity function 0N: 0.0025 lx (50 IRE), 0.00075 lx (20 IRE)
Backlight Compensation WIDE DYNAMIC/WIDE DYNAMIC 2/Pattern 1/Pattern 2/Pattern 3/OFF
Dynamic Range 52dB (backlight compensation: WIDE DYNAMIC operation)
High-Sensitivity Function B/W mode and slow shutter mode (32 times max.)
White Balance ATW/AWB
Iris Automatic
Flicker Reduction Automatic correction
Electronic Zooming 12x zooming
Auto-Focus One push/stop AF/continuous
Lens
Zooming 35x
Effective Focal Length f = 3.4 – 119mm (35X)
Effective Angle of View Horizontal: 55.8°(W) – 1.7°(T), Vertical: 43.3°(W) – 1.3°(T)
Maximum Aperture F 1.4 (W) – F 4.2 (T)
Zoom Speed WIDE end to TELE end Approx. 2s (preset operation), Approx. 3.2s (manual operation)
Pan/Tilt Head
Rotating Range Panning: Endless 360°rotation, Tilting: +5°to –185°
Rotating Speed Panning/Tilting: 360°/s max. (preset operation), 360°/s max. (manual operation)
Other Function Auto-Pan, Freeze Preset, Manual Limit, Privacy Masking (up to 8),
Motion Detection (each 8 presets at each 4 positions), EIS
Operating Temperature 14˚F to 122˚C (continuously active for operation at temperature below 32°F)
(–10˚C to +50˚C (continuously active for operation at temperature below 0°C))
Operating Humidity Under 90% RH (no condensation)
Application Indoor used
Finish Base: PC/ABS resin, cool gray, Camera: PC/ABS resin, black
Dimensions ø6.61
× 9.21 (H)inch (ø168 × 234 (H)mm)
Weight 3.75 lb. (1.7kg)
Accessory
Camera mounting screw ×4, Safety wire ×1,
CD-R (Camera controller software, manual (PDF)) ×1
Option Ceiling mount cover: C-BC511C, C-BC511C-S
Flush ceiling mounting bracket: C-BC511U, C-BC511U-S
Ceiling suspension bracket: C-BC511P, Wall mounting bracket: C-BC511W
Ceiling mounting bracket: C-BC511A

•255 preset positions + Home position
•264X zoom (optical 22X, electronic 12X)
•Tilt rotation range +5°to -90°
•Pan rotation range continuous 360°
• Pan/tilt maximum rotating speed is 360°/sec
• 1/4 type CCD image device
•480 lines high resolution
•Autofocus
•High-sensitivity function (color mode)
•Preset sequency function
•Restricting camera movement
•Auto-trace function
•Auto-tour function
•Auto-pan function
•RS-485 protocol compatible
C-CC514 FEATURES
Brackets and Dome Covers
C-CC514 SPECIFICATIONS
Power source 24V AC 50/60Hz
Power consumption 9W (normal operation), 19W max. (1.3A max.).
Control RS-485 communications system (new protocol compatible)
Video Output VBS 1.0V(p-p), 75Ω, BNC-R jack
Camera Control Terminal RS-485 camera control connector
Alarm Input 3 channels, no-voltage make contact input, open voltage: 18V DC,
short-circuit current; Under 2mA (settable alarm action)
Auxiliary Contact Output 1 channel, open collector output, withstand voltage: 20V DC,
permissible current: Under 100mA
Synchronization Internal synchronization/power synchronization
(phase adjustable when in power synchronization mode)
ID 8 characters (alphanumeric and symbols)
Camera, Position, Trace, Auto-pan, Tour, Home, Alarm, Sector, AUX
No. of Preset Positions 255 Positions + Home
Automatic Operation Auto-pan, Preset sequence, Auto-trace (2 preset patterns (60s)), Tour (16 preset patterns)
Timer Refresh: Starts at the preset time every day or every week by timer settings
Program: Settable 16 actions
Language Menu: English, German, French, Italian
ID: English, German, French, Italian, Russian, Polish, Spanish, Portuguese
Camera
Image device 1/4 type CCD
Resolution Horizontal: 480 lines (at center)
S/N ratio 50dB
Minimum Illumination High-sensitivity function 0FF: 1 lx (50 IRE), 0.3 lx (20 IRE)
High-sensitivity function 0N: 0.03 lx (50 IRE), 0.01 lx (20 IRE)
Backlight Compensation Pattern 1/Pattern 2/Pattern 3/OFF
High-Sensitivity Function Slow shutter mode (32 times max.)
White Balance ATW/AWB
Iris Automatic
Flicker Reduction Automatic correction
Electronic Zooming 12x zooming
Auto-Focus One push/stop AF/continuous
Lens
Zooming 22x
Effective Focal Length f = 4.0 – 88mm (22X)
Effective Angle of View Horizontal: 47.3°(W) – 2.2°(T), Vertical: 36.5°(W) – 1.7°(T)
Maximum Aperture F 1.6 (W) – F 3.8 (T)
Zoom Speed WIDE end to TELE end
Approx. 1.3s (preset operation), Approx. 2.4s (manual operation)
Pan/Tilt Head
Rotating Range Panning: Endless 360°rotation, Tilting: +5°to –90°
Rotating Speed Panning/Tilting: 360°/s max. (preset operation), 360°/s max. (manual operation)
Other Function Manual Limit
Operating Temperature 14˚F to 122˚C (continuously active for operation at temperature below 32°F)
(–10˚C to +50˚C (continuously active for operation at temperature below 0°C))
Operating Humidity Under 90% RH (no condensation)
Application Indoor used
Finish Base: PC/ABS resin, cool gray,
Camera: PC/ABS resin, black
Dimensions ø6.61
× 9.21 (H)inch (ø168 × 234 (H)mm)
Weight 3.75 lb. (1.7kg)
Accessory
Camera mounting screw ×4, Safety wire ×1,
CD-R (Camera controller software, manual (PDF)) ×1
Option Ceiling mount cover: C-BC511C, C-BC511C-S
Flush ceiling mounting bracket: C-BC511U, C-BC511U-S
Ceiling suspension bracket: C-BC511P
Wall mounting bracket: C-BC511W
Ceiling mounting bracket: C-BC511A
C-BC511A
Ceiling Mounting Bracket
C-BC511C
Ceiling Mount Cover
The C-BC511A is specially designed to mount TOA's Combination
Cameras directly on the ceiling. The bracket facilitates mounting of the
camera on the plasterboard in the double ceiling or other locations where
the mounting screws cannot be installed securely.
The C-BC511C is a camera installation cover designed solely for mounting TOA's
Combination Cameras. The cover is used when mounting the Combination
camera directly to a ceiling or wall or suspending it from the ceiling.
Finish Case: PC/ABS resin, cool gray, Dome cover: Acrylic resin, transparent
Dimensions
ø6.61 ×7.17 (H)inch (ø168 ×182.2 (H)mm) (Dome external diameter: ø4.92inch (ø125mm))
Weight 0.49 lb. (220g)
Finish Surface-treated steel plate, black, paint
Dimensions 5.20 (W) ×1.18 (H) ×2.76 (D)inch (132 (W) ×30 (H) ×70 (D)mm)
Weight 0.35 lb. (160g)
Accessory
Camera mounting screw ×4, Safety wire ×1, Pattern paper × 1
C-BC511C-S
Ceiling Mount Cover (Smoked)
The C-BC511C-S is a camera installation cover designed solely for mounting
TOA's Combination Cameras. The cover is used when mounting the Combination
camera directly to a ceiling or wall or suspending it from the ceiling. The cover is
used to make it difficult for individuals to see the camera's orientation.
Transmissivity Approx. 20%*
Finish Case: PC/ABS resin, cool gray, Dome cover: Acrylic resin, smoked
Dimensions
ø6.61 ×7.17 (H)inch (ø168 ×182.2 (H)mm) (Dome external diameter: ø4.92inch (ø125mm))
Weight 0.49 lb. (220g)
*As a general guideline, the minimum object illumination of the camera equipped with the Ceiling Mount Cover is approximately 5 times that of
the camera without the cover.
Note: Be careful when installing the camera with this cover in low illumination location as the cover may cause camera sensitivity to decrease.
C-BC511U
Flush Ceiling Mounting Bracket
The C-BC511U bracket is designed to be exclusively used for flush ceiling
mounting of TOA's combination camera. Use this bracket when mounting
the camera to the ceiling surface where the fixing screws cannot be
securely installed, such as on the plaster panel of the dual-construction
ceiling. Also, use this bracket to minimize the exposure of the camera.
Finish Bezel: PC/ABS resin, cool gray, Dome cover: Acrylic resin, transparent, Bracket: Aluminum, black, paint.
Surface-treated steel plate, black, paint
Dimensions
ø9.84 ×11.13 (D)inch (ø250 ×282.7 (D)mm) (Dome external diameter: ø4.92inch (ø125mm))
Weight 2.65 lb. (1.2kg)
Accessory Safety wire ×1, Pattern paper ×1
C-BC511U-S
Flush Ceiling Mounting Bracket (Smoked)
The C-BC511U-S bracket is designed to be exclusively used for flush ceiling
mounting of TOA's combination camera. Use this bracket when mounting
the camera to the ceiling surface where the fixing screws cannot be securely
installed, such as on the plaster panel of the dual-construction ceiling. Also,
use this bracket to minimize the exposure of the camera. The bracket is used
to make it difficult for individuals to see the camera's orientation.
Transmissivity Approx. 20%*
Finish Bezel: PC/ABS resin, cool gray, Dome cover: Acrylic resin, smoked, Bracket: Aluminum, black, paint,
Surface-treated steel plate, black, paint
Dimensions
ø9.84 ×11.13 (D)inch (ø250 ×282.7 (D)mm) (Dome external diameter: ø4.92inch (ø125mm))
Weight 2.65 lb. (1.2kg)
Accessory Safety wire ×1, Pattern paper ×1
*As a general guideline, the minimum object illumination of the camera equipped with the Flush Ceiling Mounting Bracket is approximately
5 times that of the camera without the bracket.
Note: Be careful when installing the camera with this bracket in low illumination location as the cover may cause camera sensitivity to decrease.
Finish Top cover: PC/ABS resin, cool gray, Pipe: Stainless steel (SUS304).
Bracket: Surface-treated steel plate, black, paint
Dimensions ø5.91 ×9.17inch (ø150 ×233mm)
Weight 2.65 lb. (1.2kg)
Accessory Top cover ×4, Safety wire ×1, Pattern paper ×1
Finish Top cover: PC/ABS resin, cool gray, Pipe: Stainless steel (SUS304).
Bracket: Surface-treated steel plate, black, paint
Dimensions
5.91 (W) ×7.99 (H) ×7.99 (D)inch (150 (W) ×203 (H) ×203 (D)mm)
Weight 2.43 lb. (1.1kg)
Accessory Safety wire ×1, Top cover ×4, Paper pattern ×1
C-BC511P
Ceiling Suspension Bracket
The C-BC511P is a Ceiling Suspension Bracket designed solely for suspending
TOA's Combination Cameras from the ceiling.
C-BC511W
Wall Mounting Bracket
The C-BC511W Wall Mounting Bracket is specially designed to mount
TOA's Combination Cameras to wall surfaces. Install the unit only in a
location that can structurally support weight of the unit and camera.

C-RM500 C-RM1000
The C-RM500 Remote Controller is designed for use in camera-based
systems that allow remote control from up to 1.2km away over RS-485
communication lines. It allows video images to be switched remotely and
can handle a maximum of 16 TOA's Combination Dome Cameras when
used together with the TOA Multiplexer. Easy-to-see LEDs inform status of
control, alarm, focus and other functions.
The C-RM1000 Remote Controller is used to remotely control the
9-CH/16-CH Digital Video Recorder (C-DR091/161 Series). It can also
control combination cameras connected to the Digital Video Recorder.
A built-in 3-axis joystick allows main operations to be performed with one
hand.
Power Source 12 V DC
Current Consumption 150 mA
Slave Remote Controller RS-485, screwless connector
Camera Control RS-485, screwless connector (*1)
Switcher Control RS-485, screwless connector
RS-232C, D-sub connector (9 pins, male)
Alarm Input RS-232C, D-sub connector (9 pins, male)
Alarm Output/ Alarm output: 16 channels, NPN open collector output,
Control Input withstand voltage: 30 V DC,
control current: 20 mA
Alarm input: 1 channel, no-voltage make contact input,
open voltage: 5 V DC,
short-circuit current: 5 mA max.
Home position selection input:
1 channel, no-voltage make contact input,
open voltage: 5 V DC, short-circuit current: 5 mA max.
D-sub connector (25-pins, female)
Display LED indication of control status, alarm status, alarm hold status,
still picture status, defroster, auxiliary setting, auto,
auto focus, and lens speed
LCD indication of key entry confirmation
Alarm Signal Continuous alarm tone (can be turned on and off)
Number of Unit Up to 2 (one to be set for MASTER unit, another for SLAVE unit)
Connections
Maximum Cable 1.2 km (*2) (between the Remote controller and the
Distance Combination cameras)
Operating Temperature 32°F to 122°F (0°C to +50°C)
Operating Humidity Under 90% RH (no due condensation produced)
Finish Panel: Surface-treated steel plate, sand gray, paint
Sides: Rubber
Dimensions (W ×H ×D) 12.83 ×2.44 ×7.29inch (326 ×62 ×185.2mm)
Weight 3.97 lb. (1.8 kg)
Accessory D-sub connector (9 pins, male) ×1,
D-sub connector(25 pins, male) ×1
Applicable Model Combination dome camera: C-CC504S/554S/514/564/574/
C-CC714/764/774
(option) Switcher: C-MS161D, C-MS91D
Slave remote controller: C-RM500
Interface unit: C-IF500
Alarm unit: C-AL80
(*1) Can connect up to 31 units mixing with combination cameras and interface units.
(*2) Applies to the system where the unit and combination camera are connected in a matched pair.
Represents the total of connected cable distances if multiple combination cameras or interface
units are connected in the system (when the CPEV-S cable thicker than 0.65 mm in diameter is used).
SPECIFICATIONS
SPECIFICATIONS
Unit: mm
•Digital Video Recorder Control
•Screen Display Operation
•Combination Dome Camera
Operation
•Preset Position Programming
and Playback
•Quick Display Function
•Function Programming
•Digital Video Recorder Grouping
•Password Setting
•Monitor Locking
•Web Functions
•Control up to 16 TOA's
Combination Dome Cameras
•Instant position recall
•Controls Multiplexer
•Alarm capability
•2Location Control
APPEARANCE AND DIMENSIONAL DIAGRAM
Power Source 1 2V DC (Supplied from the included AC adapter or from the
digital video recorder)
Power Consumption 80mA (use of the supplied AC adapter)
Digital Video Recorder RS-485, RJ-11 (6P6C)
Control (when the included 3-meter modular cable is used)
RS-485 screwless connector (3 pins)
(with cable length of 3 meters and more, or when C-RF1000 (option) is used)
Alarm Signal Continuous alarm tone (can be turned on and off through the menu)
Maximum Cable Distance 1.2km*
Function Password setting, DVR Group setting, Abbreviation function (512 types),
Preset position setting, Language choice (English/French)
Operating Temperature 32°F to 104°F (0°C to +40°C)
Operating Humidity Under 80% RH (no condensation)
Finish Panel: Surface treated steel plate, silver, painted
Sides: Rubber
Dimensions (W ×H ×D) 12.74 ×4.44 ×7.13inch (323.6 ×112.7 ×181mm)
Weight 3.53 lb. (1.6kg) (excluding AC adapter)
Accessories AC adapter (1.8m) ×1, Modular cable (3m) ×1
Applicable Model (option) Digital Video Recorder: C-DR091/C-DR161 Series
Interface Unit: C-RF1000
*Appllies to the system where the unit and a digital video reccorder are connected in a matched pair.
Represents the total of connected cable distances if multiple digital video recorders or Interface units are
connected in the system.
FUNCTIONS
FUNCTIONS
57.9
31.7
185.2
Figure of the installed unit
25
63.3
62
10˚
181
326
181
56.8
Figure of the unit installed
63
112.7
323.6
177
10°
65
C-RM500
REMOTE CONTROLLER
C-RM1000
REMOTE CONTROLLER

C-IF500
INTERFACE UNIT
C-AL80
ALARM UNIT
SPECIFICATIONSSPECIFICATIONS
APPEARANCE AND DIMENSIONAL DIAGRAM APPEARANCE AND DIMENSIONAL DIAGRAM
A useful option for configuring camera systems, the C-IF500 functions as a
splitter. It provides control over expanding a camera system when the
distance is over 1.2km (max. 3km) between the dedicated C-RM500
Remote Controller and system cameras linked to it. It will also allow
configuring a star connection. Receiving the RS-485 communication line
serial signals, the C-IF500 splits the signals into 4-channel data for slave
units and converts into RS-232C data to be used for public line or fiber optics
communication. Data communication between master and slave terminals is
bidirectional. The C-IF500 also allows easily setting the data communication
speed by DIP switch to suit network requirements.
Unit: mm Unit: mm
44
46
210
279.8
284.1
Power Source 12 V DC
Current Consumption 100 mA
External Control Master: RS-485, screwless connector
terminating resistance (100 Ω) switch ON/OFF
Slave(*
1
): 4 channel, RS-485, screwless connector
RS-232C, D-sub connector (9-pin, male)
Display Power LED indicator, communication LED indicators (TX, RX)
Maximum Cable RS-485: 1.2 km (*
2
)
Distance RS-232C: 10 m
Communication Speed 4800 bps, 9600 bps, 19200 bps, 38400 bps
Operating Temperature 14°F to 122°F (-10°C to +50°C)
Operating Humidity Under 90% RH (no due condensation produced)
Finish Panel: Aluminum, black, 30% gloss, paint
Case: Pre-coated steel plate, 30% gloss, black
Dimensions (W ×H ×D) 8.27 x 1.73 x 11.18 inch (210 x 46 x 284.1 mm)
Weight 3.09 lb. (1.4 kg)
Option Rack mounting bracket:
MB-15B-BK (for rack mounting one C-IF500 unit)
MB-15B-J (for rack mounting two C-IF500 units)
(*
1
) Communications cannot be made between slave terminals.
Each slave terminal can connect up to 31 cameras. (except RS-232C port)
(*
2
)Applies to the system where the unit and combination camera are connected in a matched pair.
Represents the total of connected cable distances if multiple combination cameras or Interface units are connected in the
system (when the CPEV-S cable thicker than 0.65 mm in diameter is used).
Power Source 110 – 120 V AC, 50/60 Hz
Power Consumption Under 3 W (60mA)
Alarm/Remote Input 32 channels, no-voltage make contact input, open voltage: 5 V DC,
short-circuit current: max. 5 mA, M3 screw terminal,
distance between barriers: 7.62 mm
Control Input/Output 1 channel, RS-232C, D-sub connector (9 P, male)
(only valid for master unit), fixed to 38,400 bps
Master/sub Connection 2 channels, RS-485, maximum cable length: 1200m,
Terminal DIN connector (5 P)
Alarm Reset Input 1 channel, no-voltage make contact input, open voltage: 5 V DC,
short-circuit current: max. 5 mA, D-sub connector (25 P)
Setting Switches Master/Slave: 3-bit DIP switch (Selection of Master or Slave 1—7)
Alarm/Remote: 1-bit DIP switch (Alarm/Remote selection)
Alarm time: 1-bit DIP switch (Edge/Level selection)
RS-485 terminal: Rear-mounted slide switch (RS-485 termination,
Enable/Disable selection)
Application Indoor use
Operating Temperature 32°F to 104°F (0°C to +40°C)
Finish Panel: Aluminum extrusion, black, 30% gloss
Case: Pre-coated steel plate, black, 30% gloss
Dimensions (W ×H ×D)
16.53 × 3.80 × 13.22 inch (420 × 96.6 × 335.8 mm)
Weight 7.94 lb. (3.6 kg)
Accessory DIN plug ×2, RS-232C cable (2 m) ×1, D-sub connector (25 P) ×2,
Power cord (2 m) ×1
Option Rack mounting bracket: MB-23B
Application Model Remote controller: C-RM500
The C-AL80 Alarm Unit serves as the main controller for the alarm
requirements of a system by converting alarm signals initiated by externally
connected equipment into RS-232C-compatible signal data. In addition to its
32 alarm or remote inputs, the C-AL80 can also be linked to a maximum of 8
other C-AL80 units in master/slave configurations. This provides a total of
256 alarm or remote inputs to be transmitted to the C-RM500 remote
controller.
88.4
96.6
420
335.8
319.8 11
Front cover
Enlarged figure for
the inside of a front cover

C-CC774/C-CC764/C-CC714
APPEARANCE AND DIMENSIONAL DIAGRAM
ø179.9
ø150
ø218.5
ø230
330.5
219.5
Multi-pair cable 8 P,
loose end
Power cord length
Approx. 1.8 m
Cable end: 2 P loose end BNC-R jack
Coaxial cable length
Approx. 1.8 m
Multi-pair cable length
Approx. 1.8 m
Safety wire length
Approx. 20 cm
Safety wire fixing screw
ø219.8
1338.9
115ø150
Figure as viewed from point A
Wall mounting bracket
C-BC711W (option)
Mounting example
Pole
ø90– ø340
Pole mounting bracket
YS-60B (option)
Applicable camera
(option)
30
140
100
ø80 4–ø11
57.6˚
30
60
17
165
200
2
10
A
Unit: mm
C-CC774
C-CC764/C-CC714
C-BC711W
C-A711DM
C-BC711P
C-BC711PM
ø180
ø150
ø218.5
ø230
340
219.5
Multi-pair cable 8 P,
loose end
Power cord length
Approx. 1.8 m
Cable end: 2 P loose end BNC-R jack
Coaxial cable length
Approx. 1.8 m
Multi-pair cable length
Approx. 1.8 m
Safety wire length
Approx. 20 cm
164
200
445
165
129
ø48.3
17
33.5
20
4–ø11.4
140
100
30
59
Hook to connect
safety wire
Cable entry hole
on a ceiling ø50
Ceiling mounting example
Applicable camera
(option)
33.5
59
521
279
140
200
140
20
16540
4–ø11.4
100
164
30
17
Hook to connect
safety wire
188.1
ø48.3
Applicable camera
(option)
Cable entry hole on a wall ø50
Wall mounting example
opening for
cable entry ø24
opening for
cable entry ø24

C-CC574/C-CC564/C-CC514
APPEARANCE AND DIMENSIONAL DIAGRAM
Mounting to a heavy-duty ceiling (such as a concrete ceiling)
(View of an optional camera
installation cover attached) ■INSTALLATION EXAMPLE
1. When routing both the coaxial,
power cables and signal cable
from the speaker side.
Anchor bolt
(female screw)
mounting distance
Note: For anchor bolts, use the unit
driving type female screws (M4).
2. When routing both the coaxial,
power cables and signal cable
from the ceiling panel. Camera
center
60
ø80–ø90
122
122234
60
ø118
ø168
4–ø4.5
Connector 1
Power supply
terminal block
C-BC511C (option)
or C-BC511C-S (option)
BNC jack
70
233
70 50
40
81
14
99
ø150
60
ø48.3
46.3
Safety wire (accessory)
(Connect this wire to
an object other than
the bracket.)
“C” channel bracket
Ceiling board
Ceiling hole
Top cover
(accessory)
C-BC511C (option)
or
C-BC511C-S (option)
Applicable camera
(option)
4–ø5
(Ceiling mounting hole)
Drop prevention screw
(M5)
Drop prevention screw
(M5)
4–M4
(Ceiling mountion hole)
Note: When extending a pipe,
use a commercial “88”
stainless steel wound
pipe or copper sheet
wire tube (ø48.3 mm).
(In this event, make
holes as illustrated.)
Note: The mounting hole in the ceiling is
ø40–ø50 mm in diameter.
Ceiling mounting
203
ø150
46.3
70
128
122
ø150
203
370.2
292.5
C-BC511W
Wall mounting
C-BC511C (option)
or C-BC511C-S (option)
Applicable camera
(option)
128
81
40
60
4–M4
(Camera mounting hole)
4–ø5
(Wall mounting hole)
ø125
ø168
ø168
C-BC511C
182.2
242.2
Applicable camera
(option)
Mounting
Cable entry hole
Cable entry hole
4–ø6
228
ø125
ø250
282.7
79
2–10x20
(Safety wire mounting hole)
Safety wire (accessory)
(Connect this wire to
an object other than
the bracket.)
Anchor bolt
C-BC511U
Ceiling board
Note: The mounting hole
in the ceiling is
ø232–ø236 mm
in diameter.
Applicable camera
(option)
Ceiling mounting
10x20
(Anchor bolt mounting hole)
Unit: mm
C-CC574/C-CC564/C-CC514 C-BC511A
C-BC511C/C-BC511C-S C-BC511P
C-BC511U/C-BC511U-S C-BC511W
83.5
122
132
70 60
46
30
Safety wire (accessory)
(Connect this wire to
an object other than
the bracket.)
Anchor bolt
ø140 – 145mm
(Mounting hole
in the ceiling)
C-BC511A
Camera mounting
screw (accessory)
Ceiling board
C-BC511C (option)
or C-BC511C-S (option)
Applicable camera
(option)
*When routing the wiring
to the attic if the unit
is used in conjunction
with the N-CC2564.
the ceiling panel must be
9 – 40mm in thickness.
13x35
(Anchor bolt mounting hole)
4–ø7
(Safety wire mounting hole)
4–ø4.5
(Electric work box mounting hole)
4–M4
(Camera mounting hole)
Ceiling mounting
ø48.3

Specifications are subject to change without notice.
Printed in Japan (0701) 833-53-018-1B u
TOA Corporation
URL : http://www.toa.jp/

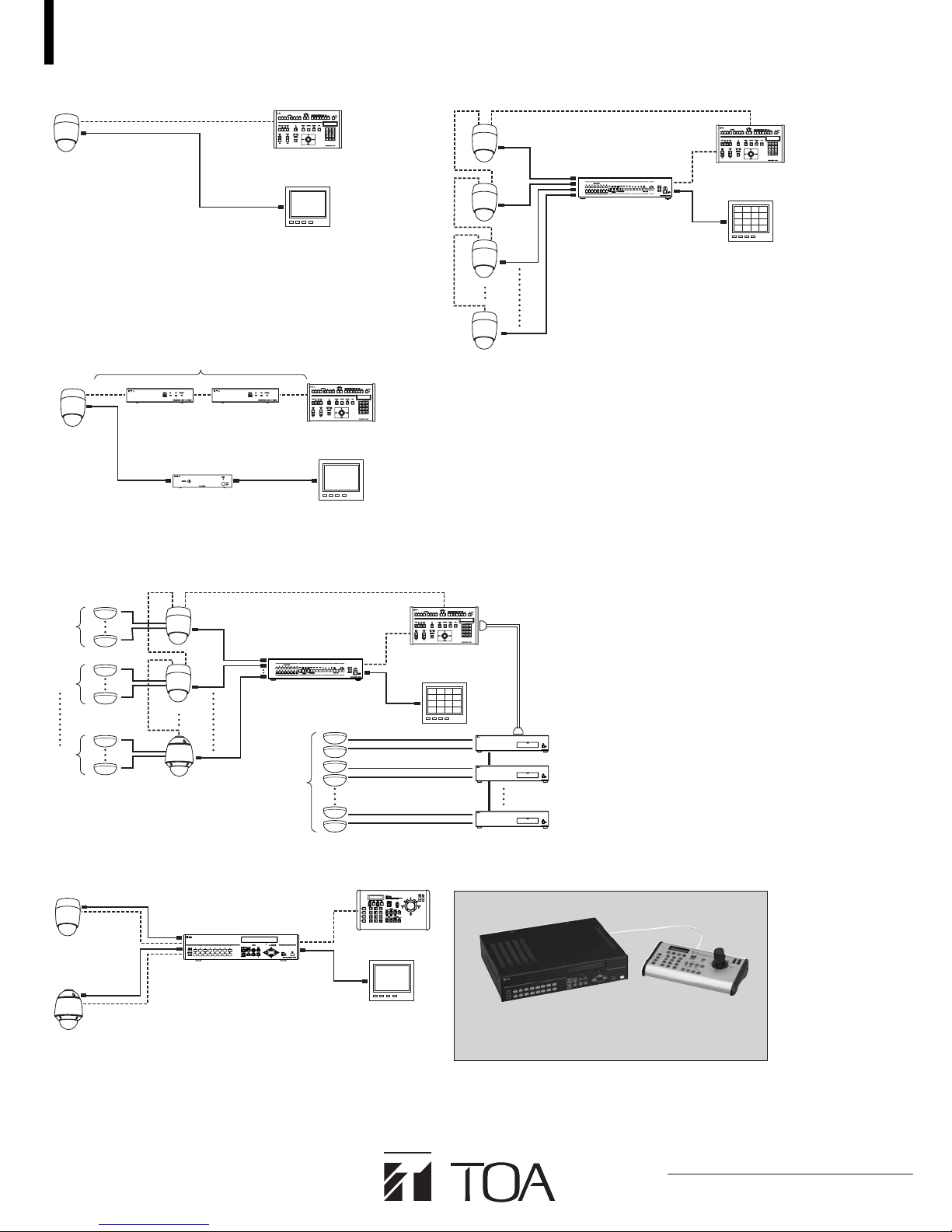

SYSTEM EXAMPLES
Monitor
Remote Controller
C-RM500
Combination
Dome Cameras
C-CC564
1. Combination Dome Camera (1 unit)
C-MS161D
Monitor
Remote Controller
C-RM500
Combination
Dome Cameras
C-CC564
2. Combination Dome Camera (16 units)
Sensor
Sensor
max. 8
C-MS161D
Monitor
RS-232C
Remote Controller
C-RM500
Combination
Dome Cameras
C-CC564
max. 3
max. 256
max. 3 C-AL80
C-AL80
C-AL80
4. Sensor-activated Dome Camera operation.
Multiplexer
Alarm Unit
Multiplexer
max.
16
CC-3331B
Monitor
Remote Controller
C-RM500
C-IF500
Interface Unit C-IF500 Interface Unit
max. 3km
3. When Combination Dome Camera and Remote
Controller are separated by more than 1.2km.
Cable Compensator
C-CC514
C-CC764
Combination
Dome Cameras
C-CC564
Monitor
Remote Controller
C-RM1000
Combination
Dome Camera
C-CC564
Combination
Dome Camera
C-CC764
5. Digital Video Recorder System
Digital Video Recorder
C-DR161 Series
C-DR091 Series
Remote Controller
C-RM1000
Digital Video Recorder
C-DR161 Series
C-DR091 Series
